USER MANUAL Panini Grill Comfort Pro 117202 PRINCESS

ondergedompeld in water of

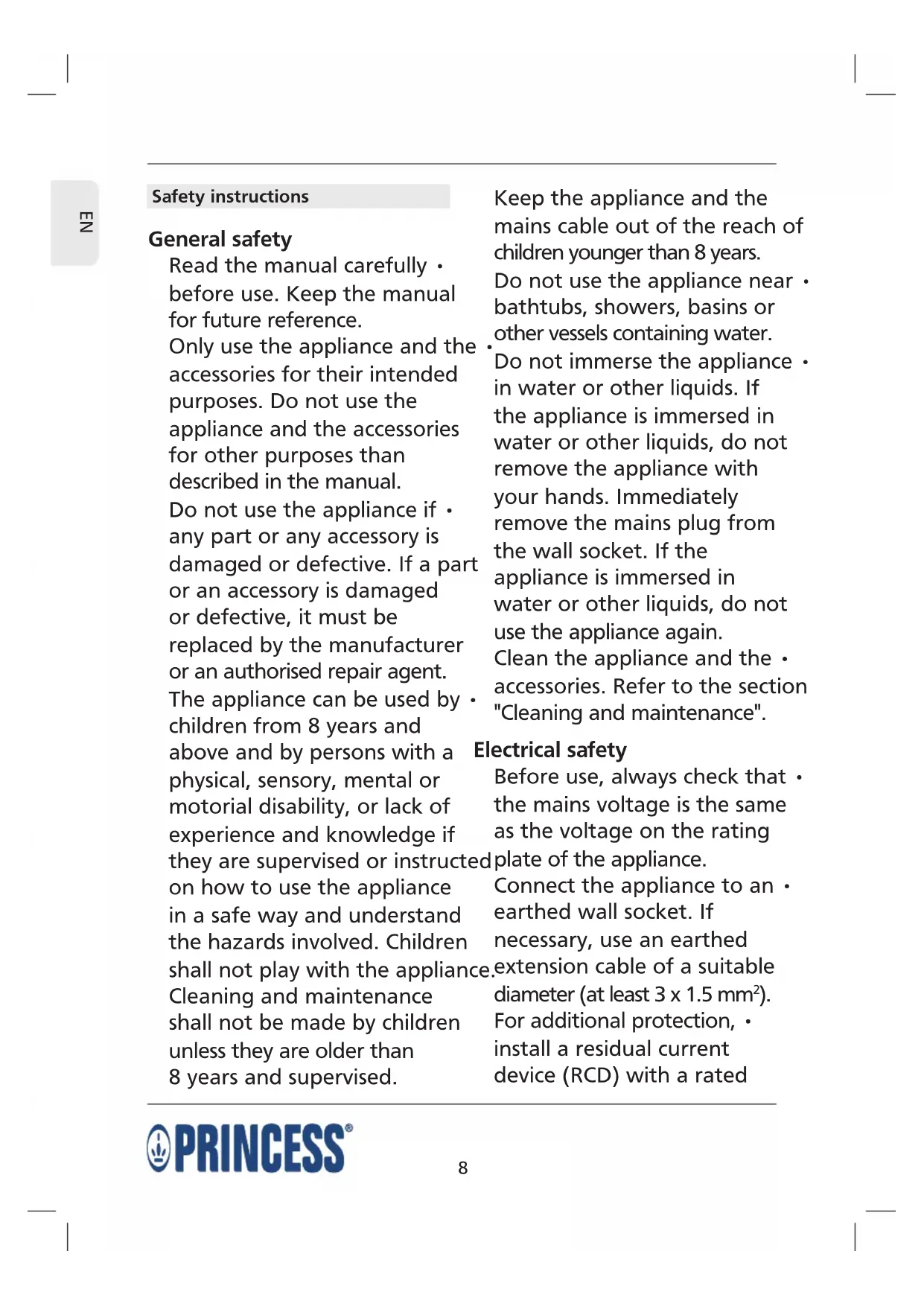

Read the manual carefully •

before use. Keep the manual

for future reference.

Only use the appliance and the •

accessories for their intended

purposes. Do not use the

appliance and the accessories

for other purposes than

described in the manual.

Do not use the appliance if •

any part or any accessory is

damaged or defective. If a part

or an accessory is damaged

or defective, it must be

replaced by the manufacturer

or an authorised repair agent.

The appliance can be used by •

children from 8 years and

above and by persons with a

physical, sensory, mental or

motorial disability, or lack of

experience and knowledge if

they are supervised or instructed

on how to use the appliance

in a safe way and understand

the hazards involved. Children

shall not play with the appliance.

Cleaning and maintenance

shall not be made by children

unless they are older than

8 years and supervised.

Keep the appliance and the

mains cable out of the reach of

children younger than 8 years.

Do not use the appliance near •

bathtubs, showers, basins or

other vessels containing water.

Do not immerse the appliance •

in water or other liquids. If

the appliance is immersed in

water or other liquids, do not

remove the appliance with

your hands. Immediately

remove the mains plug from

the wall socket. If the

appliance is immersed in

water or other liquids, do not

use the appliance again.

Clean the appliance and the •

accessories. Refer to the section

"Cleaning and maintenance".

Before use, always check that •

the mains voltage is the same

as the voltage on the rating

plate of the appliance.

Connect the appliance to an •

earthed wall socket. If

necessary, use an earthed

extension cable of a suitable

diameter (at least 3 x 1.5 mm

For additional protection, •

install a residual current

device (RCD) with a rated9

residual operating current

that does not exceed 30 mA.

The appliance is not intended •

to be operated by means of

an external timer or separate

remote-control system.

Make sure that water cannot •

enter the contact plugs of the

mains cable and the extension

Always fully unwind the mains •

cable and the extension cable.

Make sure that the mains •

cable does not hang over the

edge of a worktop and

accidentally or tripped over.

Keep the mains cable away •

from heat, oil and sharp edges.

Regularly check the mains •

cable and the mains plug for

signs of damage. Do not use

the appliance if the mains

cable or the mains plug is

damaged or defective. If the

mains cable or the mains

plug is damaged or defective,

it must be replaced by the

manufacturer or an authorised

Do not pull the mains cable •

to disconnect the mains plug

Disconnect the mains plug •

from the mains when the

appliance is not in use, before

assembly or disassembly and

Safety instructions for grills

The appliance is suitable for •

Do not use the appliance •

Place the appliance on a stable •

Place the appliance on a heat-•

resistant and splash-proof

Do not place the appliance •

Do not cover the appliance.•

Make sure that there is •

sufficient space around the

appliance to allow heat to

escape and provide sufficient

Make sure that the appliance •

does not come into contact

with flammable material.

Keep the appliance away from •

heat sources. Do not place

the appliance on hot surfaces

or near open flames.

Beware of steam and splashes •

when putting food on the

hot baking plates.10

EN Caution: Hot grease can splash •

from the baking plates.

Do not use charcoal or similar •

Do not pour cold water onto •

water will splash and damage

Always be careful when •

touching the appliance. Use

oven gloves if you need to

touch the appliance during

or shortly after use.

Beware of hot parts. The •

surfaces marked with a caution

symbol for hot surfaces are

liable to become hot during use.

The accessible surfaces can

become hot when the appliance

is operating. The outer surface

can become hot when the

appliance is operating.

The baking plates become •

very hot during use. Do not

touch the hot baking plates.

Make sure that your hands •

are dry before touching the

Do not leave the appliance •

unattended during use.

Do not move the appliance •

while it is switched on or is

still hot. Remove the mains

plug from the wall socket

and wait until the appliance

Do not use the appliance near •

birds (e.g. tropical birds such

as parrots). The baking plates

are finished with a non-stick

coating based on PTFE. Upon

heating, the coating may

release small amounts of gases

which are fully harmless for

people. However, the nervous

systems of birds are extremely

sensitive to these gases.

Cleaning and maintenance

The appliance must be cleaned after each use.

- Before cleaning or maintenance, remove

the mains plug from the wall socket and

wait until the appliance has cooled down.

- Do not immerse the appliance in water or

- Before opening the lid, press the unlock

button to unlock the lid.

- Do not use aggressive or abrasive cleaning

agents to clean the appliance.

- Do not use sharp objects to clean the

- Do not clean the accessories in the dishwasher.

Regularly check the appliance for possible •

Clean the outside of the appliance with a soft, •

damp cloth. Thoroughly dry the outside of

the appliance with a clean, dry cloth.

Clean the baking plates after each use:•

- Remove any residues with a paper

towel. If available, use the scraper

(117201 / 117202).11

- Clean the baking plates with a soft, damp

cloth and a few drops of washing-up

liquid. Thoroughly dry the baking plates

with a clean, dry cloth.

117201 / 117202: Clean the drip tray in soapy •

water. Rinse the drip tray under running

water. Thoroughly dry the drip tray with

117201 / 117202: Clean the scraper in soapy •

water. Rinse the scraper under running water.

Thoroughly dry the scraper with a clean, dry

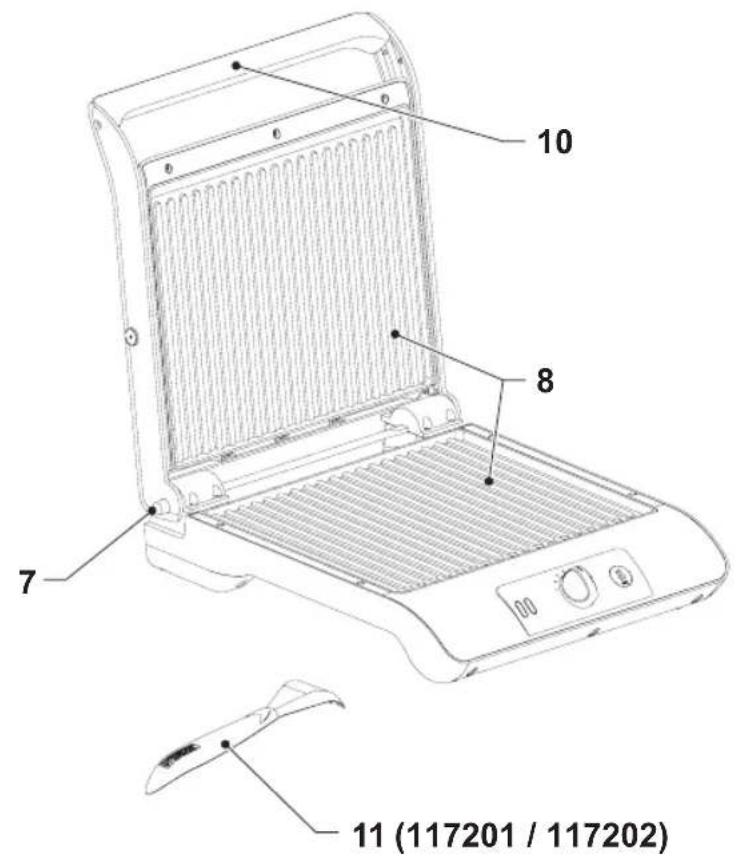

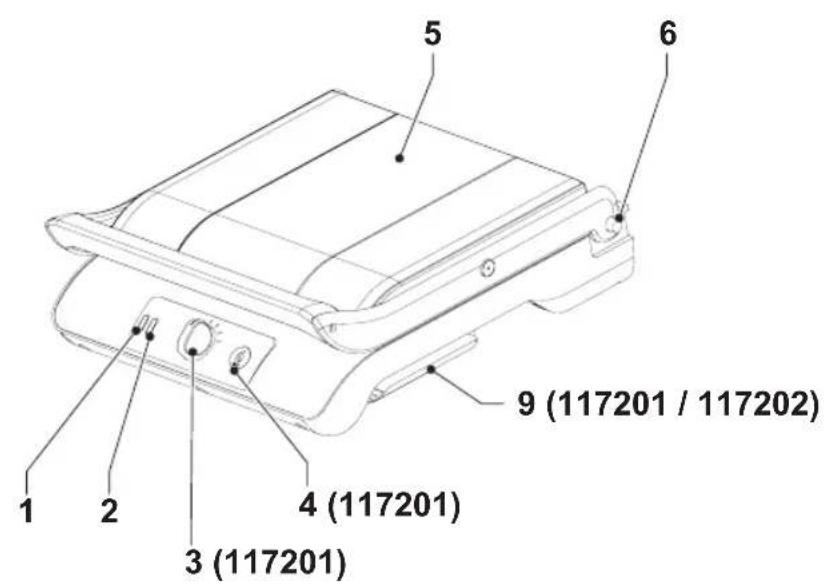

Description (fig. A)

Your 117200/117201/117202 Princess multi

grill has been designed for making sandwiches

and grilling food without using fat. The

appliance is equipped with baking plates with

a non-stick coating. The appliance is suitable

for indoor use only. The appliance is suitable

for domestic use only.

- Make sure that there is sufficient space

around the appliance to allow heat to

escape and provide sufficient ventilation.

- Before opening the lid, press the unlock

button to unlock the lid.

Clean the appliance. Refer to the section •

"Cleaning and maintenance".

Place the appliance on a stable and flat •

Take one of the following actions:•

- 117200 / 117202: Insert the mains plug

into the wall socket. The appliance starts

- 117201: Insert the mains plug into the

wall socket. Turn the temperature control

dial to the maximum temperature.

The appliance starts heating.

After use, remove the mains plug from the •

wall socket and allow the appliance to cool

Note: If you switch on the appliance for the first

time, the appliance may emit a little smoke

and a characteristic smell for a short period.

This is normal operation.

- Before assembly or disassembly, remove

the mains plug from the wall socket and

wait until the appliance has cooled down.

- Do not let metal cutlery touch the baking

plates to prevent damage to the non-stick

- Before opening the lid, press the unlock

button to unlock the lid.

Place the appliance on a stable and flat •

117201 / 117202: Place the drip tray (9) •

into the bottom of the appliance.

Close the lid (5). Press the lock button (7) •

to lock the lid (5).

Take one of the following actions:•

- 117200 / 117202: Insert the mains plug into

the wall socket. The power indicator (1)

comes on. The temperature indicator (2)

comes on. The appliance starts heating.

- 117201: Insert the mains plug into the

wall socket. The power indicator (1)

comes on. Turn the temperature control

dial (3) to the required temperature.

The temperature indicator (2) comes on.

The appliance starts heating.

The temperature indicator (2) goes off when •

the heating elements have reached the

required temperature. The appliance is

Press the unlock button (6) to unlock the lid •

(5). Open the lid (5).

Place the food onto the lower baking plate •

The temperature indicator (2) goes off •

when the heating elements have reached

the required temperature.

Grill the food until it is ready for consumption.•

Stay close to the appliance in order to check •

from time to time whether the food is

ready and to make sure that the food does

117201: If you want to speed up the process, •

press the turbo button (4):

- After preheating the baking plates, place

the food onto the lower baking plate

and close the upper baking plate. Press

the turbo button. The turbo indicator

comes on to indicate that the rapid heating

function has been started. After a while,

the turbo indicator goes off to indicate

that the rapid heating function has been

- Caution: Do not use the turbo function

without food on the baking plate to prevent

the product life from being shortened.

If the food is ready for consumption: Press •

the unlock button (6) to unlock the lid (5).

Remove the food from the baking plate (8) •

using a flat wooden or plastic spatula.

Close the lid (5) to retain the heat for further •

use. Press the lock button (7) to lock the lid

After use, remove the mains plug from the •

Allow the appliance to cool down completely.•13
