USER MANUAL GSC3500DWW GE

SAVE THESE INSTRUCTIONS

For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, electric shock, and to prevent property damage, personal injury, or death. WARNING!

WARNING! Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two or more weeks. HYDROGEN GAS IS EXPLOSIVE. If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke, use an open flame, or use the appliance during this process. n Use this appliance only for its intended purpose as described in this Owner’s Manual. n Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of reach of children. Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds.

Locate sharp items so that they are not likely to damage the door seal. n Load sharp knives with the handles up to reduce the risk of cut-type injuries. n Do not wash plastic items unless marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations. n Do not tamper with controls. n Do not touch the heating element during or immediately after use. n Do not operate your dishwasher unless all enclosure panels are properly in place. n Do not abuse, sit on or stand on the door or dish rack of the dishwasher. n Do not place objects on top of portable dishwasher. n Do not sit or stand on top of portable dishwasher. n Do not allow children or others to sit or stand on open door of the dishwasher. This could cause the dishwasher to tip over resulting in serious injury. n To reduce the risk of injury, do not allow children to play with, on or inside this appliance at any time. n Do not store or use combustible materials including gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance. n Small parts, such as rack clips and filter retaining posts, can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children. WARNING! When using your dishwasher, follow basic precautions, including the following:

PROPER INSTALLATION AND MAINTENANCE

This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by visiting our Website at GEAppliances.com. In Canada, visit www.GEAppliances.ca. n Connect the dishwasher/appliance to a grounded metal, permanent wiring system; or run an equipment-grounding conductor with the circuit conductors and connect to the equipment-grounding terminal or lead of the appliance.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. n Dispose of discarded appliances and shipping or packing material properly. n Do not attempt to repair or replace any part of your dishwasher unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician. n Use only cord kit WX09X70910 or hard-wire to building electrical. Failure to follow this instruction, could result in risk of fire and personal injury. n To minimize the possibility of electric shock, disconnect this appliance from the power supply before attempting any maintenance. NOTE: Turning the dishwasher off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance. WARNING!3

SAVE THESE INSTRUCTIONS

GEAppliances.com READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Junked or abandoned dishwashers are dangerous…even if they will sit for “just a few days.” If you are getting rid of your dishwasher, please follow the instructions below to help prevent accidents. n Do not allow children to play with, on, or inside this or any discarded appliance. n Do not discard a dishwasher without first removing the door of the washing compartment or remove the latch by removing the two screws from the door latch keeper (as shown). WARNING! CAUTION: To prevent minor injury and property damage n During or after wash cycle, contents may be hot to the touch. Use care before handling. n Close supervision is necessary if this appliance is used by or near children. Do not allow children to play around the dishwasher when closing the door, closing the upper rack, or while vertically adjusting the upper rack due to the possibility of small fingers being pinched. n Non-Dishware Items: Do not wash items such as electronic air cleaner filters, furnace filters and paint brushes in your dishwasher. Damage to the dishwasher and discoloration or staining of the dishwasher may result. n Load light-weight, plastic items so they do not become dislodged and drop to the bottom of the dishwasher— they might come into contact with the heating element and be damaged. CAUTION: n This appliance must be supplied with 120V, 60 Hz, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time-delay fuse. n If the electric supply provided does not meet the above specifications, it is recommended that a licensed electrician install an approved outlet. n Your dishwasher circuit should not be used for any other appliance while the dishwasher is in operation as the dishwasher requires the full capacity of the circuit. ELECTRICAL REQUIREMENTS n If your dishwasher is connected to a wall switch, ensure that the switch is on prior to use. n If you choose to turn the wall switch off between wash cycles, allow 5-10 seconds after turning the switch on before touching Start to allow the control to initialize. n Use only powder, Cascade

All-in-1 ActionPacs™, liquid detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children. Cascade

All-in-1 ActionPacs™ Automatic Dishwashing Detergent, and Cascade

Rinse Aid™ rinse agents have been approved for use in all GE dishwashers. NOTICE Door latch keeper4

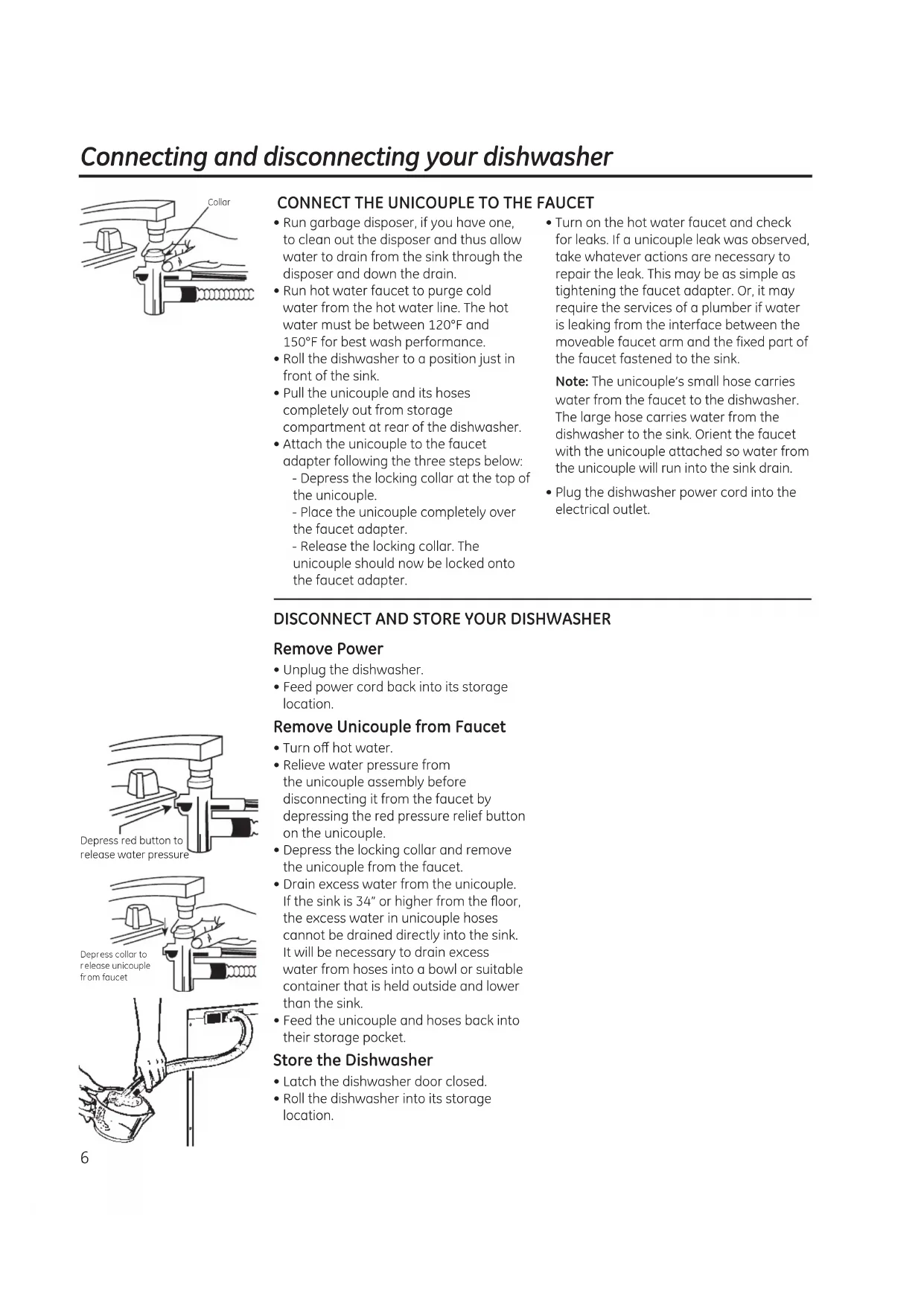

AVISO Cierre de puerta keeper6 Connecting and disconnecting your dishwasher

• Run garbage disposer, if you have one, to clean out the disposer and thus allow water to drain from the sink through the disposer and down the drain.

• Run hot water faucet to purge cold water from the hot water line. The hot water must be between 120°F and 150°F for best wash performance.

• Roll the dishwasher to a position just in front of the sink.

• Pull the unicouple and its hoses completely out from storage compartment at rear of the dishwasher.

• Attach the unicouple to the faucet adapter following the three steps below: - Depress the locking collar at the top of the unicouple. - Place the unicouple completely over the faucet adapter. - Release the locking collar. The unicouple should now be locked onto the faucet adapter.

• Turn on the hot water faucet and check for leaks. If a unicouple leak was observed, take whatever actions are necessary to repair the leak. This may be as simple as tightening the faucet adapter. Or, it may require the services of a plumber if water is leaking from the interface between the moveable faucet arm and the fixed part of the faucet fastened to the sink. Note: The unicouple’s small hose carries water from the faucet to the dishwasher. The large hose carries water from the dishwasher to the sink. Orient the faucet with the unicouple attached so water from the unicouple will run into the sink drain.

• Plug the dishwasher power cord into the electrical outlet. Unicouple Depr ess collar to

elease water pressure

• Unplug the dishwasher.

• Feed power cord back into its storage location. Remove Unicouple from Faucet

• Relieve water pressure from the unicouple assembly before disconnecting it from the faucet by depressing the red pressure relief button on the unicouple.

• Depress the locking collar and remove the unicouple from the faucet.

• Drain excess water from the unicouple. If the sink is 34” or higher from the oor, the excess water in unicouple hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

• Feed the unicouple and hoses back into their storage pocket. Store the Dishwasher

• Latch the dishwasher door closed.

• Roll the dishwasher into its storage location.7 About the dishwasher control panel GEAppliances.com Cycles An indicator light above the selected pad will be ON to indicate which CYCLE has been selected, on some models. POTS & PANS/ For heavily soiled dishes or cookware with dried-on or baked-on soils. Everyday dishes may be included.

HEAVY WASH This cycle will not remove burned-on foods. (on some models) NORMAL/ This cycle is meant for daily, regular, or typical use to completely wash a full load of normally soiled NORMAL WASH dishes and is designed to conserve both water and energy. SHORT WASH For quickly washing loads of everyday dishes with medium soils that have not dried on, such as loads (on some models) consisting mostly of glasses. WATER SAVER For dishes with light soils. LIGHT WASH (on some models) RINSE ONLY For rinsing partial loads that will be washed later. Do not use detergent. DRYING For warming clean dishes and serving plates. This cycle will take approximately 30 minutes. PLATE WARMER HOT PREWASH Preheats wash water to the correct temperature. HOT START CHINA CRYSTAL For lightly soiled china and crystal. (on some models) Control Settings Options An indicator light above the selected pad will be ON to indicate which OPTION has been selected, on some models. HI TEMP Turns on the heater in all final rinse cycles to help prevent spotting on dishware. This option may be RINSE turned ON or OFF during the wash cycle. (on some models) HI TEMP Energizes the heater to boost water temperature in prewash and main wash fill cycles. Recommended WASH for use with heavily soiled dishes. Option may be turned ON or OFF during the wash cycle. HEATED DRY Shuts off the drying heat option. Dishes air dry naturally and energy is saved. Open the dishwasher door OFF to speed drying. HEATED DRY Turns the heater on for fast drying. This cycle will extend the time to your wash cycle by 30 minutes. ON DO NOT use with RINSE ONLY cycle. LOCK When the LOCK pad is touched twice within 3 seconds, all pads become inoperative. You can lock the controls to (electronic models prevent any selections from being made. Or you can lock the controls after you have started a cycle or selected only) DELAY START so the cycle or DELAY START is not interrupted. Children cannot accidentally start dishwasher by touching pads with this option selected. To unlock the dishwasher after it has been locked, touch the LOCK pad twice within 3 seconds. The light above the LOCK pad will turn off. DELAY HOURS Delays the start of a wash cycle for up to 8 hours. (on some models) RESET Touch RESET to cancel options. (timer models) START/RESET Touch START/RESET one time to start dishwasher cycle. Touch START/RESET a second time to pump (electronic models) out and then turn off the dishwasher. Do not touch START/RESET more than one time unless you intend to end the cycle. Cycle Chart Models Cycle Water Usage (gal.) Cycle Time (min.) Timer Models Hot Start Option

Heavy Wash 4.9- 7.0 120 Pots & Pans 6.0 - 7.0 118 Normal Wash* 4.0 - 5.6 110 Light Wash/Water Saver 3.9 - 4.5 114 Rinse Only 2.2 58 Plate Warmer/Drying 0.0 45

Hot Start Option adds water amount and cycle time shown when selected. *Normal Wash button should be pushed to run this cycle. NOTE: Not all models have every cycle listed.8 About the dishwasher control panel You can locate your model number on the left tub wall just inside the door. Throughout this manual, features and appearance may vary from your model. Please match the control panel for your unit to a similar control panel below.Start (Models with a Dial) Slowly turn the Dial to the START or ON position, or the selected cycle. Don’t turn it past the START, ON or cycle position; you could accidentally miss a prewash. There is a time delay between start-up and water fill so you will not hear any wash action right away. ■ Latch the door to begin the cycle.

Operation of models with cycle dial GEAppliances.com Rinse Only For rinsing partial loads that will be washed later. Do not use detergent.

Make sure HEATED DRY is not selected.

Slowly turn the Dial to RINSE ONLY.

Be sure the door is unlatched.

Latch the door to start the cycle.

Be sure the door is unlatched.

Slowly turn the Dial to SHORT WASH, LIGHT WASH or WATER SAVER.

Latch the door to start the cycle. Plate Warmer or Drying

Load clean dishware to be warmed.

Be sure the door is unlatched.

Slowly turn the Dial to PLATE WARMER or DRYING.

Latch the door to start the cycle. Hot Start or Hot Prestart Option Preheats wash water.

Be sure the door is unlatched.

Slowly turn the Dial to HOT START or HOT PRESTART.

Latch the door to start the cycle. For warming clean dishes and serving plates. This cycle will take approximately 39 minutes. Short Wash or Light Wash or Water Saver For quickly washing loads of everyday dishes with light to medium soils that have not dried on.10 Using the dishwasher Filling the Dispenser Fill the rinse agent dispenser until it reaches the bottom of lip inside the opening. Replace cap. To check if rinse agent is needed, remove the cap and look into the dispenser. A full dispenser should last about one month. If the rinse agent spills, wipe up the excess. Check the Water Temperature The entering water must be at least 120°F and not more than 150°F, for effective cleaning and to prevent dish damage. Check the water temperature with a candy or meat thermometer. Turn on the hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water run continuously into the glass until the temperature stops rising. Adjust the maximum/minimum temperature of the water heater if necessary to deliver water at the proper temperature. Use a Rinse Agent such as Cascade

Proper Use of Detergent Rinse agents, such as Cascade

are designed for great drying action and to protect against spots and film build-up on your dishes, glasses, flatware, cookware, and plastic. Be sure the Dial is OFF before adding detergent. Otherwise, the detergent cup will not close and latch properly. Add detergent then close the main cup. NOTE: To open detergent cup after it has been closed, simply turn the detergent cup handle counterclockwise until it releases. A snapping sound may be heard.

DO NOT USE HAND DISH DETERGENT

NOTE: Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds. During operation, these suds will spill out of the dishwasher vents, covering the kitchen floor and making the floor wet. Because so many detergent containers look alike, store the dishwasher detergent in a separate space from all other cleaners. Show anyone who may use the dishwasher the correct detergent and where it is stored. While there will be no lasting damage to the dishwasher, your dishes will not get clean using a dishwashing detergent that is not formulated to work with dishwashers. Open cupMain cup Use only detergent specifically made for use in dishwashers. Cascade

Automatic Dishwashing Detergents have been approved for use in all GE dishwashers. Keep your detergent fresh and dry. Don’t put powder detergent into the dispenser until you’re ready to wash dishes. The amount of detergent to use depends on whether your water is hard or soft. With hard water, you need extra detergent. With soft water, you need less detergent. Protect your dishes and dishwasher by contacting your water department and asking how hard your water is. Twelve or more grains is extremely hard water. A water softener is recommended. Without it, lime can build up in the water valve, which could stick while open and cause flooding. Too much detergent with soft water can cause a permanent cloudiness of glassware, called etching. Use the information in the table below as a guideline to determine the amount of automatic dishwasher detergent to place in the dispenser. You’ll find two detergent dispensers on the inside door of your dishwasher. All wash cycles require detergent in the main cup. When using automatic dishwashing detergent tabs, simply place one tab in the main cup and close. Detergent Cups to Fill Fill to 1/3 of main cup Fill to 2/3 of main cup Fill main cup Fill main cup and open cup Number of Grains Less than 4 4 to 8 8 to 12 Greater than 12Loading the dishwasher racks GEAppliances.com

Upper Rack The upper rack is for glasses, cups and saucers. Cups and glasses fit best along the sides. This is also a secure place for dishwasher-safe plastics. The upper rack is good for all kinds of odd-shaped utensils. Saucepans, mixing bowls and other items should be placed face down. Secure larger dishwasher-safe plastics over two fingers when possible. Make sure small plastic items are secure so they can’t fall onto the heating element. Wash Tower Keep the center area clear in the lower rack. The wash tower rises through the center of the lower rack during the wash and rinse portions of the cycle. For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. Lower Rack When loading the lower rack, do not load large platters or trays in the front right corner. They may prevent detergent from circulating during the wash cycle. The lower rack is best used for plates, saucers and cookware. Large items such as broiler pans and racks should go along the sides. Load platters, pots and bowls along the sides, in corners or in the back. The soiled side of items should face the center of the rack. Don’t block the wash tower or load tall things next to it. Be sure items don’t fall through rack and block rotation of the spray arm. Also, be careful not to let a portion of an item such as a pot or dish handle extend through the bottom rack. This could block the wash arm and cause poor washing results. Silverware Basket Put flatware in the removable basket with fork and knife handles up to protect your hands. Place spoons in the basket with handles down. Mix knives, forks and spoons so they don’t nest together. Distribute evenly. Small plastic items, such as measuring spoons and lids from small containers, should go in the bottom of the silverware basket with silverware on top. DON’T LET ANY ITEM EXTEND THROUGH

OF SPRAY ARM. Do not cover upper rack tower (not present on all models) Tower Don’t block the upper rack wash tower.Loading place settings…

Follow these guidelines for loading 10 place settings. Features and appearance of racks and silverware baskets may vary from your model. Upper Rack—10 place settings Upper Rack—10 place settings Lower Rack—10 place settings Forget to Add a Dish? A forgotten dish can be added any time before the main wash. Push the door latch to the left. Once the water calms, open the door. Steam may rise out of the dishwasher. Add forgotten dish. Close the door and push the latch to the far right. Tips for Loading and Good Wash Performance ■ Don’t block the lower rack wash tower. ■ Don’t let items fall through rack and block spray arms. Upper Rack—12 place settings Upper Rack—12 place settings Lower Rack—12 place settingsCaring for the dishwasher GEAppliances.com

To clean the control panel, use a lightly dampened cloth, then dry thoroughly. To clean the exterior, use a good appliance polish. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher. If your dishwasher is left in an unheated place during the winter, ask a service technician to: Unplug the dishwasher from the wall outlet. Remove the Unicouple from the faucet. Disconnect the hose from the water valve. Drain water from the inlet line and water valve. (Use a pan to catch the water.) Reconnect the water inlet line to the water valve. Remove the plastic sump cover in the tub bottom and use a sponge to soak up water in the rubber boot. Protect Against Freezing Stainless Steel Panels Sump cover screwsFor cleaning rust and tarnish, cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will remove rust, tarnish and small blemishes. Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge. Do not use appliance wax or polish on the stainless steel.For other blemishes and marks, use Stainless Steel Magic or a similar product using a clean soft cloth. Do not use appliance wax, polish, bleach or products containing chlorine on Stainless Steel. You can order Stainless Steel Magic # WX10X29 through GE Parts by calling 877.959.8688. In Canada, call 1-800-661-1616.Problem Possible Causes What To Do Dishwasher won’t run Fuse is blown, or the • Replace fuse or reset circuit breaker. Remove any other appliances circuit breaker tripped from the circuit.

• Try pressing the START/RESET pad (Electronic models) two times. Power is turned off • In some installations, power to the dishwasher is provided through a wall switch, often located next to the disposer switch. Make sure it is on. Noise Some of the sounds • Soft food disposal shredding action. you’ll hear are normal

• Drain valve opening to pump water out.

• Timer control as cycle progresses.

• Detergent cup opening.

• The motor stopping during the drying period.

• Water draining out of tub immediately after touching the START/RESET pad. Utensils are not secure • Make sure everything is secured in dishwasher. in rack or something small has dropped into rack Rattling dishes when • Make sure dishes are properly loaded. See the Loading the the spray arm rotates dishwasher racks section. Motor hums • Dishwasher has not been used on a regular basis. If you do not use your dishwasher often, set it to fill and pump out once every week. This will help keep the seal moist. Water standing in This is normal • A small amount of clean water around the outlet on the tub bottom the bottom of the tub at the back of the tub keeps the water seal lubricated. Water won’t pump Drain is clogged • Check to see if your kitchen sink is draining well. If not, you may need out of the tub a plumber.

• If the dishwasher drains into a disposer, run disposer clear. Suds in the tub Wrong detergent • Use only automatic dishwasher detergents to avoid sudsing. was used Cascade

Complete Automatic Dishwashing Detergents have been approved for use in all GE dishwashers.

To remove suds from the tub, open the dishwasher and let suds dissipate. Add 1 gallon of cold water to the tub. On Models with a Dial: Close and latch the dishwasher. Pump out water by slowly turning the Dial until a drain period is reached. Repeat if necessary. On Models with Electronic Control: Pump out water by pressing the START/RESET pad, then 10 seconds later, press START/RESET pad again. Repeat if necessary. Rinse agent was spilled • Always wipe up rinse agent spills immediately. Stained tub interior Some tomato-based • Use of the RINSE ONLY cycle after adding the dish to the load foods can cause reddish can decrease the level of staining. GE recommends Cascade

stains Plastic Booster to help remove these types of stains. Tea or coffee stains • Remove the stain by hand, using a solution of 1/2 cup bleach and 3 cups warm water. WARNING Before cleaning interior, wait at least 20 minutes after a cycle for the heating elements to cool down. Failure to do so can result in burns.

to help prevent hard water surface—hard water mineral deposits from forming. minerals

• Run dishwasher with citric acid to remove mineral deposits. Citric acid (Part number: WD35X151) can be ordered through GE Parts. See back cover for ordering information. Before you call for service… Troubleshooting Tips Save time and money! Review the charts on the following pages, or visit GEAppliances.com. You may not need to call for service. 14Before you call for service… GEAppliances.com Problem Possible Causes What To Do Dishes don’t dry Low inlet water • Make sure inlet water temperature is at least 120°F. temperature

• Select a higher cycle, such as POTS & PANS or HEAVY WASH. Rinse agent dispenser • Check the rinse agent dispenser and fill as required. is empty Dishes and flatware Inlet water temperature • Raise the water heater temperature to 120°F. not clean is below 120°F.

• Use HOT START, POTS & PANS or HEAVY WASH and HI TEMP WASH. Too little detergent • See Using the dishwasher section, refer to Proper Use of Detergent for detergent recommendations. Old or damp powdered • See Using the dishwasher section, refer to Proper Use of Detergent for detergent detergent recommendations. Water pressure is • Turn on a faucet. Is water coming out more slowly than usual? If so, temporarily low wait until pressure is normal before using your dishwasher. Improper rack loading • Make sure large dishware does not block detergent dispenser or wash arm. Spots and filming • Use Cascade

rinse agents to remove spots and prevent on glasses and new film buildup. flatware • To remove stubborn spots and pre-existing film from glassware: 1 Remove all metal utensils from the dishwasher. 2 Do not add detergent. 3 Select the longest cycle. 4 Start the dishwasher and allow to run for 18 to 22 minutes. Dishwasher will now be in the main wash. 5 Open the door and pour 2 cups (500 ml) of white vinegar into the bottom of the dishwasher. 6 Close the door and allow to complete the cycle. If vinegar rinse doesn’t work: Repeat as above, except use 1/4 cup (60 ml) of citric acid crystals instead of vinegar. Cloudiness on Combination of soft • This is called etching and is permanent. To prevent this from glassware water and too much happening, use less detergent if you have soft water. Wash glassware in detergent the shortest cycle that will get it clean. Water temperature • Lower the water heater temperature. entering the dishwasher exceeds 150°F. Detergent cup lid Dial is not in the OFF • Turn the Timer Dial to OFF. won’t latch position Detergent left in Dishes are blocking the • Reposition the dishes. dispenser cups detergent cups Steam This is normal • Steam comes through the vent by the door latch during drying and when water is being pumped out. Black or gray Aluminum utensils have • Remove marks with a mild, abrasive cleaner. marks on dishes rubbed against dishes Control panel lights Time too long between • Each pad must be touched within 30 seconds of the others. To relight, go off when you are touching or selecting touch any pad again or unlatch and relatch the door. setting controls pads Control panel Door latch may not • Call for service. responded to inputs be properly seated but dishwasher never filled with water Extremely hard water Low inlet water temperature Overloading the dishwasher Improper loading Old or damp powder detergent Rinse agent dispenser empty Too little detergent

What Is Not Covered (for customers in Canada): ■ Service trips to your home to teach you how to use the product. ■ Improper installation. If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate electrical, exhausting and other connecting facilities. ■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. ■ Replacement of house fuses or resetting of circuit breakers. ■ Damage to the product caused by accident, fire, floods or acts of God. ■ Damage caused after delivery. For The Period Of: GE Will Replace: One Year Any part of the dishwasher which fails due to a defect in materials or workmanship. During From the date of the this limited one-year warranty, GE will also provide, free of charge, all labor and in-home service original purchase to replace the defective part. What GE Will Not Cover (for customers in the United States): ■ Service trips to your home to teach you how to use the product. ■ Improper installation, delivery or maintenance. ■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. ■ Replacement of house fuses or resetting of circuit breakers. ■ Product not accessible to provide required service. ■ Damage to the product caused by accident, fire, floods or acts of God. ■ Incidental or consequential damage caused by possible defects with this appliance. ■ Cleaning or servicing of the air gap device in the drain line. ■ Damage caused after delivery, including damage from items dropped on the door. This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. Proof of original purchase date is needed to obtain service under the warranty. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. Louisville, KY 40225 This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide. Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. GE Dishwasher Warranty. All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service on-line, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737) in the United States. In Canada, call 1.800.561.3344. Please have serial number and model number available when calling for service. WARRANTOR IS NOT RESPONSIBLE FOR CONSE QUEN TIAL DAMAGES. EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Warrantor: MC COMMERCIAL, Burlington, L7R 5B617 Register Your Appliance In the U.S.: GEAppliances.com Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada, visit: www.GEAppliances.ca Consumer Support. GE Appliances Website In the U.S.: GEAppliances.com Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts or even schedule service on-line. In Canada, visit: www.GEAppliances.ca Schedule Service In the U.S.: GEAppliances.com Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 800.561.3344 Real Life Design Studio In the U.S.: GEAppliances.com GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322). In Canada, contact: Manager, Consumer Relations, MC Commercial Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3 Extended Warranties In the U.S.: GEAppliances.com Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, consult your local listings for an extended warranty provider. Parts and Accessories In the U.S.: GEAppliances.com Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. In Canada, consult your local listings for your nearest GE parts distributor or call 800.661.1616. Contact Us In the U.S.: GEAppliances.com If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225 In Canada, write to: Director, Consumer Relations, MC Commercial Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3 For questions on installation call 800-626-2000 (US) or 800-561-3344 (Canada).18 Notes.19 Notes.20 Notes.21 Notes.22 Notes.23 Notes.Printed in the United States Printed on Recycled Paper
