USER MANUAL AEM18DP GE

Safety Instructions....2,3

Operating Instructions

Controls 4-6

Care and Cleaning

Air Filter 6

Outdoor Coils 6

Installation Instructions.....7-13

Troubleshooting Tips ..... 14

Normal Operating Sounds .... 14

Consumer Support

Consumer Support......Back Cover

Warranty 15

Owner's Manual and Installation Instructions

AEM14*

AEM18*

Climatiseur

Write the model and serial numbers here:

Model # ____

Serial #

Find these numbers on a label on the side of the air conditioner.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

SAFETY PRECAUTIONS

Use this appliance only for its intended purpose as described in this Owner's Manual.
This air conditioner must be properly installed in accordance with the Installation Instructions before it is used.
Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle.
Replace immediately all electric service cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.
■ Turn the unit OFF and unplug your air conditioner before cleaning.
GE does not support any servicing of the air conditioner. We strongly recommend that you do not attempt to service the air conditioner yourself.

For your safety...do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
All air conditioners contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.
If the receptacle does not match the plug, the receptacle must be changed out by a qualified electrician.
These R410A air conditioning systems require contractors and technicians to use tools, equipment and safety standards approved for use with this refrigerant. DO NOT use equipment certified for R22 refrigerant only.

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

DO NOT use an adapter plug with this appliance.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements.

WARNING!

USE OF EXTENSION CORDS

RISK OF FIRE. Could cause serious injury or death.

• DO NOT use an extension cord with this Window Air Conditioner.
• DO NOT use surge protectors or multi-outlet adaptors with this Window Air Conditioner.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Features and appearance will vary.

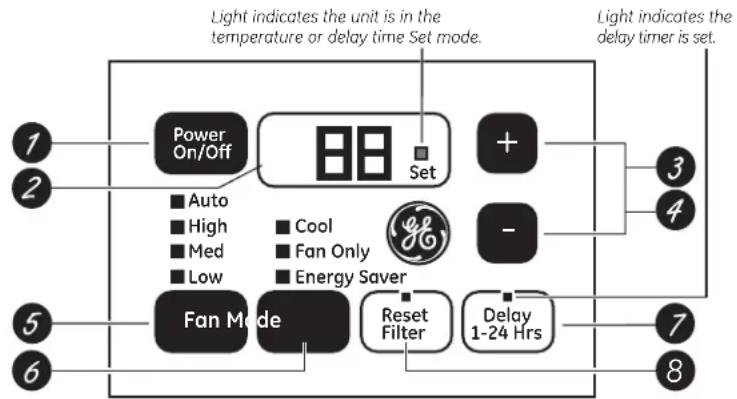

Lights next to the touch pads on the air conditioner control panel indicate the selected settings.

NOTE: The display always shows the room temperature except when setting the Set temperature or the Delay timer.

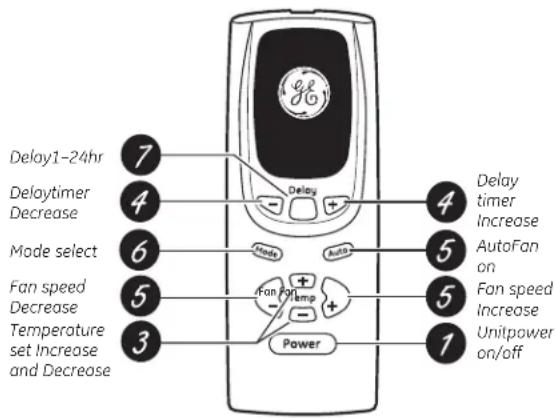

Air Conditioner Controls

Delay1-24hr 7 Delaytimer Decrease 4 Mode select 6 Fan speed Decrease 5 Temperature set Increase and Decrease 3 Delay - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Delay timer Increase AutoFan on Fan speed Increase Unitpower on/off

Remote Control

Controls

Power Pad

Turns air conditioner on and off. When turned on, the display will show the room temperature.

Display

Shows the room temperature or time remaining on the Delay timer. Shows the Set temperature while setting the temperature in Cool or Energy Saver modes. The Set light will turn on while setting.

Temp Increase ▲ /Decrease ▼ Pads

Use to set temperature when in Cool or Energy Saver mode. The Set light will turn on while setting.

Delay Timer Increase ▲ (+) / Decrease (-) Pads

Each touch of the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease – pads on the remote control will set the delay time when using the Delay 1–24hr timer. The Set light will turn on while setting.

Fan Speed Pads

Use to set the fan speed to Low, Med, High or Auto on the unit. NOTE: On the remote control, use the fan speed Increase + / Decrease – pads to set the fan speeds to Low, Med or High. Use the Auto pad to turn Auto fan on.

Mode Pad

Use to set the air conditioner to Cool, Energy Saver or Fan Only mode.

Delay Pads/Delay 1-24hr Pad

Delay ON—When the air conditioner is off, it can be set to automatically come on in 1 to 24 hours at its previous mode and fan settings.

Delay OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 24 hours.

How to set:

Press the Delay 1–24hr pad on the unit or the Delay pad on the remote control. Each touch of the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease – pads on the remote control will set the timer in 1-hour intervals. The Set light will turn on while setting.

To review the remaining time on the Delay 1–24hr timer, press the Delay 1–24hr pad on the unit or the Delay pad on the remote control. Use the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease – pads on the remote control to set a new time if desired.

To cancel the timer, press the Delay 1-24hr pad until the light on the Delay 1-24hr pad goes off.

Reset Filter

LED will turn on when fan has accumulated 250 hours of run time as a reminder to clean filter. Press Reset Filter to turn off the LED and reset the accumulated run time.

Note: The default temperature reading on the display is degree Fahrenheit (°F). To change the display to degree Celsius (°C), press the Temp Increase ▲ and Temp Decrease ▼ buttons together and hold for 3 seconds. Repeat the process to change back to degree Fahrenheit (°F)

Do Not Operate in Freezing Outdoor ConditionsThis cool-only air conditioner was not designed for freezing outdoor conditions. It must not be used in freezing outdoor conditions.
Remote ControlTo ensure proper operation, aim the remote control at the signal receiver on the air conditioner.Make sure nothing is between the air conditioner and the remote control that could block the signal.	The remote control signal has a range of up to 20 feet.Make sure batteries are fresh and installed correctly as indicated on the remote control.Remote contains a magnet allowing it to attach to metal surfaces.
Cool ModeUse the Cool mode at Low, Med, High or Auto Fan Speed for cooling. Use the Temperature Increase ▲ / Decrease ▼ pads to set the desired temperature between 64°F and 86°F in 1°F increments.An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.NOTE: If the air conditioner is off and is then turned on while set to a Cool setting or if turned from a fan setting to a Cool setting, it may take approximately 3 minutes for the compressor to start and cooling to begin.	Cooling DescriptionsFor Normal Cooling—Select the Cool mode and High or Med fan with a middle set temperature.For Maximum Cooling—Select the Cool mode and High fan with a lower set temperature.For Quieter and Nighttime Cooling—Select the Cool mode and Low fan with a middle set temperature.
Energy Saver ModeThis mode optimizes the cooling power of your air conditioner, thereby saving you energy. Once the set point temperature has been reached, the fan will cycle off to save energy. The fan will cycle back on periodically to insure all cooling capacity in the system is used. This mode is the default mode for the unit. Each time the unit is powered off, it will restart in Energy Saver mode ON. This includes Delay timer mode. The first time the unit is turned on, the settings will be 70° and Low fan. You can adjust the fan speed and temperature to your personal comfort.	Energy Saver ON—Helps minimize electricity use. It is normal for the fan to cycle off and then back on in this mode. This on/off cycle can repeat multiple times. Because the fan will cycle off, you may notice a variation in room temperature and humidity.Energy Saver OFF—When this mode is not engaged, the fan will run continuously, and in Cool mode the compressor will cycle on and off to maintain room temperature.
Fan Only ModeUse the Fan Only Mode at Low, Med or High fan speed to provide air circulation and filtering without cooling. Since fan-only settings do not provide cooling, a Set temperature cannot be entered. The room temperature will appear in the display.	NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode.
Auto Fan SpeedSet to Auto fan speed for the fan speed to automatically set to the speed needed to provide optimum comfort settings with the set temperature. If the room needs more cooling, the fan speed	will automatically increase. If the room needs less cooling, the fan speed will automatically decrease.NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode.
Power Outage Recovery FeatureIn the case of a power outage or interruption, the unit will automatically restart in the settings last used after the power is restored. If the Delay 1–24hr	feature was set, it will resume countdown. You may need to set a new time if desired.

Additional important information.

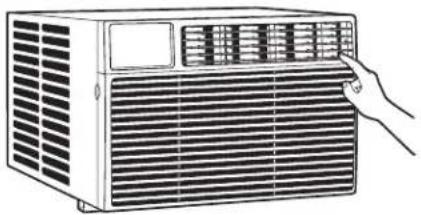

Air Direction

Use the lever to adjust the air direction left and right only.

Line drawing of an electric air conditioner unit with a hand pointing to the grille (no text or symbols)

Care and cleaning of the air conditioner.

Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

Air Filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.

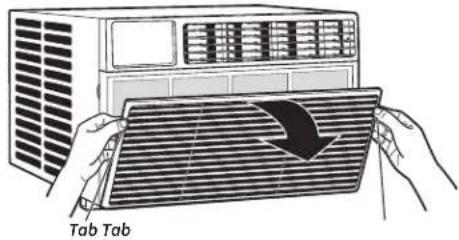

To remove:

Open the inlet grille by pulling downward on the tabs at the top upper corners of the inlet grille until the grille is in a 45° position. Remove the filter.

Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher.

Tab Tab

⚠️ CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance.

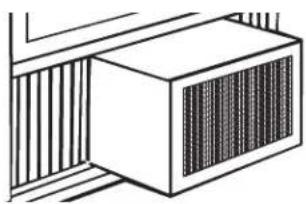

Outdoor Coils

The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.

Simple line drawing of a cabinet with vertical bars on both sides (no text or symbols)

How to Insert the Batteries in the Remote Control

1 Remove the battery cover by sliding it according to the arrow direction.
2 Insert new batteries, making sure that the (+) and (−) of battery are installed correctly.
3 Reattach the cover by sliding it back into position.

NOTES:

Use 2 "AAA" (1.5 volt) alkaline batteries. Do not use rechargeable batteries.
Remove the batteries from the remote control if the system is not going to be used for a long time.
Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc) batteries.

Installation Instructions

Air Conditioner

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
  • Completion time -Approximately 1 hour
  • We recommend that two people install this product.
  • Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner.

ELECTRICAL REQUIREMENTS

Some models require a 115/120-volt AC, 60-Hz grounded outlet protected with a 15-amp time-delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

Some models require 230/208-volt AC, protected with a time-delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

CAUTION:

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminum house wiring may present special problems—consult a qualified electrician.

TOOLS YOU WILL NEED

Illustration of a screwdriver with a magnified inset showing the tip (no text or symbols)

Phillips head screwdriver

Flat-blade screwdriver

Ruler or tape measurePend

Level

Scissors or knife

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

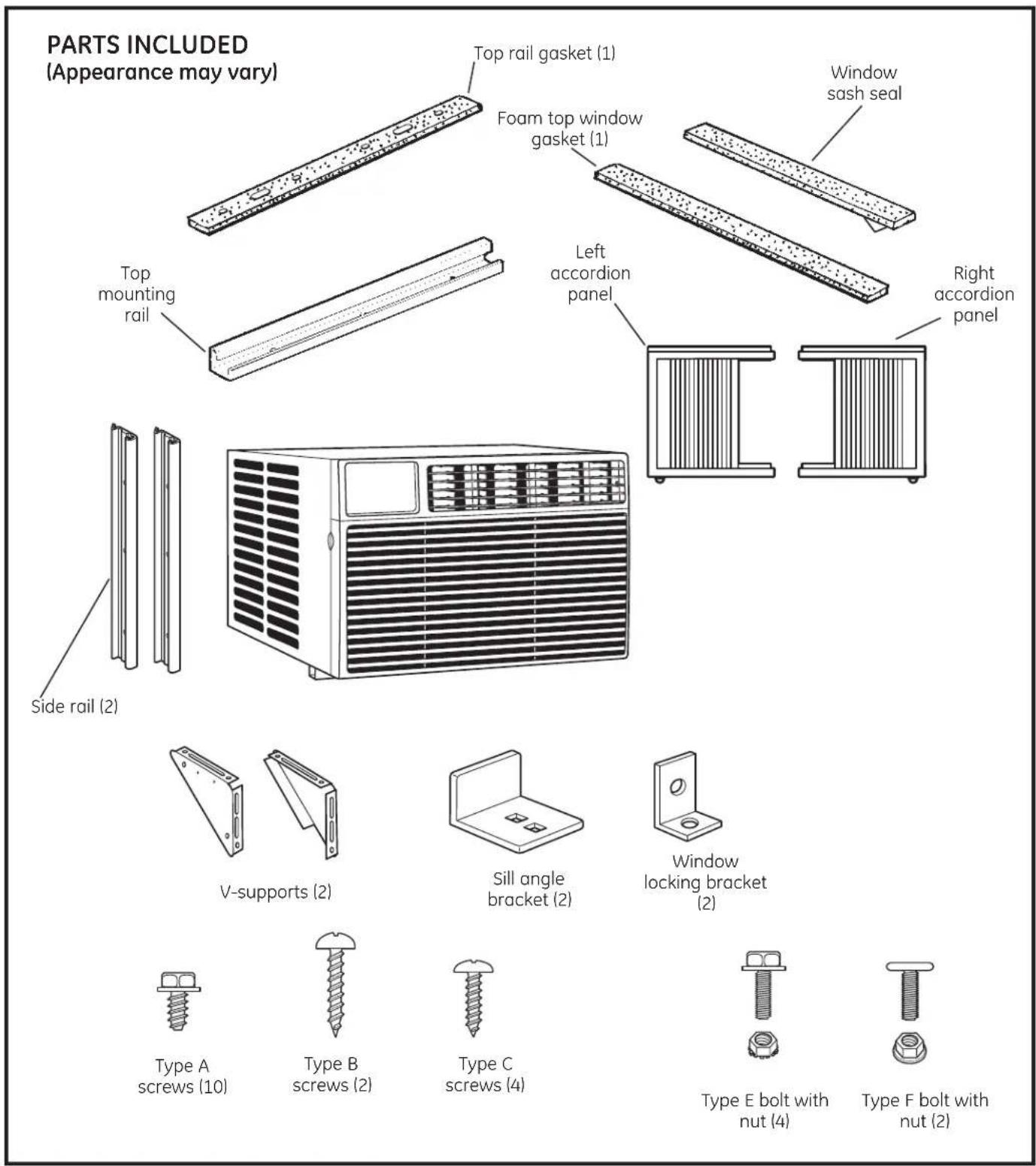

PARTS INCLUDED (Appearance may vary) Top rail gasket (1) Foam top window gasket (1) Window sash seal Top mounting rail Left accordion panel Right accordion panel Side rail (2) V-supports (2) Sill angle bracket (2) Window locking bracket (2) Type A screws (10) Type B screws (2) Type C screws (4) Type E bolt with nut (4) Type F bolt with nut (2)

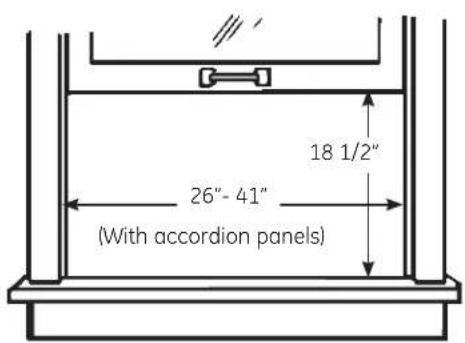

1 WINDOW REQUIREMENTS

• These instructions are for a standard double-hung window. You will need to modify them for other types of windows.
- All supporting parts must be secured to firm wood, masonry or metal.
- The electrical outlet must be within reach of the power cord.
- Follow the dimensions in the table and illustration for your model.

18 1/2" 26"-41" (With accordion panels)

② STORM WINDOW REQUIREMENTS

A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the sill.

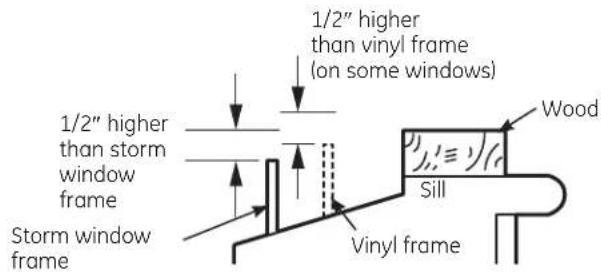

WOOD PIECES

WIDTH: 2"

LENGTH: Long enough to fit inside the window frame.

THICKNESS: To determine the thickness, place a piece of wood on the sill to make it 1/2" higher than the top of the storm window frame or the vinyl frame.

Attach securely with nails or screws provided by the installer.

1/2" higher than vinyl frame (on some windows) 1/2" higher than storm window frame Wood Sill Vinyl frame Storm window frame

3 PREPARE THE AIR CONDITIONER

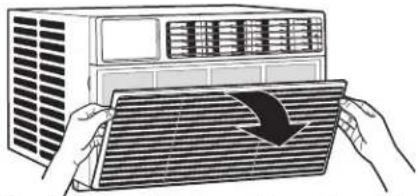

A Pull down the front panel and remove the filter. Remove the front panel by lifting up at an angle.

Illustration of a hand holding a grid-mounted air conditioner unit (no text or symbols visible)

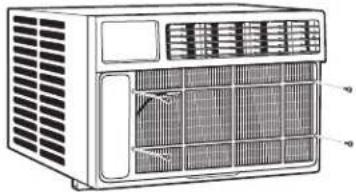

B Remove the four front screws. Save them for reinstalling the front housing.

Illustration of a portable air conditioner unit with ventilation grilles and ventilation grilles (no text or symbols)

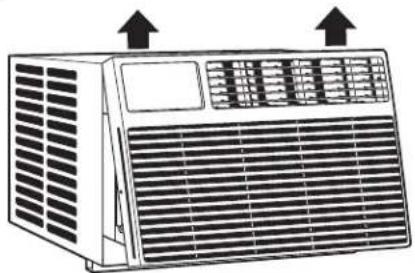

C Grasp the lower corners of the grille while pressing in on the case sides with your finger tips. Pull out to release and lift it up.

NOTE: Do not pull the bottom edge toward you more than 3" or you may damage the tabs of the grille.

Illustration of an air conditioner unit with ventilation grilles and airflow arrows (no text or symbols)

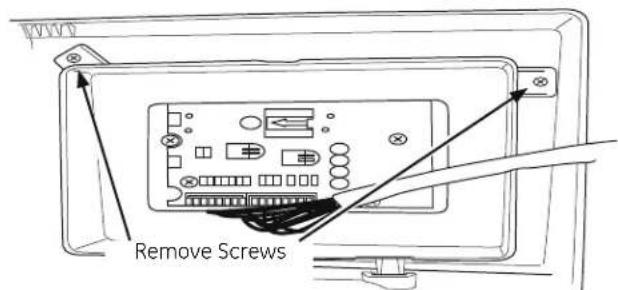

When the front grille is removed the control panel will still be attached by a harness. Turn the grille around so you can see the back side of the grille. Remove the 2 screws to separate the control panel housing from the grille.

NOTE: Be sure to save these screws. You will need them later in the installation.

Remove Screws

3 PREPARE THE AIR CONDITIONER (continues)

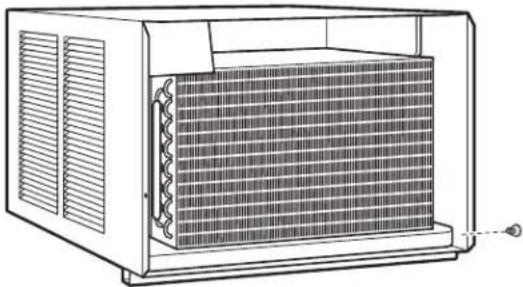

Remove the ground screw from the left side of the case. Keep it in a safe location. NOTE: Be sure to save this screw. You will need it later in the installation.

Line drawing of a rectangular industrial machine with a grid-patterned chamber and ventilation slots (no text or symbols)

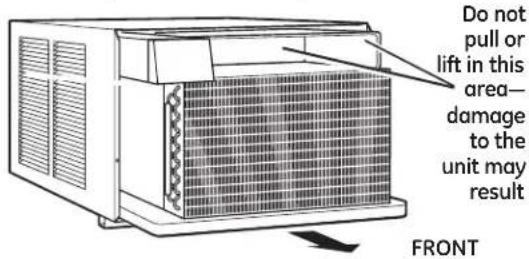

F Slide the air conditioner from the case by gripping the base pan handle and pulling forward while bracing the case. Do not pull or lift on the styrofoam discharge area.

Do not pull or lift in this area—damage to the unit may result FRONT

4 PREPARE THE CASE
A Attach the top rail gasket to the bottom of the top rail.

Diagram showing two layered materials with upward arrows indicating movement or force (no text or symbols)

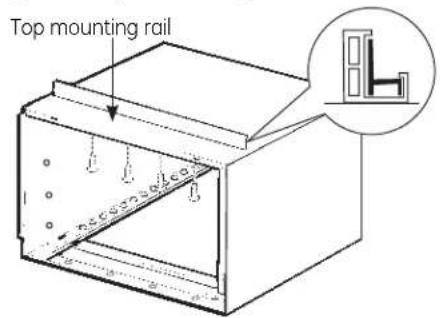

B Install the top mounting rail with 4 type A screws from the inside of the case. Press firmly to drive the screws into the gasket and through the top mounting rail.

Top mounting rail

4 PREPARE THE CASE

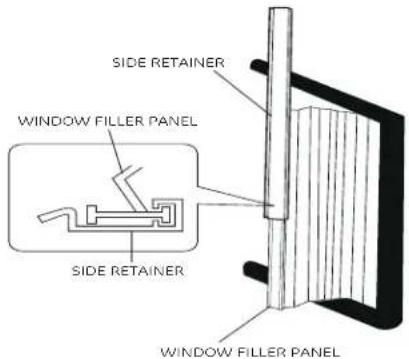

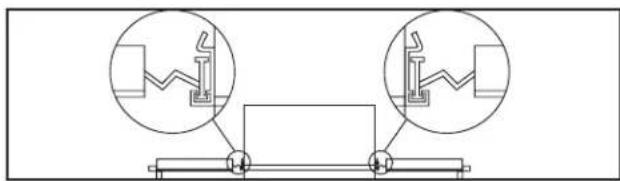

C Slide each side retainer onto the edge of each according panel. The figure shows teh orientation of each accordion panel and side retainer assembly relative to the case from a top view of the unit.

SIDE RETAINER WINDOW FILLER PANEL SIDE RETAINER WINDOW FILLER PANEL

Pure mechanical diagram showing two views of a lever mechanism with no text or symbols

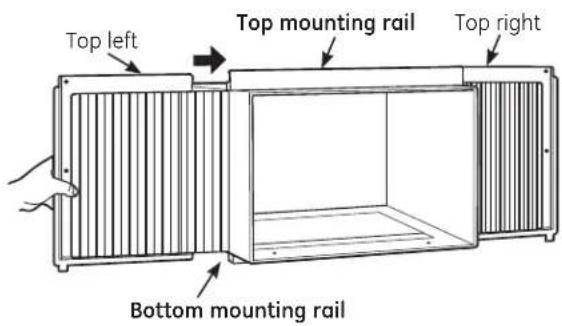

D Slide the left and right accordion panels into the top and bottom mounting rails.

Top left Top mounting rail Top right Bottom mounting rail

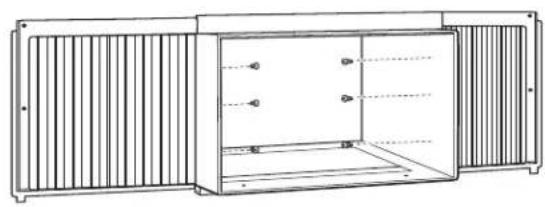

E Attach the side retainers to the case using 6 type A screws.

Technical line drawing of a modular air duct or enclosure with vertical slats and internal compartments (no text or symbols)

5 PREPARE THE WINDOW AND INSTALL THE CASE

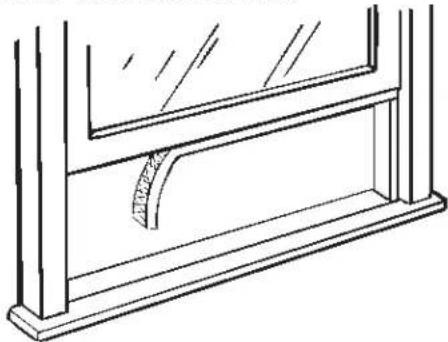

A Cut the window sash seal to the proper length. Peel off the backing and attach the seal to the underside of the window sash.

Line drawing of a window frame structure with a curved cutout (no text or symbols)

B Open the window and mark the center of the window sill.

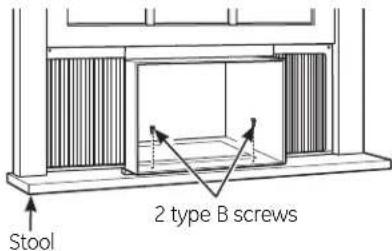

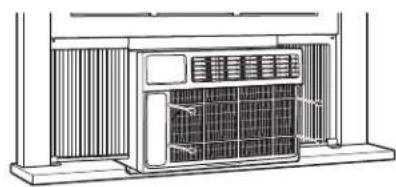

C Carefully slide the case into the window and center the case. Lower the window behind the top mounting rail. Pull the bottom of the case forward so that the bottom mounting rail is tight against the back of the window stool. Mount the case to the window sill using 2 type B screws. Drill pilot holes, if necessary.

Stool 2 type B screws

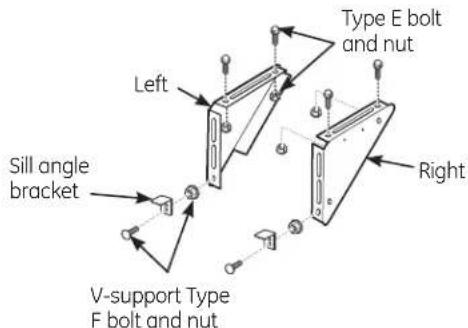

D Assemble the V-support and V-support bracket with Type F nut and bolt

Type E bolt and nut Left Right Sill angle bracket V-support Type F bolt and nut

5 PREPARE THE WINDOW AND INSTALL THE CASE (continues)

E Position the V-supports on the case bottom so that they will be near the outside wall. Attach a V-support to each side of the bottom of the case with Type E bolts, 2 for each support.

V-support

F Adjust sill angle brackets to rest on sill.

Sill Bracket

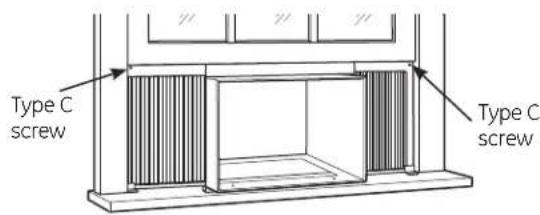

G Extend the left and right accordion panels to the vertical window sashes. Drill pilot holes and attach the top corners with 2 type C screws.

Type C screw Type C screw

5PREPARE THE WINDOW AND INSTALL THE CASE (continues)

H ⚠ CAUTION:

To prevent broken glass or damage to windows, on vinyl or other similarly constructed windows, attach the window locking bracket to the window side jamb.

Attach the window locking bracket with one Type C screw.

This unit contains two window locking brackets.

Vinyl

☐ Cut the foam top window gasket to the window width.

J Stuff the foam between the glass and the window to prevent air and insects from getting into the room.

Hand holding a knife over a rectangular object with horizontal lines, no text or symbols visible

NOTE: If the gasket supplied does not fit your window, obtain appropriate material locally to provide a proper installation seal.

6 INSTALL THE AIR CONDITIONER IN THE CASE

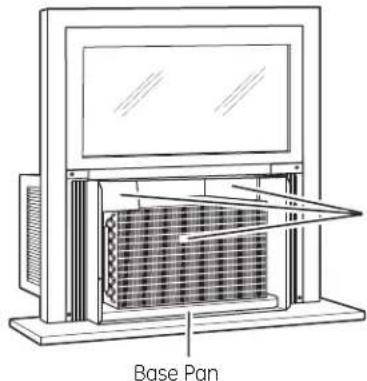

A Slide the air conditioner into the case by the base pan. Do not push on the controls, styrofoam air discharge housing or the finned coils. Make sure the air conditioner is firmly seated.

Base Pan

Do not press on these areas—damage to the unit may result

6 INSTALL THE AIR CONDITIONER IN THE CASE (continues)

B Replace the 1 screw removed earlier in the side of the case. IMPORTANT: THE GROUND SCREW MUST BE REINSTALLED TO ENSURE PROPER GOUND.

Line drawing of a mechanical device with a grid-patterned base and top frame (no text or symbols)

C Reinstall the control to the panel housing by replacing the 2 screws you removed earlier.

Restore Screws

D Attach the front grille to the case by inserting the tabs on the grille into the slots on the front top of the case. Push the grille in.

Diagram showing a hand pressing a button into a microwave oven with an instructional arrow indicating the process.

E Replace the screws.

Technical line drawing of an air conditioning unit with cooling fins and ventilation grilles (no text or symbols)

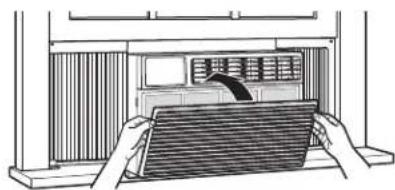

F Install the filter and the front grille.

Illustration of hands installing or adjusting a wall-mounted air conditioner unit (no text or symbols visible)

G Plug in the air conditioner.

The case may be installed through-the-wall in both existing and new construction.

Read completely, then follow step-by-step.

NOTE: Obtain all materials locally for mounting the air conditioner through-the-wall.

1 IMPORTANT

Through-the-wall installation is not appropriate if any of the side or top louvers in the case will be obstructed by the wall.

All side and top louvers in the case must project on the outdoor side of the wall.

The room side of the case must project into the room far enough to maximize the balance of the unit.

The case must be installed level from side-to-side and with a slight tilt from front to rear. Use a level; no more than a 1/2 bubble will be the correct case slant to the outside.

Lintel angle is required to support bricks or blocks above opening.

Flashing is required and should extend the length of the opening to ensure no inside cavity leakage occurs.

A Remove the air conditioner from the case. For specific instruction, refer to the Window Installation Instructions.
B Make certain that a wall receptacle is available close to the hole location or make arrangements to install a receptacle.

Technical line drawing of a rectangular cabinet or enclosure with screws and mounting holes (no text or symbols)

C Place the case in the wall opening and place wood support strips between the case bottom and the flashing on both sides of the bottom rail. They should be the same height as the bottom rail and the same length as the wall opening.

1 IMPORTANT (cont.)

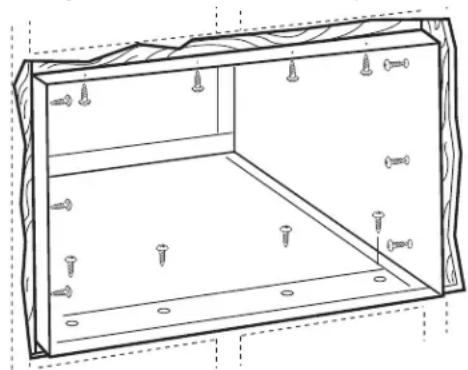

D Secure with 14 wood screws anchored at least an inch into the wall support structure.

NOTE: Drill pilot holes, if necessary, for proper installation. If the frame is oversized, use shims to prevent case distortion.

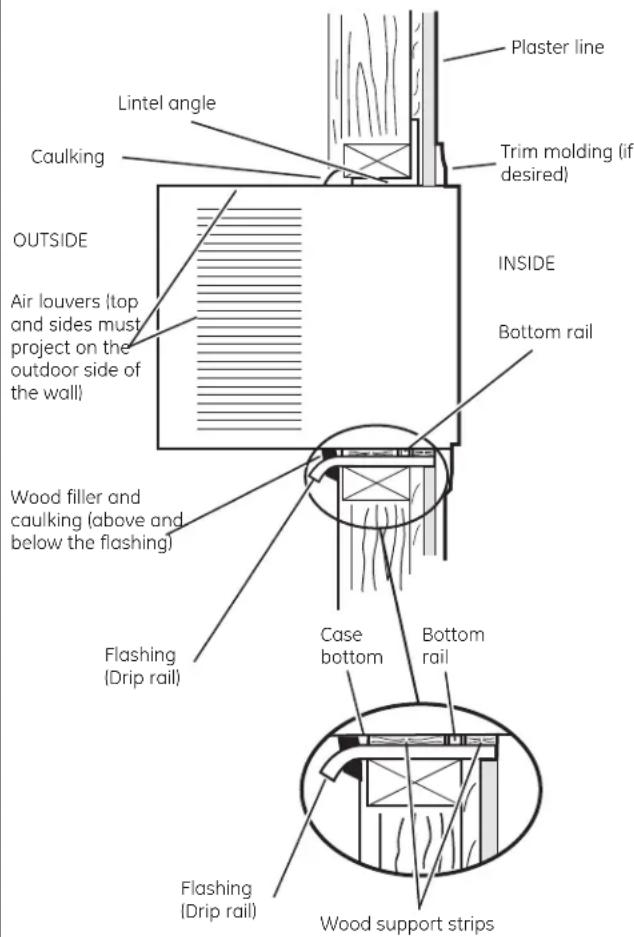

2 FINISH THE WALL OPENING

A Caulk all four sides on the outdoor side of the case to prevent moisture from getting through to the interior wall. Use of flashing (drip rail) will further prevent water from dripping inside the wall and down the outside of the building.

Plaster line Lintel angle Caulking Trim molding (if desired) OUTSIDE INSIDE Bottom rail Air louvers (top and sides must project on the outdoor side of the wall) Wood filler and caulking (above and below the flashing) Flashing (Drip rail) Case bottom Bottom rail Flashing (Drip rail) Wood support strips

B Place the air conditioner into the case. For specific instruction, refer to the Window Installation Instructions.

Troubleshooting Tips.

Problem Possible Causes What To Do
Air conditioner does not start is unplugged. breaker is tripped. the fuse or reset the breaker. used after the power is restored.	The air conditioner completely into the outlet.	Make sure the air conditioner plug is pushed
	The fuse is blown/circuit	Check the house fuse/circuit breaker box and replace
	Power failure.	The unit will automatically restart in the settings last
		There is a protective time delay (approximately 3 minutes) to prevent tripping of the compressor overload. For this reason, the unit may not start normal cooling for 3 minutes after it is turned back on.
	The current interrupter device is tripped. use of the air conditioner	Press the RESET button located on the power cord plug.If the RESET button will not stay engaged, discontinue and contact a qualified service technician.
Air conditioner does not cool as it should to allow time for the room to cool down.	Airflow is restricted.	Make sure there are no curtains, blinds or furniture blocking the front of the air conditioner.
	The temp control may not be set correctly.	In the Cool mode, press the Decrease ▼ pad.
	The air filter is dirty.	Clean the filter at least every 30 days.See the Care and Cleaning section.
	The room may have been hot.	When the air conditioner is first turned on, you need
	Cold air is escaping.	Check for open furnace registers and cold air returns.
	Cooling coils have iced up.	See “Air conditioner freezing up” below.
Air conditioner freezing up	Ice blocks the air flow and stops the air conditioner from cooling the room.	Set the controls at High Fan or High Cool and set the thermostat to a higher temperature.
The remote control is not working	The batteries are inserted incorrectly.	Check the position of the batteries. They should be inserted in the opposite (+) and (-) direction.
	The batteries may be dead.	Replace the batteries.
Water drips outside	Hot, humid weather.	This is normal.
Water drips indoors tilted to the outside.	The air conditioner is not slants slightly from the case front to the rear.	For proper water disposal, make sure the air conditioner
Water collects in base pan	Moisture removed from air and drains into base pan.	This is normal for a short period in areas with little humidity; normal for a longer period in very humid areas.

Normal Operating Sounds

You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.

You may hear the thermostat click when the compressor cycles on and off.

Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.

The fan may run even when the compressor does not.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, visit us on-line at ge.com, or call 800.GE.CARES (800.432.2737). Have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Replace:

One Year

From the date of the original purchase service

Any part of the air conditioner which fails due to a defect in materials or workmanship.

During this limited one-year warranty, GE will also provide, free of charge, all labor and related to replace the defective part.

What Is Not Covered:

■ Service trips to your home to teach you how to use the product.
Improper installation, delivery or maintenance. If you have an installation problem, or if the air conditioner is of improper cooling capacity for the intended use, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.
- Failure of the product resulting from modifications to the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.
In commercial locations, labor necessary to move the unit to a location where it is accessible for service by an individual technician.

• Replacement of house fuses or resetting of circuit breakers.
• Failure due to corrosion on models not corrosion-protected.
• Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.
  ■ Incidental or consequential damage caused by possible defects with this air conditioner.
  ■ Damage caused after delivery.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

3 Touches Temp Increase (Augmentation température) ▲ / Decrease (Réduction

Line drawing of an electric air conditioner unit with ventilation grilles and a hand pointing to the front panel (no text or symbols)

Simple line drawing of a white cabinet with vertical slats, mounted on a metal frame (no text or symbols)

Line drawing of a screwdriver with a magnified view of the tip (no text or symbols)

Tournevis cruciforme Phillips

Illustration of hands installing or adjusting a panel on an air conditioner unit (no text or symbols visible)

Illustration of a portable air conditioner unit with ventilation grilles and ventilation grilles (no text or symbols)

Illustration of an air conditioner unit with ventilation grilles and ventilation grilles (no text or symbols)

Line drawing of an open television set with a cable inserted, showing internal components and wiring (no text or symbols)

3 PRÉPARATION DU CLIMATISEUR(suite)

Line drawing of a heat exchanger unit with cooling fins and ventilation slots (no text or symbols)

Top mounting rail

4 PRÉPARATION DU LOGEMENT (suite)

Pure electrical circuit lines without any symbols

Technical line drawing of a cabinet or enclosure with vertical slats and internal compartments (no text or symbols)

5 PREPARE THE WINDOW AND INSTALL THE CASE

Technical line drawing of a structural frame with a curved cutout (no text or symbols)

Hand holding a tool interacting with a surface (no text or symbols visible)

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Conteneur de fond

Line drawing of a mechanical or electrical enclosure with a grid-patterned base and top panel (no text or symbols)

Diagram showing a hand pressing down a door with a magnified inset highlighting the drain handle.

E Replacer les vis.

Technical line drawing of an air conditioning unit with ventilation grilles and cooling fins (no text or labels)

Illustration of a person opening a window with a gridded panel, no text or symbols present

Technical line drawing of a rectangular enclosure with bolt holes and mounting hardware (no text or symbols)

Garant : General Electric Company. Louisville, KY 40225

GE Appliances, Appliance Park

Louisville, KY 40225

Line drawing of an electric air conditioner unit with a hand pointing to the front panel (no text or symbols)

Simple line drawing of a rectangular box with vertical slats, no text or symbols present

Diagram of a screwdriver with a magnified view of the tip (no text or symbols)

Illustration of hands installing or adjusting a panel with a grid pattern (no text or symbols visible)

Illustration of a white air conditioner unit with ventilation grilles and ventilation grilles (no text or symbols)

Illustration of an air conditioner unit with ventilation grilles and heat sinks (no text or symbols)

FRENTE

Line drawing of a portable air heater unit with cooling fins and ventilation grilles (no text or symbols)

Top mounting rail

4 PREPARE LA CARCASA

Pure mechanical diagram showing two circular insets with cross-sectional views of a component (no text or symbols)

Technical line drawing of a modular air duct or enclosure with vertical slats and internal compartments (no text or symbols)

5 PREPARE THE WINDOW AND INSTALL THE CASE

Technical line drawing of a structural frame with a curved cutout (no text or symbols)

Hand holding a tool interacting with a surface, no text or symbols visible

6 INSTALE EL ACONDICIONADOR EN LA CARCASA

Technical line drawing of a mechanical device with internal grid structure and directional arrows (no text or symbols)

Line drawing of a mechanical device with a grid-patterned base and top panel (no text or symbols)

Diagram showing a hand pressing a valve with an arrow indicating the process, accompanied by a magnified view of the valve's internal structure.

Line drawing of an air conditioning unit with ventilation grilles and fan (no text or symbols)

Illustration of hands installing or adjusting a wall-mounted air vent (no text or symbols visible)

Technical line drawing of a rectangular metal enclosure with screws and mounting holes (no text or symbols)

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, or even order parts on-line.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Parts and Accessories GEApplianceParts.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. GE does not support any servicing of the air conditioner. We strongly recommend that you do not attempt to service the air conditioner yourself.

Contact Us GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225
