USER MANUAL Pyrus maxi TrekStor

eBook Reader Pyrus maxi

Index

DE 4
EN 12
IT 20
ES 28
FR 36
NL 44
PT 52
SE 60
PL 68
UA 76

Thank you for buying the TrekStor eBook Reader Pyrus maxi. We are confident that this product will be the source of much enjoyment. Please read the following instructions carefully so that you can become acquainted with the functions of this product and its use.

Current product information can be found at the TrekStor website www.trekstor.de.

You can find detailed information about eBook Reader Pyrus maxi and its features on your Reader under "EXTRAS" "USER MANUAL".

Digital Ink® technology

When using the Digital Ink® technology, the illustration of text or pictures is adopted by a "digital ink". The display is passive: It does not light as conventional LCDs and consumes energy only when loading or flipping a page. This achieves a very long battery life time. Once set "digital ink" remains until the next image build-up, i.e. the last displayed page remains visible, even if the eBook Reader is already switched off. A "burning-in" into the display is not possible with Digital Ink®.

1) Package contents

• TrekStore eBook Reader Pyrus maxi
  USB 2.0 cable (USB-A to Micro USB)
  Quick guide

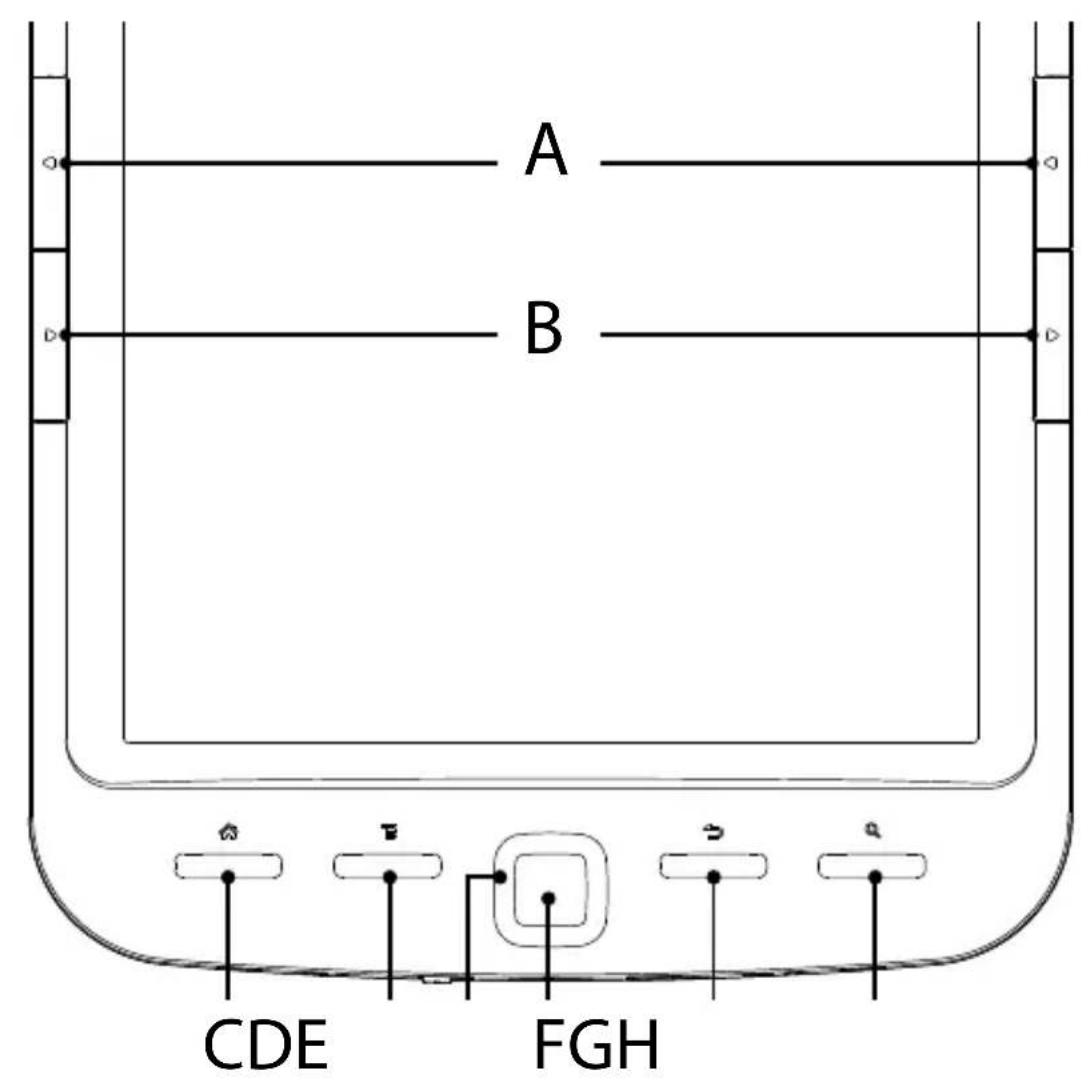

2) Controls and connections of the eBook Reader Pyrus maxi

A) Flip back
B) Flip forward
C) Display home screen
D) Display menu
E) Navigation button
F) OK button
G) Back button
H) Search function / Font size in eBooks / Zoom function

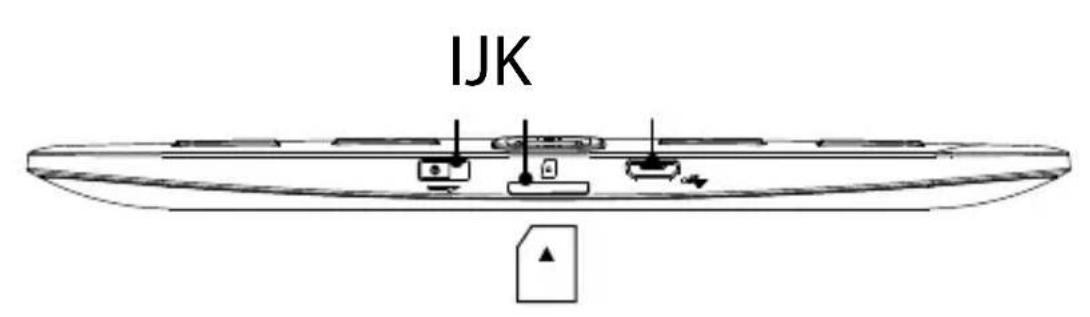

I) Power slide switch (On/Off) with LED charging indicator
J) microSD/microSDHC card slot
K) Micro USB connector

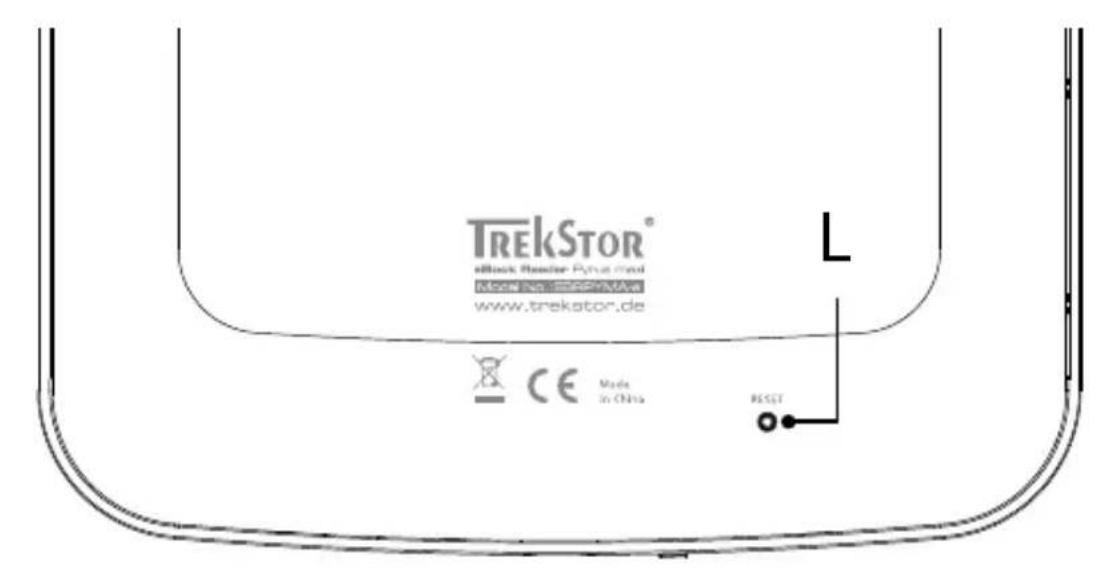

L) Reset button

3) Charging the eBook Reader Cyrus maxi

Once you have connected your TrekStor eBook Reader Pyrus maxi via the included micro USB cable to a computer or to a socket using a suitable power supply (e. g. TrekStor USB-Charger e.fs), it is automatically charged. After 3 hours with USB power adapter (5 hours over PC), the battery will be fully charged and the charging will stop automatically to prevent overcharging.

The maximum battery life is reached after about 10 battery charging cycles.

Thanks to the intelligent power saving management of the eBook Reader Pyrus maxi you will be able to read for weeks with only one battery charge. Under "SETTINGS" you can additionally adjust the power saving setting to your personal reading behavior. Please note that this can affect battery life.

4) Getting started with the eBook Reader Pyrus maxi

After you have charged the eBook Reader Cyrus maxi for the first time, the reading pleasure can start.

4.1) Turning on the eBook Reader

Slide the power switch to the right and hold for 3 seconds. Wait a few seconds for the home screen.

i First, please choose during the first start-up your language and set the date and time.

Besides the date and battery status, last called up books are displayed to the left and the books recently transferred to the Reader are displayed to the right on the home screen. Below you will find the menu bar, and the options to call up other titles. Via the navigation point "LIBRARY" you can also access your eBook collection.

4.2) Reading with the eBook Reader

If you want to read off right away, select one of the displayed titles by using the navigation keys and confirm your choice with the OK button. The active selection is bordered with a thick outline.

To flip forward or back the single pages, press the or button.

The button lets you adjust the display of the book to your individual needs.

• Different font sizes and margin widths are available and you can switch back and forth between portrait and landscape format.
• You can also mark bookmarks and favorites as well as access the content directory and set bookmarks.
• The word search and the possibility to call a certain number of pages helps you to navigate within the book.
• Auto flip: This handy feature allows you to read without hands. The reader flips the pages of your book automatically after a certain time you have set before.

To exit an eBook or to close a menu/view, press the button.

The 9 button has various functions:

• Pressing it briefly in the open book will call the word search.
• Hold the button pressed for 1 second to open the menu for adjusting the font size.
• The general file search is called up by pressing the 9 button in the Home screen, in the Library and also in the Explorer. To exit the search, press the * button twice.

4.3) Other settings and functions of the eBook Reader Pyrus maxi

Press the button to call the Home screen. Here you have the opportunity to make other settings and call other functions.

Here you find your ebook collection sorted by title.

Sorted by title or author, you will find here your set bookmarks and be able to view or delete them.

Find out how and where to receive new eBooks.

Here you will find your favorites, already read books, the Explorer showing your files and folders, and the detailed manual for your eBook Reader.

With the image viewer, all images, which are stored on the Reader or on the inserted memory card, are displayed.

Here you can make further adjustments to your eBook Reader:

Page refresh rate
Power settings
Time & Date
Language
- Formatting (all data will be lost!)
- Resetting to default settings
Device information
- DRM authorization information

5) Transferring my books onto the eBook Reader Pyrus maxi

In order to transfer your own books onto the eBook Reader Pyrus maxi, please proceed as follows:

5.1) Connecting the Reader with a computer

Connect the eBook Reader Pyrus maxi to your computer using the included micro USB cable. The eBook Reader is displayed as a removable disk or drive named "TREKSTOR".

The microSD/microSDHC card reader of the eBook Reader is recognized and displayed as a second "DEVICE WITH REMOVABLE STORAGE" or "DRIVE" named "TREKSTOR". An access will only be possible, if a memory card is inserted into the card slot.

5.2) Data exchange with the eBook Reader

The eBook Reader Pyrus maxi displays eBooks in the formats ePUB, PDF, FB2, RTF, TXT and PDB.

eBooks without copy protection

eBooks without copy protection can be simply stored via drag & drop (or copy & paste) in the root directory of the eBook Reader.

Adobe® DRM content (copy protected PDFs and ePUBs)

Many eBooks in ePUB or PDF format are protected by Adobe® Adept DRM against unauthorized duplication. To view these eBooks on your eBook Reader and your computer, you have to transfer them with the software Adobe® Digital Editions on your device.

1) First create – if not existing yet – under www.adobe.com your own Adobe® ID by clicking on "REGISTER" on the top right of the page and following the instructions on the page.
2) Now install the software Adobe® Digital Editions on your computer and log in using your Adobe® ID. You can find the free software under: http://www.adobe.com/products/digital Editions/
3) Once the software installation has been completed successfully, you will be able to download Adobe DRM protected eBooks.

Example: You have purchased an eBook with DRM protection in the Internet and want to download it now. When you start the download, the following dialog box opens:

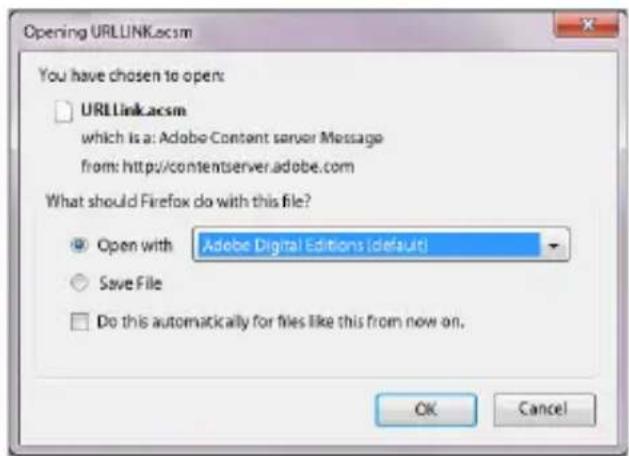

Select the option "OPEN WITH (ADOBE DIGITAL EDITIONS)" and confirm with OK. Now Adobe Digital Editions opens and your eBook is downloaded and stored to the folder "My Digital Editions" (Windows 7: "LIBRARIES" "DOCUMENTS" / Windows XP: "MY DOCUMENTS").

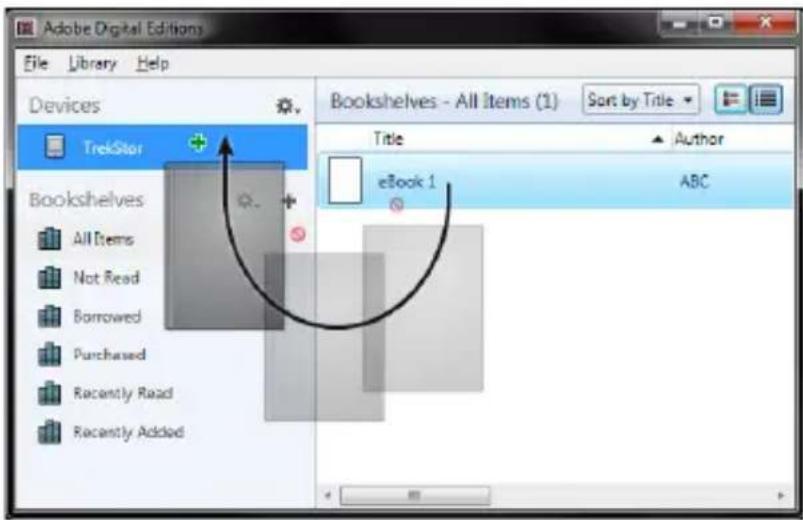

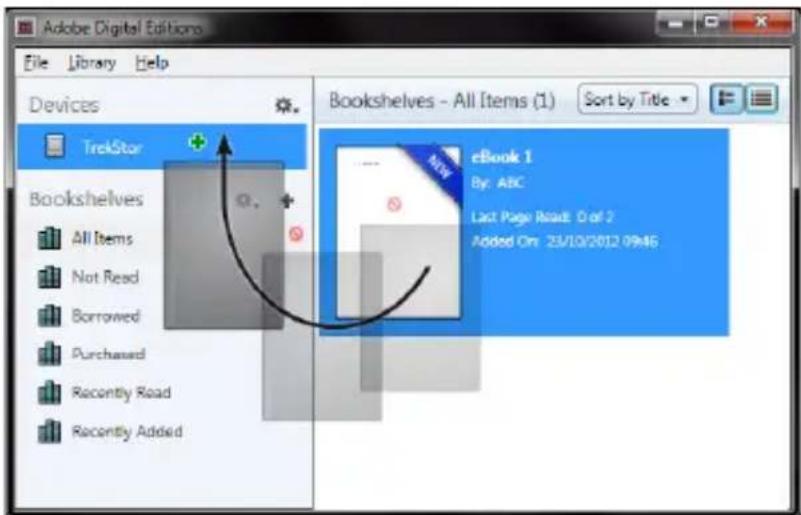

You can now copy the eBook via drag & drop to your device. Just click on the eBook and drag it while holding down the mouse button on your Reader ("TREKSTOR").

or

After a successful transfer, the eBook can be displayed on your Reader.

5.3) Transferring eBooks via the TrekStore eReader Suite

Regular updates, eBook management and synchronization, and direct access to your eBook Shop - the free eReader Suite handles all this tasks and provides you the opportunity of comfortable reading.

5.3.1) TrekStore eReader Suite Installation

1. Connect your eBook Reader to your PC or MAC using the included USB cable.
2. Make sure that your computer is connected to the Internet.
3. To start the installation, follow these steps:

Windows:

In "MY COMPUTER", open the drive with the name "TREKSTOR" launch the "EReader Suite" installation file and follow the instructions of the installer.

MAC OS:

In the Finder window, select the "TREKSTOR" drive and drag the file "eReader Suite" into the program folder. In the "PROGRAMS" folder, start the "eReader Suite" and follow the instructions of the installer.

5.3.2) Using the TrekStore eReader Suite

The eReader Suite is divided into three areas:

Home

You will find here information about your device like news, help and tips. In addition, you can download data sheets, manuals and updates. The home page also provides you with an overview of the available free space, the associated Adobe® ID, the device registration and the current firmware version.

Shop

Get access to the integrated eBook shop, browse through the latest offers or purchase new eBooks.

Please contact your eBook shop operator if you have questions or need more information.

Books

Always keep track of your eBooks and sync eBooks on your computer with your eBook Reader. This way you will have your library always at hand.

Adobe® Digital Editions and an Adobe® ID are required for DRM protected eBooks.

5.4) Logging off and disconnecting the eBook Reader from the computer

Please follow the recommended logging off procedure to avoid damages to the device or the loss of data!

Windows® 8/7/Vista™/XP

At the bottom right on the task bar, left-click the "SAFELY REMOVE HARDWARE" icon. In the popup menu that appears, left-click "SAFELY REMOVE MASS STORAGE DEVICE - DRIVE" and disconnect your eBook Reader from the computer.

Mac OS X from 10.6

Please remove the drive "TREKSTOR" from the "DESKTOP" by clicking the drive icon and drag it to the trash icon. Now you can disconnect the eBook reader from your computer.

5.5) Switching eBook Reader to standby mode

Slide the power switch briefly to the right to activate the standby mode. The standby screen will appear. To read further at the same place, slide the power switch briefly to the right again.

5.6) Turning off the eBook Reader

To turn off your eBook Reader, slide the power switch to the right and hold for 3 seconds. Confirm by pressing the OK button. Your eBook Reader will turn off.

5.7) Resetting / Load default settings

If your eBook Reader no longer responds, you can restart it by pressing the reset button on the back of the device. To do this, you will need a small pin or a paper clip.

Attention: Please do not use needles or similar sharp objects, because you can damage your eBook Reader.

Instructions for safety and use:

Only qualified persons may perform technical work on the product. The product may not be opened or changed. The components cannot be serviced by the user.

Never expose the device to moisture, condensation and liquids.

Protect the device from extremely high and low temperatures and temperature fluctuations. Use the device within an ambient temperature of 10^ until 40^

Never place the device close to a source of heat, and protect it from direct sunlight.

Make sure that the surroundings are as dust-free as possible when you use and store the device.

Never clean the surface of the device with solvents, paint thinners, cleansers or other chemical products. Instead, use a soft, dry cloth or soft brush.

Notes:

In certain circumstances, exposing the device to an electrostatic discharge may interrupt the data transfer between the device and the computer and impair the functions of the device. If this occurs, the device should be unplugged from the USB port and then plugged in again.

Do not use USB cables longer than 3 meters.

The capacity indicated by your operating system can be different than the actual capacity of your device. Like most manufacturers of computer hardware, TrekStor uses the prefixes for units (e.g. 1 GB = 1.000.000.000 bytes) as prescribed by the International System of Units (SI). Unfortunately, many operating systems do not comply with this norm and display a lower capacity because they base their calculations on the assumption that 1 GB = 2 ^30 bytes = 1.073.741.824 bytes.

The manufacturer retains the right to continually improve the product. These changes may be made without being directly described in these operating instructions. For this reason, the information provided in these operating instructions may not reflect the current state of the art.

The manufacturer only guarantees suitability for the product's intended purpose. In addition, the manufacturer is not responsible for damages or loss of data and subsequent consequences.

Copyright © 2013 TrekStor GmbH. All rights reserved. Other cited product or company names may be trademarks or brand names of the respective owner.

Instead of the panel, we have a panel that includes the "TREKSTOR" and "READERSUITE" sections. We also include the "TREKSTOR" section in the "TREKSTOR" section.

MAC OS:

In certain circumstances, exposing the device to an electrostatic discharge may interrupt the data transfer between the device and the computer and impair the functions of the device. If this occurs, the device should be unplugged from the USB port and then plugged in again.

Do not use USB cables longer than 3 meters.

EC DECLARATION OF CONFORMITY

As manufacturer and importer respectively:

TrekStor GmbH

Kastanienallee 8-10

D-64653 Lorsch, Germany

herewith declares that the products

Product: eBook Reader Pyrus maxi

Type: electronic reading device

comply with the following directive(s):

2004/108/EC EMC Directive: Electromagnetic Compatibility

2006/95/EC Low Voltage Directive

The following norms were consulted to assess conformity:

• EN 55022:2010

EMC: Information technology equipment - Radio disturbance characteristics - Limits and methods of measurement

EN 55024:2010

EMC: Information technology equipment - Immunity characteristics - Limits and methods of measurement

EN 60950-1:2006 + A12:2011

Information technology equipment - Safety - Part 1: General requirements

The CE symbol confirms that this product conforms with the above mentioned norms and regulations.

The manufacturer also declares the conformity of the product according to the following directives:

2001/95/EC General Product Safety

• 2002/95/EC RoHS: Hazardous substances in electrical and electronic equipment

• 2009/125/EC Ecodesign requirements for energy-using products

Lorsch, 03.04.2013

T. Kropsha

Thorsten Koroscha, LPM

Akku-Entsorgung

Reporting requirement according to the Battery Directive (BattV)

Batteries are not part of the domestic waste. The consumer is obliged to return no longer used batteries properly. Please dispose of them by a specialized trade or a battery collection point. Hereby you make an important contribution to environmental protection.

Since 1998 the German Battery Directive compels all citizens to dispose of used batteries exclusively through the trader or specially equipped departments (legal return obligation).

Trade and manufacturers are committed to take back batteries for free and to exploit it properly or to remove it as special waste (legal take-back obligation).

e built-in lithium-polymer battery of this device is marked with the adjoining symbol, consisting of a crossed out bin and the used battery type.

Remove battery

Before you return a disused device for disposal, the battery has to be removed from the device.

Supportinformationen

If you have any questions regarding your TrekStor product, please proceed as follows:

• Check the features as well as the functions of your device (apparent on the packaging), in order to use the correct settings.
• Read the manual carefully.
• Inform yourself on our website www.trekstor.de/en about the up-to-date information concerning your product (e.g. available most recent firmware releases).

In the case you have further questions regarding your product, please note the following TrekStor support options:

FAQ The FAQ area of our website offers you a wide range of problem solving hints. Here you can obtain answers to the most frequently asked questions concerning our products.

E-Mail Please fill in the support form on our website or send an E-Mail to [e-mail]. You can find mailing addresses for other countries when you click "SERVICE" at the menu bar on our website.

Phone support Please find the number of the support hotline for your country on our website under "SERVICE" as well.

TrekStor GmbH

Kastanienallee 8-10

D-64653 Lorsch, Germany
