USER MANUAL TDW8901N TP-LINK

For technical support, replacement services, user guides, and other information,

https://www.tp-link.com/support

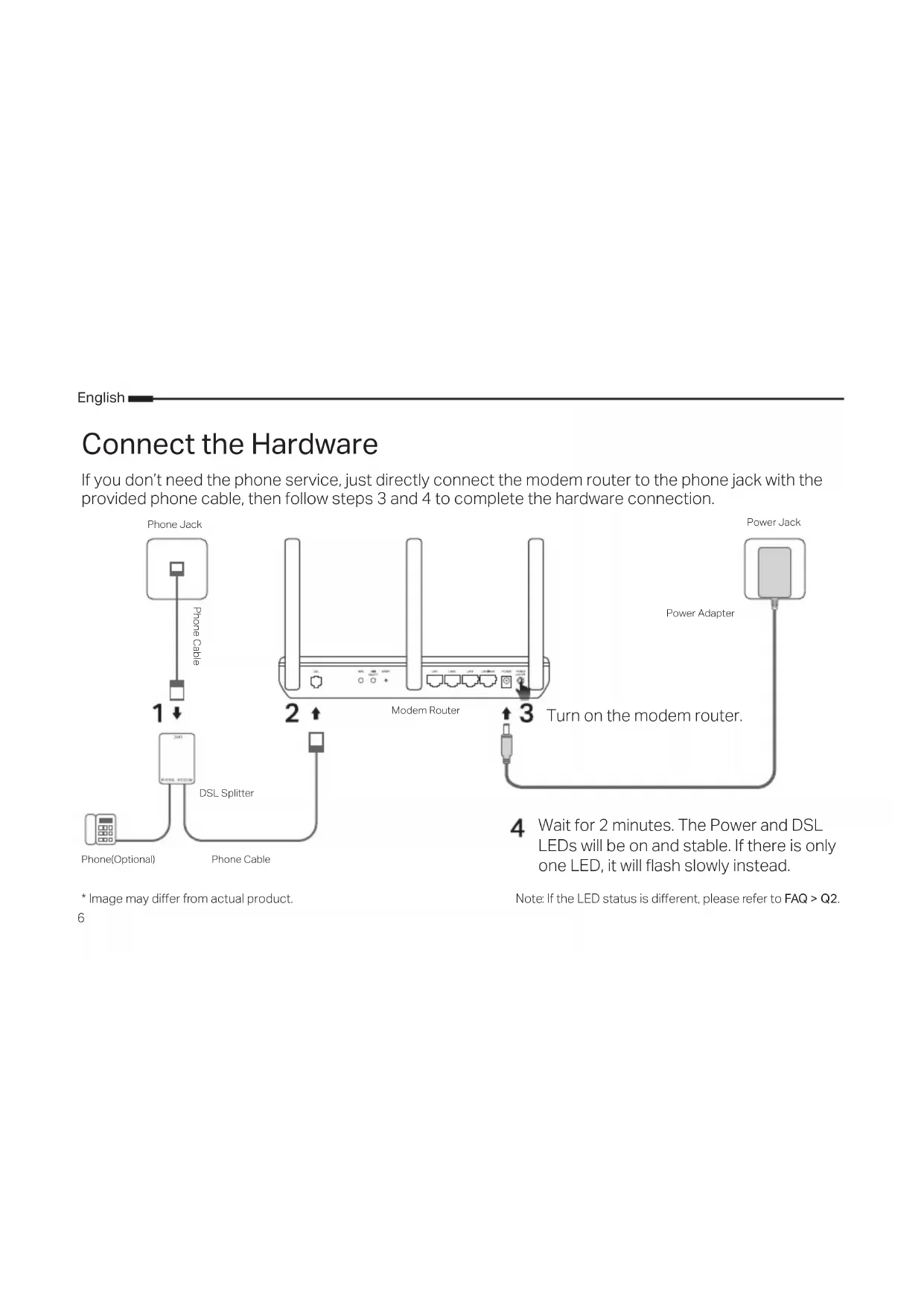

Connect the Hardware

If you don’t need the phone service, just directly connect the modem router to the phone jack with the

provided phone cable, then follow steps 3 and 4 to complete the hardware connection.

* Image may dier from actual product. Note: If the LED status is dierent, please refer to FAQ > Q2.

Wait for 2 minutes. The Power and DSL LEDs will be on and stable. If there is only

one LED, it will ash slowly instead.

Turn on the modem router.

A Launch a web browser and type in

http://tplinkmodem.net or 192.168.1.1.

Note: If the login page does not appear, please refer to FAQ

B Create a password for future login attempts,

or use admin for both username and

password for some routers.

C Go to Quick Setup or Quick Start page

and follow the step-by-step instructions to

complete the initial configuration.

1 Connecting your computer to the modem

router via a wired or wireless connection

Connect your computer to the LAN (or 1/2/3/4)

port using an Ethernet cable.

Connect wirelessly by using the SSID (network

name) and Wireless Password printed on the

product label at the bottom of the modem

Now you can enjoy your internet.

Ethernet CableEnglish

If you already have a modem or your internet

comes directly from an Ethernet wall outlet, you

can switch to Wireless Router mode. Follow the

steps below and set up.

1 Connect your computer to the router (LAN

1/2/3 port) via a wired or wireless connection.

Note: The SSIDs (network names) and wireless password are

printed on the product label.

2 Configuring the modem router via a web

A Launch a web browser and type in

http://tplinkmodem.net or 192.168.1.1.

Note: If the login page does not appear, please refer to FAQ

B Create a password for future login attempts,

or use admin for both username and

password for some routers.

Already Have a Modem?

3 Connect the modem to the router’s WAN port

via an Ethernet cable.

4 Go to WAN > WAN Conguration to change

WAN PHYSICAL TYPE and nish the setup.

Now you can enjoy your internet.

For more advanced settings, refer to the

User Guide on TP-Link’s ocial website at

FAQ (Frequently Asked Questions)

Q1. What can I do if the login page does not appear?

A1. If the computer is set to a static or xed IP address, change the settings to obtain an IP address automatically from the

A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter.

A3. Use another web browser and try again.

A4. Reboot your modem router and try again.

A5. Disable and enable the active network adapter.

Q2. What can I do if the LED status is not correct?

A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter.

A2. Restore your modem router to its factory default settings.

A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then recongure the modem router by

following the instructions in this Quick Installation Guide.

A4. Contact your ISP to verify if the DSL line is in good status.

A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

The TP-Link Tether app provides a simple, intuitive way to access and manage your router.

You can block unwelcome devices, set up Parental Controls, congure your wireless

Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google

Note: Tether is not supported by some routers. Please check the app description before downloading.English

Q3. What can I do if I cannot access the internet?

A1. Make sure the telephone and Ethernet cables are plugged in correctly.

A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you

can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem

A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If

they are not, replace them with the correct settings and try again.

A4. Restore the modem router to its factory default settings and recongure the modem router by following the instructions in

this Quick Installation Guide.

A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

Q4. What can I do if I forget my password?

• Web management page password:

A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username

and password for some routers.

• Wireless network password:

A1. The default Wireless Password/PIN is printed on the product label of the modem router.

A2. If the default wireless password has been changed, log in to the web management page of the router to retrieve or reset your

Q5. How do I restore the modem router to its factory default settings?

A1. With the modem router powered on, press and hold down the RESET button of the modem router until there is an obvious

change of LEDs, and then release the button.

A2. Log in to the web management page of the modem router and go to the system management page to restore the modem

router, usate admin come username e password.

Setup)/Início Rápido (Quick Start) e siga as

Vent to minutter. LED-lysene for strøm-

• Keep the device away from water, re, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

• Do not use damaged charger or USB cable to charge the device.

• Do not use any other chargers than those recommended.

• Do not use the device where wireless devices are not allowed.

• Adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that

no accidents or damage will occur due to improper use of the device. Please use this product with care and

operate at your own risk.

For TP-Link Branded Products Only.

For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects

in materials and workmanship when used normally in according with TP-Link’ s guidelines for some period

which depends on the local service from the date of original retail purchase by the end-user purchaser.Español

Información de Seguridad

https://www.tp-link.com/en/support/ce/.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant

provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/.
