USER MANUAL 47LB652V LG

* Please read this manual carefully before operating your set and retain it for future reference.* LG LED TV applies LCD screen with LED backlights.LB63** LB68** LB72** LB87**LB65** LB69** LB73**LB67** LB70** LB86** OWNER’S MANUAL Click! User GuideP/NO : MFL68027012(1405-REV02)Printed in Korea *MFL68027012*A-2

TABLE OF CONTENTS TABLE OF CONTENTS A-3 SETTING UP THE TV A-3 Attaching the stand

A-8 Attaching the Sound Bar Supporter

COMMON A-12 MAKING CONNECTIONS A-12 Antenna connection

A-14 Satellite dish connection

A-18 - ARC (Audio Return Channel)

A-19 DVI to HDMI connection

A-22 Component connection

A-24 Composite connection

A-29 Audio connection

A-29 - Digital optical audio connection

A-33 CI module connection

A-35 Headphone connection

A-38 Euro Scart connection

LANGUAGE LANGUAGE LIST English

SETTING UP THE TV SETTING UP THE TV Image shown may differ from your TV.

1 Attach the stand to the TV using the upper

mounting hole on the back of the TV.

2 Attach the stand to the TV using the lower

connection on the back of the TV.

1 Attach the stand to the TV using the upper

mounting hole on the back of the TV.

2 Attach the stand to the TV using the lower

connection on the back of the TV.A-4

1 Attach the stand to the TV using the upper

mounting hole on the back of the TV.

2 Attach the stand to the TV using the lower

connection on the back of the TV.

1 Attach the stand to the TV using the upper

mounting hole on the back of the TV.

2 Attach the stand to the TV using the lower

connection on the back of the TV.

When attaching the stand to the TV

set, place the screen facing down on a

cushioned table or flat surface to protect

the screen from scratches.

Make sure that the screws are inserted

correctly and fastened securely. (If they

are not fastened securely enough, the TV

may tilt forward after being installed.)

Do not use too much force and over

tighten the screws; otherwise screw may

be damaged and not tighten correctly.

Remove the stand before installing the

TV on a wall mount by performing the

stand attachment in reverse.

The Screw Cover will protect the opening

from accumulating dust and dirty.

The Rubber will protect the opening from

accumulating dust and dirt. When

installing the wall mounting bracket, use

the Rubber. (Only LB65**-ZE/ZN)

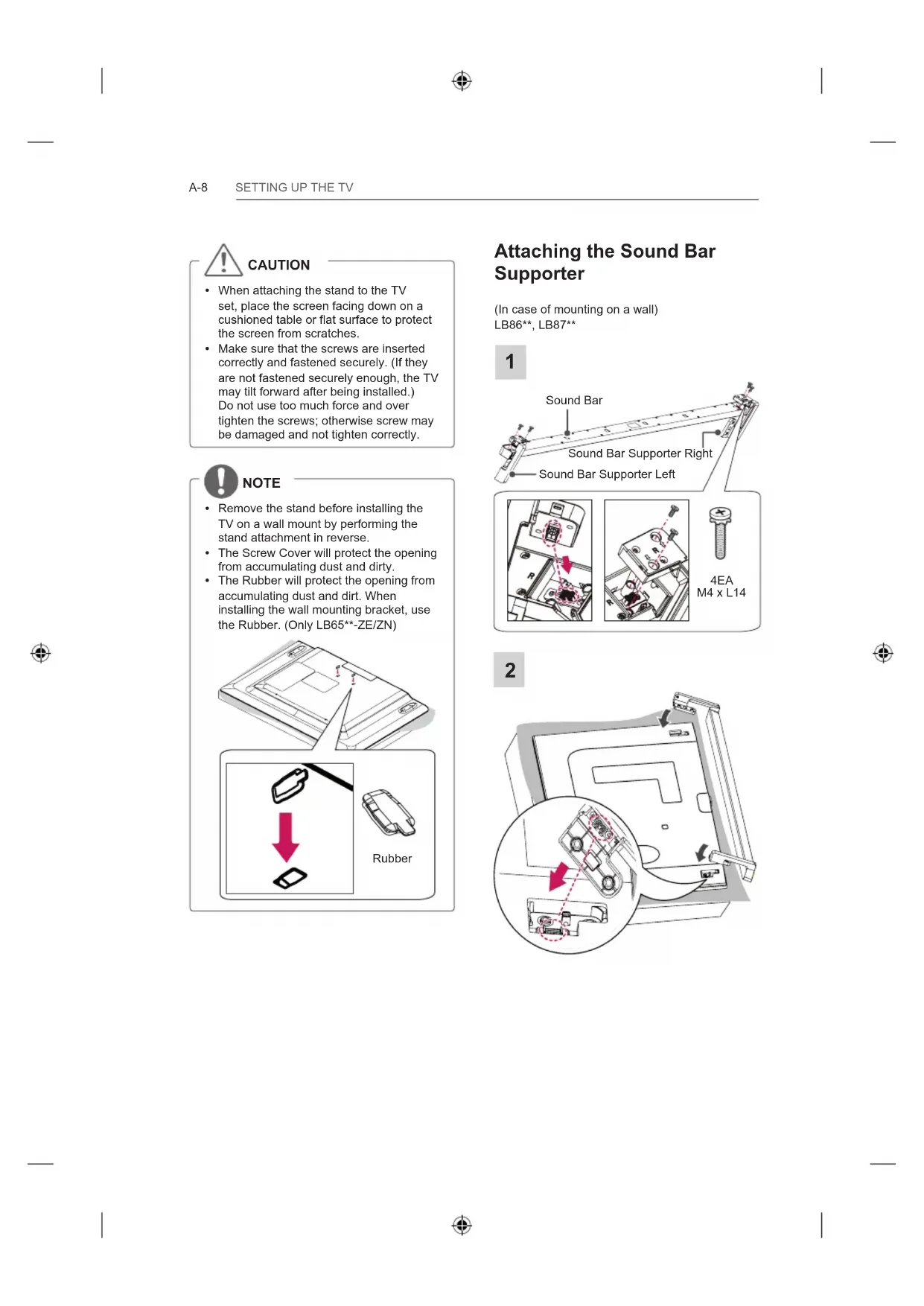

Attaching the Sound Bar

(In case of mounting on a wall)

Sound Bar Supporter Right

Sound Bar Supporter Left

When attaching the sound bar supporter

to the TV set, place the screen facing

down on a cushioned table or flat surface

to protect the screen from scratches.

Make sure that the screws are inserted

correctly and fastened securely. (If they

are not fastened securely enough, the TV

may tilt forward after being installed.)

Do not use too much force and over

tighten the screws; otherwise screw may

be damaged and not tighten correctly.

The sound bar supporter only uses for

After assembling the Sound Bar Wall

Mount Brackets, do not adjust the angle

of the TV while holding the Sound Bar or

hanging onto the Sound Bar.

When lifting the product, or moving it,

make sure that two or more people safely

lift it and set it upright on a flat surface.

When there are two people, one person

should stand on the right side of the

product and the other person should

stand on the left side to lift it. When

moving the product, hold the top and

When lifting the product, or moving it,

do not hold the Sound Bar. If you hold

the Sound Bar when lifting the product,

or moving it, the Sound Bar may be

<When lifting the product>

<When moving the product>A-10

SETTING UP THE TV NOTE

Remove the sound bar supporter before

installing the stand by performing the

sound bar supporter attachment in

The Screw Cover will protect the opening

from accumulating dust and dirty.

Image shown may differ from your TV.

1 Gather and bind the cables with the Cable

Holder. (Depending on model)

2 Fix the Cable ManagementrmlytotheTV.

Cable ManagementA-11

(Only LB86**, LB87**)

Do not move the TV by holding the cable

holders, as the cable holders may break,

and injuries and damage to the TV may

MAKING CONNECTIONS MAKING CONNECTIONS This section on MAKING CONNECTIONS mainly

Connect the TV to a wall antenna socket with an

Use a signal splitter to use more than 2

If the image quality is poor, install a signal

amplifier properly to improve the image

If the image quality is poor with an

antenna connected, try to realign the

antenna in the correct direction.

An antenna cable and converter are not

Dolby Digital, Dolby Digital Plus, HE-AACA-14

MAKING CONNECTIONS Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite

socket with a satellite RF cable (75 Ω).

(Only LB86**, LB87**)

(Only LB63**, LB65**, LB67**, LB68**, LB69**,

/ HD STB / PC English

Transmits the digital video and audio signals

from an external device to the TV. Connect the

external device and the TV with the HDMI cable

Choose any HDMI input port to connect. It does

not matter which port you use.

It is recommended to use the TV with

the HDMI connection for the best image

with CEC (Customer Electronics Control)

High Speed HDMI™ Cables are tested

to carry an HD signal up to 1080p and

Digital, DTS, PCM (Up to 192 KHz, 32KH

An external audio device that supports

SIMPLINK and ARC must be connected

using HDMI IN 1 (ARC) or HDMI/DVI IN 1

When connected with a high-speed

HDMI cable, the external audio device

that supports ARC outputs optical SPDIF

without additional optical audio cable and

supports the SIMPLINK function.

MAKING CONNECTIONS DVI to HDMI connection

(Only LB86**, LB87**)

DVD/ Blu-Ray / HD Cable Box / HD STB / PC

(Only LB63**, LB65**, LB67**, LB68**, LB69**,

Transmits the digital video signal from an external

device to the TV. Connect the external device and

the TV with the DVI-HDMI cable as shown. To

transmit an audio signal, connect an audio cable.

Choose any HDMI input port to connect. It does

not matter which port you use.

Depending on the graphics card, DOS

mode may not work if a HDMI to DVI Cable is in use.

When using the HDMI/DVI cable, only

Single link is supported.

alleen single link ondersteund.A-22

MAKING CONNECTIONS Component connection

(Only LB86**, LB87**)

AUDIO VIDEO L R IN COMPONENT B AUDIO AV2

(Only LB63**, LB65**, LB67**, LB68**, LB69**,

RED WHITE RED GREEN BLUE English

Transmits analog video and audio signals from an

external device to the TV. Connect the external

device and the TV with a component cable as

If cables are not installed correctly, it

could cause this image to display in black

and white or with distorted colours.

Composite connection

(Only LB63**, LB65**, LB67**, LB68**, LB69**,

DVD / Blu-Ray / HD Cable Box / VCR RED RED English

Transmits analog video and audio signals from

an external device o the TV. Connect the external

device and the TV with the composite cable as

Mobile High-denition Link (MHL) is an interface

for transmitting digital audiovisual signals from

mobile phones to television sets.

Connect the mobile phone to the HDMI IN

3 (MHL) or HDMI/DVI IN 4 (MHL) port to

view the phone screen on the TV.

The MHL passive cable is needed to

connect the TV and a mobile phone.

This only works for the MHL-enabled

Some applications can be operated by the

For some mobile phones supporting MHL,

you can control with the magic remote

Remove the MHL passive cable from the

- the MHL function is disabled

- your mobile device is fully charged in

/P OUT Digital Audio System (*Not Provided)EnglishYou may use an optional external audio system instead of the built-in speaker. Digital optical audio connection Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown. NOTE

y Do not look into the optical output port. Looking at the laser beam may damage your vision.

y Audio with ACP (Audio Copy Protection) function may block digital audio output.A-30

Connect a USB storage device such as a USB

ash memory, external hard drive, or a USB

memory card reader to the TV and access the

SmartShare menu to use various multimedia les.

Some USB Hubs may not work. If a USB

device connected using a USB Hub is not

detected, connect it to the USB port on

View the encrypted (pay) services in digital

TV mode. This feature is not available in all

Check if the CI module is inserted into the

PCMCIA card slot in the right direction. If

the module is not inserted properly, this can

cause damage to the TV and the PCMCIA

If the TV does not display any video

and audio when CI+ CAM is connected,

please contact to the Terrestrial/Cable/

Satellite Service Operator.A-34

Headphone connection

Transmits the headphone signal from the TV to

an external device. Connect the external device

and the TV with the headphone as shown.

AUDIO menu items are disabled when

connecting a headphone.

Optical Digital Audio Out is not available

when connecting a headphone.

Headphone impedance: 16 Ω

Max audio output of headphone: 0.624

Headphone jack size: 0.35 cmA-36

Velikost vtiča slušalk: 0,35 cmA-38

MAKING CONNECTIONS Euro Scart connection

(Only LB86**, LB87**)

(Only LB63**, LB65**, LB67**, LB68**, LB69**,

Transmits the video and audio signals from an exter-

nal device to the TV set. Connect the external device

and the TV set with the euro scart cable as shown.

Any Euro scart cable used must be signal

When watching digital TV in 3D imaging

mode, only 2D out signals can be output

through the SCART cable. (Only 3D models)

If you set the 3D mode to On while a

scheduled recording is performed on digital

TV, monitor out signals cannot be output

through the SCART cable, and the recording

cannot be performed. (Only 3D models)A-39

MAKING CONNECTIONS Deutsch

MAKING CONNECTIONS English

Connect various external devices to the TV

and switch input modes to select an external

device. For more information of external device’s

connection, refer to the manual provided with

Available external devices are: HD receivers,

DVD players, VCRs, audio systems, USB storage

devices, PC, gaming devices, and other external

The external device connection may differ

Connect external devices to the TV

regardless of the order of the TV port.

If you record a TV programme on a

DVD recorder or VCR, make sure to

connect the TV signal input cable to the

TV through a DVD recorder or VCR. For

more information of recording, refer to

the manual provided with the connected

Refer to the external equipment’s manual

for operating instructions.

If you connect a gaming device to the TV,

use the cable supplied with the gaming

In PC mode, there may be noise

associated with the resolution, vertical

pattern, contrast or brightness. If noise is

present, change the PC output to another

resolution, change the refresh rate to

another rate or adjust the brightness and

contrast on the PICTURE menu until the

In PC mode, some resolution settings

may not work properly depending on the

recorder of videorecorder op de TV is

game-apparaat is geleverd.

Please read this manual carefully before operating your set and retain

it for future reference.

* LG LED TV applies LCD

screen with LED backlights.

OWNER’S MANUAL Click! User Guide2

ENGLISH TABLE OF CONTENTS TABLE OF CONTENTS

10 - Viewing 3D Imaging (Only 3D models)

12 ASSEMBLING AND PREPARING

16 Separate purchase

17 Parts and buttons

19 - Using the Joystick button

20 Lifting and moving the TV

21 Mounting on a table

22 Mounting on a wall

23 Using Built-in Camera

24 - Preparing Built-in Camera

24 - Name of Parts of Built-in Camera

24 - Checking the Camera’s Shooting

28 Registering Magic Remote

28 How to use Magic Remote

29 Precautions to Take when Using the

If you ignore the warning message, you

may be seriously injured or there is a

possibility of accident or death.

may be slightly injured or the product may

The note helps you understand and use

the product safely. Please read the note

carefully before using the product.

29 USING THE USER GUIDE

ENGLISH LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP LICENSES Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

OPEN SOURCE SOFTWARE NOTICE To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this

product, please visit http://opensource.lge.com .

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are

available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of

performing such distribution (such as the cost of media, shipping and handling) upon email request to

opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the

EXTERNAL CONTROL DEVICE SETUP To obtain the external control device setup information, please visit www.lg.com.4

ENGLISH SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Please read these safety precautions carefully before using the product.

Do not place the TV and/or remote control in the following environments:

- A location exposed to direct sunlight

- An area with high humidity such as a bathroom

- Near any heat source such as stoves and other devices that produce

- Near kitchen counters or humidifiers where they can easily be exposed

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product

Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric

supply.This plug must remain readily attached and operable when TV is in

Do not touch the power plug with wet hands. Additionally, if the cord pin is

wet or covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with

Grounded earth pin. (Except for devices which are not grounded on earth.)

Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured

completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as

This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.5

ENGLISH SAFETY INSTRUCTIONS

Bend antenna cable between inside and outside building to prevent rain

This may cause water damaged inside the Product and could give an

When mounting TV onto wall make sure to neatly install and isolate cabling

from rear of TV as to not create possibility of electric shock /fire hazard.

Do not plug too many electrical devices into a single multiple electrical

Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices.

Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of

Anti-moisture material is harmful if swallowed. If swallowed by mistake,

force the patient to vomit and visit the nearest hospital. Additionally, vinyl

packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV.

Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not

Please seek Doctor- Medical Attention immediately if child consumes

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/

screwdriver) between power cable plug and input Wall Socket while it is

connected to the input terminal on the wall. Additionally, do not touch the

power cable right after plugging into the wall input terminal. You may be

(Depending on model)

Do not put or store inflammable substances near the product.

There is a danger of combustion/explosion or fire due to careless handling

of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into

the product, or inflammable objects such as paper and matches. Children

must pay particular attention.

Electrical shock, fire or injury can occur. If a foreign object is dropped into

the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance

(thinner or benzene). Fire or electric shock accident can occur.6

ENGLISH SAFETY INSTRUCTIONS

Do not allow any impact, shock or any objects to fall into the unit, and do

not drop anything onto the screen.

You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm.

You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows

It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion.

Fire or electric shock accident can occur.

Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact

your local service centre.

- The product has been impacted by shock

- The product has been damaged

- Foreign objects have entered the product

- The product produced smoke or a strange smell

This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV

for a long period of time.

Accumulated dust can cause fire hazard and insulation deterioration can

cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects

filled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist.

This may damage the product and cause it to fall.

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power

lines to keep the former from touching the latter even when the antenna

This may cause an electric shock.7

ENGLISH SAFETY INSTRUCTIONS

Do not install the product on places such as unstable shelves or inclined

surfaces. Also avoid places where there is vibration or where the product

cannot be fully supported.

Otherwise, the product may fall or flip over, which may cause injury or

damage to the product.

If you install the TV on a stand, you need to take actions to prevent the

product from overturning. Otherwise, the product may fall over, which may

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional

parts) to the back of the product. When you install the set to use the wall mounting bracket (optional

parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If

not installed by a qualified technician, this may create a fire hazard or an

electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the

diagonal screen size when watching TV.

If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery.

This could cause damage to the remote control.

Do not mix new batteries with old batteries.

This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight ,

open fireplace and electric heaters .

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal

lighting eg Sunlight, fluorescent lighting.

If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make

sure the connecting cables are long enough.

Otherwise, the product may fall over, which may cause injury or damage

Do not turn the product On/Off by plugging-in or unplugging the power plug

to the wall outlet. (Do not use the power plug for switch.)

It may cause mechanical failure or could give an electric shock.8

ENGLISH SAFETY INSTRUCTIONS

Please follow the installation instructions below to prevent the product from

- The distance between the product and the wall should be more than

- Do not install the product in a place with no ventilation (e.g., on a

bookshelf or in a cupboard).

- Do not install the product on a carpet or cushion.

- Make sure the air vent is not blocked by a tablecloth or curtain.

Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for

long periods as the ventilation openings may become hot. This does not

affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or

deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an

exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet.

This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being

twisted, kinked, pinched, closed in a door, or walked upon. Pay particular

attention to plugs, wall outlets, and the point where the cord exits the

Do not press strongly upon the panel with a hand or sharp object such

as nail, pencil or pen, or make a scratch on it, as it may cause damage to

Avoid touching the screen or holding your finger(s) against it for long

periods of time. Doing so may produce some temporary or permanent

distortion/damage to screen.

When cleaning the product and its components, unplug the power first and

wipe it with a soft cloth. Applying excessive force may cause scratches or

discolouration. Do not spray with water or wipe with a wet cloth. Never use

glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol

etc., which can damage the product and its panel.

Otherwise, this may result in fire, electric shock or product damage

(deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power

source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the

Don’t pull at the cord to unplug the power cord from the power board, as

this could be hazardous.

When moving the product, make sure you turn the power off first. Then,

unplug the power cables, antenna cables and all connecting cables.

The TV set or power cord may be damaged, which may create a fire hazard

or cause electric shock.9

ENGLISH SAFETY INSTRUCTIONS

When moving or unpacking the product, work in pairs because the product

Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the

Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power supply cord

or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small “flicker” when it

is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million

to six million pixels. You may see tiny black dots and/or brightly coloured

dots (red, blue or green) at a size of 1 ppm on the panel. This does not

indicate a malfunction and does not affect the performance and reliability of

This phenomenon also occurs in third-party products and is not subject to

You may find different brightness and color of the panel depending on your

viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not

related with the product performance, and it is not malfunction.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video

game) for a prolonged time may cause damage to the screen, resulting in retention of the image,

which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours

for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by

plastic thermal contraction due to tempera-ture and humidity. This noise is common for products

where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise

is generated from a high-speed switching circuit, which supplies a large amount of current to

operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.10

ENGLISH SAFETY INSTRUCTIONS Viewing 3D Imaging (Only 3D models)

WARNING Viewing Environment

- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a

long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

Some users may experience a seizure or other abnormal symptoms when they are exposed to a

ashing light or particular pattern from 3D contents.

Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as

epilepsy, cardiac disorder, or blood pressure disease, etc.

3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly.

Double images or discomfort in viewing may be experienced.

If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble

sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than

If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D

Symptoms which require discontinuation or refraining from watching 3D contents

Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

When these symptoms are experienced, stop using/watching 3D contents and get enough rest until

the symptom subsides.

- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain,

dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or

ENGLISH SAFETY INSTRUCTIONS CAUTION Viewing Environment

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If

you feel discomfort in viewing 3D contents, move further away from the TV.

- Usage/ Viewing 3D contents for children under the age of 6 are prohibited.

- Children under the age of 10 may overreact and become overly excited because their vision is in

development (for example: trying to touch the screen or trying to jump into it. Special monitoring

and extra attention is required for children watching 3D contents.

- Children have greater binocular disparity of 3D presentations than adults because the distance

between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic

depth compared to adults for the same 3D image.

- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D

contents. Advise them to refrain from watching 3D contens for a long time when they are tired.

- The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than

the recommended distance.

Cautions when using the 3D glasses

Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.

Using modied 3D glasses may cause eye strain or image distortion.

Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when

wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them

with chemicals.12 ENGLISHINSTALLATION PROCEDURE / ASSEMBLING AND PREPARING NOTE

y Image shown may differ from your TV.

y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

y The available menus and options may differ from the input source or product model that you are using.

y New features may be added to this TV in the future.

y The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.

y The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost. INSTALLATION PROCEDURE 1 Open the package and make sure all the accessories are included.2 Attach the stand to the TV set.3 Connect an external device to the TV set.4 Make sure the network connection is available. You can use the TV network functions only when the network connection is made. * If the TV is turned on for the rst time after it was shipped from the factory, initialization of the TV may take a few minutes.

ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. CAUTION

y Do not use any unapproved items to ensure the safety and product life span.

y Any damage or injuries caused by using unapproved items are not covered by the warranty.

y Some models have a thin film attached on to the screen and this must not be removed. NOTE

y The items supplied with your product may vary depending on the model.

y Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.

(Depending on model)

The remote control will not be

included for all sales market.

Magic Remote, Batteries

(Only LB67**, LB68**,

LB69**, LB70**, LB72**,

LB73**, LB86**, LB87**)

Tag on Cinema 3D Glasses

The number of 3D glasses

may differ depending on the

(Only LB65**, LB67**,

LB68**, LB69**, LB70**,

LB72**, LB73**, LB86**,

(Only LB63**, LB65**-ZA/

(Only LB70**, LB72**,

ENGLISH ASSEMBLING AND PREPARING Power Cord

(Only 32/39LB65**-ZE/ZN)

(Only LB63**, 39LB65**-ZA/

ZK, 42/47/50/55/60/70LB65**,

LB67**, LB68**, LB69**,

LB70**, LB72**, LB73**)

(Only LB86**, LB87**)

(Only LB70**, LB72**,

(Only 70LB65**-ZA, LB67**,

(Only LB70**, LB72**,

(Only LB70**, LB72**,

(Only LB86**, LB87**)

(Only LB86**, LB87**)

Sound Bar Supporters

(Only LB86**, LB87**)

(Only LB86**, LB87**)

(Only LB86**, LB87**)

(Only LB86**, LB87**)

(Only LB86**, LB87**)

ENGLISH ASSEMBLING AND PREPARING Separate purchase

Separate purchase items can be changed or modied for quality improvement without any notication.

Contact your dealer to buy these items.

These devices only work with certain models.

AG-F***DP Dual Play Glasses

The model name or design may be changed depending on the upgrade of product functions,

manufacturer’s circumstances or policies.17

ENGLISH ASSEMBLING AND PREPARING Parts and buttons

A type : LB63**-ZA, LB65**-ZA B type : LB63**-ZL, LB65**-ZK C type : LB65**-ZE/ZN D type : LB67**, LB68**, LB69**,

LB73**-ZA Remote control and

ENGLISH ASSEMBLING AND PREPARING F type : LB86**, LB87**E type : LB70**, LB72**, LB73**-ZE/ZD

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

2 Joystick Button - This button is located below the TV screen.

You can set the LG Logo Light or Power Indicator Light to on or off by selecting

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.

When the TV is turned off, place your finger on the joystick button

and press it once and release it.

When the TV is turned on, place your finger on the joystick

button and press it once for a few seconds and release it.

If you place your finger over the joystick button and move it left or

right, you can adjust the volume level you want.

If you place your finger over the joystick button and move it up or

down, you can scrolls through the saved programmes you want.

When your finger over the joystick button and push it to the up, down, left or right, be careful not to

press the joystick button. If you press the joystick button first, you can not adjust the volume level

and saved programmes.

When the TV is turned on, press the joystick button one time.

You can adjust the Menu items(

, , ) by moving the joystick button left or right.

TV OFF Turns the power off.

CLOSE Clears on-screen displays and returns to TV viewing.

INPUT Changes the input source.20

ENGLISH ASSEMBLING AND PREPARING Lifting and moving the TV Please note the following advice to prevent the

TV from being scratched or damaged and for safe

transportation regardless of its type and size.

Avoid touching the screen at all times, as

this may result in damage to the screen.

It is recommended to move the TV in the

box or packing material that the TV originally

Before moving or lifting the TV, disconnect

the power cord and all cables.

When holding the TV, the screen should face

away from you to avoid damage.

Hold the top and bottom of the TV frame

rmly. Make sure not to hold the transparent

part, speaker, or speaker grill area.

When transporting a large TV, there should

be at least 2 people.

When transporting the TV by hand, hold the

TV as shown in the following illustration.

When transporting the TV, do not expose the

TV to jolts or excessive vibration.

When transporting the TV, keep the TV

upright, never turn the TV on its side or tilt

towards the left or right.

Do not apply excessive pressure to cause

exing /bending of frame chassis as it may

When handling the TV, be careful not to

damage the protruding joystick button.21 ENGLISHASSEMBLING AND PREPARING Mounting on a table 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (minimum) space from the wall for proper ventilation. 10 cm 10 cm10 cm 10 cm

10 cm 2 Connect the power cord to a wall outlet. CAUTION

y Do not place the TV near or on sources of heat, as this may result in fire or other damage.Using the Kensington security system (This not available for all models.) yImage shown may differ from your TV.The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com. Connect the Kensington security system cable between the TV and a table.Securing the TV to a wall (This feature is not available for all models.)1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. - If there are bolts inserted at the eye-bolts position, remove the bolts first.2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the at surface. CAUTION

y Make sure that children do not climb on or hang on the TV. NOTE

y Use a platform or cabinet that is strong and large enough to support the TV securely.

y Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.22

ENGLISH ASSEMBLING AND PREPARING Make sure to use screws and wall mount

bracket that meet the VESA standard. Standard

dimensions for the wall mount kits are described

in the following table.

Separate purchase(Wall Mounting Bracket)

Standard screw M6 M8

LSW440B LSW640B Wall mount bracket

MSW240 LSW240B LSW440B LSW640B A B Mounting on a wall

Attach an optional wall mount bracket at the rear

of the TV carefully and install the wall mount

bracket on a solid wall perpendicular to the

oor. When you attach the TV to other building

materials, please contact qualied personnel.

LG recommends that wall mounting be performed

by a qualied professional installer.

We recommend the use of LG’s wall mount

When you do not use LG’s wall mount bracket,

please use a wall mount bracket where the

device is adequately secured to the wall with

enough space to allow connectivity to external

ENGLISH ASSEMBLING AND PREPARING CAUTION

Disconnect the power first, and then

If you install the TV on a ceiling or slanted

wall, it may fall and result in severe injury.

Use an authorised LG wall mount and

contact the local dealer or qualified

Do not over tighten the screws as this

may cause damage to the TV and void

Use the screws and wall mounts that

meet the VESA standard. Any damages

or injuries by misuse or using an

improper accessory are not covered by

Use the screws that are listed on the

VESA standard screw specifications.

The wall mount kit includes an installation

manual and necessary parts.

The wall mount bracket is not provided.

You can obtain additional accessories

from your local dealer.

The length of screws may differ

depending on the wall mount. Make sure

to use the proper length.

For more information, refer to the manual

supplied with the wall mount.

When attaching a wall mounting

bracket to the TV, insert the wall

mount spacers into the TV wall mount

holes to adjust the vertical angle of

the TV. (Only 42LB63**, 42LB65**)

Using Built-in Camera

You can make a Skype video call or use the

motion recognition function using the built-in

This TV does not support the use of an external

Before using the built-in camera, you

must recognize the fact that you are

legally responsible for the use or misuse

of the camera by the relevant national

laws including the criminal law.

The relevant laws include the Personal

Information Protection law which

regulates the processing and transferring

of personal information and the law which

regulates the monitoring by camera in a

workplace and other places.

When using the built-in camera,

avoid questionable, illegal, or immoral

situations. Other than at public places or

events, consent to be photographed may

be required. We suggest avoiding the

following situations:

(1) Using the camera in areas where the

use of camera is generally prohibited

such as restroom, locker room, fitting

room and security area.

(2) Using the camera while causing the

infringement of privacy.

(3) Using the camera while causing the

violation of the relevant regulations or

ENGLISH ASSEMBLING AND PREPARING Preparing Built-in Camera

1 Pull up the slide at the back of the TV.

Remove the protective film before using

the built-in camera.

2 You can adjust the angle of the camera with

the angle adjustment lever on the back of the

3 Push down the built-in camera when you are

Name of Parts of Built-in Camera

button on the remote

The optimal distance from the camera

to use the motion recognition function is

between 1.5 m and 4.5 m.25

ENGLISH REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control.

Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching

the and ends to the label inside the compartment, and close the battery

To remove the batteries, perform the installation actions in reverse.

Do not mix old and new batteries, as this may damage the remote control.

The remote control will not be included for all sales market.

Make sure to point the remote control toward the remote control sensor on the TV.

(Depending on model)

INFO Views the information of the current programme and

SUBTITLE Recalls your preferred subtitle in digital mode.

GUIDE Shows programme guide.

Q.VIEW Returns to the previously viewed programme.

FAV Accesses your favourite programme list.

3D Used for viewing 3D video.

PAGE Moves to the previous or next screen.

RECENT Shows the previous history.

SMART Accesses the Home menus.

TELETEXT BUTTONS These buttons are used for teletext.

Navigation buttons (up/down/left/right) Scrolls through

OK Selects menus or options and confirms your input.

BACK Returns to the previous level.

EXIT Clears on-screen displays and returns to TV viewing.

AD By Pressing AD button, audio descriptions function will be

Starts to record and displays record menu. (Only Time

Colour buttons These access special functions in some menus.

INFO Views the information of the current programme and screen.

(Depending on model)

(User Guide) Sees user-guide.

GUIDE Shows programme guide.

(Space) Opens an empty space on the screen keyboard.

Q.VIEW Returns to the previously viewed programme.

FAV Accesses your favourite programme list.

INFO Views the information of the current programme and screen.

3D Used for viewing 3D video. (Depending on model)

PAGE Moves to the previous or next screen.

RECENT Shows the previous history.

SMART Accesses the Home menus.

MY APPS Shows the list of Apps.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

BACK Returns to the previous level.

LIVE MENU Shows the list of Recommended, Programmes, Search and

EXIT Clears on-screen displays and returns to TV viewing.

Colour buttons These access special functions in some menus.

: Red, : Green, : Yellow, : Blue)

TELETEXT BUTTONS These buttons are used for teletext.

LIVE TV Returns to LIVE TV.

Selects the MHP TV menu source. (Only Italy.) (Depending on

SUBTITLE Recalls your preferred subtitle in digital mode.

(Depending on model)27

ENGLISH MAGIC REMOTE FUNCTIONS MAGIC REMOTE FUNCTIONS This item is not included for all models.

When the message “Magic Remote battery is low. Change the battery.” is

displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA)

matching and ends to the label inside the compartment, and close the

battery cover. Be sure to point the remote control toward the remote control

To remove the batteries, perform the installation actions in reverse.

Do not mix old and new batteries, as this may damage the remote control.

(Only LB67**, LB68**, LB69**, LB70**, LB72**, LB73**, LB86**, LB87**)

Turns the TV on or off.

(up/down/left/right)

Press the up, down, left or right

, , or buttons while

the pointer is in use, the pointer

will disappear from the screen

and Magic Remote will operate

like a general remote control. To

display the pointer on the screen

again, shake Magic Remote to

Press the center of the Wheel

button to select a menu. You can

change programmes and scroll

the menu by using the Wheel

These access special functions in

Adjusts the volume level.

Returns to the previous level.

Swiches among broadcast

(antenna) and various inputs.

(Depending on model)

P Scrolls through the saved

* Pressing and holding the

display a menu to select

an external device that is

connected to the TV.

Used for viewing 3D video.

* By Pressing and holding the

function will be enabled.

ENGLISH MAGIC REMOTE FUNCTIONS How to deregister the Magic Remote

Press the (BACK) and

(Home) buttons at the same time,

for five seconds, to unpair the

Magic Remote with your TV.

Pressing and holding the

let you cancel and re-register

Magic Remote at once.

How to use Magic Remote

Shake the Magic Remote

slightly to the right and left or

INPUT, buttons to make

the pointer appear on the

The pointer will appear when

(Depending on model)

If the pointer has not been

used for a certain period

of time or Magic Remote is

placed on a at surface, then

the pointer will disappear.

If the pointer is not

responding smoothly, you can

reset the pointer by moving it

to the edge of the screen.

The Magic Remote depletes

batteries faster than a normal

remote due to the additional

Voice recognition(Depending on model)

Network connection is required to use the

voice recognition function.

1. Press the Voice recognition button.

2. Speak when the voice display window

appears on the left of the TV screen.

• The voice recognition may fail when

you speak too fast or too slow.

• Use the Magic Remote no further than

10 cm from your face.

• The recognition rate may

vary depending on the user’s

characteristics (voice, pronunciation,

intonation and speed) and the

environment (noise and TV volume).

Registering Magic Remote

How to register the Magic Remote

BACK HOME P MY APPS To use the Magic Remote, first

pair it with your TV.

1 Put batteries into the Magic

Remote and turn the TV on.

2 Point the Magic Remote at your

TV and press the Wheel (OK)

on the remote control.

If the TV fails to register the

Magic Remote, try again

after turning the TV off and

ENGLISH MAGIC REMOTE FUNCTIONS / USING THE USER GUIDE USING THE USER GUIDE User Guide allows you to more easily access the

detailed TV information.

1 Press the (Home) button on the remote

control to display the Home menu.

You can also access the User Guide by

(User Guide) in the remote

control. (Depending on model)

Precautions to Take when

Use the remote control within the specified

range (within 10 m).

You may experience communication

failures when using the device outside the

coverage area or if there are obstacles

within the coverage area.

You may experience communication

failures depending on the accessories.

Devices such as a microwave oven

and wireless LAN operate in the same

frequency band (2.4 GHz) as the Magic

Remote. This may cause communication

The Magic Remote may not work properly

if a wireless router (AP) is within 1 meter

of the TV. Your wireless router should be

more than 1 m away from the TV.

Do not disassemble or heat the battery.

Do not drop the battery. Avoid avoid

extreme shocks to the battery.

Inserting the battery the wrong way may

result in explosion.30

ENGLISH MAINTENANCE / TROUBLESHOOTING MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan.

Make sure to turn the power off and disconnect the power cord and all other cables first.

When the TV is left unattended and unused for a long time, disconnect the power cord from the

wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild

detergent. Then wipe immediately with a dry cloth.

Avoid touching the screen at all times, as this may result in damage to the screen.

Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result

in scratches and image distortions.

Do not use any chemicals as this may damage the product.

Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or

Remove the accumulated dust or dirt on the power cord regularly.

Check the remote control sensor on the product and try again.

Check if there is any obstacle between the product and the remote control.

Check if the batteries are still working and properly installed (

Check if the product is turned on.

Check if the power cord is connected to a wall outlet.

Check if there is a problem in the wall outlet by connecting other products.

Check the power control settings. The power supply may be interrupted.

Check if the Automatic Standby(Depending on model) / Sleep Timer /

Timer Power Off is activated in the Timers settings.

If there is no signal while the TV is on, the TV will turn off automatically after

15 minutes of inactivity.

Turn the TV off/on using the remote control.

Reconnect the HDMI cable.

Restart the PC with the TV on.31

Because band channel used by the country could be different, the user can not change or adjust the

operating frequency and this product is set for the regional frequency table.

This device should be installed and operated with minimum distance 20 cm between the device and

your body. And this phrase is for the general statement for consideration of user environment.

(Nur LB67**, LB68**, LB69**,

LB70**, LB72**, LB73**,

(Nur LB65**, LB67**, LB68**,

LB69**, LB70**, LB72**,

LB73**, LB86**, LB87**)

(Nur LB70**, LB72**, LB73**-

LB67**, LB68**, LB69**,

LB70**, LB72**, LB73**)

(Nur LB86**, LB87**)

(Nur LB70**, LB72**, LB73**-

(Nur 70LB65**-ZA, LB67**,

(Nur LB70**, LB72**, LB73**-

(Nur LB70**, LB72**, LB73**-

(Nur LB86**, LB87**)

(Nur LB86**, LB87**)

Lautsprecherleistenträger

(Nur LB86**, LB87**)

Schraubenabdeckungen

(Nur LB86**, LB87**)

(Nur LB86**, LB87**)

(Nur LB86**, LB87**)

(Siehe S. A-22, A-24)

(Nur LB86**, LB87**)

MSW240 LSW240B LSW440B LSW640B A B Wandmontage

(Nur LB67**, LB68**, LB69**, LB70**, LB72**, LB73**, LB86**, LB87**)

LB69**, LB70**, LB72**,

(Uniquement LB65**, LB67**,

LB68**, LB69**, LB70**,

LB72**, LB73**, LB86**,

(Uniquement 32/39LB65**-

LB67**, LB68**, LB69**,

(Corps du support / Base

(Uniquement 70LB65**-ZA,

LB67**, LB68**, LB69**,

LSW440B LSW640B Support mural

(Solo LB67**, LB68**,

LB69**, LB70**, LB72**,

LB73**, LB86**, LB87**)

(Solo LB65**, LB67**,

LB68**, LB69**, LB70**,

LB72**, LB73**, LB86**,

(Solo LB63**, LB65**-ZA/

(Solo LB70**, LB72**, LB73**-

(Solo 32/39LB65**-ZE/ZN)

(Solo LB63**, 39LB65**-ZA/

ZK, 42/47/50/55/60/70LB65**,

LB67**, LB68**, LB69**,

LB70**, LB72**, LB73**)

(Solo LB86**, LB87**)

(Solo LB70**, LB72**,

(Solo 70LB65**-ZA, LB67**,

(Solo LB70**, LB72**,

(Solo LB70**, LB72**, LB73**-

(Solo LB86**, LB87**)

(Solo LB86**, LB87**)

(Vedere pag. A-7, A-8)

Sostegni per Sound Bar

(Solo LB86**, LB87**)

(Solo LB86**, LB87**)

(Vedere pag. A-7, A-9)

Cavo Component generico

(Solo LB86**, LB87**)

Cavo Composito generico

(Solo LB86**, LB87**)

(Vedere pag. A-22, A-24)

(Solo LB86**, LB87**)

AG-F***DP Occhiali Dual play

AG-F***DP Occhiali Dual play

(Solo LB67**, LB68**, LB69**, LB70**, LB72**, LB73**, LB86**, LB87**)

100,0 mm x 55,0 mm x 5,0 mm

VHF, UHF C-Band, Ku-Band

(Solo LB63**, LB65**, LB67**, LB68**, LB69**, LB70**, LB72**, LB73**)

(Solo LB86**, LB87**)

(Solo LB67**, LB68**,

LB69**, LB70**, LB72**,

LB73**, LB86**, LB87**)

(Solo LB65**, LB67**,

LB68**, LB69**, LB70**,

LB72**, LB73**, LB86**,

(Solo LB63**, LB65**-ZA/

(Solo LB70**, LB72**, LB73**-

(Solo 32/39LB65**-ZE/ZN)

(Solo LB63**, 39LB65**-ZA/

ZK, 42/47/50/55/60/70LB65**,

LB67**, LB68**, LB69**,

LB70**, LB72**, LB73**)

(Solo LB86**, LB87**)

(Solo LB70**, LB72**,

(Solo 70LB65**-ZA, LB67**,

(Consulte la página A-3)

(Solo LB70**, LB72**,

(Consulte la página A-6)

(Solo LB70**, LB72**, LB73**-

(Consulte la página A-6)

(Solo LB86**, LB87**)

(Consulte la página A-7)

(Solo LB86**, LB87**)

(Solo LB86**, LB87**)

(Consulte la página A-8)

Tapas de los tornillos

(Solo LB86**, LB87**)

(Consulte la página A-7, A-9)

Cable de componentes

(Solo LB86**, LB87**)

(Consulte la página A-22)

(Solo LB86**, LB87**)

(Solo LB86**, LB87**)

(Solo LB67**, LB68**, LB69**, LB70**, LB72**, LB73**, LB86**, LB87**)

(Apenas LB67**, LB68**,

LB69**, LB70**, LB72**,

LB73**, LB86**, LB87**)

(Apenas LB65**, LB67**,

LB68**, LB69**, LB70**,

LB72**, LB73**, LB86**,

(Apenas LB63**, LB65**-ZA/

(Apenas LB70**, LB72**,

(Apenas 32/39LB65**-ZE/

LB67**, LB68**, LB69**,

LB70**, LB72**, LB73**)

(Apenas LB86**, LB87**)

(Apenas LB70**, LB72**,

(Apenas LB63**-ZL, LB65**-

(Apenas 70LB65**-ZA,

LB67**, LB68**, LB69**,

(Apenas LB70**, LB72**,

(Apenas LB70**, LB72**,

(Apenas LB86**, LB87**)

(Apenas LB86**, LB87**)

(Consulte a p A-7, A-8)

Suportes da barra de som

(Apenas LB86**, LB87**)

Tampas dos parafusos

(Apenas LB86**, LB87**)

(Consulte a p A-7, A-9)

Cabo componente fêmea

(Apenas LB86**, LB87**)

(Apenas LB86**, LB87**)

(Consulte a p A-22, A-24)

(Apenas LB86**, LB87**)

(Apena LB67**, LB68**, LB69**, LB70**, LB72**, LB73**, LB86**, LB87**)

o Comando Magic gasta as

31 SPECIFICATIES WAARSCHUWING

(Alleen LB67**, LB68**,

LB69**, LB70**, LB72**,

LB73**, LB86**, LB87**)

model of land verschillen.

(Alleen LB65**, LB67**,

LB68**, LB69**, LB70**,

LB72**, LB73**, LB86**,

(Alleen LB70**, LB72**,

LB67**, LB68**, LB69**,

(Alleen LB70**, LB72**,

(Alleen 70LB65**-ZA, LB67**,

(Alleen LB70**, LB72**,

(Alleen LB70**, LB72**,

u de menu's of opties.

(Alleen LB67**, LB68**, LB69**, LB70**, LB72**, LB73**, LB86**, LB87**)

(Μόνο για τα μοντέλα LB67**,

LB68**, LB69**, LB70**,

LB72**, LB73**, LB86**,

(Μόνο για τα μοντέλα LB65**,

LB67**, LB68**, LB69**,

LB70**, LB72**, LB73**,

LB67**, LB68**, LB69**,

70LB65**-ZA, LB67**,

MSW240 LSW240B LSW440B LSW640B A B

(Samo modeli 32/39LB65**-

(Samo modeli LB63**,

42/47/50/55/60/70LB65**,

LB67**, LB68**, LB69**,

LB70**, LB72**, LB73**)

(Samo modeli LB86**,

(Samo modeli 70LB65**-

SPECIFICATIONS SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions.

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

65 W 65 W 65 W MODELS

Weight With stand (kg)

90 W 90 W 90 W MODELS

Weight With stand (kg)

100 W 100 W 100 WB-3

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

95 W 100 W 110 W MODELS

Weight With stand (kg)

Weight With stand (kg)

55LB690V-ZC Dimensions

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

120 W 130 W 140 WB-9

Operating Temperature

0 °C to 40 °C Operating Humidity

VHF, UHF C-Band, Ku-Band

VHF: E2 to E12, UHF : E21 to E69,

CATV: S1 to S20, HYPER: S21 to

External antenna impedance 75 ΩRecord the model number and serial number of

Refer to the label on the back cover and quote

this information to your dealer when requiring

MODEL SERIAL Please contact LG First.

If you have any inquiries or comments,
