USER MANUAL 32LA662V LG

OWNER’S MANUAL LED TV

Please read this manual carefully before operating

your set and retain it for future reference. * LG LED TV applies LCD screen with LED backlights.P/NO : MFL67658602(1304-REV02)Printed in KoreaA-2

TABLE OF CONTENTS LANGUAGE COMMON LANGUAGE List

A-7 MAKiNG CONNECtiONs

A-7 Antenna connection

A-9 Satellite dish connection

A-10 HDMI connection

A-20 Audio connection

A-20 - Digital optical audio connection

A-25 CI module connection

A-27 Headphone connection

A-30 Euro Scart connection

4 EA Setting up the TV Image shown may differ from your TV.

When attaching the stand to the TV

set, place the screen facing down on a

cushioned table or flat surface to protect the

screen from scratches.

Make sure that the screws are inserted

correctly and fastened securely. (If they are

not fastened securely enough, the TV may

tilt forward after being installed.)

Do not use too much force and over tighten

the screws; otherwise screw may be

damaged and not tighten correctly.

Removing the protective film (from the

(Depending on model)

Protective film is temporarily attached to

prevent the surface of the product from

being damaged during delivery.

Once the TV has been installed, please

remove the protective film on the bottom of

the unit as shown in the figure.

Remove the stand before installing the TV

on a wall mount by performing the stand

attachment in reverse.

SETTING UP THE TV Tidying cables

1 Gather and bind the cables with the Cable

Holder and the Cable Management.

2 FixtheCableManagementrmlytotheTV.

1 Gather and bind the cables with the Cable

Do not move the TV by holding the cable

holders, as the cable holders may break,

and injuries and damage to the TV may

MAKING CONNECTIONS MAKING CONNECTIONS This section on MAKING CONNECTIONS mainly

uses diagrams for the LA66** models.

Antenna connection ANTENNA/CABLE IN English

Connect the TV to a wall antenna socket with an

Use a signal splitter to use more than 2 TVs.

If the image quality is poor, install a signal

amplifier properly to improve the image quality.

If the image quality is poor with an antenna

connected, try to realign the antenna in the

An antenna cable and converter are not

Digital, Dolby Digital Plus, HE-AACA-9

MAKING CONNECTIONS Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite

socket with a satellite RF cable (75 Ω).

/DVI IN (*Not Provided)DVD/ Blu-Ray / HD Cable Box / HD STB / PCEnglishTransmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown.Choose any HDMI input port to connect. It does not matter which port you use. NOTE

y It is recommended to use the TV with the HDMI connection for the best image quality.

y Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.

y High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.

An external audio device that supports

SIMPLINK and ARC must be connected

using HDMI/DVI IN 1 (ARC) port.

When connected with a high-speed HDMI

cable, the external audio device that

supports ARC outputs optical SPDIF without

additional optical audio cable and supports

the SIMPLINK function.

DVD/ Blu-Ray / HD Cable Box / PC RED WHITE English

Transmits the digital video signal from an external

device to the TV. Connect the external device and

the TV with the DVI-HDMI cable as shown. To

transmit an audio signal, connect an audio cable.

Choose any HDMI input port to connect. It does

not matter which port you use.

Depending on the graphics card, DOS mode

may not work if a HDMI to DVI Cable is in use.

When using the HDMI/DVI cable, only Single

link is supported.A-14

Component connection

N N M M L L O O O O M M N N O O AV

Transmits analog video and audio signals from an

external device to the TV. Connect the external

device and the TV with a component cable as

If cables are not installed correctly, it could

cause this image to display in black and

white or with distorted colours.A-16

MAKING CONNECTIONS Deutsch

DVD/ Blu-Ray / HD Cable Box / VCR RED RED English

Transmits analog video and audio signals from

an external device o the TV. Connect the external

device and the TV with the composite cable as

MAKING CONNECTIONS MHL connection

/DVI INMHL passive cable (*Not Provided) Mobile phone English

Mobile High-denition Link (MHL) is an interface

for transmitting digital audiovisual signals from

mobile phones to television sets.

Connect the mobile phone to the HDMI/DVI IN 3 (MHL) port to view the phone screen on

The MHL passive cable is needed to connect

the TV and a mobile phone.

This only works for the MHL-enabled phone.

Some applications can be operated by the

For some mobile phones supporting MHL,

you can control with the magic remote

Remove the MHL passive cable from the TV

- the MHL function is disabled

- your mobile device is fully charged in

instead of the built-in speaker.

Digital optical audio connection

Transmits a digital audio signal from the TV to an

external device. Connect the external device and

the TV with the optical audio cable as shown.

Do not look into the optical output port.

Looking at the laser beam may damage

Audio with ACP (Audio Copy Protection)

MAKING CONNECTIONS USB connection USB INHDD IN 1

Connect a USB storage device such as a USB

ash memory, external hard drive, or a USB

memory card reader to the TV and access the

Smart Share menu to use various multimedia les.

Some USB Hubs may not work. If a USB

device connected using a USB Hub is not

detected, connect it to the USB port on the

View the encrypted (pay) services in digital TV

mode. This feature is not available in all countries.

Check if the CI module is inserted into the

PCMCIA card slot in the right direction. If the

module is not inserted properly, this can cause

damage to the TV and the PCMCIA card slot.

If the TV does not display any video and

audio when CI+ CAM is connected, please

contact to the Terrestrial/Cable/Satellite

Service Operator.A-26

service terrestre/satellite/câble.

satelitskih storitev.

Headphone connection

H/P OUT (*Not Provided) English

Transmits the headphone signal from the TV to

an external device. Connect the external device

and the TV with the headphone as shown.

AUDIO menu items are disabled when

connecting a headphone.

When changing AV MODE with a headphone

connected, the change is applied to video

but not to audio.(Depending on model)

Optical Digital Audio Out is not available

when connecting a headphone.

Headphone impedance: 16 Ω

Max audio output of headphone: 9 mW to 15

Headphone jack size: 0.35 cmA-28

Velikost vtiča slušalk: 0,35 cmA-30

MAKING CONNECTIONS Euro Scart connection

AV1 IN/OUT (*Not Provided) English

Transmits the video and audio signals from an

external device to the TV set. Connect the external

device and the TV set with the euro scart cable as

Any Euro scart cable used must be signal

When watching digital TV in 3D imaging

mode, only 2D out signals can be output

through the SCART cable. (Only 3D models)

Connect various external devices to the TV

and switch input modes to select an external

device. For more information of external device’s

connection, refer to the manual provided with each

Available external devices are: HD receivers,

DVD players, VCRs, audio systems, USB storage

devices, PC, gaming devices, and other external

The external device connection may differ

Connect external devices to the TV

regardless of the order of the TV port.

If you record a TV program on a DVD

recorder or VCR, make sure to connect the

TV signal input cable to the TV through a

DVD recorder or VCR. For more information

of recording, refer to the manual provided

with the connected device.

Refer to the external equipment’s manual for

operating instructions.

If you connect a gaming device to the TV,

use the cable supplied with the gaming

In PC mode, there may be noise associated

with the resolution, vertical pattern, contrast

or brightness. If noise is present, change

the PC output to another resolution, change

the refresh rate to another rate or adjust the

brightness and contrast on the PICTURE

menu until the picture is clear.

In PC mode, some resolution settings may

not work properly depending on the graphics

apparaat is geleverd.

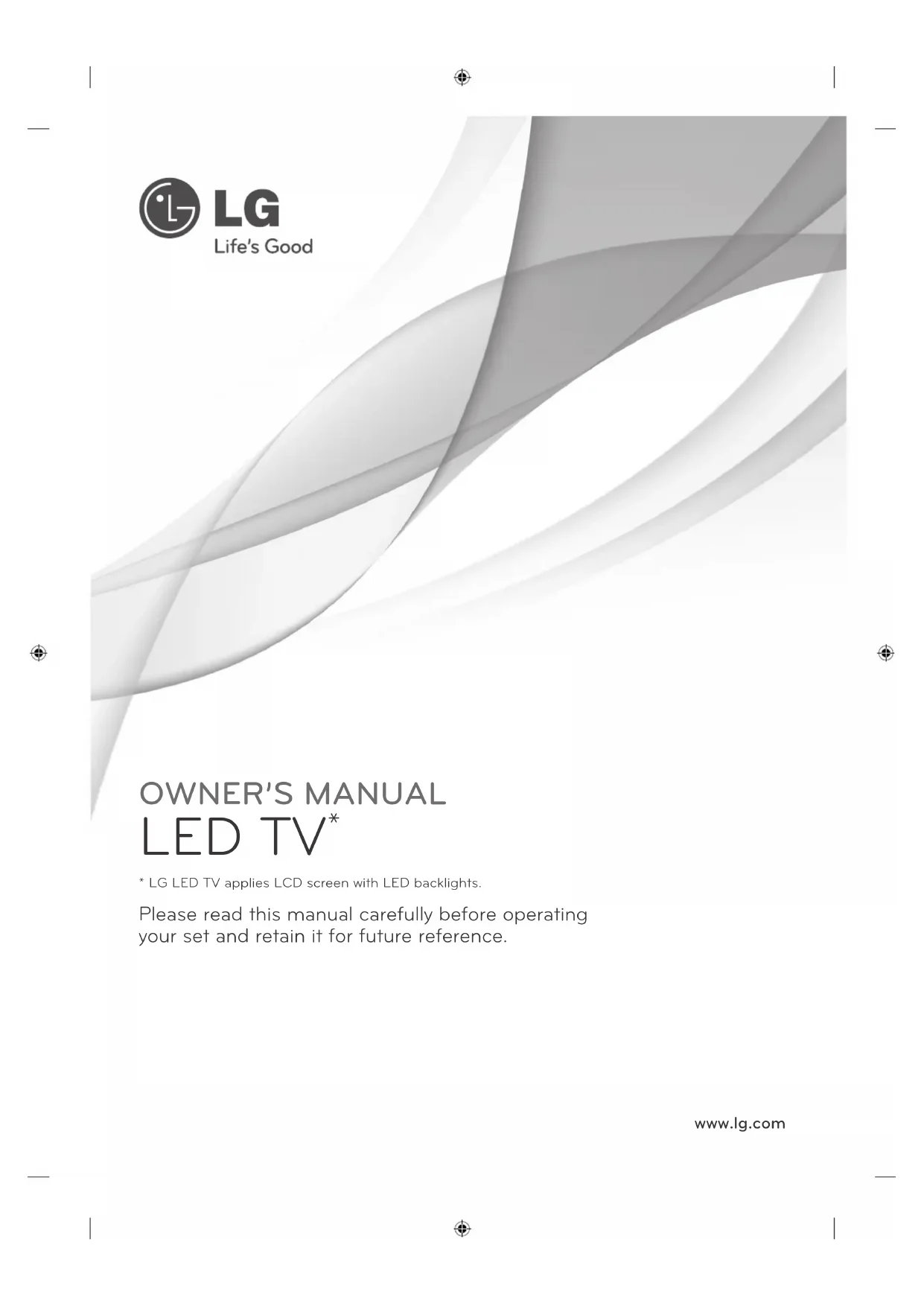

OWNER’S MANUAL LED TV

Please read this manual carefully before operating

your set and retain it for future reference. * LG LED TV applies LCD screen with LED backlights.2

ENG ENGLISH TABLE OF CONTENTS TABLE OF CONTENTS

10 - Viewing 3D Imaging (Only 3D models)

12 ASSEMBLING ANd PREPARING

15 Separate purchase

16 Parts and buttons

17 Lifting and moving the TV

18 Mounting on a table

20 Mounting on a wall

24 MAGIC REMOTE CONTROL FUNCTIONS

25 Registering Magic Remote Control

25 How to use Magic Remote Control

25 Precautions to Take when Using the Magic

If you ignore the warning message, you may

be seriously injured or there is a possibility

of accident or death.

If you ignore the caution message, you may

be slightly injured or the product may be

The note helps you understand and use

the product safely. Please read the note

carefully before using the product.3

ENGENGLISH LICENSES / OPEN SOURCE SOFTWARE NOTICE LICENSES Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D

symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI logo

are trademarks or registered trademarks of HDMI Licensing LLC in the United States

and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays

DivX video. Visit divx.com for more information and software tools to convert your

les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered

in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your

registration code, locate the DivX VOD section in your device setup menu. Go to vod.

divx.com for more information on how to complete your registration.

“DivX Certied® to play DivX® video up to HD 1080p, including premium content.”

“DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or

its subsidiaries and are used under license.”

“Covered by one or more of the following U.S. patents :

7,295,673; 7,460,668; 7,515,710; 7,519,274”

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535

& other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and

the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark

of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

OPEN SOURCE SOFTWARE NOTICE To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this

product, please visit http://opensource.lge.com .

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are

available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of

performing such distribution (such as the cost of media, shipping and handling) upon email request to

opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the

ENG ENGLISH SAFETY INSTRUCTIONS SAFETy INSTRUCTIONS Please read these safety precautions carefully before using the product.

Do not place the TV and/or remote control in the following environments:

- A location exposed to direct sunlight

- An area with high humidity such as a bathroom

- Near any heat source such as stoves and other devices that produce heat

- Near kitchen counters or humidifiers where they can easily be exposed to steam

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply.

This plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or

covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded

earth pin. (Except for devices which are not grounded on earth.) Otherwise

possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured

completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a

This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from

This may cause water damaged inside the Product and could give an electric

When mounting TV onto wall make sure to neatly install and isolate cabling from

rear of TV as to not create possibility of electric shock /fire hazard.5

ENGENGLISH SAFETY INSTRUCTIONS

Do not plug too many electrical devices into a single multiple electrical outlet.

Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices.

Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of

Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the

patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause

suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV.

Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume

Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/

screwdriver) between power cable plug and input Wall Socket while it is connected

to the input terminal on the wall. Additionally, do not touch the power cable right

after plugging into the wall input terminal. You may be electrocuted.

(Depending on model)

Do not put or store inflammable substances near the product.

There is a danger of combustion/explosion or fire due to careless handling of the

inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the

product, or inflammable objects such as paper and matches. Children must pay

particular attention.

Electrical shock, fire or injury can occur. If a foreign object is dropped into the

product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner

or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop

anything onto the screen.

You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm.

You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and

It may cause a fire or a burn by a spark.6

ENG ENGLISH SAFETY INSTRUCTIONS

Do not disassemble, repair or modify the product at your own discretion.

Fire or electric shock accident can occur.

Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local

- The product has been impacted by shock

- The product has been damaged

- Foreign objects have entered the product

- The product produced smoke or a strange smell

This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a

long period of time.

Accumulated dust can cause fire hazard and insulation deterioration can cause

electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.7

ENGENGLISH SAFETY INSTRUCTIONS CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to

keep the former from touching the latter even when the antenna falls.

This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces.

Also avoid places where there is vibration or where the product cannot be fully

Otherwise, the product may fall or flip over, which may cause injury or damage to

If you install the TV on a stand, you need to take actions to prevent the product

from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional

parts) to the back of the product. When you install the set to use the wall mounting bracket (optional

parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not

installed by a qualified technician, this may create a fire hazard or an electric shock

We recommend that you maintain a distance of at least 2 to 7 times the diagonal

screen size when watching TV.

If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery.

This could cause damage to the remote control.

Do not mix new batteries with old batteries.

This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat.eg keep away from direct Sunlight , open

fireplace and electric heaters .

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg

Sunlight, fluorescent lighting.

If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the

connecting cables are long enough.

Otherwise, the product may fall over, which may cause injury or damage the

ENG ENGLISH SAFETY INSTRUCTIONS

Do not turn the product On/Off by plugging-in or unplugging the power plug to the

wall outlet. (Do not use the power plug for switch.)

It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from

- The distance between the product and the wall should be more than 10 cm.

- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in

- Do not install the product on a carpet or cushion.

- Make sure the air vent is not blocked by a tablecloth or curtain.

Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long

periods as the ventilation openings may become hot. This does not affect the

operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or

deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact

replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet.

This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted,

kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,

wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail,

pencil or pen, or make a scratch on it, as it may cause damage to screen.

Avoid touching the screen or holding your finger(s) against it for long periods of

time. Doing so may produce some temporary or permanent distortion/damage to

When cleaning the product and its components, unplug the power first and wipe it

with a soft cloth. Applying excessive force may cause scratches or discolouration.

Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or

industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the

product and its panel.

Otherwise, this may result in fire, electric shock or product damage (deformation,

corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power

source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don’t pull at the cord to unplug the power cord from the power board, as this could

When moving the product, make sure you turn the power off first. Then, unplug the

power cables, antenna cables and all connecting cables.

The TV set or power cord may be damaged, which may create a fire hazard or

cause electric shock.9

ENGENGLISH SAFETY INSTRUCTIONS

When moving or unpacking the product, work in pairs because the product is

Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

If the product feels cold to the touch, there may be a small “flicker” when it is turned

on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six

million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue

or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and

does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to

You may find different brightness and color of the panel depending on your viewing

position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with

the product performance, and it is not malfunction.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video

game) for a prolonged time may cause damage to the screen, resulting in retention of the image,

which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours

for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by

plastic thermal contraction due to tempera-ture and humidity. This noise is common for products

where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is

generated from a high-speed switching circuit, which supplies a large amount of current to operate a

product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.10

ENG ENGLISH SAFETY INSTRUCTIONS Viewing 3D Imaging (Only 3D models)

WARNING Viewing Environment

- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long

period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

Some users may experience a seizure or other abnormal symptoms when they are exposed to a

ashing light or particular pattern from 3D contents.

Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy,

cardiac disorder, or blood pressure disease, etc.

3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double

images or discomfort in viewing may be experienced.

If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble

sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than

If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D

Symptoms which require discontinuation or refraining from watching 3D contents

Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the

- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain,

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you

feel discomfort in viewing 3D contents, move further away from the TV.

- Usage/ Viewing 3D contents for children under the age of 6 are prohibited.

- Children under the age of 10 may overreact and become overly excited because their vision is in

development (for example: trying to touch the screen or trying to jump into it. Special monitoring

and extra attention is required for children watching 3D contents.

- Children have greater binocular disparity of 3D presentations than adults because the distance

between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic

depth compared to adults for the same 3D image.

- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D

contents. Advise them to refrain from watching 3D contens for a long time when they are tired.

- The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the

recommended distance.

Cautions when using the 3d glasses

Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.

Using modied 3D glasses may cause eye strain or image distortion.

Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping

the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with

chemicals.12 ENGENGLISHINSTALLATION PROCEDURE / ASSEMBLING AND PREPARING NOTE

y Image shown may differ from your TV.

y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

y The available menus and options may differ from the input source or product model that you are using.

y New features may be added to this TV in the future.

y The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.

y The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost. INSTALLATION PROCEdURE 1 Open the package and make sure all the accessories are included.2 Attach the stand to the TV set.3 Connect an external device to the TV set.4 Make sure the network connection is available. You can use the TV network functions only when the network connection is made.

ASSEMBLING ANd PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. CAUTION

y Do not use any unapproved items to ensure the safety and product life span.

y Any damage or injuries caused by using unapproved items are not covered by the warranty.

y Some models have a thin film attached on to the screen and this must not be removed. NOTE

y The items supplied with your product may vary depending on the model.

y Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.

(Only LA62**, LA64**,

The number of 3D glasses

may differ depending on

the model or country.

(Depending on model)

ENG ENGLISH ASSEMBLING AND PREPARING Bracket Screw

(Only 32/39/42LN57**-

ZE/ZK, 32/39/42LA62**,

32/42LA64**, 32/42LA66**,

ENGENGLISH ASSEMBLING AND PREPARING Separate purchase

(Depending on model)

Separate purchase items can be changed or modied for quality improvement without any notication.

Contact your dealer to buy these items.

These devices only work with certain models.

AG-F***DP Dual play glasses

The model name or design may be changed depending on the upgrade of product functions,

manufacturer’s circumstances or policies.16

ENG ENGLISH ASSEMBLING AND PREPARING Parts and buttons

H Scrolls through the saved programmes.

H Adjusts the volume level.

H Selects the highlighted menu option or confirms an input.

S Accesses the main menu, or saves your input and exits the menus.

H Changes the input source.

Turns the power on or off.

You can set the LG Logo Light to on or off by selecting OPTION in the main menus.(Depending on model)

ENGENGLISH ASSEMBLING AND PREPARING Remote control sensor

Remote control sensor

Lifting and moving the TV Please note the following advice to prevent the

TV from being scratched or damaged and for safe

transportation regardless of its type and size.

Avoid touching the screen at all times, as

this may result in damage to the screen.

It is recommended to move the TV in the box

or packing material that the TV originally came

Before moving or lifting the TV, disconnect the

power cord and all cables.

When holding the TV, the screen should face

away from you to avoid damage.

Hold the top and bottom of the TV frame rmly.

Make sure not to hold the transparent part,

speaker, or speaker grill area.

When transporting a large TV, there should be

When transporting the TV by hand, hold the TV

as shown in the following illustration.

When transporting the TV, do not expose the

TV to jolts or excessive vibration.

When transporting the TV, keep the TV upright,

never turn the TV on its side or tilt towards the

Do not apply excessive pressure to cause

exing /bending of frame chassis as it may

damage screen.18 ENGENGLISHASSEMBLING AND PREPARING Mounting on a table 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (minimum) space from the wall for proper ventilation.10 cm10 cm10 cm10 cm10 cm2 Connect the power cord to a wall outlet. CAUTION

y Do not place the TV near or on sources of heat, as this may result in fire or other damage.Using the Kensington security system (This feature isnot available for all models.) yImage shown may differ from your TV.The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com. Connect the Kensington security system cable between the TV and a table.Securing the TV to a tableFix the TV to a table to prevent from tilting forward, damage, and potential injury.To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand.(Only 32/39/42/47/50/60LN57**-ZA)(Only 32/39/42/47/50LN57**-ZE/ZK, 32/39/42/47/50LA62**, 32/42/47/50LA64**, 32/42/47/50LA66**, 32/42/47LN61**)  2 EA, P4 x 8(Only 47/50LN57**-ZE/ZK, 47/50LA62**, 47/50LA64**,47/50LA66**, 47LN61**)2 EA, M4 x 8(Only 32/39/42LN57**-ZE/ZK, 32/39/42LA62**, 32/42LA64**, 32/42LA66**, 32/42LN61**)19

ENGENGLISH ASSEMBLING AND PREPARING Adjusting the angle of the TV to suit view

(This feature is not available for all models.)

Swivel 15 degrees to the left or right and adjust the

angle of the TV to suit your view.

angle of the TV to suit your view.

(Only 42/47LA69**, 42/47LA74**)

Swivel 8 degrees to the left or right and adjust the

angle of the TV to suit your view.

(Only 55LA69**, 55/60LA74**)

32/42/47/50LA66**, 32/42/47LN61**)

How to fix the TV to a table

1. Connect the Desk-mount Cables to the

Stand Base using the Bracket Screws.

2. Fix the Desk-mount Cables to a table using

the Desk-mount Screws.

3. Once the TV is fixed, move the table close to

the wall. Children may go in, causing injuries.

To prevent TV from falling over, the TV

should be securely attached to the floor/

wall per installation instructions. Tipping,

shaking, or rocking the TV may cause injury.20 ENGENGLISHASSEMBLING AND PREPARING CAUTION

y When adjusting the angle adof the product, watch out for your fingers.

» Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.<Rear> <Front>Securing the TV to a wall (This feature is not available for all models.)1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. - If there are bolts inserted at the eye-bolts position, remove the bolts first.2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the at surface. CAUTION

y Make sure that children do not climb on or hang on the TV. NOTE

y Use a platform or cabinet that is strong and large enough to support the TV securely.

y Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer. Mounting on a wall Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel.LG recommends that wall mounting be performed by a qualified professional installer. 10 cm 10 cm10 cm 10 cm21

ENGENGLISH ASSEMBLING AND PREPARING CAUTION

Disconnect the power first, and then move

If you install the TV on a ceiling or slanted

wall, it may fall and result in severe injury.

Use an authorised LG wall mount and

contact the local dealer or qualified

Do not over tighten the screws as this may

cause damage to the TV and void your

Use the screws and wall mounts that meet

the VESA standard. Any damages or injuries

by misuse or using an improper accessory

are not covered by the warranty.

Use the screws that are listed on the VESA

standard screw specifications.

The wall mount kit includes an installation

manual and necessary parts.

The wall mount bracket is not provided. You

can obtain additional accessories from your

The length of screws may differ depending

on the wall mount. Make sure to use the

For more information, refer to the manual

supplied with the wall mount.

When attaching a third-party wall mounting

bracket to the TV, insert the wall mount

inner spacers into the TV wall mount holes

to move your TV in vertical angle. Please

make sure not to use the spacers for LG

wall mounting bracket. (Only LA64**)

Wall Mount Inner Spacer

Make sure to use screws and wall mount

bracket that meet the VESA standard. Standard

dimensions for the wall mount kits are described in

the following table.

Separate purchase(Wall Mounting Bracket)

Number of screws 4 4

LSW130B LSW230B MSW240

Number of screws 4 4

ENG ENGLISH REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control.

Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching

and ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

(Only LA66**, LA69**, LA74**, LN570*, LN575*, LN577*, LN578*, LN61**) (Depending on model)

MUTE FAV P GUIDESMARTMY APPS REC LIVE TV

SUBTITLE Recalls your preferred subtitle in digital mode.

INPUT Changes the input source.

LIST Accesses the saved programme list.

Q.VIEW Returns to the previously viewed programme.

FAV Accesses your favourite programme list.

APP/* Select the MHP TV menu source. (Only Italy.) (Depending on model)

PAGE Moves to the previous or next screen.

TELETEXT BUTTONS These buttons are used for teletext.

INFO Views the information of the current programme and screen.

SMART Accesses the Smart Home menus.

My APPS Shows the list of Apps.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

BACK Returns to the previous level.

EXIT Clears on-screen displays and return to TV viewing.

SETTINGS Accesses the main menus.

Colour buttons These access special functions in some menus.

TV/RAD Selects Radio, TV and DTV programme.

LIST Accesses the saved programme list.

(Space) Opens an empty space on the screen keyboard.

Q.VIEW Returns to the previously viewed programme.

FAV Accesses your favourite programme list.

3D Used for viewing 3D video.

PAGE Moves to the previous or next screen.

INFO Views the information of the current programme and screen.

SMART Accesses the Smart Home menus.

MY APPS Shows the list of Apps.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

BACK Returns to the previous level.

GUIDE Shows programme guide.

EXIT Clears on-screen displays and return to TV viewing.

Colour buttons These access special functions in some menus.

( : Red, : Green, : Yellow, : Blue)

TELETEXT BUTTONS These buttons are used for teletext.

SUBTITLE Recalls your preferred subtitle in digital mode.

Q. MENU Accesses the quick menus.

AD Switches the Audio Description On or Off.

Select the MHP TV menu source. (Only Italy.) (Depending on model)

ENG ENGLISH MAGIC REMOTE CONTROL FUNCTIONS MAGIC REMOTE CONTROL FUNCTIONS This item is not included for all models.

When the message “Magic Remote Control battery is low. Change the battery.” is

displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching

and ends to the label inside the compartment, and close the battery cover. Be

sure to point the remote control toward the remote control sensor on the TV.

To remove the batteries, perform the installation actions in reverse.

Do not mix old and new batteries, as this may damage the remote control.

(This feature is not available

Scrolls through the saved

If you press the navigation

button while moving the pointer

on the screen, the pointer

disappears, and the Magic

Remote Control works as a

regular remote control.

To display the pointer again,

shake the Magic Remote

Control from side to side.

Turns the TV on or off.

Used for viewing 3D video.

BACK Returns to the previous level.

Adjusts the volume level.

Scrolls through the saved

programmes or channels.

MUTE Mutes all sounds.

Navigation buttons (up/down/

Scrolls through menus or op-

Pointer (RF transmitter)

Voice recognition(Depending on model)

Network connection is required to use the voice recognition function.

The recognition rate may vary depending on the user’s characteristics (voice, pronunciation, intonation

and speed) and the environment (noise and TV volume).

1. Press the Voice recognition button.

2. Speak when the voice display window appears on the left of the TV screen.

• The voice recognition may fail when you speak too fast or too slow.

• Use the Magic remote control no further than 10 cm from your face.25

ENGENGLISH MAGIC REMOTE CONTROL FUNCTIONS Registering Magic Remote

It is necessary to ‘pair’ (register) the magic remote

control to your TV before it will work.

How to register the Magic Remote Control

1 To register automatically,

turn the TV on and press the

Wheel(OK) button. When

registration is completed, the

completion message appears

2 If registration fails, turn the TV

off and back on, then press

the Wheel(OK) button to

complete registration.

How to re-register the Magic Remote Control

together for 5 seconds to

reset, then register it by

following “How to register the

Magic Remote Control” above.

2 To re-register the Magic

seconds toward the TV. When

registration is completed, the

completion message appears

How to use Magic Remote

1 If the pointer disappears, move

the Magic Remote Control

slightly to left or right. Then, it

will automatically appear on

If the pointer has not been

used for a certain period of

time, it will disappear.

2 You can move the pointer by

aiming the Pointer Receiver of

the Magic Remote Control at

your TV then move it left, right,

If the pointer does not work

properly, leave the Magic

Remote Control for 10

seconds then use it again.

Precautions to Take when

Using the Magic Remote

Use the Magic Remote Control within the

maximum communication distance (10 m).

Using the Magic Remote Control beyond this

distance, or with an object obstructing it, may

cause a communication failure.

A communication failure may occur due to

nearby devices. Electrical devices such as

a microwave oven or wireless LAN product

may cause interference, as these use the

same bandwidth (2.4 GHz) as the Magic

The Magic Remote Control may be damaged

or may malfunction if it is dropped or receives

Take care not to bump into nearby furniture

or other people when using the Magic

Manufacturer and installer cannot provide

service related to human safety as the

applicable wireless device has possibility of

electric wave interference.

It is recommended that an Access Point (AP)

be located more than 1 m away from the

TV. If the AP is installed closer than 1 m, the

Magic Remote Control may not perform as

expected due to frequency interference.

If you press Wheel(OK) on the Magic

Remote Control, the following screen

Shows information about the current

programme and screen.

button to access the

You can also access the User Guide by

(User Guide) in the remote

1 OPTIONPROGRAMME SettingPICTURE, SOUND SettingLG SMART FunctionAdvanced FunctionInformation 2

Shows the current watching programme or

input source screen.

Allows to select the category you want.

Allows to select the item you want.

to move between pages.

Allows to browse the description of the

function you want from the index.

Provides the detailed information on the

functions of LG Smart TV when the Internet

(It may not be available depending on the

[In Digital Mode Only]

When watching a digital broadcast containing several audio

languages, you can select the language you want.

Use the Subtitle function when two or more subtitle

languages are broadcast.

✎ If subtitle data in a selected language is not broadcast,

the default language subtitle will be displayed.

to move between pages.

Moves to the selected menu directly from the

more Index Online User Guide27

ENGENGLISHMAINTENANCE / TROUBLESHOOTING MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan. CAUTION

y Make sure to turn the power off and disconnect the power cord and all other cables first.

y When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. Screen, frame, cabinet and stand

y To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

y To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth. CAUTION

y Avoid touching the screen at all times, as this may result in damage to the screen.

y Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.

y Do not use any chemicals as this may damage the product.

y Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction. Power cord Remove the accumulated dust or dirt on the power cord regularly. TROUBLESHOOTING Problem SolutionCannot control the TV with the remote control.

y Check the remote control sensor on the product and try again.

y Check if there is any obstacle between the product and the remote control.

y Check if the batteries are still working and properly installed ( to , to ).No image display and no sound is produced.

y Check if the product is turned on.

y Check if the power cord is connected to a wall outlet.

y Check if there is a problem in the wall outlet by connecting other products.The TV turns off suddenly.

y Check the power control settings. The power supply may be interrupted.

y Check if the Auto sleep feature is activated in the Time settings.

y If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.When connecting to the PC (HDMI DVI), ‘No signal’ or ‘Invalid Format’ is displayed.

y Turn the TV off/on using the remote control.

y Reconnect the HDMI cable.

y Restart the PC with the TV on.28

Because band channel used by the country could be different, the user can not change or adjust the

operating frequency and this product is set for the regional frequency table.

Because band channel used by the country could be different, the user can not change or adjust the

operating frequency and this product is set for the regional frequency table.

7,295,673; 7,460,668; 7,515,710; 7,519,274”

(Nur 32/39/42LN57**-

ZE/ZK, 32/39/42LA62**,

32/42LA64**, 32/42LA66**,

LSW130B LSW230B MSW240

MUTE FAV P GUIDESMARTMY APPS REC LIVE TV

7,295,673; 7,460,668; 7,515,710; 7,519,274”

Corps du support / Base

Corps du support / Base

LSW130B LSW230B MSW240

LSW430B Support mural

MUTE FAV P GUIDESMARTMY APPS REC LIVE TV

28 RISOLUzIONE DEI PROBLEMI

7,295,673; 7,460,668; 7,515,710; 7,519,274”

(Solo 32/39/42LN57**-

ZE/ZK, 32/39/42LA62**,

32/42LA64**, 32/42LA66**,

AG-F***DP Occhiali Dual play

LSW130B LSW230B MSW240

MUTE FAV P GUIDESMARTMY APPS REC LIVE TV

100,0 mm x 55,0 mm x 5,0 mm

VHF, UHF C-Band, Ku-Band

7,295,673; 7,460,668; 7,515,710; 7,519,274”

(Solo 32/39/42LN57**-

ZE/ZK, 32/39/42LA62**,

32/42LA64**, 32/42LA66**,

LSW130B LSW230B MSW240

MUTE FAV P GUIDESMARTMY APPS REC LIVE TV

7,295,673; 7,460,668; 7,515,710; 7,519,274”

Óculos Dual Play (Repro-

(Apenas 32/39/42LN57**-

ZE/ZK, 32/39/42LA62**,

32/42LA64**, 32/42LA66**,

Óculos Dual Play (Repro-

LSW130B LSW230B MSW240

MUTE FAV P GUIDESMARTMY APPS REC LIVE TV

28 SPEcIFIcAtIES WAARScHUWING

7,295,673; 7,460,668; 7,515,710; 7,519,274”

(Alleen 32/39/42LN57**-

ZE/ZK, 32/39/42LA62**,

32/42LA64**, 32/42LA66**,

LSW130B LSW230B MSW240

MUTE FAV P GUIDESMARTMY APPS REC LIVE TV

7,295,673; 7,460,668; 7,515,710; 7,519,274”

LSW130B LSW230B MSW240

MUTE FAV P GUIDESMARTMY APPS REC LIVE TV

7,295,673; 7,460,668; 7,515,710; 7,519,274”

LSW130B LSW230B MSW240

MUTE FAV P GUIDESMARTMY APPS REC LIVE TV

SPECIFICATIONS SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions.

For the power supply and power consumption, refer to the label attached to the product.

Weight With stand (kg)

80 W 90 W 110 W MODELS

Weight With stand (kg)

Weight With stand (kg)

Power consumption 180 WB-2

Weight With stand (kg)

90 W 110 W 120 W MODELS

Weight With stand (kg)

Weight With stand (kg)

90 W 110 W 120 W MODELS

Weight With stand (kg)

130 W 140 W 110 WB-4

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Power consumption 140 W 180 W

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

0 °C to 40 °C Operating Humidity Less than 80 %

Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 %

Digital TV Analogue TV Television system

VHF, UHF C-Band, Ku-Band

VHF: E2 to E12, UHF : E21 to

E69, CATV: S1 to S20, HYPER:

(50 Hz / 60 Hz only)

Video, which is input as below media contents is switched into the 3D screen automatically.

The method for 3D digital broadcast may differ depending on the signal environment. If video is not

switched automatically into 3D, manually convert the settings to view 3D images.

3D supported mode automatically

Side by Side(Half), Side by Side(Full)

62.938 / 63 Frame Packing, Line Alternative

Side by Side(Half), Side by Side(Full)

62.938 / 63 Frame Packing, Line Alternative

Side by Side(Half), Side by Side(Full)

62.5 Frame Packing, Line Alternative

Side by Side(Half), Side by Side(Full)

44.96 / 45 59.94 / 60

Frame Packing, Line Alternative

Side by Side(Half), Side by Side(Full)

33.72 / 33.75 59.94 / 60

Frame Packing, Field Alternative

Side by Side(Half), Side by Side(Full)

Top & Bottom, Side by Side(Half)

67.432 / 67.5 59.94 / 60

Side by Side(Half), Top & Bottom,

3D supported mode manually

2D to 3D, Side by Side(Half),

ATV(CVBS/SCART) SD - -

2D to 3D, Side by Side(Half),

Checker Board, Frame

Sequential, Row Interleaving,

2D to 3D, Side by Side(Half),

2D to 3D, Side by Side(Half),

Top & Bottom, Checker Board,

Frame Sequential, Row

Interleaving, Column

2D to 3D, Side by Sied(Half),

2D to 3D, Side by Side(Half),

Top & Bottom,Checker Board,

Row Interleaving, Column

2D to 3D, Side by Side(Half),

Top & Bottom, Checker Board,

Frame Sequential, Row

Interleaving, Column

2D to 3D, Side by Side(Half),

2D to 3D, Side by Side(Half),

Top & Bottom,Checker Board,

Row Interleaving, Column

Interleaving, Frame Sequential

2D to 3D, Side by Side(Half),

Top & Bottom,Checker Board,

Row Interleaving, Column

2D to 3D, Side by Side(Half),

2D to 3D, Side by Side(Half),

Others - - 2D to 3DRecord the model number and serial number of

Refer to the label on the back cover and quote

this information to your dealer when requiring any

MODEL SERIAL Please contact LG First.

If you have any inquiries or comments,
