USER MANUAL APD9CR DAITSU

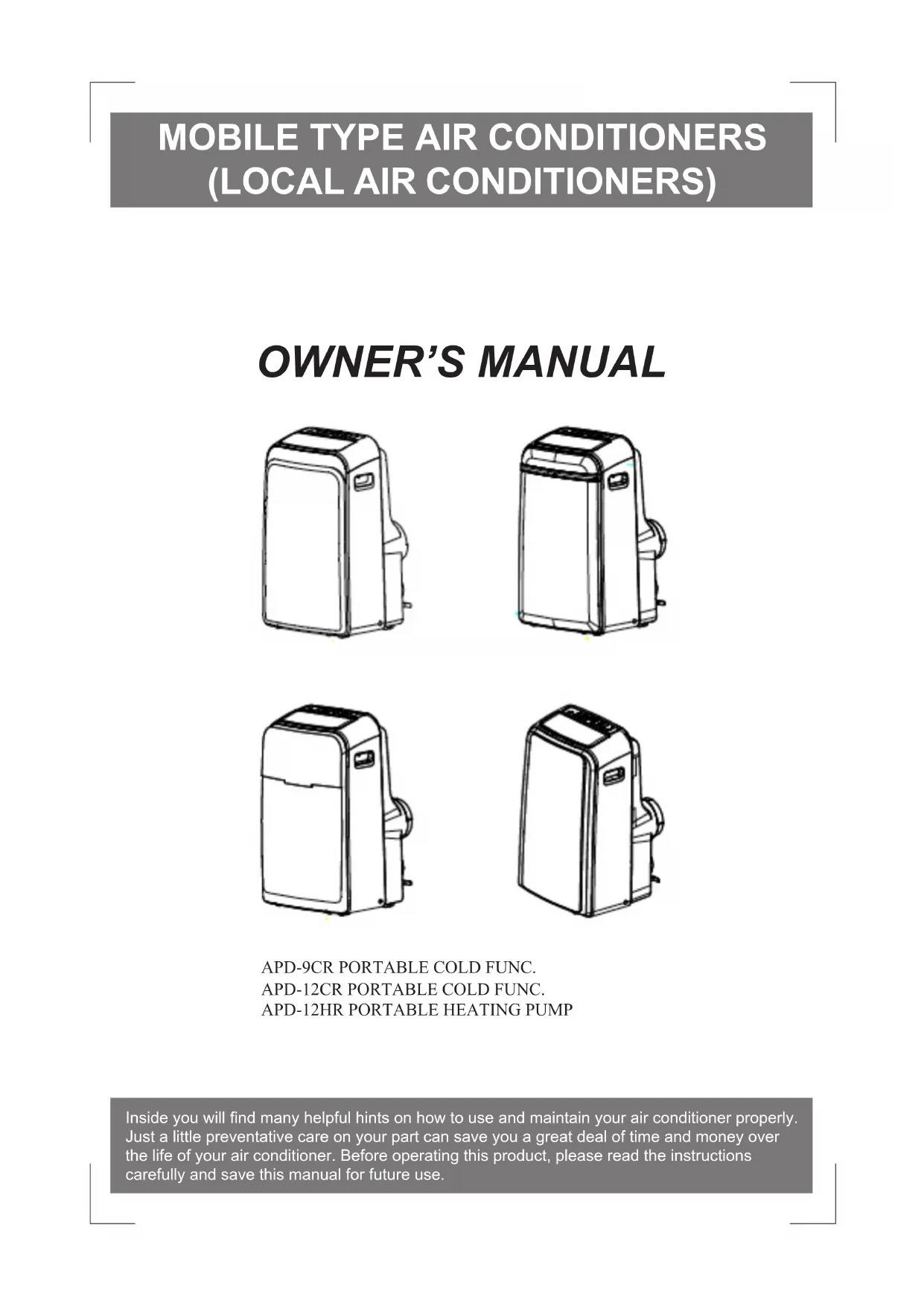

APD-9CR PORTABLE COLD FUNC. APD-12CR PORTABLE COLD FUNC. APD-12HR PORTABLE HEATING PUMPInside you will nd many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You’ll nd many answers to common problems in the chart of troubleshooting tips. If you review o ur c hart o f T roubleshooting Tips rst, you may not need to call for service at all. Read This Manual

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play the appliance. Cleaning and user maintenance shall not be made by children without supervision. ( be applicable for the European Countries )

• This appliance is not intended for use by persons (including children) with reduced physical ,sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (be applicable for other countries except the European Countries )

• Children should be supervised to ensure that they do not play with the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• The appliance shall be installed in accordance with national wiring regulations.

• Do not operate your air conditioner in a wet room such as a bathroom or laundry room.

• The appliance with electric heater shall have at l east 1 m eter s pace t o t he c ombustible materials.

• Contact the authorised service technician for repair or maintenance of this unit.

• Contact the authorised installer for installation of this unit. CAUTIONThe design and specications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. APD-9CR PORTABLE COLD FUNC. APD-12CR PORTABLE COLD FUNC.

Care and maintenance ...................................................................................................................32 TROUBLESHOOTING TIPS Trouble shooting .............................................................................................................................33 The rating data indicated on the energy label is based on the testing condition of installing the un-extended air exhaust duct without adaptor A & B (The duct and the adaptor A & B are listed in the accessories chart of the Instruction Manual). See the right gure.20 When using this air conditioner in the European countries, the following information must be followed: DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. B) When buying a new product, the retailer will take back the old product at least free of charge. C) The manufacture will take back the old appliance for disposal at least free of charge to the user. D) As old products contain valuable resources, they can be sold to scrap metal dealers. Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak into the ground-water and nd their way into the food chain.

• This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. CAUTION SOCIABLE REMARK21 SAFETY PRECAUTIONS Safety rules To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. - Your air conditioner should be used in such a way that it is protected from moisture. e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid. Unplug immediately. - Always transport your air conditioner in a vertical position and stand on a stable, level surface during use. - Turn off the product when not in use. Always contact a qualied person to carry out repairs. If the supply cord is damaged it must be repaired by a qualied repairer. - Keep an air path of at least 30cm all around the unit from walls, furniture and curtains. - If the air conditioner is knocked over during use, turn off the unit and unplug from the mains supply immediately. - Do not operate your air conditioner in a wet room such as a bathroom or laundry room. - Do not touch the unit with wet or damp hands or when barefoot. - Do not press the buttons on the control panel with anything other than your ngers. - Do not remove any xed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged. - Never use the plug to start and stop the unit. - Always use the switch on the control panel. - Do not cover or obsturct the inlet or outlet grilles. - Do not use hazardous chemicals to clean or come into contact with the unit. - Do not use the unit in the presence of inammable substances or vapour such as alcohol, insecticides, petrol,etc. - Do not allow children to operate the unit unsupervised. - Do not use this product for functions other than those described in this instruction manual. Always do this Never do this - Use the unit in the recommended room size. - Locate the unit where furniture cannot obstruct the air ow. - Keep blinds/curtains closed during the sunniest part of the day. - Keep the lters clean. - Keep doors and windows closed to keep cool air in and warm air out. Energy save Operating condition - The air conditioner must be operated within the temperature range indicated below: Suggested tools for window kit installation

1. Screwdriver(medium size Phillips)

2. Tape measure or ruler

3. Knife or scissors

4. Saw(In the event that the window kit needs to be cut down in size because

the window is too narrow for direct installation)

For your safety - Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance. - Avoid re hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord. Electrical information - Be sure the electrical service is adequate for the model you have chosen. This information can be found on the serial plate, which is located on the side of the cabinet and behind the grille. - Be sure the air conditioner is properly grounded. To minimize shock and re hazards, proper grounding is important. The power cord is equipped with a three-prong grounding plug for protection against shock hazards. - Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualied electrician install the proper receptacle. - Ensure the receptacle is accessible after the unit installation. Accessories

PARTS PARTS NAME QUANTITY

Exhaust hose and ApaptorI and Adaptor B (at mouth or round mouth :depending on models) Window Slider Kit and bolt 1 set Wall Exhaust Adaptor A(*) 1 pc Adaptor B(round mouth)(*) 1 pc Expansion Plug and wooden screw (*) 4 / pc Foam seal 3 / pc Remote Controller and Battery (For remote control models only) 1 pc Drain hose and drain hose adaptor (*) 1 pc NOTE: Optional parts (*), some models without - Check all the accessories are included in the package and please refer to the installation instructions for their usage. NOTE: All the illustrations in this manual are for explanation purpose only. Your air conditioner may be slightly different. The actual shape shall prevail.23 IDENTIFICATION PARTS

4. Carrying handle (both sides)

8. Drain outlet (only for Pump heating model)

(Used only when storing the unit)

Before you begin, thoroughly familiarize yourself with the control panel and remote controller and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control panel alone or with the remote controller. NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Instruction>> packed with the unit for details.

OPERATION PANEL OF THE AIR CONDITIONER

Fig. 3 NOTE: On some models SLEEP button is instead of ECO button.

Power switch on/off.

Used to initiate the SLEEP/ECO operation.

3. FAN/ION button (ION is optional)

Control the fan speed. Press to select the fan speed in four steps-LOW, MED, HI and AUTO. The fan speed indicator light illuminates under different fan settings except AUTO speed. When select AUTO fan speed, all the fan indicator lights turn dark. NOTE: Press this button for 3 seconds to initiate ION feature.The ion generator is energized and will help to remove pollen and impur ities from the air, and trap them in the lter. Press it for 3 seconds again to stop the ION feature.

4. UP (+) and DOWN (-) button

Used to adjust (increasing/decreasing) temperatures ettings in 1ºC /2ºF( or 1ºF) inc rements in a range of 17ºC/62 F to 30ºC/88 F (or 86ºF) or the TIMER setting in a range of 0~24hrs. UP(+) and DOWN(-) button NOTE: The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other, press and hold the Up and Down buttons at the same time, for 3 seconds.

5. MODE select button

Selects the appropriate operating mode. Each time you press the button, a mode is selected in a sequence that goes from AUTO, COOL, DRY, FAN and HEAT(cooling only models without). The mode indicator light illuminates under the different mode settings.

AUTO OFF stop time program, in conjuction with the + & - buttons. The timer on/off indicator light illuminates under the timer on/off settings.

(Applicable to the models with auto swing feature only) Used to initiate the Auto swing feature. When the operation is ON, press the SWING button can stop the louver at the desired angle.

Shows the set temperature in “ºC” or “ºF” (“ºF” no display) and the Auto-timer settings. While on DRY and FAN modes, it shows the room temperature.25 Error codes and protection code: E1- Room temperature sensor error- Unplug the unit and plug it back in. If error repeats, call for service. E2- Evaporator temperature sensor error- Unplug the unit and plug it back in. If error repeats, call for service. E3- Condenser temperature sensor error- Unplug the unit and plug it back in. If error repeats, call for service (on some models). E4- Display panel communication error- Unplug the unit and plug it back in. If error repeats, call for service. P1- Bottom tray is full - Connect the drain hose and drain the collected water away. If protection repeats, call for service.

9. FOLLOW ME/TEMP SENSING feature (optional)

NOTE:This feature can be activated from the remote control ONLY. The remote control servesas a remote thermostat allowing for the precise temperature control at its location. To activate the Follow Me/Temp Sensing feature, point the remote control towards the unit and press the Follow Me/Temp Sensing button. The remote display is actual temperature at its location. The remote control will send this signal to the air conditioner every 3 minutes interval until press the Follow Me/Temp Sensing button again. If the unit does not receive the Follow Me/Temp Sensing signal during any 7 minutes interval, the unit will beep to indicate the Follow Me/Temp Sensing mode has ended.

10. POWER MANAGEMENT feature

When the ambient temperature is lower (Cooling mode) or higher (Heating mode) than the setting temperature for a period of time, the unit will be automatically operate power management feature. The power management indicator light When the ambient temperature is higher (Cooling mode) or lower (Heating mode) than the setting temperature, the unit will be automatically quit the power management feature. The power management indicator light turns dark and the compressor and (or) fan motor run. Operating instructions COOL operation - Press the “MODE” button until the “COOL” indicator light comes on. - Press the ADJUST buttons “+” or “ - “ to select your desired room temperature. The temperature can be set within a range of 17OC-30OC/62OF-88OF (or 86OF). - Press the “FAN SPEED” button to choose the fan speed. HEAT operation (cooling only models without) Press the “MODE” button until the “HEAT” indicator light comes on. - Press the ADJUST buttons “+” or “ - “ to select your desired room temperature. The temperature can be set within a range of 17ºC-30ºC/62ºF-88ºF (or 86ºF). - Press the “FAN SPEED” button to choose the fan speed. For some models, the fan speed can not be adjusted under HEAT mode. DRY operation Press the “MODE” button until the “DRY” indicator light comes on. - Under this mode, you cannot select a fan speed or adjust the temperature. The fan motor operates at LOW speed. - Keep windows and doors closed for the best dehumidifying effect. - Do not put the duct to window. AUTO operation When you set the air conditioner in AUTO mode, it will automatically select cooling, heating(cooling only models without), or fan only operation depending on what temperature you have selected and the room temperature. - The air conditioner will control room temperature automatically round the temperature point set by you. - Under AUTO mode, you can not select the fan speed. NOTE: Under AUTO mode, both the AUTO mode and the actual operation mode indicator lights illuminate. FAN operation Press the “MODE” button until the “FAN “ indicator light comes on. - Press the “FAN SPEED” button to choose the fan speed. The temperature cannot be adjusted. - Do not put the duct to window. TIMER operation When the unit is on, press the Timer button will initiate the Auto-off stop program, the TIMER OFF indicator light illuminates. Press the UP or down button to select the desired time. Press the TIMER button again within 5 seconds, the Auto-on start program is initiated. And the TIMER ON indicator light illuminates. Press the up or down button to select the desired Auto-on start time. OPERATING INSTRUCTIONS26

AIR CONDITIONER FEATURES

- When the unit is off, press the Timer button to initiate the Auto-on start program,press it again within ve seconds will initiate the Auto-off stop program. - Press or hold the UP or DOWN button to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until start. - The system will automatically revert back to display the previous temperature setting if there is no operation in a ve seconds period. - Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/ Stop timer program. - When the malfunction (E1,E2,E3 or E4) occurs, the Auto Start/Stop timed program will also be cancelled. SLEEP/ECO operation Press this button, the selected temperature will increase(cooling) or decrease(heating) by 1ºC/2 F(or 1ºF) 30 minutes.The temperature will then increase (cooling) or decrease (heating) by another 1ºC/2ºF(or 1ºF) after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the Sleep/Eco mode and the unit will continue to operate as originally programmed. NOTE: This feature is unavailabe under FAN or DRY mode. Other features Auto-Restart (on some models) If the unit breaks off unexpectedly due to the power cut,it will restart with the previous function setting automatically when the power resumes. Wait 3 minutes before resuming operation After the unit has stopped, it can not be restarted operation in the rst 3 minutes. This is to protect the unit. Operation will automatically start after 3 minutes. Air ow direction adjustment The louver can be adjusted automatically . Adjust the air ow direction automatically (Fig.4): - When the Power is ON, the louver opens fully. Press the SWING button on the panel or remote controller to initiate the Auto swing feature. - The louver willl swing up and down automatically. - Please do not adjust the louver manually. Fig. 4 Swing automatically27 INSTALLATION INSTRUCTIONS (optional) INSTALLATION INSTRUCTIONS Location - The air conditioner should be placed on a rm foundation to minimize noise and virbration. For safe and secure positioning, place the unit on a smooth, level oor strong enough to support the unit. - The unit has casters to aid placement, but it should only be rolled on smooth, at surfaces. Use caution when rolling on carpet surfaces. Do not attempt to roll the unit over objects. - The unit must be placed within reach of a properly rated grounded socket. - Never place any obstacles around the air inlet or outlet of the unit. - Allow 30cm to 100cm of space from the wall with for efcient air-conditioning. Window slider kit Installation Your window slider kit has been designed to t most standard Vertical and horizontal window applications, However, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of window. Please refer to Fig. 6& Fig.7 for minimum and maximum window openings. Window slider kit can be xed with a bolt (see Fig.7a). Note: If the window opening is less than the mentioned minimum length of the window slider kit, cut that one with a hole in it short to t for the window opening. Do never cut out the hole in window slider kit.28 INSTALLATION INSTRUCTIONS (optional) Installation in a double-hung sash window

1. Cut the foam seal(adhesive type) to the

proper length and attach it to the window stool. Fig.8

2. Attach the window slider kit to the window

stool. Adjust the length of the window slider kit according to the width of window, shorten the adjustable window kit if the width of window is less than 26.5 inches Open the window sash and place the window slider kit on the window stool. Fig.9

3. Cut the foam seal(adhesive type) to the

proper length and attach it on the top of the window. Shown as in Fig.10

4. Close the window sash securely against the

5. Cut the foam seal to an appropriate length

and seal the open gap between the top window sash and outer window sash. Shown as in Fig.11. Foam seal A (adhesive type) Without kit Without stool Without kit Without stool Foam steal Fig. 9 Fig. 8 Fig. 11 Fig. 1029 INSTALLATION INSTRUCTIONS (optional) Installation in a sliding sash window

1. Cut the foam seal(adhesive type) to the

proper length and attach it to the window frame. See Fig.12.

2. Attach the window slider kit to the window

stool. Adjust the length of the window slider kit according to the width of window, shorten the adjustable window kit if the width of window is less than 26.5 inches. Open the window sash and place the window slider kit on the window stool. See Fig.13.

3. Cut the foam seal(adhesive type) to the

proper length and attach it on the top of the window. Shown as in Fig.14.

4. Close the sliding sash securely against the

5. Cut the foam seal to an appropriate length

and sea the open gap between the top window sash and outer window sash. Shown as in Fig.15. NOTE: All the illustrations in this manual are for explanation purpose only.Your unit may be slightly different. The actual shape shall prevail. Foam seal A (adhesive type) Fig. 13 Fig. 12 Fig. 15 Fig. 14 Window panel Foam seal30 INSTALLATION INSTRUCTIONS Exhaust hose installation: The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. Fig. 19 Fig. 18 Fig. 17 Fig. 16a Fig. 16b COOL,HEAT(heat pump type) or AUTO mode Install FAN,DEHUMIDIIFY or HEAT(electrical heat type) mode Remove

1. Install the adaptor B and adaptor I onto the

exhaust hose as shown in Fig.16a or Fig.16b. Refer to the previous pages for window kit installation.

2. Resert the hook of the Exhaust hose into the

hole seat of the air outlet and slide down the Exhaust hose along the arrow direction (See Fig.17) for installation. The exhaust hose can be installed into the wall (Not applicable to the units without adaptor A, expansion plugs and wooden screws of Accessories ).

1. Prepare a hole in the wall. Install the wall

Exhaust adaptor A onto the wall(outside) by using 4 expansion plugs and wooden screws, be sure to x thoroughly. (See Fig.18)

2. Attach the Exhaust hose to wall Exhaust

adaptor A. Note: Cover the hole using the adaptor cap when not in use. - The exhaust hose can be compressed or extended moderately according to the installation requirement, but it is desirable to keep the hose length to a minimum. IMPORTANT: DO NOT OVER BEND THE EXHAUST HOSE (SEE Fig.19) CAUTION Make sure that there is no obstacle around the air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works properly.31 INSTALLATION INSTRUCTIONS Water drainage: - During dehumidifying modes, remove the upper drain plug from the back of the unit, install the drain connector(5/8 universal female mender) with 3 4 hose(locally purchased). For the models without drain connector, just attach the drain hose to the hole. Place the open end of the hose adaptor directly over the drain area in your basement oor. Please refer to Fig.20a. - During heating pump mode, remove the lower drain plug from the back of the unit, install the drain connector(5/8 universal female mender) with 3/4 hose(locally purchased). For the models without drain connector, just attach the drain hose to the hole. Place the open end of the hose adaptor directly over the drain area in your basement oor. Please refer to Fig.20b. NOTE: Make sure the hose is secure so there are no leaks.Direct the hose toward the rain,making sure that there are no kinks that will stop the warter owing.Place the end of the hose into the drain and make sure the end of the hose is down to let the water ow smoothly. (See Fig.20a,20b,21a).Do never let it up.(See Fig.21b). - When the water level of the bottom tray reaches a predetermined level, the unit beeps 8 times, the digital display area shows P1 . At this time the air conditioning/dehumidication process will immediately stop. However, the fan motor will continue to operate(this is normal). Carefully move the unit to a drain location, remove the bottom drain plug and let the water drain away(Fig.22). Reinstall the bottom drain plug and restart the machine until the P1 symbol disappears. If the error repeats, call for service. NOTE: Be sure to reinstall the bottom drain plug before using the unit. Fig. 20b Fig. 20a Fig. 22 Fig. 21bFig. 21a Continuous drain hose Drain hose adaptor Remove the upper drain plug Continuous drain hose Drain hose adaptor Remove the lower drain plug32

1) Be sure to unplug the unit before cleaning or

chemicals to clean the unit.

3) Do not wash the unit directly under a tap or

using a hose. It may cause electrical danger.

4) If the power cord is damaged, it should be

repaired by manufacture or its agency.

Clean the air lter at least once every two weeks to prevent inferior fan operation because of dust. - Removal This unit has two lters. Take the upper lter out along the the arrow direction (Fig.23),then take the lter down. Remove the lower lter by loosening the screw, taking out the lter as shown in Fig.23. - Cleaning Wash the air lter by immersing it gently in warm water (about 40ºC/104ºF) with a neutral detergent. Rinse the lter and dry it in a shady place. - Mounting Install the upper air lter after cleaning , and install the lower lter by using the screw (see Fig.24).

- Use a lint-free cloth soaked with neutral detergent to clean the unit enclosure. Finished by a dry clean cloth.

3. Unit idle for a long time

- Remove the rubber plug at the back of the unit and attach a hose to drain outlet. Place the open end of the hose directly over the drain area in your basement oor (See Fig.20 & 21). - Remove the plug from the bottom drain outlet, all the water in the bottom tray would drain out (See Fig.22). - Keep the appliance running on FAN mode for half a day in a warm room to dry the appliance inside and prevent mold forming. - Stop the appliance and unplug it, wrapped the cord and bundle it with the tape(Fig.25). Remove the batteries from the remote controller. - Clean the air lter and reinstall it. Upper lter (take out) Remove the screw, then take the lower lter out Upper lter (install) Install the lower lter by using the screw Power plug socket Power plug Power cord Buckle Fig. 24 Fig. 23 Fig. 2533 TROUBLE SHOOTING

Start when Pressing on/off Button - P1 appears in the display window Drain the water in the bottom tray. - Room temperature is lower than the set temperature.(Cooling mode) Reset the temperature.

2. Not cool enough - The windows or doors in the room

are not closed. Make sure all the windows and doors are closed. - There are heat sources inside the room. Remove the heat sources if possible. - Exhaust air duct is not connected or blocked. Connect the duct and make sure it can function properly. - Temperature setting is too high. Decrease the set temperature. - Air lter is blocked by dust. Clean the air lter.

4. Noisy or vibration - The ground is not level or not at

enough. Place the unit on a at, level ground if possible.

5. Gurgling sound - The sound comes from the owing

of the refrigerant inside the air- conditioner. It is normal.

6. Power shut off at
