USER MANUAL Juliette Pearl F90 ELICA

EN Instruction on mounting and use

an den Kundendienst wendet.18

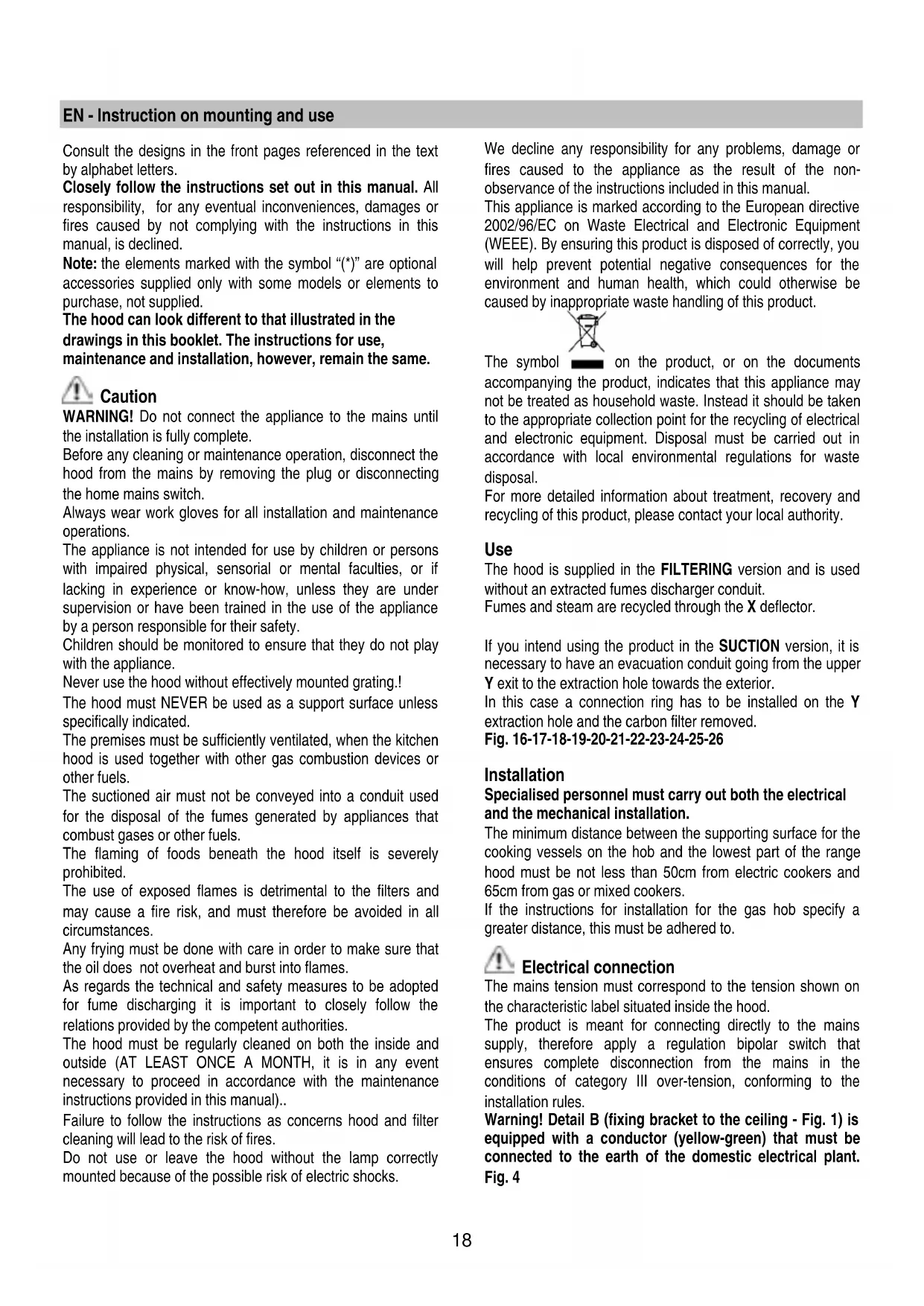

EN - Instruction on mounting and use

Consult the designs in the front pages referenced in the text

by alphabet letters.

Closely follow the instructions set out in this manual. All

responsibility, for any eventual inconveniences, damages or

fires caused by not complying with the instructions in this

manual, is declined.

Note: the elements marked with the symbol “(*)” are optional

accessories supplied only with some models or elements to

purchase, not supplied.

The hood can look different to that illustrated in the

drawings in this booklet. The instructions for use,

maintenance and installation, however, remain the same.

WARNING! Do not connect the appliance to the mains until

the installation is fully complete.

Before any cleaning or maintenance operation, disconnect the

hood from the mains by removing the plug or disconnecting

the home mains switch.

Always wear work gloves for all installation and maintenance

The appliance is not intended for use by children or persons

with impaired physical, sensorial or mental faculties, or if

lacking in experience or know-how, unless they are under

supervision or have been trained in the use of the appliance

by a person responsible for their safety.

Children should be monitored to ensure that they do not play

Never use the hood without effectively mounted grating.!

The hood must NEVER be used as a support surface unless

specifically indicated.

The premises must be sufficiently ventilated, when the kitchen

hood is used together with other gas combustion devices or

The suctioned air must not be conveyed into a conduit used

for the disposal of the fumes generated by appliances that

combust gases or other fuels.

The flaming of foods beneath the hood itself is severely

The use of exposed flames is detrimental to the filters and

may cause a fire risk, and must therefore be avoided in all

Any frying must be done with care in order to make sure that

the oil does not overheat and burst into flames.

As regards the technical and safety measures to be adopted

for fume discharging it is important to closely follow the

relations provided by the competent authorities.

The hood must be regularly cleaned on both the inside and

outside (AT LEAST ONCE A MONTH, it is in any event

necessary to proceed in accordance with the maintenance

instructions provided in this manual)..

Failure to follow the instructions as concerns hood and filter

cleaning will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly

mounted because of the possible risk of electric shocks.

We decline any responsibility for any problems, damage or

fires caused to the appliance as the result of the non-

observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE). By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

on the product, or on the documents

accompanying the product, indicates that this appliance may

not be treated as household waste. Instead it should be taken

to the appropriate collection point for the recycling of electrical

and electronic equipment. Disposal must be carried out in

accordance with local environmental regulations for waste

For more detailed information about treatment, recovery and

recycling of this product, please contact your local authority.

The hood is supplied in the FILTERING version and is used

without an extracted fumes discharger conduit.

Fumes and steam are recycled through the X deflector.

If you intend using the product in the SUCTION version, it is

necessary to have an evacuation conduit going from the upper

Y exit to the extraction hole towards the exterior.

In this case a connection ring has to be installed on the Y

extraction hole and the carbon filter removed.

Fig. 16-17-18-19-20-21-22-23-24-25-26

Specialised personnel must carry out both the electrical

and the mechanical installation.

The minimum distance between the supporting surface for the

cooking vessels on the hob and the lowest part of the range

hood must be not less than 50cm from electric cookers and

65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a

greater distance, this must be adhered to.

Electrical connection

The mains tension must correspond to the tension shown on

the characteristic label situated inside the hood.

The product is meant for connecting directly to the mains

supply, therefore apply a regulation bipolar switch that

ensures complete disconnection from the mains in the

conditions of category III over-tension, conforming to the

Warning! Detail B (fixing bracket to the ceiling - Fig. 1) is

equipped with a conductor (yellow-green) that must be

connected to the earth of the domestic electrical plant.

ATTENTION! Be particularly careful about positioning

the excess cable. Failure to observe this indication could

cause grave damage to the apparatus and/or an electric

shock to the user or the installer. For further details see Fig.

Warining! Changing the interconnection cable must be

carried out by the authorised technical assistance service.

Expansion wall plugs are provided to secure the hood to most

types of walls/ceilings. However, a qualified technician must

verify suitability of the materials in accordance with the type of

wall/ceiling. The wall/ceiling must be strong enough to take

the weight of the hood. Do not tile, grout or silicone this

appliance to the wall. Surface mounting only.

Description of the hood

B. Support to the ceiling bracket

C. Regulators of the tie-rods of the hood

E. Box for connecting to the domestic power network

F. Interconnection cable

H. Active carbon filter

I. Metal anti-fat filter

Use the high suction speed in cases of concentrated kitchen

vapours. It is recommended that the cooker hood suction is

switched on for 5 minutes prior to cooking and to leave in

operation during cooking and for another 15 minutes

approximately after terminating cooking.

A. on/off light switch

B. on/off aspiration switch and minimum power selection

B+D. maximum power selection aspiration switch

Before performing any maintenance operation, isolate the

hood from the electrical supply by switching off at the

connector and removing the connector fuse.

The cooker hood should be cleaned regularly (at least with the

same frequency with which you carry out maintenance of the

fat filters) internally and externally. Clean using the cloth

dampened with neutral liquid detergent. Do not use abrasive

products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning

recommendations of the cooker hood and replacement of the

filters may cause fire risks.

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to

the motor or any fire damage linked to inappropriate

maintenance or failure to observe the above safety

Traps cooking grease particles.

This must be cleaned once a month (or when the filter

saturation indication system – if envisaged on the model in

possession – indicates this necessity) using non aggressive

detergents, either by hand or in the dishwasher, which must

be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour

slightly, but this does not affect its filtering capacity.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The charcoal filter can be washed once every two months (or

when the filter saturation indication system – if envisaged on

the model in possession – indicates this necessity) using hot

water and a suitable detergent, or in a dishwasher at 65°C (if

the dishwasher is used, select the full cycle function and leave

Eliminate excess water without damaging the filter, then put it

in the oven for 10 minutes at 100° C to dry completely.

Replace the mattress every 3 years and when the cloth is

Install the carbon filter on the back of the grease filter and

Attention! The rods are included in the carbon filter

packing and not on the hood.

• To dismantle the filter act in the reverse manner.

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are

1. Using a flat head screwdriver or equivalent tool, carefully

pry loose the light cover.

2. Remove the damaged light and replace with a new 12

Volt, 20 Watt (Maximum) halogen light made for a G-4

base SUITABLE FOR USE IN OPEN LUMINAIRES.

Follow package directions and do not touch new light

3. Reinstall the light cover. (it will snap shut).

Some models envisage lateral lamps:

Replace them with identical forms of 40W (E14) max).

Remove cover A to access the lamp housing A.

If the lights do not work, make sure that the lamps are fitted

properly into their housings before you call for technical
