About the Basic Manual
The Basic Manual leads you through the fundamental steps
to enjoy the AV Receiver from connections to TV, speaker
system and playback components, to necessary functions
for playback. As well as that, Basic Manual informs you with
the instructions on frequently used functions. Besides, there
is another part of the manual called Advanced Manual to
inform you with more detailed information, which we have
decided to publish on the web from the ecological point of
Advanced Manual is always updated with the latest
information and its user friendly interface, which does not
matter whether you access from PC or Smartphone, helps
you to understand more deeply about this unit. Advanced
Manual is consisted of the following chapters.
r Details on AM/FM playback
r Playing Music Files on a USB Storage Device
r Listening to Internet Radio
r Playing Music with DLNA
r Playing Music Files in a Shared Folder
r Operating Music Files with the Remote Controller
r Advanced Settings
r Operating Other Components with the Remote Controller
r Advanced speaker connections
r Connecting and Operating Onkyo RI Components
r Reference Information
Advanced Manual found here http://www.onkyo.com/manual/htr693/adv/en.html Features
r Equipped with 7 ch amplifier
r Supports playback in Dolby Atmos format which provides
360-degree placement and movement of sounds
including overhead sound
r Dolby Surround listening mode expands 2 ch, 5.1 ch or
7.1 ch source to available speaker configurations
r Incorporates Qdeo™ technology
r Equipped with 4K 60 Hz Passthrough-compatible HDMI IN/OUT jacks (among the HDMI IN jacks, only IN1 to IN4
r Supports the HDMI Through function which allows
transmission from playback devices to the TV in standby
r Supports HDCP2.2, a strict copy-protection for providing
high quality content (HDMI IN3/HDMI OUT MAIN only)
r Supports ARC (Audio Return Channel)
r Supports USB storage playback
r Supports variety of network functions such as Internet
r Supports Wi-Fi, Bluetooth and MHL-enabled mobile
r Bi-Amping capability
A/V Sync Function to correct deviation of audio and video
r Multi-zone function which allows you to play a different
source in another room from the main room
r 32 bit DSP (Digital Signal Processor) with excellent
calculation performance
r Music Optimizer™ for Compressed Digital Music files
r Phase Matching Bass System
r Automatic speaker setup available using supplied
calibrated microphone (AccuEQ Room Calibration)
r Supports playback of MP3, FLAC, WAV, Ogg Vorbis,
Apple Lossless, DSD, Dolby TrueHD via network and
USB storage device (the supported formats will differ
depending on the use environment)
Supplied Accessories
Indoor FM antenna --- (1)
AM loop antenna --- (1)
Remote controller (RC-880M) --- (1)
Batteries (AA/R6) --- (2)
Speaker setup microphone --- (1)
¼ The number in parenthesis indicates the quantity. On packaging, the letter at the end of the product name indicates the color.

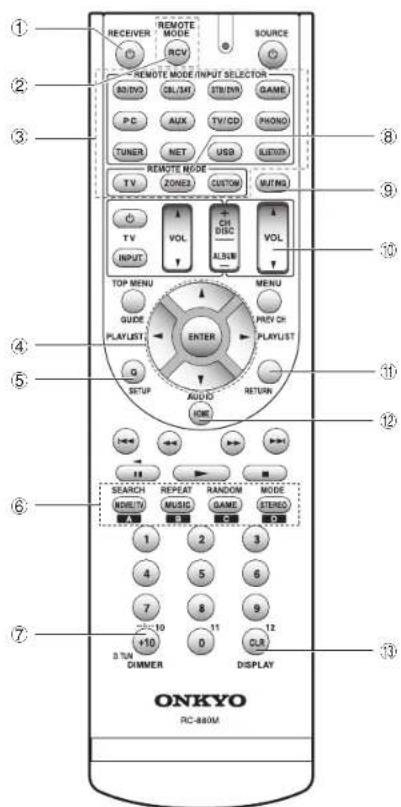

How to use the remote controller Batteries (AA/R6)Remote control sensorApprox. 16 ft. (5 m)AV Receiver ¼ If you do not use the remote controller for a long time, remove the batteries to prevent leakage. ¼ Note that keeping consumed batteries inside may cause corrosion resulting in damage of the remote controller.Step 1:
Connecting the TV and players
Important: The power cord must be connected only after all
other connections are completed.

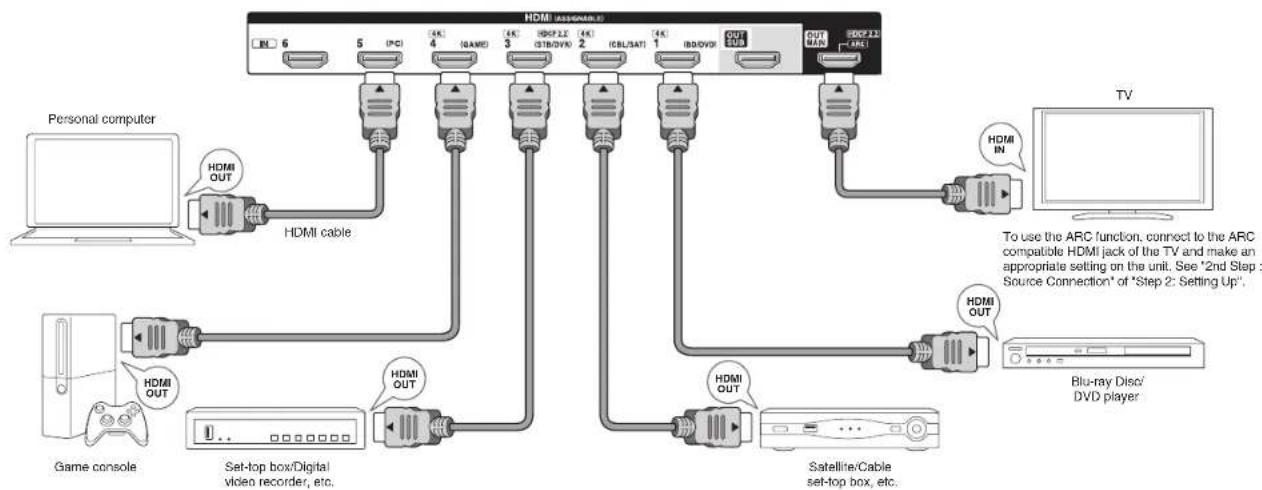

HDMI cable connection
The unit has many HDMI jacks on its rear panel and each
of them corresponds to an input selector button of the
same name on the front panel. For example, a Blu-ray
Disc player will be connected to the HDMI IN1 jack and the
BD/DVD button on the front panel will be used to listen to
the playback sound (if the player is CEC compliant, input
will be switched automatically). If you add another Blu-ray
Disc player, you can use any other jack than HDMI IN1. It
is possible to change assignment of the input jacks and
input selector buttons. For how to make settings, see the
To connect the TV and the unit, connect the
HDMI OUT MAIN jack of the unit and the HDMI IN jack
of the TV with an HDMI cable. With this connection, it
becomes possible to display the setting screen of the unit
on the TV or transmit video/audio signals from the player to
the TV. If your TV supports ARC (Audio Return Channel),
it is possible to play the TV sound with the AV receiver's
speakers with this connection only. If your TV does not
support ARC, you need, in addition to the HDMI OUT MAIN
jack connection, a digital optical cable connection
between the digital audio out optical jack of the TV and
the DIGITAL IN OPTICAL jack of the unit or an RCA cable
connection between the audio output jack of the TV and the
VIDEO/AUDIO IN TV/CD jack of the unit.
DIGITALOPTICAL OUT AUDIO OUT TV

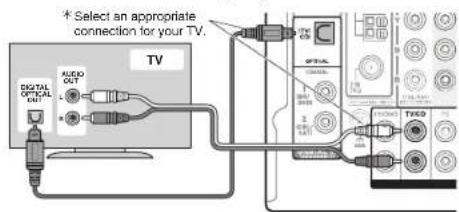

z Audio connection with a TV not supporting ARC ¼ Select an appropriate connection for your TV. The unit supports the HDMI Through function that allows
transmission from players to the TV even if the unit is in
standby. You have to modify the settings to enable the
input selection link with CEC compliant device, connection
with ARC compatible TV, and HDMI Through function. See
"2nd Step : Source Connection" of "Step 2: Setting Up".
HDMI OUT HDMI OUT HDMI OUT HDMI OUT HDMI OUT HDM I IN TV Blu-ray Disc/DVD playerSet-top box/Digital video recorder, etc.Satellite/Cable set-top box, etc.Game consolePersonal computerHDMI cableTo use the ARC function, connect to the ARC compatible HDMI jack of the TV and make an CRRTQRTKCVGUGVVKPIQPVJGWPKV5GGPF5VGR|Source Connection" of "Step 2: Setting Up".4
r To enjoy HDCP2.2 protected video, connect the player to
the HDMI IN3 jack and the TV to the HDMI OUT MAIN
jack of the unit. Your player and TV need to support
r To play 4K or 1080p video, use the high speed HDMI
r Another TV can be connected to the HDMI OUT SUB jack.
To use the function to display the unit's setting screen on
the TV, connect the TV to the HDMI OUT MAIN jack.
r It is possible to send video and audio of an MHL-enabled
mobile device by connecting the MHL-enabled mobile
device to the AUX INPUT HDMI/MHL jack on the front

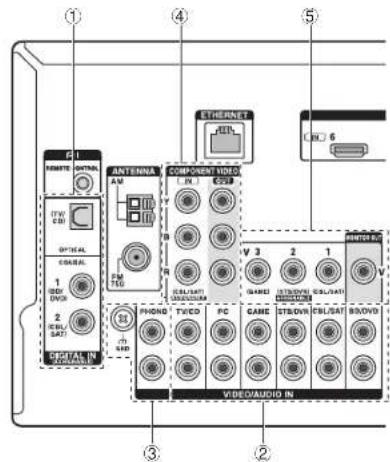

Connecting Components without HDMI If your AV component does not have HDMI jack, use an
available jack of your component for cable connection with
this unit. Just as the HDMI jacks, other jacks on this unit
have a preassigned input selector button on the front panel.
See the name of the input selector button shown with the
jack when connecting the device.
Audio signal connection
Digital connection: Use a digital optical cable
(OPTICAL) or digital coaxial cable (COAXIAL) for
connection with a player.
Digital optical cable (OPTICAL)
¼ As the digital in optical jack of the unit has a cover, push in the cable against the cover as it is turned inside. Digital coaxial cable (COAXIAL)
Analog connection: Use an analog audio (RCA) cable
for connection with a player.
To enjoy multi-zone playback of audio of a CD player or
such other player without HDMI output jack, you need
to use the RCA cable to connect the corresponding
jacks of the player and this unit. For details on the multi-
zone function, see the section 6 "Using the multi-zone
function" of "Step 3: Playing Back".
Analog audio (RCA) cable
Connection with turntable: If it uses an MM type
cartridge and does not have a built-in audio equalizer,
PHONO jack. If the connected
turntable has a built-in audio equalizer, connect it to the
¼ If it uses an MC type cartridge, install an audio equalizer compatible with MC type cartridge between the unit and the turntable by connecting it to the 2 TV/CD jack. For details, refer to the turntable's instruction manual. ¼ If the turntable has a ground wire, connect it to the GND terminal of this unit. If connecting the ground wire increases noise, disconnect it.
Video signal connection
The unit has a video upconversion function. For details, see
Use a component video cable to connect a TV
with component video input jacks and a player with
component video output jacks.
Component video cable
¼ Its transmitted video has higher quality than that of composite video cable. 5
Use a composite video cable to connect a TV with
composite video input jack or a player with composite
Composite video cable Video signals input to the composite video input jack or the COMPONENT VIDEO IN input jacks will be upconverted to HDMI signals and then output from the HDMI output jack.Note that it is not possible to convert digital audio input signals to analog or vice versa.AV Receiver ¼ When you upconvert video signals input to the COMPONENT VIDEO IN jacks and output them from the HDMI OUT jack, set the output resolution of the player to 480i or 576i. If the input has 480p/576p or higher resolution, a message prompting you to change the resolution setting will appear. If your player does not support 480i or 576i output, use the composite video jack. ¼ If multiple video signal inputs are put into one input system, the output will be made in the order of HDMI, COMPONENT VIDEO, and composite video.5
" " #Dolby Enabled Speakers (Front) $ Center speakers% &Surround speakers'Subwooferr To use the multi-zone function, see the section 6 "Using the multi-zone function" of "Step 3: Playing Back". Dolby Enabled Speakers
placed with their top
diaphragms facing toward the ceiling can produce a sound
field of the Dolby Atmos listening mode by providing sounds
echoing off the ceiling. The speakers on the front output
outputs center sounds such as dialogs and vocals.
create back sound field.
reproduces bass sounds
and creates rich sound field. Up to 2 subwoofers can be
connected to the unit.
r To enjoy the Dolby Atmos listening mode, the Dolby Atmos
format signals need to be input from a player. HEIGHT RIGHTFRONT RIGHTHEIGHT LEFTFRONT LEFTLINE INPUT # Dolby Enabled Speakers (Front) R & Surround R % Surround L " Dolby Enabled Speakers (Front) L $ Center ' Subwoofer with built-in power amplifier Instructions on how to connect speakers

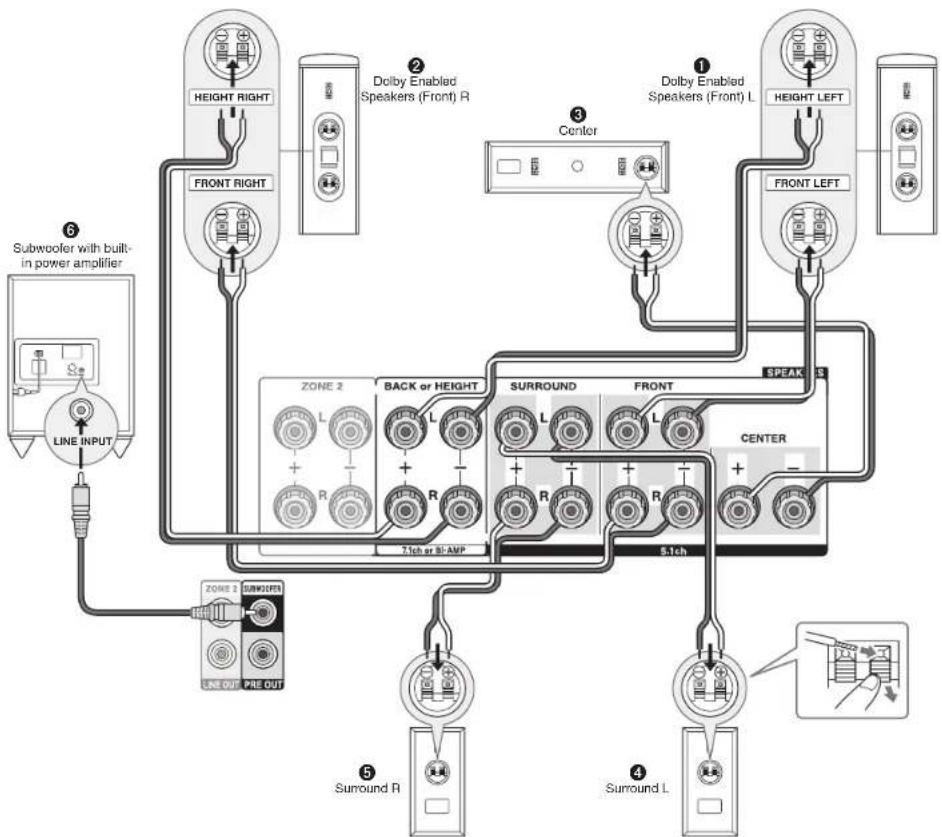

To connect the Dolby Enabled Speakers (Front)
two speaker cables; one for connecting HEIGHT LEFT
and HEIGHT RIGHT of the SPEAKERS Terminals to the
BACK or HEIGHT terminals of the unit, and the other
for connecting FRONT LEFT and FRONT RIGHT to the
FRONT terminals. Use one speaker cable for the other
speakers' connection. 1/2"-5/8"(12-15 mm)6
Cut and remove the plastic coating from the end of the
speaker cable, twist the core and connect it to the terminal.
Make correct connection between the unit's jacks and
speaker's jacks (+ to + and - to -) for each channel. If
connection is wrong, a bass sound may become poor due
¼ The speaker terminals of the home theater package are colored for easy identification. Connect a color-coated wire (+) of each speaker cable to the corresponding speaker terminal of the same color. Connect a subwoofer by connecting the LINE INPUT jack
to the PRE OUT SUBWOOFER jack as shown in the figure.
¼ Up to two subwoofers with built-in power amplifier can be connected to this unit. Set the cut-off filter selection switch of the subwoofer to DIRECT, if applicable. If the subwoofer does not have a cut-off filter selection switch but has a cut-off frequency adjusting dial, turn it to the maximum frequency. If your subwoofer does not have built-in power amplifier, you can connect a power amplifier between the unit and the subwoofer. Note

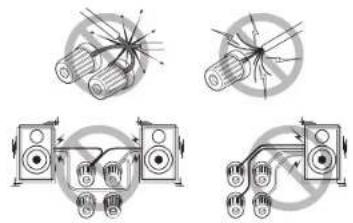

Short-circuiting the + cable and - cable or contacting the
cable core to the rear panel of the unit may cause failure.
Also do not connect two or more cables to one speaker
terminal or one speaker to several terminals.
When using commercially available banana plugs, tighten
the speaker terminals to the end and then insert the
banana plugs. Do not insert the core of speaker cable
directly into the hole for banana plug of speaker terminal.
(North American model)

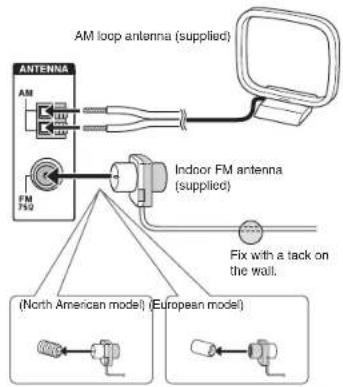

AM/FM antenna connections
Connect the antennas to listen to AM/FM broadcast. When
listening to the broadcast for the first time, adjust the
antenna position and orientation to get the best reception. AM loop antenna (supplied)Indoor FM antenna (supplied)Fix with a tack on the wall.(North American model) (European model)Assemble the AM loop antenna (supplied). Network connection

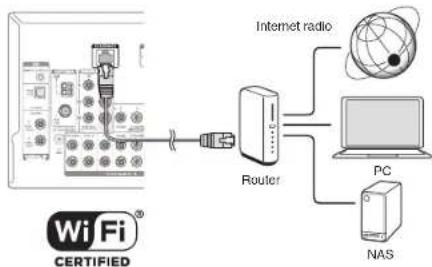

You can enjoy Internet radio and DLNA by connecting
the unit to LAN. The unit can be connected to the router
with an Ethernet cable or to the wireless LAN router with
Wi-Fi connection. In case of wired connection, connect the
Ethernet cable to the ETHERNET port. For Wi-Fi setup, see
"4th Step : Network Connection" of "Step 2: Setting Up". Internet radioRouter
PC NAS Headphones connection
%QPPGEVUVGTGQJGCFRJQPGUYKVJCUVCPFCTFRNWI|KPEJ
or ø 6.3 mm) to the PHONES jack on the front panel.
Sound from the speakers will be off while you are using the
r If you selected any other listening mode than Pure Audio
(European model), Stereo, Mono and Direct, connecting
headphones will switch the listening mode to Stereo.7
Important: When the unit is turned on for the first time, the
setup wizard of the section 2 will automatically be launched.
If you use the setup wizard to make the initial setup,
connect a TV to the HDMI OUT MAIN jack of the unit via
Turning the power on
Connect the power cord to the outlet. Press
remote controller to turn the unit on or to standby mode. Initial SetupLanguage SelectEnglishDeutschFrançaisEspañolItalianoNederlandsSvenskaHOME Exit Firmware update notification: If the unit is connected
via LAN and there is firmware update available, the
"Firmware Update Available" message will appear. To
execute updating, select "Update Now" with the cursors
of the remote controller and press ENTER. When
"Completed!" appears, press
ON/STANDBY on the main
unit to turn the unit into standby mode. Then updating will
r The unit automatically turns itself into standby mode
|OKPWVGUCHVGT%QORNGVGFCRRGCTUQPVJGFKURNC[+P
this case also, updating will be completed.
Making the Initial Setup with the Setup
Wizard Read before starting the procedure:Set up by answering the guidance displayed on the TV screen. Select the item with the cursors of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN.r If you terminate the procedure on the way or change the setting made in the initial setup and want to call up the setup wizard again, press RCV and then HOME on the remote controller, select "Setup" - "7.Hardware Setup" - "Initial Setup", and press ENTER. Select the language first. In the next screen, the summary
of the setup wizard as below will be displayed. Select "Yes"
in this screen and press ENTER on the remote controller. Welcome to initial setup. Have you connected all the speakers and devices?Before starting, please connect speakers and sources.Now, would you like to start initial setup?1st Step : AccuEQ Room Calibration2nd Step : Source Connection3rd Step : Remote Mode Setup4th Step : Network Connection Yes
No Initial SetupExitHOME The setup wizard proceeds in the four steps as below.
1st Step : AccuEQ Room Calibration
2nd Step : Source Connection
3rd Step : Remote Mode Setup
4th Step : Network Connection
1st Step : AccuEQ Room Calibration
The test tone coming from each speaker will be measured
to enable setting of the number of speakers, volume level,
each speaker's optimum crossover frequencies, and
distance from the primary listening position.
AccuEQ Room Calibration
This step you can automatically calibrate
your room to get correct surround sound.
Would you like to cailbrate your room now
Place the speaker setup microphone.
When the start screen above is displayed, before
starting the procedure, place the supplied speaker setup
microphone at the measurement position
Correct measurement will not be possible if the microphone is held
by hand. Measurement is not possible if headphones are being used.
The subwoofer sound may not be detected since it is extremely
low frequencies. Set the subwoofer volume to around the half of its
maximum volume and make its frequency to the maximum level.
A loud test tone will be heard during measurement. Measurement
may be interrupted if there is ambient noise or radio frequency
interference. Close the window and turn off the home appliance and
After placing the microphone at the measurement
position, select "Do it Now" with the cursors and
Connect the microphone to the SETUP MIC jack of
Follow the guidance displayed on the TV screen. AccuEQ Room CalibrationFront Speakers TypeHeight Speakers TypePowered Zone 2SubwooferNormalBundled Speaker No
Yes Set bi-amp only if you use 2 channel amp for each front speaker.ENTER Nex t When the screen above is displayed, press ENTER
on the remote controller. Confirm the power supply of
subwoofer and press ENTER on the remote controller in
the next screen. Confirm the position of speaker setup
microphone and press ENTER on the remote controller
in the next screen. Automatic speaker setting starts.
The test tones sound from the connected speakers
and automatic speaker setting starts.
Measurement will be made twice for each speaker. It takes
several minutes to be completed. Keep the room as quiet
as possible during measurement. If any of the speakers do
not produce the test tone, check for disconnection.
r During measurement, each speaker outputs the test
tones at a high volume. Be careful of sound leak
that may disturb your neighbors, or be careful not to
frighten young children.
When the measurement is completed, the
measurement result is displayed.
on the remote controller to check the
settings. Press ENTER with "Save" selected.
r If there is an error message, follow the on-screen
instruction to remove the error cause.
When "Please unplug setup microphone." is
displayed, disconnect the microphone.
2nd Step : Source Connection
You can check whether or not each input source is
connected correctly.
When the Source Connection start screen is
displayed, select "Yes, Continue" with the cursors
This step will start to check if the connections were made correctly.Would you like to continue?Yes. ContinueNo. SkipInitial SetupSource ConnectionExitHOME 2.
Select the desired input to check the connection and
Start playback of the selected device. If connection is
correct, video/audio of the input source selected on the
unit will be played.
After checking the connection, select "Yes" with the
cursors and press ENTER.
r If you select "No" and press ENTER, the error cause
will be displayed. Follow the guidance to remove the
error cause and check the connection again.
Select "Yes" with the cursors and press ENTER
on the remote controller to check the connection
of other inputs or select "No, Done Checking" and
press ENTER to skip.
If you select "Yes", you will return to the screen of step 2.
If you select "No, Done Checking", you will proceed to
Enabling HDMI Linked Operation and Other
In the next screen, you can enable the HDMI linked
operation with CEC compliant device, connection with
ARC compatible TV, and HDMI Through function. Using
the cursors on the remote controller, select "Yes" to
enable them or "No, Done Checking" to skip, and then
Select "Yes" with the cursors and press ENTER to
enable the CEC link function or select "No" and
press ENTER to keep it disabled.
The following CEC-compatible devices are found;
Do you wish to turn on the CEC link? Integra DHS-8.8 Yes
No Source ConnectionHOME Exit If you select "Yes", the connection with ARC compatible
TV and HDMI Through function will be set to "Auto" and
3rd Step : Remote Mode Setup
In this step, you can enable operation of the other
components using the remote controller of the unit. When
the Remote Mode Setup start screen is displayed, select
"Yes" with the cursors and press ENTER on the remote
controller. Follow the guidance to select the desired
REMOTE MODE button and in the keyboard screen, enter
the first three characters of the brand name of the device
you are going to program (e.g., "ONK" for ONKYO) and
search for the remote control code. The guidance will also
explain how to set the remote controller. HOME Ex itInitial SetupRemote Mode SetupPreprograming remote will give you controlof other devices from AV receiver remote Would you like to setup your remote to control your devices? This may take a whiledepending on what and how many you have connected. You can always come back to remotesetup from setup “8-2 Remote Mode Setup”. Yes No. Skip9
4th Step : Network Connection Do you want to connect network connection?It gives you network services that our AVreceiver support. If you wish to skip this step.select “No. Skip”. Yes No. SkipHOME Ex itInitial SetupNetwork Connection You can check the network connection and make the Wi-Fi
setting. When the Network Connection start screen is
displayed, select "Yes" with the cursors and press ENTER
on the remote controller. If you select "Wired" in the next
screen, you can view the LAN cable connection status. To
make the Wi-Fi setting, select "Wireless", press ENTER on
the remote controller and follow the sections below.
Make the following preparations.
Wi-Fi connection requires an access point such as
wireless LAN router (
). Write down the SSID and
password (key) of the access point if they are shown
in the label of the main body. If the access point has
an automatic setting button (may be called differently
according to the manufacturer), you can set up
without inputting the password. For how to use the
automatic setting button of the access point, refer to
its instruction manual.
¼ The unit supports Wi-Fi connection with 2.4 GHz access point. 1.
Select the SSID of the access point to be connected
with the cursors and press ENTER.
When the SSID of the access point appears on the TV
screen, select the desired access point.
r If you changed the initial setting of the access point to
skip password entry, step 3 starts automatically.
r If you changed the initial setting of the access point
to hide the SSID, see "When the access point is not
Select and set the authentication method.
The "Enter Password" screen, instead of the following
screen, may be displayed automatically if the wireless
LAN router does not have an automatic setting button. Wi-Fi SetupSelect the authentication method.Enter PasswordPush ButtonPIN code When the screen above is displayed, select and set one
of the three authentication methods: "Enter Password",
"Push Button" and "PIN code". See below for details of
and how to set each method.
Enter Password: Enter the password of the access point to
establish connection.
Select "Enter Password" with the cursors and press
Enter the password (
) on the keyboard screen, select
"OK" with the cursors and press ENTER.
¼ Select "Shift" and press ENTER to toggle between upper and lower case. Select " " or " " and press ENTER to move the cursor to the selected direction. Select "Back Space" and press ENTER to delete the character at the left of the cursor position. To select whether to mask the password with " ¼ " or display it in plain text, press D on the remote control. Press + 10 on the remote controller to enable the "Shift" function and CLR to delete all the input characters. 3
If the security method of the access point to be
connected is WEP, select "Default Key ID", select "OK"
Push Button: Use the automatic setting button of the
access point to establish connection.
Select "Push Button" with the cursors and press ENTER.
Hold down the automatic setting button of the access
point for the necessary seconds, select "OK" with the
cursors and press ENTER.
PIN code: Select this method when the automatic setting
button of the access point is beyond the reach. Select
"PIN code" with the cursors and press ENTER to display
the 8-digit PIN code. Register the displayed PIN code to
the access point, select "OK" with the cursors and press
ENTER. For how to register the PIN code to the access
point, refer to its instruction manual.
Establish connection.
The connection process starts and the Wi-Fi indicator
on the left of the unit's display starts flashing. When
connection has been established, the Wi-Fi indicator
changes from flashing to staying lit. If the Wi-Fi indicator
does not stay lit, connection has not been established.
Make the setting again. If "Push Button" does not work,
try "Enter Password".
When the access point is not displayed
Select "Other..." with the
cursor on the remote
controller and press ENTER to display the keyboard
screen. Input the SSID and password. Make the
following settings according to the router setting.
Select "WPA" or "WPA2" in "Security Method", select
Select "WEP" in "Security Method" and select
"Default Key ID". Then select "OK" and press ENTER.
r If encryption setting has not been made on
the wireless LAN router, select "None" in
"Security Method", select "OK" and press ENTER.
Exiting the setup wizard
After finishing the initial setup, keep "Finished" selected
and press ENTER on the remote controller. Connection and
setting of the unit is now completed. See Step 3 and enjoy
your home theater.Step 3:
Playing the player and TV
z To control the unit: The remote controller of this unit has the remote mode function for controlling other devices. You cannot control this unit when the remote controller is in the remote mode other than RECEIVER mode (for controlling this unit). Be sure to press 2 RCV to select the RECEIVER mode before starting operation. 1. Turning the power onPress 1
z RECEIVER on the remote controller to turn the power on.r Switch the input on the TV to that assigned to the unit. Use the TV's remote controller. 2. Select the input of the unit and start playback on the player or TV.r Press 3 INPUT SELECTOR to which the desired player has been assigned. Press TV/CD to play the TV's sound. You can also use the input selector buttons on the main unit.r Input will automatically be selected if the TV or player is CEC compliant and connected to the unit with HDMI cable. 3. Select the desired listening mode.Press the 6 listening mode buttons to switch the mode so that you can enjoy different listening modes. For details about the listening modes, see "Listening modes" on the next page. 4. Adjust the volume with F VOLUME. 1
z RECEIVER button: Turns the unit on or into standby mode. 2 RCV button: Switches the remote controller to the mode for operating this unit. 3 REMOTE MODE/INPUT SELECTOR button: Switches the input to be played. 4 Cursor buttons and ENTER button: Moves the cursor and confirms the selection. 5 Q SETUP button: Displays the Quick Setup menu that allows you to set the frequently used functions including input selection and volume adjustment. 6 Listening mode buttons: Allows you to select the listening mode. 7 DIMMER button: Switches the brightness of the display. 8 ZONE2 button: For use when the unit is connected with an integrated amplifier in a separate room and sound is played there. 9 MUTING button: Temporarily mutes audio. F VOLUME buttons: Allows you to adjust the volume. This button also cancels the muting. G RETURN button:Returns the display to the previous state. H HOME button: Displays the Home menu that allows you to make advanced settings and use Internet radio and DLNA. I DISPLAY button: Switches the information on the display.r The buttons other than 1
I are for operating other devices.11
Listening modes You can select a listening mode from various options such as Dolby Digital, Dolby Atmos and DTS. Select the desired mode by switching and listening actual sound in different modes. The selectable listening modes depend on the format of the input signals.MOVIE/TV: You can select a listening mode suitable for movies and TV programs.MUSIC: You can select a listening mode suitable for music.GAME: You can select a listening mode suitable for games.STEREO: You can select a listening mode for stereo and all channel stereo sources.PURE AUDIO (main unit only) (European model): The display and analog video circuits are cut off to provide purer sound.r For details on the listening modes, see the Advanced Manual."Direct" for playing the input signals as-isSelecting this mode allows the input signals to be played as they are. For example, 2 ch signals of music CD will be played in stereo, 5.1 ch signals in 5.1 ch, and Dolby Digital signals of blu-ray disc or DVD in the Dolby Digital sound field according to the specified number of channels. Other useful functions
Playing Video and Audio from Different Sources: It is possible to play audio and video from different sources. For example, you can play audio from the CD player and video from the BD/DVD player. In this case, press BD/DVD and then TV/CD. Then start playback on the BD/DVD player and CD player. This function is effective when an input with audio only has been selected (TV/CD, TUNER or BD/DVD in the initial setup). Adjusting Sound Quality: It is possible to enhance or moderate the low and high pitched ranges of front speakers. Press TONE on the main unit several times to select the desired setting from "Bass", "Treble" and "Phase Matching Bass", and adjust with +/-.r It cannot be set if the listening mode is Pure Audio (European model) or Direct."Bass": Allows you to enhance or moderate the low pitched range."Treble": Allows you to enhance or moderate the high pitched range."Phase Matching Bass": Allows you to keep the clear midrange and effectively enhance the low pitched range. Muting Temporarily: Press MUTING on the remote controller. To cancel the muting, press MUTING again, or press VOL j
Changing the Display Brightness: Press DIMMER on the remote controller. The display brightness changes each time you press the button. Checking the Input Format: Press DISPLAY on the remote controller several times to switch the display of the main unit in order of:Input source & volumeListening modeSignal formatSamplingfrequencyInput signal resolutionOutput resolutionr If "Dolby D 5.1" is displayed in Signal format, the Dolby Digital 5.1 ch signals are being input. When listening to AM/FM radio, the band, frequency and preset number are displayed. 2
Listening to AM/FM Radio The Basic Manual explains the method using automatic tuning. For manual tuning, see the Advanced Manual. 1. Press TUNER on the main unit several times to select either "AM" or "FM". 2. Press TUNING MODE on the unit, so that the "AUTO" indicator on the display lights. 3. Press TUNING on the unit.The automatic tuning to a radio station starts. Searching stops when one is tuned. When tuned into a radio station, the "TUNED " indicator on the display lights. The "FM STEREO" indicator lights if the radio station is an FM radio station.
TUNED FM STEREO AUTO (Actual display varies depending on the country.)Registering an AM/FM Radio Station:It allows you to register up to 40 of your favorite AM/FM radio stations.1. Tune into the AM/FM radio station you want to register.2. Press MEMORY on the unit.The preset number on the display flashes.3. Repeatedly press PRESET on the unit to select a number between 1 and 40 while the preset number is flashing (about 8 seconds).4. Press MEMORY on the unit again.When registered, the preset number stops flashing. To select a preset radio station, press PRESETQPVJGOCKPWPKVQT%*ŨQPVJGTGOQVGEQPVTQNNGT12
Connecting and playing the Bluetooth-
You can wirelessly enjoy music files stored in a smartphone or
QVJGT$NWGVQQVJGPCDNGFFGXKEG6JGEQXGTCIGCTGCKU|HGGV
r The Bluetooth-enabled device needs to support the
r Note that connection is not always guaranteed with all
Bluetooth-enabled devices.
Pairing is necessary when using the Bluetooth-enabled
device for the first time. Before starting the procedure, learn
how to enable the Bluetooth setting function and to connect
with other devices on the Bluetooth-enabled device.
Press BLUETOOTH on the remote controller.
The unit enters the pairing mode and the BLUETOOTH
indicator starts flashing.
While the BLUETOOTH indicator is flashing,
complete connection on the Bluetooth-enabled
device in the nearby area within about 2 minutes.
If the name of this unit is displayed on the
Bluetooth-enabled device's display, select this unit.
Paring will end after a short time.
r If a password is requested, enter "0000".
When connecting the unit to any other
Bluetooth-enabled device, start pairing by pressing and
holding BLUETOOTH until the BLUETOOTH indicator
starts flashing. This unit can store the data of up to ten
Playing sound of the Bluetooth-enabled device
If the unit is on and the Bluetooth-enabled device is
connected, the input will be automatically switched to
BLUETOOTH. Play music in this state.
r It may take about a minute until connection is established
when the unit is on since the Bluetooth function takes
some time to start up.
r If the volume setting on the Bluetooth-enabled device is
low, the sound will not be output from this unit.
r Due to the characteristics of Bluetooth wireless
technology, the sound produced on this unit may slightly
be behind the sound played on the Bluetooth-enabled
In the Home menu, you can make advanced setup and
use Internet radio and DLNA function. For details on the
operation, see the Advanced Manual.
After pressing RCV, press HOME on the remote
The Home menu is displayed on the TV screen. You can
also use the HOME button on the main unit. Setup HOME
Select the item with the cursors of the remote
controller and press ENTER to confirm your
Sleep Timer: Select to turn the unit into standby mode
automatically when the specified time elapses.
InstaPrevue: Select to preview videos input from the
HDMI input jacks collectively in a single screen. The screen
has a main window (current input video) and sub windows
(other input videos). To switch the current input, select the
desired sub window with the cursors and press ENTER.
r A black sub window is shown for the input with no video
r "InstaPrevue" cannot be selected if the video is being
input from HDMI IN 5 or 6, or there is no signal from the
input currently selected.
r Depending on video signals, the picture may not be
properly rendered on the preview thumbnails.
r 1080p or higher resolution is not supported.
Setup: You can change the assignment of input
terminals and input selector buttons and also make various
speaker settings and other advanced settings.
Network Service: Select to use Internet radio services
and the DLNA function.
When you connect the unit to the
network and press ENTER, the network service screen will
be displayed on the TV. On the TV screen, select the desired
service or music file with the cursors of the remote controller
and press ENTER to confirm and start playback.
Internet radio service: You can listen to TuneIn or such
other Internet radio stations registered in advance.
DLNA: You can play music files stored in the PC or NAS
device connected to the network. Select the server with
the cursors, select the desired music file and press
ENTER to start playback.
Home Media: You can play music files in a shared folder
on the PC or NAS device connected to the network.
Select the server with the cursors, select the desired
music file and press ENTER to start playback.
r "Network Service" becomes selectable after the network
starts up even if it cannot be selected first. It may take
about a minute to start up.
r When "Network Service" is selected for the first time,
the "DISCLAIMER" screen will appear on the TV. Select
"Agree" if you agree the content. If you do not agree the
content, you cannot use the network service.
¼ You cannot use the function unless the TV is connected via HDMI since selecting "Agree" in the "DISCLAIMER" screen is not possible. r Layout of the icons in the "Network Service" top menu
can be changed. Press NET on the remote controller
and press D. Select the source icon with the cursors and
press ENTER, and then select the destination icon and
press ENTER. The positions of the icons are switched
USB: Select "USB" in the TV screen and connect a
USB storage device to the USB port on the front panel. On
the TV screen, select the desired folder or music file with
the cursors of the remote controller and press ENTER to
confirm and start playback.
r "USB" becomes selectable after the USB function starts
up even if it cannot be selected first. It may take about a
Using the Quick Setup menu
In the Quick Setup menu, you can set frequently used
functions including input selection and volume adjustment.
Press Q SETUP on the remote controller.
The Quick Setup menu is displayed on the connected
CBL/SATInputAudioVideoInformationListening ModeBD DVDCBL/SATSTB DVR GAME PC AUX
Select the item with the cursors of the remote
controller and press ENTER to confirm your
r To return to the previous screen, press RETURN.
Input: Select the input and check the assignment of
input selector buttons.
Audio: You can perform various audio settings including
audio quality and speaker level adjustment.
r You cannot select this item when audio is output from the
A/V Sync: If the video is behind the audio, you can
delay the audio to offset the gap. Different settings can
be set for each input.
r It cannot be set if the input is "NET", "USB" or
r It cannot be set if the listening mode is Pure Audio
(European model) or Direct.
Bass, Treble: Adjust volume of the front speaker.
r It cannot be set if the listening mode is Pure Audio
(European model) or Direct.
Phase Matching Bass: Suppress phase shift in the
midrange to enhance bass sound. Thus smooth and
powerful bass sound can be obtained.
r It cannot be set if the listening mode is Pure Audio
(European model) or Direct.
Subwoofer Level, Center Level: Adjust the speaker
level while listening to the sound. The adjustment you
made will be reset to the previous status when you turn
the unit to standby mode.
r The speakers cannot be adjusted if they have been
set to "No" or "None" in "Speaker Configuration".
Late Night: Make small sounds to be easily heard. It
is useful when you need to reduce the volume while
watching a movie late night. You can enjoy the effect
on Dolby Digital, Dolby Digital Plus and Dolby TrueHD
r Turning the unit to standby mode will set the setting
to "Off". The setting is set to "Auto" in Dolby TrueHD.
r This function cannot be used if "Loudness Management"
has been set to "Off".
Music Optimizer : Improve the quality of the
compressed audio. Playback sound of lossy
compressed files such as MP3 will be improved. The
setting can be separately set to each input.
r The setting is effective in the signals of 48 kHz or
less. The setting is not effective in the bitstream
r It cannot be set if the listening mode is Pure Audio
(European model) or Direct.
Cinema Filter: Adjust the soundtrack that was
processed to enhance its high pitch range, in order to
make it suitable for home theater.
r This function can be used in the following
listening modes: Dolby Atmos, Dolby Digital,
DTS-HD Master Audio and DTS Express.
Monitor Out: The video input signals input to the unit
will be converted by the unit when they are output from
the HDMI OUT jack to the TV so that their resolution can
match that of the TV used. Select the HDMI OUT jack to
Wide Mode: Set the aspect ratio.
Picture Mode: You can adjust the image quality.
"Cinema" will automatically adjust the image to be
suitable to watch movie and "Game" suitable to play
game. In "Standard", the resolution will be changed but
the image quality will not be adjusted. In "Custom", you
can adjust the brightness, contrast, hue and saturation
as desired. If you do not adjust the resolution and image
quality, select "Bypass".
r "Wide Mode" and "Picture Mode" can be set only on
the video output from the HDMI OUT MAIN jack.
r "Video" cannot be selected if the input is "NET",
"USB" or "BLUETOOTH".

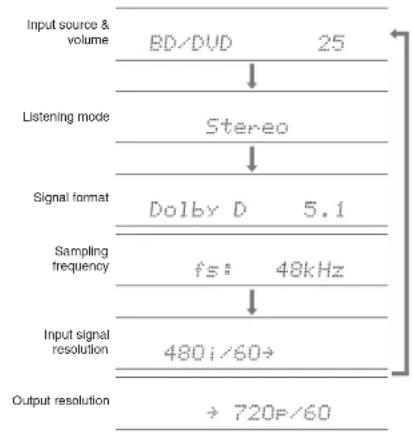

Audio: Displays the audio input source, format, number of
channels, sampling frequency, listening mode, number of
output channels, and other audio information.
Video: Displays the video input source, resolution, signal
format, color tone, 3D information, Aspect, Picture Mode,
output, and other Video information.
Tuner: Displays the band, frequency, preset number, and
other tuner (radio) information.
Listening Mode: Select the listening mode from the
categories of "MOVIE/TV", "MUSIC" and "Game".
r It cannot be set when audio is played from the TV's
Using the multi-zone function You can multi-zone connect the unit with an integrated amplifier and speakers in a separate room and play sound from an external device connected to the analog audio input jacks of the unit, sound from the "NET", "USB" or "BLUETOOTH" source, and the AM/FM broadcasting. It is also possible to play the sound from different analog connected devices in the main room and separate room.r As for the "NET", "USB" and "BLUETOOTH", you cannot select different inputs for the main room and separate room. For example, if "NET" has been selected in the main room and then "USB" is selected as playback source in the separate room, the input in the main room will change to "USB" accordingly.r When listening to AM/FM broadcasting, you cannot select different stations for the main room and separate room. Therefore broadcasting of the same station will be heard in the both rooms. Connecting with Player To output audio of the Blu-ray Disc player or such other player as the source of multi-zone playback, it is necessary to connect the RCA audio output jacks of the player and the analog audio input jacks of the unit using the RCA cable.AUDIO OUT
r Output to multi-zone is not possible if the connection is only with HDMI cable or digital cable.r Some players require analog audio output setting. Making Multi-zone Connection
Connecting an amplifier or receiver in another room It is possible to play 2 ch source in a separate room while 7.2 ch source is being played in the main room.Connect the LINE OUT ZONE2 jacks of the unit and the line-in jacks of the integrated amplifier in a separate room with an RCA cable.Zone 2r The volume should be adjusted with the integrated amplifier used in the separate room.
Connecting speakers in another room It is possible to directly connect the speakers in another room without an amplifier. Connect the speakers in another room to the SPEAKERS ZONE2 speaker terminals of the unit using speaker cables. In this case, 5.1 ch ( ¼ ) will be the maximum in the main room when the Zone function is on. ¼ In this case, the Dolby Atmos listening mode cannot be selected. Change the setting: After connecting the speakers, press RCV and then HOME on the remote controller, select "Setup" - "2.Speaker Setup" - "Speaker Settings" and set "Powered Zone2" to "Yes", and press ENTER on the remote controller.Zone 2r Adjust the volume on this unit. To adjust the volume, press ZONE2 on the remote controller and adjust with
. To control on the main unit, press ZONE2 and within 8 seconds, adjust with the MASTER VOLUME control. You can mute the sound by pressing MUTING on the remote controller. Performing Multi-zone Playback
1. Press ZONE2 on the remote controller, point the remote controller at this unit and press z RECEIVER. "Z2" lights on the main unit display and the multi-zone function is enabled. (Zone 2 is now on.) 2. Press ZONE2 again on the remote controller and press INPUT SELECTOR of the input to be played in a separate room. To play the same source in the main room and separate room, hold down ZONE2 for approximately 3 seconds.To control on the main unit: Press ZONE2 and within |UGEQPFURTGUUVJGKPRWVUGNGEVQTDWVVQPQHVJGKPRWVVQDGplayed in a separate room. (To play the same source in the main room and separate room, press ZONE2 twice.)To turn off the multi-zone function: Press ZONE2 on the remote controller and press z RECEIVER. Alternatively press OFF on the main unit.r Zone audio output is not possible if the player and the unit are connected via HDMI cable or digital cable. Connect the player to the analog audio input jacks of the unit with an RCA cable. Some players require analog audio output setting.r If Zone 2 is on, power consumption during standby becomes larger than normal.r If Zone 2 is turned on when the listening mode of the main room is Pure Audio, it will automatically switch to Direct. (European model)r While Zone 2 is on, the RI linked system function (interlink between Onkyo components) is disabled.r Pressing INPUT SELECTOR on the remote controller while you are using the remote controller for Zone 2 will switch the controlled target to the main room. To control Zone 2 again, press ZONE2 to enter the Zone control mode.15
1 24 9 F G H I K6 L3 578 J N M R STP QO

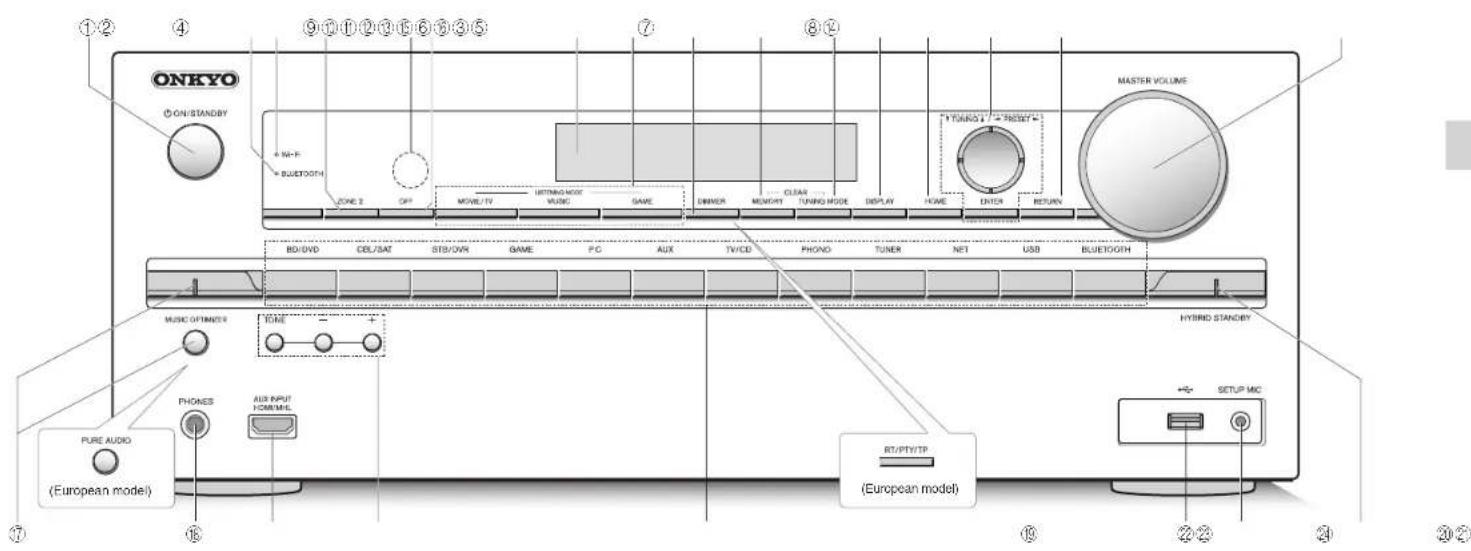

BLUETOOTH indicator: Flashes while pairing with a
Bluetooth-enabled device is in progress and stays lit
when pairing is completed.
Wi-Fi indicator: Lights when the unit is connected to
the wireless LAN router.
ZONE2 button: Controls the multi-zone function.
Remote control sensor: Receives signals from the
OFF button: Switches the ZONE function to off.
LISTENING MODE buttons: Allows you to select the
the brightness of the display.
RT/PTY/TP button (European model): Can be used
when receiving the station transmitting text information.
F MEMORY button: Registers or deletes a station.
G TUNING MODE button: Switches the tuning mode.
button and ENTER button: Moves the cursor and
confirms the selection. When listening to AM/FM
broadcasting, tune in to the station with
select the registered station with

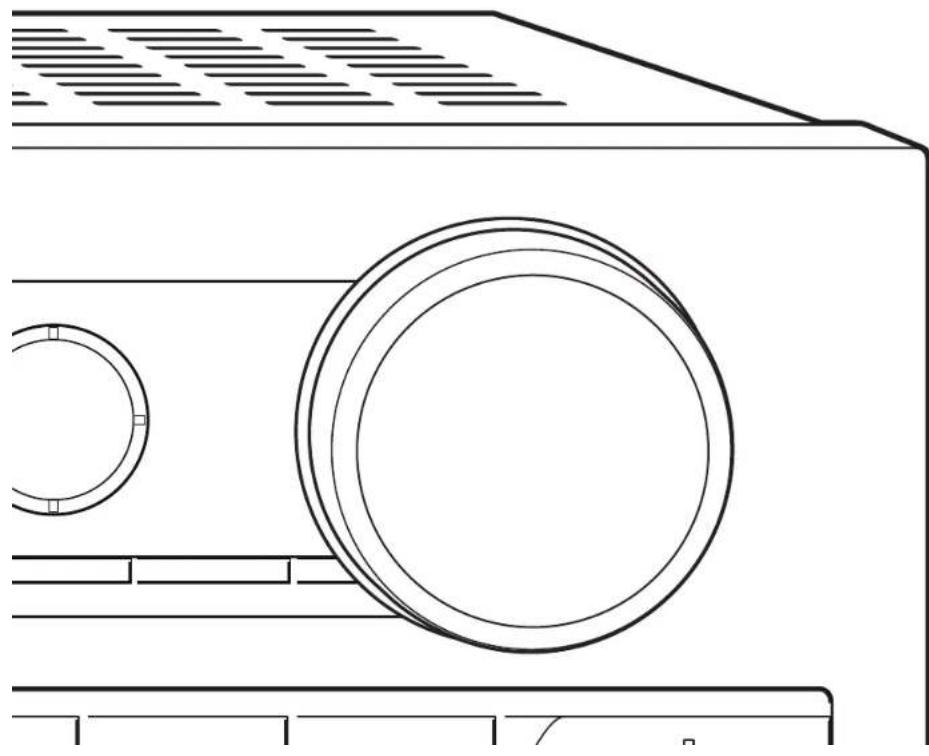

L MASTER VOLUME: Allows you to adjust the volume.
M MUSIC OPTIMIZER button/indicator (North American
model): Turns on/off the Music Optimizer function that
improves the quality of the compressed audio.
PURE AUDIO button and indicator (European
model): Switches to the Pure Audio mode.
N PHONES jack: Stereo headphones with a standard plug
O AUX INPUT HDMI/MHL jacks: An HD video camera or
MHL-enabled mobile device is connected. It is possible
to send video and audio of an MHL-enabled mobile
P TONE and Tone Level buttons: Adjusts the high tone
Q Input selector buttons: Switches the input to be
R USB port: A USB storage device is connected so that
music files stored in it can be played.
S SETUP MIC jack: The supplied speaker setup
microphone is connected.
T HYBRID STANDBY indicator: Lights if the unit enters
standby mode when the HDMI Through, network
standby and Bluetooth Wakeup functions are enabled.16
RI REMOTE CONTROL jack: An Onkyo product with RI
jack can be connected and synchronized with this unit.
#06'00##/(/ŝVGTOKPCN: The supplied
antennas are connected.

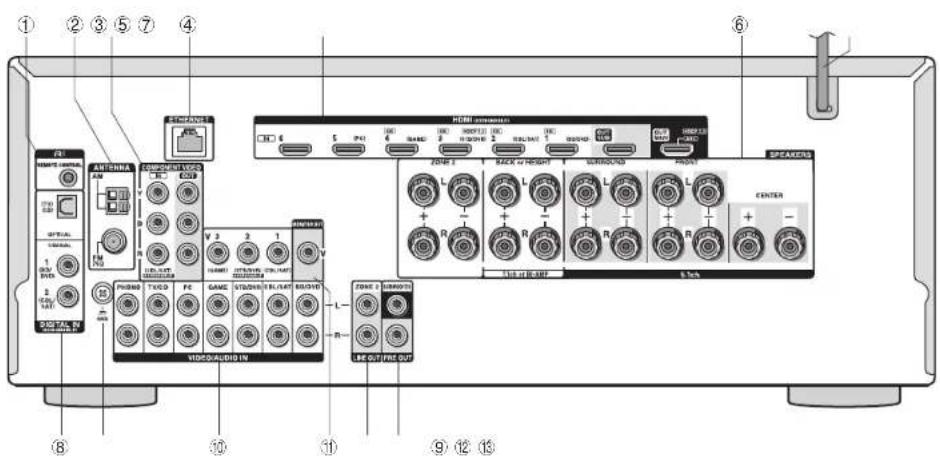

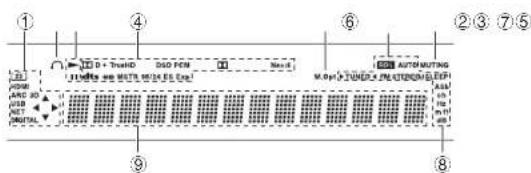

HDMI IN/OUT jacks: Digital video signals and audio
signals are transmitted between the unit and the
SPEAKERS terminals: Speakers are connected. To
use the Multi-zone function, connect the speakers in the
separate room to the SPEAKERS ZONE2 terminals.
DIGITAL IN COAXIAL/OPTICAL jacks:
GND terminal: The ground wire of the turntable is
F Composite video and analog audio jacks: Analog
video signals and audio signals are input.
G MONITOR OUT V jack: Video signals are output to the
connected monitor or TV via a composite video cable.
H LINE OUT ZONE 2 jacks: Audio output jacks connected
to the integrated amplifier for multi-zone playback in a
I PRE OUT SUBWOOFER jacks: A subwoofer with built-
in amplifier is connected.
Lights in the following conditions. "Z2": ZONE 2 output
KUQP|*&/+*&/+UKIPCNUCTGKPRWVCPF*&/+KPRWV
UGNGEVQTKUUGNGEVGF|#4%#WFKQUKIPCNUCTGKPRWV
from ARC compatible TV and TV/CD input selector is
): "NET" input is selected and the unit is
EQPPGEVGFVQVJGPGVYQTM|&+)+6#.&KIKVCNUKIPCNUCTG
KPRWVCPFVJGFKIKVCNKPRWVUGNGEVQTKUUGNGEVGF|%WTUQT
indicators: NET or USB is controlled.
"USB" and "NET" will flash if the connection is not correct.
Stays lit when headphones are connected.
Lights when NET or USB is controlled.
Lights according to the type of input digital signals and
Stays lit when Music Optimizer is enabled.
Lights in the following conditions. "AUTO": Tuning mode is
": Receiving AM/FM radio.
while tuning is automatically performed. / "FM STEREO":
Receiving FM stereo. / "RDS" (European model):
Receiving RDS broadcasting.
"MUTING": Flashes when muting is on.
Lights in the following conditions. "SLEEP": Sleep timer
has been set. / "ASb" (Auto Standby): Auto Standby
is on. / "ch": Channel is being set. / "Hz": Crossover
frequencies are being set. / "m/ft": Speaker distances
are being set. / "dB": Speaker volume is being set.
Displays various information of the input signals.
Pressing DISPLAY displays the type of input digital
signals and the listening mode.17
Troubleshooting Before starting the procedureProblems may be solved by simply turning the power on/off or disconnecting/connecting the power cord, which is easier than working on the connection, setting and operating procedure. Try the simple measures on both the unit and the connected device. If the problem is that the video or audio is not output or the HDMI linked operation does not work, disconnecting/connecting the HDMI cable may solve it. When reconnecting, be careful not to wind the HDMI cable since if wound the HDMI cable may not fit well. After reconnecting, turn off and on the unit and the connected device. The AV receiver turns off unexpectedly.
r The AV receiver will automatically enter standby mode
when Auto Standby is set and launched.
There’s no sound, or it’s very quiet.
r A wrong input selector button has been selected. Select
a correct input for the player. Also check that MUTING on
the remote controller is not pressed.
r Not all listening modes use all speakers.
A wrong input selector button has been selected.
r Video is not displayed if the listening mode is Pure Audio.
r To display video from the connected player on the TV
screen while the unit is in standby, you need to enable
HDMI Through function.
r When the TV image is blurry or unclear, power code or
connection cables of the unit may have interfered. In
that case, keep distance between TV antenna cable and
r If you connect a player supporting HDCP2.2, be sure to
connect it to the HDMI IN3 jack of the unit. At the time,
connect the TV to the HDMI OUT MAIN jack.
HDMI control does not function correctly.
r Set the CEC link function of the unit to on. It is also
necessary to make the HDMI linked system setting on
the TV. See the TV's instruction manual for details.
The remote controller does not work.
r Be sure to press RCV first before operating the unit with
the remote controller.
There is no sound when multi-zone function is
r With multi-zone function, sound is output only when the
signal input source is an external component connected
to the analog audio input jacks of the unit, "NET", "USB"
or "BLUETOOTH". Multi-zone playback is not possible
if the player and the unit are connected via HDMI cable
or digital cable. Connect the RCA audio output jacks of
the player and the analog audio input jacks of the unit
with RCA cable. Also, some players require analog audio
Cannot access to network.
r Try plugging/unplugging the unit or the wireless LAN
router or check their power-on status. This will work well
r If the desired wireless LAN router is not in the access
point list, it may be set to hide SSID or the ANY
connection may be off. Change the setting and try again.
r Try plugging/unplugging the unit and the
Bluetooth-enabled player. After that, check that the
Bluetooth function is enabled on the Bluetooth-enabled
device and the connection with the unit has been
Resetting the unit to the status at the time of shipment may
solve the problem. If the measures above do not solve the
problem, reset the unit with the following procedure. If you
reset the unit status, your preferences will be reset to the
defaults. Note them down before starting reset.
While holding down CBL/SAT on the main unit (note
that step 2 must be performed with this button
appears on the display and the unit returns to
standby) Clear 1. While holding down CBL/SAT, 2. Press z
How to reset the remote controller:
While holding down RCV on the remote controller,
press HOME until the remote indicator lights (about
Within 30 seconds, press RCV again.
RCV Remoteindicator HOME18
95 watts minimum continuous power per channel, 8 ohm loads,
2 channels driven from 20 Hz to 20 kHz, with a maximum total
harmonic distortion of 0.08% (FTC)
115 watts minimum continuous power per channel, 6 ohm loads,
|EJCPPGNUFTKXGPCVM*\YKVJCOCZKOWOVQVCNJCTOQPKE
distortion of 0.7% (FTC)
7 ch × 160 W at 6 ohms, 1 kHz, 1 ch driven of 1% (IEC) (Others)
9ŝ(TQPV
THD+N (Total Harmonic Distortion+Noise)
0.08% (20 Hz - 20 kHz, half power)
(TQPVM*\ŝ
Input Sensitivity and Impedance (Unbalance)
O8Mŝ.+0'
O8Mŝ2*101//
Rated RCA Output Level and Impedance
O8Mŝ.+0'176
Maximum RCA Output Level and Impedance
5 Hz - 100 kHz/+1 dB, –3 dB (Direct mode)
Tone Control Characteristics
±10 dB, 20 Hz (BASS)
±10 dB, 20 kHz (TREBLE)
Signal to Noise Ratio
5 Hz - 100 MHz/+0 dB, –3 dB Tuner Section
FM Tuning Frequency Range
87.5 MHz - 107.9 MHz (North American)
87.5 MHz - 108.0 MHz, RDS (Others)
AM Tuning Frequency Range
522/530 kHz - 1611/1710 kHz
Communication system
Bluetooth Specification version 2.1 + EDR (Enhanced Data Rate)
Maximum communication range
Line of sight approx. 15 m (
FHSS (Freq Hopping Spread Spectrum)
20 Hz - 20,000 Hz (Sampling frequency 44.1 kHz)
The actual range will vary depending on factors such as obstacles
between devices, magnetic fields around a microwave oven, static
electricity, cordless phone, reception sensitivity, antenna’s performance,
operating system, software application, etc.
6.3 A (North American)
0.1 W (Stand-by, North American)
0.2 W (Stand-by, Others)
Dimensions (W × H × D)
17-1/8" × 6-13/16" × 12-15/16"
10.0 kg (22.0 lbs.) (North American)
OUT MAIN (ARC, HDCP2.2), OUT SUB Video Resolution
Dolby TrueHD, Dolby Digital Plus, DSD, Multichannel PCM Supported
3D, Audio Return Channel, DeepColor, x.v.Color, LipSync, CEC (RIHD),
4K (Upscaling and Passthrough)
IN1 (CBL/SAT), IN2 (STB/DVR), IN3 (GAME)
Specifications and features are subject to change without notice.19
License and Trademark Information Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Surround, Surround EX and the double-D symbol are trademarks of Dolby Laboratories.For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.Qdeo and QuietVideo are trademarks of Marvell or its affiliates.“CINEMA FILTER” and “CINEMA FILTER (logo)” are trademarks of Onkyo Corporation.AccuEQ, Music Optimizer, RIHD and WRAT are trademarks of Onkyo Corporation.“RIHD” and “RIHD (logo)” are trademarks of Onkyo Corporation.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.The Wi-Fi CERTIFIED ® Logo is a certification mark of the Wi-Fi Alliance.Wi-Fi certified ® logo shows international association certifying interoperability “Wi-Fi alliance” ensures the product has passed the test for compatibility with other Wi-Fi certified equipment.The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Onkyo is under license. Other trademarks and trade names are those of their respective owners.Onkyo does not guarantee Bluetooth compatibility between the AV receiver and all Bluetooth-enabled devices.For compatibility between the AV receiver and another device with Bluetooth technology, consult the device’s documentation and dealer. In some countries, there may be restrictions on using Bluetooth devices. Check with your local authorities.“MHL, the MHL Logo, and Mobile High-Definition Link are trademarks or registered trademarks of MHL LLC in the United States and other counties.”InstaPrevue and the InstaPrevue logo are trademarks or registered trademarks of Silicon Image, Inc. in the United States and other countries.Apple, iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.Apple TV is a trademark of Apple Inc., registered in the U.S. and other countries.SIRIUS, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All rights reserved. DLNA
® , the DLNA Logo and DLNA CERTIFIED ® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.Windows and the Windows logo are trademarks of the Microsoft group of companies.QR Code is a registered trademark of DENSO WAVE INCORPORATED.Safari is a trademark or registered trademark of Apple Computer, Inc. in the United States.“x.v.Color” is a trademark of Sony Corporation.MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.“All other trademarks are the property of their respective owners.” DISCLAIMER Through this device you are able to link to other services or websites which are not under the control of any company which has designed, manufactured or distributed/have distributed this device, and its affiliates (collectively, “Company”). We have no control over the nature, content and availability of those services. The inclusion of any links does not necessarily imply a recommendation or endorse the views expressed within them.All information, content and services available through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws of applicable countries. The information, content and services provided through this device are for your personal, noncommercial use only. Any information, content or services may not be used in any manner other than previously approved by the appropriate content owner or service provider.You may not modify, copy, republish, translate, exploit, create derivative works, upload, post, transmit, sell or distribute in any manner any information, content or services available through this device, unless expressly permitted by the appropriate copyright, patent, trademark and/or other intellectual property owner, including, without limitation, content owner or service provider.THE CONTENT AND SERVICES AVAILABLE THROUGH THIS DEVICE ARE PROVIDED “AS IS”.COMPANY DOES NOT WARRANT INFORMATION, CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE.COMPANY EXPRESSLY DISCLAIMS ANY WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF TITLE, NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.Company makes no representation or warranty of any kind, express or implied, about the completeness, accuracy, validity, legality, reliability, suitability or availability with respect to the information, content or services available through this device. Company shall not be liable, whether in contract or tort, including negligence and strict liability, for any direct, indirect, special, incidental or consequential damages or any other damages arising out of, or in connection with, any information contained in, or as a result of the use of any content or service by you or any third party, even if Company has been advised of the possibility of such damages, nor shall Company be liable for any third party claims against users of this device or any third party.In no event shall Company be responsible nor liable for, without limiting the generality of the foregoing, any interruption or suspension of any information, content or service available through this device. Company is neither responsible nor liable for customer service related to the information, content and services available through this device. Any question or request for service relating to the information, content or services should be made directly to the appropriate content owners and services providers. Precautions
Directivei 1999/5/CE.
Piles (AA/R6) --- (2)
appuyez sur la touche ENTER de la télécommande. Welcome to initial setup. Have you connected all the speakers and devices?Before starting, please connect speakers and sources.Now, would you like to start initial setup?1st Step : AccuEQ Room Calibration2nd Step : Source Connection3rd Step : Remote Mode Setup4th Step : Network Connection Yes
1st Step : AccuEQ Room Calibration
AccuEQ Room Calibration
This step you can automatically calibrate
your room to get correct surround sound.
Would you like to cailbrate your room now
2nd Step : Source Connection
This step will start to check if the connections were made correctly.Would you like to continue?Yes. ContinueNo. SkipInitial SetupSource ConnectionExitHOME 2.
pour maintenir la désactivation.
The following CEC-compatible devices are found;
Do you wish to turn on the CEC link? Integra DHS-8.8 Yes
No Source ConnectionHOME Exi t 5KXQWUUÅNGEVKQPPG\|;GUNCEQPPGZKQPCXGEWP
3rd Step : Remote Mode Setup
expliqueront également comment régler la télécommande. HOME Ex itInitial SetupRemote Mode SetupPreprograming remote will give you controlof other devices from AV receiver remote Would you like to setup your remote to control your devices? This may take a whiledepending on what and how many you have connected. You can always come back to remotesetup from setup “8-2 Remote Mode Setup”. Yes No. Skip9
|5RGCMGT%QPHKIWTCVKQP|
r |9KFG/QFGGV2KEVWTG/QFGRGWXGPV
522/530 kHz - 1611/1710 kHz
FHSS (Freq Hopping Spread Spectrum)
Dimensions (L × H × P)
3D, Audio Return Channel, DeepColor, x.v.Color, LipSync, CEC (RIHD),
IN1 (CBL/SAT), IN2 (STB/DVR), IN3 (GAME)
Le logo Wi-Fi certified
Pilas (AA/R6) --- (2)
pantalla y pulse ENTER en el mando a distancia. Welcome to initial setup. Have you connected all the speakers and devices?Before starting, please connect speakers and sources.Now, would you like to start initial setup?1st Step : AccuEQ Room Calibration2nd Step : Source Connection3rd Step : Remote Mode Setup4th Step : Network Connection Yes
1st Step: AccuEQ Room Calibration
AccuEQ Room Calibration
This step you can automatically calibrate
your room to get correct surround sound.
Would you like to cailbrate your room now
2nd Step : Source Connection
This step will start to check if the connections were made correctly.Would you like to continue?Yes. ContinueNo. SkipInitial SetupSource ConnectionExitHOME 2.
The following CEC-compatible devices are found;
Do you wish to turn on the CEC link? Integra DHS-8.8 Yes
No Source ConnectionHOME Exit Si selecciona “Yes”, la conexión con una TV compatible
3rd Step : Remote Mode Setup
distancia. HOME Ex itInitial SetupRemote Mode SetupPreprograming remote will give you controlof other devices from AV receiver remote Would you like to setup your remote to control your devices? This may take a whiledepending on what and how many you have connected. You can always come back to remotesetup from setup “8-2 Remote Mode Setup”. Yes No. Skip9
4th Step : Network Connection Do you want to connect network connection?It gives you network services that our AVreceiver support. If you wish to skip this step.select “No. Skip”. Yes No. SkipHOME Ex itInitial SetupNetwork Connection Puede comprobar la conexión de red y realizar la
“USB” o “BLUETOOTH”.
“USB” o “BLUETOOTH”.
522/530 kHz - 1611/1710 kHz
IN1 (CBL/SAT), IN2 (STB/DVR), IN3 (GAME)
(C) Copyright 2014 Onkyo Corporation Japan. All rights reserved.
OSAKA 541-0041, JAPAN
http://www.onkyo.com/
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
For Dealer, Service, Order and all other Business Inquiries:
Tel: 201-785-2600 Fax: 201-785-2650
http://www.us.onkyo.com/
For Product Support Team Only:
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4208-213
http://www.eu.onkyo.com/
Unit 1033, 10/F, Star House, No 3, Salisbury Road,
Tsim Sha Tsui Kowloon, Hong Kong.
Tel: 852-2429-3118 Fax: 852-2428-9039
http://www.hk.onkyo.com/
1301, 555 Tower, No.555 West NanJing Road, Jing’an District,
Asia, Oceania, Middle East, Africa
Please contact an Onkyo distributor referring to Onkyo
http://www.intl.onkyo.com/support/
The above-mentioned information is subject to change
without prior notice.
Visit the Onkyo web site for the latest update.
Tel: +44 (0)8712-00-19-96 Fax: +44 (0)8712-00-19-95
Support for Spotify Connect
Spotify Connect can be supported by updating the unit's
firmware. Simply click the Connect icon and select the unit
on the playback screen of Spotify application to enjoy high
quality music streaming. To enable Spotify Connect, install
the Spotify application on your smartphone or tablet first.
Then, create a Spotify premium account.
The Spotify software is subject to third party licenses found here:
www.spotify.com/connect/third-party-licenses
Notes for using multi-zone function
To enjoy Spotify music in a separate room, select "NET"
as the input of the separate room.
Volume adjustment with the Spotify application is
possible only for the equipment connected to the
ZONE2/3 speaker terminals (compatible model only).
If any other terminal is used for connection, adjust the
volume on the audio equipment placed in a separate
To enjoy Spotify music in the main room after playing
Spotify in a separate room, select "NET" as the input of
Turning network standby on allows you to use the Auto
www.spotify.com/connect/third-party-licenses
www.spotify.com/connect/third-party-licenses
www.spotify.com/connect/third-party-licenses
www.spotify.com/connect/third-party-licenses
www.spotify.com/connect/third-party-licenses
www.spotify.com/connect/third-party-licenses
www.spotify.com/connect/third-party-licenses
