USER MANUAL KIL22AD30 BOSCH

Safety and warning information 23

Information concerning disposal 25

Scope of delivery 25

Room temperature, ventilation

and cavity depth 26

Installation location 26

Connecting the appliance 26

Getting to know your appliance 27

Switching on the appliance 28

Setting the temperature 28

“Super” function 29

Refrigerator compartment 29

The freezer compartment 30

Max. freezing capacity 31

Freezing and storing food 31

Freezing fresh food 31

Thawing frozen food 32

Interior fittings 32

Switching off and disconnecting

Cleaning the appliance 34

Tips for saving energy 36

Operating noises 36

Eliminating minor faults yourself 37

Appliance self-test 39

Customer service 39fr Table des matières

enInstruction for Use

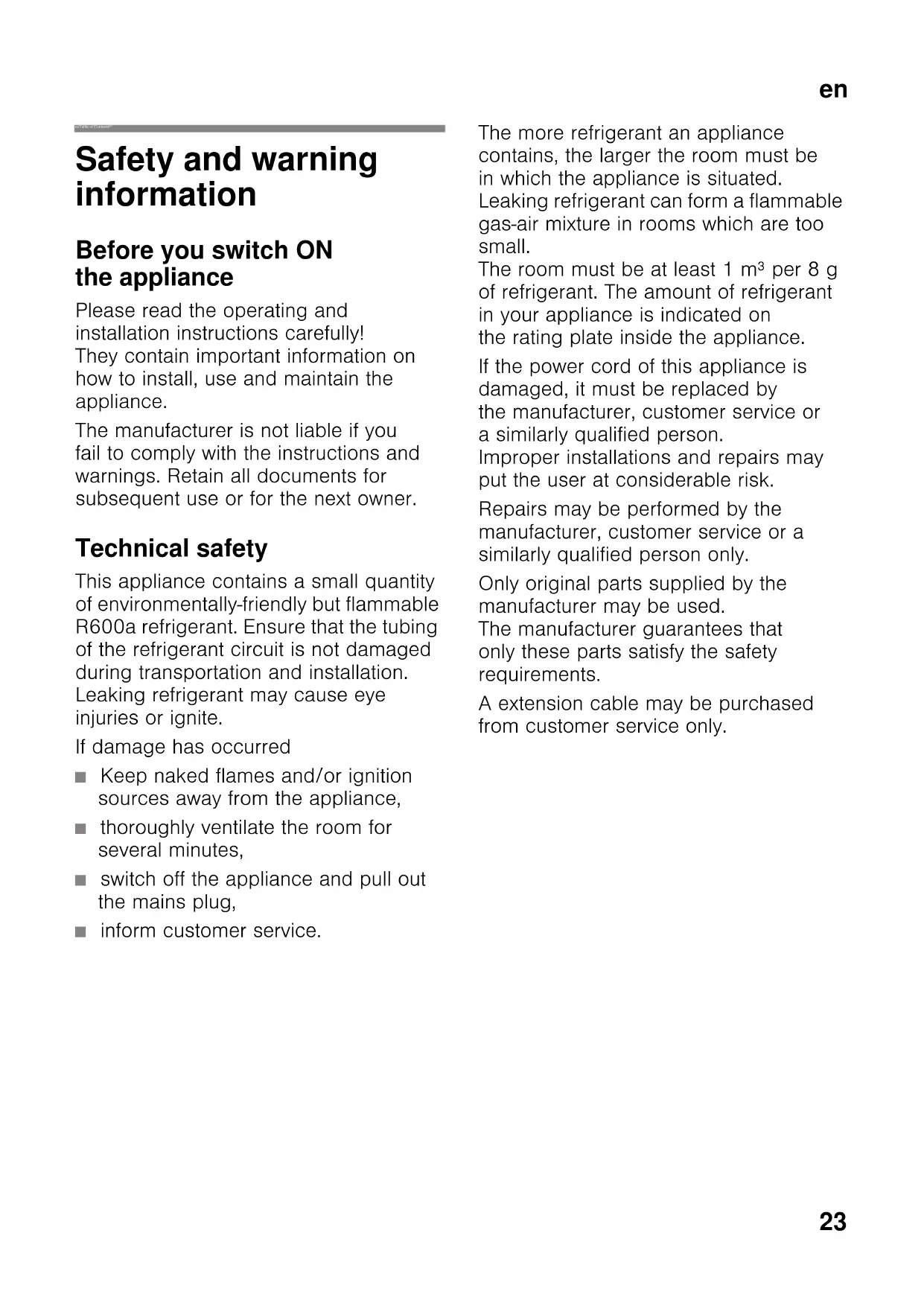

Before you switch ON

Please read the operating and

installation instructions carefully!

They contain important information on

how to install, use and maintain the

The manufacturer is not liable if you

fail to comply with the instructions and

warnings. Retain all documents for

subsequent use or for the next owner.

This appliance contains a small quantity

of environmentally-friendly but flammable

R600a refrigerant. Ensure that the tubing

of the refrigerant circuit is not damaged

during transportation and installation.

Leaking refrigerant may cause eye

If damage has occurred

■ Keep naked flames and/or ignition

sources away from the appliance,

■ thoroughly ventilate the room for

■ switch off the appliance and pull out

■ inform customer service.

The more refrigerant an appliance

contains, the larger the room must be

in which the appliance is situated.

Leaking refrigerant can form a flammable

gas-air mixture in rooms which are too

The room must be at least 1 m³ per 8 g

of refrigerant. The amount of refrigerant

in your appliance is indicated on

the rating plate inside the appliance.

If the power cord of this appliance is

damaged, it must be replaced by

the manufacturer, customer service or

a similarly qualified person.

Improper installations and repairs may

put the user at considerable risk.

Repairs may be performed by the

manufacturer, customer service or a

similarly qualified person only.

Only original parts supplied by the

manufacturer may be used.

The manufacturer guarantees that

only these parts satisfy the safety

A extension cable may be purchased

from customer service only.en

the appliance (e.g. heater, electric ice

maker, etc.). Risk of explosion!

■ Never use a steam cleaner to defrost

or clean the appliance!

The steam may penetrate electrical

parts and cause a short-circuit.

Risk of electric shock!

■ Do not use pointed or sharp-edged

implements to remove frost

or layers of ice. You could damage

the refrigerant tubing.

Leaking refrigerant may ignite or

■ Do not store products which contain

flammable propellants (e.g. spray

cans) or explosive substances

in the appliance. Risk of explosion!

■ Do not stand or support yourself

on the base, drawers or doors, etc.

■ Before defrosting and cleaning

the appliance, pull out the mains plug

or switch off the fuse.

Do not pull out the mains plug

by tugging the cable.

■ Bottles which contain a high

percentage of alcohol must be sealed

and stored in an upright position.

■ Keep plastic parts and the door seal

free of oil and grease.

Otherwise, parts and door seal will

■ Never cover or block the ventilation

openings for the appliance.

■ People (childern incl.) who have

limited physical, sensory or mental

abilities or inadequate knowledge

must not use this appliance unless

they are supervised or given

meticulous instructions.

■ Do not store bottled or canned

drinks (especially carbonated drinks)

in the freezer compartment.

Bottles and cans may explode!

■ Never put frozen food straight from

the freezer compartment into your

Risk of low-temperature burns!

■ Avoid prolonged touching of frozen

food, ice or the evaporator pipes, etc.

Risk of low-temperature burns!

Children in the household

■ Keep children away from packaging

Danger of suffocation from folding

cartons and plastic film!

■ Do not allow children to play with the

■ If the appliance features a lock:

keep the key out of the reach of

The appliance is suitable

■ for refrigerating and freezing food,

This appliance is intended for use in

the home and the home environment.

The appliance is suppressed according

to EU Directive 2004/108/EC.

The refrigeration circuit has been

This product complies with the

relevant safety regulations for

electrical appliances (EN 60335-2-24).en

Information concerning

* Disposal of packaging

The packaging protects your appliance

from damage during transit.

All utilised materials are environmentally

safe and recyclable. Please help us

by disposing of the packaging in an

environmentally friendly manner.

Please ask your dealer or inquire at

your local authority about current means

* Disposal of your old

Old appliances are not worthless

rubbish! Valuable raw materials can be

reclaimed by recycling old appliances.

Redundant appliances

1. Pull out the mains plug.

2. Cut off the power cord and discard

with the mains plug.

3. Do not take out the trays and

receptacles: children are therefore

prevented from climbing in!

4. Do not allow children to play with

the appliance once it has spent

its useful life. Danger of suffocation!

Refrigerators contain refrigerant and

gases in the insulation.

Refrigerant and gases must be disposed

of professionally. Ensure that tubing

of the refrigerant circuit is not damaged

prior to proper disposal.

After unpacking all parts, check for any

If you have any complaints, please

contact the dealer from whom

you purchased the appliance or our

The delivery consists of the following

parts: ■ Built-in appliance■ Interior fittings (depending on model)■ Bag containing installation materials■ Operating instructions■ Installation manual■ Customer service booklet■ Warranty enclosure■ Information on the energy consumption and noises

This appliance is identified

according to the European

guideline 2002/96/EC on waste

electrical and electronic

equipment – WEEE. The directive

specifies the framework for an

The appliance is designed for a specific

climate class. Depending on the climate

class, the appliance can be operated at

the following temperatures.

The climate class can be found on

the rating plate. Fig. /

The appliance is fully functional within

the room temperature limits of the

indicated climatic class. If an appliance

of climatic class SN is operated at

colder room temperatures, the appliance

will not be damaged up to a temperature

The air on the rear panel of

the appliance heats up. Conduction of

the heated air must not be obstructed.

Otherwise, the refrigeration unit must

work harder. This increases power

consumption. Therefore: Never cover

or block the ventilation openings!

A cavity depth of 560 mm is

recommended for the appliance.

If the cavity depth is smaller – at least

550 mm – the energy consumption

Installation location

Install the appliance in a dry, well

ventilated room. The installation location

should neither be exposed to direct

sunlight nor near a heat source, e. g.

a cooker, radiator, etc. If installation next

to a heat source is unavoidable, use

a suitable insulating plate or observe

the following minimum distances to a

■ 3 cm to electric or gas cookers.

■ 30 cm to an oil or coal-fired cooker.

After installing the appliance, wait at least

1 hour until the appliance is switched on.

During transportation the oil in

the compressor may have flowed into

the refrigeration system.

Before switching on the appliance for

the first time, clean the interior of

the appliance (see chapter “Cleaning

Climate class Permitted ambient temperature

SN +10 °C to 32 °C N +16 °C to 32 °C ST +16 °C to 38 °C T +16 °C to 43 °Cen

Electrical connection

The socket must be near the appliance

and also freely accessible following

installation of the appliance.

The appliance complies with the

protection class I. Connect the appliance

to 220–240 V/50 Hz alternating

current via a correctly installed socket

with protective conductor. The socket

must be fused with a 10 to 16 A fuse.

For appliances operated in non-

European countries, check whether the

stated voltage and current type

match the values of your mains supply.

This information can be found on the

rating plate. Fig. /

Never connect the appliance to

electronic energy saver plugs.

Our appliances can be used with mains

and sine-controlled inverters.

Mains-controlled inverters are used

for photovoltaic systems which are

connected directly to the national grid.

Sine-controlled inverters must be used

for isolated applications (e.g. on ships

or in mountain lodges) which are not

connected directly to the national grid.

Getting to know your

Please fold out the illustrated last page.

These operating instructions refer to

The features of the models may vary.

The diagrams may differ.

B Refrigerator compartment

7 Glass shelf in the refrigerator

8* Extendable glass shelf

9 Vegetable container with humidity

10 Butter and cheese compartment

12* Vario door shelf

13 Shelf for large bottlesen

Switch on the appliance with the

The appliance begins to cool.

Light is switched on when the door

We recommend a factory setting

of +4 °C in the refrigerator compartment.

Do not store perishable food warmer

■ After the appliance has been switched

on, it may take several hours until the

set temperature has been reached.

Do not put any food in the appliance

■ While the refrigeration unit is running,

water droplets or hoarfrost may form

at the rear panel of the refrigerator.

This is due to functional reasons.

It is not necessary to scrape off the

frost or wipe off the water droplets.

The rear panel defrosts automatically.

The condensation collects in the

drainage channel and is carried to the

refrigeration unit where it evaporates.

■ The front sides of the housing are

partly heated slightly. This prevents

condensation in the area of the door

Refrigerator compartment

The temperature can be set

from +2 °C to +8 °C.

Keep pressing temperature setting

button 3 until the required refrigerator

compartment temperature is set.

The value last selected is saved. The set

temperature is indicated on temperature

The temperature in the freezer compart-

ment depends on the temperature in the

refrigerator compartment.

Serves to switch the whole

appliance on and off.

Switches Super function on and

off (see chapter “Super function”).

It is lit when the Super function is

3 Temperature selection button

Press this button to set the

4 Temperature display

The numbers correspond

to the set refrigerator

compartment temperatures in °C.

Used to switch off the

The door alarm (continuous sound)

switches on if the appliance door

is open for longer than two minutes.

Close the door to switch off the

Switching off the alarm

Press the alarm button 5 to switch off

When “Super” function is switched on,

the freezer compartment and refrigerator

compartment will become colder.

■ There may be increased operating

■ The Super function is not required

to freeze small quantities of food.

Using “Super” function

■ Switch on “Super” function before

placing fresh products in the

■ If food is frozen quickly, vitamins,

nutritional values, appearance and

■ Cooling drinks quickly.

■ Storing large quantities of food in the

refrigerator compartment.

Switching on and off

The Super function automatically

switches off after approx. 1½ days and

the temperature set previously

Information on the usable capacity

can be found inside your appliance on

the rating plate. Fig. /

The refrigerator compartment is the ideal

storage location for meat, sausage,

fish, dairy products, eggs, ready meals

■ Store fresh, undamaged food.

The quality and freshness will then

be retained for longer.

■ In the case of ready-made products

and bottled goods, observe the best-

before date or use-by date specified

by the manufacturer.

■ To retain aroma, colour and freshness,

pack or cover food well before placing

in the appliance. This will prevent

the transfer of flavours and the

discolouration of plastic parts in the

refrigerator compartment.en

■ Allow warm food and drinks to cool

down before placing in the appliance.

Avoid contact between food and rear

panel. Otherwise the air circulation will

Food or packaging could freeze to

Note the chill zones in the

refrigerator compartment

The air circulation in the refrigerator

compartment creates different chill

■ Coldest zone is between the arrow

stamped on the side and the

glass shelf situated below. Fig. $

Store perishable food (e.g. fish,

sausage, meat) in the coldest zone.

■ Warmest zone is at the very top

Store e.g. hard cheese and butter

in the warmest zone. Cheese can then

continue to release its flavour and

the butter will still be easy to spread.

Vegetable container with

The vegetable container is the optimum

storage location for fresh fruit and

vegetables. A humidity controller and

a special seal can be used to

adjust the air humidity in the vegetable

container. This allows fresh fruit and

vegetables to be stored twice as long

as with conventional storage.

The air humidity in the vegetable

container can be set according to the

type and amount of products to be

■ Mainly fruit as well as for a large load

– lower air humidity

■ Mainly vegetables as well as for a

mixed load or small load – higher air

■ Fruit sensitive to cold (e.g. pineapple,

banana, papaya and citrus fruit)

and vegetables sensitive to cold

(e.g. aubergines, cucumbers, zucchini,

peppers, tomatoes and potatoes)

should be stored outside the

refrigerator at temperatures of approx.

+8 °C to +12 °C for optimum

preservation of quality and flavour.

■ Condensation may form in the

vegetable container depending on the

type and quantity of products stored.

Remove condensation with a dry cloth

and adjust air humidity in the

vegetable container with the humidity

■ store deepfrozen food,

■ freeze small quantities of food.en

■ You can tell from the handle whether

the freezer compartment door is

■ The freezer compartment door

■ If the door is open, the frozen food will

thaw. The freezer compartment

will become covered in thick ice.

Also: waste of energy due to high

Max. freezing capacity

Information about the max. freezing

capacity within 24 hours can be found

on the rating plate. Fig. /

Prerequisites for max. freezing

■ Freeze fresh food as close as possible

■ Switch on “Super” function before

placing fresh products in the

Freezing and storing

Purchasing frozen food

■ Packaging must not be damaged.

■ Use by the ”use by” date.

■ Temperature in the supermarket

freezer must be -18 °C or lower.

■ If possible, transport deep-frozen

food in a cool bag and place quickly

in the freezer compartment.

Freeze fresh and undamaged food only.

To retain the best possible nutritional

value, flavour and colour, vegetables

should be blanched before freezing.

Aubergines, peppers, zucchini and

asparagus do not require blanching.

Literature on freezing and blanching can

be found in bookshops.

Keep food which is to be frozen away

from food which is already frozen.

■ The following foods are suitable for

Cakes and pastries, fish and seafood,

meat, game, poultry, vegetables,

fruit, herbs, eggs without shells, dairy

products such as cheese, butter

and quark, ready meals and leftovers

such as soups, stews, cooked meat

and fish, potato dishes, soufflés and

■ The following foods are not suitable

Types of vegetables, which are usually

consumed raw, such as lettuce

or radishes, eggs in shells, grapes,

whole apples, pears and peaches,

hard-boiled eggs, yoghurt, soured

milk, sour cream, crème fraîche and

To prevent food from losing its flavour

or drying out, place in airtight containers.

1. Place food in packaging.

3. Seal the wrapping.

4. Label packaging with contents and

Plastic film, tubular film made of

polyethylene, aluminium foil, freezer

These products are available from

Unsuitable packaging:

Wrapping paper, greaseproof paper,

cellophane, bin liners and used

Items suitable for sealing packaged

Rubber bands, plastic clips, string,

cold-resistant adhesive tape, etc.

Bags and tubular film made of

polyethylene can be sealed with a film

Shelf life of frozen food

Storage duration depends on the type

At a temperature of -18 °C:

■ Fish, sausage, ready meals and cakes

■ Cheese, poultry and meat:

Depending on the type and application,

select one of the following options:

■ at room temperature

■ in the refrigerator

■ in an electric oven, with/without fan

Do not refreeze thawing or thawed food.

Only ready meals (boiled or fried) may

No longer store the frozen produce for

the max. storage period.

If required, you can vary the shelves

inside the appliance: To do this, pull out

shelf, lift at the front and take out.

Extendable glass shelf

The extendable glass shelf can be pulled

out for a better overview of the food.

To facilitate the storage of tall items

(e.g. cans or bottles), the front part of the

Vario shelf can be taken out and pushed

under the rear part.en

The position of the Vario door shelf can

be moved to the side so that tall bottles

can be stored on the lower shelf.

The bottle holder prevents bottles from

falling over when the door is opened

1. Fill the ice cube tray ¾ full of

drinking water and place in the freezer

2. If the ice cube tray is stuck to the

freezer compartment, loosen

with a blunt implement only (spoon-

3. To loosen the ice cubes, twist the ice

cube tray slightly or hold briefly under

The “OK” temperature monitor can be

used to determine temperatures below

+4 °C. Gradually reduce the temperature

if the sticker does not indicate “OK”.

When the appliance is switched on,

it may take 12 hours until

the temperature is reached.

Switching off the appliance

Press the On/Off button 1.

Temperature display goes out,

refrigerating unit switches off.

Disconnecting the appliance

If you do not use the appliance

for a prolonged period:

1. Switch off the appliance.

2. Pull out mains plug or switch off fuse.

3. Clean the appliance.

4. Leave the appliance door open.

Refrigerator compartment

defrosts fully automatically

While the refrigerating unit is running,

beads of condensation or hoarfrost form

at the back of the refrigerator

compartment. This is quite normal.

It is not necessary to wipe off the

condensation or frost. The rear panel

defrosts automatically. The condensation

runs into the condensation channel,

Fig. #. and is conveyed to the

refrigerating unit where it evaporates.

Keep the condensation channel

and drainage hole clean, so that the

condensation can run out.en

The freezer compartment does not

defrost automatically. A layer of hoarfrost

in the freezer compartment will impair

refrigeration of the frozen food and

increase power consumption. Regularly

defrost the freezer compartment.

Do not scrape off hoarfrost or ice

with a knife or pointed object.

You could damage the refrigerant tubes.

Leaking refrigerant may ignite or cause

Switch on the Super function approx.

4 hours before defrosting.

As a result, the food will drop to a very

low temperature and can therefore be

stored for longer at room temperature.

1. Remove the frozen food and place

temporarily in a cool location.

Place ice pack (if available) on

2. Switch off the appliance.

4. To accelerate the defrosting process,

place a pan of hot water on

a trivet in the freezer compartment.

5. Wait until the layer of frost has thawed.

6. Wipe up condensation with a cloth

7. Wipe dry the freezer compartment.

8. Switch the appliance on again.

9. Put the frozen food back in the freezer

Cleaning the appliance

■ Do not use abrasive, chloride or acidic

cleaning agents or solvents.

■ Do not use scouring or abrasive

sponges. The metallic surfaces could

■ Never clean the shelves or containers

in the dishwasher. The parts may

1. Before cleaning: Switch off

2. Pull out the mains plug or switch off

3. Take out the food and store in a cool

location. Place ice pack (if available)

4. Wait until the layer of frost has thawed.

5. Clean the appliance with a soft cloth,

lukewarm water and a little pH neutral

washing-up liquid. The rinsing water

must not run into the light or through

the drainage hole into the evaporation

6. Wipe the door seal with clear water

only and then wipe dry thoroughly.

7. After cleaning reconnect and switch

the appliance back on.

8. Put the food back into the appliance.en

All variable parts of the appliance

can be taken out for cleaning.

Take out glass shelves

To do this, pull out shelf, lift at the front

Taking out extendable glass shelf

Press levers on the underside on both

sides, pull forwards glass shelf,

lower and swivel out to the side.

Condensation channel

Regularly clean the condensation

channel and drainage hole with a cotton

bud or similar implement to ensure that

the condensation can drain.

Take out shelves in the door

Lift shelves upwards and take out.

Taking out glass shelf above vegetable

The glass shelf can be taken out and

disassembled for cleaning.

Before taking out the glass shelf,

pull out vegetable container.

Removing the container

Pull out the container all the way,

lift at the front and remove.

If you experience unpleasant odours:

1. Switch off the appliance with the

On/Off button. Fig. "/1

2. Take all food out of the appliance.

3. Clean interior (see chapter “Cleaning

4. Clean all packages.

5. Seal strong smelling food in order

to avoid odours from forming.

6. Switch the appliance on again.

7. Store food in the appliance.

8. Check whether the formation of

odours is still occuring after 24 hours.

Your appliance features a maintenance-

These lights may be repaired by

customer service or authorised

Tips for saving energy

■ Install the appliance in a dry, well

ventilated room! The appliance should

not be installed in direct sunlight

or near a heat source (e.g. radiator,

If required, use an insulating plate.

■ Select 560 mm cavity depth.

A smaller cavity depth will result in

a higher energy consumption.

■ Allow warm food and drinks to cool

down before placing in the appliance.

■ Thaw frozen food in the refrigerator

compartment and use the low

temperature of the frozen food to cool

■ Open the appliance as briefly as

■ Regularly defrost the freezer

compartment to remove the layer of

A layer of hoarfrost will impair

refrigeration of the frozen food and

increase power consumption.

■ Ensure that the freezer compartment

door has been closed properly.

■ Occasionally clean the rear of the

appliance to prevent an increased

■ The arrangement of the fittings

does not affect the energy rating of

Motors are running (e.g. refrigerating

Bubbling, humming or gurgling noises

Refrigerant is flowing through the tubing.

Motor, switches or solenoid valves are

The appliance is not level

Please align the appliance with a

spirit level. If required, place something

Containers or storage areas wobble

Please check the removable parts

and re-insert them correctly if required.

Bottles or receptacles are touching

Move the bottles or receptacles slightly

away from each other.en

Eliminating minor faults yourself

Before you call customer service:

Please check whether you can eliminate the fault yourself based on the following

Customer service will charge you for advice – even if the appliance is still under

Fault Possible cause Remedial action

greatly from the set

In some cases it is adequate

to switch off the appliance

If the temperature is too high wait

a few hours and check whether

the temperature has approached

If the temperature is too low check

the temperature again the next day.

Power failure; the fuse

has been switched off;

has not been inserted

Check whether the power is on,

Call customer service.

See chapter “Light (LED)” section.

Light is switched off

after approx. 10 min.

When the appliance is closed

and opened, the light is on again.en

Loosen frozen food with a blunt

object. Do not use a knife or pointed

There is a thick layer

of frost in the freezer

Defrosting the freezer compartment

(see chapter Defrosting).

Always ensure that the freezer

compartment door is closed

Clean the condensation channel

and the drainage hole. See chapter

Cleaning the appliance. Fig. #

Close the freezer compartment

door. The freezer compartment door

Temperature has been

Increase the temperature.

Switch off Super function.

The refrigerating unit

Do not open the appliance

cooling, temperature

Hold down alarm button, Fig "/5,

for 10 seconds until an

acknowledgement signal sounds.

After a short time check whether

your appliance is cooling.en

Your appliance features an automatic

self-test program which shows you

sources of faults which may be repaired

by customer service only.

Starting the appliance self-test

1. Switch off the appliance and wait

2. Switch on appliance and hold down

the super button, Fig. "/2,

for 3-5 seconds within the first

10 seconds until an acoustic signal

The self-test programme starts.

While the self-test is running, a long

acoustic signal sounds.

When the self-test ends and an acoustic

signal sounds twice, your appliance is

If the Super button flashes for

10 seconds and 5 acoustic signals

sound, there is a fault. Inform customer

Ending the appliance self-test

When the programme has ended,

the appliance switches over to normal

Your local customer service can be

found in the telephone directory or in

the customer-service index.

Please provide customer service with

the appliance product number (E-Nr.)

and production number (FD).

These specifications can be found

on the rating plate. Fig. /

To prevent unnecessary call-outs, please

assist customer service by quoting

the product and production numbers.

This will save you additional costs.

Repair order and advice

Contact information for all countries

can be found on the enclosed customer

equipment – WEEE). La directive

minimum = 550 mm), la consommation

and Electronic Equipment –

sode, yogurt, latte cagliato, panna

and electronic equipment –

yoghurt, dikke zure melk, zure room,
