25370 - Barbecue HAMILTON BEACH - Free user manual and instructions

USER MANUAL 25370 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Please call us - our friendly associates are ready to help. USA: 1,800.851.8900

Questions?

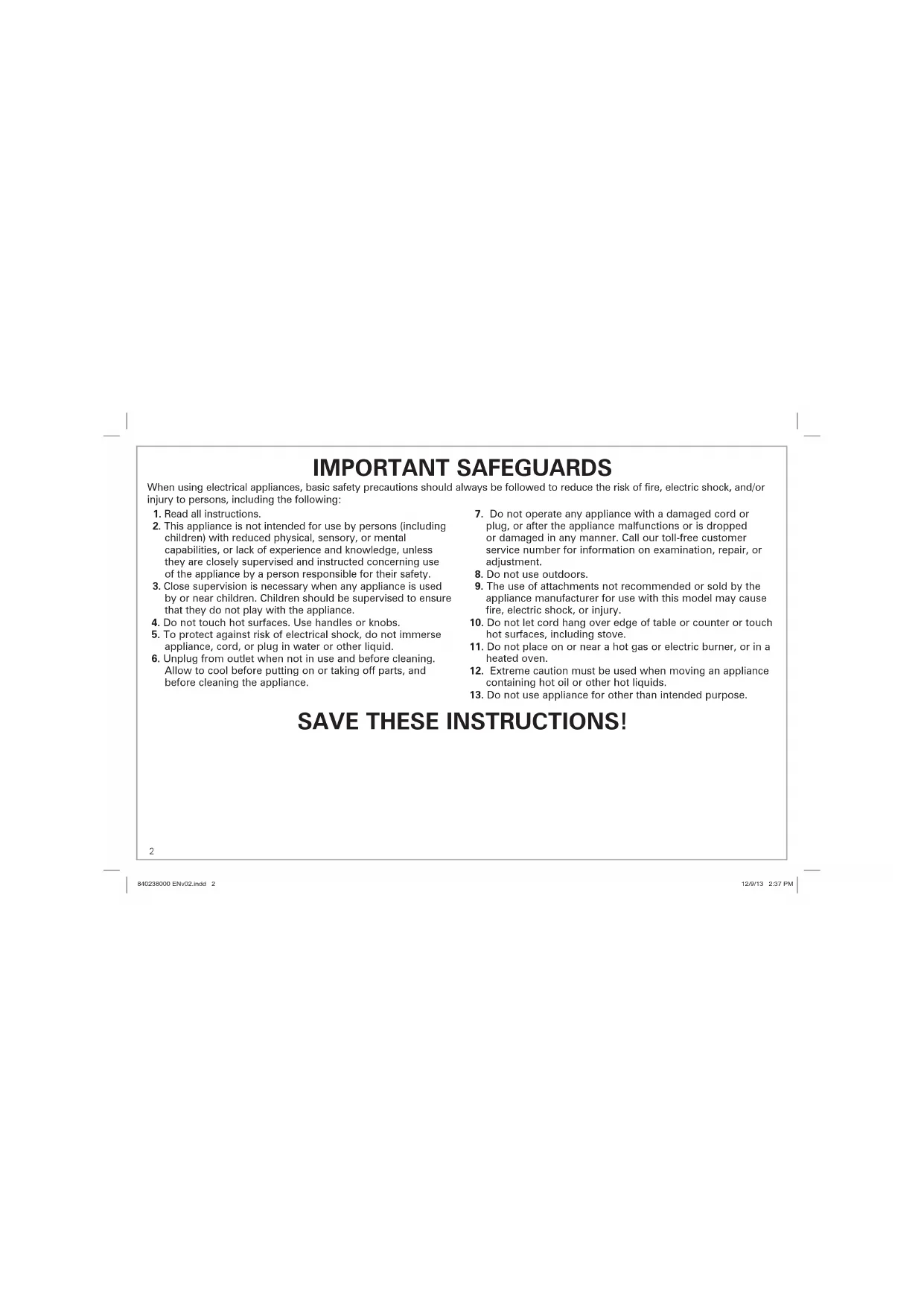

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs.
5. To protect against risk of electrical shock, do not immerse appliance, cord, or plug in water or other liquid.

6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

8. Do not use outdoors.
9. The use of attachments not recommended or sold by the appliance manufacturer for use with this model may cause fire, electric shock, or injury.
10. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. Do not use appliance for other than intended purpose.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

An extension cord should be connected to the appliance first, before it is plugged into the outlet.

Always use grill on flat surface to ensure grease and oils drain properly. Use caution when cleaning spilled hot grease. Use caution when cooking and around splattering grease.

Always use drip tray and make sure it is resting on counter directly under grill before use.

Never move grill when in use. Unplug unit and let cool before moving.

Always use an oven mitt to protect hand when opening the grill. CAUTION! Burn Hazard: Escaping steam may cause burns.

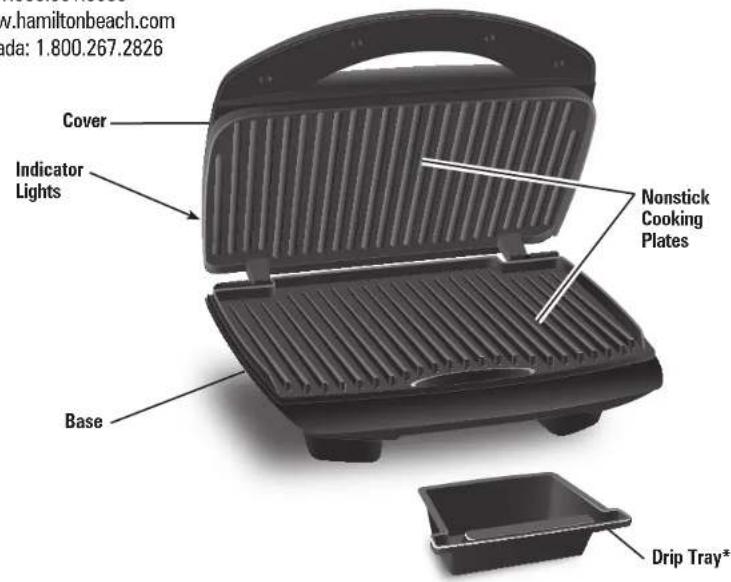

Parts and Features

*To order parts:

US:1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

BEFORE FIRST USE: Wipe the bottom and top cooking plates with a soapy damp cloth. Rinse cloth; then wipe plates again.

Indicator Lights

Your grill features two indicator lights.

Red indicates that power is on. Green indicates that the unit is preheated and ready to use.

How to Grill

Plug cord into wall outlet. The red light will glow.

Slide the drip tray into place under front of grill.

Lower grill cover.

Lift cover and check food. If additional cooking time is needed, lower cover.

WARNING Hazard.

Always use an oven mitt to protect hand when opening a hot grill. Escaping steam can burn.

Preheat with cover closed. Once the grill has reached the proper temperature, the green light will come on.

When preheated, place food to be cooked onto cooking plates. Only use wooden or plastic cooking utensils to prolong the life of the nonstick coating.

Cooking Chart

Preheat with cover closed. Once the grill has reached the proper temperature, the green light will come on. The following times are guidelines. Always cook with the cover closed.

Visit www.foodsafety.gov for more information on safe internal cooking temperatures.

FOOD COOK TIME DONENESS

Beef Strip Steak, boneless, fresh (8 oz./225 g) 5 minutes Slightly pink in center; brown on outside

Chicken Breast, boneless, fresh (4-6 oz./120-180 g) 5 to 8 minutes No longer pink in center

Chicken Breast, boneless, frozen (4 oz./120 g) 10 to 12 minutes No longer pink in center

Chicken Tenderloins, boneless, skinless, fresh (2 lbs./907 g) 5 minutes No longer pink in center

Fish Fillet, frozen (about 2 oz./60 g) 6 to 8 minutes Fish looks white

Fish, fresh (4 oz./120 g) 5 minutes Fish looks white

Hamburger, fresh (4 oz./120 g) 5 to 7 minutes No longer pink in center

Hamburger, frozen (4 oz./120 g) 10 to 12 minutes No longer pink in center

Hot Dog 5 minutes Heated through

Pork Chops, boneless, fresh (4 oz./120 g, 3/4-in./1.9-cm thick) 6 to 8 minutes No longer pink in center

Pork Chops, boneless, frozen (4 oz./120 g) 10 to 12 minutes No longer pink in center

Sausage 15 minutes No longer pink in center

Turkey Burgers (4 oz./120 g) 10 to 15 minutes No longer pink in center; brown on outside

Bacon 10 to 15 minutes Crispy

VEGETABLES	COOK TIME	DONENESS
Green or Red Bell Pepper Strips, fresh	5 minutes	Tender-crisp
Mushrooms, sliced, fresh	6 minutes	Tender-crisp
Onions, sliced, fresh	4 minutes	Soft
Zucchini or Summer Squash, sliced, fresh	4 minutes	Tender-crisp

Helpful Tips

ALWAYS PREHEAT BEFORE USING.

• Read the Use and Care Guide before using the grill.
• Use cooking spray for convenient, stick-free cooking. Or if you prefer, brush cooking plates with vegetable oil before preheating.

• Use plastic utensils on the nonstick cooking plate. Do not use metal utensils since they will damage the nonstick surface.

• Thicker sandwiches may shift when the lid is closed. Use a plastic spatula to reposition. There is no need to press down on the handle. The weight of the cover will grill the top of the sandwich.

• Cleanup is easy! Let the grill cool down; then wipe cooking plates with damp paper towel.

IF YOU LIVE IN A HIGH-ALTITUDE AREA:

The Extension service will have detailed information about cooking for your area. To locate the Cooperative Extension service in your county, please visit: http://www.csrees.usda.gov/Extension/.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Care and Cleaning

WARNING Electrical Shock Hazard.

Disconnect power before cleaning. Do not immerse cord, plug, or base in water or any liquid.

Unplug grill from outlet and allow to cool.

Wipe cooking plates with a paper towel to remove drippings.

Remove drip tray; wash in dishwasher or hot, soapy water.

Use a damp sponge with a small amount of dishwashing detergent to scrub cooking surfaces. See illustration. Rinse out sponge and wipe surfaces clean. Use a clean, damp cloth to wipe surfaces again.

DISHWASHER-SAFE

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product.

Wipe outside of unit with a damp, soapy cloth.

Notes

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1,800,851,8900 in the U.S. or 1,800,267,2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRECAUTIONS IMPORTANTES

Mixcoac MEXICO 03910 D.F.

Tel:[phone]Fax：[phone]

Nuevo Leon

FERNANDO SEPULVEDA REFACIONES

Ruperto Martinez No. 238 Ote

Centro MONTERREY,64000 N.L

Tel: [phone] Fax: [phone]

Jalisco

SERVICIOS DE MANTENIMIENTO CASTILLO
Garibaldi No.1450
Ladrón de Guevara
GUADALAJARA 44660 Jal.
Tel:[phone]·Fax：[phone]

Chihuahua

DISTRIBUIDORA TURMIX
Av. Paseo Triunfo de la Rep. No. 5289 Local 2 A.
Int. Hipermart
Alamos de San Lorenzo
CD.JUAREZ 32340 Chih
Tel: [phone] Fax: [phone]

Modelo:

25370

Tip:

G50

CharacteristicasElecricas:

120V~ 60Hz 1500W
