USER MANUAL 25451 HAMILTON BEACH

Contact Grill/Sandwich Press

READ BEFORE USE

Gril contact / Presse-sandwiches

LIRE AVANT L'UTILISATION

Line drawing of a flat-screen grater or grill chair with no text or symbols

English....2

USA: 1-800-851-8900

Visit hamiltonbeach.com for delicious recipes and to register your product online!

Français 8

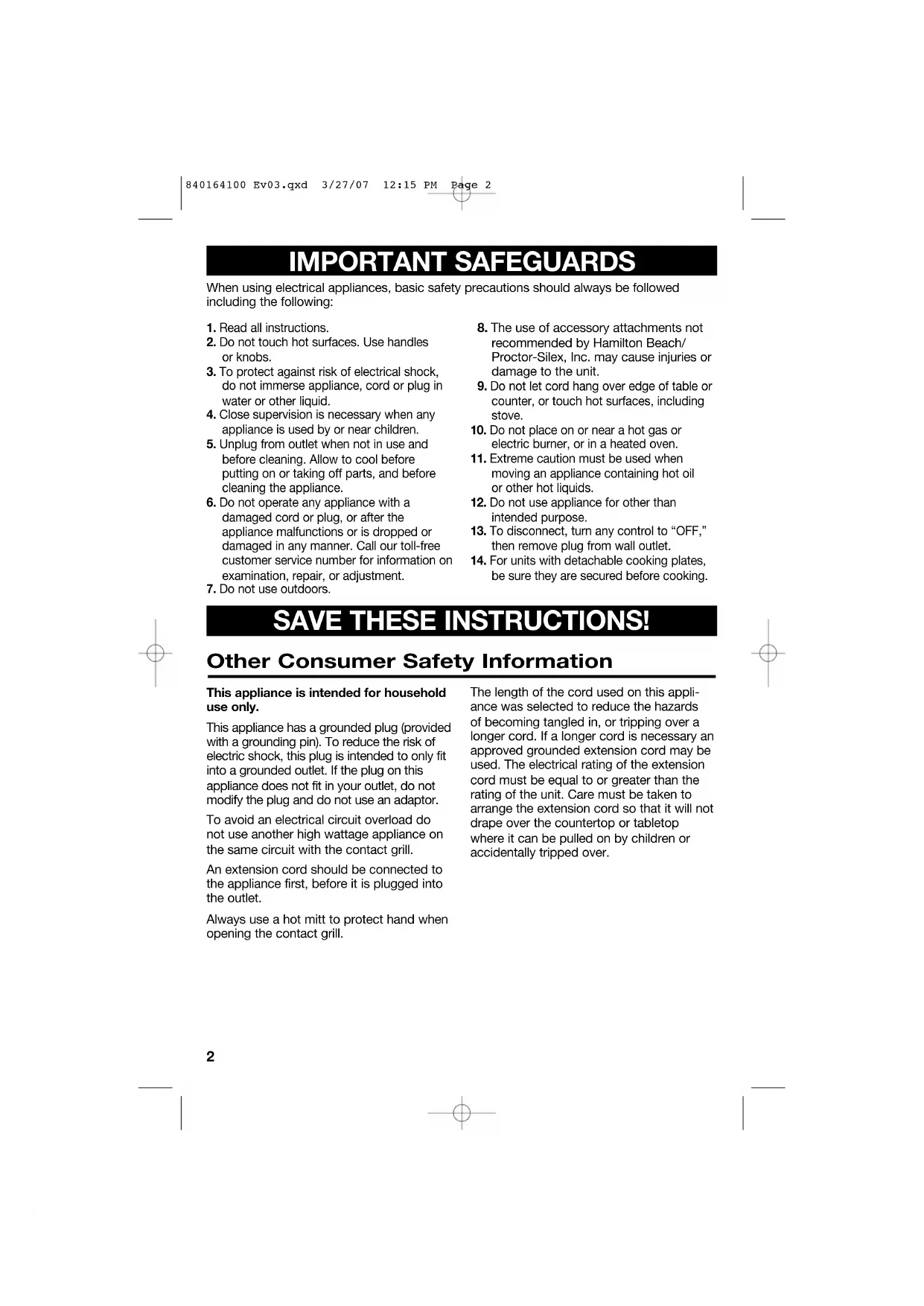

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of electrical shock, do not immerse appliance, cord or plug in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

7. Do not use outdoors.

8. The use of accessory attachments not recommended by Hamilton Beach/Proctor-Silex, Inc. may cause injuries or damage to the unit.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces, including stove.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Do not use appliance for other than intended purpose.
13. To disconnect, turn any control to "OFF," then remove plug from wall outlet.
14. For units with detachable cooking plates, be sure they are secured before cooking.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

This appliance has a grounded plug (provided with a grounding pin). To reduce the risk of electric shock, this plug is intended to only fit into a grounded outlet. If the plug on this appliance does not fit in your outlet, do not modify the plug and do not use an adaptor.

To avoid an electrical circuit overload do not use another high wattage appliance on the same circuit with the contact grill.

An extension cord should be connected to the appliance first, before it is plugged into the outlet.

Always use a hot mitt to protect hand when opening the contact grill.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over a longer cord. If a longer cord is necessary an approved grounded extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the unit. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

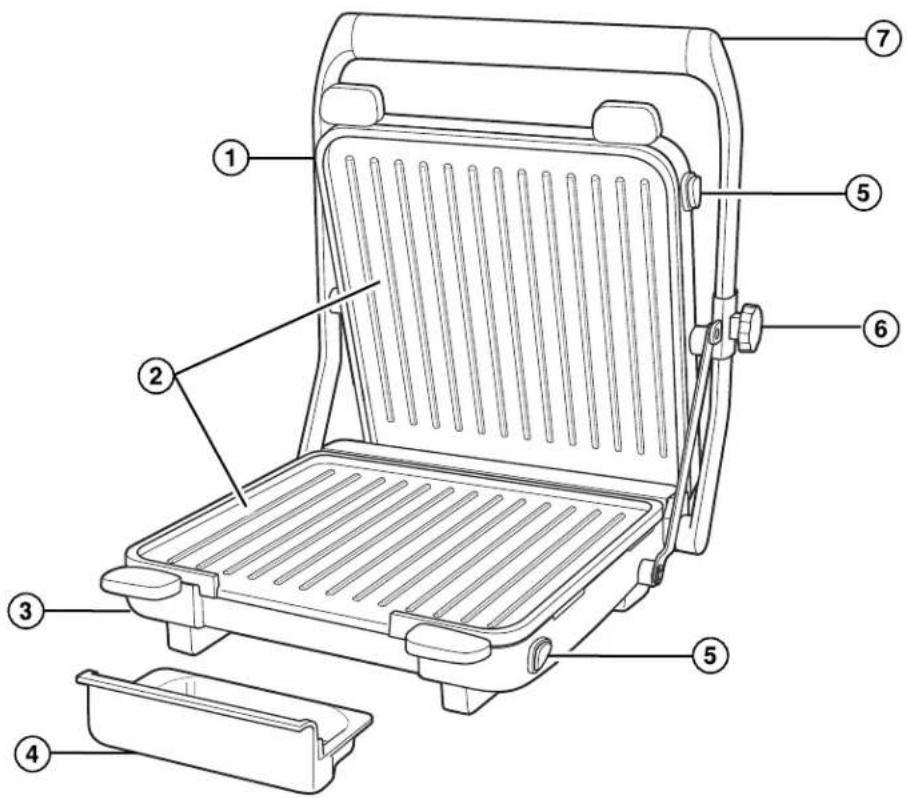

Parts and Features

1. Cover
2. Nonstick Removable Cooking Grids
3. Base

4. Drip Cup

5. Removable Grid Unlock Buttons

6. Cover Lock
7. Handle
8. Storage Latch
9. Indicator Lights

Labeled diagram of a portable electric grill with numbered parts for identification

Indicator Lights:
Your contact grill features two indicator

Diagram of a device with a numbered component (8) pointing to a mechanical part or connector (no text or symbols present)

⑨

lights. Red indicates that power is on. Green indicates that the unit is pre-heated and ready to use.

Operating Instructions

BEFORE FIRST USE: Wash the nonstick removable grids in hot, soapy water. Rinse and dry. Grids may also be washed in dishwasher. Ensure the grids are locked into place before use.

1. Plug into outlet.

2. Slide the drip cup into place under front of grill.

Line drawing of a grater with an arrow indicating motion, no text or symbols present

1. Preheat for 6 minutes. Keep cover closed. The red light comes on and remains lit as long as the unit is plugged into an outlet. Once the grill has reached the proper temperature, the green light will come on. Keep cover closed.

2. When preheated, raise cover. Place

Technical line drawing of a mechanical component with no visible text or symbols

food to be cooked onto cooking grids and lower cover to desired height. Lock cover at desired height by turning

locking knob, if desired.

IMPORTANT: Exterior surfaces become hot during cooking!

1. Unlock the cover, then use a hot mitt

Line drawing of a cooking step with steam rising from a pan (no text or symbols)

and carefully lift cover and check food to see if cooked to desired doneness. Do not cut food on non-stick cooking

grids. If additional cooking time is needed, lower cover.

1. When food is cooked to desired doneness, remove the food and unplug grill. Let cool before cleaning.

Helpful Tips and Hints

ALWAYS PREHEAT FOR 6 MINUTES BEFORE USING.

• Read the Use & Care Guide before using the contact grill.
• Use vegetable cooking spray for convenient, stick-free cooking. Or if you prefer, brush cooking grids with vegetable oil before preheating.
• Use plastic utensils on the nonstick cooking grid. Do not use metal utensils as they will damage the nonstick surface.

• Thicker sandwiches may shift when being pressed. Use a plastic spatula to reposition. Place sandwich in center of grill.

• Use caution when pushing down on the handle, as unit may tip forward and could burn your hand.

• When a recipe calls for fruit, lock the cover in place above the fruit so that it heats but does not contact the fruit.
• There is no need to press down on the handle. The weight of the cover will grill the top of the sandwich.
• Cleanup is easy! Let the grill cool down then wipe cooking grids with damp paper towel or dish cloth. The cooking grids may also be washed in the dishwasher.

Cleaning

1. Unplug grill from outlet and allow to cool.

2. Wipe cooking grids with a paper towel to remove drippings. Use a plastic spatula to scrape away cooked-on food or grease.

3. To remove grids for cleaning, hold tab and press unlock button of UPPER grid first. Release grid. Repeat with LOWER cooking grid.

Line drawing of hands holding a computer monitor with a scroll wheel (no text or symbols)

tab and press unlock button of UPPER grid first. Release grid. Repeat with LOWER cooking grid.

DO NOT REMOVE THE GRIDS WITH THE GRILL IN AN UPRIGHT POSITION.

1. Wash grids in hot soapy water. Rinse then dry. Grids may also be washed in dishwasher.

2. Do not use steel wool or any type of abrasive cleaner to clean the grill, as it will damage the nonstick cooking grids and void the warranty.

3. Empty drip cup and wash in hot, soapy water. Rinse then dry. Drip cup may also be washed in dish-washer.

4. Replace cooking grids and ensure they are locked into place. ALWAYS replace LOWER cooking grid first. Repeat with UPPER grid.

5. Use a clean, damp cloth to wipe clean the outside of the grill.

6. Store the unit with the storage latch locked, sitting upright on the hinge side, with drip cup placed upside down under the handle.

⚠ WARNING: To reduce the risk of electrical shock, do not immerse the unit or cord in water or any other liquid.

Grilling Chart

PREHEAT GRILL FOR 6 MINUTES WITH COVER CLOSED.

FOR ALL FROZEN FOODS, GRILL WITH COVER IN THE CLOSED POSITION.

The following times are guidelines.

FOOD	COOK TIME	DONENESS
Beef strip steak, boneless, fresh (8 oz/225 g)	5 min.	Slightly pink in center; brown on outside
Chicken breast, boneless, fresh (4-6 oz/115-170 g)	5-8 min.	No longer pink in center
Fish fillet squares, frozen (about 2 oz/50 g)	6-8 min.	Fish looks white
Frankfurter (hot dog)	5 min.	Heated through
Hamburger, fresh (4 oz/115 g)	5-7 min.	No longer pink in center
Hamburger, frozen (4 oz/115 g)	10-12 min.	No longer pink in center
Pork chops, boneless, fresh (4 oz/115 g, 34 /2 cm thick)	6-8 min.	No longer pink in center
Pork chops, boneless, frozen (4 oz/115 g)	10-12 min.	No longer pink in center
Vegetables (frozen) Peppers and onions	6 min.	Cooked through
Potato wedges, frozen	8 min.	Cooked through
Stir-fry vegetable mix	6 min.	Tender-crisp
Vegetables (fresh) Broccoli florets	6 min.	Tender-crisp
Green or red bell pepper strips	5 min.	Tender-crisp
Mushrooms, sliced	6 min.	Tender-crisp
Onions, sliced	4 min.	Soft
Zucchini or summer squash, sliced	4 min.	Tender-crisp
Grilled Cheese or Cheese and Ham	4-5 min.	Golden brown on outside; melted cheese

Customer Service

If you have a question about your appliance, call our toll-free customer service number. Before calling, please note the model, type, and series numbers and fill in that information below. These numbers can be found on the bottom of your appliance. This information will help us answer your question much more quickly.

MODEL: ____ TYPE: ____ SERIES: ____

This warranty applies to products purchased in the U.S. or Canada.

LIMITED WARRANTY

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase, except as noted below. During this period, we will repair or replace this product, at our option, at no cost. THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY OR CONDITION, WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING, WITHOUT LIMITATION, ANY STATUTORY WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED. There is no warranty with respect to the following, which may be supplied with this product, including without limitation: glass parts, glass containers, cutter/strainers, blades, seals, gaskets, clutches, motor brushes, and/or agitators, etc. This warranty extends only to the original consumer purchaser and does not cover a defect resulting from abuse, misuse, neglect including failure to clean product regularly in accordance with manufacturer's instructions, use for commercial purposes, or any use not in conformity with the printed directions. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state, or province to province. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you.

If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have model, series, and type numbers ready for operator to assist you.)

CUSTOMER SERVICE NUMBERS

In the U.S. 1-800-851-8900

In Canada 1-800-267-2826

hamiltonbeach.com

KEEP THESE NUMBERS FOR FUTURE REFERENCE!
