USER MANUAL GF835 INVENTUM

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

1. safety instructions page 9
2. appliance description page 11
3. before first use page 11
4. frying page 11
5. after frying page 12
6. tips page 12
7. safety switches page 12
8. cleaning & maintenance page 12 guarantee & after sales service

Deutsch

1 safety instructions

- Please read these instructions before operating the appliance and retain for future use.

Hot surfaces.

• The appliance is intended solely for domestic use within the home.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
  Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Always carry out regular checks of the power cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to

the Customer Service Department. For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.

• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.
• Never unplug it from the socket by pulling on the cable.
• Always ensure that your hands are dry before handling the plug, switch or power cord.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised. This can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given supervision or instruction

concering use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and maintenance shall not be made by children.

Children must not play with the appliance.
- Cooking appliances should be positioned in a stable situation with the handles positioned to avoid spillage of hot liquids.
- Unplug the appliance as soon as you have finished using it and when you are cleaning it.
- Ensure the lid and the reservoir do not contain any water before filling the fryer with oil.
- If an extension cord is used, check the marked electrical rating of the extension cord to the electrical rating on the appliance. Make sure that it can not be pulled on by children or tripped over unintentionally.
- Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
- Never use the appliance if it is not working properly, or if it has been damaged. Any intervention

other than cleaning and normal maintenance by the customer must be carried out by an approved service centre.

• Never immerse any part of the main body, lid, power cord and plug in water or any other liquid to protect against electrical hazards.
• If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

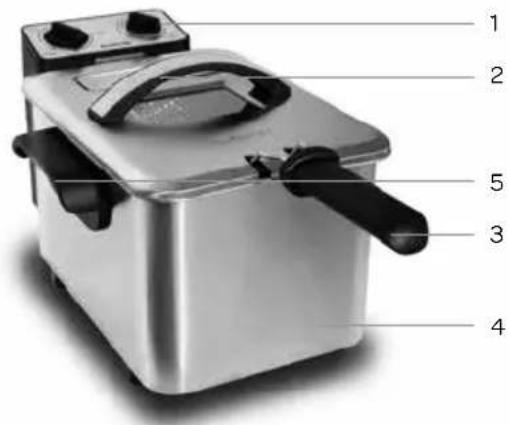

2 appliance description

1. Heating element
2. Lid with filter and window
3. Basket with handle
4. Exterior
5. Handle -exterior
6. Reset-button
7. Storage for power cord
8. Timer button
9. Thermostat button with control light
10. Reservoir - enameled
11. Oil filter

3 before the first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any visible damage, possible from transportation. Place the appliance on a stable and heat resistant surface.

Remove the lid and the basket. Take out the heating element with the oil filter by pulling it straight up and also remove the reservoir. Clean the lid, the basket, the oil filter and the reservoir with warm soapy water. Dry the parts thoroughly. Make sure that the parts are completely dry.

Wipe the exterior with a damp cloth and dry thoroughly.
Assemble the fryer.

Fill the reservoir with liquid frying oil between the minimum and maximum level, approx. 3 liters or 4 liters, depending on the model. Ensure that you don't add less than the minimum capacity or over the maximum capacity. Inside the reservoir you will find two lines which indicate the minimum and maximum level.

Attention: this fryer may only be used with liquid frying oil. Never use hard fats.

The handle of the basket can be stored in the basket by folding it in. Squeeze the two handle wires together and push the handle forwards over the locking clip.

Only store the handle when the oil is fully cooled down. Ensure the handle is folded back before operating the fryer again!

For the best result in a cool zone fryer, always fry without using the lid.

4 frying

TIMER BUTTON

This fryer has an automatic switch off timer.

Set the timer button on CONSTANT and the fryer will not switch off until you set the timer button to 0 and unplug the fryer.

Or let the fryer switch off automatically. Turn the timer button to 30 minutes and then turn it back to the desired time.

Attention: the fryer will completely switch off after the set time has past.

We advise not to use the timer as a frying timer, but as an automatic switch off timer.

Check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.

Check if the handle is folded back and plug the fryer in.

Turn the fryer on with the timer button. First turn it to 30 minutes and then turn it back to the desired time or set the timer button to setting CONSTANT. The red power indicator will light up.

Turn the thermostat button clockwise to the required temperature. As soon as the desired temperature is reached, the green thermostat lamp will light up. The thermostat and the thermostat lamp will toggle on and off as the thermostat in the fryer maintains the correct temperature.

The fryer is now ready to use.

Add the desired quantity of food to the basket. Do not add too much food at one time (never more than 2/3). Food should be as dry as possible to reduce the amount of water getting into the oil. Shake the ice off of frozen products above the sink.

Lower the basket slowly into the oil. If you lower too fast the oil can splash.

Always fry without the lid. This prevents the fryer from overheating and an automatic shutdown. At the same time it ensures a crispier result.

When the food is deepfried, lift the basket out of the oil. Carefully shake the excessive fat of and hang the basket on the hook in the reservoir to drain the oil.

Take the basket out of the fryer and serve the food. Place the basket back.

5 after frying

Check when you have finished frying whether the timer button is set to 0 and remove the plug from the socket.

Only store the handle when the oil is fully cooled down. Ensure the handle is folded back before operating the fryer again!

Let the fryer cooldown for several hours before moving the fryer. If you want to move the fryer always use both hands.

6 tips

• Note: during and after frying it is possible that drops of condensated water fall into the hot oil. The hard noise you can hear, is the reaction of the water with the oil/fat and is normal. It does not influence the use of the fryer.
• Note: Battered or coated food, like fish, may stick to the basket. To prevent this, lower the basket and than place the food in the fryer.
• Never salt the product before or during cooking. This will soil the oil.
• For the best results it is advisable not to fry with a full basket, maximum 450 to 500 grams. Fry frozen products in even smaller portions, because they contain more water and cause the oil to cool down too much.
• If you make your own fries, dry them thoroughly after washing to make sure there will be no water in the oil. Fry the fresh fries in two times. The first time (pre-cooking) 5 to 10 minutes on 170 degrees. Lift the basket, let the oil drain and let the fries cool down for several minutes. For the second time turn the temperature control (cooking) to 190 degrees and cook the fries in 2 to 4 minutes. Lift the basket after frying and let the oil drain.

7 safety

Your fryer is provided with a double safety, a reset-button and a safety switch.

The fryer is provided with an overheating safety which automatically shuts the fryer off when overheating. Remove the plug from the outlet and allow the fryer to cool down completely. You can switch the fryer on again when you push in the reset按钮 on the back in the storage compartment. See 6 on the picture. Use a blunt object to press the reset-button in the small round opening.

On the front of the heating you will see a safety switch. If you pull out the heating element while the fryer is still on, the safety switch will shut the element of. This also means that you can not use the heating element when it is not placed or not placed correctly in the retaining slots.

8 cleaning & maintenance

FILTERING OR CHANGING LIQUID FRYING OIL

Before changing or filtering the oil, always unplug the fryer and let it cool down completely. The liquid frying oil can be used longer, if you filter it regularly.

This fryer has an oil filter to make it easier to filter the oil after every use. Remove after every use the basket and slide the heating element with the oil filter upwards from the guiding rail. Slide the oil filter from the heating element and throw away any residue left on the filter. Clean the oil filter with hot water and a mild detergent or in the

dishwasher. Thoroughly dry the filter before sliding it back on the heating element. Place the heating element back.

Replace the liquid frying oil regularly, after 8 to 12 times.

Pour the cold liquid frying oil out of the reservoir. Used frying oil can be poured back into the bottles. Clean the reservoir with hot water and a mild detergent or in the dishwasher. Thoroughly dry the reservoir. Fill the reservoir with new liquid frying oil.

Check each time if the level of the liquid frying oil is between the minimum and maximum level. Never wash away fat or oil through the sink.

CLEANING THE FRYER

Before cleaning always unplug the fryer and let it cool down completely. Remove the basket, the oil filter, the element and the reservoir out of the fryer. Clean the lid, the basket, the oil filter and the reservoir in the dishwasher or with hot water and a mild detergent. Ensure that the parts are dried thoroughly after cleaning.

Clean the exterior of the fryer with a damp cloth and when needed a mild detergent.

Never use any abrasives! Never immerse the heating element, power cord or plug in water or other liquids.

guarantee & after sales service

• INVENTUM guarantees this product for a period of 2 years starting from the date of purchase.

• The heating element is guaranteed for a period of 60 months.

• To qualify for the extended 5 year warranty, please register your appliance within 45 days of purchase on www.inventum.eu

• Why is registration important for you?

• You get a 5-year warranty

• All details of your appliance are known by Inventum. No need to search for your model number when you contact us.

• Inventum can provide a faster and better service when you contact our service center.

• Guarantee can only be given if proof of purchase (e.g. till receipt or copy) can be shown. Therefore keep it in a safe place. The guarantee period starts at the date of purchase.

• The guarantee covers the costs of all the parts and labour when repairing or replacing broken parts in consequence of defective materials or production failure within 2 years after purchase on the complete fryer and within 5 years after purchase on only the heating element (when a part is no longer available, the service department of Inventum will replace it with an equal part).

• After repairing your Inventum fryer or replacing a part and/or parts, your guarantee period will not be extended.

• Guarantee is not valid in case of:

normal wear;
- damage through misuse use or when the instructions were not followed correctly;
- lack of maintenance;
- not following the operation- and safety instructions;
- incompetent montage or repairs made by yourself or others;
- using accessories and spare parts which are not suitable for the appliance;
for assessment by our technical department.

The guarantee is not valid for:

• normal wear;
  normal wear and tear - such as glass breakage, scratches on the equipment, discoloration of plastic or painted parts; Insufficient or incorrect maintenance can cause discolouration of surfaces and rubbers and plastics can deteriorate fast. This is also not covered under warranty.
• (interchangeable) signal- and controllamps;
• defects and consequential damage caused by strong contamination and incorrect maintenance; for assessment by our technical department.

Defects which do not significantly influence the value or operation of the device as are excluded by free repair and/or replacement.

Transport damage is not guaranteed. Therefore, check your new equipment before use. If any damage is found, please contact your supplier within 5 working days after purchase. From warranty and/or replacement are excluded: defects, loss and damage to the appliance due to an event that usually is insured under the home contents insurance.

To whom can you turn to?

On www.inventum.eu you will find - besides advice on how to use the appliance and cleaning tips - all the answers to your service related questions. Please check the website before contacting our service center.

You can register your service request quickly and easily online at www.inventum.eu. It is also possible to do this by telephone via the INVENTUM service organization. INVENTUM Service Organization: 0900-INVENTUM (0900-4683688) (just for Holland).

To provide the best possible service and to process your service request as soon as possible, we recommend that you always first contact INVENTUM before returning your device.

Following the advice of our service organization, please send your appliance, including a copy of the original, printed proof of purchase and description of the complaint, stamped to our service address:

Attn. Service department

Generatorstraße 17

3903 LH VEENENDAAL

Website: www.inventum.eu

THE NETHERLANDS

Helpdesk:0900-4683688

(just for Holland)

These warranty conditions only apply to the Netherlands. For local warranty please contact your dealer.

In countries where INVENTUM has a distributor, you can turn to them if you need the INVENTUM service organization. In other countries, contact your dealer.

When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing. On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by sending the appliance, automatically order to repair the appliance.

A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.

Modification and printing errors reserved. The latest version of the deposited guarantee conditions can be obtained through our service organization.
