USER MANUAL DIS 161 A INDESIT

Ecodesign Regulation

Rumore in dB(A) re 1 pW

- bed and breakfast.

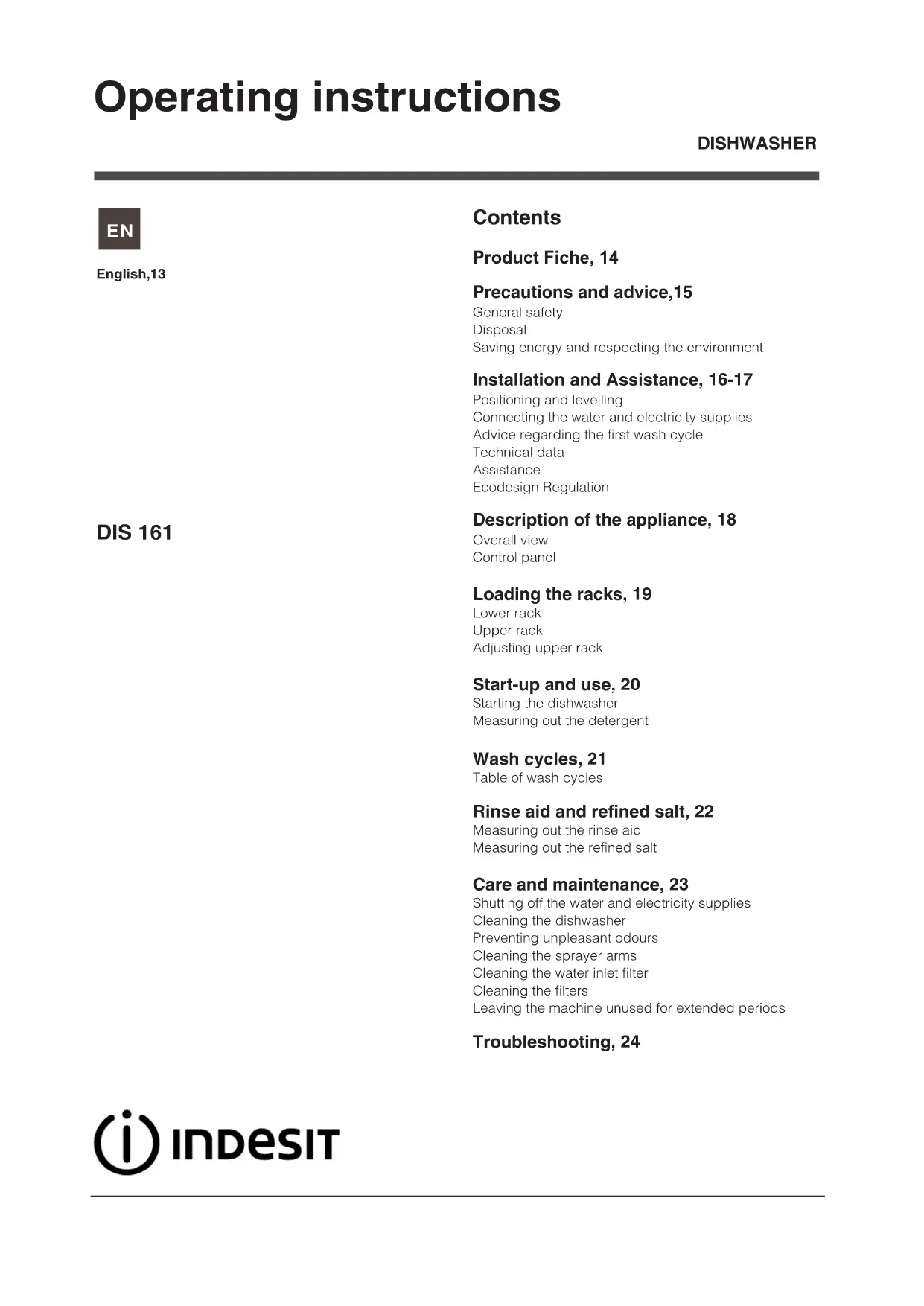

Precautions and advice,15

Saving energy and respecting the environment

Installation and Assistance, 16-17

Positioning and levelling

Connecting the water and electricity supplies

Advice regarding the first wash cycle

Ecodesign Regulation

Description of the appliance, 18

Loading the racks, 19

Adjusting upper rack

Start-up and use, 20

Starting the dishwasher

Measuring out the detergent

Table of wash cycles

Rinse aid and refined salt, 22

Measuring out the rinse aid

Measuring out the refined salt

Care and maintenance, 23

Shutting off the water and electricity supplies

Cleaning the dishwasher

Preventing unpleasant odours

Cleaning the sprayer arms

Cleaning the water inlet filter

Cleaning the filters

Leaving the machine unused for extended periods

Troubleshooting, 24EN

Rated capacity in standard place settings (1)

Energy efciency class on a scale from A+++ (low consumption) to D (high consumption)

Energy consumption per year in kWh (2)

Energy consumption of the standard cleaning cycle in kWh

Power consumption of the off-mode in W

Power consumption of the left-on mode in W

Water consumption per year in litres (3)

Drying efcacy class on a scale from G (low efcacy) to A (high efcacy)

A Programme time for standard cleaning cycle in minutes

The duration of the left-on mode in minutes

1) The information on the label and che relates to the standard cleaning cycle, this programme is suitable to clean normally soiled

tableware and it is the most efcient programme in terms of combined energy and water consumption. The standard cleaning cycle

corresponds to the Eco cycle.

2) Based on 280 standard cleaning cycles using cold water ll and the consumption of the low power modes. Actual energy

consumption depends on how the appliance is used.

3) Based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used.

Precautions and advice

This appliance was designed and manufactured

in compliance with international safety standards

The following information has been provided for

safety reasons and should therefore be read

Keep this instruction manual in a safe place for

future reference. If the appliance is sold, given

away or moved, please ensure the manual is kept

Please read these instructions carefully: they

contain important information on installation, use

This appliance is designed for domestic use or

similar applications, for example:

- staff kitchen areas in shops, offices and other

- use by guests in hotels, motels and other

residential settings;

• The appliance should not be operated by

people (including children) with reduced

physical, sensory or mental capacities, or by

inexperienced people who are not familiar with

the product, unless supervision or instructions

on how to use it are provided by someone who

assumes responsibility for their safety.

• Anadultmustsupervisechildrenatalltimesto

prevent them from playing with the appliance.

• Theappliance was designed for domestic

use inside the home and is not intended for

commercial or industrial use.

• Theappliancemustbeusedbyadultsonlyto

wash domestic crockery in accordance with the

instructions in this manual.

• Theappliancemustnotbeinstalledoutdoors,

even in covered areas. It is extremely dangerous

to leave the machine exposed to rain and

• Donottouchtheappliancewhenbarefoot.

plug from the mains socket. Do not pull on the

• Thewatersupplytapmustbeshutoffandthe

plug should be removed from the electrical

socket before cleaning or maintaining the

• Iftheappliancebreaksdown,donotunderany

circumstances touch the internal parts in an

attempt to perform the repair work yourself.

• Donot leanor siton theopen doorof the

appliance: this may cause the appliance to

•Thedoorshouldnotbeleftopenasitmaycreate

a dangerous obstacle.

legislation so that the packaging may be

• TheEuropeanDirective 2012/19/EUrelating

toWasteElectricalandElectronicEquipment

(WEEE) states that household appliances

should not be disposed of using the normal

solid urban waste cycle. Exhausted appliances

should be collected separately in order to

optimise the re-using and recycling rate of the

materials inside the machine, while preventing

potential damage to the environment and public

health. The crossed-out dustbin symbol is

marked on all products to remind the owners

of their obligations regarding separated waste

For further information relating to the correct

disposal of household appliances, owners may

contact the relevant public authority or the local

Saving energy and respecting the

Saving water and energy

• Selectawashcyclethatissuitedtothetype

of crockery and to the soil level of the crockery

using the Table of wash cycles:

- for dishes with a normal soil level use the Eco

washcycle,whichensureslowenergy/water

- If the load is smaller than usual activate the

(see Start-up and use).

• Ifyourelectricitysupplycontractgivesdetailsof

electricity-saving time bands, run wash cycles

when electricity prices are lower. The Delayed

(see Start-up and use)

organise the wash cycles accordingly.

Phosphate-free and chlorine-free detergents

• Westronglyrecommendthatyouusedetergents

that do not contain phosphates or chlorine, as

these products are harmful to the environment.

• Enzymesprovideaparticularlyeffectiveaction

attemperatures around50°C. As aresult

detergentscontainingenzymescanbeusedin

conjunction with low-temperature wash cycles

in order to achieve the same results as a normal

•Toavoid wastingdetergent,usetheproduct

in appropriate quantities based on the

manufacturer’s recommendations, the hardness

ofthe water, the soil level and the quantity

of crockery to be washed. Even if they are

biodegradable, detergents contain substances

which may alter the balance of nature.vEN

Installation and Assistance

* Only available in selected models. If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back. Positioning and levelling 1.Removetheappliancefromallpackagingandcheckthatit has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.2.Arrangethedishwashersothatitssidesorbackpanelareincontact with the adjacent cabinets or the wall. This appliance can also be recessed under a single worktop* (see the Assembly

Instruction sheet.) 3. Position the dishwasher on a level sturdy floor. If the floor is uneven, the front feet of the appliance should be adjusted untilitreachesahorizontalposition.Iftheapplianceislevelledcorrectly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.4*. To adjust the height of the rear foot, turn the red hexagonal bushing on the lower central part at the front of the dishwasher using a hexagonal spanner with an opening of 8 mm. Turn the spanner in a clockwise direction to increase the height and in an anticlockwise direction to decrease it (see Building-in Instruction

sheet attached to the documentation.)

Connecting the water and electricity supplies Connection to the water and electricity supplies should only beperformedbyaqualifiedtechnician.The dishwasher should not stand on the water hoses or electricity supply cable.The appliance must be connected to the water supply network using new hoses.Do not use old piping.The water inlet and outlet hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation. Connecting the water inlet hose • Toasuitablecoldwaterconnectionpoint:beforeattachingthe hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a ¾ gas threaded connection.• Toasuitablehotwaterconnectionpoint:yourdishwashermay be supplied with hot water from the mains supply (if you have a central heating system with radiators) provided that it doesnotexceedatemperatureof60°C.Screw the hose to the tap as described for connection to a cold water supply.If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance.) The water pressure must be within the values indicated in the Technical Data table (see adjacent information.) The hose should not be bent or compressed. Connecting the water outlet hose Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm. Theoutlethosemustbeataheightrangingfrom40to80cmfromthefloor/surfacewherethedishwasherrests(A).Before connecting the water outlet hose to the sink drain, remove the plastic plug (B). Anti-flooding protection To ensure floods do not occur, the dishwasher:- is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.Somemodelsarealsoequippedwiththesupplementarysafety device New Acqua Stop*, which guarantees anti-flooding protection even in the event of a supply hose rupture. WARNING: HAZARDOUS VOLTAGE! Under no circumstances should the water inlet hose be cut, as it contains live electrical parts. Electrical connection Before inserting the plug into the electrical socket, make sure that:• Thesocketisearthedandcomplieswithcurrentregulations.• thesocketcanwithstandthemaximumloadoftheappliance,which is indicated on the data plate located on the inside of the door

(see Description of the appliance); • Thepowersupplyvoltagefallswithinthevaluesindicatedonthe data plate on the inside of the door.• Thesocketiscompatiblewiththeplugoftheappliance.Ifthis is not the case, ask an authorised technician to replace the plug ( see Assistance ); do not use extension cables or multiple sockets.Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.The cable should not be bent or compressed.If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order topreventallpotentialhazards (see Assistance.)EN

Anti-condensation strip* After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form. Advice regarding the first wash cycle After the installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack, if any.Immediately before the first washing, completely fill the salt dispenser with waterandaddonlythenapproximately1kg of salt (see chapter entitled Rinse aid and refined salt). The water may overflow: this is normal and is not a cause for concern. Select the water hardness value (see chapter entitled Rinse aid and refined salt). - After the salt has been pouredintothemachine,theLOWSALTindicatorlight*switches off.If the salt container is not filled, the water softener and the heating element may be damaged as a result.Technical dataDimensionswidth 44.5 cmheight 82 cmdepth 57 cmCapacity 10 standard place-settingsWater supply pressure0,05 ÷ 1MPa (0.5 ÷ 10 bar)7,25 – 145 psiPower supply voltage See appliance data plateTotal absorbed power See appliance data plateFuse See appliance data plateThis dishwasher conforms to the following European Community Directives: -2006/95/EC (Low Voltage) -2004/108/EC (Electromagnetic Compatibility) -2009/125/EC (Comm. Reg. 1016/2010) (Ecodesign)-97/17/EC (Labelling)-2012/19/EC (WEEE)The machine has a buzzer/set of tones (depending on the dishwasher model) to inform the user that a command has been implemented: power on, cycle end etc. The symbols/indicator lights/LEDs on the control panel/display may vary in colour and may have a flashing or fixed light (depending on the dishwasher model) . The display* provides useful information concerning the type of wash cycle, drying/wash-cycle phase, remaining time, temperature etc etc. Assistance

Before contacting Assistance:

• Checkwhethertheproblemcanberesolvedusingthe

Troubleshooting guide

(see Troubleshooting).

• Restarttheprogrammetocheckwhethertheproblem

has ceased to exist.

• Ifthe problem persists, contact the Authorised

Technical Assistance Service.

Never use the services of unauthorised technicians.

Please have the following information to hand:

• Thetypeofmalfunction.

• Theappliancemodel(Mod.).

• Theserialnumber(S/N).

This information can be found on the appliance data plate

(see Description of the appliance)

ECODESIGN REGULATION ECO wash cycle is the standard cycle to which the energy label data refers; this cycle can be used to wash crockery with a normal

soil level and is the most efficient in terms of energy and water consumption for this type of crockery. To reduce consumption even further, only run the dishwasher when it is full.Standbyconsumption:Left-onmodeconsumption:3W–Offmodeconsumption:1,3WConsumption data table for the main cycles * Cycledatareferstothevaluesrecordedinalaboratory,inaccordancewithEuropeanstandardEN50242.

** Data is obtained by recording values when the appliance is operational and loaded with user crockery. Standard conditions* User conditions**Energy consumption (kWh/cycle)Water consumption (l/cycle)Duration (min/cycle)Energy consumption (kWh/cycle)Water consumption (l/cycle)Duration (min/cycle)INTENSIVE1,30 14 150 1,15 14 140NORMAL1,05 14 115 0,95 13 110EN

3. Tip-up compartments

4. Rack height adjuster

6. Lower sprayer arm

***Only in completely built-in models.

* Only available in selected models. The number and type of wash cycles and options may vary depending on the dishwasher model.ON/OFF/RESET buttonON/OFFindicator lightSelect wash cycle buttonWash cycle indicator lightsSalt indicator lightRinse Aid indicator lightEN

* Only available in selected models.

** The number and position may vary. Before loading the racks, remove all food residues from the crockeryandemptyliquidsfromglassesandcups.After loading the appliance, check that the sprayer arms can rotate freely. Lower rack The lower rack can hold pans, lids, plates, salad bowls, cutlery, etc. as seen in the Loading examples.Plates and large covers should be placed at the sides of the rack, ensuring that they do not block the rotation of the upper sprayer arm.Some dishwasher models are fitted with tip-up sections*, which can be used in a vertical position when arranging plates orinahorizontalposition when arranging pans and salad bowls. Cutlery basket The type of cutlery basket may vary according to the dishwasher model: The cutlery basket should be positioned at the front of the lower rack, by sliding it between the fixed inserts, or on the upper rack when the half load option has been selected (in models featuring this option).- It has a collapsible sliding system which means the cutlery can be arranged in the best possible way.Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards, or they mustbepositionedhorizontallyinthetip-upcompartmentsonthe upper rack. Cutlery basket positioning examples

Upper rack Load this rack with delicate and lightweight crockery: glasses, tea and coffee cups, saucers, small salad bowls, saucepans and small saucepans which are not too soiled, using the Loading examples as a guide.•Mugsandcups,longsharpknivesandservingutensils:placethese on the tip-up compartments**. Adjusting the height of the upper rack In order to make it easier to arrange the crockery, the upper rack may be moved to a higher or lower level.The height of the upper rack should ideally be adjusted WHEN THE RACK IS EMPTY.Never lift or lower the rack on one side only.Open the left and right guide rail stops and pull out the rack; position it higher orlowerasrequired,slideitalongtheguide rails until the front wheels are in place and close the stops (see figure).If the rack is fitted with Dual Space handles* (see figure), pull out the upper rack until it reaches its stop point, grip the handles at the sides of the rack and move it upwards or downwards, then slowly let it fall back into place. Loading examples for the upper rack

Loading examples for the lower rack

Items which should not be washed in the dishwasher • Woodenitems,objectswithwoodenorhornhandlesorglued-on parts.• Itemsmadefromaluminium,copper,brass,pewterortin.• Itemsmadefromplasticmaterialwhichisnotheat-resistant.• Antiqueorhand-paintedporcelain.• Antiquesilver. Silver which is notantiquemay, however,be washed in the dishwasher using a delicate wash cycle, provided that it does not come into contact with other metals.Werecommendtheuseofcrockerywhichisdishwashersafe.EN

Measuring out the detergent

A good wash result also depends on the correct

amount of detergent being used; exceeding the stated

amount does not result in a more effective wash and

increases environmental pollution.

Only use detergent which has been specifically

designed for dishwashers.

DO NOT USE washing up liquid.

Using excessive detergent may result in foam

residue remaining in the machine after the cycle has

The use of tablets is only recommended for models

which offer the MULTI-FUNCTIONAL TABLETS option.

To achieve the best results from each washing and

drying cycle, powder detergent, rinse aid liquid and

salt should be used. Compartment A:WashingdetergentCompartment B: Pre-wash detergent1.OpencoverCbypressingbuttonD.2.Pourinthedetergentafterconsulting the Table of wash

cycles: •Forpowderdetergentusecompartments A and B.•Fordetergentintabletform:whenthecyclerequires1tablet,place it in compartment A and closethecover;whenitrequires2,placethesecondtabletatthebottom of the appliance.3. Remove detergent residues from the edges of the compartment and close the cover until it clicks.

* Only available in selected models.

Starting the dishwasher 1.Turnthewatertapon.2.OpenthedoorandpresstheON/OFFbutton:youwillhearashortbeepandtheON/OFFandwashcycleindicatorlightsswitch on for a few seconds.3. Measure out the detergent (see below). 4. Load the racks (see chapter entitled Loading the racks). 5. Select the wash cycle in accordance with the type of crockery and its soil level (see Table of wash cycles) , by pressing the P button; the indicator light corresponding to the selected wash cycle will switch on. 7. Start the wash cycle by shutting the door: after a few seconds have passed, a long beep signals the start of the wash cycle.8. Two short beeps and one long one indicate the end of the wash cycle and the indicator light corresponding to the wash cycle flashes slowly. Open the door, switch off the appliance bypressingtheON/OFFbutton,shutoffthewatertapandunplug the appliance from the electricity socket.9.Waitforafewminutesbeforeremovingthecrockery,inorder to avoid burns. Unload the racks, beginning with the lower level. - The machine will switch off automatically during

certain periods of inactivity, in order to minimise

electricity consumption.

Modifying a wash cycle in progress If a mistake was made during the wash cycle selection process it is possible to change the cycle, provided that it has only just begun: open the door, taking care to avoid the escapingsteam,andpressandholdtheON/OFFbutton;themachine will switch off with a long beep. Switch the machine backonusingtheON/OFFbuttonandselectthenewwashcycle using the P button; start the cycle by closing the door. Adding extra crockery Withoutswitching off the machine, open the door, takingcare to avoid the escaping steam, and place the crockery inside the dishwasher. Close the door: the cycle starts from the point at which it was interrupted. Accidental interruptions If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or the electricity supply is restored.EN

Wash cycle selection

(B) = compartment B Drying

Powder Liquid Tablets Environmentally-friendly wash cycle with low energy consumption levels, suitable for pans and dishes. Eco

* 21 g (A)4 g (B)21 ml (A)4 ml (B)1 (A) Yes 3:00’Normally soiled pans and dishes. Standard daily wash cycle.Normal21 g (A)4 g (B)21 ml (A)4 ml (B)1 (A) Yes 1:50’Preliminary wash cycle for dishes while the load is awaiting completion with the dishes from the next meal. Soak No No No No 0:08’Extremely soiled dishes and pans (not to be used for delicate items).Intensive25 g (A) 25 ml (A) 1 (A) Yes 2:25’Economic and fast wash to be used for lightly soiled dishes. (Run cycle immediately after use) (2 plates + 2 glasses + 4 pieces of cutlery + 1 saucepan + 1 small frying pan).Rapid21 g (A) 21 ml (A) 1 (A) No 0:35’Economic and fast wash for delicate items which are sensitive to high temperatures. (Run cycle immediately after use) (glasses upper rack+ delicate plates, lower rack).Delicate25 g (A) 25 ml (A) 1 (A) Yes 1:35’ If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher,

reduce the amount of detergent used accordingly.

The number and type of wash cycles and options may vary depending on the dishwasher model.

To make it easier to measure out the detergent, it is worth remembering that:

1tablespoon=15gramsofpowder=approximately15mlofliquid-1teaspoon=5gramsofpowder=approximately5

Optimum performance levels when using the “Rapid” cycle can be achieved by respecting the specified number of place settings.

*TheEcowashcycleadherestotheregulationEN-50242.Althoughithasalongerdurationthanotherwashcyclesituses

less energy and is les harmful to the environment.

Note for Test Laboratories:

forinformationrelatingtocomparativeENtestingconditions,pleasesendanemailtothefollowing

address:ASSISTENZA_EN_LVS@indesitcompany.comEN

Rinse aid and refined salt

Only use products which have been specifically

designed for dishwashers.

Do not use table salt or industrial salt, or washing

Follow the instructions given on the packaging. If using a multi-functional product it is not necessary to add rinse aid; however, we recommend that you add salt, especially if you live in an area where the water is hard or very hard. Follow the instructions given on the packaging. If you do not add salt or rinse aid, the LOW SALT*

and LOW RINSE AID* indicator lights remain lit.

Measuring out the rinse aid Rinse aid makes it easier for the crockery to dry, as water runs off surfaces more readily and therefore does not leave streaks or marks.The rinse aid dispenser should be filled:•WhentheLOWRINSEAID* indicator light on the controlpanel is illuminated;1.Openthedispenserbyturningthe lid (G) in an anticlockwise direction.2.Pourintherinseaid,makingsure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.3. Screw the lid back on.NEVER pour the rinse aid directly into the appliance tub. Adjusting the amount of rinse aid If you are not completely satisfied with the drying results, you mayadjustthequantityofrinseaidused.Useascrewdrivertoturn the dosage adjuster (F) to one of the 6 pre-set positions (the default position is set to 4):•Iftherearestreaksonthecrockery,settheadjustmentdevicetoalowernumber(1-3).•Ifdropsofwaterremainonthecrockeryoriftherearelimescalemarks present after the cycle has finished, set the adjuster to a higher number (4-6). Setting the water hardness Everydishwasherisequippedwithawatersoftenerwhich,byusing refined salt designed especially for this type of appliance, supplies water without limescale which is then used to wash the crockery. This dishwasher offers a setting which helps to reduce pollution and optimises washing performance in accordance with the water hardness level in your area. This information can be obtai-ned from the organisation which supplies your household with water.- Open the door and switch on the machine by pressing theON/OFFbutton.- Press the P button and hold for approximately 5 seconds; two short beeps will sound and the indicator light corresponding to the set degree of hardness will flash slowly on the control panel (the water softening system is set to number 3).- Press the P button repeatedly until the desired hardness level has been reached(1-2-3-4-5*seeWaterhardnesstable).E.g.hardness1(indicatorlight1flashing)hardness 2 (indicator light 1 illuminated, indicator light 2flashing).hardness3(indicatorlights1and2illuminated,indicatorlight3 flashing and so on).- To exit the function, wait a few seconds or press one of the op- tion buttons*, or switch off the machine using the ON/OFF button. Even if using multi-functional tablets, the salt dispenser should still be filled.(°dH=hardnessmeasuredinGermandegrees-°f=hardnessmeasuredinFrenchdegrees-mmol/l=millimolesperlitre) Measuring out the refined salt In order to achieve the best possible results using a wash cycle, make sure that the dispenser is never empty. Refined salt removes limescale from the water, thus avoiding the formation of deposits on crockery. The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:•Whenthegreenfloat* cannot be seen by simply looking at the cap of the salt dispenser.•WhentheLOWSALT* indicator light on the control panel is illuminated;1.Removethelowerrackandunscrewthecontainer cap (anticlockwise).2.Thefirsttimeyoudothis:fillthewatertankright up to its edge.3. Position the funnel* (see figure) and fill the salt container right up to its edge (this should hold approximately 1kg);itisnotunusualforalittlewatertoleakout.4. Remove the funnel* and wipe any salt residue away from the opening; rinse the cap under running water and then screw it on, the head facing downwards so as to let the water flow out of the four cracks which are arranged in a star shape on the lower part of the cap. (Salt cap with green float*)It is advisable to perform this procedure every time you add salt to the container. Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash cycle (this could damage the water softener beyond repair). Whennecessary,measureoutthesaltbeforeawashcycleso that any saline solution which has leaked out of the salt dispenser is removed. * Only available in selected models.

G F Water Hardness TableAverage salt containercapacity duration**Level °dH °fH mmol/l months1 0 - 6 0 - 10 0 - 1 7 months2 6 - 11 11 - 20 1,1 - 2 5 months 3 12 - 17 21 - 30 2,1 - 3 3 months

4 17 - 34 31 - 60 3,1 - 6 2 months 5*34 - 50 61 - 90 6,1 - 9 2/3 weeksFor values between 0°f and 10°f, we do not recommend the use of salt. * this setting may cause a slight increase in the duration of the cycles. ** for 1 wash cycle per day.EN

Care and maintenance

Shutting off the water and electricity

• Alwaysunplugtheappliancewhencleaningitandwhen

performing maintenance work.

Cleaning the dishwasher

• Theexternalsurfacesofthemachine and the control

panel may be cleaned using a non-abrasive cloth which

has been dampened with water. Do not use solvents or

• Anymarksontheinsideoftheappliancemayberemoved

using a cloth dampened with water and a little vinegar.

Preventing unpleasant odours

• Alwayskeepthedooroftheapplianceajarinorderto

avoid moisture from forming and being trapped inside

• Cleanthesealsaroundthedooranddetergentdispensers

regularly using a damp sponge. This will avoid food

becoming trapped in the seals, which is the main cause

behind the formation of unpleasant odours.

Cleaning the sprayer arms

Food residue may become encrusted onto the sprayer arms

and block the holes used to spray the water. It is therefore

recommended that the arms are checked from time to time

and cleaned with a small non-metallic brush.

The two sprayer arms may both be removed.

To remove the upper sprayer arm,

rotate the locking ring in an anti-

clockwise direction.

The upper sprayer arm should

be replaced with the holes facing

The lower sprayer arm can be

removed by pulling it upwards.

Cleaning the water inlet filter*

If the water hoses are new or have not been used for an

extended period of time, let the water run to make sure it is

clear and free of impurities before performing the necessary

connections. If this precaution is not taken, the water inlet

could become blocked and damage the dishwasher.

Clean the water inlet filter at the tap outlet regularly.

- Turn off the water tap.

- Unscrew the end of the water inlet hose, remove the filter

and clean it carefully under running water.

- Replace the filter and screw the water hose back into

Cleaning the filters

The filter assembly consists of three filters which remove

food residues from the washing water and then recirculate

the water. They should be cleaned if you wish to achieve the

best results in every wash.

Clean the filters regularly.

The dishwasher should not be used without filters, or if

the filter is loose.

•Afterseveralwashes,checkthefilterassemblyandif

necessary clean it thoroughly under running water, using

a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise direction

andpullitout(fig.1).

2. Remove the cup filter B by exerting a slight pressure on

thesideflaps(fig.2).

3. Slide out the stainless steel plate filter A (fig. 3).

4. Inspect the trap and remove any food residue. NEVER REMOVE the wash cycle pump

(black detail) (fig. 4).

After cleaning the filters, replace the filter assembly and fix

it in position correctly; this is essential for maintaining the

efficient operation of the dishwasher.

Leaving the machine unused for extended

• Disconnecttheappliancefromtheelectricitysupplyand

shut off the water tap.

•Whenyoureturn,runawashcyclewhenthedishwasher

* Only available in selected models.

Problem: Possible causes / Solutions: The dishwasher does not start or cannot be controlled• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program. • The appliance has not been plugged in properly.• The dishwasher door has not been shut properly. The door won’t close • The lock was released. Strongly push the door until a “clacking” noise is heard. No water drains out from the dishwasher.• The dishwasher cycle has not yet nished.• The water inlet hose is bent (see Installation).• The drain duct is blocked.• The lter is clogged up with food residues. The dishwasher makes excessive noise. • The dishes are rattling against each other or against the sprayer arms. • An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use). The dishes and glasses are covered in a white lm or limescale deposits.• The level of the rened salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt).• The lid on the salt dispenser is not closed properly.• The rinse aid has been used up or the dosage is too low.The dishes and glasses are streaked or have a bluish tinge.• The rinse aid dosage is too high.The crockery has not been dried properly.• A wash cycle without a drying program has been selected.• The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).• The rinse aid dispenser setting is not suitable. • The crockery is made from non-stick material or plastic.The dishes are not clean. • The racks are overloaded (see Loading the racks).• The crockery has not been arranged well.• The sprayer arms cannot move freely.• The wash cycle is too gentle (see Wash cycles).• An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use). • The lid on the rinse aid compartment has not been shut correctly. • The lter is dirty or blocked (see Care and maintenance).• The rened salt level is low (see Rinse aid and salt).The dishwasher does not take any water in - Tap shut-off alarm(several short beeps* are emitted)(the 2 (Normal) and 3 (Soak) WASH CYCLES indicator lights ash).• There is no water in the mains supply.• The water inlet hose is bent (see Installation).• Turn on the tap and the appliance will start after a few minutes.• The appliance lock has been activated because no action was taken when the beeps* sounded. Switch off the appliance using the ON/OFF button, turn on the tap and switch the appliance back on after 20 seconds by pressing the same button. Re-program the appliance and restart the wash cycle.Water inlet hose alarm / Water inlet lter blocked(the 1 ECO), the 2 (Normal) and the 3 (Soak) WASH CYCLES indicator lights ash).• Switch off the appliance by pressing the ON/OFF button. Shut off the water tap to eliminate the risk of ooding and remove the plug from the electrical socket. Make sure the water inlet lter has not become blocked by impurities (see “Care and maintenance” chapter). * Only available in selected models.FR

Ecodesign Regulation

Ecodesign Regulation

- Bed and Breakfast.

Ecodesign Regulation

- bed and breakfasts.

Ecodesign Regulation

Ecodesign Regulation

- bed and breakfast.
