USER MANUAL SECSA100 NEDIS

KÖNIG ELECTRONIC

SEC-SA100/110

White circular electronic device with ventilation grille and indicator lights (no text or symbols visible)

MANUAL (p. 2)

Optical Smoke Alarm

MODE D'EMPLOI (p. 10)

MANUAL DE USO (p. 22)

• Introduction (p. 2)
  • Safety precautions (p. 2)
  • Packaging contents (p. 2)
  • Technical specifications (p. 2)
  • Product and user description (p. 3)
  • Installation instructions (p. 4)
• Maintenance (p. 5)
• Warranty (p. 5)
• Disclaimer (p. 5)
• Disposal (p. 5)

Introduction:

SEC-SA100

Optical smoke alarm. Equipped with a test button for periodic testing.

SEC-SA110:

Optical smoke alarm with a 10 year lithium battery life. Equipped with a test button for periodic testing.

A smoke alarm has a limited life and should always be replaced after 10 years from the date of purchase.

Write the purchase date on this manual for future reference.

This smoke alarm complies with the EN14604 standard of the Construction Products Directive.

• We recommend that you read this manual before you install the smoke alarm.

- Keep this manual in a safe place for future reference.

Safety precautions:

Do not expose the product to water or moisture

Do not paint over the smoke alarm

Packaging contents:

• Smoke alarm
• 9 V lithium battery
• Mounting material
• Manual

Technical specifications:

• Battery: 9 V DC
• Alarm: > 85 dB
• Test button: Yes
• Low battery alert: Yes
• Operating temperature: -10^ +40^

Product and user description:

Close-up of a circular white device with a black dot and a numbered arrow pointing upward, showing internal wave patterns (no text or symbols)

3 3 2

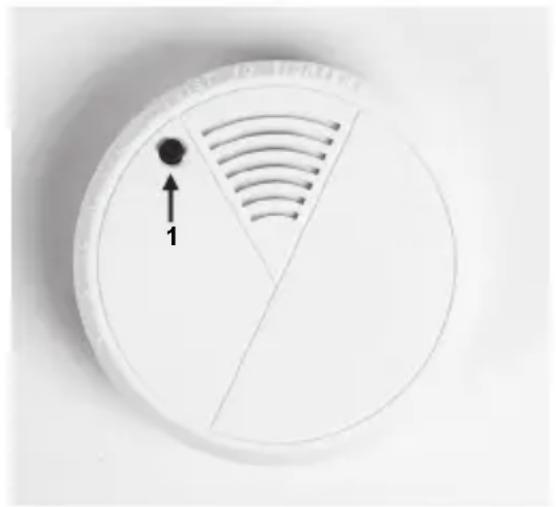

1. Test button / battery indicator

Testing the smoke alarm

Like any other electronic device, smoke alarms are not foolproof. Smoke alarms contain electronic components that can fail or wear out at any time.

We recommended that you test the smoke alarm every week to make sure it is working properly.

Push and hold the test button until the alarm sounds for a few seconds. If it does not sound, check if the battery indicator flashes once every 45 seconds. If this is not the case, replace the battery immediately.

Battery indicator.

The battery indicator flashes every 45 seconds to show the smoke alarm is working properly. When the battery indicator flashes and gives a short beep sound, it is indicating that the battery has low capacity and should be replaced immediately.

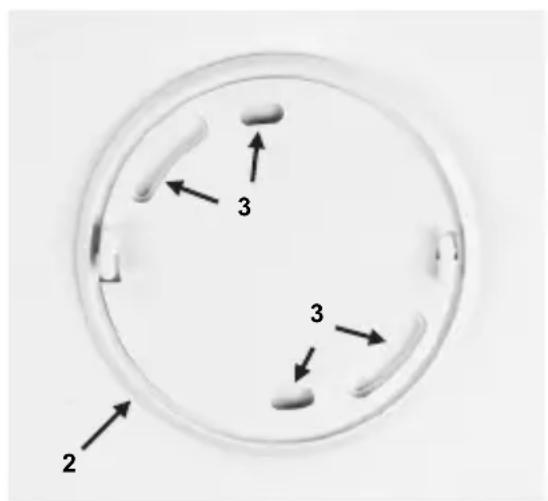

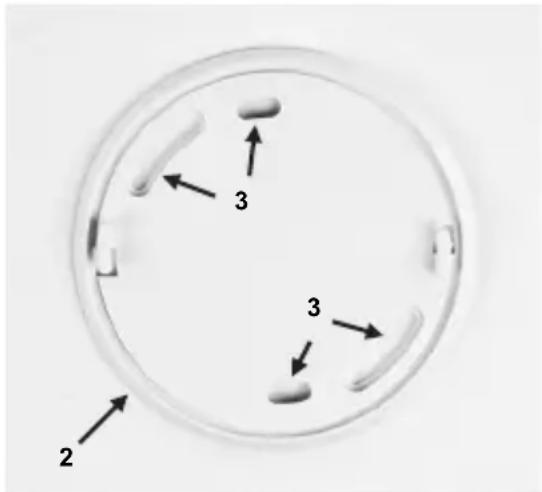

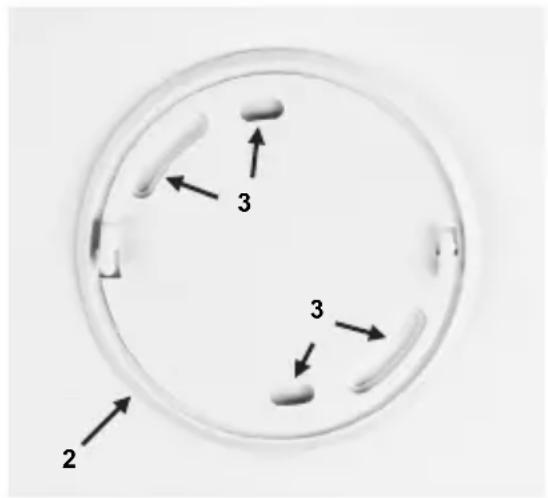

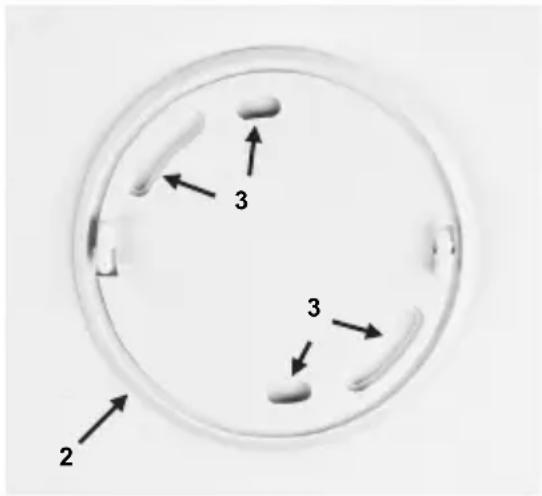

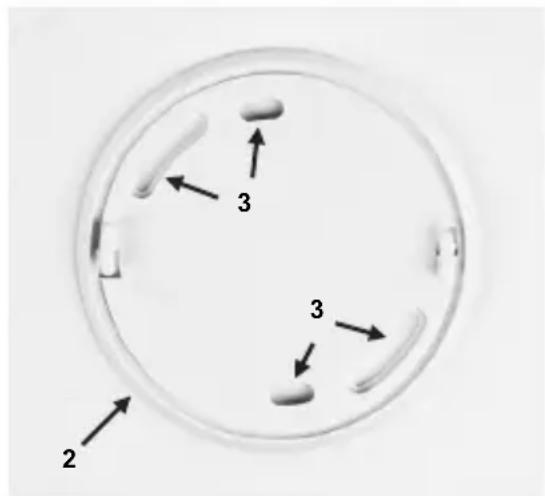

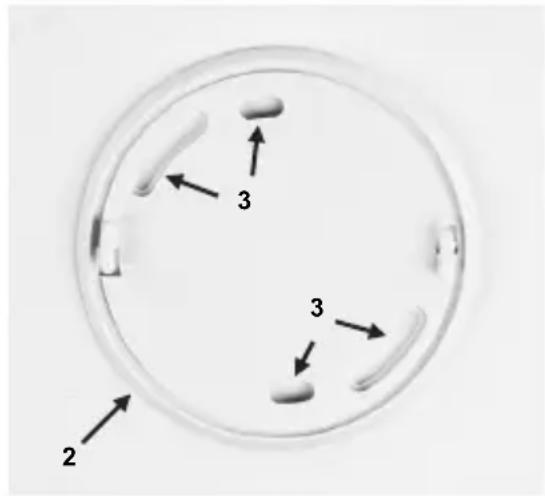

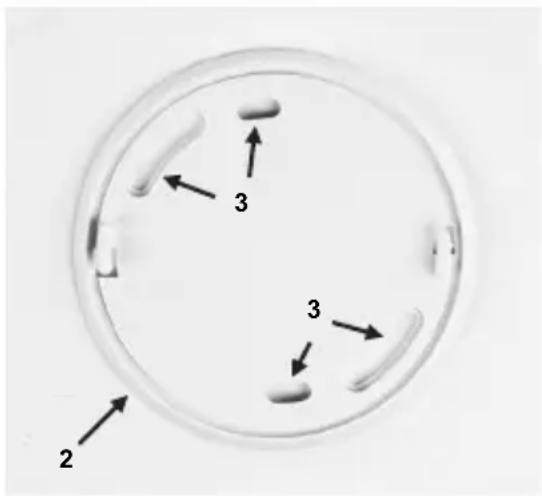

2. Mounting plate

3. Mounting holes

Use the supplied screws and plugs to mount the mounting plate to the ceiling.

4. Remove the mounting plate

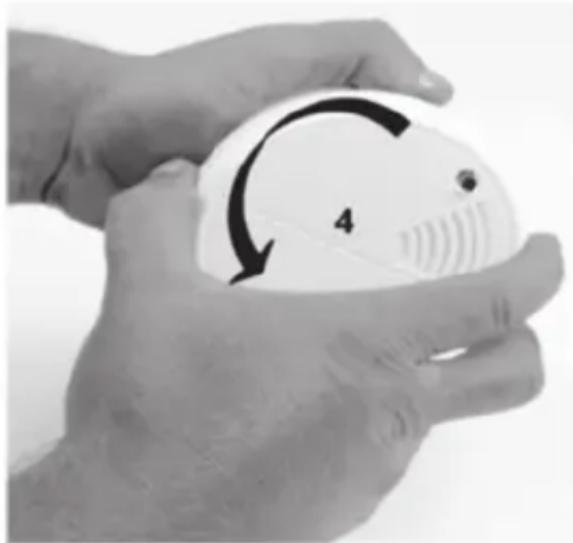

Turn the mounting plate of the smoke alarm counterclockwise to get access to the battery compartment of the smoke alarm.

5. Battery compartment

6. Safety catch

The safety catch prevents the smoke alarm being returned to the mounting plate without inserting the battery first.

7. Battery connector

Take off the plastic seal of the battery and connect the battery with the battery connector. After placing the battery test the alarm with the test button to ensure it is working properly (see testing the smoke alarm). When the mounting plate is mounted and the smoke alarm tested after inserting the battery, place the smoke alarm on the mounting plate by turning it clockwise.

Close-up of a hand holding a white circular object with a curved arrow and the number 4, no visible text or symbols on the object itself.

Read the following chapter to find out which places in your house are the best choices to mount the smoke alarm(s).

Installation instructions:

Install a smoke alarm in every room or area on every level of the home

Smoke may not reach the smoke alarm if it is installed in only one room or area. If a fire starts in another room or area than where the smoke alarm is installed, the smoke alarm will not detect the smoke, or it will detect it too late. A smoke alarm will not promptly detect a fire except in the room or area in which it is installed.

Place at least one smoke alarm in every room/area that is on your way from the bedroom to the front door. It is recommended to make a flight plan and practice it with the household members in case of an emergency.

The requirements for the installation of a smoke alarm may differ per region. Please contact your local authorities for possible additional requirements.

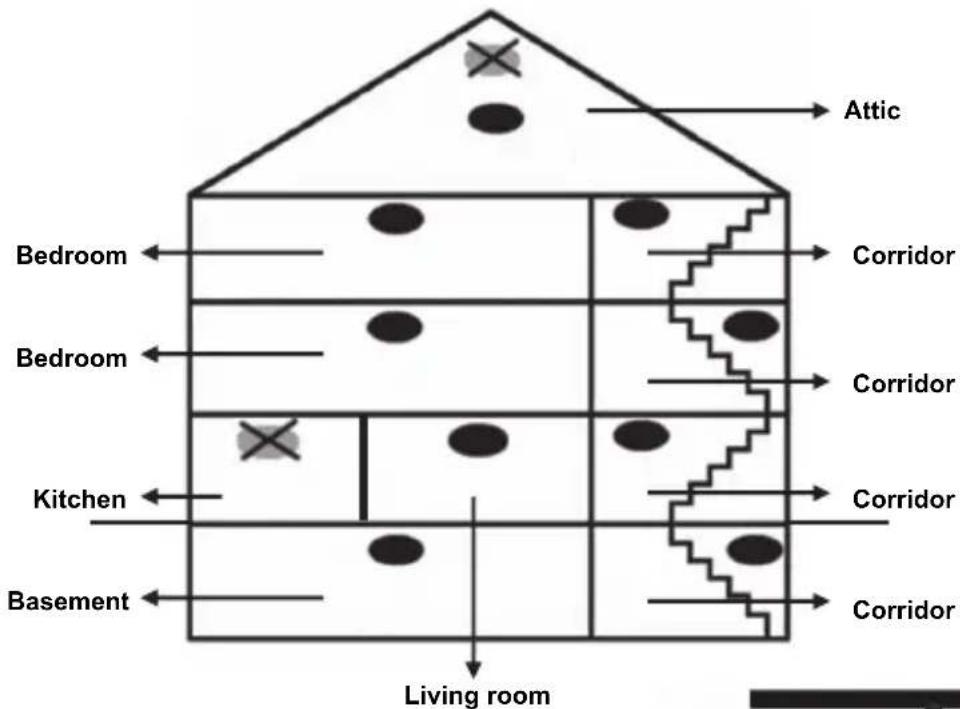

Example for the installation of smoke alarms:

Attic Bedroom Corridor Bedroom Corridor Kitchen Corridor Basement Corridor Living room

On ceilings

Install smoke alarms as close as possible to the centre of the ceiling. If this is not possible, install the smoke alarm at least 30 to 50 cm from the wall or corner (due to dead air space).

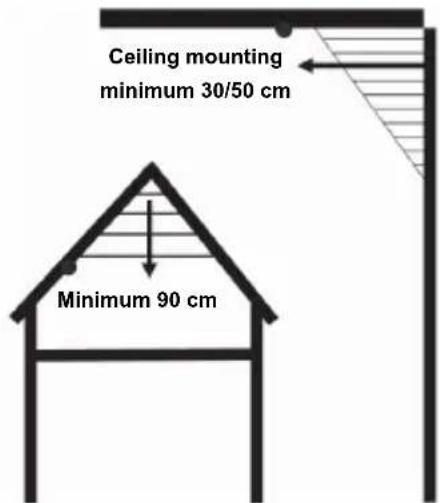

Rooms with gabled ceilings

Install the smoke alarm 90 cm from the highest point (due to dead air space).

When installing a smoke alarm in a corridor with a length of 7.5 metres or more. It is recommended to install a smoke alarm in the beginning and the end of the corridor.

Ceiling mounting minimum 30/50 cm Minimum 90 cm

Do not install a smoke alarm

• In a humid, dusty and smoky environment
• In rooms or areas where temperatures are below 4 °C or above 38 °C
• In the kitchen, bathroom or garage
• In drafty places
• Near a fan or air vent
• Above heating

Maintenance:

It's recommended to clean the smoke alarm once a month. Gently vacuum the outside of the smoke alarm with the soft brush attachment of the vacuum cleaner. Do not use water, cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

Disclaimer:

Designs and specifications are subject to change without prior notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognised as such.

Disposal:

• This product is designated for separate collection at an appropriate collection point. Do not dispose of this product with household waste.
• For more information, contact the retailer or the local authority responsible for waste management.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies with all applicable specifications and regulations in the country of sales.

Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet and product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS

Model: HS-103

DoP: 20130723001

1134-CPD-32

EN 14604:2005/AC:2008

Smoke alarm devices

Intended fire safety and installed in buildings

Essential characteristic 1: Pass

Essential characteristic 2: Pass

Essential characteristic 3: Pass

Essential characteristic 4: Pass

Essential characteristic 5: Pass

Essential characteristic 6: Pass

Essential characteristic 7: Pass

Essential characteristic 8: Pass
