Instructions for use

! This instruction manual should be kept in a safe

place for future reference. If the washing machine

is sold, transferred or moved, make sure that the

instruction manual remains with the machine so

that the new owner is able to familiarise himself/

herself with its operation and features.

! Read these instructions carefully: they contain

vital information relating to the safe installation

and operation of the appliance.

Unpacking and levelling

1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has

not been damaged during the transportation

process. If it has been damaged, contact the

retailer and do not proceed any further with the

installation process.

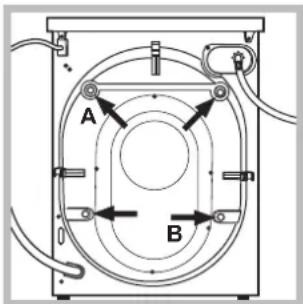

3. Remove the 4 protec-

tive screws (used during

transportation) and the

rubber washer with the

corresponding spacer,

located on the rear part of

the appliance (see figure).

4. Close off the holes

using the plastic plugs

5. Keep all the parts in a safe place: you will

need them again if the washing machine ne-

eds to be moved to another location.

! Packaging materials should not be used as

! Every time the machine needs to be tilted or

moved, the screws, the rubber washer and

the spacer should be re-fitted at points A and

B, in order to ensure the internal components

Remember to remove these elements afterwards.

1. Install the washing machine on a flat sturdy

floor, without resting it up against walls, furnitu-

re cabinets or anything else.

2. If the floor is not

perfectly level, com-

pensate for any une-

venness by tightening

adjustable front feet

(see figure); the angle

of inclination, measu-

red in relation to the

Levelling the machine correctly will provide

it with stability, help to avoid vibrations and

excessive noise and prevent it from shifting

while it is operating. If it is placed on carpet or

a rug, adjust the feet in such a way as to allow

a sufficient ventilation space underneath the

Connecting the electricity and

Connecting the water inlet hose

1. Insert seal A into

the end of the inlet

latter onto a cold wa-

ter tap with a 3/4 gas

connection, allow the

water to run freely un-

til it is perfectly clear.

it onto the correspon-

ding water inlet of the

right-hand side of the

rear part of the ap-

pliance (see figure).

3. Make sure that the hose is not folded over

! The water pressure at the tap must fall within

the values indicated in the Technical details

table (see next page).

! If the inlet hose is not long enough, contact a

specialised shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

please refer to the technical

data plate fixed to the machine

up to 1000 rotations per

Cotton standard 40°C.

This appliance conforms to

the following EC Directives:

- 2004/108/CE (Electroma-

gnetic Compatibility)

- 2006/95/EC Low Voltage)

Connecting the drain hose

hose, without bending

it, to a drainage duct

or a wall drain located

alternatively, rest it on

the side of a washba-

sin or bathtub, faste-

plied to the tap (see

! We advise against the use of hose exten-

sions; if it is absolutely necessary, the exten-

sion must have the same diameter as the

original hose and must not exceed 150 cm in

Electrical connections

Before plugging the appliance into the electri-

city socket, make sure that:

• the socket is earthed and complies with all

• the socket is able to withstand the maximum

power load of the appliance as indicated in

the Technical data table (see opposite);

• the power supply voltage falls within the

values indicated in the Technical data table

• the socket is compatible with the plug of

the washing machine. If this is not the case,

replace the socket or the plug.

! The washing machine must not be installed

outdoors, even in covered areas. It is extreme-

ly dangerous to leave the appliance exposed

to rain, storms and other weather conditions.

! When the washing machine has been instal-

led, the electricity socket must be within easy

! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.

! The power supply cable must only be repla-

ced by authorised technicians.

Warning! The company shall not be held

responsible in the event that these regulations

The first wash cycle

Once the appliance has been installed, and

before you use it for the first time, run a wash

cycle with detergent and no laundry, using the

GB Care and maintenance

Cutting off the water and electri-

• Turn off the water tap after every wash cycle.

This will limit wear on the hydraulic system

inside the washing machine and help to pre-

• Unplug the washing machine when cleaning

it and during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the

appliance can be cleaned using a soft cloth

soaked in lukewarm soapy water. Do not use

solvents or abrasives.

Cleaning the detergent dispenser

Remove the dispenser

by raising it and pul-

ling it out (see figure).

Wash it under running

water; this operation

Caring for the door and drum of

• Always leave the porthole door ajar in order

to prevent unpleasant odours from forming.

The washing machine is fitted with a self-cle-

aning pump which does not require any main-

tenance. Sometimes, small items (such as

coins or buttons) may fall into the pre-chamber

which protects the pump, situated in its bot-

! Make sure the wash cycle has finished and

unplug the appliance.

ver, remove the cover

front part of the wa-

by rotating it anti-

clockwise (see figu-

re): a little water may

trickle out. This is

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks

are securely in place before you push it onto

Checking the water inlet hose

Check the inlet hose at least once a year. If

there are any cracks, it should be replaced

immediately: during the wash cycles, water

pressure is very strong and a cracked hose

could easily split open.

! Never use second-hand hoses.GB

Precautions and tips

! This washing machine was designed and constructed in

accordance with international safety regulations. The fol-

lowing information is provided for safety reasons and must

therefore be read carefully.

• This appliance was designed for domestic use only.

• This appliance can be used by children aged

from 8 years and above and persons with re-

duced physical, sensory or mental capabilities

or lack of experience and knowledge if they

have been given supervision or instruction

concerning use of the appliance in a safe way

and understand the hazards involved. Chil-

dren shall not play with the appliance. Clea-

ning and user maintenance shall not be made

by children without supervision.

• Do not touch the machine when barefoot or with wet or

• Do not pull on the power supply cable when unplugging

the appliance from the electricity socket. Hold the plug

• Do not open the detergent dispenser drawer while the

machine is in operation.

• Do not touch the drained water as it may reach extreme-

ly high temperatures.

• Never force the porthole door. This could damage the

safety lock mechanism designed to prevent accidental

• If the appliance breaks down, do not under any circum-

stances access the internal mechanisms in an attempt

to repair it yourself.

• Always keep children well away from the appliance while

• The door can become quite hot during the wash cycle.

• If the appliance has to be moved, work in a group of two

or three people and handle it with the utmost care. Never

try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

• Disposing of the packaging materials: observe local

regulations so that the packaging may be re-used.

• The European Directive 2012/19/EU on Waste

Electrical and Electronic Equipment, requires that

old household electrical appliances must not be

disposed of in the normal unsorted municipal waste

stream. Old appliances must be collected separately

in order to optimise the recovery and recycling of the

materials they contain and reduce the impact on human

health and the environment. The crossed out “wheeled

bin” symbol on the product reminds you of your obliga-

tion, that when you dispose of the appliance it must be

separately collected.

Consumers should contact their local authority or

retailer for information concerning the correct

disposal of their old appliance.6

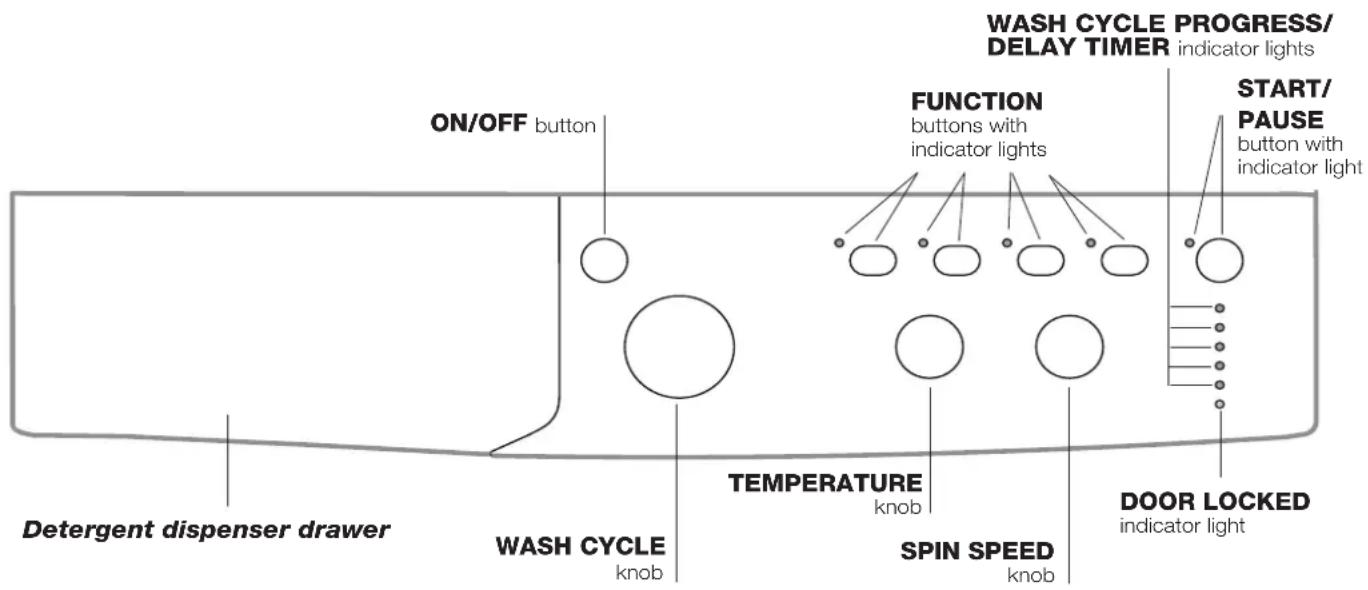

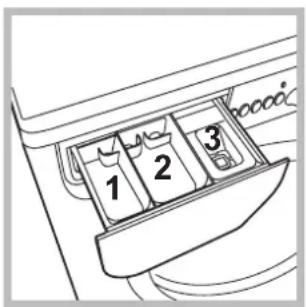

GB Detergent dispenser drawer: used to dispense deter-

gents and washing additives (see “Detergents and laundry”).

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles. During

the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the

available functions. The indicator light corresponding to the

selected function will remain lit.

TEMPERATURE knob: sets the temperature or the cold

wash cycle (see “Personalisation”).

SPIN SPEED knob: sets the spin speed or exclude the spin

cycle completely (see “Personalisation”).

s: used to monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in pro-

If the Delay Timer function has been set, the time remaining

until the wash cycle starts will be indicated (see next page).

DOOR LOCKED indicator light: indicates whether the door

may be opened or not (see next page).

START/PAUSE button with indicator light: starts or tempo-

rarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this button;

the corresponding indicator light will flash orange, while the

indicator light for the current wash cycle phase will remain lit

in a fixed manner. If the DOOR LOCKED indicator light is

switched off, the door may be opened.

To start the wash cycle from the point at which it was inter-

rupted, press this button again.

This washing machine, in compliance with new energy saving

regulations, is fitted with an automatic standby system which

is enabled after about 30 minutes if no activity is detected.

Press the ON-OFF button briefly and wait for the machine

Consumption in off-mode: 0,5 W Consumption in Left-on: 0,5 W Description of the washing

machine and starting a wash cycle

WASH CYCLE PROGRESS/

button with indicator light Control panel

The indicator lights provide important information.

This is what they can tell you:

If the DELAY TIMER function has been activated (see “Per-

sonalisation”), after the wash cycle has been started the

indicator light corresponding to the selected delay period

will begin to flash:

As time passes, the remaining delay will be displayed and

the corresponding indicator light will flash:

The set programme will start once the selected time delay

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has be-

gun, the indicator lights switch on one by one to indicate which

phase of the cycle is currently in progress.

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator

light will illuminate.

If the selected function is not compatible with the program-

med wash cycle, the corresponding indicator light will flash

and the function will not be activated.

If the selected function is not compatible with another

function which has been selected previously, the indicator

light corresponding to the first function selected will

flash and only the second function will be activated; the

indicator light corresponding to the enabled option will

Door locked indicator light

When the indicator light is on, the porthole door is locked

to prevent it from being opened; make sure the indicator

light is off before opening the door (wait approximately 3

minutes). To open the door during a running wash cycle,

press the START/PAUSE button; the door may be opened

once the DOOR LOCKED indicator light turns off.

Starting a wash cycle

1. Switch the washing machine on by pressing the ON/OFF button. All indicator lights will switch on for a few seconds, then

they will switch off and the START/PAUSE indicator light will pulse.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see “Personalisation”).

5. Set the spin speed (see “Personalisation”).

6. Measure out the detergent and washing additives (see “Detergents and laundry”).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the indicator light will switch on. The door can be opened once the DOOR LOCKED

indicator light turns off. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely.

Switch the washing machine off by pressing the ON/OFF button.

Table of wash cycles

12) is for washing heavily soiled sports clothing fabrics (tracksuits, shorts, etc.); for best

results, we recommend not exceeding the maximum load indicated in the “Table of wash cycles”.

13) is for washing lightly soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results,

we recommend not exceeding the maximum load indicated in the “Table of wash cycles”. We recommend using a

liquid detergent and dosage suitable for a half-load.

14) is for washing sports shoes; for best results, do not wash more than 2 pairs simultaneously.

The 20° wash cycles (20° Zone) offer effective washing performance at low temperatures, reducing electricity usage and

expenditure while benefitting the environment.The 20° wash cycles meet all requirements:

Cotton Standard 20° (programme 6) ideal for lightly soiled cotton loads. The effective performance levels achieved at cold

temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying

speed, with repeated and frequent peaks.

Mix Light (programme 7) ideal for mixed loads (cotton and synthetics) with a normal soil level. The effective performance

levels achieved at cold temperatures are guaranteed by a mechanical action which operates at varying speed, across set

20’ Refresh (programme 8) ideal for refreshing and washing lightly soiled garments in a few minutes. It lasts just 20 minutes

and therefore saves both time and energy. It can be used to wash different types of fabrics together (except for wool and

silk), with a maximum load of 1.5 kg.

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as

water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected. 1) Test wash cycle in compliance with directive 1061/2010: set wash cycle 2 with a temperature of 60°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value. 2) Test wash cycle in compliance with directive 1061/2010: set wash cycle 3 with a temperature of 40°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.For all Test Institutes: 2) Long wash cycle for cottons: set wash cycle 3 with a temperature of 40°C. 3) Synthetic program along: set wash cycle 4 with a temperature of 40°C.Wash cyclesDescription of the wash cycleMax. temp. (°C) Max. speed (rpm)DetergentsMax. load (kg)Residual dampness %Energy consum-ption kWhTotal water ltCycle duration Pre-

Wash Fabric softenerDaily 1 Cotton with prewash: extremely soiled whites. 90° 1000   4 62 1,46 44 140’ 2 Cotton Standard 60° (1): heavily soiled whites and resistant colours. 60° (Max. 90°)1000 -  

4 62 0,66 44 140’ 4 Synthetics: heavily soiled resistant colours.60° 800 -  

2 42 0,42 27 85’ 5 Mix Colored: lightly soiled whites and delicate colours.40° 1000 -  

1 - - - 50’ 10 Wool: for wool, cashmere, etc.40° 800 -  

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash .

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value

set for each wash cycle.

! Exception: if the 2 programme is selected, the temperature can be increased up to a value of 90°C.

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol .

The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed

set for each wash cycle.

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the

selected wash cycle.

Selecting this option enables you to suitably adjust drum rotation, temperature and water to a reduced load of lightly soiled

cotton and synthetic fabrics (refer to the

“Table of wash cycles”

). “ ” enables you to wash in less time thereby saving

water and electricity. We suggest using a liquid detergent suitably measured out to the load quantity.

! This function may not be used in conjunction with wash cycles 1, 6, 7, 8, 9, 10, 11, 12, 13, 14, , .

The function saves energy by not heating the water used to wash your laundry - an advantage both to the

environment and to your energy bill. Instead, intensified wash action and water optimisation ensure great wash results in the

same average time of a standard cycle.

For the best washing results we recommend the usage of a liquid detergent.

! This function may not be used in conjunction with wash cycles 1, 6, 7, 8, 9, 10, 12, 13, 14, , .

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly

useful for sensitive skin.

! It cannot be used in conjunction with the 8, programmes.

This timer delays the start time of the wash cycle by up to 12 hours.

Press the button repeatedly until the indicator light corresponding to the desired delay time switches on. The fifth time the button

is pressed, the function will be disabled.

N.B. Once the START/PAUSE button has been pressed, the delay time can only be modified by decreasing it until launching

! This option is enabled with all programmes.

GB Detergents and laundry

Detergent dispenser drawer Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessa-rily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution. ! Do not use hand washing detergents because these create too much foam. ! Use powder detergent for white cotton garments, for pre- washing, and for washing at temperatures over 60°C. ! Follow the instructions given on the detergent packaging. Open the detergent di-spenser drawer and pour in the detergent or washing additive, as follows.Compartment 1: Pre-wash detergent (powder)compartment 2: Detergent for the wash cycle (powder or liquid)Liquid detergent should only be poured in immediately prior to the start of the wash cycle.compartment 3: Additives (fabric softeners, etc.)The fabric softener should not overflow the grid. Preparing the laundry • Divide the laundry according to: - the type of fabric/the symbol on the label - the colours: separate coloured garments from whites.• Empty all garment pockets and check the buttons.• Do not exceed the values listed in the “Table of wash cycles”, which refer to the weight of the laundry when dry.How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g

Garments requiring special care

Silk: use special wash cycle 9 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 9.Wool: all wool garments can be washed using programme 10, even those carrying the “hand-wash only” label. For best results, use special detergents and do not exceed 1 kg of laundry.Jeans: Turn garments inside-out before washing and use a liquid detergent. Use programme 11. Load balancing system Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.GB

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure

that the problem cannot be solved easily using the following list.

The washing machine does not

The wash cycle does not start.

The washing machine does not

take in water (the indicator light for

the first wash cycle stage flashes

The washing machine continuously

takes in and drains water.

The washing machine does not

The washing machine vibrates a lot

during the spin cycle.

The washing machine leaks.

The “Functions” indicator lights and

the “start/pause” indicator light flash,

while one of the “phase in progress”

indicator lights and the “door locked”

indicator light will remain lit in a fixed

There is too much foam.

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or is not making contact.

• There is no power in the house.

• The washing machine door is not closed properly.

• The ON/OFF button has not been pressed.

• The START/PAUSE button has not been pressed.

• The water tap has not been opened.

• A delayed start has been set (see “Personalisation”).

• The water inlet hose is not connected to the tap.

• The water tap has not been opened.

• There is no water supply in the house.

• The pressure is too low.

• The START/PAUSE button has not been pressed.

• The drain hose is not fitted at a height between 65 and 100 cm from the floor

(see “Installation”).

• The free end of the hose is under water (see “Installation”).

• The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch

the appliance off and contact the Assistance Service. If the dwelling is on one of

the upper floors of a building, there may be problems relating to water drainage,

causing the washing machine to fill with water and drain continuously. Special

anti-draining valves are available in shops and help to avoid this inconvenience.

• The wash cycle does not include draining: some wash cycles require the drain

phase to be started manually.

• The drain hose is bent (see “Installation”).

• The drainage duct is clogged.

• The drum was not unlocked correctly during installation (see “Installation”).

• The washing machine is not level (see “Installation”).

• The washing machine is trapped between cabinets and walls (see “Installation”).

• The water inlet hose is not screwed on properly (see “Installation”).

• The detergent dispenser drawer is blocked (for cleaning instructions, see “Care

• The drain hose is not fixed properly (see “Installation”).

• Switch off the machine and unplug it, wait for approximately 1 minute and then

switch it back on again.

If the problem persists, contact the Technical Assistance Service.

• The detergent is not suitable for machine washing (it should display the text

“for washing machines” or “hand and machine wash”, or the like).

• Too much detergent was used.12

Before calling for Assistance:

• Check whether you can solve the problem alone (see “Troubleshooting”);

• Restart the programme to check whether the problem has been solved;

• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the

guarantee certificate.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N).

This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the

front of the appliance by opening the door.CZ
