USER MANUAL 42LB5700 LG

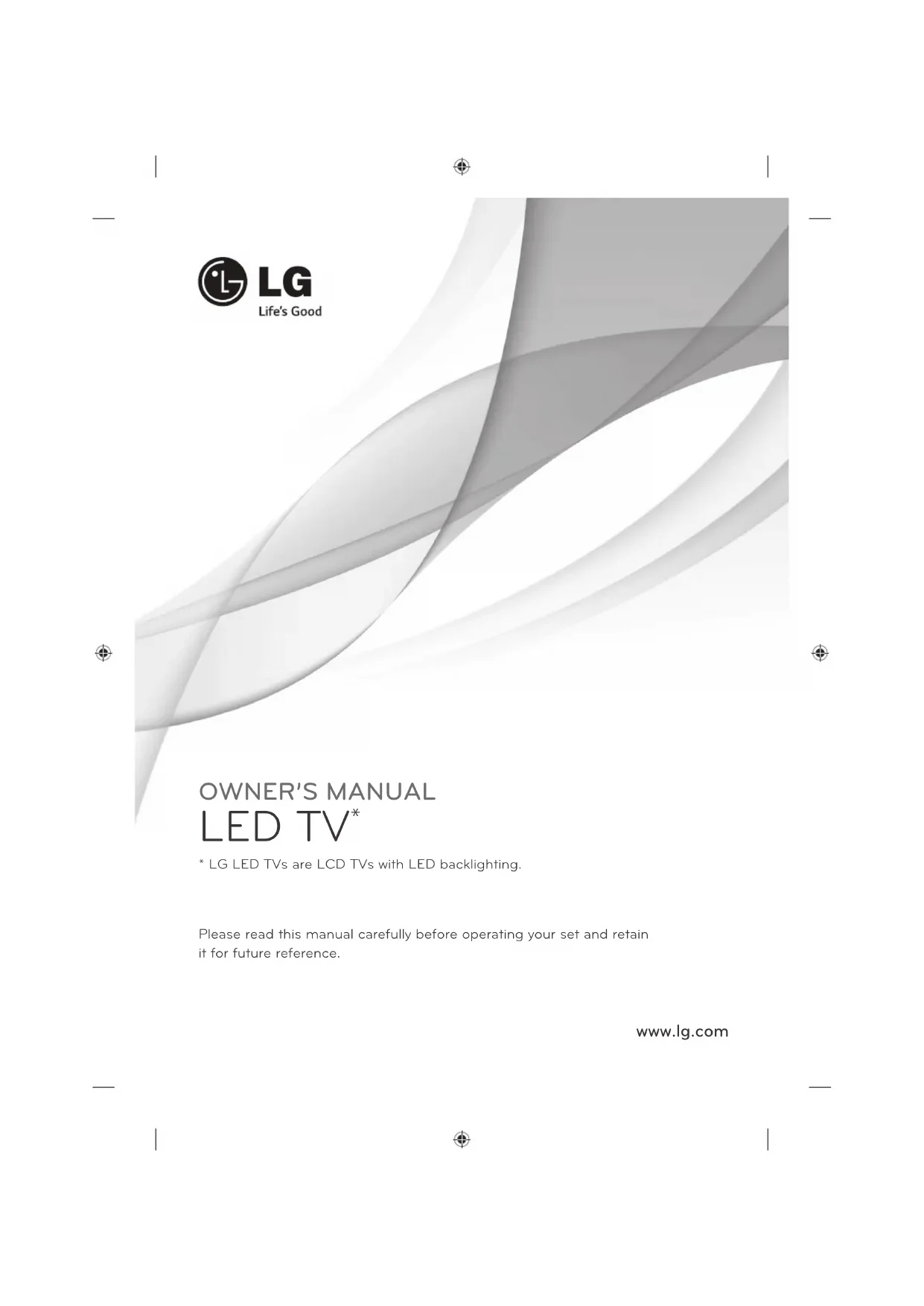

OWNER’S MANUAL LED TV

* Please read this manual carefully before operating your set and retain it for future reference.* LG LED TVs are LCD TVs with LED backlighting. www.lg.com LB49** LB61**LB57**LB58**P/NO : MFL68027042(1411-REV04)Printed in Korea *MFL68027042*A-2

TABLE OF CONTENTS COMMON TABLE OF CONTENTS A-3 SETTING UP THE TV A-3 Attaching the stand

A-7 MAKING CONNECTIONS A-7 Antenna connection

A-9 Satellite dish connection

A-10 Adapter connection

A-11 Euro Scart connection

A-14 Other connections

SETTING UP THE TV SETTING UP THE TV Image shown may differ from your TV.

When attaching the stand to the TV

set, place the screen facing down on a

cushioned table or flat surface to protect

the screen from scratches.

The Rubber will protect the opening

from accumulating dust and dirt. When

installing the wall mounting bracket, use

the Rubber. (Only LB58**-ZM/ZW)

MAKING CONNECTIONS MAKING CONNECTIONS This section on MAKING CONNECTIONS mainly

uses diagrams for the LB57** models.

Connect the TV to a wall antenna socket with an

Use a signal splitter to use more than 2

If the image quality is poor, install a signal

amplifier properly to improve the image

If the image quality is poor with an

antenna connected, try to realign the

antenna in the correct direction.

An antenna cable and converter are not

Dolby Digital, Dolby Digital Plus, HE-AACA-9

MAKING CONNECTIONS Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite

MAKING CONNECTIONS Adapter connection

Please be sure to connect the TV to the

AC-DC power adapter before connecting

the TV’s power plug to a wall power outlet.

MAKING CONNECTIONS Euro Scart connection

Transmits the video and audio signals from

an external device to the TV set. Connect the

external device and the TV set with the euro scart

Any Euro scart cable used must be signal

MAKING CONNECTIONS Other connections

MAKING CONNECTIONS PCMCIA card

(Only LB57**, LB58**, LB61**)

(Only satellite models)

MAKING CONNECTIONS English

Connect your TV to external devices. For the best

picture and audio quality, connect digital devices

using an HDMI cable. Some separate cable is not

SULND]DQR1HNDWHULORþHQLNDEOLQLVRSULORåHQLA-19

MAKING CONNECTIONS English

Connect various external devices to the TV

and switch input modes to select an external

device. For more information of external device’s

connection, refer to the manual provided with

Available external devices are: HD receivers,

DVD players, VCRs, audio systems, USB storage

devices, PC, gaming devices, and other external

The external device connection may differ

Connect external devices to the TV

regardless of the order of the TV port.

If you record a TV programme on a

DVD recorder or VCR, make sure to

connect the TV signal input cable to the

TV through a DVD recorder or VCR. For

more information of recording, refer to

the manual provided with the connected

Refer to the external equipment’s manual

for operating instructions.

If you connect a gaming device to the TV,

use the cable supplied with the gaming

In PC mode, there may be noise

associated with the resolution, vertical

pattern, contrast or brightness. If noise is

present, change the PC output to another

resolution, change the refresh rate to

another rate or adjust the brightness and

contrast on the PICTURE menu until the

In PC mode, some resolution settings

may not work properly depending on the

recorder of videorecorder op de TV is

game-apparaat is geleverd.

Please read this manual carefully before operating your set and retain

it for future reference.

* LG LED TVs are LCD TVs with LED backlighting.2

ENGLISH LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP LICENSES Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

OPEN SOURCE SOFTWARE NOTICE To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this

product, please visit http://opensource.lge.com .

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are

available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of

performing such distribution (such as the cost of media, shipping and handling) upon email request to

opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the

EXTERNAL CONTROL DEVICE SETUP To obtain the external control device setup information, please visit www.lg.com.3

ENGLISH SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Please read these safety precautions carefully before using the product.

Do not place the TV and

/or remote control in the following environments:

- A location exposed to direct sunlight

- An area with high humidity such as a bathroom

- Near any heat source such as stoves and other devices that produce

- Near kitchen counters or humidifiers where they can easily be exposed

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product

Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric

supply.This plug must remain readily attached and operable when TV is in

Do not touch the power plug with wet hands. Additionally, if the cord pin is

wet or covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with

Grounded earth pin. (Except for devices which are not grounded on earth.)

Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured

completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as

This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.4

ENGLISH SAFETY INSTRUCTIONS

Bend antenna cable between inside and outside building to prevent rain

This may cause water damaged inside the Product and could give an

When mounting TV onto wall make sure to neatly install and isolate cabling

from rear of TV as to not create possibility of electric shock /fire hazard.

Do not plug too many electrical devices into a single multiple electrical

Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices.

Otherwise, this may result in injury or damage to the product.

anti-moisture packing material or vinyl packing out of the reach of

Anti-moisture material is harmful if swallowed. If swallowed by mistake,

force the patient to vomit and visit the nearest hospital. Additionally, vinyl

packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV.

Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to

ensure that a small child does not

Please seek Doctor- Medical Attention immediately if child consumes

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/

screwdriver) between power cable plug and input Wall Socket while it is

connected to the input terminal on the wall. Additionally, do not touch the

power cable right after plugging into the wall input terminal. You may be

(Depending on model)

Do not put or store inflammable substances near the product.

There is a danger of combustion/explosion or fire due to careless handling

of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into

the product, or inflammable objects such as paper and matches. Children

must pay particular attention.

Electrical shock, fire or injury can occur. If a foreign object is dropped into

the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance

(thinner or benzene). Fire or electric shock accident can occur.5

ENGLISH SAFETY INSTRUCTIONS

Do not allow any impact, shock or any objects to fall into the unit, and do

not drop anything onto the screen.

You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm.

You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows

It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion.

Fire or electric shock accident can occur.

Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact

your local service centre.

- The product has been impacted by shock

- The product has been damaged

- Foreign objects have entered the product

- The product produced smoke or a strange smell

This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV

for a long period of time.

Accumulated dust can cause fire hazard and insulation deterioration can

cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects

filled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist.

This may damage the product and cause it to fall.

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power

lines to keep the former from touching the latter even when the antenna

This may cause an electric shock.6

ENGLISH SAFETY INSTRUCTIONS

Do not install the product on places such as unstable shelves or inclined

surfaces. Also avoid places where there is vibration or where the product

cannot be fully supported.

Otherwise, the product may fall or flip over, which may cause injury or

damage to the product.

If you install the TV on a stand, you need to take actions to prevent the

product from overturning. Otherwise, the product may fall over, which may

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional

parts) to the back of the product. When you install the set to use the wall mounting bracket (optional

parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If

not installed by a qualified technician, this may create a fire hazard or an

electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the

diagonal screen size when watching TV.

If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery.

This could cause damage to the remote control.

Do not mix new batteries with old batteries.

This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight ,

open fireplace and electric heaters .

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal

lighting eg Sunlight, fluorescent lighting.

If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make

sure the connecting cables are long enough.

Otherwise, the product may fall over, which may cause injury or damage

Do not turn the product On/Off by plugging-in or unplugging the power plug

to the wall outlet. (Do not use the power plug for switch.)

It may cause mechanical failure or could give an electric shock.7

ENGLISH SAFETY INSTRUCTIONS

Please follow the installation instructions below to prevent the product from

- The distance between the product and the wall should be more than

- Do not install the product in a place with no ventilation (e.g., on a

bookshelf or in a cupboard).

- Do not install the product on a carpet or cushion.

- Make sure the air vent is not blocked by a tablecloth or curtain.

Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for

long periods as the ventilation openings may become hot. This does not

affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or

deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an

exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet.

This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being

twisted, kinked, pinched, closed in a door, or walked upon. Pay particular

attention to plugs, wall outlets, and the point where the cord exits the

Do not press strongly upon the panel with a hand or sharp object such

as nail, pencil or pen, or make a scratch on it, as it may cause damage to

Avoid touching the screen or holding your finger(s) against it for long

periods of time. Doing so may produce some temporary or permanent

distortion/damage to screen.

When cleaning the product and its components, unplug the power first and

wipe it with a soft cloth. Applying excessive force may cause scratches or

discolouration. Do not spray with water or wipe with a wet cloth. Never use

glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol

etc., which can damage the product and its panel.

Otherwise, this may result in fire, electric shock or product damage

(deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power

source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the

Don’t pull at the cord to unplug the power cord from the power board, as

this could be hazardous.

When moving the product, make sure you turn the power off first. Then,

unplug the power cables, antenna cables and all connecting cables.

The TV set or power cord may be damaged, which may create a fire hazard

or cause electric shock.8

ENGLISH SAFETY INSTRUCTIONS

When moving or unpacking the product, work in pairs because the product

Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the

Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power supply cord

or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small “flicker” when it

is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million

to six million pixels. You may see tiny black dots and/or brightly coloured

dots (red, blue or green) at a size of 1 ppm on the panel. This does not

indicate a malfunction and does not affect the performance and reliability of

This phenomenon also occurs in third-party products and is not subject to

You may find different brightness and color of the panel depending on your

viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not

related with the product performance, and it is not malfunction.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video

game) for a prolonged time may cause damage to the screen, resulting in retention of the image,

which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours

for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by

plastic thermal contraction due to tempera-ture and humidity. This noise is common for products

where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise

is generated from a high-speed switching circuit, which supplies a large amount of current to

operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter).

This may result in product malfunction.9 ENGLISHASSEMBLING AND PREPARING NOTE

y Image shown may differ from your TV.

y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

y The available menus and options may differ from the input source or product model that you are using.

y New features may be added to this TV in the future.

y The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.

y The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. CAUTION

y Do not use any unapproved items to ensure the safety and product life span.

y Any damage or injuries caused by using unapproved items are not covered by the warranty.

y Some models have a thin film attached on to the screen and this must not be removed. NOTE

y The items supplied with your product may vary depending on the model.

y Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.

y Use a certified cable with the HDMI logo attached.

TM cable with Ethernet10

(Only LB57**, LB58**-ZA/ZB/

(Only LB57**, LB58**-ZA/ZB/

(Only LB57**, LB58**,

ENGLISH ASSEMBLING AND PREPARING AC-DC Adapter / Power

(Only 32/39LB58**-ZM)

(Only 42LB57**, 42LB58**)

ENGLISH ASSEMBLING AND PREPARING Separate purchase

6HSDUDWHSXUFKDVHLWHPVFDQEHFKDQJHGRUPRGL¿HGIRUTXDOLW\LPSURYHPHQWZLWKRXWDQ\QRWL¿FDWLRQ

Contact your dealer to buy these items.

These devices only work with certain models.

The model name or design may be changed depending on the upgrade of product functions,

manufacturer’s circumstances or policies.

* You can use the Magic Remote and LG Audio Device(Wireless) only when you are using the Wi-Fi/

ENGLISH ASSEMBLING AND PREPARING Parts and buttons

LB58**-ZM/ZW Remote control and

ENGLISH ASSEMBLING AND PREPARING

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

2 Joystick Button - This button is located below the TV screen.

You can set the power indicator light to on or off by selecting OPTION in the main menus.

Using the Joystick button

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.

When the TV is turned off, place your finger on the joystick button

and press it once and release it.

When the TV is turned on, place your finger on the joystick button

and press it once for a few seconds and release it.

(However, if the Menu button is on the screen, pressing and

holding the joystick button will let you exit the Menu.)

If you place your finger over the joystick button and move it left or

right, you can adjust the volume level you want.

If you place your finger over the joystick button and move it up or

down, you can scrolls through the saved programmes you want.

When your finger over the joystick button and push it to the up, down, left or right, be careful not to

press the joystick button. If you press the joystick button first, you can not adjust the volume level

and saved programmes.

When the TV is turned on, press the joystick button one time.

You can adjust the Menu items(

, , , )moving the joystick button up, down, left or right.

TV off Turns the power off.

Settings Accesses the main menu.

Close Clears on-screen displays and returns to TV viewing.

Input List Changes the input source.15

ENGLISH ASSEMBLING AND PREPARING Lifting and moving the TV Please note the following advice to prevent the

TV from being scratched or damaged and for safe

transportation regardless of its type and size.

Avoid touching the screen at all times, as

this may result in damage to the screen.

It is recommended to move the TV in the

box or packing material that the TV originally

Before moving or lifting the TV, disconnect

the power cord and all cables.

When holding the TV, the screen should face

away from you to avoid damage.

Hold the top and bottom of the TV frame

¿UPO\0DNHVXUHQRWWRKROGWKHWUDQVSDUHQW

part, speaker, or speaker grill area.

When transporting a large TV, there should

be at least 2 people.

When transporting the TV by hand, hold the

TV as shown in the following illustration.

When transporting the TV, do not expose the

TV to jolts or excessive vibration.

When transporting the TV, keep the TV

upright, never turn the TV on its side or tilt

towards the left or right.

Do not apply excessive pressure to cause

When handling the TV, be careful not to

damage the protruding joystick button.16

ENGLISH ASSEMBLING AND PREPARING Mounting on a table

1 Lift and tilt the TV into its upright position on a

- Leave a 10 cm (minimum) space from

the wall for proper ventilation.

2 Connect the power cord to a wall outlet.

Do not place the TV near or on sources

of heat, as this may result in fire or other

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets

and bolts on the back of the TV.

- If there are bolts inserted at the eye-

bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the

Match the location of the wall bracket and the

eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly

Make sure to keep the rope horizontal with the

Make sure that children do not climb on

Use a platform or cabinet that is strong

and large enough to support the TV

Brackets, bolts and ropes are not

provided. You can obtain additional

accessories from your local dealer.17

ENGLISH ASSEMBLING AND PREPARING Mounting on a wall

Attach an optional wall mount bracket at the rear

of the TV carefully and install the wall mount

bracket on a solid wall perpendicular to the

ÀRRU:KHQ\RXDWWDFKWKH79WRRWKHUEXLOGLQJ

PDWHULDOVSOHDVHFRQWDFWTXDOL¿HGSHUVRQQHO

LG recommends that wall mounting be performed

E\DTXDOL¿HGSURIHVVLRQDOLQVWDOOHU

We recommend the use of LG’s wall mount

When you do not use LG’s wall mount bracket,

please use a wall mount bracket where the

device is adequately secured to the wall with

enough space to allow connectivity to external

10 cm 10 cm Make sure to use screws and wall mount

bracket that meet the VESA standard. Standard

dimensions for the wall mount kits are described

in the following table.

Separate purchase(Wall Mounting Bracket)

ENGLISH ASSEMBLING AND PREPARING CAUTION

Disconnect the power first, and then

If you install the TV on a ceiling or slanted

wall, it may fall and result in severe injury.

Use an authorised LG wall mount and

contact the local dealer or qualified

Do not over tighten the screws as this

may cause damage to the TV and void

Use the screws and wall mounts that

meet the VESA standard. Any damages

or injuries by misuse or using an

improper accessory are not covered by

Screw length from outer surface of

back cover should be under 8mm. (only

Use the screws that are listed on the

VESA standard screw specifications.

The wall mount kit includes an installation

manual and necessary parts.

The wall mount bracket is not provided.

You can obtain additional accessories

from your local dealer.

The length of screws may differ

depending on the wall mount. Make sure

to use the proper length.

For more information, refer to the manual

supplied with the wall mount.

When attaching a wall mounting

bracket to the TV, insert the wall

mount spacers into the TV wall mount

holes to adjust the vertical angle of

the TV. (Only 42LB57**, 42LB58**)

Wall Mount Spacer19 ENGLISHREMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. or

y Do not mix old and new batteries, as this may damage the remote control.

y The remote control will not be included for all sales market.Make sure to point the remote control toward the remote control sensor on the TV. (Depending on model)TV/RAD Selects Radio, TV and DTV programme.SUBTITLE Recalls your preferred subtitle in digital mode.Q. MENU Accesses the quick menus.GUIDE Shows programme guide.AD By Pressing AD button, audio descriptions function will be enabled. INPUT Changes the input source.LIST Accesses the saved programme list. (Space) Opens an empty space on the screen keyboard. (Depending on model)Q.VIEW Returns to the previously viewed programme.FAV Accesses your favourite programme list.INFO Views the information of the current programme and screen.

PAGE Moves to the previous or next screen.SETTINGS Accesses the main menus. SMART Accesses the Home menus. MY APPS Shows the list of Apps. 1 TELETEXT BUTTONS These buttons are used for teletext.Navigation buttons (up/down/left/right) Scrolls through menus or options.OK Selects menus or options and confirms your input. BACK Returns to the previous level.EXIT Clears on-screen displays and returns to TV viewing. APP/

Selects the MHP TV menu source. (Only Italy) (Depending on model)REC/ Starts to record and displays record menu. (Only Time Machine Ready

supported model)LIVE TV Returns to LIVE TV.Control buttons ( ) Controls the Premium contents, Time MachineReady or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time MachineReady ).

TV/RAD Selects Radio, TV and DTV programme.

LIST Accesses the saved programme list.

(Space) Opens an empty space on the screen keyboard. (Depending on

Q.VIEW Returns to the previously viewed programme.

FAV Accesses your favourite programme list.

GUIDE Shows programme guide.

PAGE Moves to the previous or next screen.

INFO Views the information of the current programme and screen.

SMART Accesses the Home menus.

MY APPS Shows the list of Apps.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

BACK Returns to the previous level.

SETTINGS Accesses the main menus.

EXIT Clears on-screen displays and returns to TV viewing.

Colour buttons These access special functions in some menus.

( : Red, : Green, : Yellow, : Blue)

TELETEXT BUTTONS These buttons are used for teletext.

SLEEP Sets the sleep timer.

AD By Pressing AD button, audio descriptions function will be enabled.

Selects the MHP TV menu source. (Only Italy) (Depending on model)

P A G E FAV MUTE EXIT OK SETTINGSMY APPSLIVE TV REC

detailed TV information.

button to access the

SUPPORT Software UpdatePicture TestSound TestSignal TestProduct/Service Info.Initialization of AppUser Guide

MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best

performance and to extend the product lifespan.

Make sure to turn the power off and

disconnect the power cord and all other

When the TV is left unattended and

unused for a long time, disconnect the

power cord from the wall outlet to prevent

possible damage from lightning or power

Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface

with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface

with a soft cloth dampened in clean water

or a diluted mild detergent. Then wipe

immediately with a dry cloth.

Avoid touching the screen at all times, as

this may result in damage to the screen.

Do not push, rub, or hit the screen

surface with your fingernail or a sharp

object, as this may result in scratches

and image distortions.

Do not use any chemicals as this may

Do not spray liquid onto the surface. If

water enters the TV, it may result in fire,

electric shock, or malfunction.

Remove the accumulated dust or dirt on the

power cord regularly.22

ENGLISH TROUBLESHOOTING / SPECIFICATIONS TROUBLESHOOTING Problem Solution

Check the remote control sensor on the product and try again.

Check if there is any obstacle between the product and the remote control.

Check if the batteries are still working and properly installed (

Check if the product is turned on.

Check if the power cord is connected to a wall outlet.

Check if there is a problem in the wall outlet by connecting other products.

Check the power control settings. The power supply may be interrupted.

Check if the Automatic Standby (Depending on model) / Sleep Timer /

Time Power Off is activated in the TIME settings.

If there is no signal while the TV is on, the TV will turn off automatically after

15 minutes of inactivity.

Turn the TV off/on using the remote control.

Reconnect the HDMI cable.

Restart the PC with the TV on.

Because band channel used by the country could be different, the user can not change or adjust the

operating frequency and this product is set for the regional frequency table.

This device should be installed and operated with minimum distance 20 cm between the device and

your body. And this phrase is for the general statement for consideration of user environment.

0197BENUTZERHANDBUCH LED-TV

P A G E FAV MUTE EXIT OK SETTINGSMY APPSLIVE TV REC

Corps du support / Base

(Uniquement LB58**-ZM/ZW)

(Uniquement LB57**, LB58**,

(Uniquement 32/39LB58**-

P A G E FAV MUTE EXIT OK SETTINGSMY APPSLIVE TV REC

(Solo LB57**, LB58**-ZA/ZB/

(Solo LB57**, LB58**-ZA/ZB/

(Solo LB57**, LB58**,

P A G E FAV MUTE EXIT OK SETTINGSMY APPSLIVE TV REC

19 V 2,0 A 19 V 2,0 A Consumo elettrico

100,0 mm x 55,0 mm x 5,0 mm

VHF, UHF C-Band*, Ku-Band*

(Solo LB57**, LB58**, LB61**)

(Solo LB57**, LB58**-ZA/ZB/

(Solo LB57**, LB58**-ZA/ZB/

(Solo LB57**, LB58**,

P A G E FAV MUTE EXIT OK SETTINGSMY APPSLIVE TV REC

REMHFWRVTXHQWHVFRPRSH[XPDTXHFHGRU

(Apenas LB57**, LB58**,

P A G E FAV MUTE EXIT OK SETTINGSMY APPSLIVE TV REC

(Alleen LB57**, LB58**,

P A G E FAV MUTE EXIT OK SETTINGSMY APPSLIVE TV REC

P A G E FAV MUTE EXIT OK SETTINGSMY APPSLIVE TV REC

 YEOLåLQRSRVRG]YRGRNRWVRYD]H

ýHMLKRWURNYHQGDUOH]DXåLMHQHPXGRPDSRLãþLWH]GUDYQLãNRSRPRþ

6(67$9/-$1-(,11$0(âý$1-(

6DPRPRGHOL/%=+

6(67$9/-$1-(,11$0(âý$1-(

6(67$9/-$1-(,11$0(âý$1-(

6(67$9/-$1-(,11$0(âý$1-(

6(67$9/-$1-(,11$0(âý$1-(

6(67$9/-$1-(,11$0(âý$1-(

ýHWHOHYL]RUSUHPLNDWHURþQRJDGUåLWHNRWMH

6(67$9/-$1-(,11$0(âý$1-(

 'YLJQLWHWHOHYL]RULQJDYSRNRQþQHPSRORåDMX

6(67$9/-$1-(,11$0(âý$1-(

6(67$9/-$1-(,11$0(âý$1-(

P A G E FAV MUTE EXIT OK SETTINGSMY APPSLIVE TV REC

VWHQVNHYWLþQLFHGDSUHSUHþLWHPRUHELWQH

SPECIFICATIONS SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions.

Weight With stand (kg)

19 V 2.0 A 19 V 2.0 A Power consumption

42 W 42 W AC-DC Adaptor

Manufacturer : Lien Chang

Weight With stand (kg)

19 V 2.7 A 19 V 2.7 A Power consumption

55 W 55 W AC-DC Adaptor

Manufacturer : Lien Chang

Weight With stand (kg)

75 W 100 W 110 W MODELS

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Operating Temperature

0 °C to 40 °C Operating Humidity

VHF, UHF C-Band*, Ku-Band*

VHF, UHF, CATV Maximum number of

* Only DVB-T2/C/S2 support models.Record the model number and serial number of

Refer to the label on the back cover and quote

this information to your dealer when requiring

MODEL SERIAL Please contact LG First.

If you have any inquiries or comments,
