USER MANUAL RK9100xR Rosewill

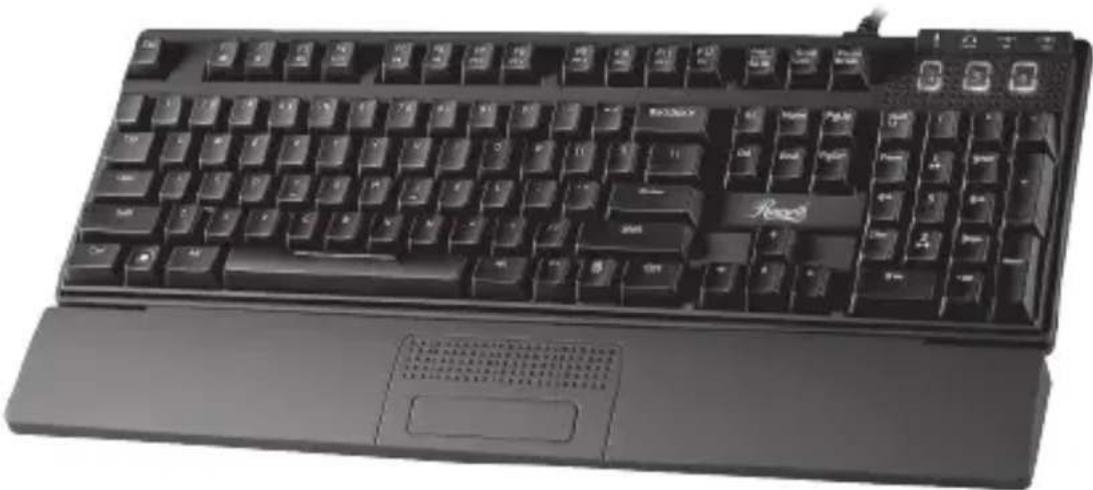

Mechanical Gaming Keyboard

Black and white image of a retro keyboard with visible key and scroll, no text or symbols present.

User's Manual

RK-9100x Series

English

Thank you for purchasing the RK-9100x series mechanical keyboard – a gaming keyboard designed to meet the needs of gamers everywhere. Featuring Cherry MX switches where every key process is optimized to improve your experience.

Package Contents

• RK-9100x Mechanical Keyboard
- Wrist rest
- Quick Guide
- Installation Disk
• Key Puller

• 8 Gaming keys (AWSD and arrow keys)

Compatibility

USB 1.1/2.0/3.0 compatible with Windows XP/Vista/7/8

Hardware Installation

1. Plug the keyboard connectors into your computer's USB, Audio (green), and Mic (pink) ports.

Diagram showing three connected audio/video cables with labeled color codes: Green and Pink.

1. Windows will automatically install the necessary driver for the keyboard and you should be able to use it instantly.

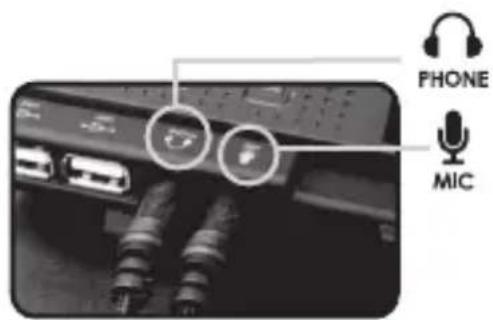

2. Please refer to the below diagram when connecting a Mic and/or audio device such as headphones or speakers. Connect any audio device such as headphone or speakers into the Audio jack displaying the

PHONE MIC

icon. Connect any microphone into the jack displaying icon.

NOTE: The USB ports on the keyboard will not provide enough power to support an external enclosure.

Compound key Functions :

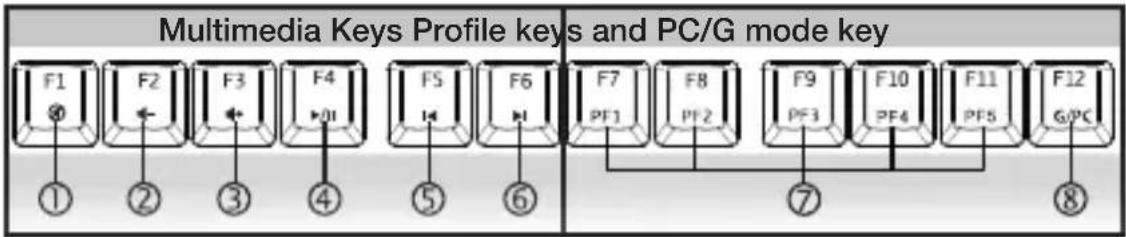

Multimedia Keys Profile keys and PC/G mode key F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 ① ② ③ ④ ⑤ ⑥ PF1 PF2 PF3 PF4 PF5 G/PC ⑦ ⑧

Multimedia Keys

Press Fn + F1-F6 to activate

Fn + F1 : Mute

Fn + F2 : Vol -

Fn + F3 : Vol +

Fn + F4 : Play/Pause

Fn + F5 : Previous Track

Fn + F6 : Next Track

Profile Quick Switch keys

Press Fn + F7 - F11

Fn + F7 : Profile1

Fn + F8 : Profile2

Fn + F9 : Profile3

Fn + F10 : Profile4

Fn + F11 : Profile5

Gaming Mode

Press Fn + F12 to enable or disable Gaming mode

Gaming mode enables the use of custom macros and disables the Windows key from activating.

Backlight Illumination Control

Decrease brightness - Press Fn + 2 (on the numpad)

Increase brightness - Press Fn + 8 (on the numpad)

Level 0 - Off

Level 1 - Low

Level 2 - Medium brightness

Level 3 - Max brightness

Level 4 – Breathing Mode (fade in and out)

7Home 8 9Help 4+ 5 1Unit 2 0-4

Wrist Rest Installation

Close-up of hands typing on a black computer keyboard (no visible text or symbols)

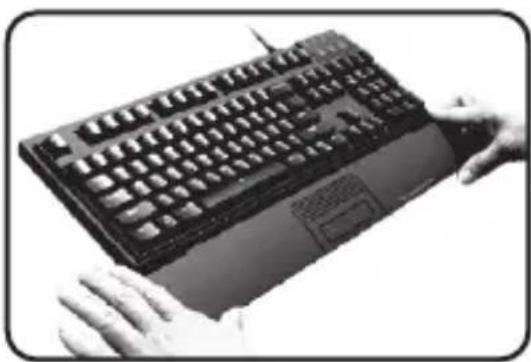

Insert the wrist rest under the keyboard and align the wrist rest with the keyboard

Close-up of hands typing on a computer keyboard with labeled parts A and B (no text or symbols beyond labels)

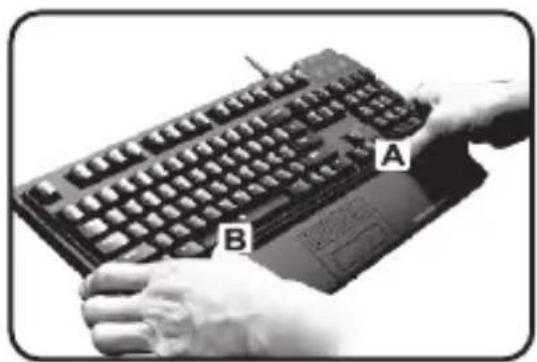

Use both thumbs and push on Position A and B highlighted to snap the wrist rest into place.

Keyboard Customization Software Installation

1. Ensure the keyboard is connected and working on your selected computer.
2. Insert the Installation Disk into the computer's CD/DVD drive.
3. Double click on the Setup.exe file to begin installation.
4. Follow the setup instructions to complete the software installation.
5. Once software installation is complete, restart your system.

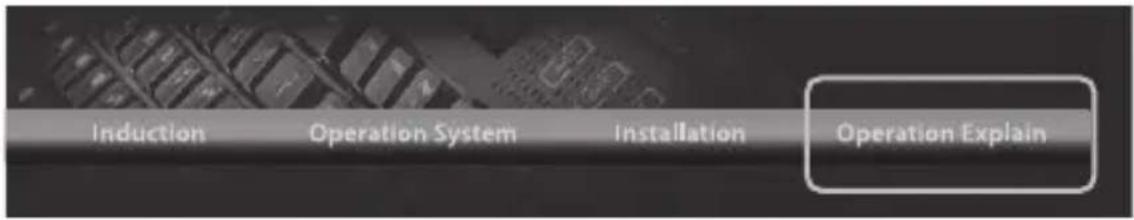

Software User Guide

1. Upon computer startup, there should be a G icon in your system tray. (lower right corner)
2. Double click on the G icon to open the application.

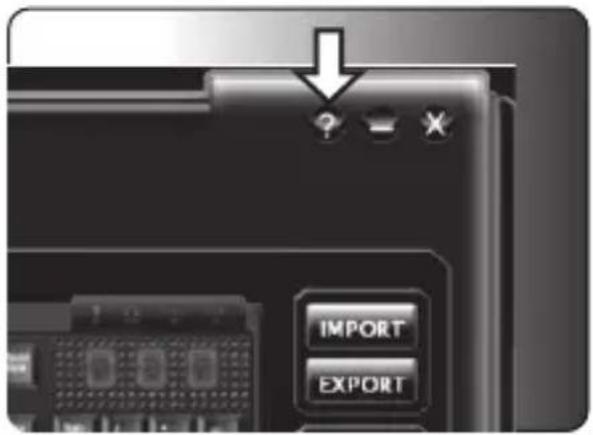

3. On the upper right hand corner, click on the button

IMPORT EXPORT

1. Please follow the on screen Software user guide to customize your RK-9100x keyboard.

Induction Operation System Installation Operation Explain

Français

Diagram showing three types of audio/video cables connected to a device, labeled with 'Vert' and 'Rose' labels.

PHONE MIC

710mm 8 945p 4+ 5 12nd 2 0+

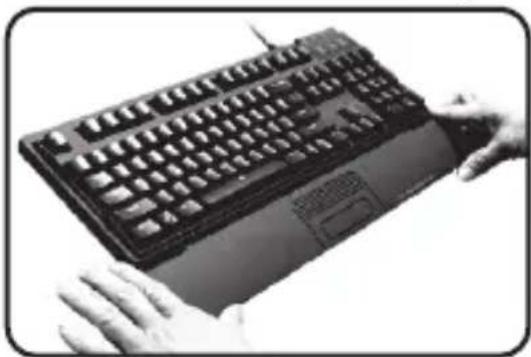

Installation du Repose-poignet

Close-up of hands typing on a black computer keyboard (no visible text or symbols)

Close-up of hands typing on a black computer keyboard with labeled parts A and B (no text or symbols beyond labels)

IMPORT EXPORT

Induction Operation System Installation Operation Explain

Deutsch

Hardwareinstallation

PHONE MIC

Close-up of hands typing on a black computer keyboard (no visible text or symbols)

Stecken Sie die

Close-up of hands typing on a keyboard with labeled parts A and B (no additional text or symbols visible)

IMPORT EXPORT

Induction Operation System Installation Operation Explain

Español

PHONE MIC

7 March 8 April 9 July 4 May 5 June 1st 2nd

Close-up of hands typing on a black computer keyboard (no visible text or symbols)

Close-up of hands typing on a keyboard with labeled parts A and B (no additional text or symbols visible)

IMPORT EXPORT

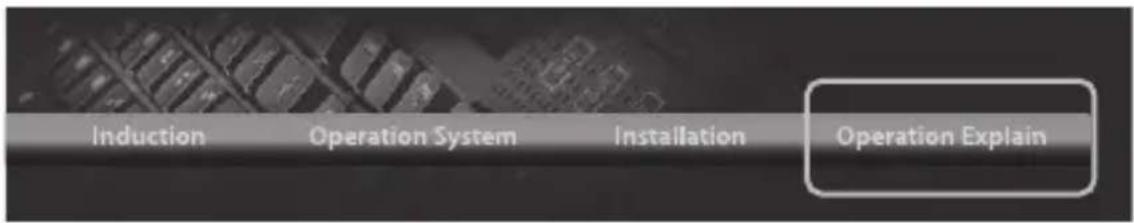

Induction Operation System Installation Operation Explain
