USER MANUAL WMG 942BV EU HOTPOINT

GB WASHING MACHINE Instructions for use

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Care and maintenance, 4

Cutting off the water and electricity supplies

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Checking the water inlet hose

Precautions and tips, 5

Opening the porthole door manually

Description of the washing machine, 6-7

Running a wash cycle, 8

Wash cycles and options, 9

Table of programmes and wash cycles

Detergents and laundry, 10

Detergent dispenser drawer

Preparing the laundry

! This instruction manual should be kept in a safe

place for future reference. If the washing machine

is sold, transferred or moved, make sure that the

instruction manual remains with the machine so

that the new owner is able to familiarise himself/

herself with its operation and features.

! Read these instructions carefully: they

contain vital information relating to the safe

installation and operation of the appliance.

Unpacking and levelling

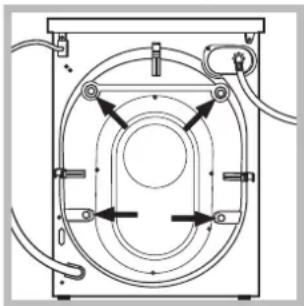

1. Remove the washing machine from its

2. Make sure that the washing machine has

not been damaged during the transportation

process. If it has been damaged, contact the

retailer and do not proceed any further with

the installation process.

the rear part of the

appliance (see figure).

4. Close off the holes using the plastic plugs

5. Keep all the parts in a safe place: you will

need them again if the washing machine

needs to be moved to another location.

! Packaging materials should not be used as

1. Install the washing machine on a flat sturdy

floor, without resting it up against walls,

furniture cabinets or anything else.

not perfectly level,

feet (see figure); the

angle of inclination,

measured in relation

to the worktop, must

Levelling the machine correctly will provide

it with stability, help to avoid vibrations and

excessive noise and prevent it from shifting

while it is operating. If it is placed on carpet or

a rug, adjust the feet in such a way as to allow

a sufficient ventilation space underneath the

Connecting the electricity and

Connecting the water inlet hose

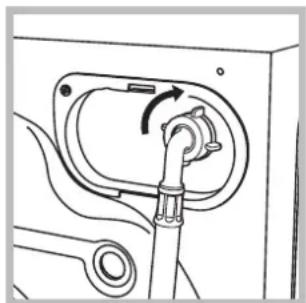

1. Connect the inlet

hose by screwing it to

the connection, allow

the water to run freely

until it is perfectly

screwing it onto the

inlet of the appliance,

which is situated on

side of the rear part

of the appliance (see

3. Make sure that the hose is not folded over

! The water pressure at the tap must fall within

the range of values indicated in the Technical

data table (see next page).

! If the inlet hose is not long enough, contact a

specialised shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.3

please refer to the technical

data plate fixed to the ma-

up to 1400 rotations per

Cotton Standard 40°C.

This appliance conforms to

the following EC Directives:

- 2004/108/EC (Electroma-

gnetic Compatibility)

- 2006/95/EC (Low Voltage)

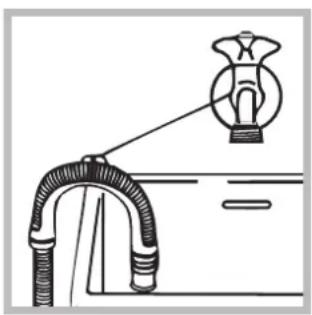

- 2012/19/EU Connecting the drain hose

hose, without bending

it, to a drain duct or

a wall drain situated

alternatively, placed

the tap (see figure).

! We advise against the use of hose

extensions; if it is absolutely necessary, the

extension must have the same diameter as the

original hose and must not exceed 150 cm in

Electrical connections

Before plugging the appliance into the

electricity socket, make sure that:

• the socket is earthed and complies with all

• the socket is able to withstand the

maximum power load of the appliance as

indicated in the Technical data table (see

• the power supply voltage falls within the

values indicated in the Technical data table

• the socket is compatible with the plug of

the washing machine. If this is not the case,

replace the socket or the plug.

! The washing machine must not be installed

outdoors, even in covered areas. It is

extremely dangerous to leave the appliance

exposed to rain, storms and other weather

! When the washing machine has been

installed, the electricity socket must remain

! Do not use extension cords or multiple sockets.

! The cable should not be bent or

! The power supply cable must only be

replaced by authorised technicians.

Warning! The company shall not be held

responsible in the event that these standards

The first wash cycle

Once the appliance has been installed, and

before you use it for the first time, run a

wash cycle with detergent and no laundry,

using wash cycle number “Auto Clean” (see

“Cleaning the washing machine”).4

GB Care and maintenance

Cutting off the water and

electricity supplies

• Turn off the water tap after every wash cycle.

This will limit wear on the hydraulic system

inside the washing machine and help to

• Unplug the washing machine when cleaning

it and during all maintenance work.

Cleaning the washing machine

• The outer parts and rubber components

of the appliance can be cleaned using a soft

cloth soaked in lukewarm soapy water. Do not

use solvents or abrasives.

• The washing machine has a “Auto Clean”

programme for its internal parts that must be

run with no load in the drum.

To help the wash cycle

additives to clean the

cleaning programme every 40 wash cycles.

To start the programme press buttons A and

B simultaneously for 5 seconds (see figure).

The programme will start automatically and will

run for about 70 minutes. To stop the cycle

press the START/PAUSE button.

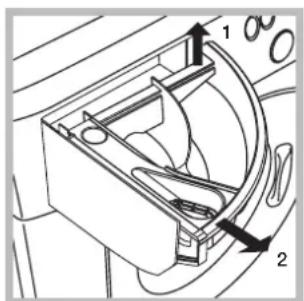

Cleaning the detergent dispenser

Wash it under running

water; this operation

A B Caring for the door and drum of

• Always leave the porthole door ajar in order

to prevent unpleasant odours from forming.

The washing machine is fitted with a self-

cleaning pump which does not require any

maintenance. Sometimes, small items (such as

coins or buttons) may fall into the pre-chamber

which protects the pump, situated in its bottom

! Make sure the wash cycle has finished and

unplug the appliance.

To access the pre-chamber:

the lower front part of

by rotating it anti-

clockwise (see figure):

trickle out. This is

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks

are securely in place before you push it onto

Checking the water inlet hose

Check the inlet hose at least once a year. If

there are any cracks, it should be replaced

immediately: during the wash cycles, water

pressure is very strong and a cracked hose

could easily split open.

! Never use second-hand hoses.5

GB Precautions and tips

! This washing machine was designed and constructed

in accordance with international safety regulations. The

following information is provided for safety reasons and

must therefore be read carefully.

• This appliance was designed for domestic use only.

• This appliance can be used by children

aged from 8 years and above and

persons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning use of

the appliance in a safe way and understand

the hazards involved. Children shall not

play with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

• Do not touch the machine when barefoot or with wet or

• Do not pull on the power supply cable when unplugging

the appliance from the electricity socket. Hold the plug

• Do not open the detergent dispenser drawer while the

machine is in operation.

• Do not touch the drained water as it may reach

extremely high temperatures.

• Never force the porthole door. This could damage the safety

lock mechanism designed to prevent accidental opening.

• If the appliance breaks down, do not under any

circumstances access the internal mechanisms in an

attempt to repair it yourself.

• Always keep children well away from the appliance while

• The door can become quite hot during the wash cycle.

• If the appliance has to be moved, work in a group of two

or three people and handle it with the utmost care. Never

try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

• Disposing of the packaging materials: observe local

regulations so that the packaging may be re-used.

• The European Directive 2012/19/EU on Waste Electrical

and Electronic Equipment, requires that old household

electrical appliances must not be disposed of in the

normal unsorted municipal waste stream. Old appliances

must be collected separately in order to optimise the

recovery and recycling of the materials they contain and

reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product

reminds you of your obligation, that when you dispose of

the appliance it must be separately collected. Consumers

should contact their local authority or retailer for information

concerning the correct disposal of their old appliance.

Opening the porthole door manually

In the event that it is not possible to open the porthole

door due to a powercut, and if you wish to remove the

laundry, proceed as follows:

1. remove the plug from the

2. make sure the water level

inside the machine is lower

than the door opening; if

it is not, remove excess

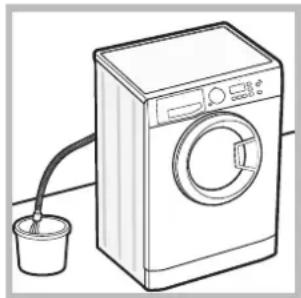

water using the drain hose,

collecting it in a bucket as

indicated in the figure.

3. using a screwdriver,

remove the cover panel on

the lower front part of the

washing machine (see figure).

4. pull outwards using the tab as indicated in the figure,

until the plastic tie-rod is freed from its stop position; pull

downwards and open the door at the same time.

5. reposition the panel, making sure the hooks are securely

in place before you push it onto the appliance.

GB Description of the washing

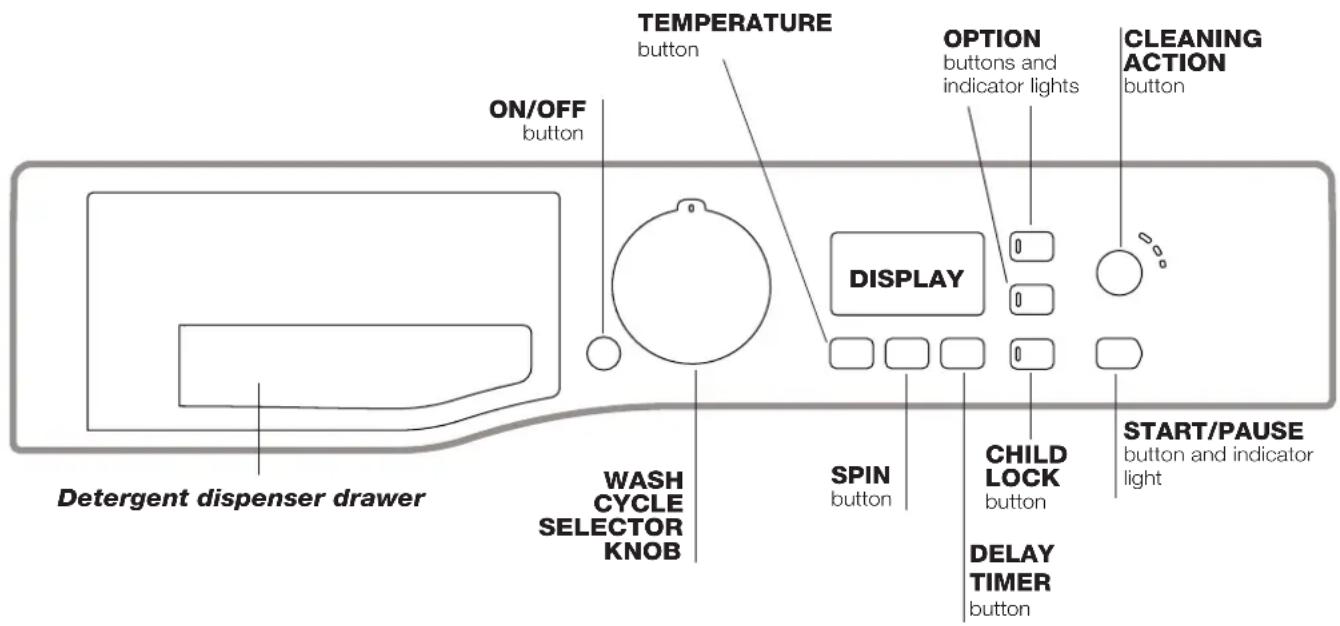

button and indicator light

DISPLAY DELAY TIMER button OPTION buttons and indicator lights Detergent dispenser drawer: used to dispense

detergents and washing additives (see “Detergents and

ON/OFF button: press this briefly to switch the

machine on or off. The START/PAUSE indicator light which

flashes slowly in a green colour shows that the machine is

switched on. To switch off the washing machine during the

wash cycle, press and hold the button for approximately 3

seconds; if the button is pressed briefly or accidentally the

machine will not switch off.

If the machine is switched off during a wash cycle, this

wash cycle will be cancelled.

WASH CYCLE SELECTOR KNOB: used to set the

desired wash cycle (see “Table of programmes and wash

OPTION buttons and indicator lights: press to select the

available options. The indicator light corresponding to the

selected option will remain lit.

completely exclude the temperature; the value appears on

SPIN button: press to reduce or completely exclude

the spin cycle; the value appears on the display.

DELAYED START button: press to set a delayed start

for the selected wash cycle; the delay period appears on

START/PAUSE button and indicator light: when the green

indicator light flashes slowly, press the button to start a

wash cycle. Once the cycle has begun the indicator light

will remain lit in a fixed manner. To pause the wash cycle,

press the button again; the indicator light will flash in an

amber colour. If the symbol is not illuminated, the door

may be opened. To start the wash cycle from the point at

which it was interrupted, press the button again.

CHILD LOCK button : to activate the control panel

lock, press and hold the button for approximately 2

seconds. When the symbol is illuminated, the control

panel is locked (apart from the ON/OFF button). This

means it is possible to prevent wash cycles from being

modified accidentally, especially where there are children in

the home. To deactivate the control panel lock, press and

hold the button for approximately 2 seconds.

This washing machine, in compliance with new energy

saving regulations, is fitted with an automatic standby

system which is enabled after about 30 minutes if no

activity is detected. Press the ON-OFF button briefly and

wait for the machine to start up again.

Consumption in off-mode: 0,5 W Consumption in Left-on: 8 W CLEANING ACTION button

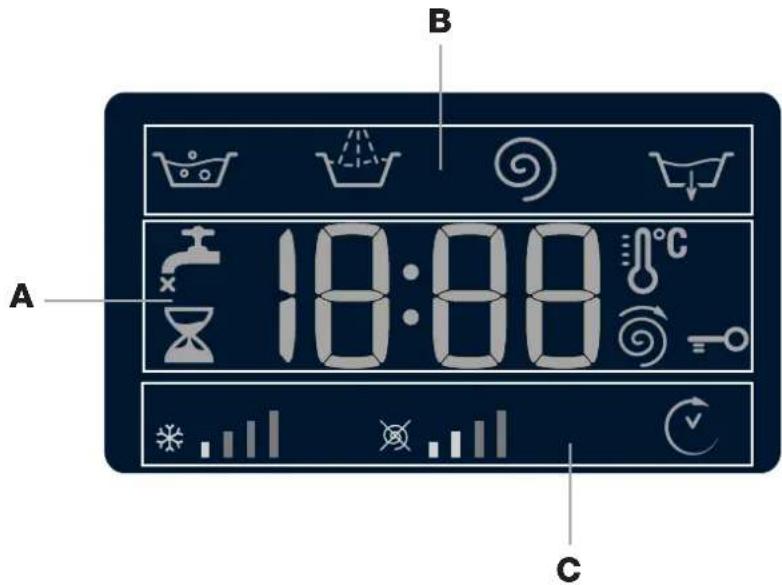

B C A The display is useful when programming the machine and provides a great deal of information.

The duration of the available wash cycles and the remaining time of a running cycle appear in section A; if the DELAYED START option has been set, the countdown to the start of the selected wash cycle will appear.

Pressing the corresponding button allows you to view the maximum spin speed and temperature values attained by the

machine during the set wash cycle, or the values selected most recently, if these are compatible with the set wash cycle.

The “wash cycle phases” corresponding to the selected wash cycle and the “wash cycle phase” of the running wash cycle

appear in section B:

The icons corresponding to “temperature”, “spin” and “delayed start” (working from the left) are displayed in section C.

The “temperature” bars indicate the maximum temperature level which may be selected for the set cycle.

The “spin” bars indicate the maximum spin level which may be selected for the set cycle.

The “delay” symbol , when lit, indicates that the set “delayed start” value has appeared on the display.

DOOR LOCKED indicator light:

The lit symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the door.

To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched

off the door may be opened.8

GB Running a wash cycle

1. SWITCH THE MACHINE ON. Press the button;

the START/PAUSE indicator light will flash slowly in a

2. LOAD THE LAUNDRY. Open the porthole door.

Load the laundry, making sure you do not exceed

the maximum load value indicated in the table of

programmes and wash cycles on the following page.

3. MEASURE OUT THE DETERGENT. Pull out the

detergent dispenser drawer and pour the detergent into

the relevant compartments as described in “Detergents

5. SELECT THE WASH CYCLE. Use the WASH CYCLE SELECTOR knob to select the desired wash cycle. A

temperature and spin speed is set for each wash cycle;

these values may be adjusted. The duration of the cycle

will appear on the display.

6. CUSTOMISE THE WASH CYCLE. Use the relevant

maximum temperature and spin speed values set for

the selected cycle, or the most recently-used settings

if they are compatible with the selected cycle. The

temperature can be decreased by pressing the

button, until the cold wash “OFF” setting is reached.

The spin speed may be progressively reduced by

pressing the button, until it is completely excluded

(the “OFF” setting). If these buttons are pressed again,

the maximum values are restored.

 ! Exception: if the 3 programme is selected, the

temperature can be increased up to a value of 90°C.

Setting a delayed start.

To set a delayed start for the selected cycle, press the

corresponding button repeatedly until the required delay

period has been reached. When this option has been

activated, the symbol lights up on the display. To

remove the delayed start setting, press the button until

the text “OFF” appears on the display.

Set the desired wash intensity.

Option makes it possible to optimise washing based

on the level of soil in the fabrics and on desired wash

Select the wash programme: the cycle will be

automatically set to “Normal” as optimised for garments

with an average level of soil (this setting is not applicable

to the “Wool” cycle, which is automatically set to

For heavily-soiled garments press button until

the “Intensive” level is reached. This level ensures

a high-performance wash due to a larger quantity of

water used in the initial phase of the cycle and due to

increased drum rotation. It is useful when removing the

most stubborn stains.

It can be used with or without bleach. If you desire

bleaching, insert the extra tray compartment (4) into

compartment 1. When pouring in the bleach, be careful

not to exceed the “max” level marked on the central

pivot (see figure pag. 10).

For lightly-soiled garments or a more delicate treatment

of the fabrics, press button until the “Delicate”

level is reached. The cycle will reduce drum rotation

to ensure washing results that are perfect for delicate

Modify the cycle settings.

• Press the button to enable the option; the indicator

light corresponding to the button will switch on.

• Press the button again to disable the option; the

indicator light will switch off.

! If the selected option is not compatible with the set

wash cycle, the indicator light will flash and the option

will not be activated.

! If the selected option is not compatible with a previously

selected one, the indicator light corresponding to the first

function selected will flash and only the second option will

be activated; the indicator light for the option which has

been activated will be illuminated.

! The options may affect the recommended load value

and/or the duration of the cycle.

7. START THE WASH CYCLE. Press the START/

PAUSE button. The corresponding indicator light will

turn green, remaining lit in a fixed manner, and the door

will be locked (the DOOR LOCKED symbol will

be lit). To change a wash cycle while it is in progress,

pause the washing machine using the START/PAUSE

button (the START/PAUSE indicator light will flash

slowly in an amber colour); then select the desired cycle

and press the START/PAUSE button again.

To open the door while a cycle is in progress, press

the START/PAUSE button; if the DOOR LOCKED

symbol is switched off the door may be opened. Press

the START/PAUSE button again to restart the wash

cycle from the point at which it was interrupted.

8. THE END OF THE WASH CYCLE. This will be

indicated by the text “END” on the display; when the

DOOR LOCKED symbol switches off the door may

be opened. Open the door, unload the laundry and

switch off the machine.

! If you wish to cancel a cycle which has already begun,

press and hold the button. The cycle will be stopped

and the machine will switch off.9

GB Wash cycles and options

By selecting this option, the efficiency of the rinse is

increased and optimal detergent removal is guaranteed. It

is particularly useful for sensitive skin.

! It cannot be used in conjunction with wash cycles 6, 9,

If this function is selected, the pre-wash cycle will run; this

is useful for removing stubborn stains.

N.B.: Put the detergent in the relevant compartment.

! It cannot be used in conjunction with wash cycles

4, 6, 8, 9, 10, 11, 12, 13, 14, , .

Table of programmes and wash cycles Wash cyclesDescription of the wash cycleMax. temp. (°C) Max. speed (rpm)DetergentsMax. load (kg)Residual dam-pness%Energy con-sumptionkWh Total water lt Cycle durationPrewash Wash BleachFabric softener 1 Anti Stain40° 1400  

Cotton Standard 60° (1): heavily soiled whites and resistant colours.

 (3)   9 53 1.36 57.5 195’ 4

Baby 40° 1000   5 - - - 145’ 8 Wool: for wool, cashmere, etc.40° 800 - 

 2 - - - 85’ 9 Delicates30° 0 - 

 1 - - - 80’ 10 Fast Wash 60’: to refresh normal soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).60° 1400 - 

 3 71 0.10 36 30’Rinse- 1400 - - -  9 - - - 36’Spin and Pump out - 1400 - - - - 9 - - - 16’ 1) Test wash cycle in compliance with directive 1061/2010: set wash cycle 3 with a temperature of 60°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C . The actual washing temperature may differ from the indicated value. 2) Test wash cycle in compliance with directive 1061/2010: set wash cycle 4 with a temperature of 40°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C . The actual washing temperature may differ from the indicated value. 3) At 60 °C the “Prewash” function cannot be selected.For all Test Institutes:2) Long wash cycle for cottons: set wash cycle 4 with a temperature of 40°C.4) Long wash cycle for synthetics: set wash cycle 5 with a temperature of 40°C. The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor-

ding to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.10

GB Detergents and laundry

Detergent dispenser drawer

Successful washing results also depend on the correct

dose of detergent: adding too much detergent will not

necessarily result in a more efficient wash, and may in

fact cause build up on the inside of your appliance and

contribute to environmental pollution.

! Use powder detergent for white cotton garments, for pre-

washing, and for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

! Do not use hand washing detergents; they create too

dispenser drawer and pour

in the detergent or washing

additive, as follows.

wash detergent (powder)

Before pouring in the

detergent, make sure that

extra compartment 4 has

compartment 2: Detergent for the wash cycle

If liquid detergent is used, it is recommended that the

removable plastic partition A (supplied) be used for proper

If powder detergent is used, place the partition into slot B.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Preparing the laundry

• Divide the laundry according to:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from whites.

• Empty all garment pockets and check the buttons.

• Do not exceed the listed values, which refer to

the weight of the laundry when dry: see “Table of

programmes and wash cycles”.

How much does your laundry weigh?

Anti Stain: the programme 1 is suitable to heavily-soiled

garments with resistant colours. It ensures a washing class

that is higher than the standard class (A class).

When running the programme, do not mix garments of

different colours. We recommend the use of powder

detergent. Pre-treatment with special additives is

recommended if there are obstinate stains.

Whites: use this cycle 2 to wash white clothes. The

programme is designed to maintain the brightness of white

clothes over time. Use powder detergent for best results.

Anti allergy: use programme 6 to remove major allergens

such as pollen, mites, cat’s and dog’s hair.

A B Baby: use the special wash cycle 7 to remove the remove

the soiling typically caused by babies, while removing all

traces of detergent from nappies in order to prevent the

delicate skin of babies from suffering allergic reactions. The

cycle has been designed to reduce the amount of bacteria by

using a greater quantity of water and optimising the effect of

special disinfecting additives added to the detergent.

Wool: the wool wash cycle on this Hotpoint-Ariston

machine has been tested and approved by The Woolmark

Company for washing wool garments labelled as hand

washable provided that the garments are washed

according to the instructions on the garment label and

those issued by the manufacturer of this washing machine.

Hotpoint-Ariston is the first washing machine brand to be

approved by The Woolmark Company for Apparel Care-

Platinum for its washing performance and consumption of

energy and water. (M1127)

Delicates: use programme 9 to wash very delicate

garments having strasses or sequins.

To wash silk garments and curtains select the cycle 9 and

set the “Delicate” level from option .

We recommend turning the garments inside out before

washing and placing small items into the special bag

for washing delicates. Use liquid detergent on delicate

garments for best results.

The Eco Cycles assure energy saving by eliminating the

need of heating water and it’s an advantage both to

your energy bill and the environment! These innovative

Eco Fast 30’) are available for various fabrics

and different quantity of garment; they have been

designed to guarantee a high cleaning action even at

low temperature and can be used for lightly to medium

soiled loads. Eco Cycles give the best results thanks

to an intensified wash action, water optimization and

are carried out in the same average time of a standard

cycle. For the best washing results with Eco Cycles we

recommend the usage of a liquid detergent.

Cotton Standard 20° ideal for lightly soiled cotton

loads. The effective performance levels achieved at cold

temperatures, which are comparable to washing at 40°,

are guaranteed by a mechanical action which operates at

varying speed, with repeated and frequent peaks.

Load balancing system

Before every spin cycle, to avoid excessive vibrations

before every spin and to distribute the load in a uniform

manner, the drum rotates continuously at a speed which

is slightly greater than the washing rotation speed. If,

after several attempts, the load is not balanced correctly,

the machine spins at a reduced spin speed. If the load is

excessively unbalanced, the washing machine performs

the distribution process instead of spinning. To encourage

improved load distribution and balance, we recommend

small and large garments are mixed in the load.11

Your washing machine could occasionally fail to work. Before contacting the Technical Assistance Service (see “ Service”),

make sure that the problem cannot be solved easily using the following list.

The washing machine does not

The wash cycle does not start.

The washing machine does not fill

with water (the text “H2O” flashes

The washing machine continuously

takes in and drains water.

The washing machine does not

The washing machine vibrates a

lot during the spin cycle.

The washing machine leaks.

The “option” and START/PAUSE

indicator lights flash rapidly and an

error code appears on the display (e.g.:

There is too much foam.

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or not enough to make contact.

• There is no power in the house.

• The washing machine door is not closed properly.

• The ON/OFF button has not been pressed.

• The START/PAUSE button has not been pressed.

• The water tap has not been opened.

• A delayed start has been set.

• The water inlet hose is not connected to the tap.

• The water tap has not been opened.

• There is no water supply in the house.

• The pressure is too low.

• The START/PAUSE button has not been pressed.

• The drain hose is not fitted at a height between 65 and 100 cm from the floor

(see “Installation”).

• The free end of the hose is under water (see “Installation”).

• The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the

appliance off and contact the Technical Assistance Service. If the dwelling is on one

of the upper floors of a building, there may be problems relating to water drainage,

causing the washing machine to fill with water and drain continuously. Special anti-

draining valves are available in shops and help to prevent this inconvenience.

• The wash cycle does not include draining: some cycles require the draining

process to be enabled manually.

• The drain hose is bent (see “Installation”).

• The drainage duct is clogged.

• The drum was not unlocked correctly during installation (see “Installation”).

• The washing machine is not level (see “Installation”).

• The washing machine is trapped between cabinets and walls (see “Installation”).

• The water inlet hose is not screwed on properly (see “Installation”).

• The detergent dispenser drawer is blocked (for cleaning instructions, see “Care

• The drain hose is not fixed properly (see “Installation”).

• Switch off the machine and unplug it, wait for approximately 1 minute and then

switch it back on again.

If the problem persists, contact the Technical Assistance Service.

• The detergent is not suitable for machine washing (it should display the text “for

washing machines” or “hand and machine wash”, or the like).

• Too much detergent was used.12

Before contacting the Technical Assistance Service:

• Check whether you can solve the problem alone (see “Troubleshooting”);

• Restart the wash cycle to check whether the problem has been solved;

• If this is not the case, contact an authorised Technical Assistance Centre.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N).

This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the

front of the appliance by opening the door.FR

8, 9, 10, 11, 12, 13, 14, , .

Tableau des programmes ProgrammesDescription du ProgrammeTemp. maxi. (°C) Vitesse maxi (tours minute)Produits lessivielsCharge maxi (Kg) Humidité rési-duelle %Consommation d’énergie kWh Eau totale lt Durée cyclePrelavageLavageJavelAssouplis- sant

1 Anti-taches40° 1400  

4, 6, 8, 9, 10, 11, 12, 13, 14, , .
