USER MANUAL DO451FR DOMO

abgestempelt und unterschrieben worden ist.

WARRANTY This appliance has a two year warranty period. With exeption of the heating element, which

has a warranty of 10 years.

During this period the manufacturer is responsible for any failures which are the direct result

of construction failure. When these failures occur the appliance will be repaired or replaced

if necessary. The warranty will not be valid when the damage to the appliance is caused by

wrong use, not following the instructions or repairs executed by a third party. The warranty

will only be valid if the warranty application has been completed by the dealer at the time

of purchase.www.domo-elektro.be DO451FR LINEA 2000 - Industriezone Klein Gent - Bouwelven 12A - 2280 Grobbendonk - Tel 014/21.71.91 - Fax : 014/21.54.63

Geschäft, in dem Sie das Produkt gekauft haben.

RECYCLING INFORMATION The symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it shall be brought to the applicable collection

point for recycling of electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate

waste handling of this product. For more detailed information about recycling of this

product, please contact your local city ofce, your household waste disposal service or

the shop where you purchased the product.www.domo-elektro.be DO451FR Wanneer het elektrisch snoer beschadigd is, moet het vervangen worden door de

oder einer gleichartig geschulten Person ersetzt werden, um Unglücke zu verhindern.

If the supply cord is damaged, it must be replaced by manufacturer of its service

agent or a similarly qualied person in order to avoid a hazard.

5DO451FR www.domo-elektro.be

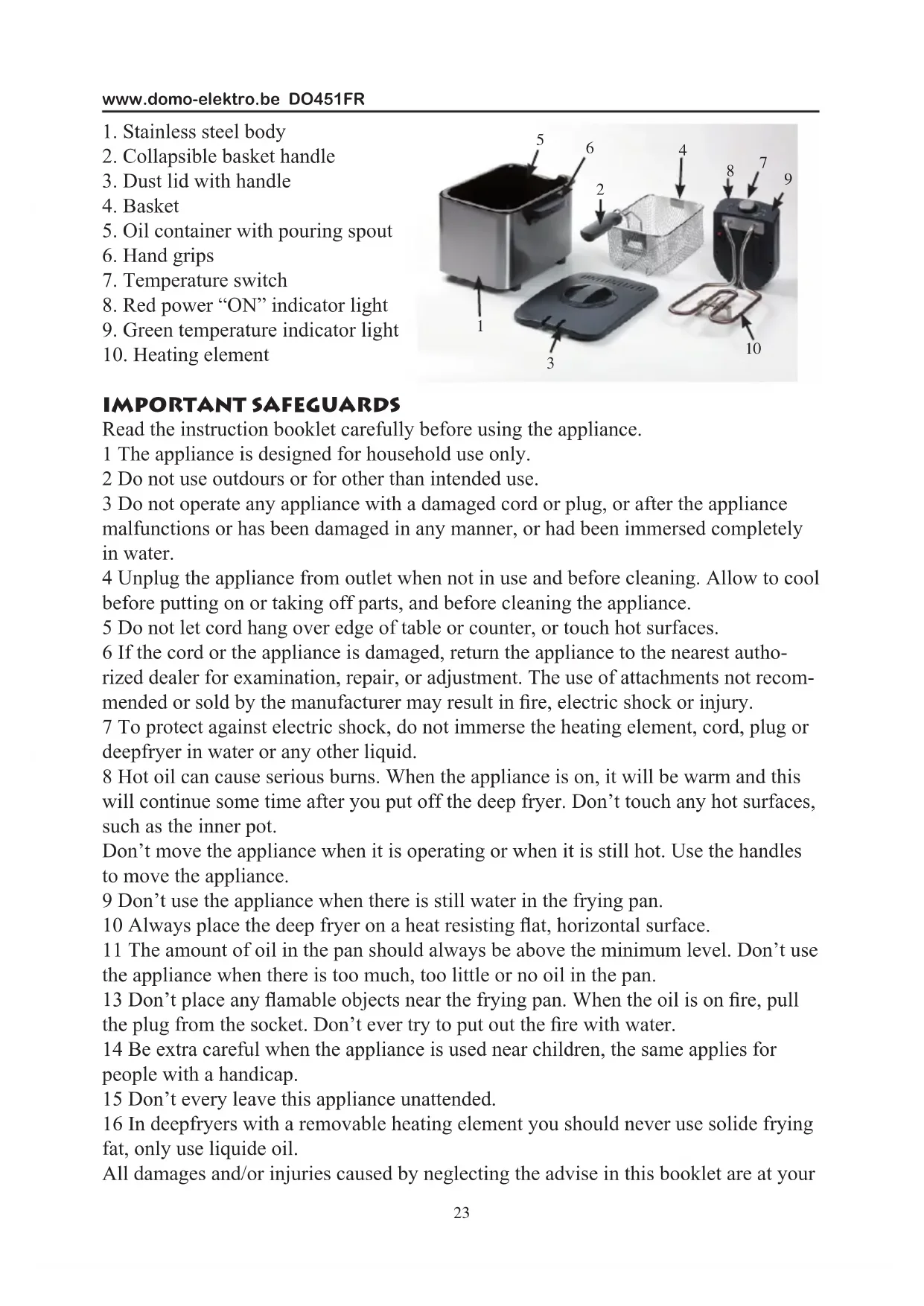

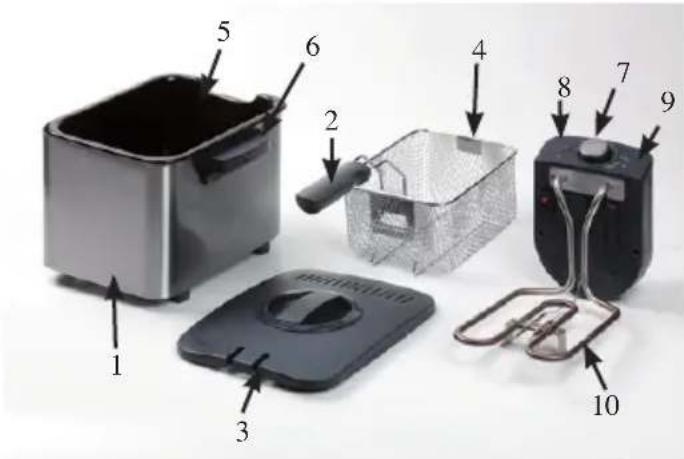

1. Stainless steel body

3. Dust lid with handle

5. Oil container with pouring spout

IMPORTANT SAFEGUARDS Read the instruction booklet carefully before using the appliance.

1 The appliance is designed for household use only.

2 Do not use outdours or for other than intended use.

3 Do not operate any appliance with a damaged cord or plug, or after the appliance

malfunctions or has been damaged in any manner, or had been immersed completely

4 Unplug the appliance from outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts, and before cleaning the appliance.

5 Do not let cord hang over edge of table or counter, or touch hot surfaces.

6 If the cord or the appliance is damaged, return the appliance to the nearest autho-

rized dealer for examination, repair, or adjustment. The use of attachments not recom-

mended or sold by the manufacturer may result in re, electric shock or injury.

7 To protect against electric shock, do not immerse the heating element, cord, plug or

deepfryer in water or any other liquid.

8 Hot oil can cause serious burns. When the appliance is on, it will be warm and this

will continue some time after you put off the deep fryer. Don’t touch any hot surfaces,

such as the inner pot.

Don’t move the appliance when it is operating or when it is still hot. Use the handles

to move the appliance.

9 Don’t use the appliance when there is still water in the frying pan.

10 Always place the deep fryer on a heat resisting at, horizontal surface.

11 The amount of oil in the pan should always be above the minimum level. Don’t use

the appliance when there is too much, too little or no oil in the pan.

13 Don’t place any amable objects near the frying pan. When the oil is on re, pull

the plug from the socket. Don’t ever try to put out the re with water.

14 Be extra careful when the appliance is used near children, the same applies for

people with a handicap.

15 Don’t every leave this appliance unattended.

16 In deepfryers with a removable heating element you should never use solide frying

fat, only use liquide oil.

All damages and/or injuries caused by neglecting the advise in this booklet are at your

10DO451FR www.domo-elektro.be

own risk. Not the manufacturer or the importer or supplier can be held responsible.

The appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instructions concerning the use of the appliance

by a person responsible for their safety.

ATTENTION : Never place the lit on the deep fryer, when it is in use.

KEEP THIS INSTRUCTION BOOKLET.

USE OF THE APPLIANCE

1 Remove all packaging materials.

2 Before rst use clean the deep fryer according to the instructions.

3 Place the deep fryer on a horizontal, heat resistant surface.

4 Place the handle in the horizontal position until it clicks.

5 Open the lid and remove the basket.

6 Fill the frying pan with liquide oil, suitable for heating, until the oil level is situated

between the “MIN” and “MAX” level indicated in the frying pan. Don’t ever use the

appliance when there is too much or too little oil in the pan.

7 Place the basket back in the pan.

8 Place the plug in the outlet.(230V~50Hz) The red light will come on.

9 Put the appliance on by turning the temperature switch.

10 Select the desired temperature with the temperature switch. The oil will start to

heat up. The green light will go off when the desired tempeature is reached. The deep

fryer is now ready for use.

When the temperature of the oil gets too low the indication light of the temperature

will light up and go off again when the desired temperature is reached again.

11 Place the food you wish to fry in the basket, place the basket carefully back into the

oil. Only place food into the basket until it is half full, for a better baking result.

Note : to preserve the quality of the oil it is recommended to spice up the food after

12 Remove the basket carefully out of the oil and check if the food is thoroughly

13 Let the food drip out for 10 to 12 seconds.

1 Remove the plug from the outlet.

2 Place the basket back in the frying pan.

4 Wait for the deep fryer to cool down completely before storing it.

CLEANING THE APPLIANCE Unplug the appliance before cleaning it.

24www.domo-elektro.be DO451FR CLEANING OF THE OUTSIDE OF THE APPLIANCE Clean the outside of the deep fryer after every use with a damp cloth, socked in a bit

The control panel cannot be put in water or any other liquide.

CLEANING OF THE INSIDE OF THE APPLIANCE Clean the inside of the deepfryer everytime you change the oil. Clean it as described

below, to keep your deep fryer in optimal condition.

2 Take out the frying basket.

3 Remove the heating element from the pan

4 Pore the oil out of the pan through the spout. Remove the sticking parts with a

The tough spots can be removed with a kitchen sponge, nylon brush or cloth, with

5 The frying basket, lid with lter and frying pan are dishwasher safe.

6 Dry the lid, frying basket and pan thoroughy before placing them back into the deep

MAINTENANCE OF THE APPLIANCE

1 The temperature and the frequence in use are the most important factors for deterio-

ration of the frying fat.

2 For tasteful and healthy frying it is advisable to change the oil regularly. Further-

more will a regular changing of the oil make cleaning of the pot and the basket a lot

3 Some foods such as foods coated with breadcrumbs or spicy foods and meats, can

make the oil deteriorate faster. Change the oil when she gets dark or dirty or starts

smoking or foams abnormally.

4 Change the oil completely, don’t mix old oil with new oil.

5 Regularly ltering the oil will improve the quality of the fried foods, but won’t make

the oil deteriorate slower.

6 Store the frying fat in a cool dark place. When you rarely use your deep fryer,

change the oil every 5 to 6 months.

7 Dispose of the frying oil according to the regulation in your town. Never pore old fat

or oil into the sink or toilet. This can cause blockage of the drainpipe and is not eco-

logically responsible.

RECOMMENDATIONS Deepfrying oil/fat Change after +/-

Arachide oil 8 à 10 beurten

Note : The above mentioned recommendations are for a average family and a normal

CULINARY TIPS PREPARATIONS OF A FEW RECIPES Every heating up of the oil will diminish the quality of the fat. Switch off the deep

fryer after every use. Replace the oil or fat regularly, especially when the fat is dark or

dirty, or when it foams abnormally.

1 Use thick not too new potatoes. Cut them up in slices. Clean the slices under running

water and dry them off.

2 Bake your fries in two times :

• First frying : 150-160°C : 5 tot 10 minutes (depending on the amount)

• Second frying : 175 – 185°C : 2 tot 4 minutes

Let them drip out thoroughly before serving.

1 Frozen foods cool of the oil or fat strongly. Therefore don’t use any large

2 Shake the foods above the sink to remove most of the ice.

3 Place the temperature switch too 190°C. Place the basket slowly into the frying pan,

prevent strong foaming of the oil.

OTHER PREPARATIONS Dish Backing Temperature
