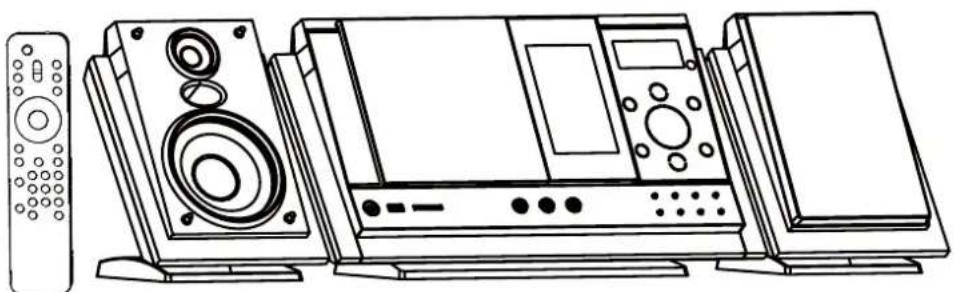

USER MANUAL LCXUM500 Sunstech

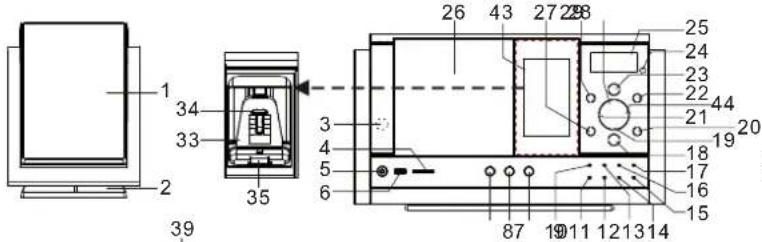

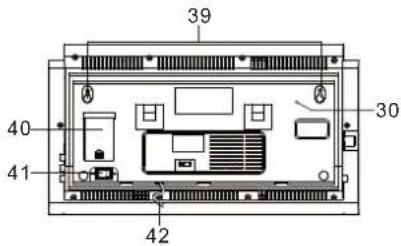

36. SALIDA ALTAVOZ “DCHO.” (R)

CAPTEUR OPTIQUE : FREQUENCE RESPONSE : FM 87.5-108 MHz 3-BEAMLASER 100 Hz-16 kHz www.afexsuns.comINSTRUCTION MANUAL Docking Station with CD/MP3/USB/SD CARD Player, Radio and iPodUK-1 To achieve the utmost in enjoyment and performance, please read this manual carefully before attempting to operate the unit in order to became familiar with its features, and assure you years of faithful, trouble free performance and listening pleasure. Important Notes

• Keep instructions the safety and operating instructions should be retained for future reference.

Avoid installing the unit in locations described below: Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters. On top of other stereo equipment that radiate too much heat. Places lacking ventilation or dusty places. Places subject to constant vibration. Humid or moist places.

• Make sure not to obstruct the ventilation openings.

• Before turning on the power for the first time, make sure the power cord is properly installed.

• Mains plug is used as the disconnect device and it shall remain readily operable completely

• The product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the product.

• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

• To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.

• When the stand-by LED gives no color , the apparatus is completely disconnected from mains.

• Minimum distances10cm around the apparatus for sufficient ventilations.

Attention should be drawn to the environmental aspects of battery disposal.

• The use of apparatus in moderate climates.

• The mains plug should not be obstructed or should be easily accessed during intended use.

• The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-clothes, curtains etc.

• No naked flame sources such as lighted candles should be placed on the apparatus.

Battery shall not be exposed to excessive heat such as sunshine, fire or the like. For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel. Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside, refer all servicing to qualified service personnel. CAUTION : TO REDUCE TH E RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK),NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE Conductor dangerous voltage, that may be of sufficient magnitude to constitute a risk of electric shock to persons is present within this products enclosure.

TTENTION The owners manual contains important operating and maintenance instructions, for your safety, it is necessary to refer to the manual.

WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THI

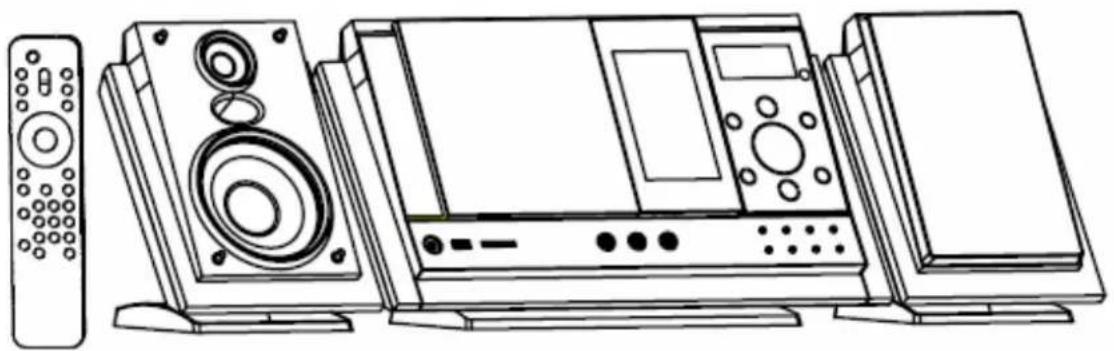

S APPLIANCE TO DRIPPING OR SPLASHING. Note: - This unit will become warm when used for a long period of time. This is normal and does not indicate a problem with the unit. - The CD player includes micro-processors which may malfunction as a result of external electrical interference or noise. If the CD player is not working properly, disconnect the power source and then reconnect it. - Excessive sound pressure from earphones and headphones can cause hearing loss. - If an unusual conditions occurs in the display window or key button, switch the unit off, then turn on the unit again. Assembly Drawing of Unit and speaker

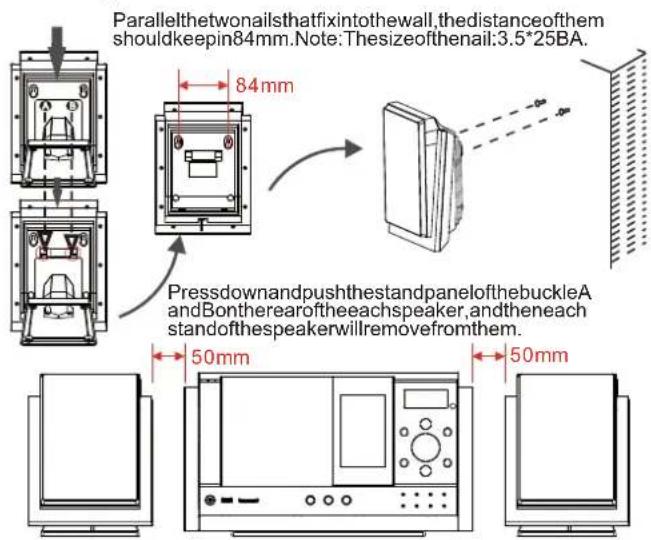

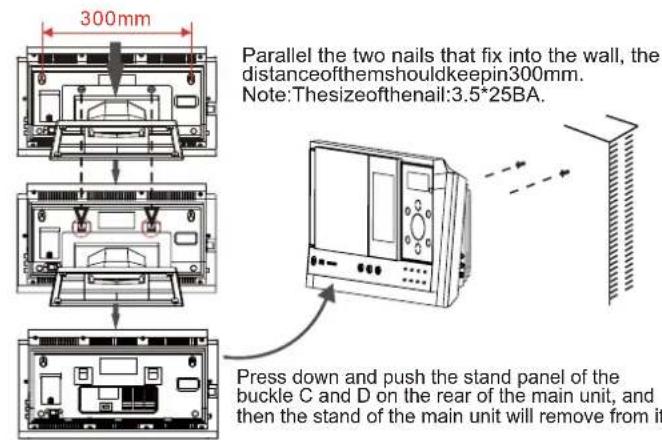

1. Fixing the whole set of the unit on the wall

84 mm Press down and push the stand panel of the buckle A and B on the rear of the each speaker, and then each stand of the speaker will remove from them. Parallel the two nails that fix into the wall, the distance of them should keep in 84mm.Note : The size of the nail : 3.5*25BA. Parallel the two nails that fix into the wall, the distance of them should keep in 300mm. Note : The size of the nail : 3.5*25BA. 300 mm Press down and push the stand panel of the buckle C and D on the rear of the main unit, and then the stand of the main unit will remove from it. Note: When wall-mounting the set of product in line, suggest keeping at least 50mm distance from the main unit to the speakers to achieve better stereo effect and to ensure the slide CD door with prefect movement. 50 mm 50 mm

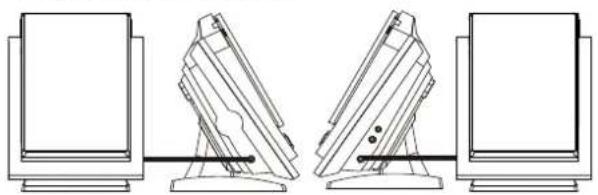

2. Speakers connection

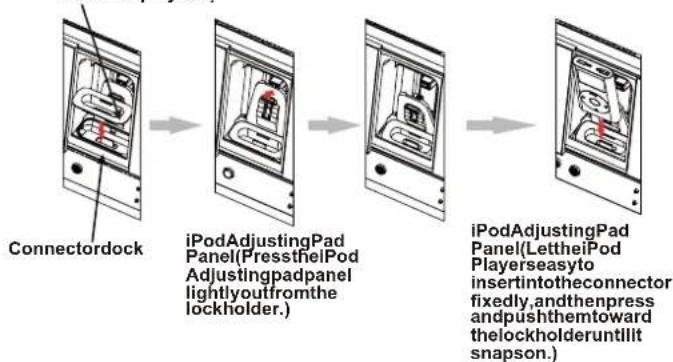

3. Docking bracket and iPod Adjusting pad panel

Universal Dock adapter (Using the Dock Adapters to support all type of the iPod players.) Connector dock iPod Adjusting Pad Panel(Press the iPod Adjusting pad panel lightly out from the lock holder.) iPod Adjusting Pad Panel (Let theiPod Players easy to insert into the connector fixedly, and then press and push them toward the lock holder until it snaps on.)UK-2

Adjust the Adjusting pad Knob at the level 1 to support these iPod Players as belows: Made for iPod with color display (4th generation)40GB, 60GB only iPod(4th generation)40GB onlyiPod with video (5th generation)30GB only iPod classic 80GB iPod classic 2nd generation 120GB Adjust the Adjusting pad Knob at the level 3 to support these iPod Players as belows:Made for iPod nano (1st generation)1GB, 2GB, 4GB onlyiPod touch 8GB/16GB/32GBiPod touch 2nd generation 8GB/16GB/32GB Adjust the Adjusting pad Knob at the level 2 to support these iPod Players as belows: Made for iPod mini (1st generation)4GB, 6GB only (4th generation)20GB onlyU2 Special EditioniPod with color display (4th generation)20GB, 30GB only U2 Special EditioniPod with video(5th generation)60GB,80GB onlyiPod classic 160GB

13.iPod OPEN/CLOSE BUTT

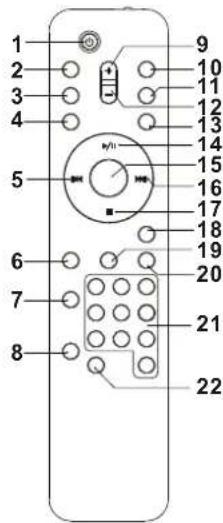

22.REPEAT BUTTON **BATTERIES NOT INCLUDED** PUTTING THE BATTERIES INTO THE REMOTE CONTROL UNIT Press down the compartment cover, and slide the cover off to open the compartment.Place the two (UM4), (AAA), (R03) batteries in the remote control according to the polarity markings ("+" and " - ") inside the compartment and on the batteries. Place the cover over the compartment, press down lightly , and push it upward until it snaps on. Note: Remove the batteries from the remote control if not in use for long period of the time. Do not mix normal batteries with rechargeable batteries, when the batteries become weak, remote control will not function and replace with new batteries.

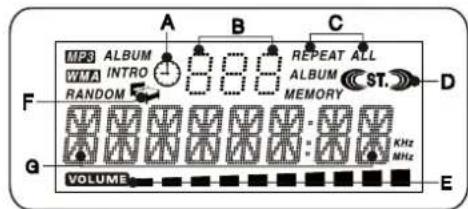

C. REPEAT 1 & ALL INDICATOR

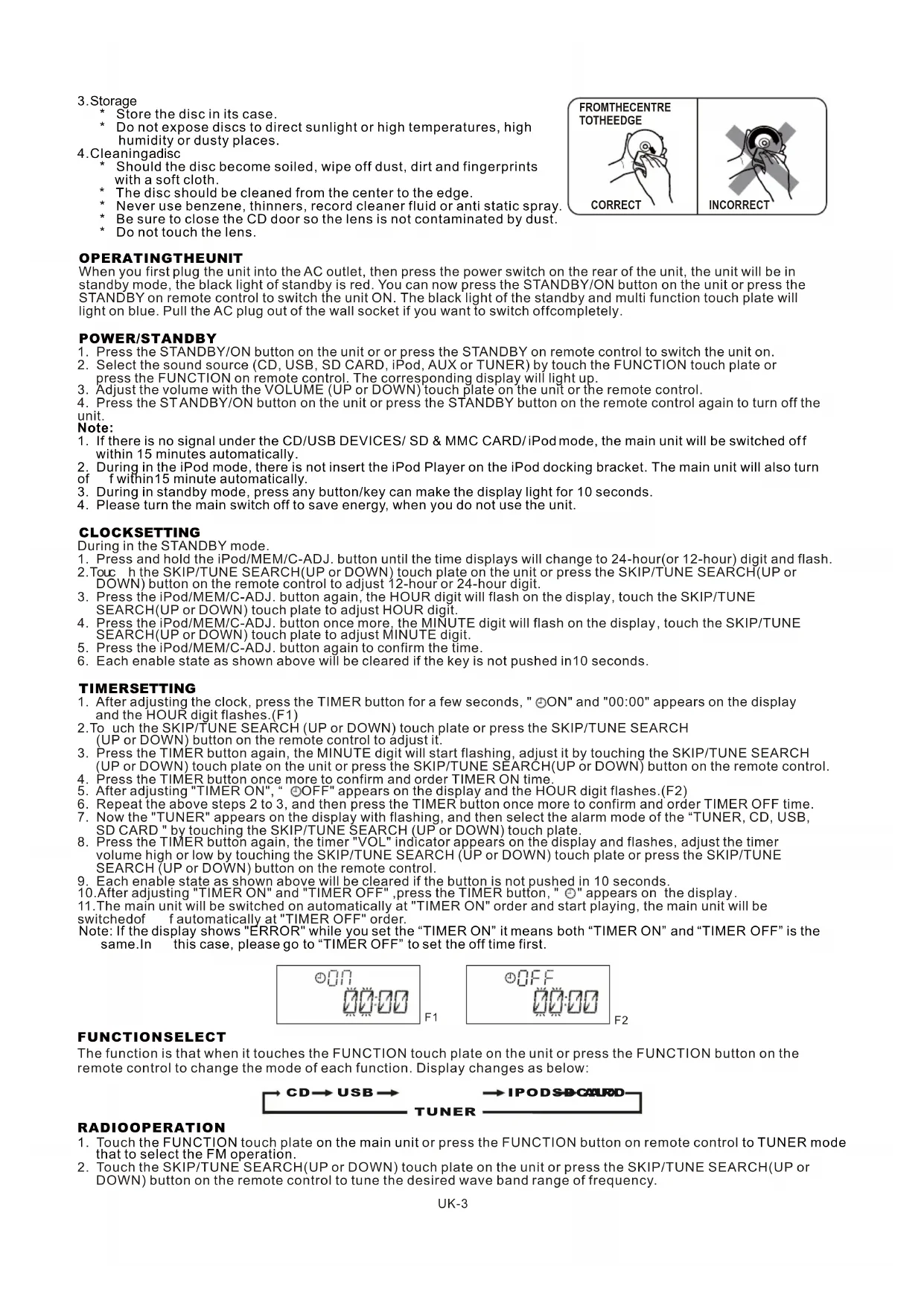

1. Always use a compact discs bearing the mark as shown.

2. Notes on handling discs

Removing the disc from its storage case and loading it.

• Do not touch the reflective recorded surface.

• Do not stick paper or write anything on the surface.

• Store the disc in its case.

• Do not expose discs to direct sunlight or high temperatures, high humidity or dusty places.

• Should the disc become soiled, wipe off dust, dirt and fingerprints with a soft cloth.

• The disc should be cleaned from the center to the edge.

• Never use benzene, thinners, record cleaner fluid or anti static spray.

• Be sure to close the CD door so the lens is not contaminated by dust.

• Do not touch the lens.

POWER/STANDBY iPod CLOCK SETTING TIMER SETTING Note: If the display shows "ERROR" while you set the “TIMER ON” it means both “TIMER ON” and “TIMER OFF” is the same. In this case, please go to “TIMER OFF” to set the off time first. When you first plug the unit into the AC outlet, then press the power switch on the rear of the unit, the unit will be in standby mode, the black light of standby is red. You can now press the STANDBY/ON button on the unit or press the

ANDBY on remote control to switch the unit ON. The black light of the standby and multi function touch plate will light on blue. Pull the AC plug out of the wall socket if you want to switch of f completely.

press the FUNCTION on remote control. The corresponding display will light up.

3. Adjust the volume with the VOLUME (UP or DOWN) touch plate on the unit or the remote control.

ANDBY/ON button on the unit or press the ST ANDBY button on the remote control again to turn off the unit. During in the STANDBY mode.

1. Press and hold the iPod/MEM/C-ADJ. button until the time displays will change to 24-hour(or 12-hour) digit and flash.

5. Press the iPod/MEM/C-ADJ. button again to confirm the time.

6. Each enable state as shown above will be cleared if the key is not pushed in10 seconds.

1. After adjusting the clock, press the TIMER button for a few seconds, " ON" and "00:00" appears on the display

4. Press the TIMER button once more to confirm and order TIMER ON time.

5. After adjusting "TIMER ON", “ OFF" appears on the display and the HOUR digit flashes.(F2)

6. Repeat the above steps 2 to 3, and then press the TIMER button once more to confirm and order TIMER OFF time.

7. Now the "TUNER" appears on the display with flashing, and then select the alarm mode of the “TUNER, CD, USB,

SD CARD " by touching the SKIP/TUNE SEARCH (UP or DOWN) touch plate.

8. Press the TIMER button again, the timer "VOL" indicator appears on the display and flashes, adjust the timer

volume high or low by touching the SKIP/TUNE SEARCH (UP or DOWN) touch plate or press the SKIP/TUNE SEARCH (UP or DOWN) button on the remote control.

9. Each enable state as shown above will be cleared if the button is not pushed in 10 seconds.

10.After adjusting "TIMER ON" and "TIMER OFF" ,press the TIMER button, " " appears on the display

11.The main unit will be switched on automatically at "TIMER ON" order and start playing, the main unit will be switched of f automatically at "TIMER OFF" order. Note:

1. If there is no signal under the CD/USB DEVICES/ SD & MMC CARD/ mode, the main unit will be switched of

within 15 minutes automatically

2. During in the iPod mode, there is not insert the iPod Player on the iPod docking bracket. The main unit will also turn

f within15 minute automatically.

3. During in standby mode, press any button/key can make the display light for 10 seconds.

4. Please turn the main switch off to save energy, when you do not use the unit.

FUNCTION SELECT The function is that when it touches the FUNCTION touch plate on the unit or press the FUNCTION button on the remote control to change the mode of each function. Display changes as below:

that to select the FM operation. Touch touch plate or press the FUNCTION button on remote control

2. Touch the SKIP/TUNE SEARCH(UP or DOWN) touch plate on the unit or press the SKIP/TUNE SEARCH(UP or

DOWN) button on the remote control to tune the desired wave band range of frequency

Manual Tuning To tune for weak stations, use manual tuning by touching the SKIP/TUNE SEARCH(UP or DOWN) touch plate continuously until you read the correct frequency or the reception is at its best. Automatic Tuning

1. Touch the SKIP/TUNE SEARCH(UP or DOWN) touch plate on the unit or press the SKIP/TUNE SEARCH(UP or

DOWN) button on the remote control for a second or more, then release the button. The tuner will automatically search the first station of suf ficient signal strength.

2. Repeat above procedure if you wish to select another station.

Mono/stereo select You can select the MONO/STEREO only in FM mode.

1. When you want to select FM stereo station, press the ID3/MONO/STEREO button. When you receive a FM stereo

station the " " indicator will appear on the display, you can receive FM stereo transmission .

2. When you press the ID3/MONO/STEREO button again, the FM STEREO indicator will turn of

f and switch to MONO FM status. Programming preset stations You can also preset stations of your choice and store up to 30 FM stations in its memory. To store your selected broadcasting stations:

1. Tune to the required station.

2. Press the /MEM/CLOCK-ADJ. button.

3. Press the PRESET/FOLDER (Up or DOWN) button for your desired station number

4. Press the /MEM/CLOCK-ADJ. button again to confirm your selection.

5. To program more stations into memory

, repeat the above steps 2 to 4.

6. To change the stored preset stations, repeat the above steps 2 to 4.

Note: 1. Storing a new station into a preset location will erase the previously stored station in that location.

f will not erase the memory of preset stations. Perform the stations presetting procedures again to store the stations. Selecting the Preset Stations

1. Press the PRESET/FOLDER (UP or DOWN) button to select the desired preset station number.

2. The numeric location of that preset station is displayed along with the corresponding frequency.

FM Antenna FM antenna wire is for better FM reception. Listening To Compact Disc (CD/MP3/WMA)

1. If you want to enjoy CD/MP3, press the CD OPEN/CLOSE button once on the unit first, and then the CD door will

open automatically.(F3)

2. Insert the CD/MP3 disc into the CD compartment, press the CD OPEN/CLOSE button again, and then the CD door

will close automatically.

3. Touch the FUNCTION touch plate on the unit or press the FUNCTION button on the remote control is select to

CD/MP3 mode. The unit will read the CD/MP3/WMA disc automatically. Note: (1) This unit can play CD, CD-R, CD-R W, MP3 and WMA discs.

(2) It can read " 8 cm " and " Multi Section " of MP3 DISC. (3) The "Playback Transfer Rate" in MP3 and WMA. a. In MP3, transfer bit rate : 8 - 256 kbps. b. In WMA, transfer bit rate : 8 - 192 kbps. (4) The "Max Readable 99 folders and 999 tracks". (5) If no disc or can`t read TO C, NO DISC will be displayed.(F4) Playing The Entire CD/MP3/WMA - CD

1. Insert the CD disc into the CD compartment, the main unit will automatically read the

total number of the folders and tracks at the same time.

PLA Y/PAUSE/ENTER button on the remote control once again, the time elapsed indicator will flash and pause CD playback.(F6)

4. Touch the SKIP/TUNE SEARCH(UP or DOWN) touch plate once to change Track NO.,

Touch and hold the SKIP/TUNE SEARCH (UP or DOWN) touch plate on the unit once or (on the remote control) to skip fast forward or backward of each song.

5. To resume playback, touch the PLA

control once. - MP3/WMA

1. Insert the MP3/WMA disc into the CD compartment, the main unit will automatically

read the total number of the folders and tracks at the same time.

2. Touch the PLAY/PAUSE/ENTER touch plate on the unit or press the PLAY/PAUSE

/ENTER button on the remote control, the unit will play the first track of the CD disc automatically .(F7)

3. Touch the PLAY/PAUSE/ENTER touch plate on the unit or press the PLAY/PAUSE

/ENTER button on the remote control once again, the time elapsed indicator will flash and pause CD playback.(F8) iPod iPod

During in the STANDBY mode

1. Insert the USB DEVICE or SD/MMC CARD, and then press the STANDBY button on

the main unit (or remote control) to power"ON" the unit.

2. Touch the FUNCTION touch plate on the main unit (or remote control) to select the

USB or SD/MMC mode. The main unit will tomatically read the total number of the folders and tracks at the same time. (F9)

3. If the USB memory device more than one folder.

a. Press the PRESET/FOLDER (UP or DOWN) button to select each folder. b. T ouch the SKIP/TUNE SEARCH(UP or DOWN) touch plate to select current track in desired folder.

4. If the MP3 and WMA are written in "ID3".

a. During the unit in the MP3 or WMA playing. Press the ID3/MONO/STEREO button once. The display will shows a "ID3 ON", and then it will automatically to search more than 64 letters of "TITLE NAME", "AR TIST NAME" or " ALBUM NAME" which move from the right corner to the left corner on the display continuously. b. Press the ID3/MONO/STEREO button once again. The display will shows a "ID3 OFF", and then the main unit will play normally

Note: 1. The main unit can play MP3 and WMA only in this mode.

2. This unit can support most of USB devices and SD/MMC/SDHC cards. The memory capacity up-to 32GB. It can

not access (or access a longer time) the memory capacity over 32GB. Otherwise, make an others to access it.

3. It can support USB version 1.1 and 2.0.

4. Not support all kinds of “ dual voltage-MMC” card nor “MMC-Plus” card.

5. The main unit does not support the WMA file which is protected “DRM FILE”.

Playing The Entire flash disc

1. Playback will start by touching the PLAY/PAUSE/ENTER touch plate on the unit or

press the PLAY/PAUSE/ENTER button on the remote control . Playback starts with the first track. The display shows the current track number and its elapsed time.(F10)

OP/MENU button. In any time, the USB DEVICE or SD CARD must be fixed well under in the

ANDBY mode to avoid the main unit and USB DEVICE or SD CARD were damaged. - CD

1. Touch the REPEAT touch plate on the unit or press the REPEAT button on the remote

control once, “REPEA T" is displayed. CD will play the current track repeatedly.(F12)

ouch the REPEAT touch plate on the unit or press the REPEAT button on the remote control twice, "REPEAT ALL" is displayed. CD will play all tracks repeatedly .(F13)

3. Touch the REPEAT touch plate on the unit or press the REPEAT button on the remote

control once more again, REPEAT function will be of

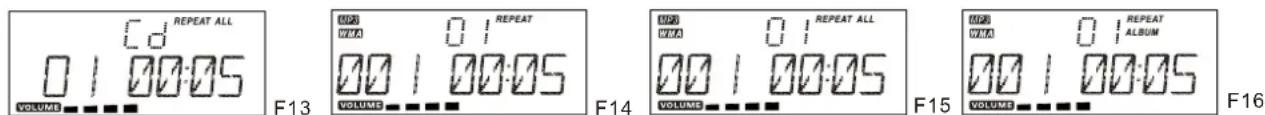

1. Touch the REPEAT touch plate on the unit or press the REPEAT button on the remote control once, then"REPEAT”

is displayed. It will play the current track repeatedly.(F14)

2. To uc h the REPEAT touch plate on the unit or press the REPEAT button on the remote control twice, "REPEAT ALL"

is displayed. It will play all tracks repeatedly.(F15)

3. Touch the REPEAT touch plate on the unit or press the REPEA

T button on the remote control thrice, “REPEAT ALBUM" is displayed. It will play all tracks in the current folder repeatedly .(F16)

ouch the REPEAT touch plate on the unit or press the REPEAT button on the remote control once more again, then REPEAT function will be off. Note : Note:

1. Press the ID3/MONO/STEREO button on th unit (or remote control) once to open the ID3 function.

2. If the MP3/WMA file is write in “ID3” it will automatically to search the information of “TITLE NAME”, “ARTIST

NAME”and “ALBUM NAME” indicated on the display .

3. Press the ID3/MONO/STEREO button on the on th unit (or remote control) again. Then the unit will resume to play

5. To resume playback, touch the PLA

OP/MENU touch plate once on the unit (or remote control). Note: If the main unit is not working properly , disconnect the power source and then reconnect it again. F13 F14 F15 F16UK-6 F22 F23 F20 F21 Note: To avoid damage the iPod, please make sure the iPod in standby mode to insert and take out. During the unit in STANDBY mode:

2. Insert the iPod players in the iPod docking bracket on the front of the main unit fixedly.

3. Power on the main unit, and then

to the iPod mode, the iPod indicator will appear on the main unit display . (F22) During the unit in iPod mode:

1. the PLAY/PAUSE/ENTER (only ) PLAY/PAUSE/ENTER

once to start the iPod playing. Adjust the volume control by touch the o stop the current playing, t the ST OP/MENU(only in iPod ) once.

2. the PLAY/PAUSE/ENTER (only in iPod) once to pause the current track. To resume the playback,

the PLAY/PAUSE/ENTER (only in iPod) once again.

3. To skip forwards or backwards, t the (UP or DOWN) to select the desired

ouch the REPEAT touch plate or press the RANDOM button on the unit (or on the remote control). Note: During the unit in iPod MENU mode:

1. During the unit in iPod mode, press the iPod/MEM/CLOCK-ADJ. button once, the unit

OP/MENU (only in iPod) touch plate return to the iPod menu. a. To select the current menu as belows : Music > Extras > Photo Import (without this function display on the iPod Mini) > Settings > Shuf fle Songs > Backlight > Now Playing will shows on the iPod Player display. b. the (UP or DOWN) touch plate on the unit (or remote control) to search the current menu.

1. Press the RANDOM button on the unit (or remote control), then RANDOM is

2. Press the RANDOM button again, then the audio device unit will resume to normally

play. INTRO PLAY(on the remote control)

1. Press the INTRO button on the remote control, INTRO is displayed. INTRO will play

the first 10 seconds of each track.(F21)

2. Press the INTRO button twice, then the audio device unit will resume to normally play

User can make the program up to 32 tracks in CD mode or 64 tracks in MP3/WMA/USB/SD CARD mode in any desired order. Program mode is activated while in stop mode.

1. How to play the program

3) Press the iPod/MEM/C-ADJ. button to confirm the track number

1) Press the iPod/MEM/C-ADJ. button, shift to MEMORY mode. The album number is

2) Press the PRESET/FOLDER button on the unit or on the remote control , the album

number will be changed.

3) Press the iPod/MEM/C-ADJ. button, the first track number will be displayed.(F19)

5) Press the iPod/MEM/C-ADJ. button to confirm the favorite track number

Touch the PLA Y/PAUSE/ENTER touch plate on the unit or press the PLAY/PAUSE/ENTER button on remote control. The unit will play the first track of the program. When all tracks have been played, the unit display will be shows the number of tracks and the playing time of the CD/MP3 songs.

OP/MENU touch plate on the unit or press the STOP/MENU button on remote control once, or open the CD tray door and close it again that the memory will be erased.

Set a new program, the existing one will be cleared. Note : During in the program mode.

ouch the REPEAT touch plate on the unit or press the REPEAT button on the remote control once, the "REPEAT" indicator will light on the display. Then the unit will repeat the current track.

2. Touch the REPEAT touch plate on the unit or press the REPEAT button on the remote control twice, the "REPEAT

ALL" will light on the display. Then the unit will repeat all the total number of tracks.

ouch the REPEAT touch plate on the unit or press the REPEAT button on the remote control once more again. The unit will return to play the program in normally.UK-7 EQ CONTROL EQ shows the present sound tone. When you touch the EQ touch plate or press the EQ button on the remote control, the sound tone changes as below: MUTE SETTING

2. Press the MUTE button on the unit or on the remote control again, the volume level

and the audio output will return to normal. F24 LISTEN TO THE MUSIC BY USING HEADPHONE A stereo headphone jack is provided for private listening. To listen to the unit with headphones (not included ) insert the 3.5mm mini-stereo plug from the headphones into the PHONES jack on the front panel. The external speakers are automatically disconnected when headphones are using. SPECIFICA TION POWER SUPPLY : 230V~50Hz OUTPUT POWER : 10 Watts x 2 UNIT DIMENSION : 400 (W) x 154 (D) x 21 1 (H) mm SPEAKER BOX DIMENSION : 160 (W) x 154 (D) x 211 (H) mm N. W. :

THER NOTICE. Ventilation warning : " The normal ventilation of the product shall not be impeded for intended use."

To insert 1.5V x 3, UM-4, AAA or equivalent batteries in the battery compartment of the unit. It is used to back-up the memory of the main CPU.

e PLAY/PAUSE/ENTER (only in iPod) touc h plat e ente r to the desired menu folder. a. th e (UP or DOWN) touch plate on th e unit (or remote cont rol) to search the current content in the each desired menu folder. b. If you want return to the iP od menu , t the STO P/ MENU (only in iPod) touch plate again.

4. To resu me playback, press the iPod/MEM/CLOCK-ADJ. button once again, the unit will return to iP od mode.

Ch arging the iPod Player battery through the main unit:

1. iPod Player has a internal nonremovable battery, the battery may need to be ch

arged that is not used for a wh il e.

2. You can charge the iPod Player through the main unit automatically under the STANDBY or POWER ON mode.

No te : 1. The iPod Player battery is 80-percent charged in about an hour, and fully charged in about a few hours. If yo

charge it while playing music, it may take longer.

2. It is not better to charge under the TUNER mode. It may interfere the reception.

1. In any time, you can control the iPod player on th

e main unit, remote co ntrol or iPod player itself while the unit in the "iPod" or "iPod MENU" mode.

2. In any time, the iPod player must be fixed well under in the STANDBY mode to avoid the unit and iPod player were

ring the unit in iPod mode. The vi de o func tion of the iPod with ahnormal working normally. Update the latest version of the iPod video function from the apple web-site. VIDEO OUT SETTING (for i-Pod Video only)

1. During the unit in the STANDBY mode : Connect the TV set with a videos ca

ble (RCA-type cables) to the VIDEO out jack on the rear of th e unit.

2. During the unit in the iPod mode : Press the "MENU" button on the iPod Click Wheel to set the video function.

od to display videos on a TV : (a) Choose Videos > Video Settings, and then set TV Out to As k or On. (b) If you set TV Out to As k, iPod gives you the option of showing videos on TV or on iPod while ev er y time you play a video. No te :1. The Vedio mode only support that the iPod players have a vedio function.

2. iPod classic 80/160GB, iPod nano 3rd generation(Video) 4/8GB and iPod touch 8/16GB should be fixed well

de r in the STANDB Y mode before operation of the Vedio function.

3. Vedio cable (RCA-type cable) not included.

mo te control, until the" AU

indicator light on the display. This unit can input analog audio through the AUX(LINE) IN jack on the right of the unit .

2. Use a cable with RCA jack to connect external audio source.

No te: Aux in cable not included.

TO SET SLEEP FUNCTION

u want to fall asleep to musi c, pres s the SLEE P button on the unit or on the remote control.

2. You may select the TUNER, CD/MP3, USB, SD/MMC, iPod or AUX mode in sleep function to play from 90, 80, 70

17. Preset / folder-up knop

under in the STANDBY mode before operation of the Vedio function.
