USER MANUAL RS 110 II SENNHEISER

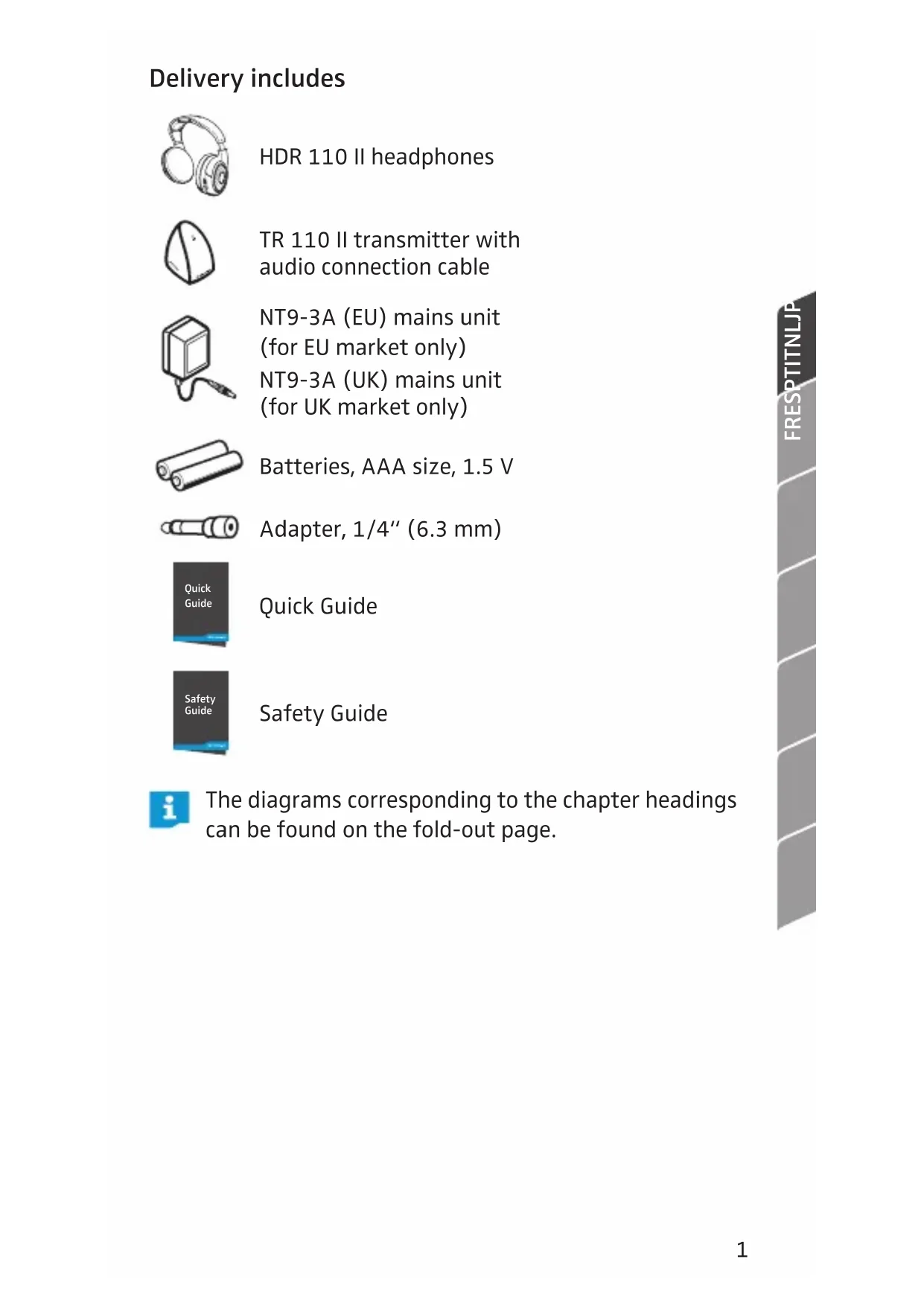

HDR 110 II headphones

TR 110 II transmitter with audio connection cable

NT9-3A (EU) mains unit (for EU market only)

NT9-3A (UK) mains unit (for UK market only)

Batteries, AAA size, 1.5 V

Adapter, 1 / 4'' (6.3 mm)

Quick Guide

Safety Guide

The diagrams corresponding to the chapter headings can be found on the fold-out page.

Preparing the transmitter for use

The transmitter is prepared for wall mounting (recess at the rear of the transmitter). The required mounting material (screws and plugs) is not included in the delivery.

1 Connecting the transmitter to an audio output of your audio source

Choose a suitable place near your audio source (e.g. TV, stereo or home cinema system). Avoid placing the transmitter close to metal objects such as shelf bars, reinforced concrete walls, etc. as this can decrease the transmitter's range.

Connect the transmitter's audio connection cable:

• either directly to the headphone socket or
• to the 1 / 4'' (6.3 mm) adapter and a corresponding headphone socket.
• Set the volume for the headphone output of your audio source to a medium level. If the headphone output volume is set too low, the transmitter automatically switches off.

Some TVs have a function that mutes the TV loudspeakers when you connect a transmitter. If necessary, change this setting via the operating menu of your TV.

Connecting the transmitter to the mains

• Connect the mains unit to the socket at the rear of the transmitter. Plug the mains unit into a wall socket. The transmitter switches on and the ON/OFF LED lights up green.

Preparing the headphones for use

2 Opening the battery compartments

Turn the ear pads in the direction of the arrow until you overcome a slight resistance and lift them off the ear cups.

3 Inserting and replacing the batteries

Insert the supplied batteries. Secure the ear pads to the ear cups.

Using the RS headphone system

Switching on the audio source

• Switch on the audio source. The transmitter automatically switches on and off together with the audio source. The ON/OFF LED lights up green.

Switching on the headphones/adjusting the volume

First, set the volume on the headphones to a low level.
Switch on the headphones and set the volume to the desired level.
Switch off the headphones after use to save battery power.

6 Optimizing the reception

Adjust the receiver channel with the TUNE control on the headphones.

However, if reception is subject to interference:

Change the transmission channel by setting the switch at the bottom of the transmitter to another position and re-adjust the receiver channel with the TUNE control on the headphones. Some electronic devices (e.g. televisions) can cause interference to your wireless headphone system. If this happens, increase the distance between the transmitter and the interference source.

Specifications and Frequently Asked Questions (FAQs)

Visit our website at www.sennheiser.com.

Manufacturer declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.

For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.

In compliance with the essential requirements and other relevant provisions of the following Directives:

WEEE Directive (2012/19/EU)

Please dispose of this product by taking it to your local collection point or recycling center for such equipment.

• Battery Directive (2006/66/EC)

Please dispose of the batteries as special waste or return them to your specialist dealer. In order to protect the environment, only dispose of exhausted batteries.

CE Declaration of Conformity

RoHS Directive (2011/65/EU)
R&TTE Directive (1999/5/EC)
EMC Directive (2004/108/EC)
Low Voltage Directive (2006/95/EC)
EuP Directive (2005/32/EC)

The CE Declaration of Conformity is available on our website at www.sennheiser.com. Before putting the product into operation, please observe the respective country specific regulations.

In compliance with:

Europe/UK

C∈0682

Contenu

Casque HDR 110 II

• Directive RoHS (2011/65/UE)
• Directive R&TTE (1999/5/CE)
• Directive CEM (2004/108/CE)
• Directive Basse Tension (2006/95/CE)
• Directive EuP (2005/32/CE)

Dados技术和e Frequently Asked Questions (FAQs)

Visit o quello site na Internet: www.sennheiser.com.

• Directive RoHS (2011/65/EU)
• Directa R&TTE (1999/5/CE)
• Directa CEM (2004/108/CE)
• Directa Baixa tensao (2006/95/CE)
• Directive EuP (2005/32/CE)

Dati tecnici e Frequently Asked Questions (FAQs)

Voedingsadapter NT9-3A (UK)

Am Labor 1, 30900 Wedemark, Germany

www.sennheiser.com

Printed in China, Publ. 10/15, 545190/A03
