USER MANUAL MQ955PX SIEMENS

Operating instructions

HnctpyKuaI NO 3KcnpJyaTaauN

puiy

SIEMENS

1 Päckchen Backpulver

60 ml Milch

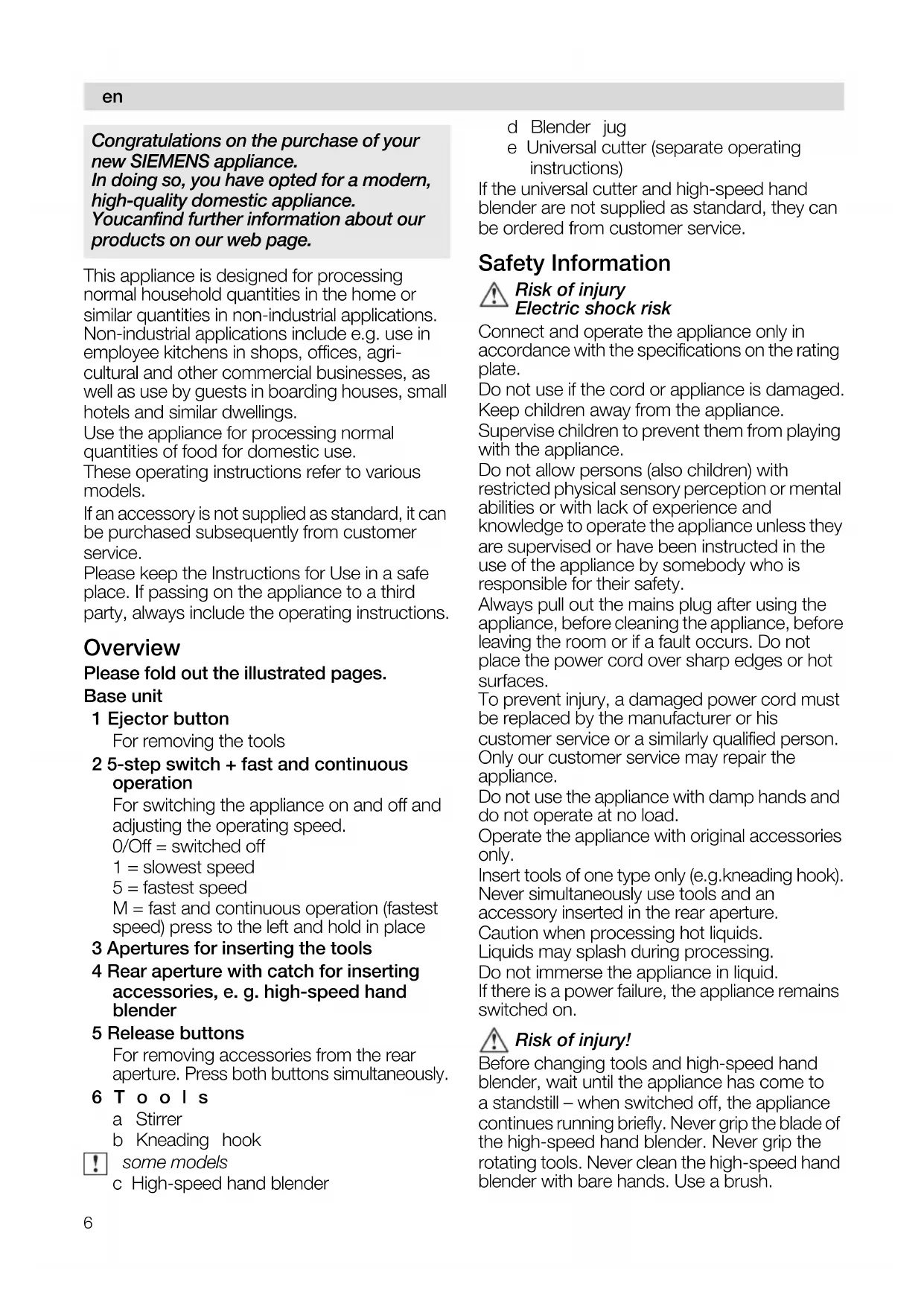

Congratulations on the purchase of your new SIEMENS appliance. In doing so, you have opted for a modern high-quality domestic appliance. You can find further information about our products on our web page.

This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications. Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.

Use the appliance for processing normal quantities of food for domestic use.

These operating instructions refer to various models.

If an accessory is not supplied as standard, it can be purchased subsequently from customer service.

Please keep the Instructions for Use in a safe place. If passing on the appliance to a third party, always include the operating instructions.

Overview

Please fold out the illustrated pages.

Base unit

1 Ejector button

For removing the tools

2 5-step switch + fast and continuous operation

For switching the appliance on and off and adjusting the operating speed.

0/Off = switched off

1 = slowest speed

5 = fastest speed

M = fast and continuous operation (fastest speed) press to the left and hold in place

3 Apertures for inserting the tools

4 Rear aperture with catch for inserting accessories, e. g. high-speed hand blender

5 Release buttons

For removing accessories from the rear aperture. Press both buttons simultaneously.

6 Tools

a Stirrer

b Kneading hook

some models

c High-speed hand blender

d Blender jug
e Universal cutter (separate operating instructions)

If the universal cutter and high-speed hand blender are not supplied as standard, they can be ordered from customer service.

Safety Information

Risk of injury Electric shock risk

Connect and operate the appliance only in accordance with the specifications on the rating plate.

Do not use if the cord or appliance is damaged.

Keep children away from the appliance.

Supervise children to prevent them from playing with the appliance.

Do not allow persons (also children) with restricted physical sensory perception or mental abilities or with lack of experience and knowledge to operate the appliance unless they are supervised or have been instructed in the use of the appliance by somebody who is responsible for their safety.

Always pull out the mains plug after using the appliance, before cleaning the appliance, before leaving the room or if a fault occurs. Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person. Only our customer service may repair the appliance.

Do not use the appliance with damp hands and do not operate at no load.

Operate the appliance with original accessories only.

Insert tools of one type only (e.g.kneading hook). Never simultaneously use tools and an accessory inserted in the rear aperture.

Caution when processing hot liquids.

Liquids may splash during processing.

Do not immerse the appliance in liquid.

If there is a power failure, the appliance remains switched on.

Risk of injury!

Before changing tools and high-speed hand blender, wait until the appliance has come to a standstill - when switched off, the appliance continues running briefly. Never grip the blade of the high-speed hand blender. Never grip the rotating tools. Never clean the high-speed hand blender with bare hands. Use a brush.

Operating the appliance Base unit with tools

Before using the appliance for the first time, clean the appliance and tools.

An especially good result is achieved if the tools are used for the following applications:

Stirrers for ...

... sauces, beaten egg white, mashed potatoes, crème fraîche, mayonnaise, cream and light dough, e. g. cake mixture.

Stirrers are not suitable for processing heavy dough.

Kneading hook for ...

... stiff mixtures such as short pastry, yeast dough and potato dough as well as for mixing heavy mince meat dough, pasta or bread dough.

The maximum processing quantity is 500g of flour and ingredients.

SIEMENS MQ955PX - Kneading hook for ... - 1

Important information

When the rear aperture is open, the appliance can be operated in fast and continuous operation only.

Selector switch 1-5 will not function.

Open and close the catch on the rear aperture only when the switch is in the 0/Off position.

Completely unwind the power cord.
Place the required tool on the base unit and depress until it locks into position.

Note the shape of the plastic parts to prevent mixing them up (seeFig.3)!

Insert the mains plug.
Place the food in a suitable receptacle.
Insert tools into the receptacle and switch on the appliance at the required setting.

Settings 1, 2:

for working in and mixing in.

Settings 3, 4, 5:

for kneading and beating.

After working, set the switch to 0/Off and release and remove the tools with the ejector button.

Attention:

The ejector button cannot be actuated unless the switch is in the 0/Off position.

Note:

Always switch off the base unit before taking it out of the blended food.

some models:

High-speed hand blender

For blending mayonnaises, sauces, soups, mixed drinks, baby food and for crushing ice and cutting cooked fruit and vegetables.

SIEMENS MQ955PX - High-speed hand blender - 1

Important information

When the rear aperture is open, the appliance can be operated in fast and continuous operation only.

Selector switch 1-5 will not function.

Open and close the catch on the rear aperture only when the switch is in the 0/Off position.

Push up the catch on the rear aperture until it locks into position.
Insert the high-speed hand blender and lock into position.
Put ingredients into the blender jug.
Move the switch to the left to fast and continuous operation and hold in place.
After working, remove the high-speed hand blender by simultaneously pressing both release buttons.
Close the catch on the rear aperture.

Note:

To prevent the food from splashing, first immerse the high-speed hand blender into the food, then switch on the appliance.

After using the appliance/cleaning

Warning!

Never immerse the base unit in water and do not clean in the dishwasher.

Do not use a steam cleaner!

Pull out the mains plug.
- Wipe the base unit with a damp cloth and then wipe dry.
- Clean the tools and high-speed hand blender in the dishwasher or with a brush under running water.

Note: If processing e.g. red cabbage, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

The power cord can be wound up to facilitate storage of the appliance (Fig. 7).

Note:

Appliances with spiral cable (Fig. 8):

Never wind the cable around the appliance!

Troubleshooting

Switch cannot be moved to settings 1 to 5.

Remedial action:

When the rear aperture is open, selector switch 1-5 will not function. The catch must be completely closed.

Recipes

Whipped cream

100g-500g

Whip cream with the stirrer for 12 to 2 minutes at setting 5 (depending on the quantity and properties of the cream).

SIEMENS MQ955PX - Whipped cream - 1

Egg white

1-5 egg whites

Using the stirrer, beat egg whites for 2 to 5 minutes at setting 5.

SIEMENS MQ955PX - Egg white - 1

Sponge mixture

Basic recipe

2 eggs

2-3 tbs. hot water

100 g sugar

1 packet of vanilla sugar

70 g flour

70 g cornflour

Baking powder if required

Beat the ingredients (except flour and cornflour) with the stirrer for approx. 3-4 minutes at setting 5 until frothy.
Switch appliance to setting 1, mix sifted flour and cornflour by the spoonful within approx. 12 to 1 minute.

Maximum quantity: 2 × basic recipe

SIEMENS MQ955PX - Basic recipe - 1

Cake mixture

Basic recipe

2 eggs

125 g sugar

1 pinch of salt

1 packet of vanilla sugar or peel from 12 lemon

125 g butter or margarine (room temperature)
250 g flour

1 packet of baking powder

60 ml milk

Mix all ingredients with the stirrer for approx. 12 minute at setting 1, then for approx. 3-4 minutes at setting 5.

Maximum quantity: 2 × basic recipe

SIEMENS MQ955PX - Basic recipe - 1

Short pastry

SIEMENS MQ955PX - Short pastry - 1

Basic recipe

125 g butter (room temperature)

100-125 g sugar

1 egg

1 pinch of salt

A little lemon peel or vanilla sugar

250 g flour

Baking powder if required

Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3-4 minutes at setting 5.

Maximum quantity: 2 × basic recipe

Base for fruit flan

SIEMENS MQ955PX - Base for fruit flan - 1

Basic recipe

2 eggs

125 g sugar

125 g ground hazel nuts

50 g breadcrumbs

Beat eggs and sugar for 3 to 4 minutes at setting 5 until a froth forms.
Switch appliance to Setting 1, add hazel nuts and breadcrumbs and process for 12 minute with the stirrer.

Maximum quantity: 2 × basic recipe

Plaited bun

SIEMENS MQ955PX - Plaited bun - 1

Basic recipe

250 g flour

1 sachets dried yeast

110 ml warm milk

1 egg

1 pinch of salt

40 g sugar

30g melted, cooled fat

Grated rind of half a lemon

Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3-4 minutes at setting 5.

Maximum quantity: 2 x basic recipe

Pizza dough

SIEMENS MQ955PX - Pizza dough - 1

Basic recipe

250 g flour

1 sachets dried yeast

1 tsp. sugar

1 pinch of salt

3 tsb. oil

125 ml warm water

en

Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3-4 minutes at setting 5.

Maximum quantity: 2 × basic recipe

Bread dough

Basic recipe

500 g flour

14 g sugar

14 g margarine

7 g salt

1 sachets dried yeast

250 ml water

Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3-4 minutes at setting 5.

Disposal

SIEMENS MQ955PX - Disposal - 1

This appliance has been identified in accordance with the European directive 2002/96/EG on Waste Electrical and Electronic Equipment - WEEE. The Directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

SIEMENS MQ955PX - Guarantee - 1
