USER MANUAL PS03a SEH

Quick Installation Guide

Illustration of a wireless router device with two ports and a beige casing (no text or symbols visible)

Illustration of an electronic device with ports and a central display (no text or symbols visible)

Line drawing of a desktop computer tower with visible ports and cables (no text or symbols)

Content

en

• Information about a Fast Operational Readiness .....3
- Printing in Windows.... 3
- Printing in Mac OS X 4
• Information about the Assignment of IP Addresses .... 5
• Information about the Print Server Administration ... 6

Information about further printing methods in other operating systems as well as additional information about the print server administration can be found in the User Manual.

Inhalt

Title: Print Server – PS Series

Version: 1.2

Order number: MHAB-QI-IV-SEH

All trademarks, registered trademarks, logos and product names are property of their respective owners.

Keep the documentation for further reference during the life cycle of the product. SEH Computertechnik GmbH has endeavoured to ensure that the information in all manuals is correct. If you detect any inaccuracies please inform us at the address indicated below. SEH Computertechnik GmbH will not accept any liability for any error or omission. The information in this manual is subject to change without notification. All rights are reserved. Copying, other reproduction or translation without the prior written consent from SEH Computertechnik GmbH is prohibited.

Information about a Fast Operational Readiness – Printing in Windows –

Print server and client must be in the same local network segment.

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

1 Read and observe the safety regulations and carry out the hardware installation, see: Hardware Installation Guide.

② Start the Product CD on the Windows client.

3 Select the Print Server – Tools menu.

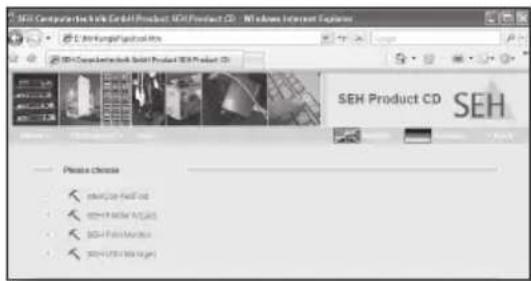

SEH ComputerTech & Inc. GmbH Product SEH Product CD - NT Online Internet Explorer SEH ComputerTech & Inc. GmbH Product SEH Product CD Please choose sehProduct SEH sehProduct SEH sehProduct SEH sehProduct SEH

4 Start the SEH Printer Wizard.

Follow the instructions of the SEH Printer Wizard.

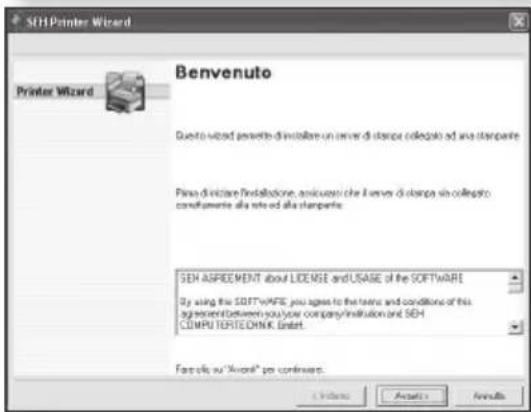

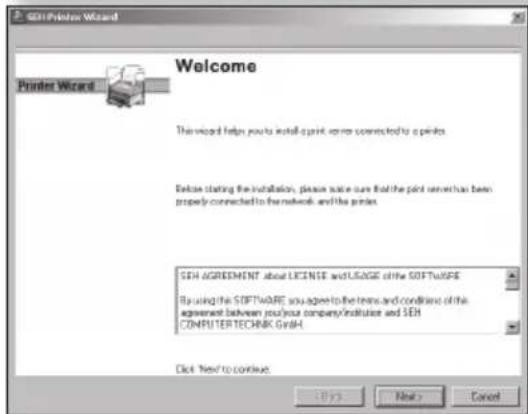

GSI Printer Wizard Welcome Printer Wizard This wizard helps you to install a print error connected to a printer. Before starting the installation, please note sure that the print server has been properly connected to the network and the printer. GEN AGREEMENT about LICENSE and USAGE of the SOFTWARE By using the SOFTWARE, you agree to the terms and conditions of this agreement between you/you company/institute and SEM COMPUTERTECHNIK GmbH. Click Next to continue. OK Next Cancel

The SEH Printer Wizard supports 32-bit systems. If you want to install the print server on a 64-bit system, use the Windows default printer installation. Contact the manufacturer of your operating system for further information.

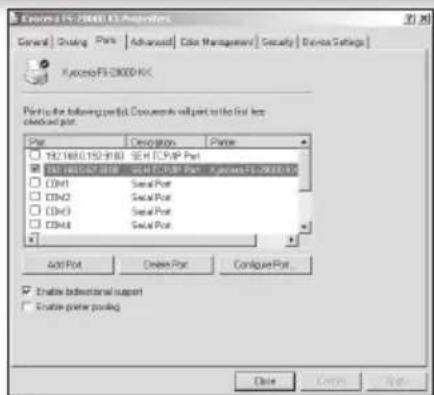

Kycena FS-2000-F3 Properties General | Continuing Port | Advanced | Color Management | Security | Device Settings | Kycena FS-2000-F3 Port to the following port: Documents will part to the final key checked port. Port Design Printer 197.168 (152-318) SEHTCPIP Port CD41100000000000000000000000000000000000000000000000000000000000000000000000000000000 CD41111111111111111111111111111111111111111111111111111111111111111 CD4112222222222222222222222222222222222222222222222 CD413333333333333333333333333333333333333333333333333333333333 CD44444444444444444444444444444444444444444444444 Add Port Cancel Port Configure Port. Enable Directional support Enable prior pooling. Close Cancel Help

Printer and print server will be created on the Windows client and displayed in the Printer Properties dialog. The operational readiness will be established.

Information about a Fast Operational Readiness – Printing in Mac OS X –

Print server and client must be in the same local network segment.

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

1 Read and observe the safety regulations and carry out the hardware installation, see: Hardware Installation Guide.

② Start Print & Fax on the Mac client.

Print & Fax

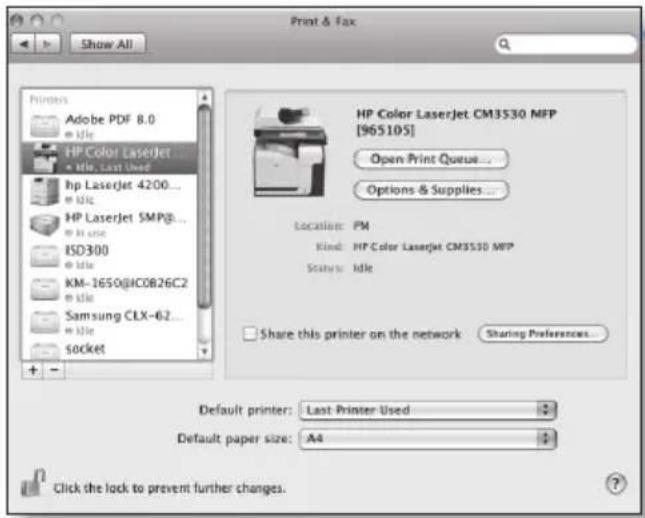

Print & Fax Show All Printers Adobe PDF 8.0 HP Color LaserJet Mile, Last Used hp LaserJet 4200... Mile HP LaserJet SMP@... Mile use ISD300 Mile KM-1650@IC0B26C2 Mile Samsung CLX-62... Mile Socket HP Color LaserJet CM3530 MFP [965105] Open Print Queue... Options & Supplies... Location: PM Kind: HP Color LaserJet CM3530 MFP Status: Idle Share this printer on the network Sharing Preferences... Default printer: Last Printer Used Default paper size: A4 Click the lock to prevent further changes.

3 Click

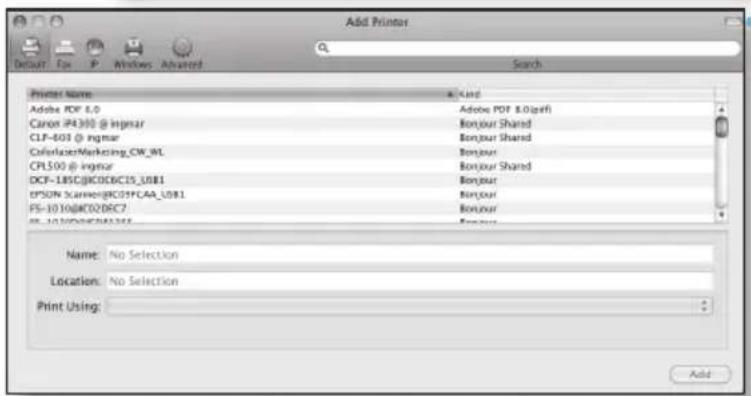

Add Printer Default Fax P Windows Advanced Search Printer Name: Adobe PDF 6.0 Canon iP4300 @ imgmar CLF-603 @ imgmar CoefactorMarketing_CW_9L CPL500 @ imgmar DCF-185C@K006C15_UBI1 EPSUN Scameng@K03FCAA_UBI1 FS-1010@K02DEC7 FL-1010@K02EFAE5 Name: No Selection Location: No Selection Print Using: Add

4 Select the printer/print server from the list.

Define a name, location, and printer driver.

Click Add,

Define the Installable Options (if required).

▶ Printer and print server will be created on the Mac client and displayed in the list. The operational readiness will be established.

SEH print servers are shipped without an IP address. When you install the print server for the first time, the print server checks whether an IP address can be obtained from the boot protocols BOOTP or DHCP. If this is not the case, the print server assigns itself an IP address via ZeroConf from the address range (169.254.0.0/16) which is reserved for ZeroConf. A freely definable IP address can be saved manually in the print server, if necessary.

Automatic Assignment of IP Addresses

ZeroConf/BoYour IntegCon

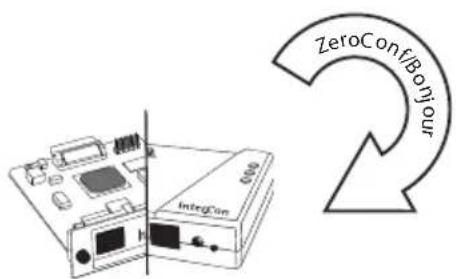

The print server assigns itself an IP address via ZeroConf from the address range 169.254.0.0/16.

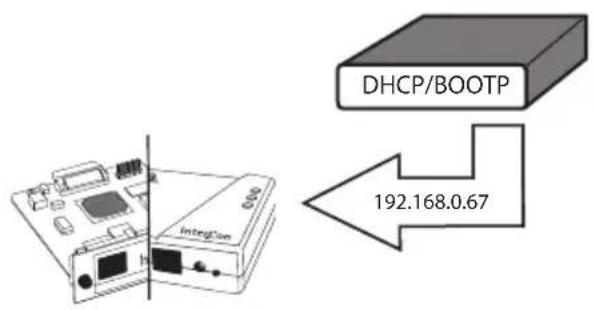

DHCP/BOOTP 192.168.0.67

If the boot protocols have been enabled (factory default setting) and a DHCP server is available in the network, the print server obtains its IP address via the DHCP server.

Displaying the IP Address

192.168.0.67

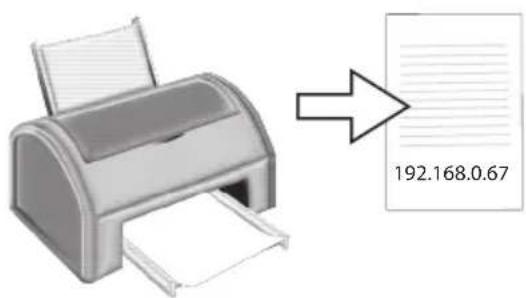

The IP address can be found on the status page of the print server.

To print a status page, press the status button of the print server.

Manual Assignment of IP Addresses

1 Start the Product CD on the client.
2 Select the Print Server – Tools menu.
3 Install the InterCon-NetTool on the client. Start the installation routine.
4 Start the InterCon-NetTool on the client.

5 Mark the print server in the print server list and start the IP Wizard.

6 Follow the instructions of the IP Wizard. Enter the preferred IP address and save it.

Internet Explorer.exe Safari.app Firefox.exe

SEH General • Theme • Theme Status • General • Theme Post • ID(s) • 2nd/2nd • App# • 3rd • 5th Configuration • General • Theme Post • TCRP • Microsoft Windows • 3rd/3rd • App# • DMS INTERCON® Please choose via https://www.elseh.com/ SEH Comparisons GmbH Sending 11 33647 Betefeld, Germany Phone: [phone] Fax: [phone] Support: +09-05/25 84226-29 Focus Guidance Education: http://www.sch-technology.com/solutions/ Support Contacts & Information: http://www.sch-fintech.com/support/ Sales Contacts & Information: http://www.sch-fintech.com/support/ Search: http://www.sch-fintech.com/solutions/ © http://www.seh.com/ © http://www.seh.com/ © http://www.seh.com/ © http://www.seh.com/ © http://www.seh.com/ © http://www.seh.com/ © http://www.seh.com/ © http://www.seh.com/ © http://www.seh.com/ © http://www.seh.com/ © http://www.seh.com/ © http://www.seh.com/ © http://www.seh.com/ © http:/seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://se hina.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/ © http://seh.com/

Administration via the Print Server Homepage

1 Start the browser software on the client.

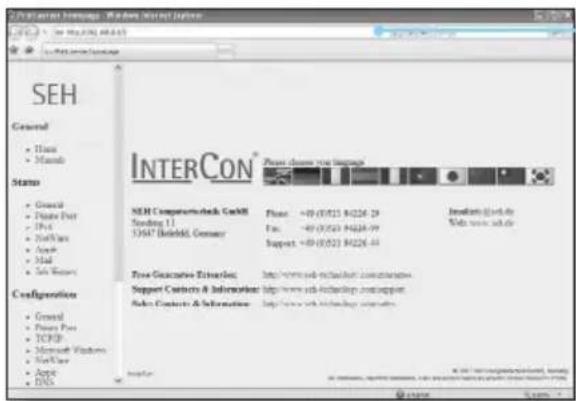

2 Enter the IP address of the print server as URL
3 The Print Server Homepage is displayed. Carry out the desired action.

Illustration of a CD or DVD next to a blank PDF cover (no text or symbols on the object)

InterCon-NetTool.exe

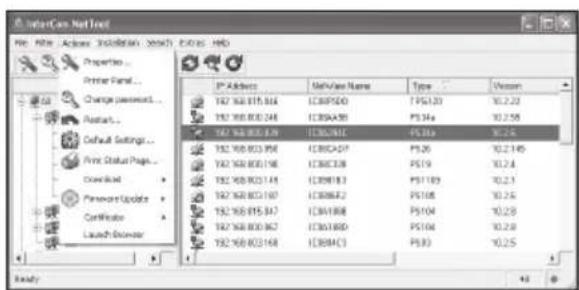

SinaCom Net Font File Edit Access Installation Search Entries Help Properties... Printer Panel... Change passwords... Default Settings... Print Status Page... Download... Password Update... Connector... Launch Browser IP Address NetView Name Type Version 192 100 815.314 ICD9P20 TPS120 10.2.22 192 100 803.248 CD9A9B PS14a 10.2.58 192 100 803.878 ICD6V11 PS13a 10.2.5 192 100 803.956 ICD6A97 PS26 10.2.149 192 100 803.158 CD8C738 PS19 10.2.4 192 100 803.145 ICD9F13 PS1189 10.2.1 192 100 803.150 ICD8M22 PS18 10.2.5 192 100 815.347 ICD4I88 PS104 10.2.8 192 100 803.367 ICD6I86 PS104 10.2.8 192 100 803.168 ICD8A93 PS83 10.2.5 Ready

Administration via the InterCon-NetTool

1 Start the Product CD on the client.
2 Select the Print Server – Tools menu.
③ Install the InterCon-NetTool on the client. Start the installation routine.
4 Start the InterCon-NetTool on the client.
5 Mark the print server in the print server list and carry out the desired action.

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Administration via Printserver Homepage

Illustration of a CD and DVD disc (no text or symbols on the disc itself)

InterCon-NetTool.exe

SolarCare Net Text File Edit Actions Installation Search Options Help Property... Printer Panel... Change password... Instant... Default Settings... Print Status Page... Download... Password Update... Certificate Launch Browser IP Address 192 100.015.344 192 100.003.248 192 100.003.248 192 100.003.248 192 100.003.248 192 100.003.248 192 100.003.248 192 100.003.248 193 100.015.344 193 100.003.248 193 100.003.248 193 100.003.248 193 100.003.248 193 100.003.248 193 100.003.248 193 100.003.248 194 100.015.344 194 100.003.248 194 100.003.248 194 100.003.248 194 100.003.248 194 100.003.248 194 100.003.248 195 100.015.344 195 100.003.248 195 100.003.248 195 100.003.248 195 100.003.248 195 100.015.344 195 100.003.248 195 100.003.248 195 100.003.248 195 100.015.344 195 100.003.248 195 100.003.248 196 100.015.344 196 100.003.248 196 100.003.248 196 100.015.344 196 100.003.248 196 100.015.344 197 100.015.344 197 100.003.248 197 100.015.344 197 100.025 End

Administration via InterCon-NetTool

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

ZeroConf/BoYour Intel/Com

Illustration of a CD and DVD disc (no text or symbols on the disc itself)

InterCon-NetTool.exe

SailCom Net Font File Edit Access Installation Search Exports Help Property... Printer Panel... Change password... Restart... Default Settings... Print Status Page... Download Password Update Certificate Launch Address IP Address 182 300 815 844 182 300 800 244 182 300 800 878 182 300 800 956 182 300 800 198 182 300 800 144 182 300 800 197 182 300 815 847 182 300 800 867 182 300 800 168 MeValue Name ICBPS2D ICBPS4D ICBPS6D ICBPS9D ICBPS12 ICBPS17 ICBPS26 ICBPS36 ICBPS47 ICBPS67 ICBPS98 ICBPS11 ICBPS12 ICBPS13 ICBPS14 ICBPS15 ICBPS16 ICBPS17 ICBPS18 ICBPS19 ICBPS20 ICBPS21 ICBPS22 ICBPS23 ICBPS24 ICBPS25 ICBPS26 ICBPS27 ICBPS28 ICBPS29 ICBPS30 ICBPS31 ICBPS32 ICBPS33 ICBPS34 ICBPS35 ICBPS36 ICBPS37 ICBPS38 ICBPS39 ICBPS40 ICBPS41 ICBPS42 ICBPS43 ICBPS44 ICBPS45 ICBPS46 ICBPS47 ICBPS48 ICBPS49 ICBPS50 ICBPS51 ICBPS52 ICBPS53 ICBPS54 ICBPS55 ICBPS56 ICBPS57 ICBPS58 ICBPS59 ICBPS60 ICBPS61 ICBPS62 ICBPS63 ICBPS64 ICBPS65 ICBPS66 ICBPS67 ICBPS68 ICBPS69 ICBPS70 ICBPS71 ICBPS72 ICBPS73 ICBPS74 ICBPS75 ICBPS76 ICBPS77 ICBPS78 ICBPS79 ICBPS80 ICBPS81 ICBPS82 ICBPS83 ICBPS84 ICBPS85 ICBPS86 ICBPS87 ICBPS88 ICBPS89 ICBPS90 ICBPS91 ICBPS92 ICBPS93 ICBPS94 ICBPS95 ICBPS96 ICBPS97 ICBPS98 ICBPS99 ICBPS100

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Illustration of a CD or DVD next to a flatbed notebook labeled 'Product CD' (no additional text or symbols)

InterCon-NetTool.exe

SwinCare Net Font File Edit Access Installation Search Exclus HD Property... Printer Panel... Change password... Reset... Default Settings... Print Status Page... Download Password Updates Certificate Launch Border Name Address Name Type Version 192 308.015.044 ICD9P200 TP5120 10.2.20 192 308.003.244 CD9A9B PS16 PS17 10.2.25 192 308.003.038 CD9A9L PS18 PS19 10.2.25 192 308.003.056 CD9C4D PS26 10.2.25 192 308.003.018 CD9E2B PS19 10.2.4 192 308.003.014 CD9F1B PS17B PS23 10.2.3 192 308.003.010 CD9GK2 PS18 PS25 10.2.5 192 308.015.047 CD9H8B PS104 10.2.9 192 308.003.067 CD9J8D PS106 10.2.9 192 308.003.068 CD9K4C PS83 10.2.5 Ready: 44 6

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

SEH Company-Check In-SEH Product SEH Product CD - MT values Internet Explorer SEH Company-Check In-SEH Product SEH Product CD SEH Product CD SEH Product Description Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the product Select the products

Proprieta KONICA NMDLTA magulator 2400W Generate Condcine Puts Avanzake Settleze solve About KONICA NMDLTA magulator 2400W Junka change alle seguent ports. I document seawno stampall cullle prime port files selected Ports Descritome Graspante CDM2 Porta module CDM4 Porta module FLE Stampa tube USB Virtual panel port to... Canon MFS790 Series (Kcp. USB Virtual panel port to... Canon MFS790 Series http: SIEH HTTP Port KONICA NMDLTA magulator V5 Local Port Append ports Elevators Confirm ports Ange support folderaside Advanced distances OK Anvuto Apply

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Illustration of a CD and DVD disc (no text or symbols visible)

InterCon-NetTool.exe

EnterCom Net Font File Edit Access Installation Search Entries Help Properties... Printer Panel... Change passwords... Restart... Default Settings... Print Status Page... Download... Password Update... Controller Launch Browser IP Address 182 168.015.344 182 168.003.248 182 168.003.039 182 168.003.056 182 168.003.198 182 168.003.145 182 168.003.197 182 168.015.347 182 168.003.367 182 168.003.168 MeValue Name ICBSPSDD ICBSPA5D ICBSPA5F ICBSPA5G ICBSPA5H ICBSPA5I ICBSPA5J ICBSPA5K ICBSPA5L ICBSPA5M ICBSPA5N ICBSPA5O ICBSPA5P ICBSPA5Q ICBSPA5R ICBSPA5S ICBSPA5T ICBSPA5U ICBSPA5V ICBSPA5W ICBSPA5X ICBSPA5Y ICBSPA5Z ICBSPA5X ICBSPA5Y ICBSPA5Z ICBSPA5X ICBSPA5Y ICBSPA5Z ICBSPA5X ICBSPA5Y ICBSPA5Z ICBSPA5X ICBSPA5Y ICBSPA5Z ICBSPA5X ICBSPA5Y IP Address 182 168.015.344 182 168.003.248 182 168.003.039 182 168.003.039 182 168.003.056 182 168.003.198 182 168.003.145 182 168.003.197 182 168.003.347 182 168.003.367 182 168.003.168 IECSPSDD IFSGI20 PSI34a PSI34b PSI34c PSI34d PSI34e PSI34f PSI34g PSI34h PSI34i PSI34j PSI34k PSI34l PSI34m PSI34n PSI34o PSI34p PSI34q PSI34r PSI34s PSI34z PSI34x PSI34y PSI34z PSI34x PSI34y PSI34z

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Windows F5.20000 (E:\Properties) Search | Sharing | Port | Advanced | Color Management | Security | Server Settings | Kylower F5.20000.12 Port to the following ports: Documents will port to the first line checked port. Port Description Printer 132 100.0 132 0100 SDH TCP/IP Port ENGLISH SYSTEMS - NEW TCP/IP Port Supernet F5.20000.12 COM1 Social Port COM2 Social Port COM3 Social Port COM4 Social Port Add Port... Delete Port... Configure Port... □ Create Directional Support □ Create Prime Hosting Close ...

Hand holding a blank sheet of paper with horizontal lines, no text or symbols visible

Illustration of a CD or DVD next to a blank flatboard labeled 'Product CD' (no additional text or symbols)

InterCon-NetTool.exe

SailCare Net Load File Edit Access Installation Search Options Help Property... Printer Panel... Change password... Abstract... Default Settings... Print Status Page... Download... Password Update... Certificate Launch Browser IP Address 192 308 815 364 192 308 800 244 192 308 800 878 192 308 800 854 192 308 800 198 192 308 800 174 192 308 800 160 192 308 815 347 192 308 800 367 192 308 800 168 MeValue Name ICBSP5D0 ICBSP5A9 ICBSP5U1 ICBSP5P ICBSP5C8 ICBSP5U2 ICBSP5U3 ICBSP5U4 ICBSP5U5 ICBSP5U6 ICBSP5U7 ICBSP5U8 ICBSP5U9 ICBSP5U10 ICBSP5U11 ICBSP5U12 ICBSP5U13 ICBSP5U14 ICBSP5U15 ICBSP5U16 ICBSP5U17 ICBSP5U18 ICBSP5U19 ICBSP5U20 ICBSP5U21 ICBSP5U22 ICBSP5U23 ICBSP5U24 ICBSP5U25 ICBSP5U26 ICBSP5U27 ICBSP5U28 ICBSP5U29 ICBSP5U30 ICBSP5U31 ICBSP5U32 ICBSP5U33 ICBSP5U34 ICBSP5U35 ICBSP5U36 ICBSP5U37 ICBSP5U38 ICBSP5U39 ICBSP5U40 ICBSP5U41 ICBSP5U42 ICBSP5U43 ICBSP5U44 ICBSP5U45 ICBSP5U46 ICBSP5U47 ICBSP5U48 ICBSP5U49 ICBSP5U50 ICBSP5U51 ICBSP5U52 ICBSP5U53 ICBSP5U54 ICBSP5U55 ICBSP5U56 ICBSP5U57 ICBSP5U58 ICBSP5U59 ICBSP5U60 ICBSP5U61 ICBSP5U62 ICBSP5U63 ICBSP5U64 ICBSP5U65 ICBSP5U66 ICBSP5U67 ICBSP5U68 ICBSP5U69 ICBSP5U70 ICBSP5U71 ICBSP5U72 ICBSP5U73 ICBSP5U74 ICBSP5U75 ICBSP5U76 ICBSP5U77 ICBSP5U78 ICBSP5U79 ICBSP5U80 ICBSP5U81 ICBSP5U82 ICBSP5U83 ICBSP5U84 ICBSP5U85 ICBSP5U86 ICBSP5U87 ICBSP5U88 ICBSP5U89 ICBSP5U90 ICBSP5U91 ICBSP5U92 ICBSP5U93 ICBSP5U94 ICBSP5U95 ICBSP5U96 ICBSP5U97 ICBSP5U98 ICBSP5U99 ICBSP5U100
