USER MANUAL LC48950 SIEMENS

installation instructions

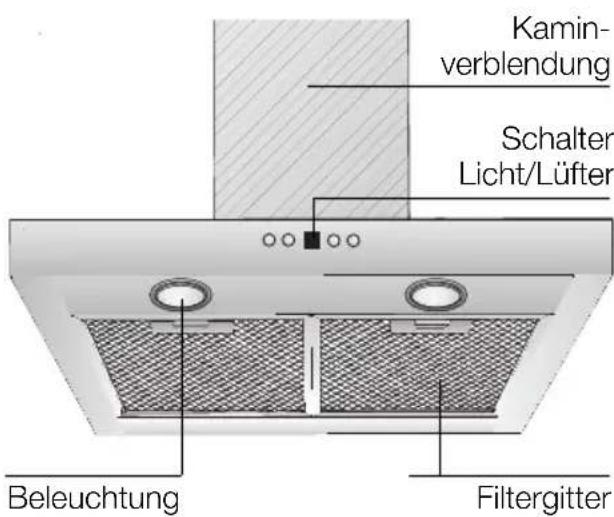

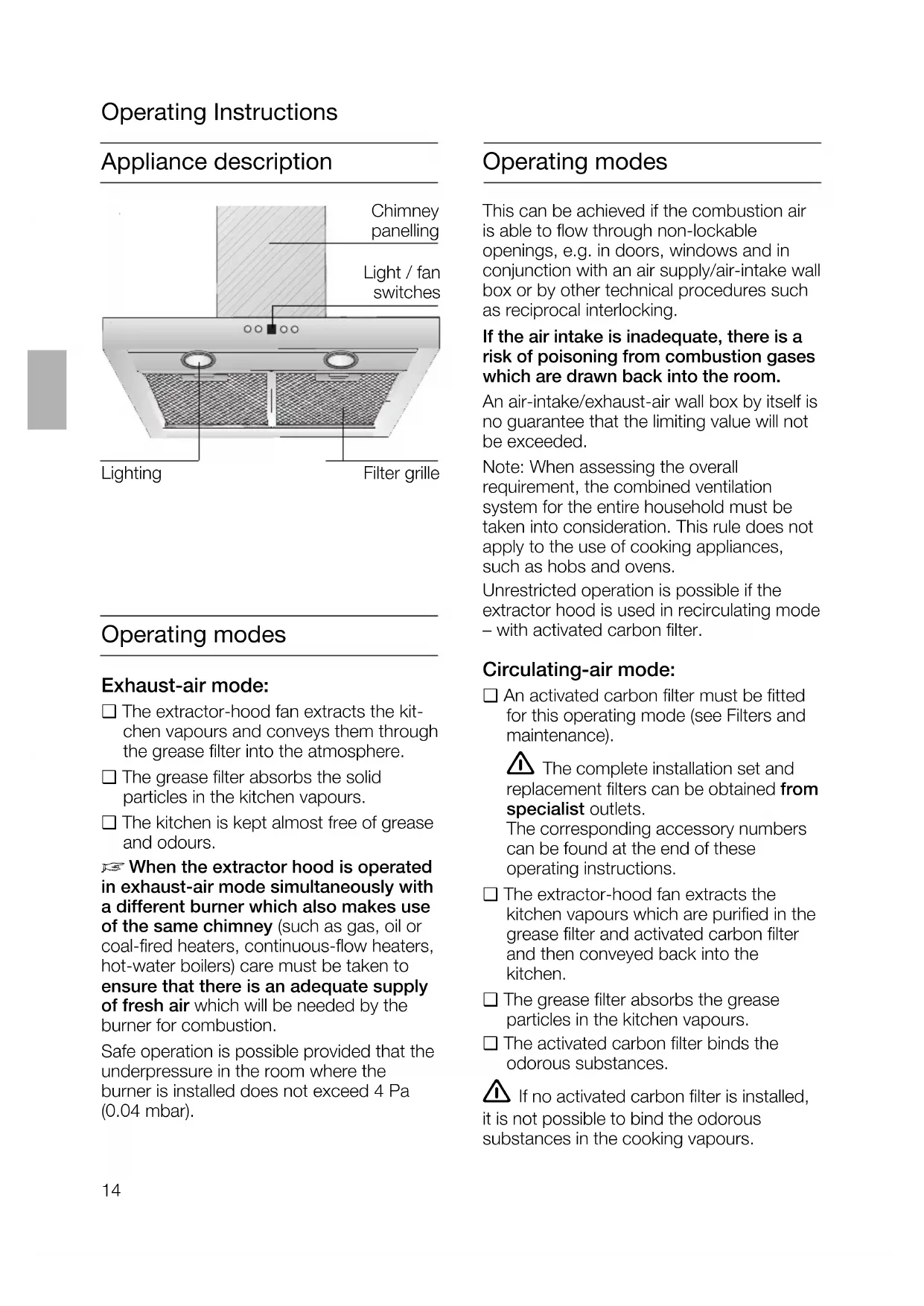

Operating Instructions

❑ The extractor-hood fan extracts the kit-

chen vapours and conveys them through

the grease filter into the atmosphere.

❑ The grease filter absorbs the solid

particles in the kitchen vapours.

❑ The kitchen is kept almost free of grease

D When the extractor hood is operated

in exhaust-air mode simultaneously with

a different burner which also makes use

of the same chimney (such as gas, oil or

coal-fired heaters, continuous-flow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

This can be achieved if the combustion air

is able to flow through non-lockable

openings, e.g. in doors, windows and in

conjunction with an air supply/air-intake wall

box or by other technical procedures such

as reciprocal interlocking.

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is

no guarantee that the limiting value will not

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Unrestricted operation is possible if the

extractor hood is used in recirculating mode

– with activated carbon filter.

Circulating-air mode:

❑ An activated carbon filter must be fitted

for this operating mode (see Filters and

 The complete installation set and

replacement filters can be obtained from

The corresponding accessory numbers

can be found at the end of these

operating instructions.

❑ The extractor-hood fan extracts the

kitchen vapours which are purified in the

grease filter and activated carbon filter

and then conveyed back into the

❑ The grease filter absorbs the grease

particles in the kitchen vapours.

❑ The activated carbon filter binds the

 If no activated carbon filter is installed,

it is not possible to bind the odorous

substances in the cooking vapours.

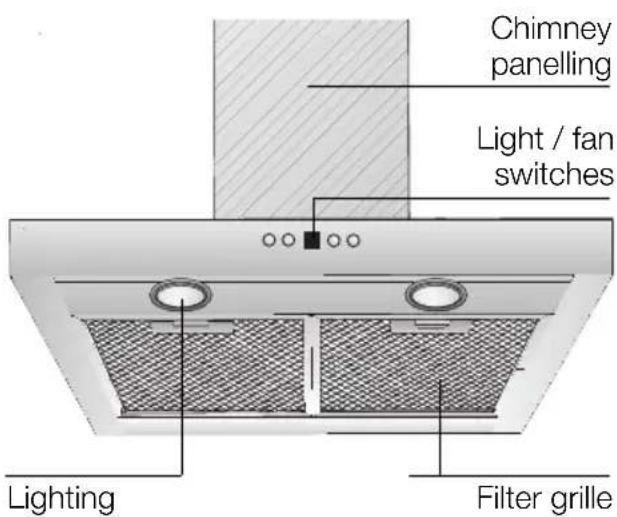

panellingBefore using for the first time

If you encounter a problem If you have any questions or if a faultoccurs, please call Customer Service. (See list of Customer Service representatives).When you call, please quote the following: E-Nr. FD Enter the relevant numbers into the boxabove. The E-Nr. (product no.) and FD(production date) are shown on the nameplate which can be seen inside theextractor hood after the filter frame hasbeen detached.Important notes:❑ The Instructions for Use apply to severalversions of this appliance. Accordingly,you may find descriptions of individualfeatures that do not apply to your specific appliance.❑ This extractor hood complies with all relevant safety regulations.Repairs should be carried out by qualified technicians only.Improper repairs may put the user atconsiderable risk.❑ Before using your appliance for the firsttime, please read these Instructions forUse carefully. They contain importantinformation concerning your personalsafety as well as on use and care of theappliance.❑ Please retain the operating and installation instructions for a subsequentowner.  Do not use the appliance if damaged.

 The appliance may be connected to the mains by a qualified technician only.  The appliance is not intended for use by young children or infirmed persons without supervision.Young children should be supervised toensure they do not play with the appliance.  If the connecting cable for this appliance is damaged, the cable must bereplaced by the manufacturer or his customerservice or a similarly qualified person in orderto prevent serious injury to the user.  Dispose of packaging materials properly (see Installation instructions).  This extractor hood is designed for domestic use only.  Light bulbs must always be fitted when the extractor hood is in use.  Defective bulbs should be replaced immediately to prevent the remaining bulbsfrom overloading.  Never operate the extractor hood without a grease filter.  Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips,etc., never leave the cooker unattended.  Do not flambé food directly under the extractor hood.Risk of grease filter catching fire due ! to flames.

 The hotplates must always be covered with a utensil.  Restrictions apply to the use of the extractor hood over a solid-fuel burner(coal, wood, etc.). (See Installation instructions).Gas hobs / Gas cookers  Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermalload, otherwise there is a risk of burns if thehousing surfaces are touched or a risk ofdamage to the extractor hood. If the extractor hood is situated over a gas hob,operate the hood at maximum setting ifthree or more gas hotplates are operatedsimultaneously. 1516

 The most effective method of removing vapours produced during cooking is to:❑ Switch the ventilator ONas soon as you begin cooking.❑ Switch the ventilator OFFa few minutes after you have finishedcooking. Operating procedure Switching the fan ON❑ Press the + button.Setting the required fan speed:❑ Press the + button.The fan speed is increased by one step.❑ Press the – button.The fan speed is reduced by one step.Switching the fan OFF: ❑ Press the 0 button.

❑ Keep pressing the – button until the fan switches off.Intensive setting:Maximum power is obtained at the intensive setting. It is only required for shortintervals. ❑ Keep pressing the + button until a

ç appears in the display.❑ If the intensive setting is not cancelled byhand, the fan will automatically switchback to step } after 10 minutes. Filters and maintenance

Grease filters: Metal filters are used to trap the greasyelement of the vapours that developduring cooking.The filter mats are made from non-combustible metal.Caution:As the filter becomes more and more saturated with grease, not only does therisk of it catching fire increase but the efficiency of the extractor hood can also beadversely affected.Important:By cleaning the metal grease filters atappropriate intervals, the possibility of themcatching fire as a result of a build-up of heatsuch as occurs when deep-fat frying or roasting is taking place, is reduced.Cleaning the metal grease filters:❑ In normal operation (1 to 2 hours daily),the metal grease filter must be cleanedafter 8 to 10 weeks.❑ The filters can be cleaned in a dish-washer. It is however possible that theywill become slightly discoloured.❑ The filter must be placed loosely, andNOT wedged, in the dishwasher.Important:Metal filters that are saturated with grease should not be washed togetherwith other dishes etc.❑ When cleaning the filters by hand, soakthem in hot soapy water first of all.Then brush the filters clean, rinse themthoroughly and leave the water to drain off.Lighting:❑ The light can be switched on at anytime, even though the fan is switched off.Fan OFFLightON / OFF

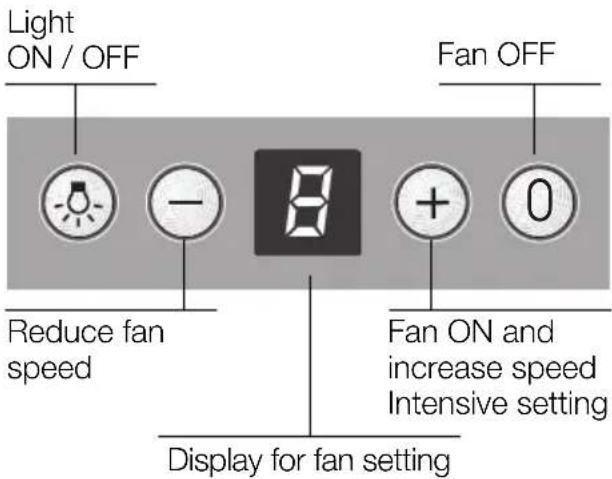

Reduce fanspeedFan ON andincrease speedIntensive settingDisplay for fan settingFilters and maintenance

Warning: The halogen bulbs must be

switched off and cool.

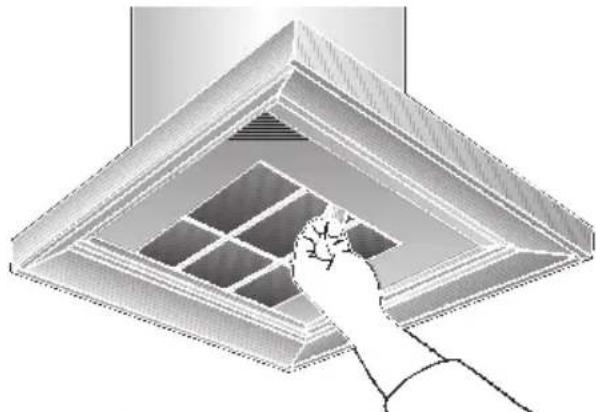

1. Remove the metal filters.

2. Press in the lug and remove the

activated carbon filter.

2. Insert the activated carbon filter.Removing and inserting the metal grease

Warning: The halogen bulbs must be

switched off and cool.

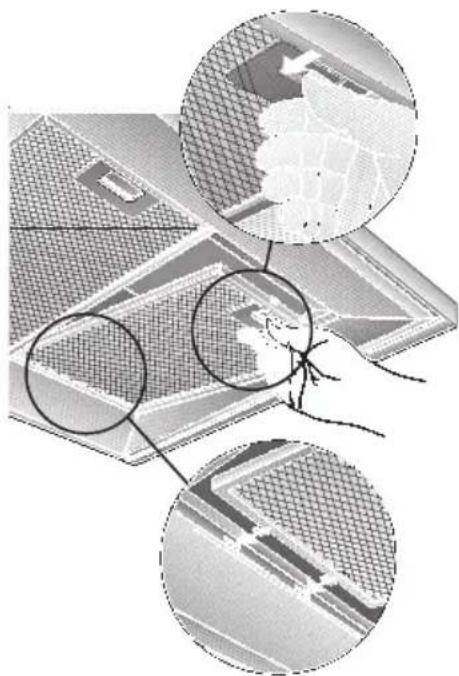

1. Press the catch on the grease filters

inwards and fold the filters down.

2. Clean the filters.

3. Insert the clean filters back into the

Activated carbon filter:

As the filter becomes more and more

saturated with grease, there is an increased

risk of fire and the function of the extractor

hood may be impaired.

Change the activated carbon filter promptly

to prevent the risk of fire from the

accumulation of heat when deep-fat frying

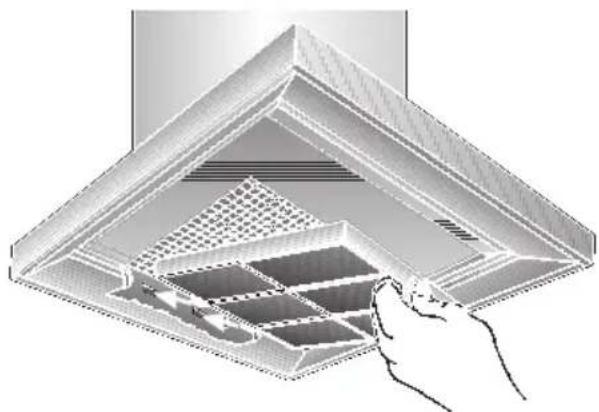

Inserting the filter:

Warning: The halogen bulbs must be

switched off and cool.

1. Remove the metal filters

(see "Removing and inserting the metal

3. Insert the metal grease filters.

Replacing the activated carbon filter:

❑ During normal operation (1 to 2 hours

per day) the activated carbon filters

should be replaced approximately 1 x

❑ A replacement filter can be obtained

from any authorized dealer (see optional

❑ Use original filters only.

By doing so you will obtain maximum

performance from your extractor hood.

Disposing of the old activated carbon

❑ There are no pollutants in the activated

carbon filters. They can therefore be

disposed of as part of your normal

Disconnect the extractor hood from the

electricity supply by pulling out the

mains plug or switching it off at the fuse

❑ At the same time as you clean the

grease filters, clean off any grease from

all accessible parts of the housing. This

significantly reduces the fire hazard and

ensures that the extractor hood

performs as effectively as possible.

❑ Use a hot detergent solution or a mild

window cleaner to clean the canopy of

❑ Do not scrape off any dirt that has dried

on but loosen it up with a damp cloth.

❑ Do not use abrasive cleaning agents or

sponges that could cause scratches.

❑ Note: Do not use alcohol (spirit) on

plastic parts, otherwise the surface may

become matt in appearance.

Caution: Ensure that the kitchen is ade-

quately ventilated. Avoid naked flames!

 Clean the operating buttons with a mild

soapy solution and a soft, damp cloth only.

Do not use stainless-steel cleaner to clean

the operating buttons.

Stainless steel surfaces:

❑ Use a mild non-abrasive stainless steel

❑ Clean the surface in the same direction

as it has been ground and polished.

 Do not use any of the following to clean

stainless steel surfaces: abrasive sponges,

cleaning agents containing sand, soda, acid

Aluminium and plastic surfaces:

❑ Use a soft, non-linting window cloth or

❑ Do not use dry cloths.

❑ Use a mild window cleaning agent.

❑ Do not use aggressive, acidic or caustic

❑ Do not use abrasive agents.

4. Re-insert the bulb ring.

5. Plug the appliance into the mains or

switch it on at the fuse box.

Note: If the light does not function, check

that the bulbs have been inserted correctly.

Replacing the light bulbs

1. Switch off the extractor hood and pull

out the mains plug or switch off the

electricity supply at the fuse box.

 When switched on, the halogen bulbs

become very hot. Even for some time after

the bulbs have been switched off there is

still a risk of burns.

2. Remove the bulb ring with a screwdriver

max. 20 Watt, G4 cap).

Caution: Refer for plug-in lampholder.

Take hold of the bulb with a clean cloth.19

Important information

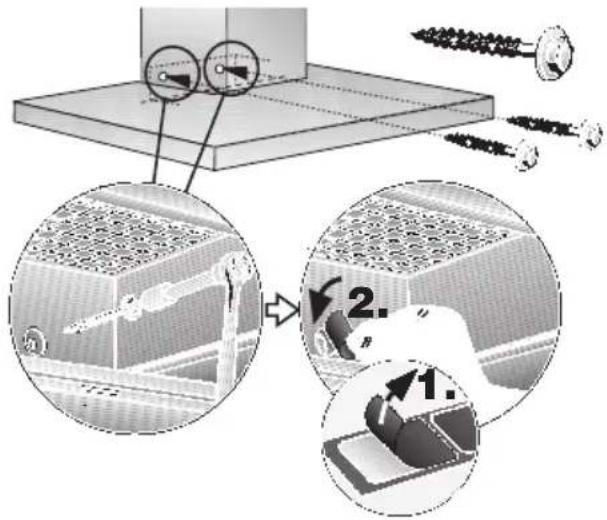

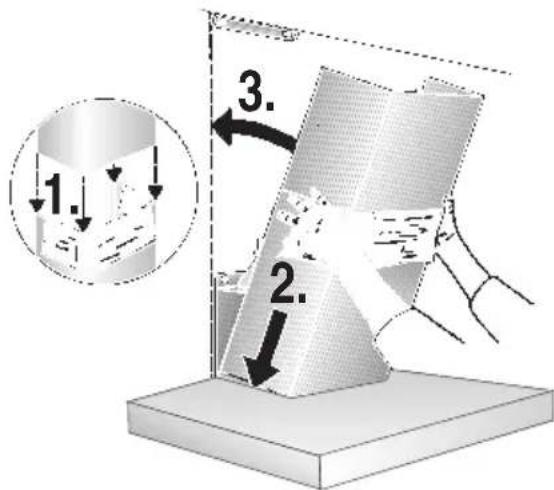

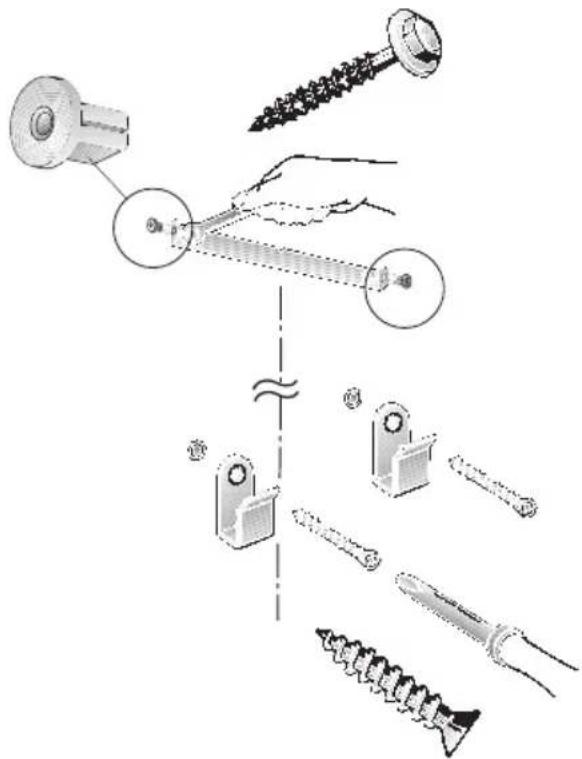

Installation Instructions:

Additional information concerning gas

 When installing gas hotplates, comply

with the relevant national statutory

regulations (e.g. in Germany: Technische

Regeln Gasinstallation TRGI).

 Always comply with the currently valid

regulations and installation instructions

supplied by the gas appliance

 Only one side of the extractor hood

may be installed next to a high-sided unit

or high wall. Gap at least 50 mm.

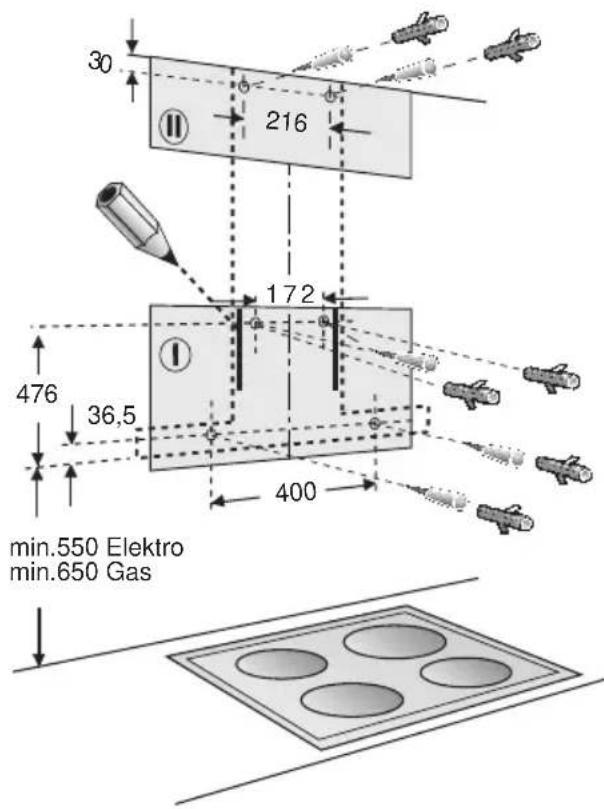

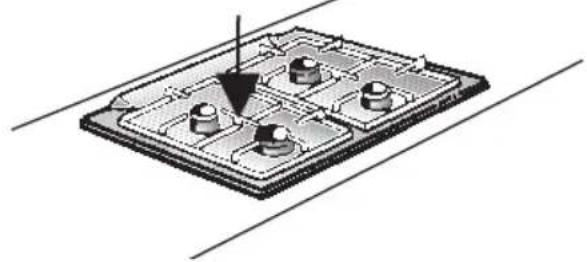

 Minimum distance on gas hotplates

between the upper edge of the trivet

and lower edge of the extractor

hood: 650 mm, Fig. 1.

 Old appliances are not worthless

rubbish. Valuable raw materials can be

reclaimed by recycling old appliances.

Before disposing of your old appliance,

 You received your new appliance in a

protective shipping carton. All packaging

materials are environmentally friendly and

recyclable. Please contribute to a better

environment by disposing of packaging

materials in an environmentally-friendly

Please ask your dealer or inquire at your

local authority about current means of

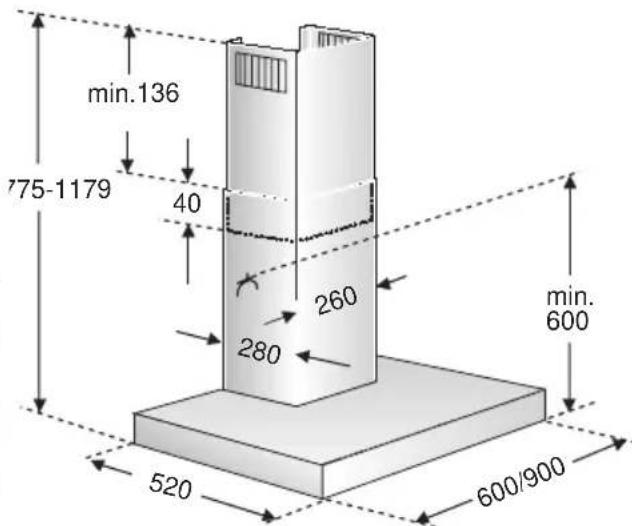

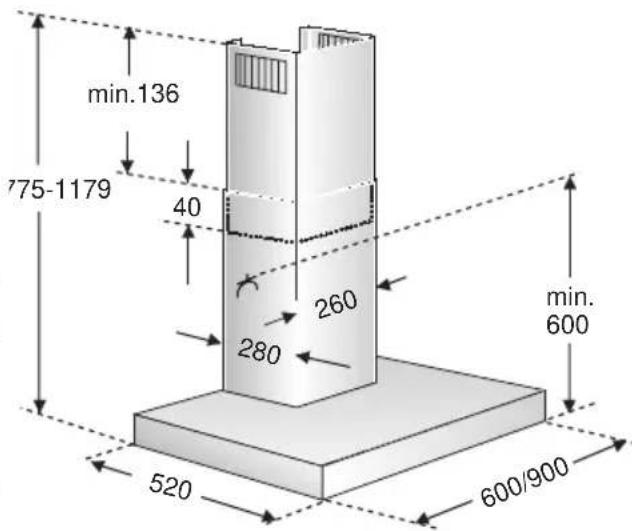

 The extractor hood can be used in

exhaust air or circulating air mode.

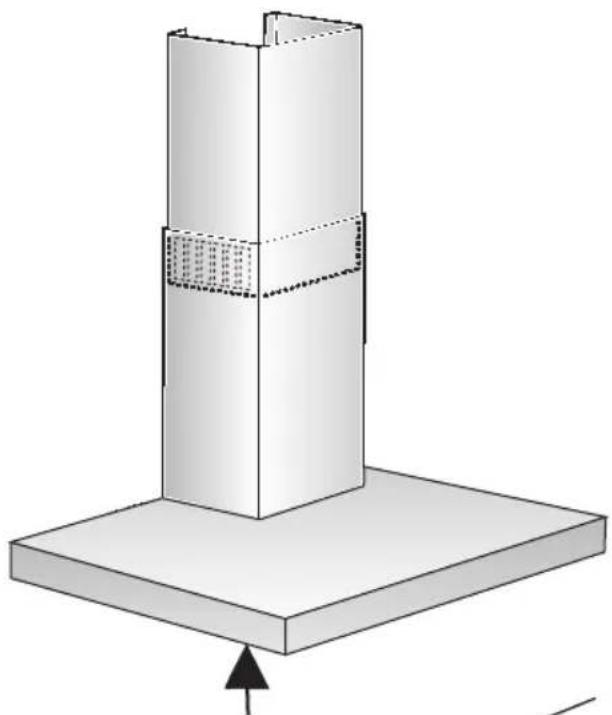

 Always mount the extractor hood over

the centre of the hob.

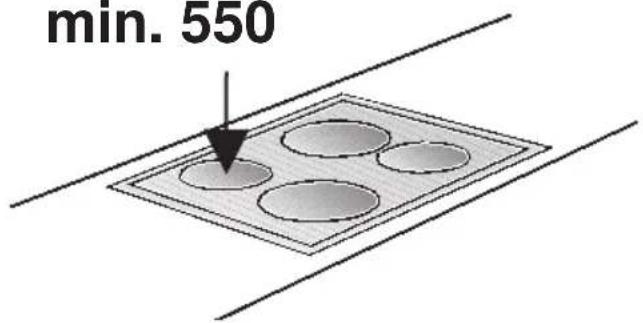

 Minimum distance between electric

hob and bottom edge of extractor hood:

The extractor hood must not be

installed over a solid fuel cooker – a

potential fire hazard (e.g. flying sparks) –

unless the cooker features a closed,

non-removable cover and all national

regulations are observed.

 The smaller the gap between the

extractor hood and hotplates, the greater

the likelihood that droplets will form on the

underside of the extractor hood.20

Prior to installation

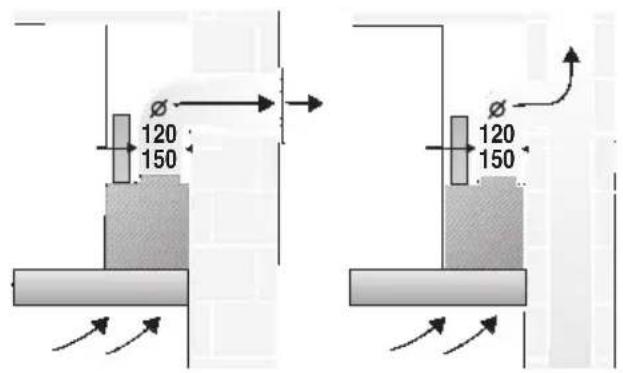

The exhaust air is discharged upwards

through a ventilation shaft or directly

through the outside wall into the open.

D Exhaust air should neither be directed

into a smoke or exhaust flue that is

currently used for other purposes, nor into

a shaft that is used for ventilating rooms in

which stoves or fireplaces are also located.

Exhaust air may be discharged in

accordance with official and statutory

regulations only (e.g. national building

Local authority regulations must be

observed when discharging air into smoke

or exhaust flues that are not otherwise in

D When the extractor hood is operated

in exhaust-air mode simultaneously with

a different burner which also makes use

of the same chimney (such as gas, oil or

coal-fired heaters, continuous-flow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

This can be achieved if combustion air can

flow through non-lockable openings, e.g. in

doors, windows and via the air-

intake/exhaust-air wall box or by other

technical measures, such as reciprocal

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself

is no guarantee that the limiting value will

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Unrestricted operation is possible if the

extractor hood is used in recirculating

mode – with activated carbon filter.

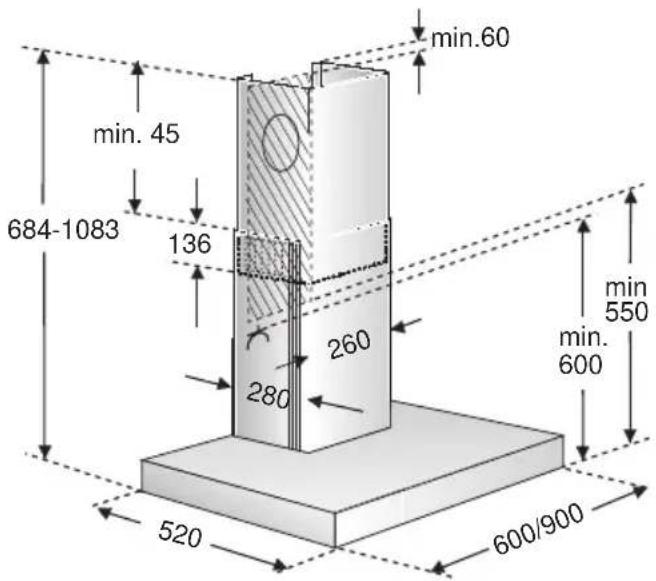

Prior to installation

For optimum extractor hood efficiency:

Short, smooth air exhaust pipe.

As few bends in the pipe as possible.

Diameter of pipe to be as large as

possible and no tight bends in pipe.

If long, rough exhaust-air pipes,

many pipe bends or smaller pipe

diameters are used, the air extraction

rate will no longer be at an optimum

level and there will be an increase in

Internal diameter: 150 mm (at least

Flat ducts must have an internal cross-

section that equates to that of round

There should be no sharp bends.

If pipes have different diameters:

Insert sealing strip.

For exhaust-air mode, ensure that

there is an adequate supply of fresh air.

Circulating-air mode

❑ With activated carbon filter if exhaust-air

mode is not possible.

Mount the pipe directly onto the air

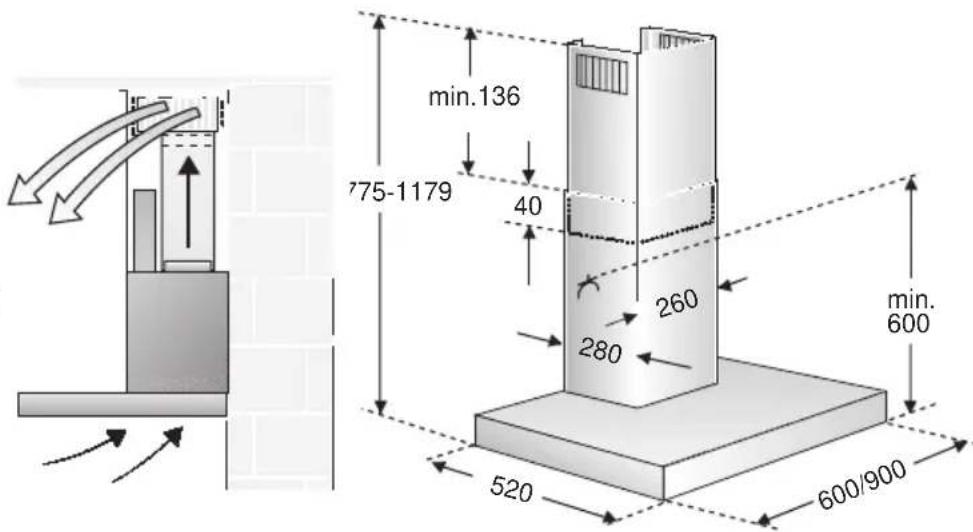

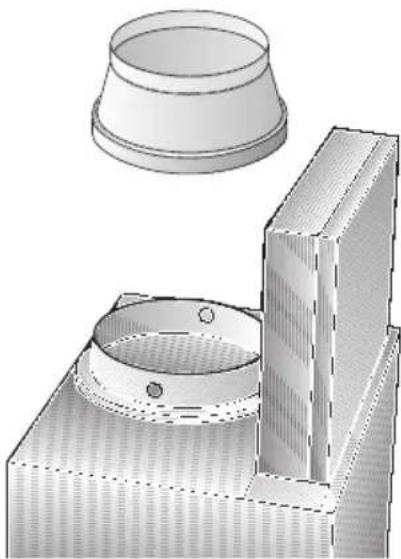

Connecting a l 120 mm exhaust-air

❑ Attach the reducing connector directly to

installation set can be

end of these operating

❑ Attach the exhaust-air pipe to the

reducing connector.22

Electrical connection

Are to be found on the name plate inside

the appliance after removal of the filter

 Before undertaking any repairs,

always disconnect the extractor hood from

the electricity supply.

Length of the connecting cable: 1.30 m.

If it is necessary to wire the extractor

hood directly into the mains:

The extractor hood should only be

connected to the electricity supply by a

properly qualified electrician.

A separator must be installed in the

household circuit. A suitable separator is a

switch that has a contact gap of more than

3 mm and interrupts all poles. Such

devices include circuit breakers and

 If the connecting cable for this

appliance is damaged, the cable must be

replaced by the manufacturer or his

customer service or a similarly qualified

person in order to prevent serious injury to

This extractor hood corresponds to EC

regulations concerning RF interference

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in

accordance with the following code:

Green and Yellow – Earth

If you fit your own plug, the colours of

these wires may not correspond with the

identifying marks on the plug terminals.

This is what you have to do:

1.Connect the green and yellow (Earth)

wire to the terminal in the plug marked

‘E’ or with the symbol ( ), or

coloured green or green and yellow.

2.Connect the blue (Neutral) wire to the

terminal in the plug marked ‘N’ or

3.Connect the brown (Live) wire to the

terminal marked ‘L’, or coloured red.

The extractor hood should only be

connected to an earthed socket that has

been installed according to relevant

If possible, site the earthed socket directly

behind the chimney panelling.

We reserve the right to construction changes within the

context of technical development.

Prior to installation

❑ The wall must be flat and perpendicular.

❑ Ensure that the wall is capable of

providing a firm hold for mounting

This extractor hood is intended to be

mounted onto the kitchen wall.

1. Remove the grease filter

(refer to Operating Instructions).

2. Draw a line on the wall from the ceiling

to the lower edge of the hood at the

centre of the location where the hood is

going to be mounted.

3. Use the template to mark the points on

the wall where the screws will be

mounted. In order to make it easier to

hook the hood onto the screws, draw

the outline of the area where the hood

 Ensure that the minimum distance bet-

ween the hob and the extractor hood is

maintained – 550 mm for an electric hob

and 650 mm for a gas hob. The bottom

edge of the template equates to the lower

edge of the extractor hood.

4. Drill 4 x l 8 mm holes for the extractor

hood and 2 x l 8 mm holes for the

chimney panelling. Insert plugs into the

holes so that they are flush with the wall.

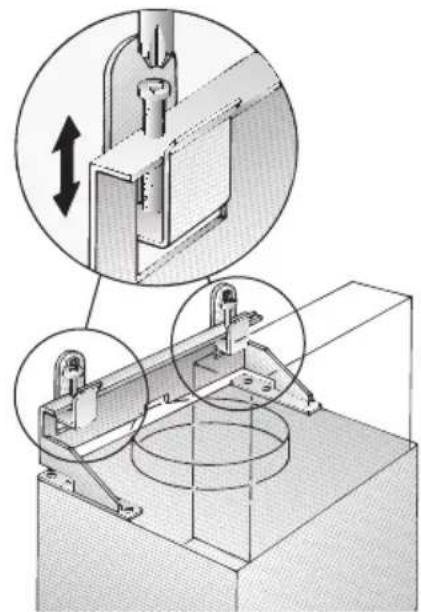

7. Attach the extractor hood.

Adjust the height and align horizontally

with the adjusting screws.

Note: Take into account any special

accessories that are going to be fitted.

5. Attach the 2 enclosed spacers to the

fixing bracket for the flue duct panelling.

6. Screw on the upper and the two lower

08. Screw in lower screws (hex screws).

09. Stick protective film over the holes of

the 2 lower mounting bolts in the

12. Remove the protective film from the

 Take care not to damage the

surfaces which are susceptible to

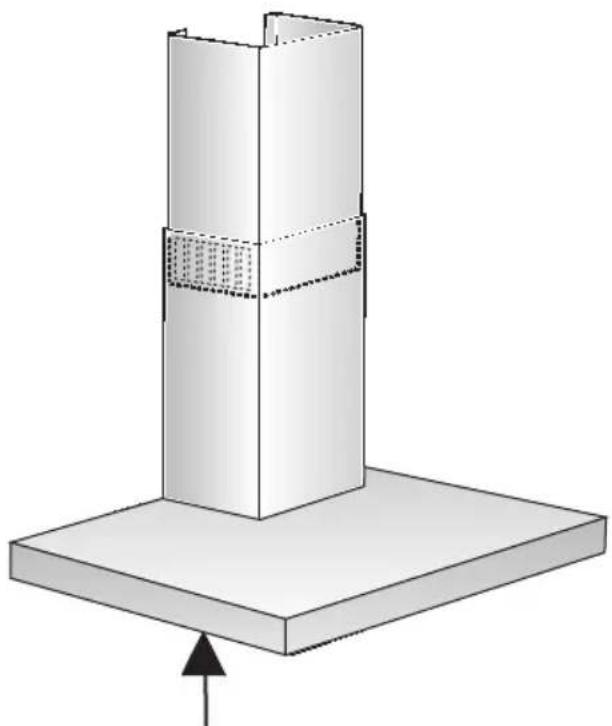

13. Push both sections of the flue panelling

together (slots in the upper section

must be pointing downwards) and

insert into the opening in the extractor

 Protect the cover panels from

scratches, for example by laying the

template used for marking the wall over

the top edge of the lower section.

11. Connect the hood to the electricity

14. Slide out the upper section and attach

it to the mounting brackets at the sides

15. Insert the grease filter (refer to

smekke inn i holdevinkelen for

2x5750 209 108Printed in Germany 0605 Es.
