Product type	Canister vacuum cleaner
Brand	Solac
Model	AB2700
Category	Vacuum cleaner
Power supply	220-240 V ~ 50/60 Hz (check rating plate)
Power	Variable, electronic and mechanical adjustment on the handle
Bag type	Dust bag with hygienic closure
Bag full indicator	Yes, red indicator on the appliance
Motor protection filter	Washable, clean 1 to 2 times per year
Exhaust air filter	Washable, clean 1 to 2 times per year
Included accessories	Floor/carpet brush (retractable), parquet brush (depending on model), crevice nozzle, upholstery nozzle, telescopic tube, flexible hose
Accessories connection	By pressure with twisting motion
Functions	Vacuuming hard floors, carpets, parquets, upholstery, crevices
Safety	Do not vacuum liquids, ashes, sharp objects; unplug before maintenance; do not use without bag or filters
Maintenance	Replace bag when indicator is red; clean filters 1 to 2 times per year
Cord length	Approx. 5 m (estimate, not specified)
Cord rewind	Yes, rewind button
Carrying handle	Integrated
Tube material	Telescopic metal
Weight	Approximately 4-5 kg (estimate)
Dimensions	Not specified
Spare parts available	Dust bags, replacement filters

Frequently Asked Questions - AB2700 SOLAC

How to replace the dust bag?

Unplug the vacuum cleaner. Open the bag compartment by pressing the tab (1). Pull the central cardboard upwards to remove the used bag. Insert a new bag into the holder (22) making sure the arrow is facing down and the cardboard is properly guided. Close the cover until it clicks.

How to clean the motor protection filter?

Unplug the appliance. Open the compartment, remove the bag, then pull on the upper part of the filter (9). Shake it or wash it if very dirty. Let it dry completely before putting it back. Never use the vacuum cleaner without this filter.

How to clean the exhaust air filter?

Press the cover button (8) to open it. Remove the filter (7). Shake it or wash it if necessary. Let it dry. Put the filter back and close the cover by aligning the tabs and pressing until it clicks.

What does the red indicator mean?

The indicator (6) turns completely red when the dust bag is full. Sometimes, a blockage in the hose can also trigger it. Check by unplugging and removing the hose. If the indicator remains red, replace the bag.

How to adjust the suction power?

Use the electronic regulator (12) on the appliance or the mechanical regulator (13) on the handle. You can open or close the latter to adjust the power according to the surface.

How to use the hard floor brush?

The main brush (17) is retractable. Press the button (23) with your foot to extend the bristles for hard floors or retract them for carpets. Use the special parquet brush (18) for wood floors if provided.

What accessories are included?

The manual mentions: floor/carpet brush (17), parquet brush (18 depending on model), crevice nozzle (19), upholstery nozzle (20), telescopic metal tube (16), flexible hose (14).

How to rewind the cord?

After use, turn off and unplug the vacuum cleaner. Press the rewind button (11) while holding the plug to avoid hitting the appliance.

Can I vacuum liquids?

No. The manual strongly advises against vacuuming liquids, hot ashes, embers, or sharp objects. This could damage the appliance.

How to carry the vacuum cleaner?

Use the carrying handle (24) located on top of the appliance. You can also leave the handle in place to easily reach difficult spots while vacuuming.

USER MANUAL AB2700 SOLAC

Solac is a registered Trade Mark 09/07

5-8·ESPANOL

9-12·ENGLISH

13-16 • FRANÇAIS

17-20 · DEUTsCH

21-24 • PORTUGUES

25-28 · ITALIANO

29-32·NEDERLANDS

33-36·ČESKY

37-40·POLSKA

41-44 • SLOVENSKY

45-49·MAGYAR

50-53·6bIrapck

54-56·HRVATSKA

57-60·ROMANA

Fig.1 Fig.2

Fig. 5

Fig. 3

Fig. 4

Fig. 7 Fig. 8

- ESPÁÑOL

ATENCLON

• Read these instructions before switching on the appliance.
• Check that the voltage in your home matches that stated on the appliance's specifications plate.
• Never use without the paper bag or the protective filters correctly fitted.
• Never vacuum live ash, splinters, sharp objects, or liquids.
• Always unplug after use and before cleaning the appliance or changing the filters. Always pull on the plug, not on the cord.
• Keep away from heat.
• Do not pull hard on the cord, and never beyond the red marking indicating the end.
• If the flexible power-supply cable is damaged, it must be replaced by a Technical Service centre authorized by the manufacturer, since this requires special tools.
• Never handle the vacuum cleaner or the plug with wet hands.
• Do not immerse or wet the appliance.

IMPORTANT: When you want to dispose of the appliance, NEVER throw it in the rubbish. Instead, go to your closest CLEAN POINT or waste collection centre for subsequent treatment. In this way, you will be contributing to looking after the environment.

MAIN COMPONENTS

1. Dust bag-container opening latch
2. Bag compartment
3. Dust-bag
4. Hygienic dust-bag seal
5. Connection for the vacuum cleaner's flexible tube
6. Dust-bag full indicator
7. Air outlet filter
8. Air outlet filter cover button
9. Motor protection filter
10. On-off button
11. Cord-winder button
12. Electronic power regulator
13. Handle with mechanical power regulator
14. Flexible tube

15. Release tabs for the flexible tube

16. Telescopic metal tube

17. Brush for floors, carpets, ...
18. Special brush for wood and parquet flooring. (Only mod. AB 2720-AB2750).
19. Tip for vacuuming grooves, corners, ...
20. Upholstery brush
21. Carry handle
22. Dust-bag holder
23. Brush button

USERINSTRUCTIONS

• Check that the dust-bag container (3) and filters (7 and 9) are fitted correctly. See the following section (Changing the dust bag, the motor protection filter and the air outlet filter).
• A safety catch prevents the vacuum cleaner from closing if the dust bag-container is not fitted.

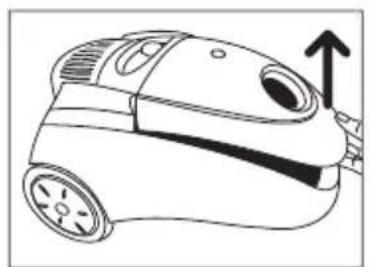

• To open the bag compartment (2), press the dust bag-container opening latch (1) and lift the cover (fig. 1).

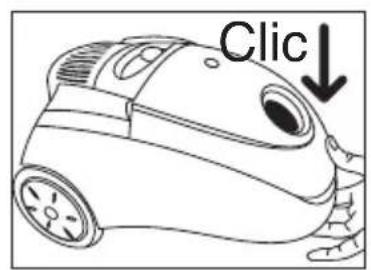

• To close the compartment (2), lower its cover and press down on the opening space with your hand (1), until you hear a click (fig. 2).
• Fit the flexible hose (14), placing the end in the connection opening (5), until you hear a click.
• Before using the vacuum cleaner, prepare the heads for the surface to be cleaned. They snap together with a gentle turn. The heads can be placed directly on the flexible tube (14) or, for out-of-reach surfaces, fit the telescopic metallic tube (16).
• The suction brush (17) on these models can be used for all types of floors, carpets, and rugs. This brush is retractable depending on the surface to be vacuumed. To change the cleaning position of the brush, press the brush button (23) with your foot (fig. 3). We recommend cleaning hard floors, wood and parquet with the fibre brush activated, and cleaning carpets and rugs with the fibre brush hidden.
• The special brush for PARQUET (18), with natural bristles, can be used for wooden and parquet flooring.
• This model also incorporates a suction head for narrow spaces, grooves and corners (19), and a head for upholstered surfaces (20). These accessories fit directly onto the flexible pipe (14) or onto the telescopic metal pipe (16).
• The vacuum cleaner can now be plugged in: To do so, pull out the cord and press the button (10) to switch it on.
• Use the regulator (12) to adjust the suction power.
• Suction power can also be adjusted by opening or closing the device on the handle (13).

• When finished, switch the appliance off by pressing button (10). Unplug it and press button (11) to wind up the cord. Hold the cord plug in your hand to prevent it from banging against the vacuum cleaner housing.

• If you wish, use the handle (21) to carry the vacuum cleaner while using it, and to get in to difficult places.

CHANGING THE DUST-BAG, THE MOTOR PROTECTION FILTER AND THE AIR OUTLET FILTER

CHANGING THE DUST-BAG (3)

• When the indicator (6) is completely red, a new paper bag must be installed in the vacuum cleaner. This indicator may show red if something is stuck in the flexible tube or in an attachment. To find out if that is the case, unplug the vacuum cleaner, remove the flexible pipe, and turn the vacuum cleaner on again. If the indicator does not show red, clean the flexible tube and its attachment.

• To change the paper bag, unplug the vacuum cleaner and proceed as follows:

• Open the dust-bag container by pressing on the latch (1), and lifting the cover (fig. 1).

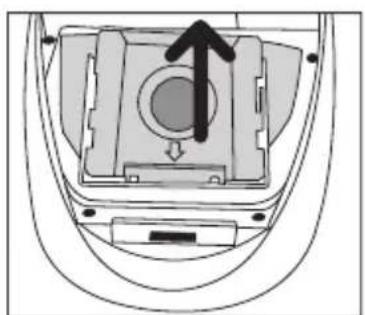

• The paper bag has a hygienic seal on its intake opening to ensure maximum hygiene. When removing the bag, hold it tightly by the side edges and pull the central cardboard piece upwards (fig. 4).

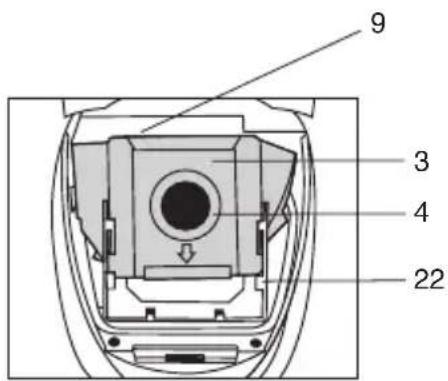

• Place the new paper bag on the dust-bag carrier fitting (22). Make sure the arrow on the bottom edge of the bag is pointing downwards, and check that the cardboard edge of the bag is inside the guide of the dust-bag carrier accessory (22), slide the bag until the end of the accessory guide (22) (fig. 5). The bag must be fitted correctly: confirm this by checking the cardboard edge on the bag. It must match the intake opening on the vacuum cleaner.

THE MOTOR PROTECTION FILTER (9)

• When the motor protection filter (9) is dirty (once or twice a year, depending on use), open the vacuum cleaner and remove the vertical filter (8) by pulling the top upward (fig. 6). Shake the protection filter well or wash it if it is very dirty, and leave it to dry completely. Never use the vacuum cleaner without the motor protection filter.

CHANGING THE AIR OUTLET FILTER (7)

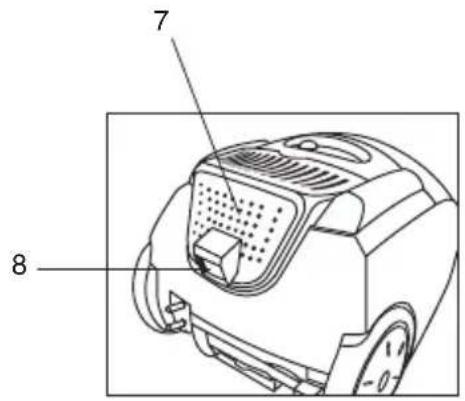

• The air outlet filter (7) must also be changed once or twice a year. Remove the air outlet filter cover (7) by pressing on the top of the cover-opening button (8) until you hear a click (fig. 7) and remove the filter. Shake the protection filter well, or wash it if very dirty, and allow it to dry completely; refit it when clean. Never use the vacuum cleaner without the air outlet filter.

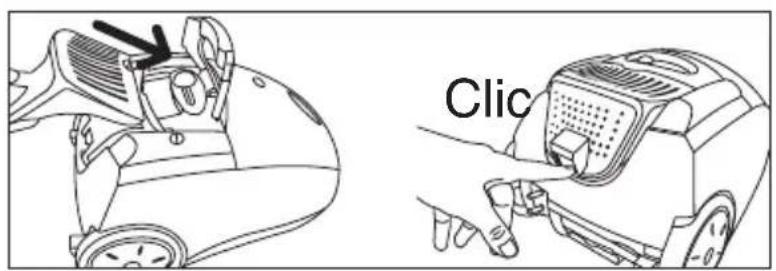

• Put the filter and cover back in place. To do so, lift the carry handle (21) and align the tabs on the air outlet filter cover with the holes located in the top of the vacuum cleaner; press down on the filter cover opening button (8) until you hear a click (fig. 8).
