USER MANUAL ES20 SAMSUNG

SAMSUNG Quick Start Manual ES20

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG / FRE / TUR / T.CHI / IND / ARA / THA / PER

Health and safety

information.... 2 1

Camera layout 4 8

Setting up your camera ..... 5

Unpacking 5 7

Inserting the battery and

memory card 6 13

Selecting options 7 34

Capturing photos or videos ... 8 18

Playing files 9 55

Transferring files to a PC

(Windows) 10 90

Specifications 11 83

Health and safety informationContent

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

Use only Samsung-approved batteries and chargers. • Incompatible batteries and chargers can cause serious injuries or damage to your camera.

Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

Avoid using or storing your camera in dusty, dirty, • humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

Exercise caution when connecting cables or adapters • and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ C/ 32^ F or above 40^ C/ 104^ F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.

Prevent memory cards from making contact with • liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

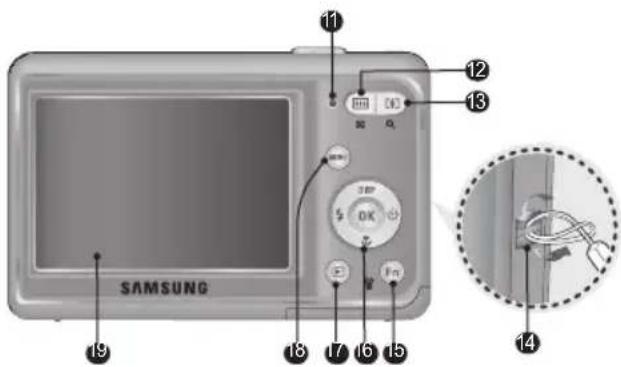

Camera layout

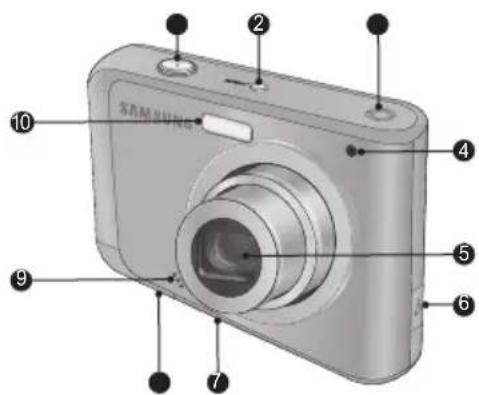

SAMSUNG 10 2 4 5 6 7 9

1 Shutter button
② POWER button
3 Speaker
4 AF-assist light/timer lamp
5 Lens / Lens cover
6 USB / AV terminal
7 Tripod mount
8 Battery chamber cover
9 Microphone
10 Flash

SAMSUNG 19 18 17 16 15 14 13 12 11 00 OK OK OK OK OK OK

11 Status lamp
12 Zoom Wide(W) button (Thumbnail)
13 Zoom Tele(T) button (Digital zoom)
14 Strap eyelet
Fn / Delete button
16 Navigation button/OK button
17 Playback button
18 MENU button
19 LCD monitor

Setting up your camera

Unpacking

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Camera AA Alkaline Batteries

USB cable Camera strap

Quick Start Manual Software CD-ROM (User manual included)

Optional accessories

Memory cards Rechargeable Battery

Charger A/V Cable

AC Cord Camera case

Setting up your camera

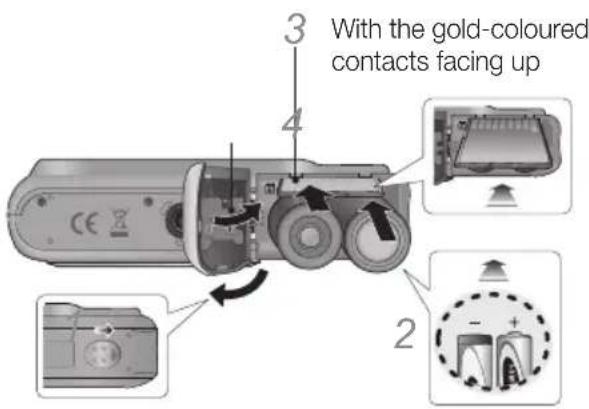

Inserting the battery and memory card

With the gold-coloured contacts facing up 2 3 4

▼ Removing the battery

Diagram of a mechanical device with two circular components and directional arrows indicating movement or force (no text or symbols present)

▼ Removing the memroy card

Diagram of a device interior with two circular components and internal structures (no text or symbols)

Push gently until the card disengages from the camera and then pull it out of the slot.

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

-2 -1 0 +1 +2 EV Back Move

- To move left or right, press [⚡] or [💡]. To move up or down, press [DISP] or [💡]

3 Press [OK] to confirm the highlighted option or menu.

- Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Press [MENU] to select (
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically. A green frame means the subject in focus.

F2.0 1/30 00001 $^B Iw F

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Press [MENU] to select ( )
2 Align your subject in the frame.
3 Press [Shutter]. Press [OK] to pause or resume.
4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution Super fine Fine Normal
10 ^m	3648 x 2736 218 303 506
9 ^m	3648 x 2432 240 340 548
7 ^m	3648 x 2052 281 394 616
7 ^m	3072 x 2304 290 411 657
5 ^m	2592 x 1944 365 506 822
3 ^m	2048 x 1536 850 1,120 1,263
1 ^m	1024 x 768 1,892	2,185 2,397

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [▶].
2 Press [+] or [+] to scroll through files. Press and hold to view files quickly.

Silhouette of a person raising one arm, no text or symbols present

Viewing videos

1 Press [播放]
2 Press [OK].

100-0002 00:00:11 OK Play Capture

3 Use the following buttons to control playback.

[4]	Scan backward
[OK]	Pause or resume playback
[∅]	Scan forward

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

Diagram showing a digital camera connected to a computer via cable, with no visible text or symbols.

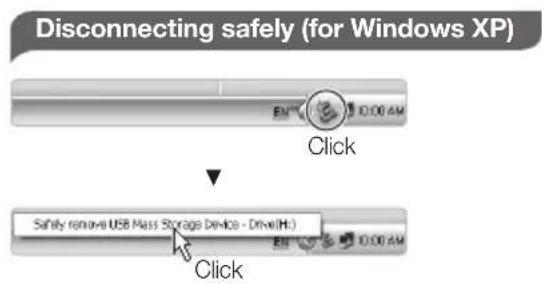

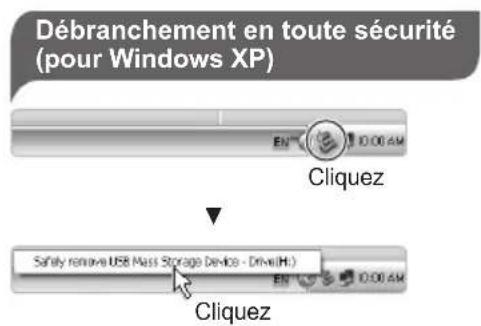

Disconnecting safely (for Windows XP) Click Safety remove USB Mass Storage Device - Drive(H:) Click

3 Turn on the camera.
4 On your PC, select My Computer → Removable Disk → DCIM → 100PHOTO.
5 Select the files you want and drag or save them to the PC.

Specifications

Image sensor	Type: 1/2.33" (approx. 7.81 mm) CCD•Effective pixels: approx. 10.2 mega-pixels•Total pixels: approx. 10.3 mega-pixels •
Lens	Focal length: Samsung lens f = 6.0 - 24.0 mm (35mm film equivalent : 34 mm - 136 mm)•F-stop range: F2.8 (W) - F6.1 (T)•
Display	2.5" (6.35 cm) 230 K, TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF)
Shutter speed	Auto: 1 - 1/2,000 sec.•Program: 1 - 1/2,000 sec.•Night: 8 - 1/2,000 sec.•Firework: 2 sec.•
Storage	Internal memory: approx. 7 MB•External memory (Optional): SD card (up to 4 GB guaranteed), •SDHC card (up to 8 GB guaranteed), MMC Plus (up to 2 GB guaranteed)Internal memory capacity may not match these specifications.
Rechargeable battery	Primary Battery : 2 x AA Alkaline•Rechargeable battery : SNB-2512B KIT (Optional) •(2xAA Ni-MH Battery & Charger)
Dimensions (W x H x D)	96.4 x 62.3 x 27.2mm (excluding protrusions)
Weight	125g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %
