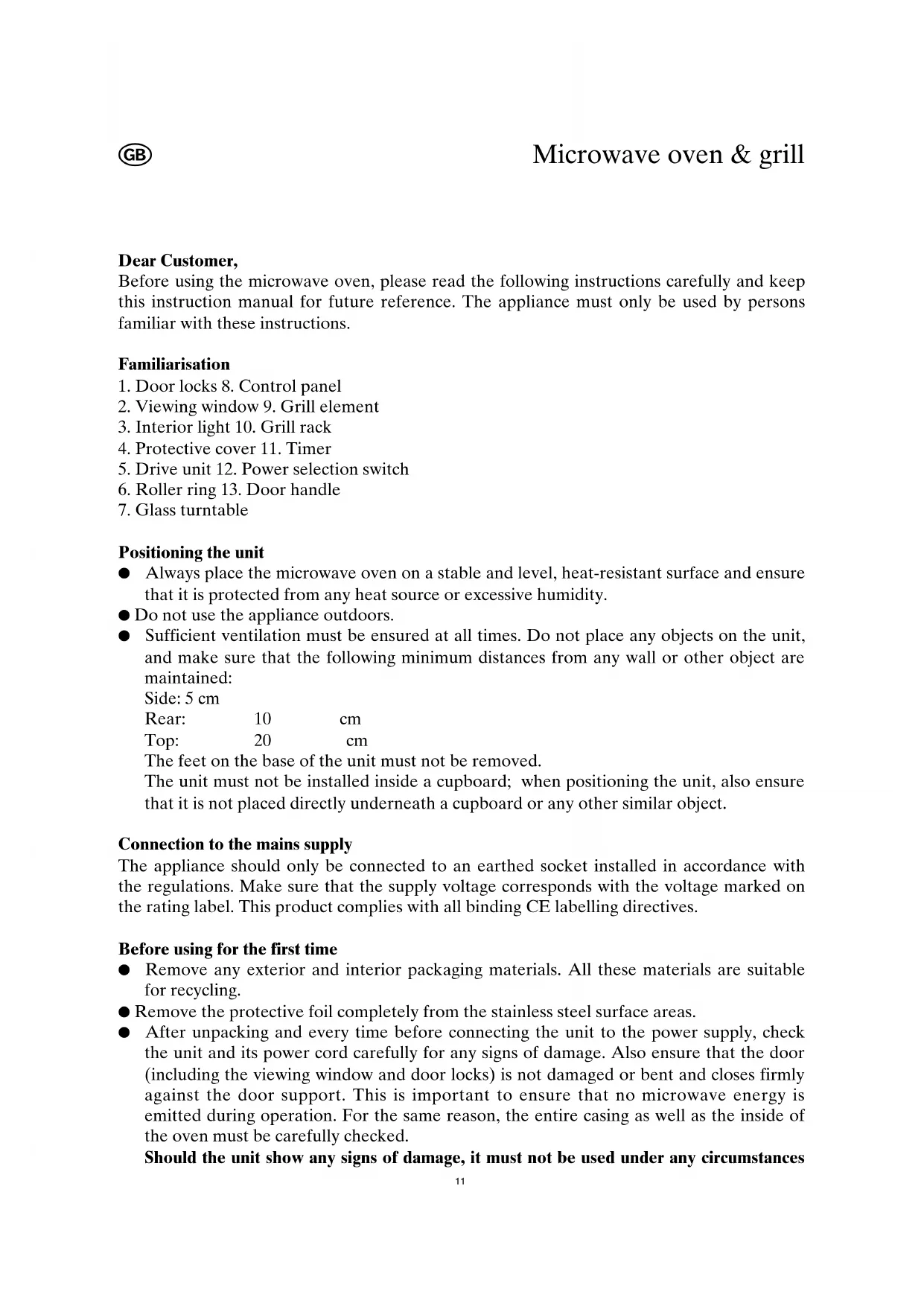

USER MANUAL MW 7823 SEVERIN

Microwave oven & grill

Instructions for use

Before using the microwave oven, please read the following instructions carefully and keep

this instruction manual for future reference. The appliance must only be used by persons

familiar with these instructions.

Positioning the unit

● Always place the microwave oven on a stable and level, heat-resistant surface and ensure

that it is protected from any heat source or excessive humidity.

● Do not use the appliance outdoors.

● Sufficient ventilation must be ensured at all times. Do not place any objects on the unit,

and make sure that the following minimum distances from any wall or other object are

The feet on the base of the unit must not be removed.

The unit must not be installed inside a cupboard; when positioning the unit, also ensure

that it is not placed directly underneath a cupboard or any other similar object.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with

the regulations. Make sure that the supply voltage corresponds with the voltage marked on

the rating label. This product complies with all binding CE labelling directives.

Before using for the first time

● Remove any exterior and interior packaging materials. All these materials are suitable

● Remove the protective foil completely from the stainless steel surface areas.

● After unpacking and every time before connecting the unit to the power supply, check

the unit and its power cord carefully for any signs of damage. Also ensure that the door

(including the viewing window and door locks) is not damaged or bent and closes firmly

against the door support. This is important to ensure that no microwave energy is

emitted during operation. For the same reason, the entire casing as well as the inside of

the oven must be carefully checked.

Should the unit show any signs of damage, it must not be used under any circumstances

Microwave oven & grill

until it has been repaired by a qualified technician.

● Do not remove the protective film covering the inside of the door, nor the turntable

drive unit or the grey-brown protective cover (4) next to the light on the right of the

● Before the microwave oven is used for the first time, let the appliance heat up on the grill

setting (without the microwave function activated) for approximately 10 minutes. This

will remove the smell typically encountered when first switching on a grill. A little smoke

may be emitted; this is quite normal, but ensure there is sufficient ventilation.

Note: Do not switch the unit on unless the food to be heated or cooked has been placed

inside the oven. Operating the appliance empty could result in damage to the unit.

● When heating liquids in your microwave oven, the liquid may heat up beyond boiling-

point without visible evidence of bubbling. It is therefore important to exercise extreme

caution when handling any containers, e.g. when removing them from the oven.

The risk of such over-boiling may be reduced by placing a heat-resistant glass rod in the

container during the heating process.

● Eggs in their shells or whole hard-boiled eggs must not be heated up in a microwave

oven, since they may explode even after the microwave heating process has finished.

● Caution: It is also highly dangerous to heat up liquids or any kind of solid food items in

closed containers in the unit, since there is a real danger of explosion.

● The content of baby bottles or glass containers with baby food must be thoroughly

stirred or shaken to ensure that the temperature is evenly distributed. To avoid painful

and dangerous scalding, always check the temperature before feeding a child.

● When heating or cooking food contained or wrapped in combustible materials such as

plastic or paper, there is a danger of those materials igniting. It is also possible that food

will dry out or even ignite if the selected cooking time is excessive. Fat or oil are also

inflammable substances. It is therefore important to supervise the appliance during

operation. Highly inflammable liquids such as concentrated alcohol must of course not

● Should any smoke be noticed during operation, keep the door closed to inhibit or

smother any flames. Switch the unit off immediately and remove the plug from the wall

● To prevent danger of burns, a suitable oven-cloth must always be used when removing

food items from the oven, since the utensils and cooking containers heat up not only

during use of the grill, but also during microwave operation.

● Special food thermometers (as used in conventional baking ovens) are not suitable for

use with microwave ovens.

Important safety instructions

● Caution: certain types of food may tend to catch fire. Do not leave the appliance

unattended when in use.

● This microwave oven is intended for defrosting, heating and cooking of food only. No

responsibility is accepted if damage results from improper use, or if these instructions are

● The appliance is not intended to be operated by means of an external timer or separate

remote-control system

● This appliance is not intended for use by any person (including children) with reduced

12physical, sensory or mental capabilities, or lacking experience and knowledge, unless

they have been given supervision or instruction concerning the use of the appliance by a

person responsible for their safety.

● Children should be supervised to ensure that they do not play with the appliance.

● Caution: The use of the microwave oven by children without supervision must not be

permitted, unless specific and clear instructions have been given prior to use, allowing

the child not only to operate the microwave oven in a safe manner, but also to

understand the dangers resulting from improper use or non-compliance with the

● Warning because of the high temperatures that occur during operation in the

combination functions, children must not use the appliance unless they are properly

supervised by an adult.

● Always switch the appliance off and remove the plug from the wall socket:

- in case of any malfunction.

● Caution: The exterior surfaces of the appliance may become hot during

operation. There is also a danger of steam being emitted through the ventilation

slots: Danger of scalding.

● Do not allow the appliance or its power cord to touch hot surfaces or to come into

contact with any heat sources. Do not let the power cord hang free and keep it away

● It is important that the appliance is thoroughly cleaned at regular intervals and that any

food residues are removed. Excessive wear may otherwise be caused to the exposed

surfaces and the life expectancy of the appliance considerably reduced. In addition, its

safety and proper operation may also be affected.

● This microwave oven is intended for domestic use only and not for commercial

applications. (Class B in compliance with EN 55011:1998+A1+A2)

● Caution: Any maintenance or repair work requiring the removal of any microwave

radiation protection cover represents a serious hazard to unqualified persons. This

includes the replacement of the special power cord or an interior light bulb. The unit

must not be opened, except by qualified personnel. If repairs are needed, please send the

appliance to one of our customer service departments. The address can be found in the

appendix to this manual.

The microwave function (Group II in compliance with EN 55011:1998+A1+A2)

Electromagnetic energy is generated inside the unit, causing the molecules in the food

(mainly water molecules) to oscillate and subsequently causing the food to become hot.

Food with high water content will therefore heat up faster than relatively dry food. The heat

is generated gradually inside the food. Any utensils, container or plates used are heated up

only indirectly as a result of the food temperature.

Always use suitable kitchen utensils

● Do not place the food directly onto the glass turntable; always use a suitable plate or

cooking container. Make sure that the container does not protrude over the rim of the

● Metal objects are to be avoided since microwaves are reflected from metal surfaces and

might not reach the food to be cooked. Any metal in the oven might also cause sparks,

resulting in possible damage to the unit.

● As a general rule, cutlery or metal containers must not be used in the microwave oven.

13Some food wrappings contain aluminium foil or wires underneath a layer of paper and

are therefore also unsuitable for use with microwave appliances.

Should the use of aluminium foil be recommend in a recipe, ensure that the food is

tightly wrapped in the aluminium foil (avoiding any air blisters). Ensure a minimum

distance of 2.5 cm between the aluminium foil and the interior walls of the oven.

● Always make sure that the cooking container or plate used does not contain any metal

decoration such as a gold rim or colour containing metal particles. Lead crystal objects

are also not suitable. Always make sure that the cooking containers used are not hollow

in any part (e.g. in the handles). Porous materials may have absorbed water during

cleaning and are again not suitable. Cooking containers or utensils made of ‘Melamine’

plastic material absorb energy and are also unsuitable.

- Using the microwave function

- Containers made from heat-resistant glass or porcelain, however, are well suitable

for use in microwave appliances.

- Plastic is suitable only if it is heat-resistant up to 180° C. Cooking bags etc. should be

punctured to be able to release any high pressure during cooking.

Cooking containers especially designed for use with microwave ovens are available

at most kitchenware dealers.

- Cooking containers or plates can be tested for their suitability in a microwave

appliance by placing the item (without any food) on the glass turntable, switching

the unit on, adjusting the microwave power setting to ‘High’, and letting the

appliance operate for approximately 20 seconds. Listen and watch carefully for

crackling sounds and sparks. Should any be observed, switch the unit off

immediately. It is also important to check the temperature of the container: a

suitable container will only be lukewarm.

- Using the grill function

- When using the grill function, any heat-resistant containers or plates suitable for

conventional ovens may be used. Do not use any plastic items when using the grill.

- The food to be cooked is put directly on the grill rack, which is then placed on the

- Using the microwave/grill combination function

- When using the microwave/grill combination, the microwave and grill functions are

activated alternately. The containers or plates must therefore be suitable for use in a

microwave appliance as well as being heat-resistant. Because of the relatively high

temperatures, plastic items must not be used. The grill rack of this unit is suitable for

use with the microwave oven. Make sure that container or plate used does not

contain any metal parts.

Power selection switch

The following power settings can be selected:

1. 145 W Low - Defrosting delicate food

2. 290 W Defrosting - Defrosting

3. 465 W Medium - Cooking delicate food

4. 650 W Medium high - Defrosting and heating up deep-frozen dishes

5. 800 W High - Heating up liquids, cooking

6. - 1000 W Grilling, toasting ‘au gratin’

7. 240 W 700 W Cooking and quick-browning

8. 390 W 510 W Cooking and browning

9. 535 W 330 W Quick-cooking and browning

- By using the timer, an operating time of up to 30 minutes can be selected.

- When setting the cooking time to less than 2 minutes, turn the knob to a greater value

first and then turn it slowly back to the desired setting.

- Once the timer is set, operation starts automatically when the door is closed.

- The appliance can be switched off at any time by setting the timer back to ‘0’.

The cooking time generally depends on several factors.

- The microwaves penetrate the surface of the food. For bigger pieces of food, a

longer cooking time is therefore needed than for the same amount of food if cut into

pieces. The food should also be evenly distributed on the plate.

- To ensure that any germs in the food are safely destroyed, the food needs to be

exposed to high temperatures for a sufficiently long period.

- As a basic rule: half the amount - half the time

double the amount - almost double the time.

- Operating sequence

- Place the food to be heated into a suitable container. Place the container onto the

turntable in the oven.

- When food is treated with microwaves, it should be covered to prevent it from

drying out. Glass or plastic covers especially designed for use with microwave

appliances are available at most kitchenware dealers.

- When using the microwave/grill combination, do not cover the food to be cooked.

Place the grill rack directly on the glass turntable and place the food on the grill

- Use the power selection switch to set the desired level.

- Close the door and set the operating time with the timer. The turntable starts to

rotate; during operation, the interior light remains switched on.

- If the door is opened during operation (e.g. to stir the food), cooking and timer

functions are automatically suspended and will automatically resume after the door

- After the pre-programmed time has elapsed, a sound signal is heard and the interior

lighting is switched off.

- Open the door and remove the container with the food.

- In order to achieve an even heat distribution in the food, the container should be set

aside for several minutes.

● Before cleaning the appliance, ensure it is disconnected from the power supply and has

cooled down completely.

● Do not clean the unit with water. Make sure that no water - however small an amount - is

allowed to enter the ventilation slots on the inside or outside of the unit. Do not use any

steam cleaning appliances for cleaning.

● The interior surfaces must be cleaned thoroughly after each operation cycle. The inside

of the door as well as the door frames must be kept clean at all times.

● The entire unit may be wiped with a slightly damp lint-free cloth and a mild household

detergent. Wipe thoroughly dry afterwards.

● Do not use abrasives or harsh cleaning solutions. Commercially available sprays

specifically developed for cleaning conventional baking ovens are not to be used.

● The glass turntable and roller ring are suitable for dish-washers. The roller ring as well as

the guiding track area underneath the glass turntable must be kept clean at all times.

● The grill rack may be cleaned with warm soapy water. Make sure it is wiped completely

dry afterwards with a soft cloth.

Technical specifications

Outside dimensions: 295 mm (H) x 385 mm (D) x 458 mm (W)

Unit weight: 15.1 kg

Operating voltage: 230 V~ 50 Hz

Total power consumption: 1200 W

microwave/grill combination 1200 W Microwave output: 145 W - 800 W Disposal

Old or damaged units should be rendered unusable by removing the power cord.

Should you be unsure about the recycling facilities available for such appliances in

your area, please inquire at the relevant local authorities.

This product is guaranteed against defects in materials and workmanship for a period of two

years from the date of purchase. Under this guarantee the manufacturer undertakes to

repair or replace any parts found to be defective, providing the product is returned to one of

our authorised service centres. This guarantee is only valid if the appliance has been used in

accordance with the instructions, and provided that it has not been modified, repaired or

interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and

ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal

rights you may have as a consumer under applicable national legislation governing the

16purchase of goods. If the product fails to operate and needs to be returned, pack it carefully,

enclosing your name and address and the reason for return. If within the guarantee period,

please also provide the guarantee card and proof of purchase.

17Chère cliente, Cher client,

for deres sikkerhed.

Service Post of Thermi

Bahar Administration and Commercial

No. 668, 7th Floor, Ave.

7th Floor, Cité Dora 3 Building, Dora

Serbia and Montenegro
