SB2 - Soundbar ENERGY SISTEM - Free user manual and instructions

Product type	Hi-Fi 2.0 soundbar
Brand	Energy Sistem
Model	SB2
Total RMS power	100 W
Speakers	(2" + 1.5") × 2
Audio inputs	RCA and Line-in (3.5 mm jack)
Remote control	Yes, with included CR2025 battery
Equalization modes	Normal, Music, Movie
Bass and treble control	Manual on remote
Standby consumption	< 0.5 W
Power supply	AC 110-240 V, 50-60 Hz
Height (low profile)	6 cm
Front material	Metal grille
Compatibility	TV, DVD, DTT, computers, smartphones
Manufacturer warranty	36 months (EU)
Maintenance	Soft dry cloth
Safety	Do not expose to water or humidity

Frequently Asked Questions - SB2 ENERGY SISTEM

How to connect the soundbar to my TV?

Use the provided audio cable. Connect the RCA plugs to your TV (audio output) and the 3.5 mm jack to the auxiliary input of the soundbar. Press the input button on the remote to select the correct source.

Which cables are included in the box?

The package contains an audio cable with a 3.5 mm jack on one end and two RCA plugs on the other, the remote control with battery, and the user manual.

How to use the remote control?

The remote allows you to control power, volume, bass, treble, equalization mode, and input selection. Insert the CR2025 battery (included) respecting polarity.

How to change the equalization mode?

Press the dedicated button on the remote to switch between the three preset modes: Normal, Music, and Movie.

What to do if the soundbar does not turn on?

Check that the switch on the back is set to ON and that the power cable is plugged into a mains socket. If it remains off, test another outlet or contact technical support.

How to clean the soundbar?

Use a soft dry cloth to dust the device. Never use corrosive or abrasive products, and avoid any contact with water.

What battery does the remote control use?

The remote works with a CR2025 3V button cell battery, provided in the package. Replace with the same model if needed.

Is the soundbar compatible with my smartphone?

Yes, you can connect your smartphone via the Line-in input (3.5 mm jack) using a suitable cable (not included with the product).

What is the power of the soundbar?

The total RMS power is 100 W, split across the two stereo channels for clear and powerful sound.

How to activate the warranty?

The 36-month warranty is automatic for purchases within the European Union. Keep your invoice and contact your retailer or online support at http://support.energysistem.com.

USER MANUAL SB2 ENERGY SISTEM

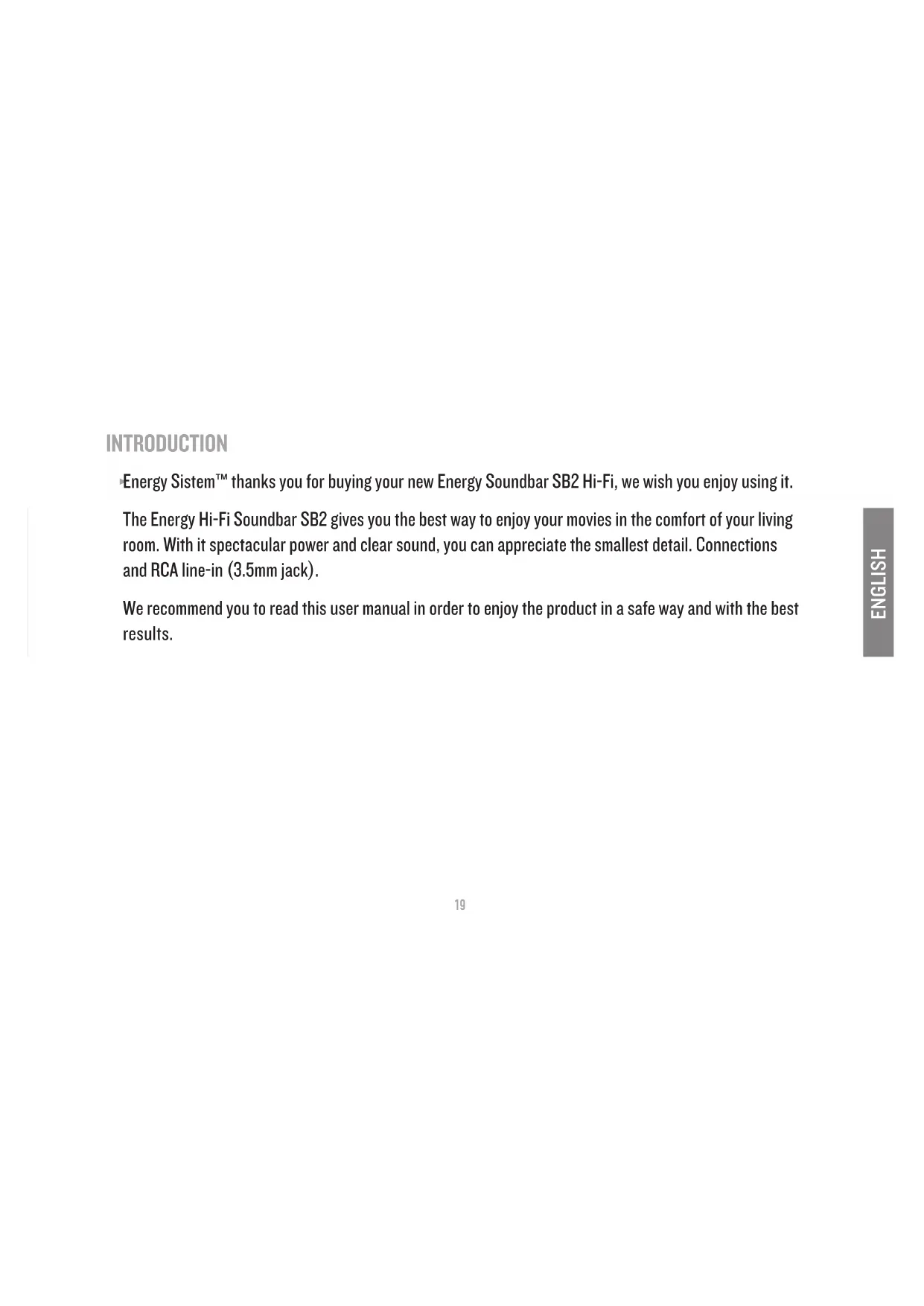

Energy Sistem™ thanks you for buying your new Energy Soundbar SB2 Hi-Fi, we wish you enjoy using it.

The Energy Hi-Fi Soundbar SB2 gives you the best way to enjoy your movies in the comfort of your living room. With it spectacular power and clear sound, you can appreciate the smallest detail. Connections and RCA line-in (3.5mm jack).

We recommend you to read this user manual in order to enjoy the product in a safe way and with the best results.

CARE AND MAINTENANCE

Do not expose your Energy Soundbar SB2 Hi-Fi to shock, dust, humidity or high temperatures.

Do not use cleaners or scouring agents.
- Keep the unit clean and dust with a soft, dry cloth.

Do not disassemble the device. Any repairs must be done by qualified service personnel authorised only by Energy Sistem Soyntec SA
- Keep your Energy Soundbar SB2 Hi-Fi away from water or moisture, it can be harmful to both speakers or amplifier device.
Switch off your Energy Soundbar SB2 Hi-Fi when not in use.

Battery Safety

Please ensure batteries are disposed of safely.
Never dispose of batteries in a fire or with other household waste.

Check with your local authority for disposal regulations.

TECHNICAL SPECIFICATIONS

2.0 soundbar audio system.

RMS output power: 100W.
Speakers: (2^ + 1.5^ )× 2
Connections: RCA and Line-In (3.5mm).
Remote control with full functions.
Treble and bass control.
Metal grille in the front to protect the speakers.
Slim design (6cm).
Standby power consumption < 0.5W
Power supply: AC II0-240 / 50-60Hz.

PACKAGE CONTENT

Energy Soundbar SB2 Hi-Fi.

Remote Control.
Audio cable.
User Manual.

GENERAL OVERVIEW

Rare view

1. RCA connection.
2. Aux in.
3. Power switch.

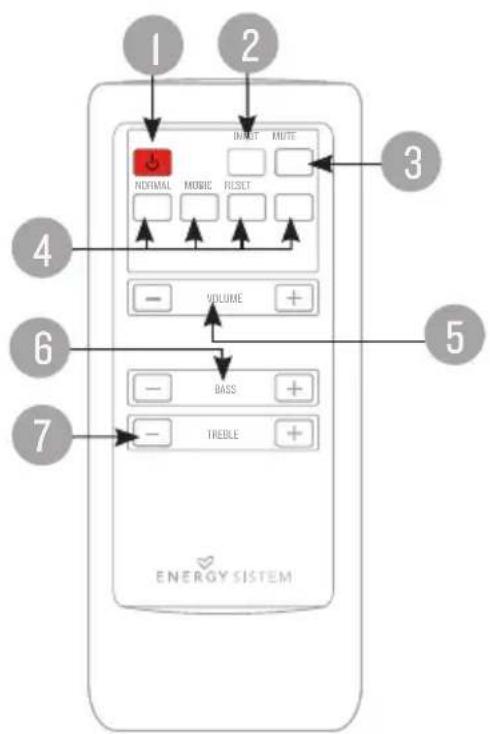

REMOTE CONTROL

1. ON/OFF.
2. Input (RCA / 3,5mm Aux in)
3. Mute
4. EQ modes.
5. Volume control.
6. Bass control.
7. Treble control.

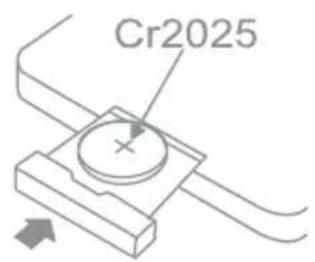

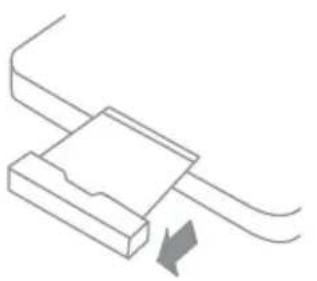

BATTERY INSTALLATION

Remove the battery cover from the remote control and put CR2025 / 3V.
The following diagram shows the correct way to insert batteries.

MAIN FEATURES

Surround sound for your TV without taking out space and easy installation.

2.0 Hi-Fi stereo system.
100W real output power.
3 predefined equalization modes (NORMAL, MUSIC, MOVIE).
Remote control with full functions.

CONNECTIONS

Your Energy Soundbar SB2 Hi-Fi has different audio connections allowing you connect different audio devices as CD players, mp3 players, DVB-T, computers, Smartphones, etc.

Line-in

Use the audio cable (included) and connect the 3.5mm jack side in to the line-in input on the rare side of your Energy Soundbar SB2 Hi-Fi and the other RCA sides of the audio cable to your DVD, DVBT, TV (if it has audio output), etc.

To select this function, press the button (2) on the remote control to switch between the two options.

Input RCA

Use the audio cable (included) and connect the RCA sides of the audio in to the Aux-in input on the rare side of your Energy Soundbar SB2 Hi-Fi and the other 3.5mm jack side of the audio cable to any other audio device.

To select this function, press the button (2) on the remote control to switch between the two options.

WARRANTY

Energy Sistem Soyntec SA is liable for any lack of conformity which exists at the time the goods were purchased during a period of 36 months. Batteries are excluded from the 36-month warranty, having a warranty period of 12 months.

This warranty covers any defects in workmanship or materials. This warranty doesn't cover any failure of the product due to accidents, misuse or alteration made by an unauthorized person.

The special 36-months warranty is valid for the European Union. For other countries, please refer to your specific legislation or your local distributor.

WARRANTY PROCEDURE

1. Visit the Support section at http://support.energysystem.com and select your product to view the FAQ (Frequently Asked Questions). The solution to your problem is very likely to have been already published there. You will also be able to download user manuals, user guides, drivers and updates.
   You can check the availability of the user manual in your language at http://www.energysistem.com/es-es/support/manuals
2. Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting the purchase receipt or invoice.

Specifications are subject to change without notice.

Trademarks. All company, brand and product names are trademarks or registered trademarks of their respective companies.

2013 by Energy Sistem Soyntec S.A. All rights reserved.

DECLARATION OF CONFORMITY

26/02/2013

Manufacturer Name: Energy Sistem Soyntec S.A.

Address: Pol. Ind. Finestrat, C/. Calpe, I - 03509, Finestrat Alicante (Spain)

Tel: [phone]

Fax: 902 I19 034

NIF:A53107488

We declare under our own exclusive responsibility that the product:

Energy Sistem™ Soundbar 2.0 Energy Soundbar SB2 Hi-Fi

Manufacturing country: China

Is in compliance with the essential norms and standards of the Directive 2004/108/EC of the European

Parliament and of the Council of December 15th 2004.

This symbol on the product or the instructions means that your electrical and electronic equipment should be disposed at the end of life separately from your household waste. For more information, please contact the local authority or dealer where you purchased the product
