| Product type | MP5 multimedia player |
| Brand | Energy Sistem |
| Model | 5204 (series 52) |
| Display | TFT LCD tactile 2.8", 262,000 colors |
| Supported audio formats | MP3, WMA, WAV |
| Supported video formats | AVI (DivX/XviD), FLV, RM, RMVB; conversion via Energy Movier for AVI/WMV/MPG/VOB/ASF |
| Supported image formats | JPG, BMP |
| FM Radio | Yes, 30 presets, direct recording |
| FM Transmitter | Yes, wireless transmission to car radio or mini system |
| Voice recording | Yes, built-in microphone, WAV format |
| TV output | Yes, via RCA cable (included) |
| Speaker | Built-in |
| Headphones included | In-ear Hi-Fi neodymium magnet |
| Battery | Rechargeable Li-Ion, charging time 3 to 5 hours |
| Memory expansion | Micro-SDHC card (up to 32 GB) |
| Connectivity | USB 2.0 (charging and data transfer) |
| Navigation | Touch screen, stylus included |
| Additional functions | TXT e-book, clock, calendar, stopwatch, 8-mode equalizer, repeat modes |
| Box contents | Player, stylus, headphones, TV output cable, USB cable, CD with software, manual |
| Warranty | 36 months |
| Maintenance and cleaning | Clean with a soft dry cloth; do not use abrasive cleaners |
| Safety | Do not expose to shocks, dust, direct sunlight, moisture or extreme temperatures; do not disassemble |
Frequently Asked Questions - 5204 ENERGY SISTEM
User questions about 5204 ENERGY SISTEM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Mp3 player in PDF format for free! Find your manual 5204 - ENERGY SISTEM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 5204 by ENERGY SISTEM.
USER MANUAL 5204 ENERGY SISTEM
the heart of your music
MP5 TOUCH PLAYER
YENERO
52 Series
Energy Sistem thanks you for buying your new MP5 Energy™ Touch. We wish you enjoy using it.
This compact multimedia player in aluminium body, with T-HDP technology (2,8" display with 262.000 colours, built-in speaker and high fidelity processor) and Micro-SDHC memory expansion slot allows you to enjoy videos, music and pictures anytime anywhere. It also has an integrated FM-Transmitter that can play your music through any car stereo (or mini Hi-Fi Set) wirelessly, and a TVOUT system. We recommend that you fully read this user manual in order to enjoy the product in a safe way and with the best results.
CARE AND MAINTENANCE
- Do not expose your MP5 Energy™ to shakes, dust, direct sun light, moisture or extreme temperatures.
- Do not use abrasive or corrosive cleansers.
Do not use sharp or pointy objects on the touch screen. We recommend you to only use the provided pointer.
- Keep the device clean and dust free with a soft and dry cloth.
▶ Recharge the battery when the low battery icon appears on screen.
Do not disassemble the device. Any repairs must be performed by qualified Energy Sistem Soyntec's personnel.
MAIN FEATURES
T-HDP: 2,8" TFT touch display with 262.000 colours, built-in speaker and high fidelity processor.
FM-Transmitter: Plays music through any car stereo (or mini Hi-Fi Set) wirelessly.
▶ TV OUT function.
MP5: Plays AVI videos (Divx/Xvid)/FLV/RM/RMVB without transcoding. Includes ENERGY MOVIER software for transcoding special formats/codecs and Internet videos downloading, compatible with Youtube, Google Video, Dailymotion and Sevenload.
▶ Plays MP3 / WMA / WAV music.
▶ Displays JPG / BMP pictures.
▶ Integrated FM Radio with 30 presets and direct recording.
▶ Digital voice recording with built-in microphone.
▶ Micro-SDHC expansion slot (up to 32GB).
▶ Hi-Fi earphones with neodymium magnets.
▶ Li-Ion rechargeable battery.
Smart song browsing through categories and favorites.
▶ Folder navigation.
▶ Artists and lyrics on screen (Id3-Tag and LRC).
8 equalization modes, including the new Microsoft™ PlayFX.
5 repeat modes and 2 playback modes: Normal (sequential) and random.
▶ Extra functions: e-Book TXT, clock, calendar and chronometer.
PRODUCT CONTENT
Energy Sistem ® MP5 Touch Player Energy™ 52 Series.
Stylus pen.
▶ High-fidelity in-ear neodymium earphones.
▶ TV OUT cable (3 RCA outputs).
Software and drivers CD. Includes ENERGY MOVIER software for Internet videos downloading, compatible with Youtube, Google Video, Dailymotion and Sevenload.
▶ User manual.
USB 2.0 High-Speed cable for battery charging and data transfer.
Neckstrap.
Carrying case.

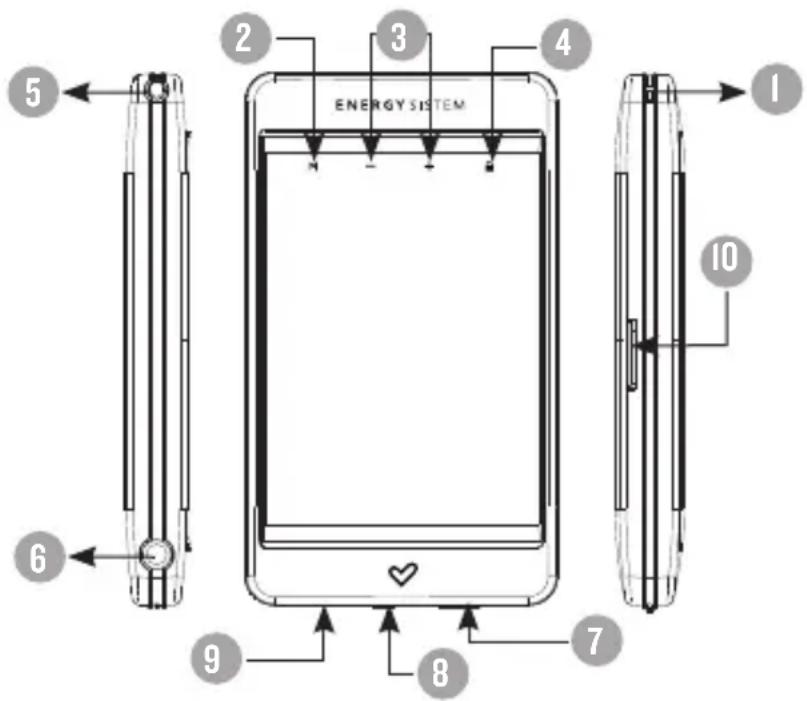

GENERAL OVERVIEW
- Neck strap hole.
- MENU icon: Return to main menu.
- V+/V- icons: Volume + / Volume -.
- HOLD icon: Lock / Unlock touch-screen and buttons.
- Touch-screen stylus.
- Earphone output. TV OUT connector.
- ON/OFF button: Power on / Power Off / Touch-screen calibration.
- Power on/off switch.
- USB 2.0 Hi-Speed connector for battery charging and data transfer with PC.
- Memory extension slot for Micro-SD cards.
Recharge the battery connecting the player to a computer using the included USB 2.0 cable (using any USB type mini-B with 5-pins will also work).
Optionally, you can recharge the battery with an AC/DC power adaptor with an USB connector (USB type mini-B with 5-pins) (Note: the output of the AC/DC must be 500mA maximum).
Charging time is between 3 and 5 hours, depending if the player is powered off or working. To keep the battery in good conditions, we recommend not using the player while charging and not leaving it charging for more than 8 hours.
Your MP5 Energy™ uses two systems for battery saving: It can power off the LCD display after some seconds of inactivity, and it can power off completely after some minutes of inactivity. Both systems are configurable, respectively, browsing the menus SETTINGS -> Display Setting and SETTINGS -> Auto Shut Time. In order to maximize the battery's lifespan, it is recommended not to disable completely these power saving features.
Touch screen calibration: If the icons do not respond when touched with the stylus or your finger, please recalibrate the touch screen. To do so, being at the main menu, briefly push the ON/OFF button and touch with the stylus the red points indicated by the system.
SWITCHING ON / OFF
To power on your MP5 Energy™ Touch, move the switch to the "ON" position and press the ON/OFF button for 2 seconds.
Note: When powering on, the device performs a memory check. The power on time depends on the amount of occupied memory.
To power off your MP5 Energy ^™ , press ON/OFF for 3 seconds. At that moment, the device will save your settings.
To know the amount of free memory, browse to SETTINGS -> System Information.
Hold function: Briefly press the HOLD icon to lock / unlock the buttons and the touch-screen.
Your MP5 Energy™ allows you to enjoy MP3 / WMA / WAV codified music due to its high fidelity sound processor. To enter into the play mode for MP3/WMA/WAV files, touch the MUSIC icon on the main menu. Take a look to the different options available for you to easily select your music (touch with the stylus or press the PLAY button to start the selected file playback):
"Current Play": Shows the music player screen.
Note: To learn more about the player, take a look to the "Music player screen" section of the manual.
"All Music": Select this option to locate songs in the built-in memory by their file name.
"Artist", "Album" and "Genre": They show listings of your favorite music sorted by artist, album or genre respectively.
Note: In order for the music files to be displayed in these listings, their artist, album and genre information must be stored into the file (information known as ID3-Tag). You can find freeware utilities to create or modify ID3-Tags like MP3Tag or ID3 Renamer.
"My Favorite": With this option you can listen to your favorite music that you already marked as favorite. To add a song to your favorites list, simply press the HEART icon while on top of a file or folder. Inside the "Favorites" folder, if you press the HEART icon a new menu will pop up allowing you to erase one or all the favorite marked songs. Make a selection using your stylus.
Note: Erasing an element from "My Favorite" you only eliminate what marks it as favorite, the file will stay in memory.
"Record": Listen to the clips you have recorded using the microphone or the FM radio with this option. Choose the clip you want to listen to and touch it with the stylus.
"Dir List": With this option you can explore the file tree in the memory of the MP5 Energy™ just as it would be displayed in your computer. Use this option to access the songs of your Micro-SDHC card.
"Medialib Update": Use this option to refresh the contents of your MP5 Energy™ internal memory whenever you add or delete songs.
Note: When the player is unplugged from the PC via the safe USB device removal, the MP5 Energy ^™ will run an automatic Update and enter battery charge mode.
"Playback Resume": This submenu will allow you to restart playback of up to 3 songs from the point you left them.
MUSIC PLAYER SCREEN
You can pause the playback by pressing the PLAY icon. Briefly press the PREVIOUS/NEXT icons to skip to the previous/next track. You can fast forward or rewind the song by holding the PREVIOUS/NEXT icons, or select the exact jump spot by selecting with your stylus on the progress bar.
Use the VOLUME+/- icons to increase/decrease the volume, or select it on the horizontal volume bar.
Access the submenu touching the M (MENU) icon on the music player interface and the available options will appear. With the “Display” option you can choose to show the song lyrics.
Note: The song lyrics are a text files named exactly after the music file with the LRC extension. If some of your music files do not have the LRC file, the lyrics will not be shown, but you can listen to the music without problem.
To exit the current playback to the previous menu press the RETURN icon. Press the RETURN icon again if you want to go back to the main menu.
MUSIC PLAYER SETTINGS
You can choose the equalization mode that fits your preferences. To do so, on the music player interface touch the M (MENU) icon and choose EQ Mode, and after that choose one of the 8 available modes: "Normal", "PlayFX", "Rock", "Pop", "Classic", "Bass", "Jazz" or "User EQ".
Note: You can personalize the "PlayFX" and "User EQ" equalization modes respectively.
The playing order of the tracks depends on the selected mode. By default, the mode is set to "Order". You can change to a different mode with the M (MENU) icon, selecting PLAY MODE and choosing "Normal" (sequential order) or "Shuffle" (random).
You can also set the repeat mode selecting REPEAT MODE at the submenu and choosing your preferred mode:
“Once” (plays the current file and stops), “Repeat” (repeat current track), “All” (plays all the files once), “All Repeat” (plays all the files continuously) and “Intro” (plays the first 10 seconds and skips to the next file).
FM-TRANSMITTER
▶Your MP5 Energy ^™ integrates an FM transmitter so it can play music through any car stereo (or mini Hi-Fi Set) wirelessly. In order to activate this function, follow these steps:
- Plug in the earphones. The earphones cable works like a transmitter antenna, so it is convenient to unfold it in order to improve the tuning result and also place it as close as possible to the FM receiver antenna (car antenna or mini Hi-Fi Set, etc).
- Select the broadcast frequency: go to SETTINGS -> FM-TRANSMITTER -> "On" and choose the FM frequency that you prefer by repeatedly clicking the icons on screen. To confirm the selection, touch the RETURN icon. Note: Improve the sound quality by selecting a free frequency where no other radio station in the area is broadcasting. It may happen that you need to try several frequencies until you find the one that offers the clearest sound.
- Enter the MUSIC mode from the main menu and start playing music. We recommend to adjust the volume to a medium level (60% approx) and select the NORMAL equalization.
- Get the FM receiver device (car stereo o mini Hi-Fi Set, etc) and tune exactly the same FM frequency that you selected during step N° 2, and adjust the volume level according to your taste.
- When not in use, save battery life by deactivating the FM transmitter from SETTINGS -> FM-TRANSMITTER -> "Off".
VIDEO PLAYER
You can enjoy your favourite videos and movies anytime anywhere with the big 2,8" screen of your MP5 Energy™ and its memory expansion capability.
You can play AVI(Divx/Xvid)/FLV/RM/RMVB videos directly without conversion. On some exceptional occasions (like uncommon codecs or bitrates), to ensure a correct visualization and compatibility, you can play AVI/WMV/MPG/VOB/ASF videos previously converted to AVI format (XVID with MP2 audio) with Energy Movier software, included in your drivers CD. Check the user manual section "ENERGY MOVIER: CONVERTING AVI VIDEOS".
To play videos, select the VIDEO option from the main menu. You will access the files explorer (check the "EXTRAS: EXPLORER" section). Choose the video that you want with the stylus and touch it again with the stylus to start playing it. Touch the PLAY icon to pause the playback. To get the volume up/down, use the VOLUME+/- icons on screen.
Press PREVIOUS/NEXT icons to skip to the previous/next video. You can fast forward or rewind the video by holding the PREVIOUS/NEXT icon. Press the M (MENU) icon to access the options submenu for videos and select one with the stylus:
"Jump to minute": This option allows you to access a specific point of the video. Use the PREVIOUS/NEXT icons to choose the hour/minute and use the HOLD icon to accept.
"Mode": Select this option to switch between full screen and normal. This option will only affect videos that accept aspect ratio change.
"TV-Out switch": This will activate the TV out connector and display the image on a TV set.
To access again the files explorer, press the RETURN icon. To exit this mode and get back to the main menu, press again the RETURN icon.
TV OUT MODE
Before you activate the TV-OUT mode, the bundled cable must be connected to your TV through the audio (red and white) and video (yellow) RCA connectors, and also to your MP5 "TV OUT" connector with the Jack connector end. Alternatively to the video options activation mode, you can activate/deactivate the TV OUT mode via SETTINGS -> TV switch.
ENERGY MOVIER: INSTALLATION
With Energy Movier software tool you can easily convert your AVI/WMV/MPG/VOB/ASF videos to the AVI format (XVID with MP2 audio) so they occupy less memory and to ensure compatibility with the majority of formats/codecs.
To install Energy Movier follow these steps:
- Insert the drivers CD in your CD/DVD reader unit of your PC.
Note: We save the latest available version of the software in the CD when the unit leaves the factory. However, if you have an internet connection, we recommend you to always download the latest version from our website www.energysistem.com.
-
A Windows menu will appear automatically for you to choose an option (as long as you have Windows autorun enabled). Select "Energy Sistem Menu".
-
Once you see the Energy Sistem menu, select "Install Energy Movier". If you have autorun disabled, you can run the installation file "setup.exe" from the folder "Energy Movier".
-
On the installation screen, select "OK" and click on the icon to begin the installation. Follow the steps by pressing "Continue".
Note: Depending on the codecs you have installed in your computer, you might get a message from the program trying to overwrite some of them. In that case, we recommend that you keep your existing files by pressing "Yes".
- Once the installation is complete, you can run the application from Start -> "All programs" -> "Energy Sistem" -> "Energy Movier".

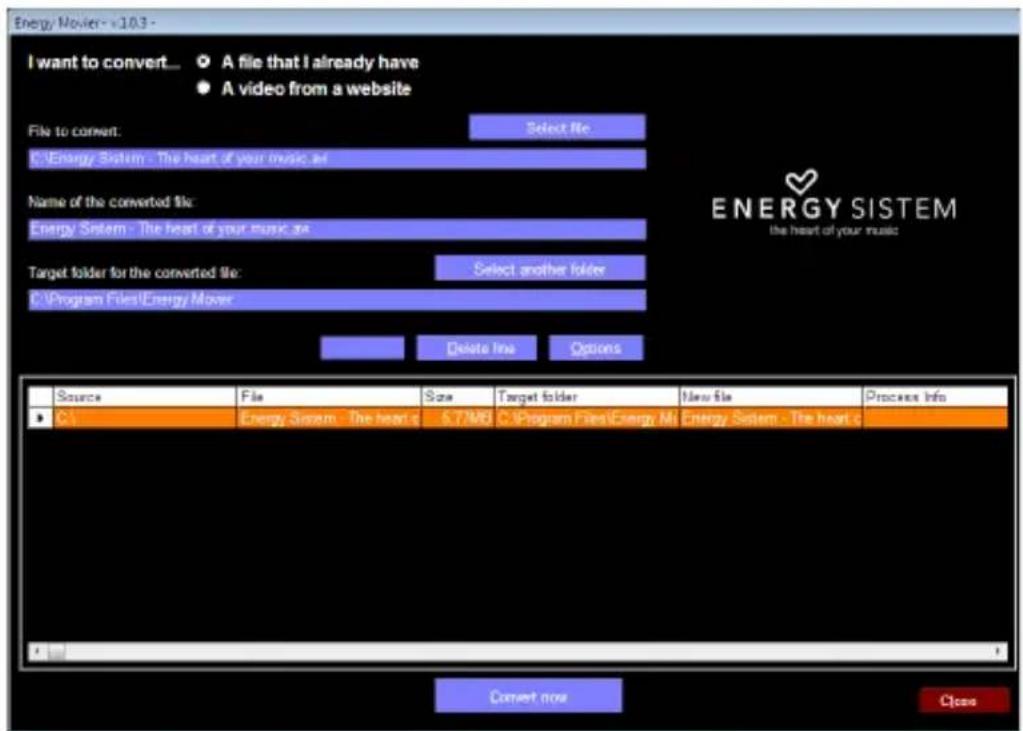

ENERGY MOVIER: CREATING AVI VIDEOS
To convert an AVI/WMV/MPG/VOB/ASF video follow these steps:
Note: If you want to convert special video formats like MPEG4 / DivX / XviD / etc. make sure that you have the appropriate “codecs” installed. You can install codec packages like “K-Lite Standard Pack”. It is also recommended that the files to be converted are in the installation folder.
- Execute "Energy Movier" from the "Start" menu.
- If it's the first time you run the program, the options window will automatically pop up so you can select your MP5 Energy™ model. Optionally you can modify the quality and the image format you want for your videos.
- Choose a file to be converted with the "Select file" button.
- You can specify a name for the new file in the "Name of the converted video" section. If you don't write anything, the original file name will be used.
- Optionally you can select the folder where your video is to be stored by clicking on the button "Select another folder".
- Click on the "Add" button so the conversion job adds to the list of pending tasks.
Note: You can add many conversion tasks so the videos batch convert without having you staring your computer. If you want to, you can erase a queued job by selecting the line with your mouse and pressing "Delete line". - Repeat steps 3 to 6 for each one of the videos you would like to convert.
-
Once you have queued all the videos you want to convert, press "Convert now" to begin the process.
-
On the "Process Info" column you can check the current file conversion, along with its current size. When the process is finished, the "Process Info" column turns green colour. Wait for all the tasks to complete and click the "Close" button to exit the program.
Note: We recommend not using the PC while Energy Movier is converting due to the high consumption of resources that could lead to other applications not responding.
- Connect your MP5 Energy™ to the computer (check out the "PC Connection" section) and copy the new AVI file(s) inside your desired folder, unless you selected your MP5 as the target folder destination for direct recording.


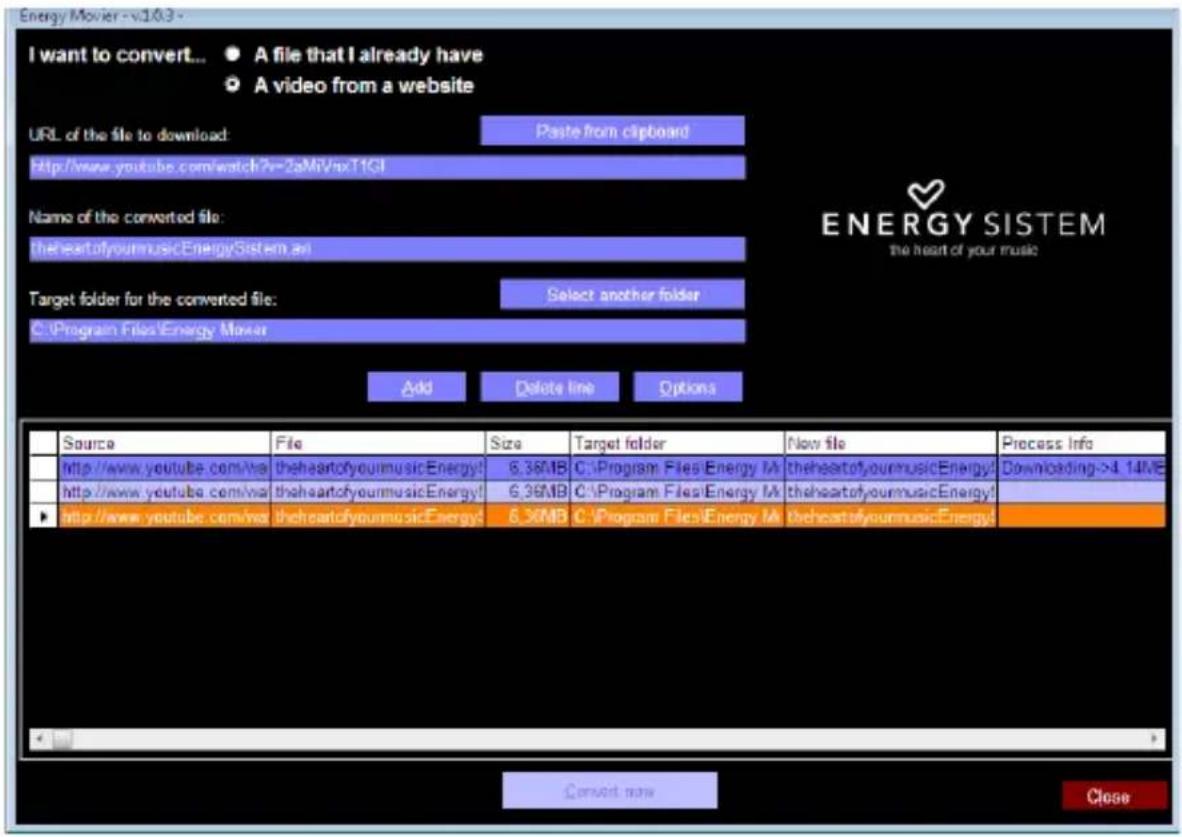

On top of the possibility of converting videos you already have in your PC, you can also download and convert your favourite videos from the most popular Video Websites to enjoy them with your MP5 Energy™ anytime anywhere.
Note: On printing date of this manual, Energy Movier is compatible with Youtube, Google Video, Dailymotion and Sevenload; check the updated compatibility list at www.energysistem.com/videosweb.
To download and convert the videos, follow these easy steps:
- Run "Energy Movier" from the "Start" menu.
- If this is the first run of the program, the options window will open automatically so you can select your MP5 Energy™ model. Optionally you can modify the quality and the aspect ratio you want for your videos.
- Choose "A video from a website" in the "I want to convert...." section.
- Your next step is to provide the link to the video you want to download. Usually the right link is shown in the "Address" field of your web browser while you are seeing the video. Copy this address from your browser and paste it in the field "URL of the file to download" by pressing the button "Paste from clipboard" in Energy Movier.
-
In the field "Name of the converted file" you can specify a name for the new file. If you don't write anything, the original internet name will be used.
-
Optionally you can select the folder where the new video will be stored. To do so, click on the "Select another folder" button. Note: If you have your MP5 Energy™ connected to the PC, you can select a folder from it so the new video stores directly on the unit, but make sure there is enough free space.
- Click on the "Add" button to add the download and conversion job to the task list. If you receive an error message and your internet connection is fully functional, probably the link is from an unsupported page, or the video has some copyright or access restriction. (i.e. for mature only).
Note: You can add several download and conversion jobs so they batch process automatically without you staring at the computer. If you want to, you can delete a queued job selecting it with your mouse and pressing the “Delete line” button.
- Repeat steps 4 to 7 for each of the videos you want to download and convert.
- Once you have queued all the videos you want to download and convert, press "Convert now" to begin the process.
- On the “Process Info” column you can check the current file download and conversion, along with its current size. When the process is finished, the “Process Info” column turns green colour. Wait for all the tasks to complete and click the “Close” button to exit the program.
Note: We recommend not using the PC while Energy Movier is converting due to the high consumption of resources that could lead to other applications not responding.
II. Connect your MP5 Energy™ to the computer (check out the "PC Connection" section) and copy the new AVI file(s) inside your desired folder, unless you selected your MP5 as the target folder destination for direct recording.
Your MP5 Energy™ has an integrated FM radio with 30 presets and direct recording. To listen to the radio, select the RADIO icon in the main menu. To display the FM settings menu, select the M (MENU) icon.
Manual search:
- Being at the FM settings, select "Manual search".
- Press PREVIOUS/NEXT to go back/forward along the frequency band.
- Once you have tuned a broadcast, touch the M (MENU) icon and select "Save channel". Choose the preset number with the stylus by touching twice the desired preset.
Automatic search:
While being at the FM settings menu, select "Auto search" to start the automatic search. The presets will be stored automatically as well. To browse the stored presets, choose "Preset channels" at the FM settings menu and use the PREVIOUS/NEXT icons to navigate through presets.
Note: At the center of the screen you can see the number of the preset you are hearing.
Record directly what you are listening on the FM radio. Enter the menu by the M (MENU) icon and choose "FM record". You can pause the recording by pressing the PAUSE icon. To finish recording, press the RETURN icon. Press the RETURN icon while not recording to get back to the RADIO mode.
Note: pressing the M (MENU) icon on the record screen while recording is totally stopped will give you access to the record options menu.
The sound files that you recorded are stored inside the “RECORD” folder. The files are WAV format. You can listen to these files while being at the MUSIC mode selecting the “RECORD” option, or from the EXTRAS main menu entry using the folder navigation function to enter the RECORD folder and then selecting the WAV file that you want to listen.
Exit the RADIO mode by pressing the RETURN icon at the main radio screen.
Your MP5 Energy™ is able to perform voice recording with its integrated microphone. To enter the voice record mode, select the RECORD icon. Press the REC icon to start recording. You can pause by pressing PAUSE icon. To finish recording, press the RETURN icon.
Touching the M (MENU) icon on the record screen will give you access to the record options menu.
The sound files that you recorded are stored inside the “RECORD” folder. The files are WAV format. You can listen to these files while being at the MUSIC mode selecting the “RECORD” option, or from the EXTRAS main menu entry using the folder navigation function to enter the RECORD folder and then selecting the WAV file that you want to listen.
Exit the RECORD mode by pressing the RETURN icon.
VIEWING PICTURES
View and enjoy your JPG / BMP pictures and photos with the high resolution TFT LCD screen of your MP5 Energy™.
To view your images, select the PHOTO icon from the main menu. You will access directly to the files explorer (check the "EXTRAS: EXPLORER" section), choose the picture that you want with the stylus and double press on it.
While viewing a picture, you have icons to rotate the picture, to browse to the previous/next image, the M (MENU) icon to show the options submenu and use the different visualization options (slideshow presentation and the zoom, for example) and the RETURN icon to go back to files navigation.
To return to the main menu, just press again the RETURN icon.
E-BOOK
View and enjoy your electronic books (e-book in TXT format) anywhere with the high resolution TFT LCD screen of your MP5 Energy™. To view your e-books, select the E-BOOK icon at the main menu. You will access directly to the files explorer (check the “EXTRAS: EXPLORER” section) and choose the book that you want with the stylus to start reading it.
While reading an e-book, you have icons to jump to the previous/next page, forward/rewind line by line, show the extra options menu (save/load/delete bookmark, change font size and color, change background and flip time) and the RETURN icon to go back to files navigation.
To return to the main menu, just press again the RETURN icon.
EXTRAS: EXPLORER, STOPWATCH AND CALENDAR
Using the EXTRAS icon on the main menu you will access the "Explorer", "Stopwatch" and "Calendar" functions:
"Explorer": This handy function allows you to directly choose the music / video / image / e-Book folder or file that you want to play, previously sorted with your PC.
By touching the items with the stylus you can select whatever file you want. You can go back to the previous folder touching the “..” icon or by pressing the RETURN icon. The UP and DOWN arrow icons show the previous / next page of files in memory respectively.
Touch with the stylus over a file to start a playback. If you want to delete a file select it, press the TRASH BIN icon and then select "Delete file". To cancel the deletion, simply select "Exit" instead.
Note: Also you can browse through folders while on MUSIC / VIDEO / PHOTO / E-BOOK mode but keep in mind that while you browse the folders on one given section, only the files associated to that section will be displayed (music files in MUSIC, image files in PHOTO, etc...). If you want to see all files present in memory, choose EXTRAS -> EXPLORER at the main menu.
"Stopwatch": using the PLAY icon you activate the stopwatch, and with the STOP icon you reset the counter. Use the RETURN icon to go back to EXTRAS.
"Calendar": use the arrow shape icons to view the previous / next month.
Note: Date and Time are set at SETTINGS->"Adjust date and time".
PC CONNECTION AND MICRO-SDHC SLOT
In order to enjoy the multimedia capabilities of your MP5 Energy™, you have to first copy your favourite files from your PC to its internal memory, or use a Micro-SDHC memory expansion card.
Note: Turn off your MP5 Energy™ each time you insert/extract your Micro-SDHC card to avoid accidental data losses.
Connect your MP5 Energy™ to the computer using the USB 2.0 cable included. The device will be detected automatically without installing any driver. Once detected, you can read/write to the device's memory just as if you where using a regular disk drive.
IMPORTANT: To avoid any data loss, always perform a safe USB device extraction before disconnecting the USB cable from the device of the PC. In Windows XP, for example, you can find the safe extraction icon in the task bar, next to the system clock.
FIRMWARE REINSTALLATION
Your MP5 Energy™ has an installed operating system, usually called firmware, which sometimes needs to be reinstalled.
The process is easy, but has to be performed carefully, and only when it is really necessary. If you see that the player halts, reboots randomly, or you have problems to access the memory content from your computer, those are signs that the firmware might be damaged and you should reinstall the latest version available.
IMPORTANT: First of all, make a backup of the files inside the your MP5 Energy™ that you want to keep and disconnect the device from your PC, since during the firmware reinstallation the memory will be formatted and erased. It is also very important to make sure that your computer is virus-free and has no halt/lock problems.
Follow these steps to reinstall the firmware:
- Insert the bundled Driver CD in a CD/DVD drive of your computer and the CD MENU will automatically appear. Select "Download Energy 52 Series Firmware" to access our website (you can access manually with a web browser at www.energysistem.com).
- Select your model at the products section and download the latest version available from the download zone. Note: Make sure the firmware you download is specific for your model because otherwise you can severely damage the unit.
-
Uncompress the file in your computer, open the instructions file and follow the instructions.
-
Unplug the USB cable, turn on the unit and wait for the main menu (it may take up to a few minutes).
- Connect again the unit to the computer with the USB 2.0 cable.
- Go to "My PC" and double click on the drive that represents your MP5 internal memory.
- You can again transfer data to your MP5 Energy™ and enjoy it right away.
TROUBLESHOOTING
1. Why can't I play some MP3 files?
The MP3 file has to be compressed along some standards like MPEG1/MPEG2/MPEG 2.5 layer 3. Otherwise, the file must be converted using a software application.
2. Why can't I play some video files?
It's possible that the format/codec is not compatible. Convert the file with the Energy Movier software to assure compatibility and obtain a file that will occupy less space in memory.
3. My player doesn't power on and/or my computer doesn't detect it, what can I do?
Probably there is a problem with the firmware. Check the user manual section "FIRMWARE REINSTALLATION".
4. Why can't I play some WMA files?
Make sure that you are not coding the WMA files with DRM.
5. Why can't I see the image, video or text files while using the music browser?
You will only see the files in memory associated to the browsing you are doing (music files for Music, image files for Photo, etc...). To view all the files in memory at once, choose the “Explorer” option inside EXTRAS menu.
6. Why can't I display my .jpg files?
Many digital cameras and image edition software add hidden data to the .jpg files. This data can prevent your MP5 from loading the images. Try to eliminate them by saving the file with another name.
- When I turn off the MP5 with the power switch, the brightness or the song I was listening to are not stored. What gives?
For the MP5 to successfully store its state, you have to switch it off holding the ON/OFF button.
- What's the video format of my MP5 Energy™
Your MP5 Energy™ plays many video formats without recoding, and AVI files compressed with XVID (MP2 audio). Convert your videos using Energy Movier to ensure compatibility.
- Why the system does not respond when I press an icon?
You should recalibrate the touch-screen (see "BATTERY POWER AND TOUCH SCREEN CALIBRATION").
- The FM-Transmitter seems to have too short range.
Keep in mind that the earphones act as antenna to improve both FM transmission and reception. Check out the FM-TRANSMITTER section of the users manual to make a good use of this function.
- Sometimes the screen turns black and the player does not respond.
Make sure that the TV OUT is not activated, since it deactivates the player screen. In the user manual you can find the ways to active/deactivate the TV OUT function. If you do not have access to a TV set right now, use the power switch to reinitiate the player.
Have any other question? Check the product F.A.Q. section at
www.energysistem.com
Technical support email addres:support@energysistem.co.uk
WARRANTY
Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workmanship at the time of purchase.
The warranty period is 36 months from the date of purchase for MP3/MP4/MP5 Players.
WARRANTY PROCEDURE
- Visit the Support section at http://support.energysistem.com and select your product to view the FAQ (Frequently Asked Questions). The solution to your problem is very likely to have been already published there. You will also be able to download user manuals, user guides, drivers and updates.
- If you cannot find an appropriate solution in the Support section, you may send us your enquiry or warranty service request by email: support@energysistem.co.uk
- Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting the purchase receipt or invoice."
Specifications are subject to change without notice.
© 2010 by Energy Sistem ®. All rights reserved.
Trademarks.
All company, brand and product names are trademarks or registered trademarks of their respective companies.
CONDITIONS DE GARANTIE

