INTRODUCCION

Energy Sistem thanks you for buying your new MP4 Energy™. We wish you enjoy using it.

This compact multimedia player, with HDP technology (1,8" LCD display with 65.000 colors, built-in speaker and high fidelity processor) allows you to enjoy videos, music and pictures anytime anywhere. It also has an integrated FM radio tuner module and the innovative DUO feature (2 x stereo outputs).

We recommend that you fully read this user manual in order to enjoy the product in a safe way and with the best results.

CARE AND MAINTENANCE

• Do not expose your MP4 Energy™ to shakes, dust, direct sun light, moisture or extreme temperatures.
  Do not use abrasive or corrosive cleansers.
• Keep the device clean and dust free with a soft and dry cloth.
• Recharge the battery when the low battery icon appears on screen.
• Do not disassemble the device. Any repairs must be performed by qualified Energy Sistem Soyntec's personnel.

MAIN FEATURES

DUO: 2 x stereo outputs.

HDP: 1,8" LCD display with 65.000 colours, built-in speaker and high fidelity processor.
Plays MPEG4 videos (XVID with MP2 audio in AVI format). Movie file creator software is included in the CD."

Plays MP3/WMA/WAV music.

Displays JPG pictures.

Integrated FM Radio with 30 presets and direct recording.

Digital voice recording with built-in microphone.

2 x high-fidelity in-ear earphones with neodymium magnets.

Li-Ion rechargeable battery.

Folder navigation.

Artists and lyrics on screen (Id3-Tag and LRC).

Upgradeable firmware.

No drivers needed (except for Windows 98).

6 equalization modes, including the new Microsoft™ MS PlayFX.
7 different playback modes, including sequential, random, repeat mode, and more.

PRODUCT CONTENT

Energy Sistem® MP4 Player Energy™ 3010/3011/3020/3021/3022/3030.

2 × high-fidelity in-ear earphones with neodymium magnets.

User manual.

Software and drivers CD.

USB 2.0 High-Speed cable for battery charging and data transfer.

Neck strap.

Carrying case.

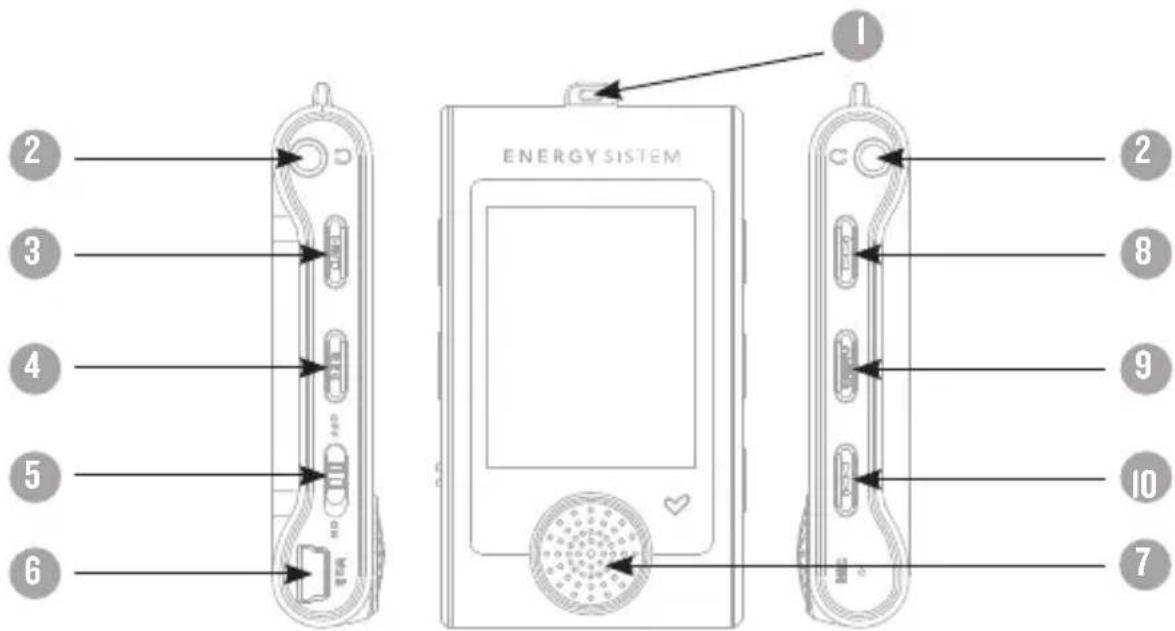

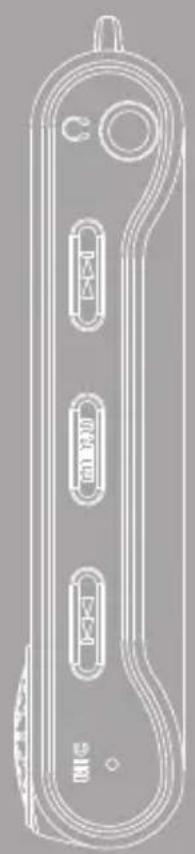

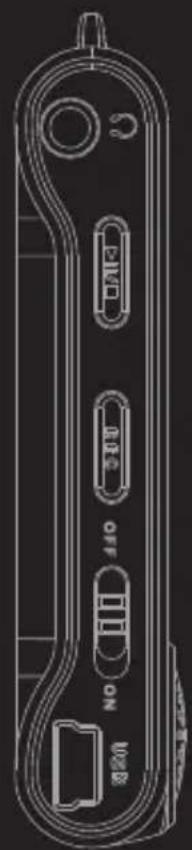

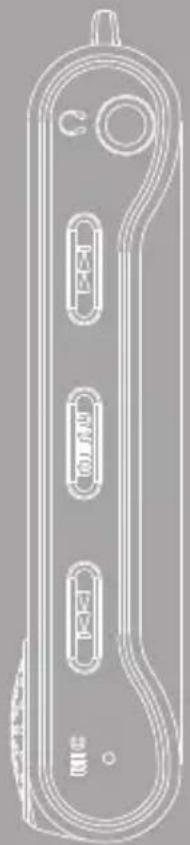

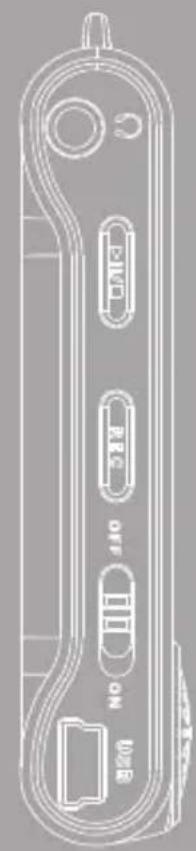

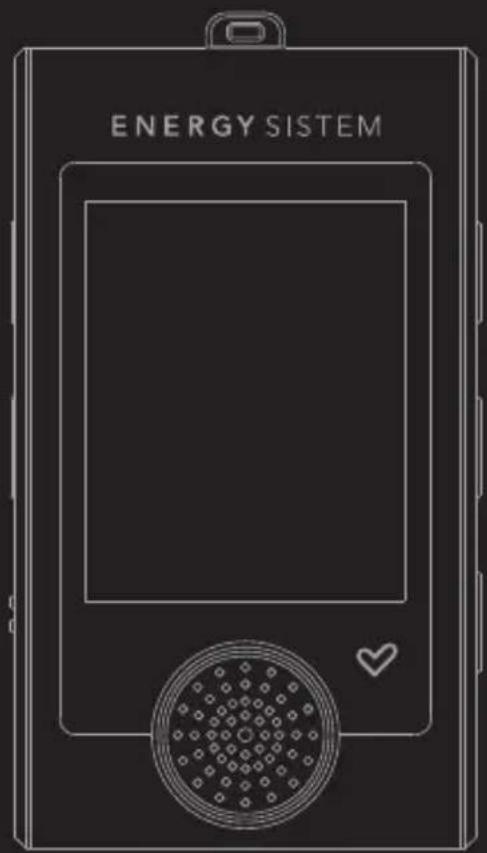

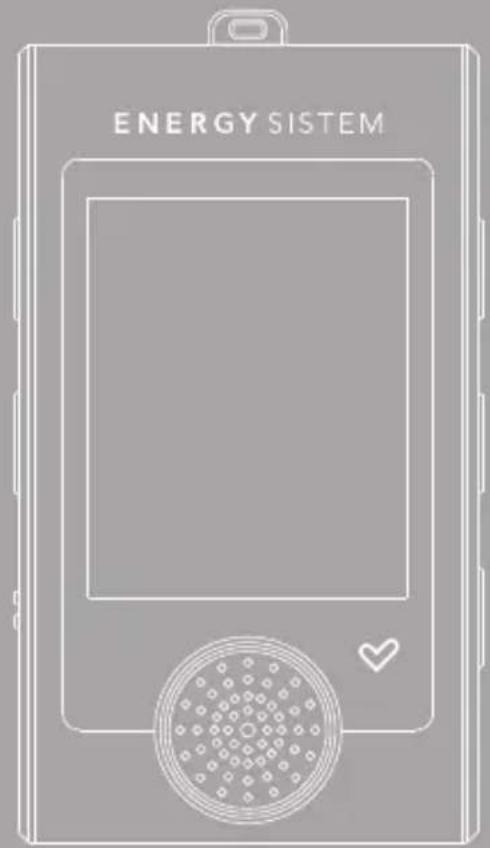

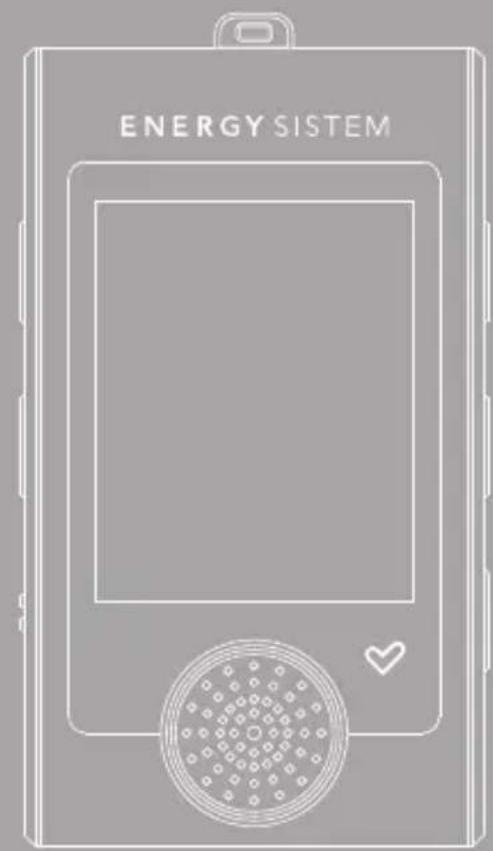

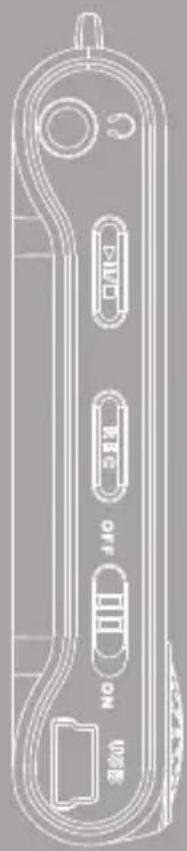

GENERAL OVERVIEW

Neck strap hole.1.

DUO: 2 x earphone outputs. 2.

PLAY:Playback/Pause/On-Off button.3.

REC: Start voice or radio recording / Delete / A-B loop / Deactivate LCR / Back.4.

Power on-off switch.5.

USB 2.0 Hi-Speed connector for battery charging and data transfer.6.

Built-in speaker.7.

PREVIOUS: Previous element / Fast backwards / Volume +.8.

MENU: Select / Back to the previous menu / Main Menu.9.

NEXT: Next element / Fast forward / Volume -10.

BATTERY POWER

• Your MP4 Energy™ has an integrated rechargeable Li-Ion battery. It comes fully charged from factory, but it is recommended to perform a full recharge before the first use.

Recharge the battery connecting the player to a computer using the included USB 2.0 cable (using any USB type mini-B with 5-pins will also work).

Optionally, you can recharge the battery with an AC/DC power adaptor with an USB connector (USB type mini-B with 5-pins) (NOTE: the output of the AC/DC must be 500mA maximum).

Charging time is between 3-5 hours, depending if the player is powered off or working. To keep the battery in good conditions, we recommend not using the player while charging, with the power switch in "OFF" position and not leaving it charging for more than 8 hours.

For battery saving, your MP4 Energy™ has two systems:

It will power off the LCD display after 30 seconds of inactivity, and it will power off completely after another 10 minutes of inactivity. Both systems are configurable, respectively, browsing the menus SETTINGS -> Display, or SETTINGS -> Power off. In order to maximize the battery's lifespan, it is recommended to not completely disable this power saving features.

SWITCHING ON / OFF

To power on your MP4 Energy™, place the switch in the "ON" position and press PLAY for 2 seconds.

Note: When powering on, the device performs a memory check. The power on time depends on the amount of occupied memory.

Press PLAY for 3 seconds to power off the device. At that moment, the device will save your settings.

Note: If you power off the device directly with the switch button, your last changes in the settings will be lost, and it will not remember the last song played.

• Your MP4 Energy™ allows you to enjoy MP3 / WMA / WAV codified music thanks to its high fidelity sound processor.

To enter into the play mode for MP3/WMA/WAV files, press the MENU button over the MUSIC option. Take a look to the different options available for you to easily select your music (press MENU to start the selected file playback):

"Music Player": Shows the music player screen.

Note: To learn more about the player, take a look to the "Music player screen" section of the manual.

"All Music": With this option you will see, sorted alphabetically by file name, all the songs you have stored in your MP4 Energy™.

"Artist", "Album" and "Title": They show listings of your favorite music sorted by artist, album or title respectively.

Note: In order for the music files to be displayed in these listings, their artist, album and title information must be stored into the file (information known as ID3-Tag). You can find freeware utilities to create or modify ID3-Tags like MP3Tag or ID3 Renamer.

" Favorites": With this option you can listen to your favorite music that you already marked as favorite. To add a song to your "Favorite" list, simply press the PLAY button while on top of a file. Make a selection using MENU. Inside the "Favorite" folder if you press PLAY a new menu will pop up allowing you to erase one or all the favorite marked songs. Make a selection using MENU.

Note: Erasing an element from Favorites you only eliminate what marks it as favorite, the file will stay in memory.

"Recordings": Listen to the clips you have recorded using the microphone or the FM radio with this option. Choose the clip you want to listen to and press MENU.

"Dir List": With this option you can explore the file tree in the memory of the MP4 Energy™ just as it would be displayed in your computer.

"Update": Use this option whenever you store or delete songs so the artist, album and title listings are recreated accurately.

Note: When the player is unplugged from the PC via the safe USB device removal, the MP4 EnergyTM will run an update automatically.

You can pause the playback by pressing PLAY and to set the volume up/down, hold down the PREVIOUS/NEXT button.

Briefly press the PREVIOUS/NEXT button to skip to the previous/next track. You can fast forward or rewind the song by pausing it (pressing the PLAY button) and then holding the PREVIOUS/NEXT button.

If the song has lyrics (LRC file), they will be shown on screen, and otherwise it will show the equalizer.

Note: The song lyrics is a text file named exactly after the music file with the . LRC extension. If some of your music files do not have the LRC file, the lyrics will not be shown, but you can listen to them without problem.

Hold the REC button to activate/deactivate the Id3-Tag and LRC function.

A-B repeat function: You can loop play a segment of a song with this function. Press the REC button to set the A point and press REC again to set the B point. To cancel this function, press REC again.

To exit the current playback to the previous menu press MENU. Hold down MENU if you want to go back to the main menu.

MUSIC PLAYER SETTINGS

You can choose the equalization mode that fits your preferences. To do so, browse to SETTINGS -> MUSIC -> EQ SELECT and choose one of the 6 available modes: "Normal", "MS PlayFX", "Rock", "Pop", and "Classic" or "Jazz".

The playing order of the tracks depends on the selected mode. By default, the mode is set to "Normal". You can change to a different mode browsing to SETTINGS -> MUSIC -> PLAY MODE, and choosing "Normal" (sequential order) or "Shuffle" (random).

You can also set the repeat mode by browsing to SETTINGS -> MUSIC -> REPEAT MODE and selecting your preferred mode: "Once" (plays the current file and stops), "Repeat I" (repeat current track), "Folder Once" (plays files inside the current folder and stops), "Folder Repeat" (repeats the files inside the current folder), "All Once" (plays all the files once), "All Repeat" (plays all the files continuously) and "Intro" (plays the first 10 seconds and skips to the next file).

To know the amount of free memory, browse to SETTINGS -> SYSTEM -> ABOUT.

BROWSER: FOLDER NAVIGATION

This handy function allows you to directly choose the music / video / image / e-Book folder or file you want to play, previously sorted with your PC.

To browse through your folders, while on MUSIC / VIDEO / PHOTO / E-BOOK mode, briefly press MENU. You can also access with the BROWSER option of the main menu.

With the PREVIOUS/NEXT you can select the previous/next folder or file. Use the MENU button to enter the selected folder.

Press MENU over a file to start a playback. If you want to delete a file select it, press REC, select "Yes" with PREVIOUS/NEXT and finally press MENU. To cancel the deletion, simply select "No".

FM RADIO

• Your MP4 Energy™ has an integrated FM radio with 30 presets and direct recording. To listen the radio, select the RADIO option in the main menu.

Note: Although the FM radio has a sensitive tuner, it is possible that some broadcasts with weak signal where you are at will not be well received and stored unless you connect the earphones or the USB cable, both of which work as an antenna.

To display the FM settings menu, press the MENU button:

Automatic search: Being at the FM settings menu, select "Auto" to start the automatic search. The presets will be stored automatically as well.

Manual search:

Being at the FM setting menu, select "Manual". 1.

Press PREVIOUS/NEXT to go back/forward along the frequency band. 2.

Once you have tuned a broadcast, press MENU, select "Mem" and choose the 3. preset number with PREVIOUS/NEXT and finally press PLAY to store it.

FM RADIO

To browse the stored presets, choose "Preset" at the FM settings menu and use the PREVIOUS/NEXT buttons to navigate through presets.

Note: At the lower left corner of the screen you can see the number of the preset you are hearing.

Keep the PREVIOUS/NEXT button pressed to increase/decrease the volume.

Record directly what you are listening on the FM radio. By pressing the REC button you will enter the record mode. Press REC again to start recording. You can pause by pressing REC. To finish recording, hold the MENU button and hold MENU to get back to the RADIO mode.

The sound files that you recorded are stored inside the "RECORDINGS" folder. The files are WAV format. You can listen this files while being at the MUSIC mode or BROWSER mode, selecting the "RECORDINGS" folder using the folder navigation function and pressing PLAY on the WAV file that you want to listen.

Exit the RADIO mode by holding the MENU button.

E-BOOK

View and enjoy your electronic books (e-book in TXT format) anywhere with the high resolution LCD screen of your MP4 Energy™. For viewing your e-books, select the E-BOOK option in the main menu. You will access directly to the files explorer (check the “BROWSER: FOLDER NAVIGATION” section) and choose the book that you want with PREVIOUS/NEXT button and press MENU to start viewing it.

Press the PREVIOUS/NEXT button to skip to the next/previous page. With the PLAY button you can enable/disable the automatic shifting of lines (timming can be set from SETTINGS -> Auto Browse -> Text Browse). Hold/Press the REC button to save/load bookmarks, respectively. Press the MENU button to confirm the actions.

• Your MP4 Energy™ is able to perform voice recording with its integrated microphone. To enter the voice record mode, select the RECORD option and press the MENU button.

Press REC to start recording. You can pause by pressing REC again. To finish recording, hold the REC button.

The sound files that you record are stored inside the "RECORDINGS" folder. The files are in WAV format. You can listen to this files while being at the MUSIC mode or BROWSER mode, selecting the "RECORDINGS" folder using the folder navigation function and pressing MENU on the WAV file that you want to listen.

Exit the RECORD mode by holding the MENU button.

VIDEO PLAYER

• With your MP4 Energy™, music grows to a new level since you can enjoy your favourite music videoclips anytime anywhere.

You can play AVI/WMV/MPG/VOB/ASF videos that you previously converted to the AVI format (XVID with MP2 audio and 160x128 resolution), using the easy software tool included inside the bundled CD. Check the user manual section "CREATING AVI VIDEOS".

To play videos, select the VIDEO option from the main menu. You will access the files explorer (check the "BROWSER: FOLDER NAVIGATION" section). Choose the video that you want with the PREVIOUS/NEXT buttons and press MENU to start playing it.

Press PLAY to pause the playback. Get the volume up/down by holding the PREVIOUS/NEXT button.

Press PREVIOUS/NEXT button to skip to the previous/next video. You can fast forward or rewind the video by pausing it (pressing the PLAY button) and then holding the PREVIOUS/NEXT button.

To access again the files explorer, press the MENU button.

To exit this mode and get back to the main menu, hold the MENU button.

CREATING AVI VIDEOS

• With the AVICoverter software tool you can easily convert your AVI/WMV/MPG/ VOB/ASF videos to the AVI format (XVID with MP2 audio and 160x128 resolution) so you can enjoy them with your MP4 Energy™.

For installing AVIConverter follow these steps:

Insert the bundled Driver CD in a CD/DVD drive of your computer (if you have an Internet connection, it is recommended to download the latest version from our website www.energysystem.com).

The CD should autorun if it's not disabled in Windows and the main menu will 2. appear on screen. Select "Install AVIConverter". You can run the installation wizard directly clicking the file "setup.exe" inside the "Software" folder, should the autorun not work.

Follow the installation instructions by pressing "Next".3.

Once the installation is finished, run the application following the route "Start" - 4. >"All the programs"->AVIConverter"

CREATING AVI VIDEOS

For converting an AVI/WMV/MPG/VOB/ASF video follow these steps:

Note: If you want to convert special video formats like MPEG4 / DivX / XviD / etc. make sure that you have the appropriate "codecs" installed. You can install "codec" packages like "K-Lite Standard Pack". It is also recommended that the files to be converted are in the installation folder.

Execute "AVIConverter" from the "Start" menu.1.

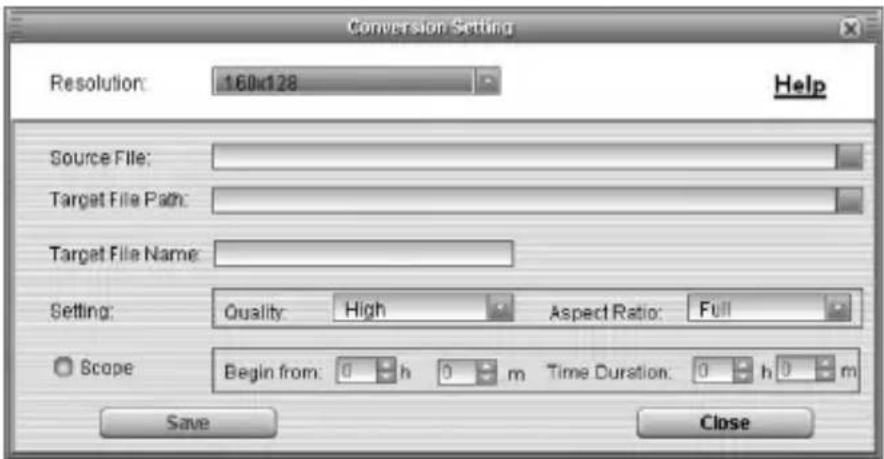

Press the "Add" button and select the 160x128 resolution. 2.

Select the video file that you want to convert ("Source File").3.

Select the target folder ("Target File Path") and write the name of the new AVI 4. video file to be created ("Target File Name").

CREATING AVI VIDEOS

Choose the image quality of the new video. High quality will use more memory and 5. the output file will be bigger.

Select the format of the output video ("Aspect Ratio"). Choose "Full" if you want 6. the output video to include the whole original image. Black bands will be added if necessary. "4:3" will fill the whole screen ("Pan & Scan"), but some part of the image may be removed from the video. Finally "16:9" for panoramic.

The "Scope" section allows you to delimitate the start and end of the input video. 7. By default, the input video will be converted from start to end.

Press "Save" to add the video recoding to the list of pending jobs. Note: you 8 can add as many conversion jobs as you like, in order to convert several videos automatically. When you are done adding jobs, press the "Close" button.

Press "Convert Now" to start the job queue. If more than one job is present they 9 will be performed sequentially.

Once finished, press "Close" to exit the application.10.

Connect your MP4 Energy™ to the computer (check the user manual section "PC 11. CONNECTION") and copy the new AVI file(s) inside your desired folder

VIEWING PICTURES

View and enjoy your JPG pictures and photos with the high resolution LCD screen of your MP4 EnergyTM.

To view your images, select the PHOTO option from the main menu. You will access directly to the files explorer (check the "BROWSER: FOLDER NAVIGATION" section) and choose the picture that you want with the PREVIOUS/NEXT button and press MENU to start viewing it.

Press the PREVIOUS/NEXT button to skip to the previous/next picture. With the PLAY button you can enable/disable the slideshow (timing can be set from the SETTINGS -> "Auto Browse"->"Photo Browse" menu).

PC CONNECTION

In order to enjoy the multimedia capabilities of your MP4 Energy™, you have to first copy your favourite files from your PC to its internal memory.

Connect your MP4 Energy™ to the computer using the USB 2.0 cable included. The device will be detected automatically without installing any driver (except Windows 98, in which case you have to install the W98 driver from the bundled CD). Once detected, you can read/write to the device's memory just as if you were using a regular disk drive.

IMPORTANT: To avoid any data loss, always perform a safe USB device extraction before disconnecting the USB cable from the device of the PC. In Windows XP, for example, you can find the safe extraction icon in the task bar, next to the system clock.

FIRMSWARE REINSTALLATION

• Your MP4 Energy™ has an installed operating system, usually called firmware, that sometimes needs to be reinstalled.

The process is easy, but has to be performed carefully, and only when it is really necessary. If you see that the player halts, reboots randomly, or you have problems to access the memory content from your computer, those are signs that the firmware might be damaged you should reinstall the latest version available.

IMPORTANT: First of all, make a backup of the files inside the your MP4 Energy™ that you want to keep and disconnect the device from your PC, since during the firmware reinstallation the memory will be formatted and erased. It is also is very important to make sure that your computer is virus-free and has no halt/lock problems.

Follow these steps to reinstall the firmware:

Insert the bundled Driver CD in a CD/DVD drive of your computer (Note: if you use Windows Vista, it is very important to download the latest version of the firmware from our website www.energysystem.com). Make sure that the firmware you are installing is for your model, otherwise you will damage the device.

The CD main menu will autorun. Select "Install Energy MP4 Firmware Utility". 2. You can run the installation wizard directly with the file "setup.exe" inside the "Firmware" folder should the autorun not load.

FIRMSWARE REINSTALLATION

Go through the installation steps by pressing "Next".3.

Once the installation has finished, run the application through "Start"->"All the 4. programs"->"Firmware Update".

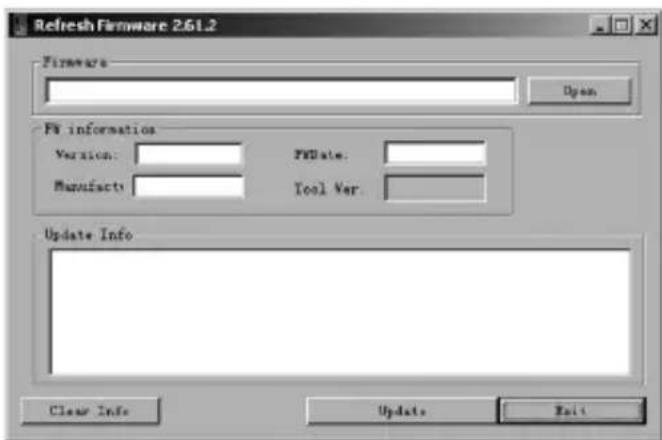

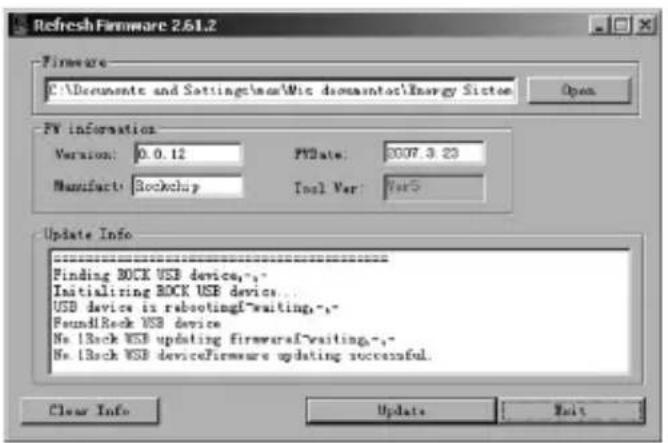

Press "Open" and select the right .rfw firmware file for your model 5. (i.e. Energy3010.rfw)

In that moment, power on your MP4 Energy™, select SETTINGS ->SYSTEM -> 6. UPGRADE option and choose "Yes".

Plug the device to your computer using the included USB 2.0 cable. 7.

Press the "Update" button. 8.

Wait until the process ends (up to 10 min.). The "Update" button will activate again 9. and the text "Firmware Update Successful" will appear. Press the "Exit" button.

FIRMSWARE REINSTALLATION

Disconnect your MP4 Energy™ by using the Safe Hardware Extraction icon which 10. is usually next to the windows system clock, and wait until the system confirms that the device can be removed.

Unplug the USB cable, power on the device and wait until the main menu appears 11. on screen. (a System Init... message may appear for a few seconds)

Connect the player again to the computer with the USB 2.0 cable.12.

1. At "My PC", double click over the drive that represents the internal memory of the player.

A message will pop-up explaining that the drive doesn't have format. It will ask if 14. you want to format the drive. Choose "Yes".

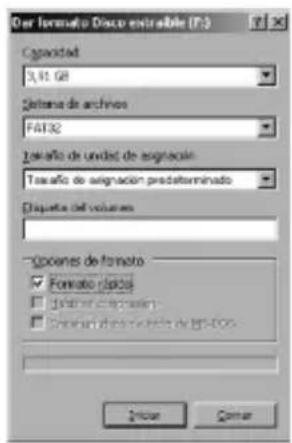

The format window will appear. Check the "Fast format" option and click the "Start" button.

Once the format procedure has finished, press "Close".16.

You can again transfer data to your MP4 Energy™ and enjoy it right away.17.

TROUBLESHOOTING

Why can't I play some MP3 files? I.

The MP3 file has to be compressed along some standards like MPEG1/MPEG2/ MPEG 2.5 layer 3. Otherwise, the file must be converted using a software application.

My player doesn't power on and/or my computer doesn't detect it, what can I do? 2. Probably there is a problem with the firmware. Check the user manual section "FIRMAWARE REINSTALLATION".

Why can't I play some WMA files? 3.

Make sure that you are not coding the WMA files with DRM.

Why can't I see the image, video or text files while using the music browser? 4.

You will only see the files in memory associated to the browsing you are doing (music files for Music, image files for Photo, etc...) To view all the files in memory at once, choose the "Browser" option in the main menu.

Why can't I display my.jpg files? 5.

Many digital cameras and image edition software add hidden data to the .jpg files. This data can prevent your MP4 from loading the images. Try to eliminate them by saving the file with another name.

TROUBLESHOOTING

When I switch off the MP4 with the ON/OFF button, the brightness or the song I 6. was listening to is not stored. What gives?

For the MP4 to successfully store the state, you have to switch it off with the PLAY button.

I'm having trouble to detect my MP4 with Windows Vista. 7.

There is a USB mass storage devices recognition issue with Windows Vista acknowledged by Microsoft. A solution is expected in the upcoming Service Pack I.

Any other question? Check the product's F.A.Q. section at www.energysistem.com.

Technical support email address: [e-mail]

WARRANTY

Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workmanship at the time of purchase.

The warranty period is 36 months from the date of purchase.

WARRANTY PROCEDURE

Visit the Support section at http://support.energysystem.com and select your product to view the FAQ (Frequently Asked Questions). The solution to your problem is very likely to have been already published there. You will also be able to download user manuals, user guides, drivers and updates.

If you cannot find an appropriate solution in the Support section, you may send us 2. your enquiry or warranty service request by email: [e-mail]

Alternatively, you may prefer to contact the distributor from which you purchased 3. the product, presenting the purchase receipt or invoice."

Specifications are subject to change without notice.

2008 by Energy Sistem. All rights reserved.

Trademarks.

All company, brand and product names are trademarks or registered trademarks of their respective companies.

Energy Sistem® MP4 Player Energy™ 3010/3011/3020/3021/3022/3030.

Press "Open" and select the right .rfw firmware file for your model (i.e. 5. Energy3010.rfw).

CONDITIONS DE GARANTIE
