USER MANUAL PDP435HDE PIONEER

PLASMA DISPLAY SYSTEM SYSTEME D'ÉCRAN PLASMA PLASMA DISPLAY-SYSTEM

PDP-505XDE PDP-435XDE PDP-505HDE PDP-435HDE

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/ EEC.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A (Media Receiver)/13A (Plasma Display) fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of the same rating as above, which is also indicated on the pin face of the plug, must be used.

Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.

In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner.

Under no circumstances should the cut-off plug be inserted elsewhere into a 10A socket outlet, as a serious electric shock may occur.

To fit an appropriate plug to the mains lead, follow the instructions below:

IMPORTANT:

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown:Live

Green & Yellow: Earth

As the colours of the wires in the mains lead of this product may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black.
• The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red.
  Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three-pin plug.
  Before replacing the plug cover make sure that:
• If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug.
• The cord grip is clamped over the sheath of the mains lead, and not simply over the lead wires. IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION: THE POWER SWITCH DOES NOT COMPLETELY SEPARATE THE UNIT FROM THE MAINS IN OFF POSITION. THEREFORE INSTALL THE UNIT SUITABLE PLACES EASY TO DISCONNECT THE MAINS PLUG IN CASE OF THE ACCIDENT. THE MAINS PLUG OF UNIT SHOULD BE UNPLUGGED FROM THE WALL SOCKET WHEN LEFT UNUSED FOR A LONG PERIOD OF TIME.

WARNING: THE APPARATUS IS NOT WATERPROOF, TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE AND DO NOT PUT ANY WATER SOURCE NEAR THIS APPARATUS, SUCH AS VASE, FLOWERPOT, COSMETICS CONTAINER AND MEDICINE BOTTLE ETC.

This product complies with the Low Voltage Directive (73/23/ EEC, amended by 93/68/EEC), EMC Directives (89/336/EEC, amended by 92/31/EEC and 93/68/EEC).

WARNING: BEFORE PLugging IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. THE VOLTAGE OF THE AVAILABLE POWER SUPPLY DIFFERS ACCORDING TO COUNTRY OR REGION. BE SURE THAT THE POWER SUPPLY VOLTAGE OF THE AREA WHERE THIS UNIT WILL BE USED MEETS THE REQUIRED VOLTAGE (E.G. 230V OR 120V) WRITTEN ON THE REAR PANEL.

WARNING: THIS APPARATUS MUST BE EARTHED.

WARNING: THIS PRODUCT IS EQUIPPED WITH A THREE-WIRE GROUNDING (EARTHING) TYPE PLUG. A PLUG HAVING A THIRD (GROUNDING, EARTHING) PIN, IT WILL ONLY FIT INTO A GROUNDING (EARTHING) TYPE POWER OUTLET. THIS IS A SAFETY FEATURE. IF YOU ARE UNABLE TO INSERT THE PLUG INTO THE OUTLET, CONTACT YOUR ELECTRICIAN TO REPLACE YOUR OBSOLETE OUTLET. DO NOT DEFEAT THE SAFETY PURPOSE OF THE GROUNDING (EARTHING) TYPE PLUG.

The following symbols are found on labels attached to the product. They alert the operators and service personnel of this equipment to any potentially dangerous conditions.

WARNING

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

WARNING: NO NAKED FLAME SOURCES SUCH AS LIGHTED CANDLE, SHOULD BE PLACED ON THE APPARATUS. IF NAKED FLAME SOURCES ACCIDENTALLY FALL DOWN, FIRE SPREAD OVER THE APPARATUS THEN MAY CAUSE FIRE.

VENTILATION: WHEN INSTALLING THIS UNIT, MAKE SURE TO LEAVE SPACE AROUND THE UNIT FOR VENTILATION TO IMPROVE HEAT RADIATION. FOR THE MINIMUM SPACE REQUIRED, SEE PAGE 15.

WARNING: SLOTS AND OPENINGS IN THE CABINET ARE PROVIDED FOR VENTILATION AND TO ENSURE RELIABLE OPERATION OF THE PRODUCT AND TO PROTECT IT FROM OVERHEATING, TO PREVENT FIRE HAZARD, THE OPENINGS SHOULD NEVER BE BLOCKED AND COVERED WITH ITEMS, SUCH AS NEWSPAPERS, TABLE-CLOths, CURTAINS, ETC. ALSO DO NOT PUT THE APPARATUS ON THE THICK CARPET, BED, SOFA, OR FABRIC. HAVING A THICK PILE.

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However the method of connecting and operating the unit is the same.

For functions pertaining only to PDP-505XDE/435XDE, see DTV operating instructions provided separately.

01 Important User Guidance Information

02 Safety Precautions

03 Operational Precautions

04 Supplied Accessories

Plasma Display 11

Media Receiver. 11

05 Part Names

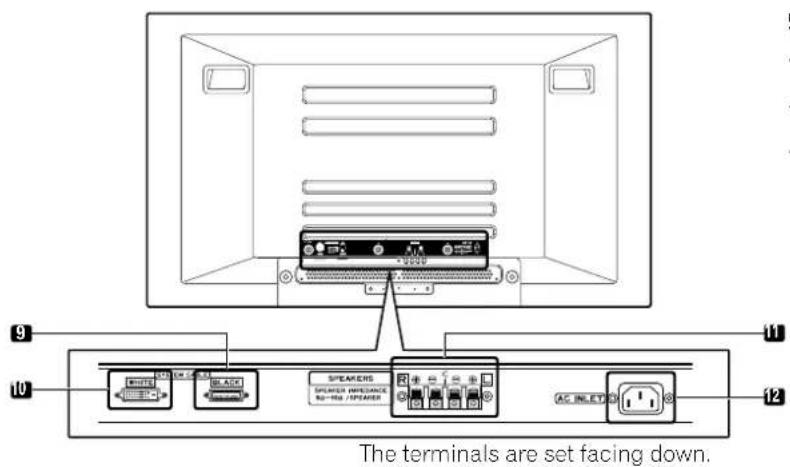

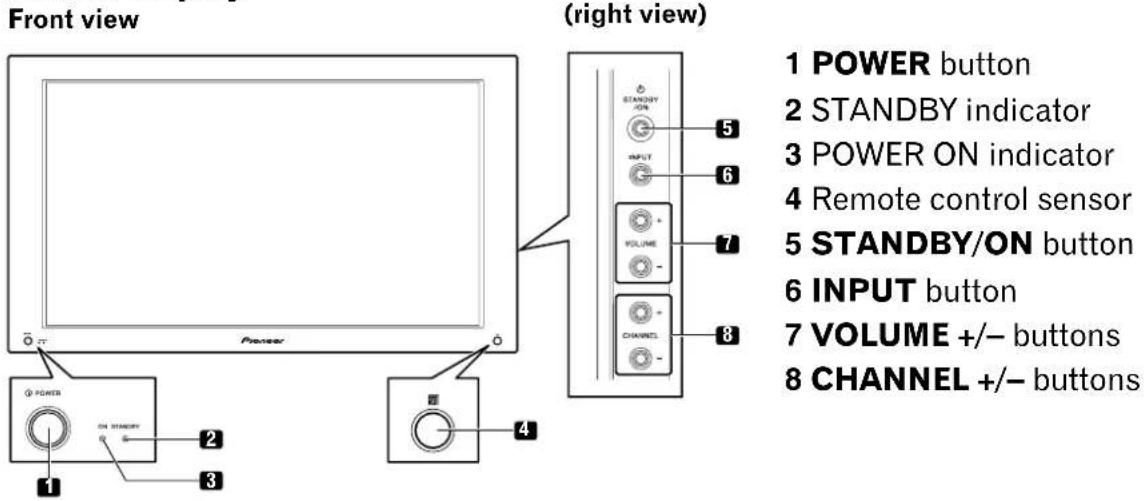

About the illustrations in these operating instructions... 12

Plasma Display 12

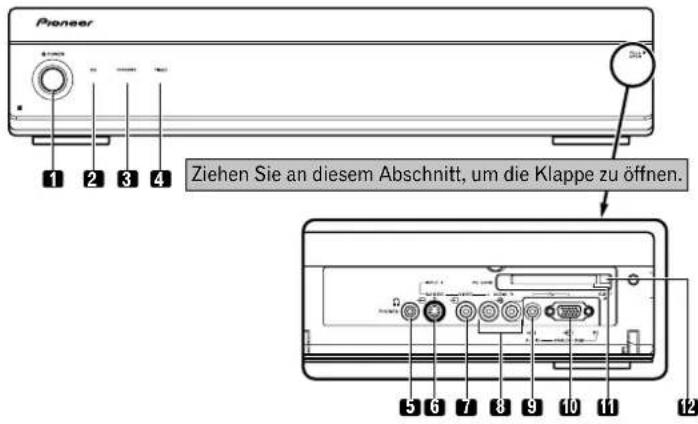

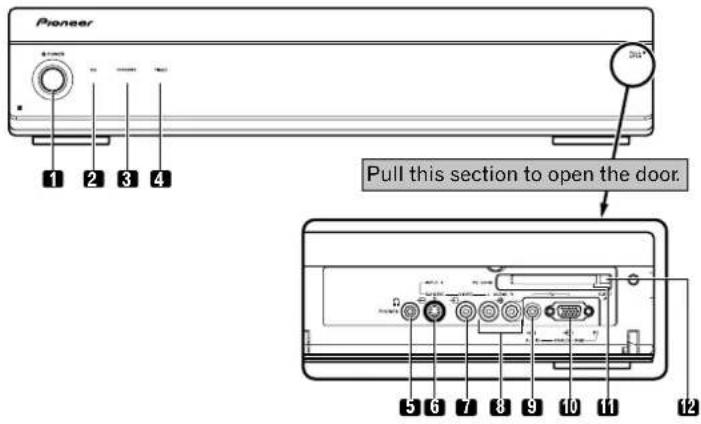

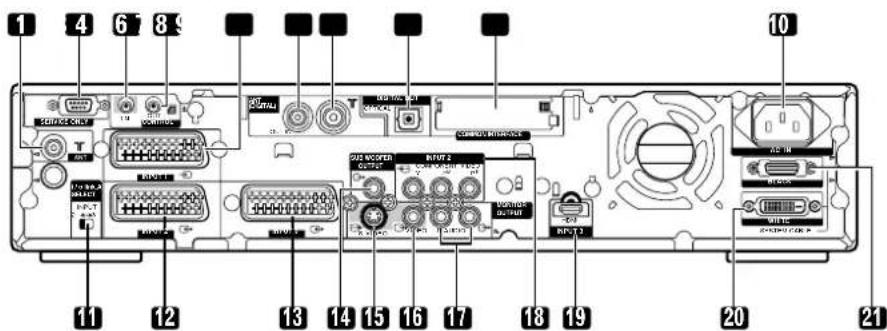

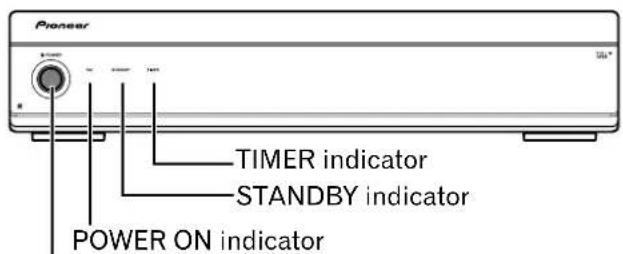

Media Receiver. 13

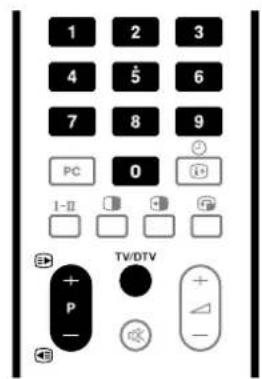

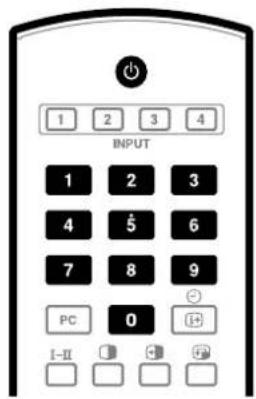

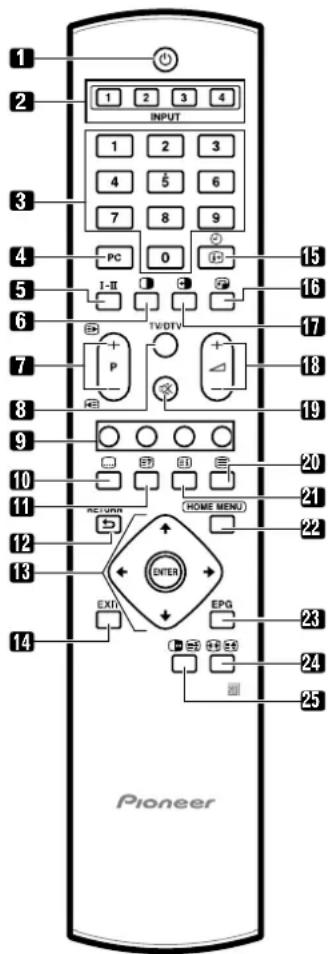

Remote control unit 14

06 Preparation

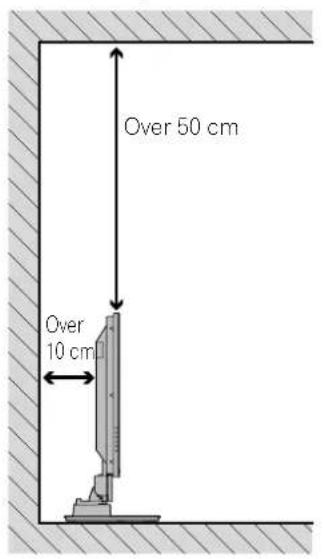

Installing the Plasma Display 15

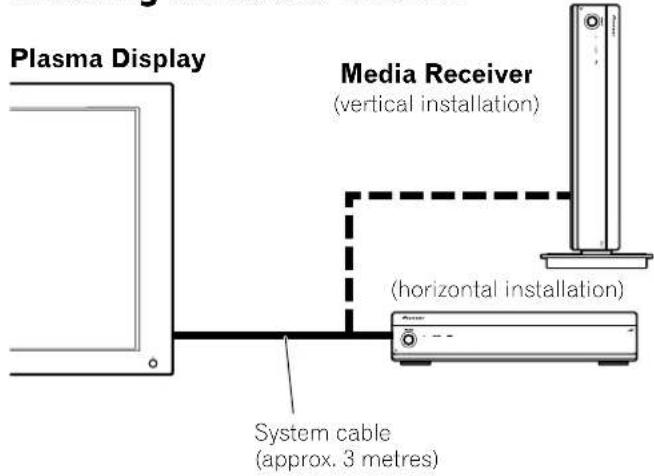

Installing the Media Receiver 15

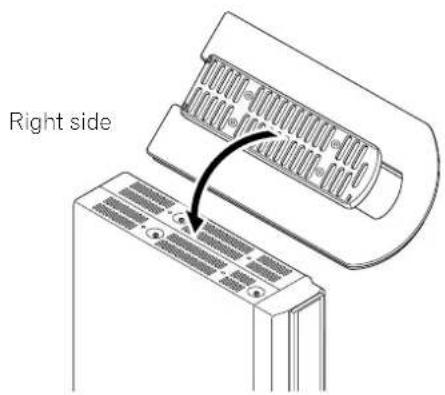

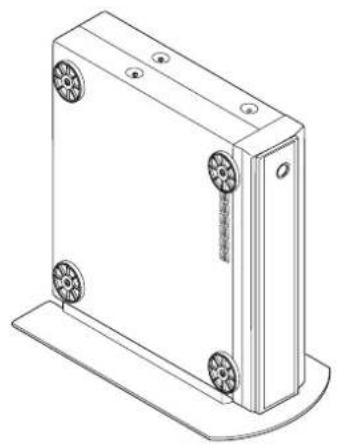

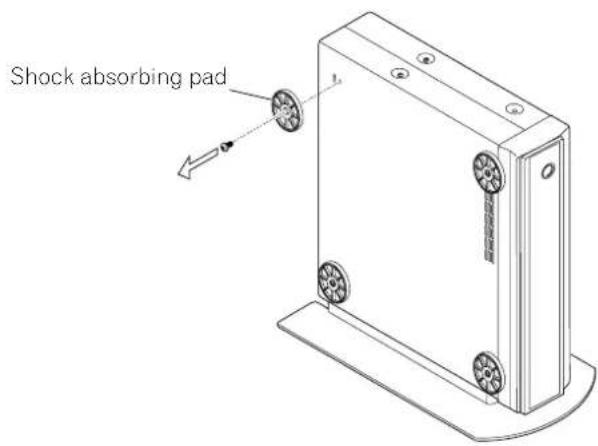

Installing the Media Receiver vertically 16

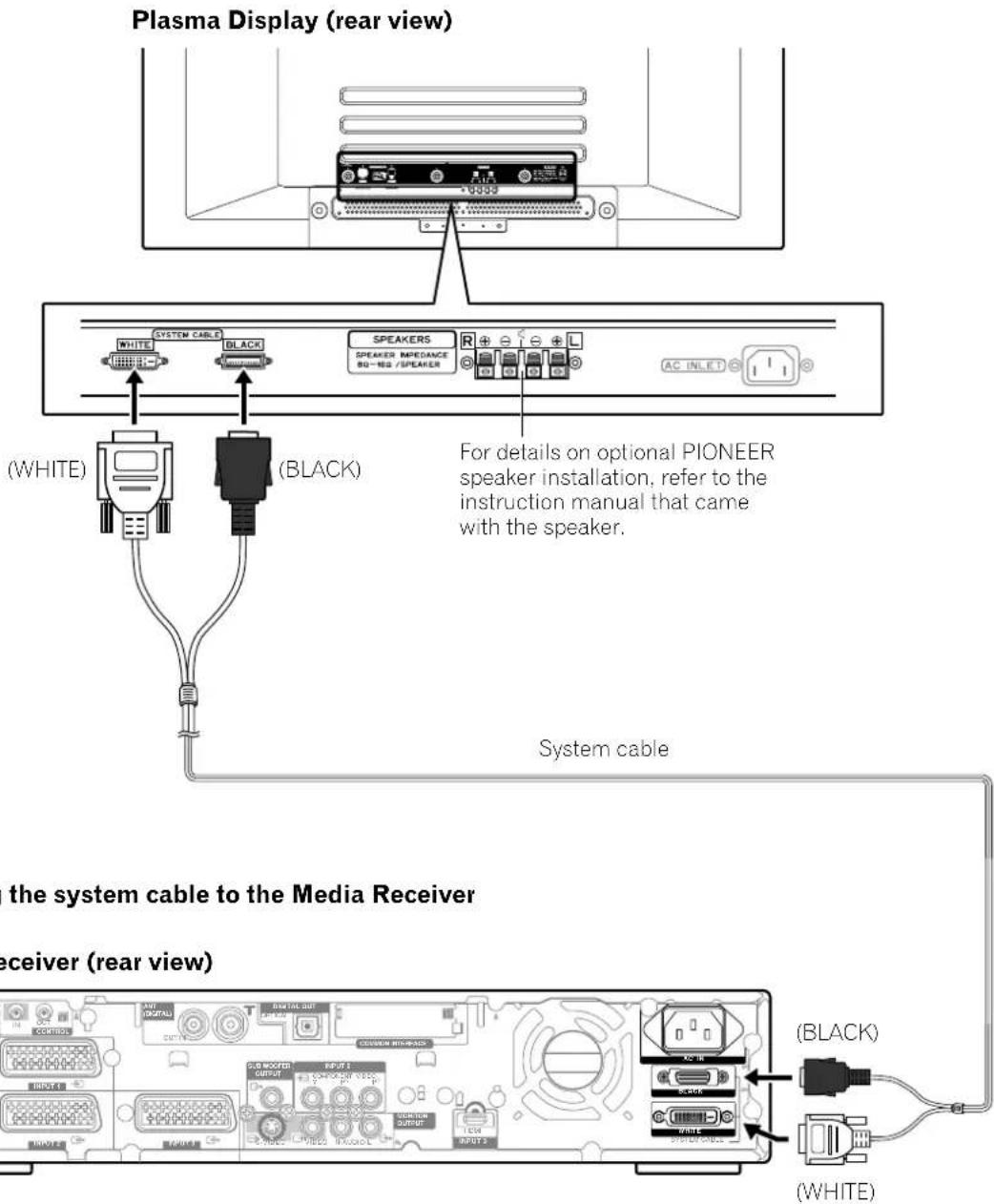

Setting the system 17

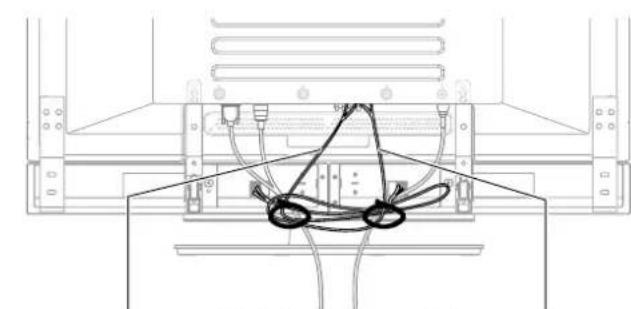

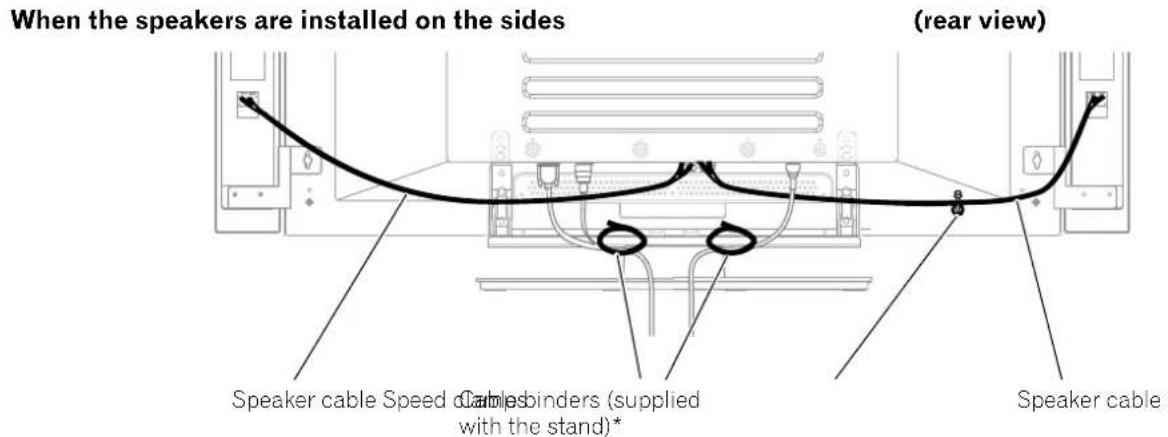

Routing cables 18

Preparing the remote control unit 19

Inserting batteries. 19

Cautions regarding batteries 19

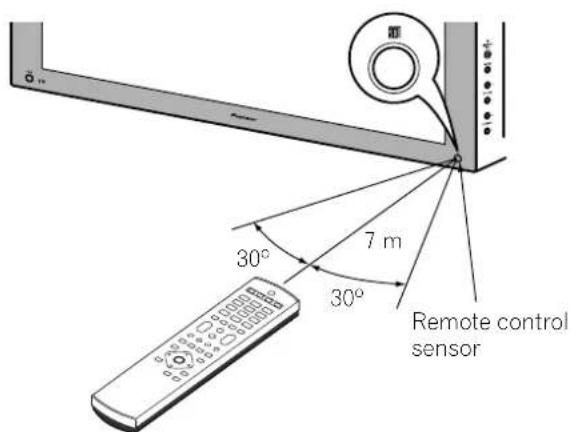

Allowed operation range of the remote control unit ... 19

Cautions regarding the remote control unit 19

Basic connections 20

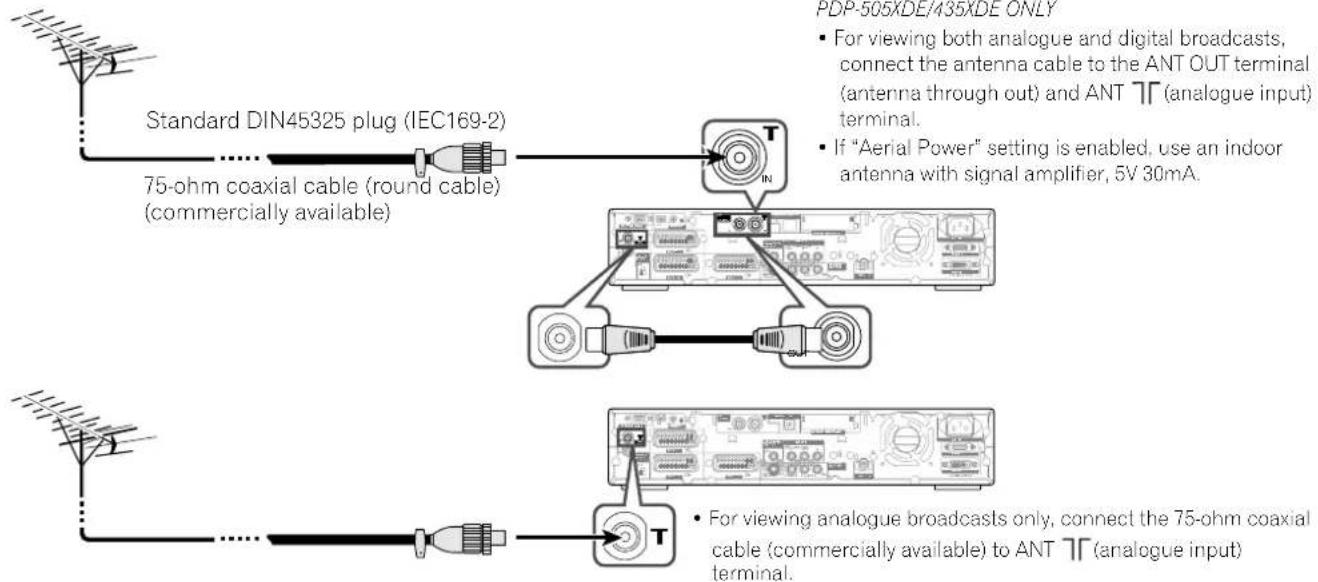

Connecting to an antenna 20

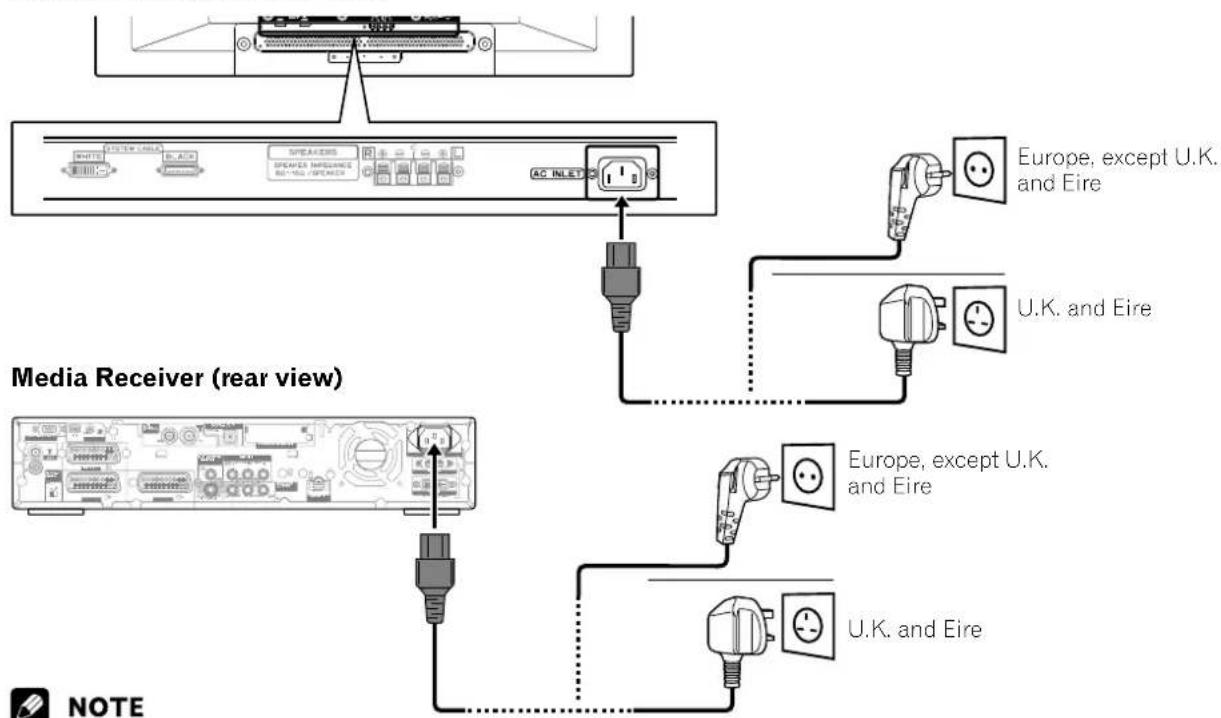

Connecting the power cord 20

07 Watching TV

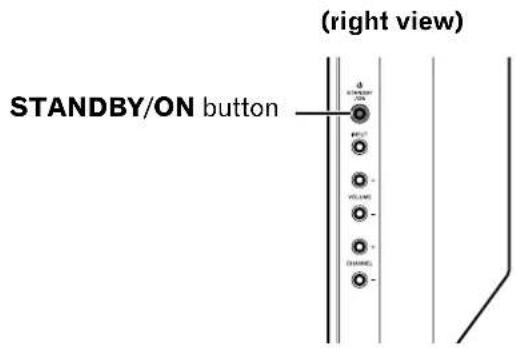

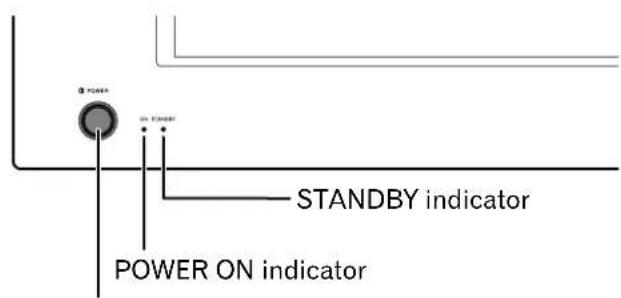

Turning on the power 21

Turning off the power 21

Changing channels 22

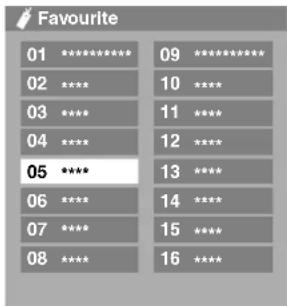

Setting up analogue favourite channels 23

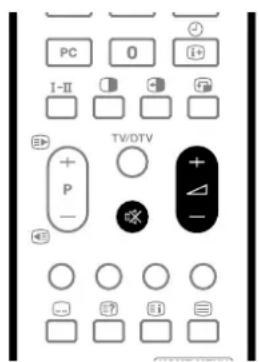

Changing the volume and sound 23

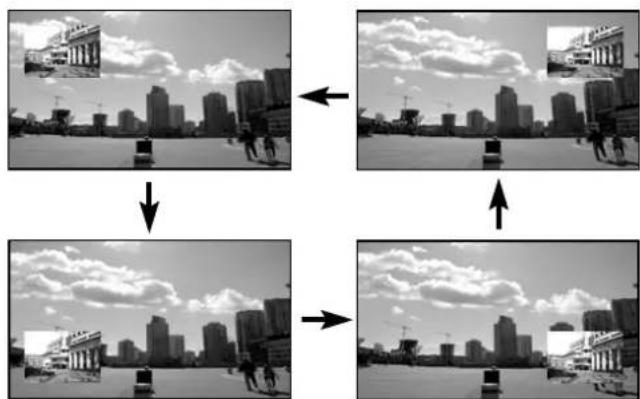

Using the multiscreen functions 25

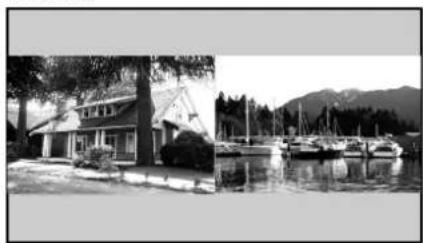

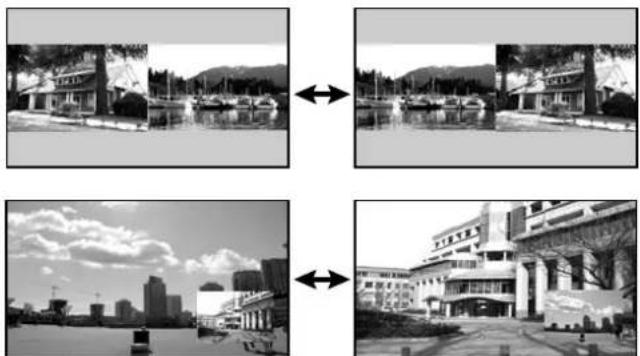

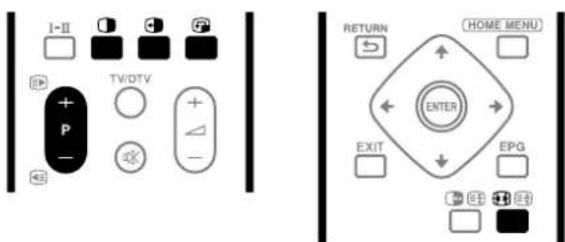

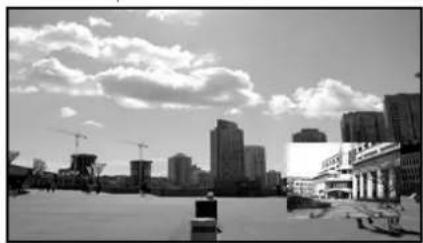

Splitting the screen 25

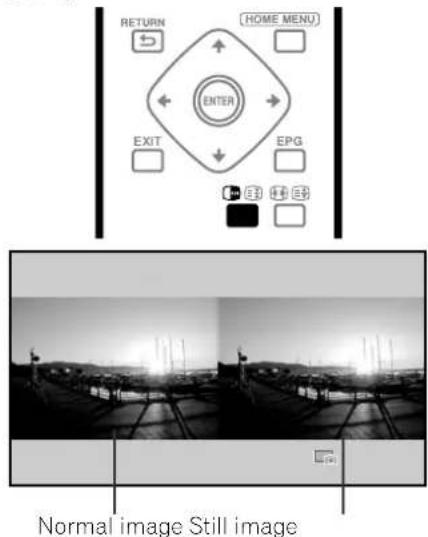

Freezing images 26

08 Menu Setup

Using the menu 27

AV mode menus. 27

PC mode menus 27

Menu operations 27

09 Basic Adjustment Settings

Setting up TV channels automatically 28

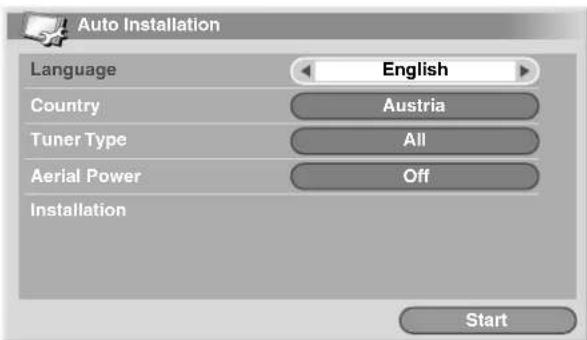

Using Auto Installation 28

Setting up analogue TV channels manually 28

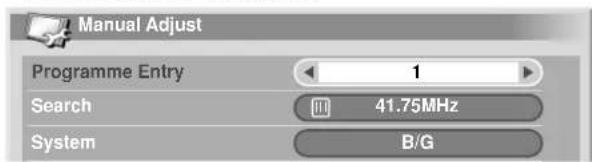

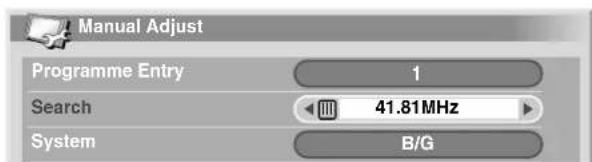

Using Manual Adjust 28

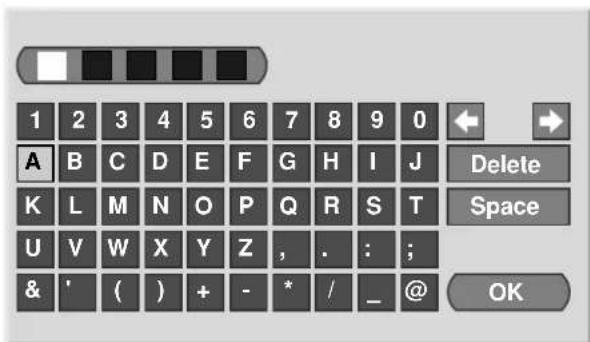

Labelling TV channels 29

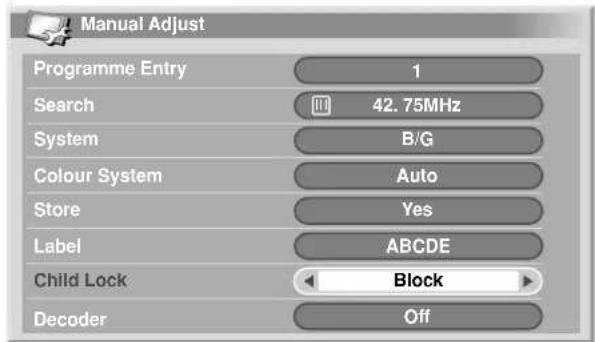

Setting Child Lock. 30

Selecting a decoder input terminal 30

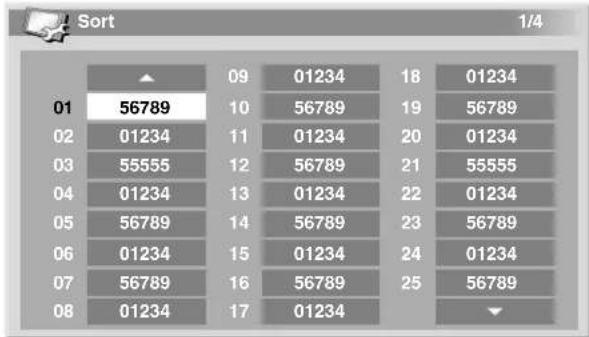

Sorting preset TV channels 30

Clock setting 30

Language setting 31

AV Selection 31

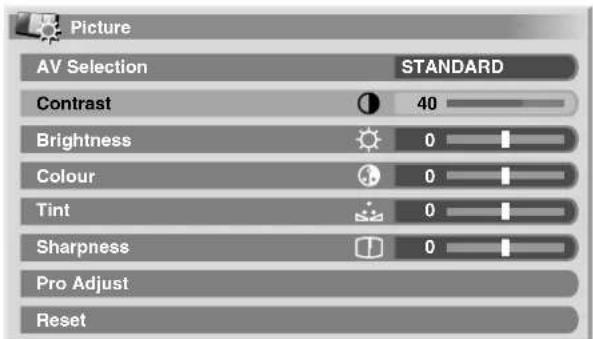

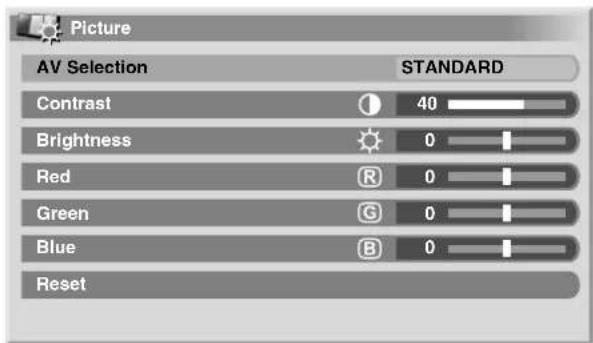

Picture adjustments 32

Pro Adjust 32

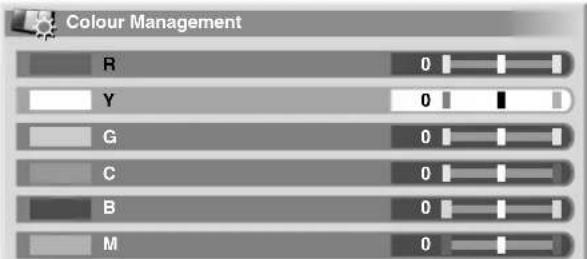

Colour Management 33

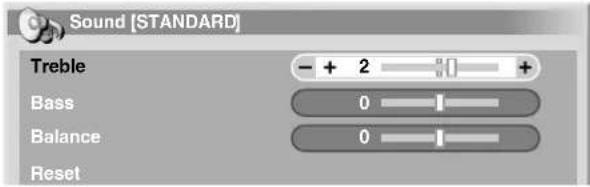

Sound adjustments 34

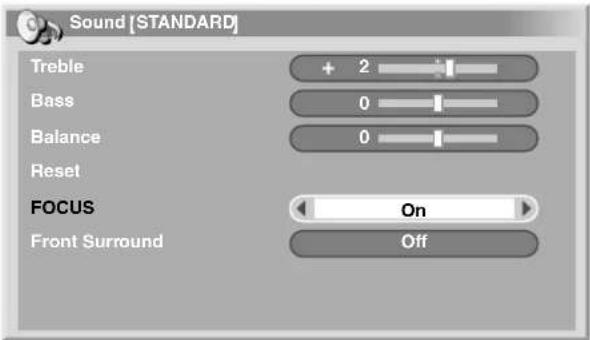

FOCUS 34

Front Surround 34

Power Control 35

10 Using the Electronic Programme Guide (EPG) (for Analogue TV only)

Setting up for using the EPG 36

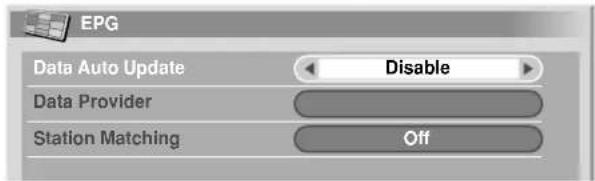

Updating EPG information automatically. 36

Specifying an EPG information provider 36

Restricting the display of EPG information 36

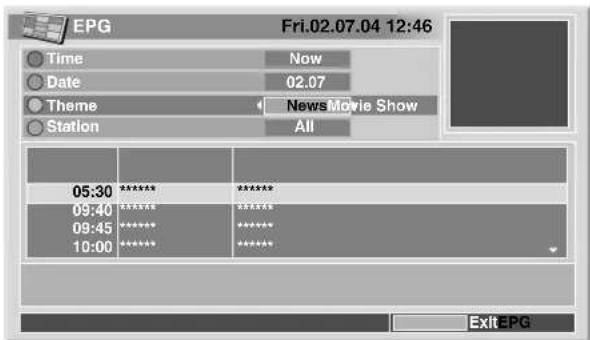

Searching programmes 36

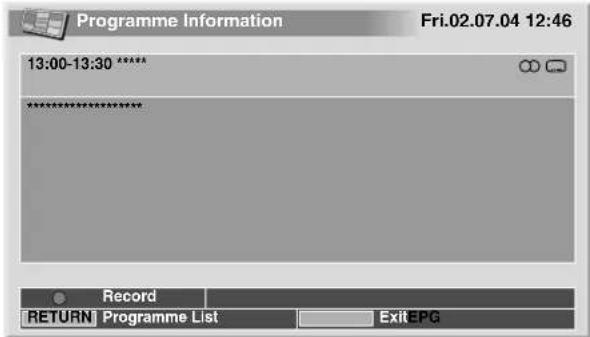

Viewing programme information 37

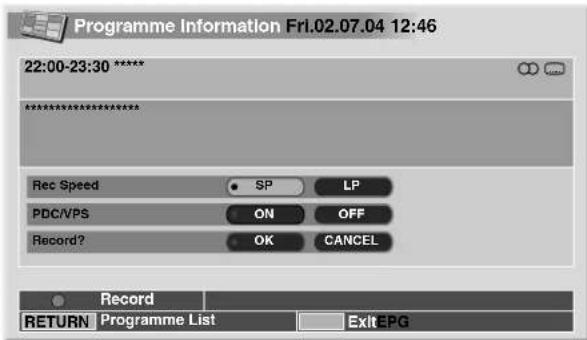

Recording a programme using a recording equipment 37

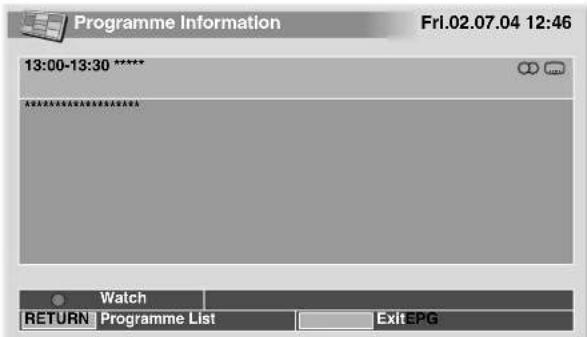

Selecting a programme for immediate watching 37

11 Useful Adjustment Settings

Adjusting image positions (AV mode only) 38

Adjusting image positions and clock automatically

(PC mode only) 38

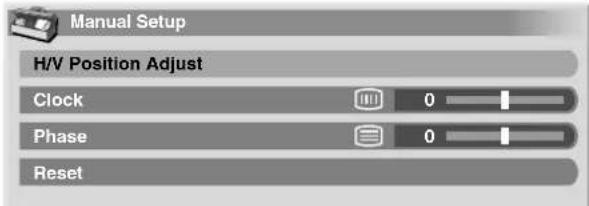

Adjusting image positions and clock manually

(PC mode only) 38

Selecting an input signal type 39

Colour system setting (AV mode only) 39

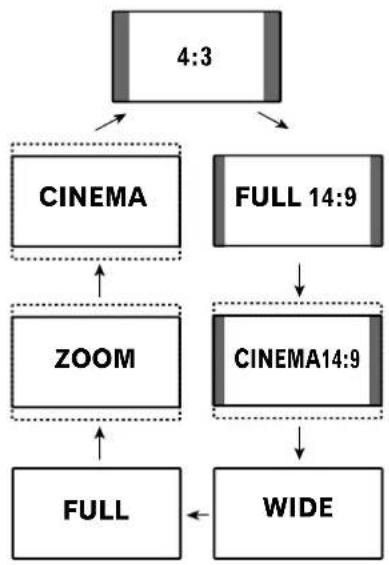

Selecting a screen size 40

Manual Selection 40

Auto Selection 41

Wide screen signalling (WSS) (AV mode only) 41

Picture aspect ratio (AV mode only) 41

Changing the brightness at both sides of the screen

(Side Mask) 41

Sleep Timer 42

Using a password (AV mode only) 42

Entering a password. 42

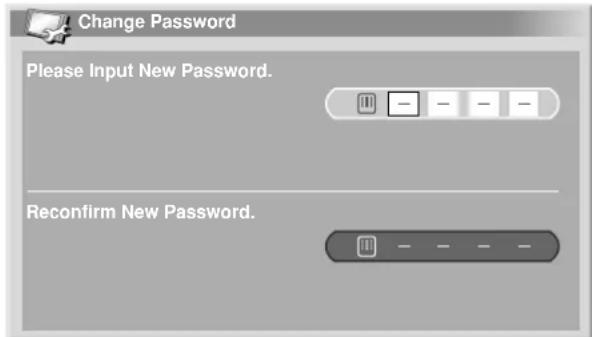

Changing the password 42

Resetting the password 43

Disabling the password 43

12Enjoying through External Equipment

Watching a decoder image 44

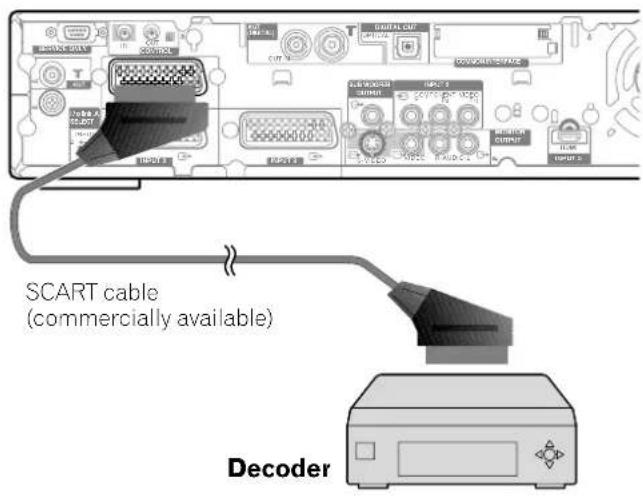

Connecting a decoder 44

Displaying a decoder image 44

Watching a VCR image 44

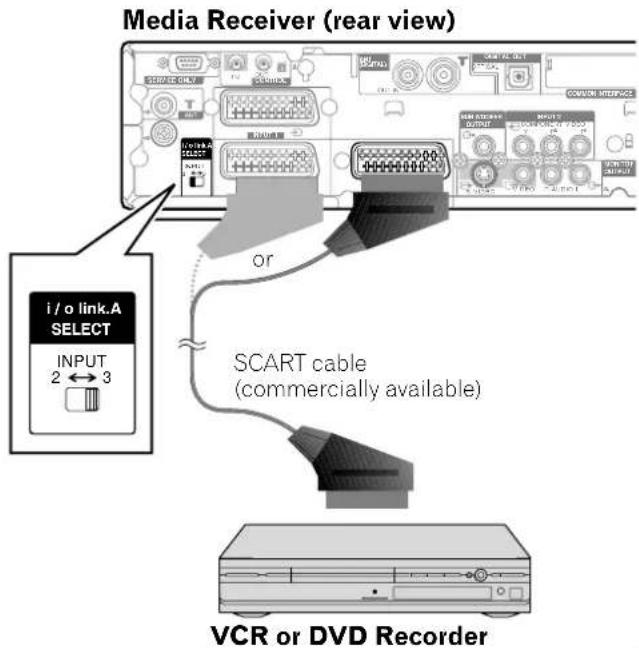

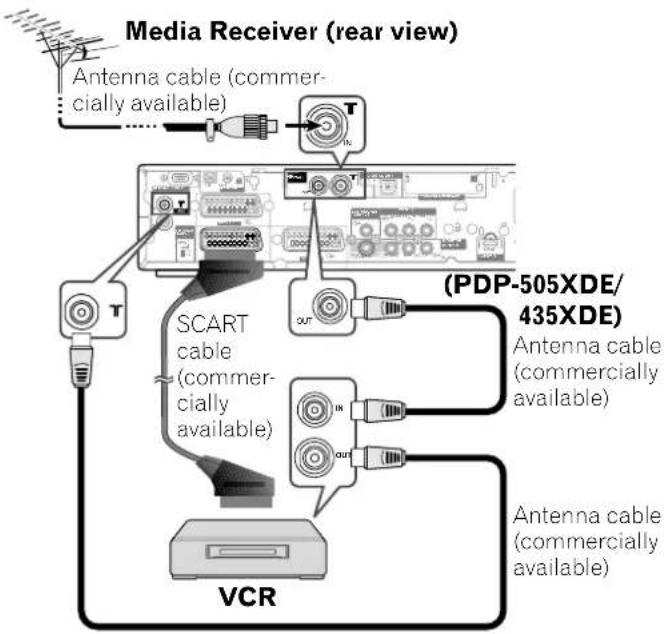

Connecting a VCR 44

Displaying a VCR image. 44

Using HDMI Input 45

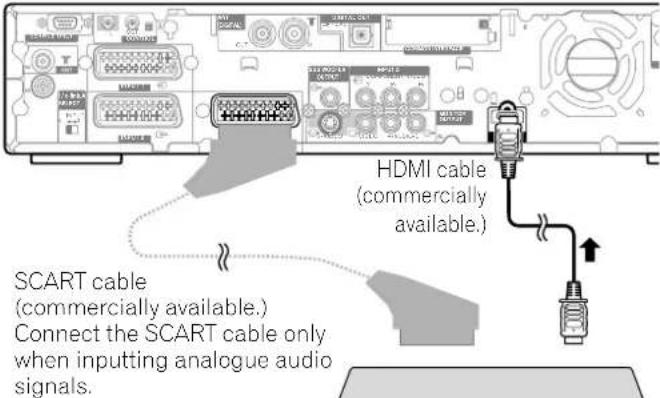

Connecting HDMI equipment 45

Using i/o Link.A 46

Watching a DVD image 46

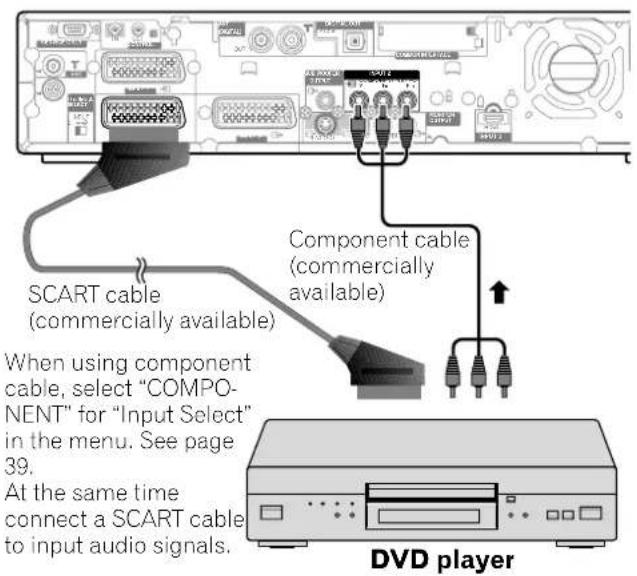

Connecting a DVD player. 46

Displaying a DVD image 46

Enjoying a game console and watching

camcorder images 47

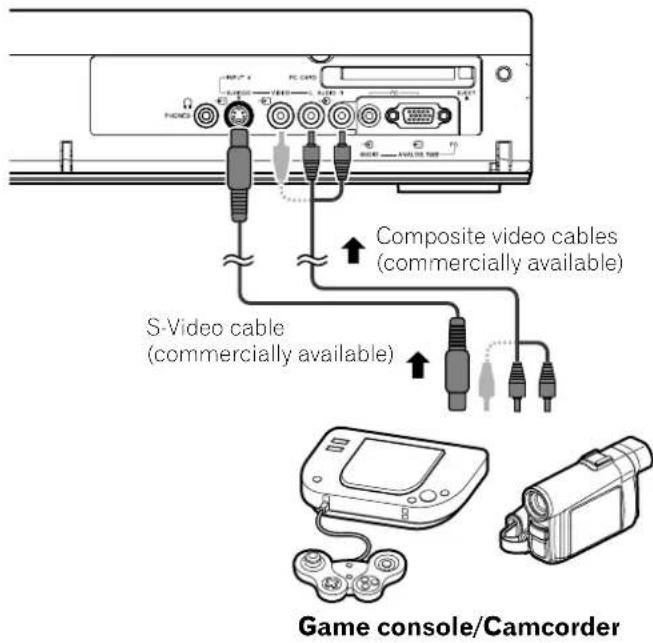

Connecting a game console or camcorder 47

Displaying an image from the game console or

camcorder 47

Enjoying through audio equipment in connection 47

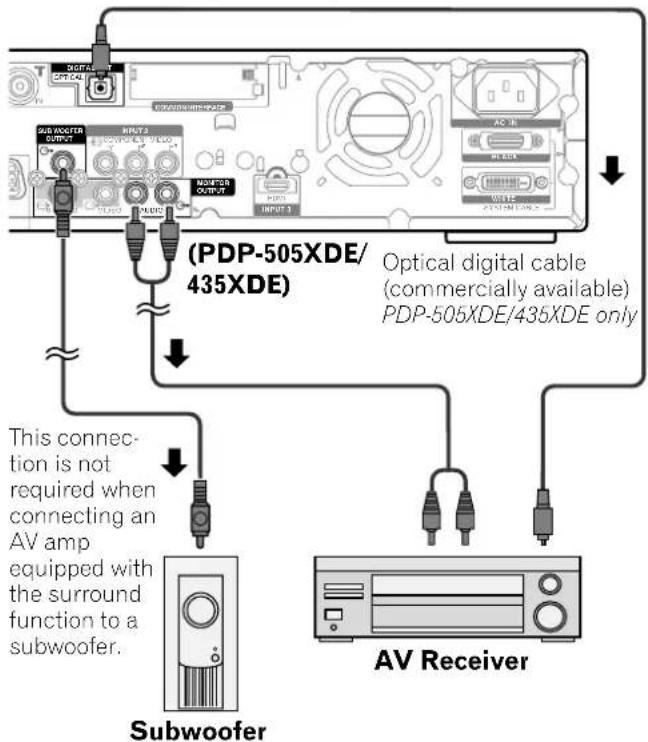

Connecting audio equipment 47

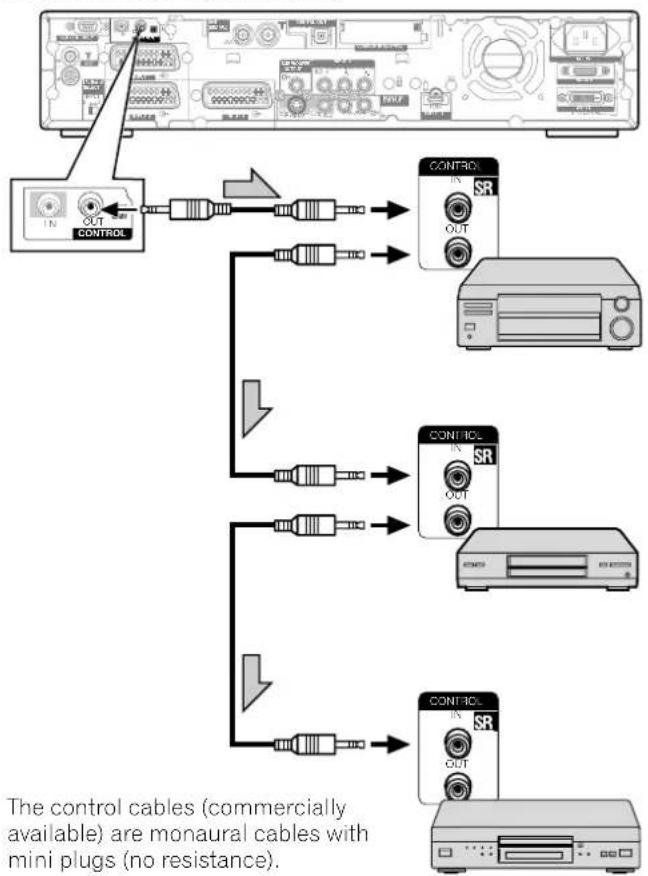

Connecting control cords 48

About SR+ 48

Watching an image from a personal computer 48

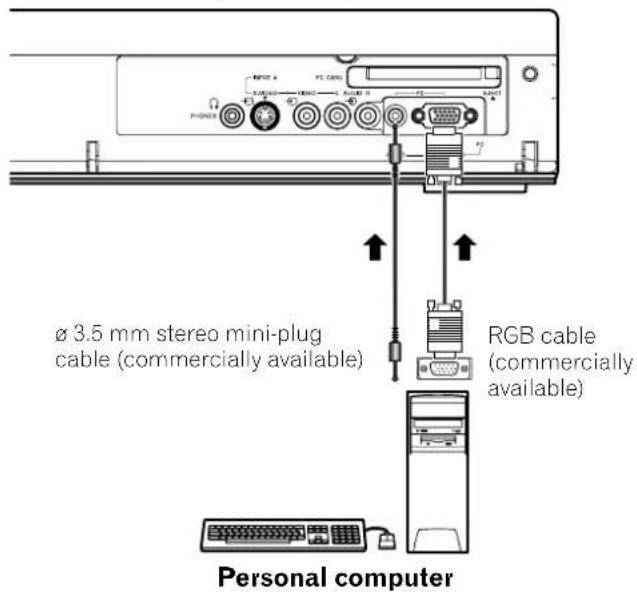

Connecting a personal computer 48

Displaying an image from a personal computer 48

Computer compatibility chart. 49

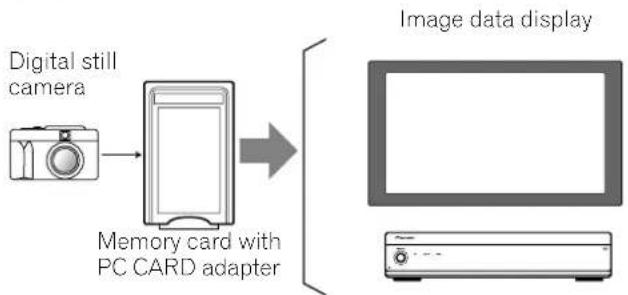

Enjoying through memory cards

(Home Gallery function) 49

Readable memory cards 49

Readable data files 49

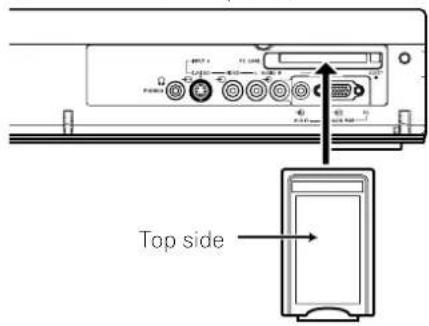

Inserting a memory card. 49

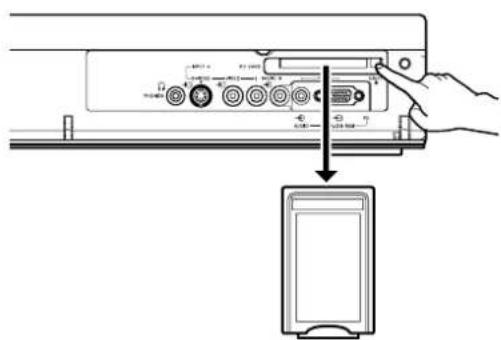

Removing a memory card 49

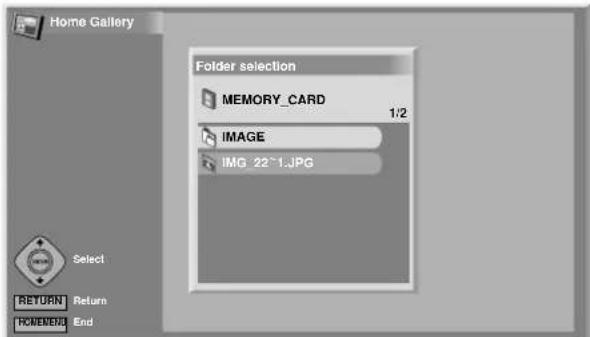

Starting the initial Home Gallery screen 50

Selecting a folder 50

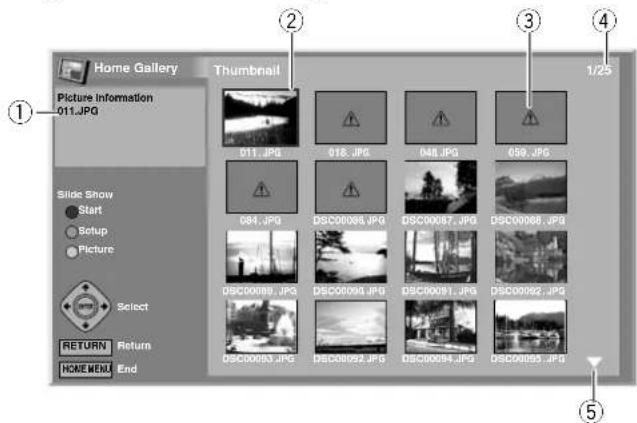

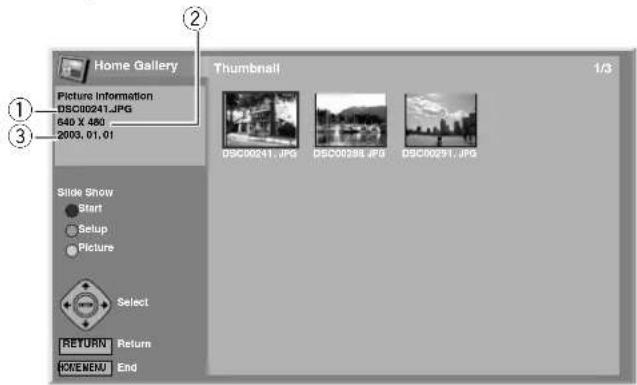

Starting a thumbnail screen 50

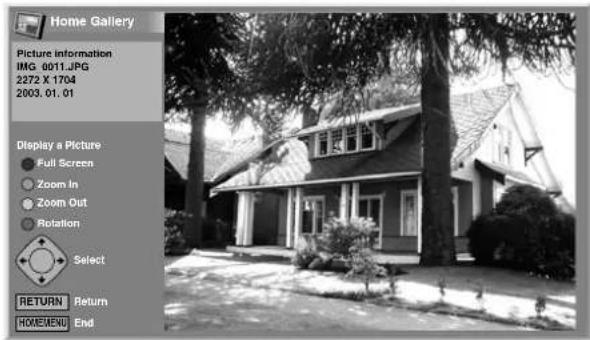

Starting a standard single-image screen 51

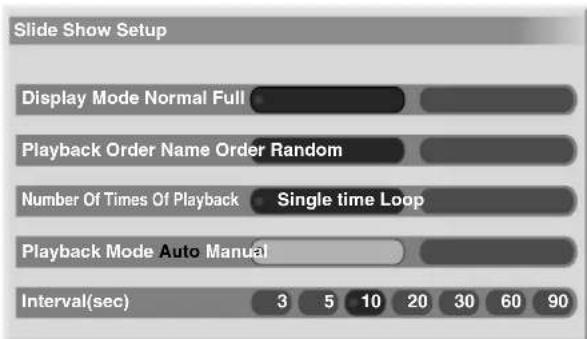

Starting the Slide Show Setup screen 51

Starting the Slide Show screen 52

Adjusting the picture quality 52

13 Using the Teletext Functions

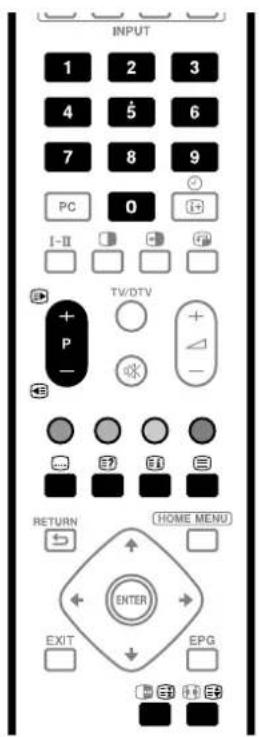

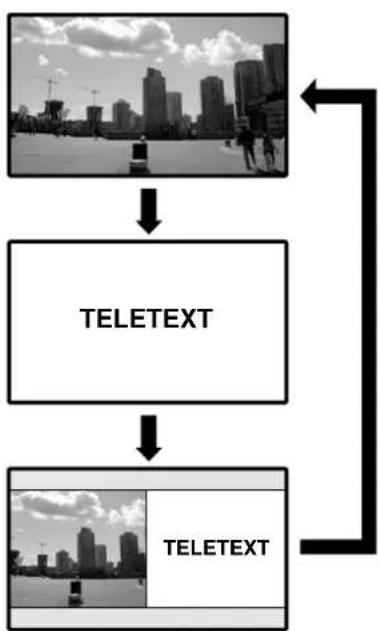

What is Teletext? 53

Operating the Teletext basics 53

Turning on and off Teletext 53

Selecting and operating Teletext pages 53

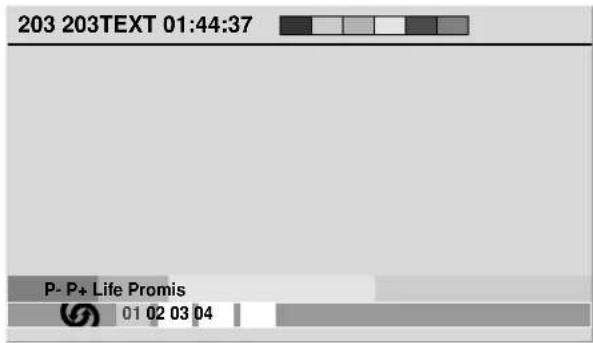

Displaying subpages 54

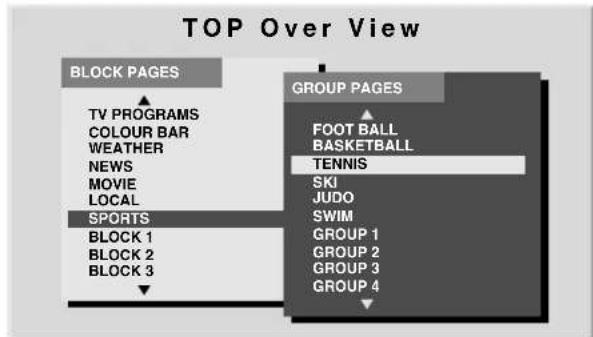

Displaying TOP Over View. 54

Displaying subtitle pages 54

14 Appendix

Troubleshooting 55

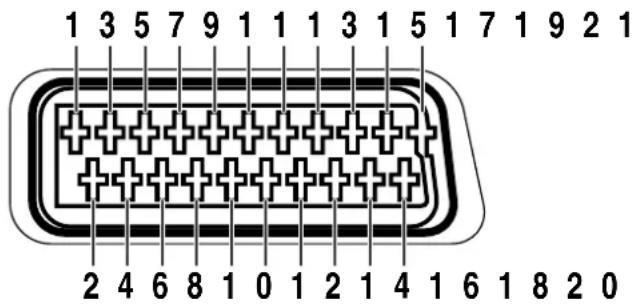

Connecting pin assignments for SCART 57

Specifications. 58

In order to obtain maximum enjoyment from this Pioneer PureVision PDP-505XDE/435XDE, PDP-505HDE/435HDE Plasma Display System, please first read this information carefully.

With the Pioneer PureVision PDP-505XDE/435XDE, PDP-505HDE/435HDE, you can be assured of a high quality Plasma Display System with long-life and high reliability. To achieve images of exceptional quality, this Pioneer Plasma Display System incorporates state-of-the-art design and construction, as well as very precise and highly advanced technology.

Over the course of its lifetime, the luminosity of the Pioneer PDP-505XDE/435XDE, PDP-505HDE/435HDE Plasma Display System will diminish very slowly, such as with all phosphor-based screens (for example, a traditional tube-type television). To enjoy beautiful and bright images on your Pioneer Plasma Display System for a long time, please carefully read and follow the usage guidances below:

Usage guidelines

All phosphor-based screens (including conventional tube-type televisions) can be affected by displaying static images for a prolonged period. Plasma Display System's are no exception to this rule. After-image and permanent effects on the screen can be avoided by taking some basic precautions. By following the recommendations listed below, you can ensure longer and satisfactory results from your plasma:

• Whenever possible, avoid frequently displaying the same image or virtually still moving pictures (e.g. closed-captioned images or video game images which have static portions).
• Do not display Teletext for a prolonged period of time.
• Avoid viewing the On Screen Display for extended periods, from a decoder, DVD player, VCR and all other components.
• Do not leave the same picture freeze-framed or paused continuously over a long period of time, when using the still picture mode from a TV, VCR, DVD player or any other component.
  Images which have both very bright areas and very dark areas side by side should not be displayed for a prolonged period of time.
• When playing a game, the "GAME" mode setting within "AV Selection" is strongly recommended. However, please limit its use to less than 2 hours at a time.
  After playing a game, or displaying a PC image or any still image, it is best to view a normal moving picture in the "WIDE" or "FULL" screen setting for more than 3 times the length of the previous still moving image.
  After using the Plasma Display System, always switch the display to "STANDBY" mode.

Installation guidelines

The Pioneer PureVision PDP-505XDE/435XDE, PDP-505HDE/ 435HDE Plasma Display System incorporates a very thin design. To ensure safety, please take the proper measures to mount or install the Plasma Display, in order to prevent the unit from tipping over in the event of vibration or accidental movement.

This product should be installed by using only parts and accessories designed by PIONEER. Use of accessories other than the PIONEER stand or installation bracket may result in instability, and could cause injury. For custom installation, please consult the dealer where the unit was purchased. To ensure correct installation, experienced and qualified experts must install the unit. PIONEER will not be held responsible for accident or damage caused by the use of parts and accessories manufactured by other companies.

To avoid malfunction and overheating, make sure that the vents on the main unit are not blocked when installing to ensure proper heat emission:

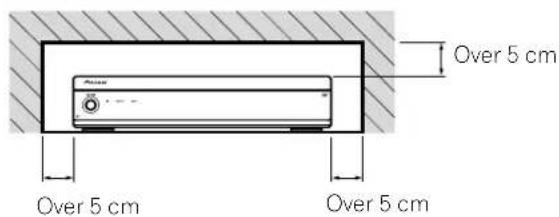

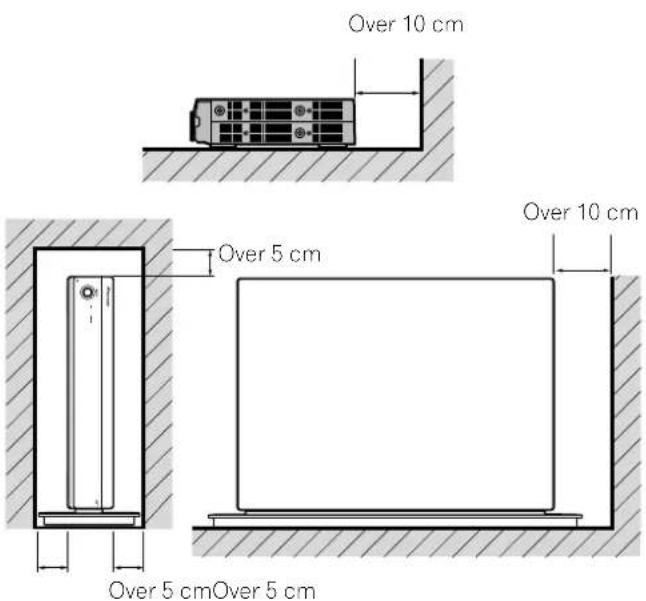

• Distance the unit slightly from other equipment, walls, etc. For the minimum space required around the unit, see page 15.
• Do not fit the unit inside narrow spaces where ventilation is poor.
• Do not cover with a cloth, etc.
• Clean the vents on the sides and rear of the unit to remove dust build-up, by using a vacuum cleaner set to its lowest suction setting.
• Do not place the product on a carpet or blanket.
• Do not leave the product tilted over except the case of vertical installation of the Media Receiver.
• Do not reverse the product.

Using the unit without proper ventilation may cause the internal temperature to rise, and could result in possible malfunction. When the surrounding or internal temperature exceeds a certain degree, the display will automatically power off in order to cool the internal electronics and prevent hazardous occurrences.

Any malfunction may occur due to: an inappropriate installation site, improper assembly, installation, mounting, or operation of this product, modifications made to the product. However, PIONEER cannot be held responsible for such accidents or malfunction.

NOTE

Typical effects and characteristics of a phosphor-based matrix display, e.g., permanent residual images upon the phosphor of the panel, and the existence of a minute number of inactive light cells in the screen, are not covered by local warranties.

CAUTION

Panel sticking and after-image lag

• Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

1. After-image lagging due to remaining electrical load

When image patterns with very high peak luminance are displayed for more than 1 minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

2. After-image (lag image) due to burning

Avoid displaying the same image on the Plasma Display continuously over a long period of time. If the same image is displayed continuously for several hours, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely.

• The energy save function can be set to help prevent damage from screen burning (see page 35).

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your product, please read the following precautions carefully before using the product.

1. Read instructions—All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for future reference.
3. Observe warnings—All warnings on the product and in the instructions must be observed closely.
4. Follow instructions—All operating instructions must be followed.
5. Cleaning—Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
6. Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.
7. Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.
8. Stand—Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.
9. When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

1. Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.
2. Power source—This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

3. Power cord protection—The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.

4. The plasma Display used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the plasma Display breaks.

5. Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
6. Entering of objects and liquids—Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.
7. Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
8. Repair—If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

e. When the product has been dropped or damaged.

f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.

1. Replacement parts—In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
2. Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

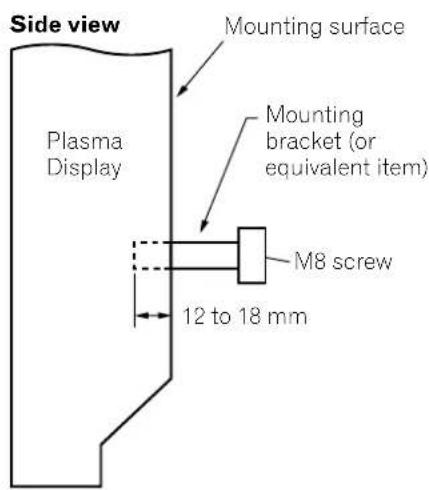

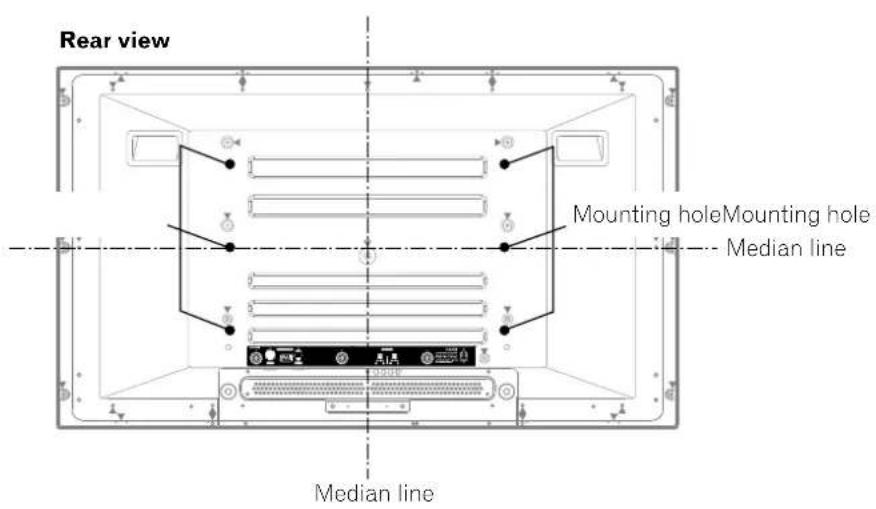

3. Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.
4. Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat- generating products (including amplifiers).
5. Unplug the power cord from the AC outlet before installing the speakers.
6. Never expose the screen of the Plasma Display to a strong impact, for example, by hitting it. The screen may be broken, resulting in fire or personal injury.
7. Do not expose the Plasma Display to direct sunlight for a long period of time. The optical characteristics of the front protection panel changes, resulting in discolouration or warp.
8. The Plasma Display weighs about 32.8kg (72.3 lbs.) for the PDP-505PE and about 26.8kg (59.1 lbs.) for the PDP-435PE. Because it has small depth and is unstable, unpack, carry, and install the product with one more person at least and use the handles.

Installation Precautions

Observe the following precautions when installing with any items such as the optional stand.

When using the optional stand, brackets, or equivalent items

• Ask your dealer to perform the installation.
• Be sure to use the supplied bolts.
  For details, see the instruction manual that comes with the optional stand (or equivalent items).

When using other items

• Consult your dealer.
• The following six mounting holes can be used for the installation:

CAUTION

• Be sure to use four or more mounting holes symmetrical to the vertical and horizontal median lines.
• Use M8 screws, which go 12 to 18mm in depth from the mounting surface of the Plasma Display. See the side view above.
• Be careful not to block the ventilation opening at the rear of the Plasma Display.
• Be sure to install the Plasma Display on a flat surface because it contains glass.
• The screw holes other than the above are to be used only for the specified products. Never use them for mounting non-specified products.
• Do not mount or remove the Plasma Display to or from the stand, with speakers attached.

NOTE

• It is strongly recommended to use the optional PIONEER mounting products.
  PIONEER shall not be liable for any personal injury or product damage that results from the use of mounting items other than the optional PIONEER products.

CAUTION

PIONEER bears no responsibility for any damage arising from incorrect use of the product by you or other people, malfunctions when in use, other product related problems, and use of the product except in cases where the company must be liable.

Plasma Display protection function

When still images (such as photos and computer images) stay on the screen for an extended period of time, the screen will be slightly dimmed. This is because the protection function of the Plasma Display automatically adjusts the brightness to protect the screen when detecting still images; so this does not designate malfunction. The screen is dimmed when a still image is detected for about three minutes.

Infrared rays

The Plasma Display releases infrared rays because of its characteristics. Depending on how the Plasma Display is in use, the remote controls of nearby equipment may be adversely affected or wireless headphones using infrared rays are interfered by noise. If this is the case, place that equipment at a location where its remote control sensor is not affected.

Radio interference

While this product meets the required specifications, it emits a small amount of noise. If you place such equipment as an AM radio, personal computer, and VCR close to this product, that equipment may be interfered. If this happens, place that equipment far enough from this product.

Fan motor noise

When ambient temperature of the Media Receiver becomes high, the rotation speed of the cooling fan motor increases. This may make you feel that the fan motor is noisy at such an occasion.

Do not attach such items as labels and tape to the product.

• This may result in the discolouration or scratch of the cabinet.

When not using the product for a long period of time

• If you do not use the product for a long period of time, the functions of the product may be adversely affected. Switch on and run the product occasionally.

Condensation

• Condensation may take place on the surface or inside of the product when the product is rapidly moved from a cold place to a warm place or just after a heater is switched on in winter morning, for example. When condensation takes place, do not switch on the product and wait until condensation disappears. Using the product with condensation may result in malfunction.

Cleaning the screen

• When cleaning the screen of this product, gently wipe it with a dry soft cloth; the supplied cleaning cloth or other similar cloths (e.g., cotton and flannel). If you use a hard cloth or rub the screen hard, the surface of the screen will be scratched.
• If you clean the surface of the screen with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Cleaning the cabinet

• The cabinet of this product is mostly composed of plastic. Do not use chemicals such as benzene or thinner to clean the cabinet. Using these chemicals may result in quality deterioration or coating removal.
• Do not expose the product to volatile gas or fluid such as pesticide. Do not make the product contact with rubber or vinyl products for a long period of time. The effect of plasticizer in the plastic may result in quality deterioration or coating removal.
• If you clean the surface of the cabinet with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Handles at the rear of the Plasma Display

• Do not remove the handles from the rear of the Plasma Display.
• When moving the Plasma Display, ask another person for help and use the handles attached to the rear of the Plasma Display. Do not move the Plasma Display by holding only a single handle. Use the handles as shown.
• Do not use the handles to hang the product when installing or carrying the product, for example. Do not use the handles for the purpose of preventing the product from tilting over.

Plasma Display

Power cord (2 m)

(For Europe, except U.K. and Eire)

(For U.K. and Eire)

Only the power cord that is appropriate in your country or region is supplied.

Speed clamp × 3 Bead band × 3

Warranty card

Cleaning cloth

Speaker cushion x 3

(Use when installing the optional speakers at the bottom of the Plasma Display.)

Media Receiver

Power cord (2 m)

(For Europe, except U.K. and Eire)

(For U.K. and Eire)

Only the power cord that is appropriate in your country or region is supplied.

Remote control unit

(for PDP-505XDE/435XDE)

(for PDP-505HDE/435HDE)

AA size battery x 2 (Manganese battery)

Screw x 4 (for stand)

Screw hole cap x 4

Stand System cable (3 m)

Three operating instructions (for PDP-505XDE/435XDE)

Two operating instructions (for PDP-505HDE/435HDE)

NOTE

Always use the power cord supplied with the Plasma Display and the one supplied with the Media Receiver for each respective unit.

About the illustrations in these operating instructions

These instructions are provided for both the PDP-505XDE/435XDE and PDP-505HDE/435HDE, whose Media Receiver and remote control units' appearances differ slightly. Please note that throughout these instructions, the PDP-505XDE/435XDE series' illustrations are used for explanatory purposes.

Plasma Display

Rear view

9 SYSTEM CABLE terminal (BLACK)
10 SYSTEM CABLE terminal (WHITE)
11 SPEAKER (right/left) terminals
12 AC INLET terminal

Media Receiver (PDP-505XDE/435XDE)

Front view

1 POWER button
2 POWER ON indicator
3 STANDBY indicator
4 TIMER indicator PDP-505XDE/435XDE only
5 PHONES output terminal
6 INPUT 4 terminal (S-VIDEO)
7 INPUT 4 terminal (VIDEO)
8 INPUT 4 terminals (AUDIO)
9 PC INPUT terminal (AUDIO)
10 PC INPUT terminal (ANALOG RGB)
11 PC CARD slot
12 PC CARD EJECT button

Rear view

1 ANT (Antenna) input terminal

2 RS-232C terminal (used for factory setup)

3 CONTROL IN terminal

4 CONTROL OUT terminal

5 INPUT 1 terminal (SCART)

6 ANT OUT terminal (Antenna through out) PDP-505XDE/435XDE only

7 ANT IN terminal (Antenna in for DTV) PDP-505XDE/435XDE only

• Power can be supplied through this terminal.

8 DIGITAL OUT terminal (OPTICAL) PDP-505XDE/435XDE only

9 COMMON INTERFACE slot PDP-505XDE/435XDE only

• For a CA Module with a smart card

10 AC IN terminal
11 i/o link.A SELECT switch
12 INPUT 2 terminal (SCART)
13 INPUT 3 terminal (SCART)
14 SUB WOOFER OUTPUT terminal
15 MONITOR OUTPUT terminal (S-VIDEO)
16 MONITOR OUTPUT terminal (VIDEO)
17 MONITOR OUTPUT terminals (AUDIO)
18 INPUT 2 terminals (COMPONENTVIDEO:Y,PB,PR)
19 INPUT 3 terminal (HDMI)
20 SYSTEM CABLE terminal (WHITE)
21 SYSTEM CABLE terminal (BLACK)

Remote control unit (PDP-505XDE/435XDE)

1

Turns on the power to the Plasma Display or places into the standby mode.

2 INPUT

Selects an input source of the Plasma Display. (INPUT 1, INPUT 2, INPUT 3, INPUT 4)

30-9

TV/External input mode: Selects a channel.
TELETEXT mode: Selects a page.

4 PC

Selects the PC terminal as an input source.

5 I-Ⅱ

Sets the sound multiplex mode.

6

Switches the screen mode among 2-screen, picture-in-picture, and single-screen.

7P+/P-

TV/External input mode: Selects a channel.

TELETEXT mode: Selects a page.

8 TV/DTV (PDP-505XDE/435XDE only)

Switches between the TV and DTV input mode.

9 Colour (RED/GREEN/YELLOW/BLUE)

TELETEXT mode: Selects a page.

10

TV/External input mode: Jumps to the teletext subtitle page.

DTV input mode: Turns subtitle on and off.

11?

TELETEXT mode: Displays hidden characters.

12 RETURN

Restores the previous menu screen.

13 / /

Selects a desired item on the setting screen.

ENTER

Executes a command.

14 EXIT (PDP-505XDE/435XDE only)

Returns to the normal screen in one step.

15 +

TV/External input mode: Displays the channel information.

DTV input mode: Displays the banner information.

16

Moves the location of the small screen when in the picture-in-picture mode.

17

Switches between the two screens when in the 2-screen or picture-in-picture mode.

18 +/ -

Sets the volume.

19

Mutes the sound.

20

Selects the TELETEXT mode.

(all TV image, all TEXT image, TV/TEXT image)

21 电

TELETEXT mode: Displays an Index page for the CEEFAX/FLOF format. Displays a TOP Over View page for the TOP format.

22 HOME MENU

TV/External Input mode: Displays the Menu screen.

23 EPG

Display the Electronic Programme Guide.

24

TV/External input mode: Selects the screen size.

中

TELETEXT mode: Switches Teletext images. (full/upper half/ lower half)

25

TV/External input mode: Freezes a frame from a moving image. Press again to cancel the function.

三

TELETEXT mode: Stops updating Teletext pages. Press again to release the hold mode.

NOTE

• When using the remote control unit, point it at the Plasma Display.

Installing the Plasma Display

Location

• Avoid direct sunlight. Maintain adequate ventilation.
  The length of the system cable used to connect the Plasma Display and the Media Receiver is about 3m
• Because the Plasma Display is heavy, be sure to have someone help you when moving it.

CAUTION

• If you place anything on the top of the Media Receiver it will not receive enough ventilation and will not operate properly.

NOTE

• Allow enough space around the upper and back parts when installing to ensure adequate ventilation of the rear of the unit.

Using the optional PIONEER stand

• For details on installation, refer to the instruction manual provided with the stand.

Using the optional PIONEER speakers

• For details on installation, refer to the instruction manual provided with the speaker.

CAUTION

Operating Environment

Operating environment temperature and humidity: +0^ to +40^ ; less than 85% RH (cooling vents not blocked)
Avoid installing in the following locations:

Under direct exposure to sunlight
Under strong artificial light
In high humidity
Poorly ventilated

Installing the Media Receiver

CAUTION

• Do not place a VCR or any other device on top of the Media Receiver.
• When installing, allow enough space on the sides and above the Media Receiver.
• Do not block the side cooling vents or the rear ventilation fan opening of the Media Receiver.

Installing the Media Receiver vertically

You can use the supplied stand to install the Media Receiver vertically.

1. Insert the stand into the side of the Media Receiver.

3. Remove the shock absorbing pads.

Keep the shock absorbing pads and screws. They are required when you place the Media Receiver in the horizontal position.

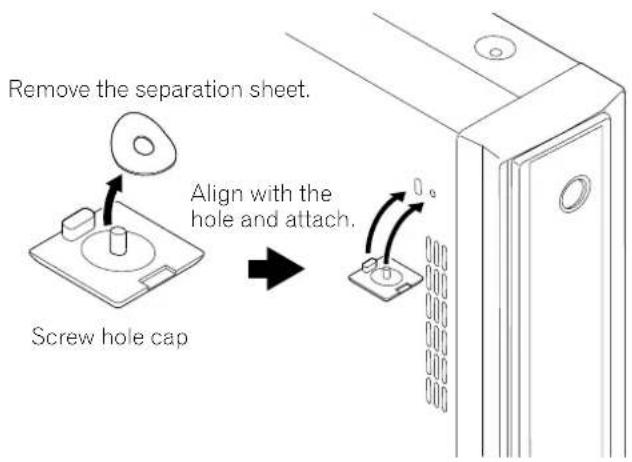

4. Plug the screw holes using the supplied caps.

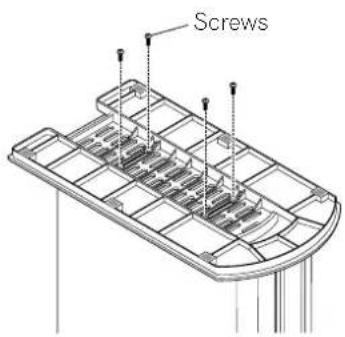

2. Secure the stand with the supplied screws.

CAUTION

• When you have installed the Media Receiver vertically, be sure to use the supplied stand. If you place the unit directly on the floor, the cooling vents will be blocked, resulting in mechanical failure.

Setting the system

Connecting the system cable to the Plasma Display

CAUTION

• THESE SPEAKER TERMINALS CAN BE APPLIED WITH HAZARDOUS VOLTAGE WHEN YOU CONNECT OR DISCONNECT THE SPEAKER CABLES, TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT TOUCH UNINSULATED PARTS BEFORE DISCONNECTING THE POWER CORD.

Routing cables

Speed clamps and bead bands are supplied for bunching cables. Once properly bunched, follow the steps below to route the cables.

Attaching speed clamps to the main unit

Attach the speed clamps using the 4 holes marked with below, depending on your routing system.

Attaching and removing speed clamps

Insert [1] into an appropriate hole on the rear of the Plasma Display and snap [2] into the back of [1] to lock the clamp. Speed clamps are designed to be difficult to undo once in place. Please attach them carefully.

Use pliers to twist the clamp 90^ , pulling outward. The clamp may deteriorate over time and become damaged if removed.

When the speakers are installed at the bottom

Speaker cable Speaker cables binders (supplied with the stand)*

*Cable binder

Using the cable binders supplied with the stand, put the speaker and system cables together so that the cables are invisible from the front. At that time be careful not to apply any force to the connection sections of the cables.

Preparing the remote control unit

Inserting batteries

1 Open the battery cover.

2 Insert the supplied two AA size batteries.

• Place batteries with their terminals corresponding to the (+) and (-) indicators in the battery compartment.

3 Close the battery cover.

Cautions regarding batteries

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not use alkaline batteries. When you replace the batteries, use manganese ones.
• Place the batteries with their terminals corresponding to the (+) and (-) indicators.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not use the remote control unit for an extended period of time, remove the batteries from it.

CAUTION

• WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLYWITH GOVERNMENTAL REGULATIONS OR ENVIRONMENTAL PUBLIC INSTRUCTION'S RULES THAT APPLY IN YOUR COUNTRY/AREA.

Allowed operation range of the remote control unit

Operate the remote control unit while pointing it toward the remote control sensor (SR) located at the bottom right of the front panel of the Plasma Display. The distance from the remote control sensor must be within 7 m and the angle relative to the sensor must be within 30 degrees in the right, left, upward, or downward direction.

Cautions regarding the remote control unit

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.
• The remote control unit may not work properly if the remote control sensor of the Plasma Display is under direct sunlight or strong lighting. In such case, change the angle of the lighting or Plasma Display set, or operate the remote control unit closer to the remote control sensor.
• When any obstacle exists between the remote control unit and the remote control sensor, the remote control unit may not function.
• As the batteries become empty, the remote control unit can function within a shorter distance from the remote control sensor. Replace the batteries with new ones early enough.
• The Plasma Display emits very weak infrared rays from its screen. If you place such equipment operated through infrared remote control as a VCR nearby, that equipment may not receive commands from its remote control unit properly or entirely. If this is the case, place that equipment at a location far enough from the Plasma Display.
• Depending on the installation environment, infrared rays from the Plasma Display may not allow this system to properly receive commands from the remote control unit or may shorten allowable distances between the remote control unit and the remote control sensor. The strength of infrared rays emitted from the screen differs, depending on images displayed on the screen.

Basic connections

Connecting to an antenna

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable.

Antenna cable - commercially available

If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug (IEC169-2), plug it into the antenna terminal at the rear of the Media Receiver.

Connecting the power cord

Plasma Display (bottom view)

• Always turn off the main power of the Plasma Display and Media Receiver when connecting the power cords.
• Disconnect the power cord from the power outlet, Plasma Display and Media Receiver when the system is not going to be used for a long period of time.

Unless you set up TV channels that you can watch under the current conditions, you cannot tune in those channels. For the procedure, see "Setting up TV channels automatically" on page 28.

Turning on the power

1 Press POWER on the Plasma Display.
- The STANDBY indicator on the Plasma Display flashes red.
2 Press POWER on the Media Receiver.
- The system is turned on or placed into the standby mode.
3 Confirm that the STANDBY indicators light up red, and then press or any button from 0 to 9 on the remote control unit or STANDBY/ON on the Plasma Display to turn the system on.
- In the standby mode, when you press 0, the power turns on and the on-screen image comes from the INPUT 1 source. When you press any button from 1 to 9, a TV image displays. Or, when you press 0, the last image displays.
- The POWER ON indicators on the Plasma Display and Media Receiver light up in green.

NOTE

In this manual, "system" mean the Plasma Display Panel and Media Receiver.
- You can also reverse steps 1 and 2.

Turning off the power

1 Press on the remote control unit or STANDBY/ON on the Plasma Display.

• The system enters standby mode and the image on the screen disappears.
• Both STANDBY indicators light up in red.
• The TIMER indicator lights when a programme is preset for recording/watching. Do not turn off the POWER button on the Media Receiver when the TIMER indicator lights, or presetting will fail.
• It is recommended to place the system into the standby mode after using it. This allows the system to automatically receive Electronic Programme Guide information signals (and DTV Auto Update: PDP-505XDE/435XDE only) in the standby mode.

2 Press POWER on the Media Receiver.

• The STANDBY indicator on the Media Receiver turns off and the one on the Plasma Display flashes red.

3 Press POWER on the Plasma Display.
- The STANDBY indicator on the Plasma Display turns off.

NOTE

• You can also reverse steps 2 and 3.
  If you are not going to use this system for a long period of time, be sure to remove the power cord from the power outlet.
• When the system is placed into the standby mode, the main power flow is cut and the system is no longer fully operational. A minute flow of power feeds the system to maintain operation readiness.

Plasma Display
POWER button

Media Receiver (PDP-505XDE/435XDE)
POWER button

Plasma Display/Media Receiver status indicators

Indicator Status System Status
Plasma Display Media		Receiver
POWER ON S	TANDBY POWER	ER ON STAND	BY
●	●	●	●	Power to the Plasma Display and Media Receiver is off. Or the power cords have been disconnected.
●	●	●	●	Power to the system is on.
●	●	●	●	The system is in the standby mode.
●	● Flashing	●	●	Power to the Media Receiver is off. Or the power cord has been disconnected from the Media Receiver.
●	●	●	● Flashing	Power to the Plasma Display is off. Or the power cord has been disconnected from the Plasma Display.

For other than the above, see "Troubleshooting" on page 55.

(PDP-505XDE/435XDE)

Channel display

Changing channels

Switching between the TV and DTV modes.

PDP-505XDE/435XDE only

• Press INPUT on the Plasma Display or TV/DTV on the remote control unit to select the DTV or TV input mode.

Using P + / - on the remote control unit

• Press P + to increase the channel number.
• Press P - to decrease the channel number.

When viewing Teletext information:

• Press P+ to increase the page number.
• Press P - to decrease the page number.

NOTE

• CHANNEL +/- on the Plasma Display operates the same as P + / P- .
• P + / P - cannot pick up channels that are set to skip.
• P+/P cannot pick up channels that are not registered as favourites. (In DTV mode, PDP-505XDE/435XDE only)

Using 0-9 on the remote control unit

Select channels directly by pressing buttons 0 to 9.

EXAMPLE

To select channel 2 (1-digit channel), press 2.
To select channel 12 (2-digit channel), press 1, followed by 2.
While in DTV mode, to select channel 123 (3-digit channel), press 1, 2, followed by 3. (PDP-505XDE/435XDE only)

When viewing Teletext information:

View a page directly which is 3-digit page number from 100 to 899 by pressing buttons 0 to 9. See page 53.

NOTE

• In the standby mode, when you press 0, the power turns on and the on-screen image comes from the INPUT 1 source. Or, when you press any button from 1 to 9, a TV image displays.

Setting up analogue favourite channels

You can register up to 16 analogue TV channels in total, then quickly select from your favourite channels only.

1 While watching analogue broadcasts, press ENTER to call up the Favourite Channel List.

2 Select a favourite channel to tune in (A, T ENTER).

• Press RETURN to exit the Favourite Channel List.

NOTE

See pages 28 and 29 for how to register favourite channels.

Changing the volume and sound

Using + / - on the remote control unit

To increase the volume, press +.
To decrease the volume, press

VOLUME + / - on the Plasma Display operates the same as + / -

Using on the remote control unit

mutes the current sound output.

1 Press.
- " 品 " appears on the screen.
2 Press again to cancel the mute mode.
- Pressing can also cancel the mute mode.

Plasma Display (right view)

Volume adjustment

Muting

Using I-II on the remote control unit

Each time you press I-III, MTS toggles as shown below.

		Setting
				MONOIII
NICAM Broadcasts	Stereo	1	1	1
		AAA NICAM STEREO 10:00	AAA NICAM STEREO 10:00	AAA MONO 10:00
	Bilingual	2	2	2
		BBB NICAM I 10:00	BBB NICAM II 10:00	BBB MONO 10:00
	Monaural	3	3	3
		CCC NICAM MONO 10:00	CCC NICAM MONO 10:00	CCC MONO 10:00
A2 Broadcasts	Stereo	4	4	4
		DDD STEREO 10:00	DDD STEREO 10:00	DDD MONO 10:00
	Bilingual	5	5	5
		EEE DUAL I 10:00	EEE DUAL II 10:00	EEE MONO 10:00
	Monaural	6	6	6
		FFF MONO 10:00	FFF MONO 10:00	FFF MONO 10:00
Digital Broadcasts	PDP-505XDE/ 435XDE only	7	7	7
		GGG STEREO 10:00	GGG STEREO 10:00	GGG MONO 10:00

NOTE

In each of the sound multiplex mode selected using the I-III button, the display changes depending on broadcasting signals being received.
- Once the MONO mode is selected, the Plasma Display System sound remains mono even if the system receives a stereo broadcast. You must switch the mode back to I or II mode if you want to hear stereo sound again.
- Selecting a sound multiplex mode while the input source is INPUT 1 to 4 or PC does not change the type of sound. In this case, sound is determined by the video source.

Using the multiscreen functions

Splitting the screen

Use the following procedure to select the 2-screen or picture-in-picture mode.

2-screen

Picture-in-picture

1 Press to select the display mode.

Each time you press , the display mode is switched among 2-screen, picture-in-picture, and single-screen.
- In 2-screen or picture-in-picture mode, press to switch the position of the 2 screens shown. The left screen is the active screen which will be indicated by "P". The user is allowed to operate picture and sound.

• In 2-screen mode, press to change the size of the left screen.

• In picture-in-picture mode, press move the position of the small screen anti-clockwise.

2 To select the desired input source, press the appropriate input source button.

• If watching TV programmes, press P + / P - to change the channel.

NOTE

• The multiscreen function cannot display images from the same input source at the same time. If you make such an attempt, a warning message appears.
• When you press HOME MENU the single-screen mode is restored and the corresponding menu is displayed.
• When in the 2-screen mode, images displayed on the right screen may look less fine, depending on the images.
• While in the 2-screen mode, the analogue favourite channel list is not available.
• While in the 2-screen mode, the digital channel list is not available. (PDP-505XDE/435XDE only)

Freezing images

Use the following procedure to capture and freeze one frame from a moving image that you are watching.

1 Press

• A still image appears on the right screen while a moving image is shown on the left screen.

2 Press again to cancel the function.

NOTE

• With the screen split, any image cannot be frozen.
• When this function is not available, a warning message appears.

Using the menu

AV mode menus

Home Menu Item Page
Picture AV Selection 3	1
	Contrast 32
	Brightness 32
	Colour	32
	Tint	32
	Sharpness	32
	Pro Adjust	32
	Reset 32
Sound Treble 34
	Bass	34
	Balance	34
	Reset 34
	FOCUS	34
	Front Surround	34
Power Control	Energy Save	35
	No Signal off	35
	No Operation off	35
Sleep Timer	—	42
Option	Position	38
	WSS	41
	4:3 Mode	41
	Colour System	39
	Input Select	39
	Side Mask	41
	HDMI Input	45
Setup	Auto Installation	28
	Analogue TV Setup	28-30
	DTV Setup PDP-505XDE/435XDE only	*
	Password	42, 43
	Language	31
Home Gallery	—	50-52

• See DTV operating instructions provided separately.

PC mode menus

Home Menu Item Page
Picture AV Selection 3	1
	Contrast 32
	Brightness 32
	Red 32
	Green 32
	Blue 32
	Reset 32
Sound Treble	34
	Bass	34
	Balance	34
	Reset 34
	FOCUS	34
	Front Surround	34
Power Control	Energy Save	35
	Power Management	35
Sleep Timer	—	42
Option	Auto Setup	38
	Manual Setup	38
Home Gallery	—	50-52

Menu operations

The following describes the typical procedure for setting up the menus. For the actual procedures, see the appropriate pages that describes individual functions.

1 Press HOME MENU.
2 Press / to select a menu item, and then press ENTER.
3 Repeat step 2 until you access the desired submenu item.

• The number of menu layers differs depending on the menu items.

4 Press to select an option (or parameter), and then press ENTER.
For some menu items, press / instead of / .

5 Press HOME MENU to exit the menu.

NOTE

• You can return to the upper menu levels by pressing RETURN.

Setting up TV channels automatically

This section describes how to automatically search for and set up TV channels.

For functions pertaining only to PDP-505XDE/435XDE, see DTV operating instructions provided separately.

Using Auto Installation

When the Plasma Display System is switched on for the first time after purchase, the initial auto installation is initiated.

You can automatically set language, country and channels in successive operations.

1 Select "Language" (↑).
2 Select a language (一)

Example: PDP-505XDE/435XDE

• You can select from among 12 languages; English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian, and Turkish.

3 Select "Country" (▲).
4 Select the country (一)

• Skip to step 9 if you are using PDP-505HDE or PDP-435HDE series.

5 Select "Tuner Type" (↑)
6 Selecttuner type (一)

• You can select among 3 options; All, Digital, and Analogue.

7 Select "Aerial Power" (4)
- Only selectable when "Digital" or "All" is selected for "Tuner Type" in step 5. If not go to step 9.
8 Select "On" or "Off" (▲).
9 Select "Installation" (A then ENTER).

10 Select "Start" (A then ENTER).

• Auto Installation automatically starts.
• To quit Auto Installation in progress, press RETURN.

11 After Auto Installation has been finished, press HOME MENU to exit the menu.

NOTE

• You can start Auto Installation from the Home menu after moving to another country, for example. Perform the following steps ① to ③ before starting Auto Installation.

① Press HOME MENU.
② Select“Setup”(↑/↓ then ENTER).
③ Select "Auto Installation" (▲/▼ then ENTER).

• The password entry screen appears. Enter your 4-digit password using buttons 0 - 9.

• If no channel is found, check the antenna connections, and then retry Auto Installation.

Setting up analogue TV channels manually

This section describes how to set up analogue TV channels manually.

Using Manual Adjust

Use Manual Adjust to set up analogue TV channels manually.

1 Press HOME MENU.
2 Select "Setup" (atthen ENTER).
3 Select "Analogue TV Setup" (Athen ENTER). The password entry screen appears. Enter your 4-digit password using buttons 0-9.
4 Select "Manual Adjust" (Athen ENTER).
5 Select "Programme Entry" (A).
6 Select a programme number (A).

• You can select 1 through 99.

7 Select "Search" (▲/▼).
8 Enter a frequency using buttons 0-9 and ENTER.

• You can also press / to enter a frequency.

9 Select "System" ( / ) .

10 Select a sound system ( / ) .

• You can select from among "B/G", "D/K", "I", "L", and "L".

11 Select "Colour System" (▲).

12 Select a colour system (▲).

• You can select from among "Auto", "PAL", "SECAM", and "4.43NTSC".

14 Select "Yes", "Yes (Listed)", or "No" ().

Item Description

YesYou can select the channel using P + / P -

Yes (Listed) You can select the channel using the Favourite Channel list and P + / P -

No You cannot select the channel using P + / P -

• To set up for another channel, repeat steps 6 to 14.

15 Press HOME MENU to exit the menu.

NOTE

The above procedure transfers and sets the selected channel information to the connected recording equipment such as a VCR or DVD recorder.
- Manual Adjust also allows you to make selections for "Label", "Child Lock", and "Decoder". See "Labelling TV channels", "Setting Child Lock", and "Selecting a decoder input terminal".

Labelling TV channels

You can name TV channels that you have set up, using up to five characters. This may help you easily identify the channels during selections.

1 Repeat steps 1 to 4 provided for Using Manual Adjust. After selecting a channel for label entry (using Programme Entry), perform the following steps.
2 Select "Label" (then ENTER).

The name entry screen appears.

3 Select the first character ( / , / then ENTER).

• The cursor moves to the second character.

4 Repeat step 3 to enter up to five characters.

• To correct entered characters, select [] or [] on the screen, and then press ENTER. The cursor moves to the preceding or subsequent character.
• To delete the current character, select [Delete] on the screen, and then press ENTER.
• To put a space for the current character, select [Space] on the screen, and then press ENTER.

5 To complete the name entry, press / or / to select [OK] on the screen, and then press ENTER.

6 Press HOME MENU to exit the menu.

Setting Child Lock

Child Lock inhibits selected TV channels from being tuned and watched.

1 Repeat steps 1 to 4 provided for Using Manual Adjust. After selecting a channel for label entry (using Programme Entry), perform the following steps.
2 Select "Child Lock" (A).
3 Select "Block" (F).

The selection is switched between "View" and "Block".

4 Press HOME MENU to exit the menu.

Selecting a decoder input terminal

If you have connected a decoder, select a decoder input terminal (INPUT1).

1 Repeat steps 1 to 4 provided for Using Manual Adjust. After selecting a channel for label entry (using Programme Entry), do the followings steps.
2 Select "Decoder" (A).
3 Select "INPUT 1" (▲)

4 Press HOME MENU to exit the menu.

NOTE

• With "Off" (factory default) selected, you cannot watch any images from the decoder.

Sorting preset TV channels

Use the following procedure to change the sequence of the preset TV programmes.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Analogue TV Setup" (↑/▼ then ENTER).

• The password entry screen appears. Enter your 4-digit password using buttons 0 - 9.

4 Select "Sort" ( / then ENTER).

The sort screen appears.

5 Select a channel to be shifted ( / , then ENTER).
6 Select a new location ( / , / then ENTER).

• Sorting is executed.

7 Press HOME MENU to exit the menu.

NOTE

• To change a page on the Sort screen in step 6, select / on the screen with / to select a page, and then press ENTER.
  The above procedure transfers and sets only the shifted channel information to recording equipment such as a VCR or DVD recorder.

Clock setting

Use the following procedure to set the time correctly.

1 Press HOME MENU.
2 Select "Setup" (▲/▼ then ENTER).
3 Select "Analogue TV Setup" (▲/▼ then ENTER). The password entry screen appears. Enter your 4-digit password using buttons 0 - 9.
4 Select "Clock" (▲/▼ then ENTER).
5 Select "Clock Set Programme" (↑/↓).
6 Select a TV channel to be used for auto clock setting ( / )

7 Press HOME MENU to exit the menu.

NOTE

• If the system fails to set the date and time through the selected TV channel, the "Time & Date" entry screen appears. Set the correct, current time.

Language setting

You can select the language to be used for on-screen display such as menus and instructions, from among 12 languages; English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian and Turkish.

For the language to be used in the TELETEXT mode, you can also select from among West Europe, East Europe, Greece/ Turkey, Russia, and Arabia.

To select a language for on-screen display

1 Press HOME MENU.
2 Select "Setup" (/Enter).
3 Select "Language" (/enter).
4 Select "Menu"(/)
5 Select a language (/)

6 Select "Teletext" (A)
7 Select a language ( +)
8 Press HOME MENU to exit the menu.

AV Selection

Select from the five viewing options, depending on the current environment (e.g., room brightness), the type of the current TV programme, or the type of images input from external equipment.

1 Press HOME MENU.
2 Select "Picture" (▲ then ENTER).
3 Select "AV Selection" ( ↑ then ENTER).
4 Select the desired option ( / 4then ENTER).

For AV source

Item	Description
STANDARD	For a highly defined image in a normally bright room
DYNAMIC	For a very sharp image with the maximum contrastThis mode does not allow manual image quality adjustment.
MOVIE	For a movie
GAME	Lowers image brightness for easier viewing
USER	Allows the user to customize settings as desired. You can set the mode for each input source.

For PC source

Item	Description
STANDARD(factory default)	For a highly defined image in a normally bright room
USER	Allows the user to customize settings as desired. You can set the mode for each input source.

5 Press HOME MENU to exit the menu.

NOTE

• If you have selected "DYNAMIC", you cannot select "Contrast", "Brightness", "Colour", "Tint", "Sharpness", and "Pro Adjust"; these menu items are dimmed.

Picture adjustments

Adjust the picture to your preference for the chosen AV Selection option (except DYNAMIC).

1 Press HOME MENU.
2 Select "Picture" (Athen ENTER).
3 Select an item to be adjusted (/ then ENTER).

For PC source or Home Gallery, the following screen appears.

4 Select the desired level () .

• When an adjustment screen is in display, you can also change the item to be adjusted, by pressing / .
  5 Press HOME MENU to exit the menu.

For AV source

Item button button →
Contrast For less contrast For more contrast
Brightness	For less brightness For more brightness
Colour For less colour intensity For more colour intensity
Tint	Skin tones become Skin tones become purplish greenish
Sharpness	For less sharpness For more sharpness

For PC source

Item button button →
Contrast For less contrast For more contrast
Brightness	For less brightness For more brightness
Red	For weaker red For stronger red
Green	For weaker green For stronger green
Blue	For weaker blue For stronger blue

NOTE

To make settings for "PureCinema", "Colour Temp", "MPEG NR", "DNR", "CTI", and "DRE", select "Pro Adjust" in step 3 and then press ENTER. For the subsequent procedures see "Pro Adjust".
To restore the factory defaults for all items, press / select "Reset" in step 3, and then press ENTER. A confirmation screen appears. Press / select "Yes", and then press ENTER.

Pro Adjust

This system provides various advanced functions for optimising the picture quality.

1 Press HOME MENU.
2 Select "Picture" (ATEN ENTER).
3 Select "Pro Adjust" (then ENTER).
4 Select an item to be adjusted (Athen ENTER). You can select "PureCinema", "Colour Temp", "MPEG NR", "DNR", "CTI", or "DRE".
5 Select the desired parameter ( / then ENTER). For the selectable parameters, see the table.

PureCinema

Automatically detects a film-based source (originally encoded at 24 frames/second), analyses it, then recreates each still film frame for high-definition picture quality.

Selections	Off Deactivates the PureCinema.
	Standard	Produces smooth and vivid moving images (film specific) by automatically detecting recorded image information when displaying DVD or high-definition images (e.g., movies) having 24 frames per second.
	ADV	Produces smooth and quality moving images (as shown on theatre screens) by converting to 72 Hz when displaying DVD images (e.g., movies) having 24 frames per second.

Colour Temp

Adjusts the colour temperature, resulting in a better white balance.

Selections High White with bluish tone

Mid-High	Intermediate tone between High and Mid
Mid Natural tone
Mid-Low	Intermediate tone between Mid and Low
Low White with reddish tone
Manual	Colour temperature adjusted to your preference

NOTE

You can manually adjust the colour temperature, using the following procedure:

①Select "Manual" while adjusting "Colour Temp" in step 5 above, and then press and hold ENTER for more than three seconds to display the manual adjustment screen.
(2)Press / to select an item to be adjusted, and then press ENTER.
(3)Press to select the desired level, and then press ENTER.

Item button button←→
R High For weaker red For stronger red
G High For weaker green For stronger green		For stronger green
B High For weaker blue		For stronger blue
R Low	Fine adjustment for dark portions	For weaker red For stronger red
G Low		For weaker green	For stronger green
B Low		For weaker blue	For stronger blue

To perform adjustment for another item, press RETURN, and then repeat steps ② and ③.
- You may press immediately change an item to be adjusted.

④Press HOME MENU to exit the menu.

MPEG NR

Eliminates mosquito noise from video images when a digital TV channel is watched or a DVD is played, resulting in noise-free images.

Selections Off Deactivates the MPEG NR.

High Enhanced MPEG NR

Mid Standard MPEG NR

Low Moderate MPEG NR

DNR

Eliminates video noise for clean crisp images. The DNR stands for Digital Noise Reduction.

Selections Off Deactivates the DNR.

High Enhanced DNR

Mid Standard DNR

Low Moderate DNR

CTI

Provides images with clearer colour contours. The CTI stands for Colour Transient Improvement.

Selections Off Deactivates the CTI.

On

Activates the CTI.

DRE

Adjusts dark and bright portions on images so that the contrast between brightness and darkness becomes clearer. The DRE stands for Dynamic Range Expander.

Selections Off Deactivates the DRE.

High

Enhanced DRE

Mid Standard DRE

Low Moderate DRE

Colour Management

Perform fine hue adjustment for each basic colour.

1 Press HOME MENU.
2 Select "Picture" (Athen ENTER).
3 Select "Pro Adjust" (↑ then ENTER).
4 Select "Colour Management" (Athen ENTER).
5 Select an item to be adjusted ( / then ENTER).

6 Select the desired level (A)

Item	← button	→ button
R	Closer to magenta	Closer to yellow
Y	Closer to red	Closer to green
G	Closer to yellow	Closer to cyan
C	Closer to green	Closer to blue
B	Closer to cyan	Closer to magenta
M	Closer to blue	Closer to red

To perform adjustment for another item, press RETURN, and then repeat steps 5 and 6.
- You may press / immediately change an item to be adjusted.

7 Press HOME MENU to exit the menu.

Sound adjustments

You can adjust the sound quality to your preference with the following settings.

Adjust the sound to your preference for the chosen AV Selection option. See page 31.

1 Press HOME MENU.
2 Select "Sound" (▲then ENTER).
3 Select an item to be adjusted () .
4 Select the desired level (一)

Item button	Button	→
Treble	For weaker treble	For stronger treble
Bass	For weaker bass	For stronger bass
Balance	Decreases audio from the right speaker	Decreases audio from the left speaker

5 Press HOME MENU to exit the menu.

NOTE

To restore the factory defaults for all items, press select "Reset" in step 3, and then press ENTER. A confirmation screen appears. Press to select "Yes", and then press ENTER.
- You cannot adjust the sound quality for listening with phones.
- If you perform sound adjustments with phones connected, the new settings will become effective for sound from the speakers after the phones are disconnected.

FOCUS

This shifts the sound coming direction (sound images) upward and produces clear sound contours.

1 Press HOME MENU.
2 Select "Sound" (Athen ENTER).
3 Select "FOCUS" (↑).
4 Select the desired parameter (一)

Item Description

Off Deactivates the FOCUS. (factory default)

On Activates the FOCUS.

5 Press HOME MENU to exit the menu.

NOTE

The effect of this function differs depending on signals.
- You cannot set up the sound field for listening with phones.
- If you set up the sound field with phones connected, the new setting will become effective for sound from the speakers after the phones are disconnected.

Front Surround

This provides three-dimensional sound effects and/or deep rich bass.

1 Press HOME MENU.
2 Select "Sound" (Athen ENTER).
3 Select "Front Surround" (▲).
4 Select the desired parameter. (一)

Item Description

Off Deactivates both the SRS and TruBass.

SRS Reproduces highly effective three-dimensional sound.

TruBass Provides deep, rich bass using a new (factory default) technology.

TruBass + SRS Provides both TruBass and SRS effects.

5 Press HOME MENU to exit the menu.

NOTE

• 150 (C) designates a status where the FOCUS is on and TruBass + SRS has been selected for Front Surround.
• SRS(●) is a trademark of SRS Labs, Inc.
• WOW technology is incorporated under license from SRS Labs, Inc.
  The effect of this function differs depending on signals.
• You cannot set up the sound field for listening with phones.
• If you set up the sound field with phones connected, the new setting will become effective for sound from the speakers after the phones are disconnected.

Power Control

Power Control provides convenient functions for power saving.

Energy Save

Power consumption is saved by decreasing picture brightness.

1 Press HOME MENU.
2 Select "Power Control" (A then ENTER).
3 Select "Energy Save" (then ENTER).
4 Select "Save" or "Picture Off" (▲/▼ then ENTER).

Item Description

Standard Does not decrease picture brightness. (factory default)

Save Decreases picture brightness to save power.

Picture Off Deactivates the screen to save power. To restore the screen display, press any button other than +/ - and. This setting is not memorised by the system.

5 Press HOME MENU to exit the menu.

NOTE

• You can also select this function using the Home menu when the input source is a PC.

No Signal off (AV mode only)

The system will be automatically placed into the standby mode if no signal is received for 15 minutes.

1 Press HOME MENU.
2 Select "Power Control" (A then ENTER).
3 Select "No Signal off" (A then ENTER).
4 Select "Enable" (Athen ENTER).

Item Description

Disable Does not place the system into the (factory default) standby mode.

Enable Places the system into the standby mode if no signal is received for 15 minutes.

5 Press HOME MENU to exit the menu.

NOTE

• Five minutes before the system is placed into the standby mode, a message appears every minute.
• The system may not be placed into the standby mode when noise signals are present at the Media Receiver after a TV programme finishes.

No Operation off (AV mode only)

The system will be automatically placed into the standby mode when no operation is performed for three hours.

1 Press HOME MENU.
2 Select "Power Control" (A then ENTER).
3 Select "No Operation off" (▲/▼ then ENTER).
4 Select "Enable" ( then ENTER).

Item Description

Disable Does not place the system into the (factory default) standby mode.

Enable Places the system into the standby mode if no operation is performed for three hours.

5 Press HOME MENU to exit the menu.

• Five minutes before the system is placed into the standby mode, a message appears every minute.

Power Management (PC mode only)

The system will be automatically placed into the standby mode when no signal is received from the personal computer.

1 Press HOME MENU.
2 Select "Power Control" (▲ then ENTER).
3 Select "Power Management" (+/− then ENTER).
4 Select "Mode 1" or "Mode 2" (+/+ then ENTER).

Item Description

Off No power management (factory default)

Model

• Places the system into the standby mode when no signal is received from the personal computer for eight minutes.
  Even when you start using the computer and a signal is received again, the system stays off.
• The system is switched on again by pressing STANDBY/ON on the Plasma Display or TV on the remote control unit.

Mode2

• Places the system into the standby mode when no signal is received from the personal computer for eight seconds.
• When you start using the computer and a signal is input again, the system is switched on.
• The system is switched on again by pressing STANDBY/ON on the Plasma Display or TV on the remote control unit.

5 Press HOME MENU to exit the menu.

10 Using the Electronic Programme Guide (EPG) (for Analogue TV only)

Use the Electronic Programme Guide (EPG) to search desired TV programmes or view information about them. Using the timer, it also allows you to preset desired programmes for recording with a VCR.

For functions pertaining only to PDP-505XDE/435XDE, see DTV operating instructions provided separately.

Setting up for using the EPG

Updating EPG information automatically

Specify whether or not the system is to automatically acquire EPG information from a specified broadcasting station.

1 Press HOME MENU.
2 Select "Setup" (Enter).
3 Select "Analogue TV Setup" (▲/▼ then ENTER).
4 Select "EPG" (A then ENTER).
5 Select "Data Auto Update" (▲).
6 Select "Disable" or "Enable" (◆).

Item Description

Disable Deactivates the EPC. (factory default)

Enable Automatically acquires EPG information at midnight, the time specified by the user (PDP-505XDE/435XDE only), and when watching a broadcasting station specified as an EPG information provider.

7 Press HOME MENU to exit the menu.

Specifying an EPG information provider

Specify a broadcasting station to acquire EPG information.

1 Press HOME MENU.
2 Select "Setup" (Enter).
3 Select "Analogue TV Setup" (▲/▼ then ENTER).
4 Select "EPG" (A then ENTER).
5 Select "Data Provider" (Athen ENTER).
6 Select the desired broadcasting station (一)
7 Press HOME MENU to exit the menu.

Restricting the display of EPG information

Use this function to display the EPG information about only TV programmes that can be actually received and watched.

1 Press HOME MENU.
2 Select "Setup" (Enter).
3 Select "Analogue TV Setup" (▲/▼ then ENTER).
4 Select "EPG" (Athen ENTER).
5 Select "Station Matching" (+/− then ENTER).
6 Select "On" (←)

Item	Description
Off (factory default)	Displays all broadcasting stations' EPG information processed by the specified EPG information provider.
On	Displays EPG information about TV programmes that can be actually received and watched.

7 Press HOME MENU to exit the menu.

Searching programmes

1 Press EPG.
2 Press the colour button to select a search parameter.
3 Perform selection for the parameter ()

• A list of searched programmes appear.

4 Press EPG to exit the menu.

NOTE

• For "Time" or "Date", you cannot select a past time or date.
• Before displaying EPG information, tune to a TV channel and return the screen to the single-screen mode.
  While EPG information is in display, only the following buttons are functional:

+/-,x and I-Ⅱ

Icons displayed on the Programme List and Programme Information

Icon Meaning
4:3	Aspect ratio 4:3
16:9	Aspect ratio 16:9
○○	Bilingual
○○	Stereo
……	Channel with subtitles

Viewing programme information

1 Press EPG.
2 Select the desired programme ( / then ENTER).

• Information about the selected programme appears.

3 Scroll the information (▲).
To return to the programme list screen, press RETURN.
4 Press EPG to exit the menu.

Recording a programme using a recording equipment

When recording equipment (such as a VCR or DVD recorder) is in connection, you may use the Electronic Programme Guide to preset TV programmes for recording.

1 Press EPG.
2 Select the desired programme ( / then ENTER).

• Information about the selected programme appears.

3 Press the red button.
4 Select "Rec Speed" (A).

5 Select "SP" (standard) or "LP" (extended) (▲).

6 Select "PDC/VPS" (▲).
7 Select "ON" or "OFF" (A→
8 Select "Record?" (↑/↓).
9 Select "OK" (Enter).
10 Press EPG to exit the menu.

NOTE

• Make sure to leave the VCR power on when presetting TV programmes for recording.
• You can return to the programme list screen by pressing RETURN.
• This function is available only when recording equipment has been connected to the INPUT 2 or 3 terminal with the i/o Link.A activated, using a SCART cable.
• For programmes preset (for recording) using the EPG, you can perform deletion or change only on the recording equipment (VCR or DVD recorder) which is a transfer destination.

Selecting a programme for immediate watching

Using the EPG, you can also select a TV programme currently on air to immediately start watching.

1 Press EPG.
2 Select the desired programme currently on air (A then ENTER).

• Information about the selected programme appears.

3 Press the green button.
- The EPG menu is quitted and the selected TV programme is displayed using the entire screen.

Adjusting image positions (AV mode only)

Adjust the horizontal and vertical positions of images on the Plasma Display.

1 Press HOME MENU.
2 Select "Option" (↑ then ENTER).
3 Select "Position" (then ENTER).
4 Select "H/V Position Adjust" (↑/↓ then ENTER).

5 Adjust the vertical position (A) the horizontal position ( ) .
6 Press HOME MENU to exit the menu.

NOTE

To restore the factory defaults for all items, press to select "Reset" in step 4, and then press ENTER. A confirmation screen appears. Press / to select "Yes", and then press ENTER.
- Adjustments are stored separately according to input source.

Adjusting image positions and clock automatically (PC mode only)

Use Auto Setup to automatically adjust the positions and clock of images coming from a personal computer.

1 Press HOME MENU.
2 Select "Option" (Enter).
3 Select "Auto Setup" (A then ENTER).

• Auto Setup starts.

4 Press HOME MENU to exit the menu.

NOTE

• When Auto Setup is finished, "Auto Setup completed." appears.
• Even when "Auto Setup completed" appears, Auto Setup may have failed, depending on conditions.
• Auto Setup may fail with a PC image composed of similar patterns or monochrome. If not successful, change the PC image and try again.
• Be sure to connect the computer to the Media Receiver and switch it on before starting Auto Setup.

Adjusting image positions and clock manually (PC mode only)

Usually you can easily adjust the positions and clock of images using Auto Setup. Use Manual Setup to optimise the positions and clock of images when necessary.

1 Press HOME MENU.
2 Select "Option" (at the ENTER).
3 Select "Manual Setup" (Athen ENTER).
4 Select the item to be adjusted ( / then ENTER).

5 Perform adjustment (aand/).
Use / only when you adjust the vertical position after selecting "H/V Position Adjust".
6 Press HOME MENU to exit the menu.

NOTE

To restore the factory defaults for all the items, press to select "Reset" in step 4, and then press ENTER. A confirmation screen appears. Press to select "Yes", and then press ENTER.

Selecting an input signal type

After connecting to the INPUT 1, INPUT 2, or INPUT 3 terminal, specify the type of video signals to be received from the connected equipment. For the type of the signals, see the operation manual that came with the connected equipment.

Before starting the menu, press INPUT 1, INPUT 2, or

INPUT 3 on the remote control unit or press
INPUT on the Plasma Display to select an input source.

1 Press HOME MENU.
2 Select "Option" (Athen ENTER).
3 Select "Input Select" (↑ then ENTER).
4 Select a signal type (Athen ENTER).

• For INPUT1, you can select Video or RGB.
• For INPUT2, you can select Video or S-Video or COMPONENT.
• For INPUT3, you can select Video, S-Video, RGB.

5 Press HOME MENU to exit the menu.

NOTE

• If no image appears or images appear in inappropriate colours, specify another video signal type.
• For the signal types to be specified, check the operation manual that came with the connected equipment.

Colour system setting (AV mode only)

If an image does not appear clearly, select another colour system (e.g., PAL, NTSC).

1 Press HOME MENU.
2 Select "Option" (▲then ENTER).
3 Select "Colour System" (▲ then ENTER).
4 Select a video signal system (/ then ENTER).

• You can select "Auto", "PAL", "SECAM", "NTSC", or "4.43NTSC".
• With "Auto" selected, input signals are automatically identified.

5 Press HOME MENU to exit the menu.

NOTE

The factory default is "Auto".
- You need to perform colour system setting for each of INPUT 1 to 4.
- For colour system setting for each channel, see pages 28 and 29.

Selecting a screen size

Manual Selection

Press to switch among the screen size options selectable for the type of video signals currently received.

Each time you press the selection is switched.
The selectable screen sizes differ depending on the types of input signals.

AV mode

Item Description

4:3 For 4:3 "standard" pictures. A side mask appears on each side.

FULL 14:9 For 14:9 squeeze pictures. A thin side mask appears on each side.

CINEMA 14:9 For 14:9 letterbox pictures. A thin side mask appears on each side, and you may also see bars on the top and bottom with some programmes.

WIDE In this mode the picture is progressively stretched toward each side of the screen.

FULL For 16:9 squeeze pictures.

ZOOM For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

CINEMA For 14:9 letterbox pictures. Bars may appear on the top and bottom on some programmes.

PC mode except for XGA signals

Item Description

4:3 Fills the screen without altering the input signal aspect ratio.

FULL Full 16:9 screen display

Dot by Dot Matches input signal with same number of screen pixels.

PC mode for XGA signals

(Ex. 1024 × 768 input at PDP-505XDE/505HDE)

Item Description
4:3 Matches input signal with the same number of screen pixels. Optimised for 1024 × 768 display
FULL1	Full 16:9 screen display Optimised for 1024 × 768 display
FULL2	For wide signal display Use when displaying 1280 × 768 signal resolution.

NOTE

The specifications given for the PC mode is for the PDP-505XDE and 505HDE. For the PDP-435XDE and 435HDE, the number of panel pixels is different, and thus signal processing and actual viewing conditions will vary slightly.
While watching High Definition TV broadcasting, pressing switches between FULL and WIDE.

AV mode

PC mode except for XGA signals

PC mode for XGA signals

Auto Selection

If you set "WSS" and "4:3 Mode" in the Option menu, the optimum screen mode is automatically chosen for every video signal containing the WSS information.

Wide screen signalling (WSS) (AV mode only)

WSS allows the system to switch automatically among the different screen formats.

1 Press HOME MENU.
2 Select "Option" (Athen ENTER).
3 Select "WSS" (then ENTER).
4 Select "On" ( 个 then ENTER).

Item Description

On Activates the WSS function.

Off Deactivates the WSS function. (factory default)

5 Press HOME MENU to exit the menu.

NOTE

• Manually select an appropriate screen size if an image does not automatically switch to a correct screen format.
• When the video signal contains no WSS information, the function will not work even with "On" selected.

Picture aspect ratio (AV mode only)

With the WSS function switched to "On", select the display format for 4:3 aspect ratio signal input.

1 Press HOME MENU.
2 Select "Option" (Athen ENTER).
3 Select "4:3 Mode" (ATen ENTER).
4 Select "4:3" or "WIDE" (Athen ENTER).

Item Description

4:3 Keeps the 4:3 aspect ratio and presents side masks.

WIDE Wide image without side masks. (factory default)

4:3

WIDE

5 Press HOME MENU to exit the menu.

Changing the brightness at both sides of the screen (Side Mask)

With the 4:3/FULL 14:9/CINEMA 14:9 screen size selected for the AV mode, you can change the brightness of the grey side masks that appear at both sides of the screen.

1 Press HOME MENU.
2 Select "Option" (Athen ENTER).
3 Select "Side Mask" (▲ then ENTER).
4 Select the desired parameter ( / then ENTER).

Item

Description

Fixed Always sets the same brightness for the (factory default) grey side masks.

Auto Adjusts the brightness of the grey side masks according to the brightness of images.

5 Press HOME MENU to exit the menu.

Sleep Timer

When the selected time elapses, the Sleep Timer automatically places the system into the standby mode.

1 Press HOME MENU.
2 Select "Sleep Timer" (▲ then ENTER).
3 Select the desired time (/ then ENTER).

• You can select from among "Off" (cancel),

"30 min", "60 min", "90 min", and "120 min".

4 Press HOME MENU to exit the menu.

NOTE

• Five minutes before the selected time elapses, the remaining time appears every minute.
• To check the remaining time, perform steps 1 and 2.

Using a password (AV mode only)

This system provides the Child Lock function for preventing children from watching inappropriate programmes. You need to enter a password when watching programmes with "Block" specified. Before the system is shipped, "1234" is preset as the factory-default password. You can however, change the password as you want.

When using the Home menu you select "Auto Installation", "Analogue TV Setup", "DTV Setup", or "Password", a screen prompting password entry appears to prevent others from changing the programme settings at their choices.

Entering a password

In a case where you select a channel blocked with Child Lock or password entry is requested when attempting to open the menu, enter a password correctly.

1 Enter a correct 4-digit password using buttons 0-9.

Please Input Your Password.

NOTE

• If you fail password entry three times, "Invalid password" appears, and the menu is closed. In order to display the password entry screen again to unlock the password, select the blocked channel or open the menu again.

Changing the password

Use the following procedure to change the password.

1 Press HOME MENU.
2 Select "Setup" (THEN ENTER).
3 Select "Password" (A then ENTER).

• The password entry screen appears. Enter the current 4-digit password using buttons 0 - 9.

4 Select "Change Password" (1/2 then ENTER).

5 Enter a 4-digit password to be newly set, using buttons 0-9.
6 Enter the same password that you have entered in step 5.

• If an unmatched password is entered, the operation goes back to step 5 for reentry from the beginning.
• If you fail password change three times by entering unmatched passwords, the menu is closed.

7 Press HOME MENU to exit the menu.

NOTE

Take a note of the newly set password and keep it handy.

Resetting the password

1 Press HOME MENU.
2 Select "Setup" (↑ then ENTER).
3 Select "Password" (A then ENTER).

• The password entry screen appears. Enter your 4-digit password using buttons 0 - 9.

4 Select "Reset" (↑ then ENTER).
5 Select "Yes" (A then ENTER).
6 Press HOME MENU to exit the menu.

NOTE

The above procedure will reset the password to the factory default (1234).

Disabling the password

1 Press HOME MENU.
2 Select "Setup" (↑ then ENTER).
3 Select "Password" (+ then ENTER).

• The password entry screen appears. Enter your 4-digit password using buttons 0 - 9.

4 Select "Password Setting" (+/◆ then ENTER).
5 Select "Disable" (Athen ENTER).
6 Press HOME MENU to exit the menu.

We suggest you write down your password so you don't forget it.

PDP-505XDE/435XDE

PDP-505HDE/435HDE

Your password No.:

If you forget the password

When the message "Please Input Your Password" is displayed in step 3 above, press the ENTER button on the remote control unit and hold it down for 3 seconds or longer.

The password reverts to "1234".

You can connect many types of external equipment to your Plasma Display System, like a decoder, VCR, DVD player, personal computer, game console, and camcorder.

To view images coming from external equipment, select the input source using the INPUT buttons on the remote control (page 14) or the INPUT button on the Plasma Display.

CAUTION

• To protect all equipment, always turn off the Media Receiver before connecting to a decoder, VCR, DVD player, personal computer, game console, camcorder, or other external equipment.

NOTE

Refer to the relevant operation manual (DVD player, personal computer, etc.) carefully before making connections.

Watching a decoder image

Connecting a decoder

Use the INPUT 1 terminal when connecting a decoder and other audiovisual equipment.

Media Receiver (rear view)

Displaying a decoder image

To watch a decoder image

① Press buttons 0-9 or P + / P to select a programme specified for decoder setting (page 30).
② Press INPUT 1 on the remote control unit or press INPUT on the Plasma Display to select INPUT1.

NOTE

• Be sure to use INPUT1 to connect a decoder.
• If decoder images do not come in clearly, you may need to change the input signal type setting using the menu. See page 39.
  Refer to your decoder operation manual for the signal type.

Watching a VCR image

Connecting a VCR

Use the INPUT 2 terminals when connecting a VCR and other audiovisual equipment.

If your VCR supports TV-VCR advanced "AV link" systems (page 46), you can connect the VCR to the INPUT 2 or 3 terminal on the Media Receiver using the fully-wired 21-pin SCART cable.

AV link advanced system

• Download tuning information directly from TV to VCR (Preset download).
  While watching TV, you can record a programme with a one-touch press of the VCR recording button. (WYSIWYR*)

• Refer to your VCR operation manual as some VCRs have an exclusive key for WYSIWYR.

• When you press the play button on the VCR, the system automatically turns on from standby and displays a VCR image.

NOTE

• TV-VCR advanced "AV link" systems may not be compatible with some external sources.

Displaying a VCR image

To watch a VCR image, press INPUT 2 on the remote control unit or press INPUT on the Plasma Display to select INPUT2.

NOTE

• If VCR images do not come in clearly, you may need to change the input signal type setting using the menu. See page 39.
  Refer to your VCR operation manual for the signal type.
  The INPUT 2 terminals are checked for cable connections in the order where; 1) S-Video, 2) Video.
• Connect external equipment to only terminals that are to be actually used.

Using HDMI Input

The INPUT 3 terminals include HDMI terminals to which digital video and audio signals can be input. To use the HDMI terminal, activate the terminal and specify the types of video and audio signals to be received from the connected equipment. For the types of these signals, see the operation manual that came with the connected equipment.

Before starting the menu, press INPUT 3 on the remote control unit or press INPUT on the Plasma Display to select INPUT 3.

Input signal correlation table

1920*1080i@50Hz

720*576p@50Hz

1280*720p@50Hz

720(1440)*576i@50Hz

1920*1080i@59.94/60Hz

720*480p@59.94/60Hz

1280*720p@59.94/60Hz

720(1440)*480i@59.94/60Hz

NOTE

PC signals are out of correspondence.

Connecting HDMI equipment

Media Receiver (rear view)

HDMI equipment

To activate the HDMI terminal:

1 Press HOME MENU.
2 Select "Option" (Athen ENTER).
3 Select "HDMI Input" (atten ENTER).
4 Select "Setting" (at then ENTER).
5 Select "Enable" (Athen ENTER).

Item

Description

Disable (factory default)

Deactivates the HDMI terminal.

Enable

Activates the HDMI terminal.

To specify the type of digital video signals:

1 Repeat steps 1 to 3 provided To activate the HDMI terminal.
2 Select "Video" (▲ then ENTER).
3 Select the type of digital video signals (A tten ENTER).

• If you select "Auto", an attempt will be made to identify the type of digital video signals when digital video signals are received.

Item Description

Auto Automatically identifies input digital video (factory default) signals.

Colour-1 Digital Component Video signals (4:2:2) locked

Colour-2 Digital Component Video signals (4:4:4) locked

Colour-3 Digital RGB signals locked

4 Press HOME MENU to exit the menu.

NOTE

• If you select a parameter other than "Auto", make such a setting that results in natural colour.
  If no image appears, specify another digital video signal type.
• For the digital video signal types to be specified, check the operation manual that came with the connected equipment.

To specify the type of audio signals:

1 Repeat steps 1 to 3 provided To activate the HDMI terminal.
2 Select "Audio" (↑ then ENTER).
3 Select the type of audio signals (十 /十 then ENTER). If you select "Auto", an attempt will be made to identify the type of audio signals when audio signals are received.

Item Description

Auto Automatically identifies input audio (factory default) signals.

Digital Accepts digital audio signals.

Analogue Accepts analogue audio signals.

4 Press HOME MENU to exit the menu.

NOTE

• If no sound is output, specify another audio signal type.
• For the audio signal types to be specified, check the operation manual that came with the connected equipment.
• Depending on the equipment to be connected, you also need to connect analogue audio cables.

Using i/o Link.A

This system incorporates three typical i/o Link.A functions for smooth connections between Media Receiver and other audiovisual equipment.

One Touch Play

While the Plasma Display System is in standby mode, it automatically turns on and plays back images from the audiovisual source (e.g. VCR, DVD).

WYSIWYR (What You See Is What You Record)

When the remote control unit of the connected VCR has the WYSIWYR button, you can automatically start recording by pressing the WYSIWYR button.

Preset Download

Automatically transfers channel preset information from the tuner on the Plasma Display System to the one on the connected audiovisual equipment (e.g. VCR) via the INPUT 2 or 3 terminal.

NOTE

• The i/o Link.A functions work only when the audiovisual equipment is connected to the INPUT 2 or 3 terminal on the Media Receiver with i/o Link.A via a fully wired 21-pin SCART.
• Either INPUT 2 or 3 is available for i/o Link.A, depending on the switch on the rear of the Media Receiver.
• Using this switch, select the input terminal to which recording equipment such as a VCR has been connected.
  Refer to operation manuals of each external equipment for the details.
• If a SCART cable has been connected to the INPUT 3 terminal with the i/o Link.A activated, input signals (other than Component) are automatically identified and displayed. If the i/o Link.A has been deactivated, Video is always selected for signals other than RGB because the system cannot identify among RGB, Y/C (S-Video), and CVBS (Video) signals; for example, receiving Y/C (S-Video) signals results in monochrome display.

Watching a DVD image

Connecting a DVD player

Use the INPUT 2 terminal when connecting to a DVD player and other audiovisual equipment.

Media Receiver (rear view)

Displaying a DVD image

To watch a DVD image, press INPUT 2 on the remote control unit or press INPUT on the Plasma Display to select INPUT2.

NOTE

If DVD images do not come in clearly, you may need to change the input signal type setting using the menu. See page 39.
Refer to your DVD player operation manual for the signal type.

Enjoying a game console or watching camcorder images

Connecting a game console or camcorder

Use the INPUT 4 terminals to connect a game console, camcorder and other audiovisual equipment.

Media Receiver (front view)

Displaying an image from the game console or camcorder

To watch an image coming from the game console or camcorder, press INPUT 4 on the remote control unit or press INPUT on the Plasma Display to select INPUT4.

NOTE

• The INPUT 4 terminals are checked for cable connections in the order where: 1) S-Video, 2) Video.
• Connect external equipment to only terminals that are to be actually used.

Enjoying through audio equipment in connection

Connecting audio equipment

You can enjoy more powerful sound by connecting such audio equipment as an AV receiver or subwoofer.

Media Receiver (rear view)

NOTE

• For details, refer to the operation manual for the audio equipment to be connected.
  The images shown on the display and the accompanying audio are always output to the MONITOR OUTPUT terminal.
  The audio accompanying images shown on the display is always output to the SUBWOOFER OUTPUT terminal.
• While in DTV mode, no signals are output if they are copy guarded.

Connecting control cords

Connect control cords between the Media Receiver and other PIONEER equipment having the SR logo. You can then operate the connected equipment by sending commands from its remote control unit to the remote control sensor on the Media Receiver.

After the CONTROL IN terminals have been connected, the remote control sensors on the connected equipment do not accept commands from the remote control units. Face the remote control units to the remote control sensor on the Plasma Display when operating the connected equipment.

NOTE

Make sure that the power is turned off when making connections.
- Complete all component connections before making control cord connections.

About SR+

The CONTROL OUT terminal on the rear of the Media Receiver supports SR+ that allows linked operations with a PIONEER AV receiver. SR+ presents functions such as the input switch linkage operation function and the DSP surround mode display function. For more information, see the instruction manual that came with the PIONEER AV receiver supporting SR+ .

NOTE

• While in connection through SR+ , the volume on this system is temporarily minimised.

Media Receiver (rear view)

Watching an image from a personal computer

Connecting a personal computer

Use the PC terminals to connect a personal computer.

NOTE

The PC input terminals are DDC2B-compatible.

Media Receiver (front view)

Displaying an image from a personal computer

To watch an image coming from the personal computer, press PC on the remote control unit or press INPUT on the Plasma Display to select "PC".

When connecting to a personal computer, the correct input signal type is automatically detected. If the personal computer image does not come in clearly, you may need to use Auto Setup menu. See page 38.

NOTE

The PC terminals cannot be used for audiovisual equipment.

The control cables (commercially available) are monaural cables with mini plugs (no resistance).

Computer compatibility chart

ResolutionFrequencyRemarks
720×400 70 Hz
640×480 60 Hz
	65 Hz Macintosh 13" (67 Hz)
	72 Hz
	75 Hz
800×600 56 Hz
	60 Hz
	72 Hz
	75 Hz
832×624 74.5 Hz	Macintosh 16"
1024×768	60 Hz
	70 Hz
	75 Hz Macintosh 19"
1280×768	56 Hz
	60 Hz
	70 Hz

Enjoying through memory cards (Home Gallery function)

On this system, you can watch JPEG images that have been captured and stored in memory cards using a digital still camera.

Readable memory cards

This system can read memory cards that conform to the PCMCIA Type II and whose formats are the FAT12, FAT16, FAT32, or VFAT.

Readable data files

This system can read only JPEG files that meet the following conditions:

• Extensions are JPG or JPEG.
  JPEG 4:2:2 and 4:2:0 format
• The image resolution must be less than 2400 pixels in the horizontal direction and 1800 pixels in the vertical direction.
  The image resolution must be higher than 160 pixels in the horizontal direction and 120 pixels in the vertical direction.

NOTE

• This system may not be able to display images, depending on the type of your PC CARD adapter or memory card.
• This system may not be able to display images modified or edited using a personal computer or other equipment.

Inserting a memory card

1 Open the front door on the Media Receiver.
2 Hold the memory card with its top side facing upward, and then insert it into the PC CARD slot.

• Insert the memory card as far as it goes.
• When you insert the memory card while the system is on, the initial Home Gallery screen appears.

Front of the Media Receiver (with the front door opened)

Memory card with PC CARD adapter

3 Close the front door on the Media Receiver.

Removing a memory card

To remove a memory card, quit the memory card screen, and then push the PC CARD eject button. The memory card is ejected.

NOTE

• Be sure to quit the Home Gallery screen before removing the memory card. If you remove the memory card while the Home Gallery screen is in display, data in the memory card may be damaged.
• Do not insert or remove a memory card into/from the PC CARD slot immediately after the system is switched on or off. This may cause data in the memory card to be damaged.

Starting the initial Home Gallery screen

When you insert a memory card while the system is on, the following initial screen appears automatically.

To start the initial Home Gallery screen from the Home menu:

If a memory card has been already inserted into the PC CARD slot, use the Home menu to start the initial Home Gallery screen.

1 Press HOME MENU.
2 Select "Home Gallery" (Enter).

Selecting a folder

The initial Home Gallery screen shows folders saved in the memory card. Different types of icons appear depending on the contents of folders.

Designates a folder that contains another folder.

• Designates a folder that contains one or more image files.

Designates a folder that contains no image file.

• Designates an image file saved under the root directory.

To select a desired folder, press and then ENTER. Images in the selected folder are displayed in thumbnail format.

Starting a thumbnail screen

When a folder is selected on the initial Home Gallery screen, images in the folder are displayed in thumbnail format.

① File name
② Image selection cursor
③ Appears for unreadable images.
Total number of images in the folder
⑤ Appears when the folder contains more than 16 images. Press to scroll the screen.

To highlight a desired image, press / and / to move the cursor. Information about the highlighted image appears at the top left of the screen.

① File name
② Number of pixels (horizontal × vertical)
③ Save date

Press HOME MENU to quit the Home Gallery function.

Starting a standard single-image screen

When the thumbnail screen is in display, press and /

to highlight a desired image, and then press ENTER. The thumbnail screen is quitted and only the selected image is displayed.

With the above screen displayed, you can use the following keys to perform various operations:

and

Scrolls the displayed image when the entire image is not displayed.

RED:

Displays the image using the full screen. To quit the full-screen display, press RETURN.

GREEN:

Enlarges the displayed image (if allowed by the image).

YELLOW:

Reduces the displayed image (if enlarged by pressing the GREEN button).

BLUE:

Rotates the displayed image clockwise. Each press rotates the image in the sequence; 90^ , 180^ , and then 270^ .

HOME MENU:

Quits the Home Gallery function.

NOTE

• Be careful not to display the same image for an extended period of time. The image may be burnt into the screen, resulting in a residual image.
  Images smaller than 1024× 768 pixels are displayed with blank surrounding.
• You may not be able to enlarge or reduce images because of their original sizes.

Starting the Slide Show Setup screen

When the thumbnail screen is in display, press GREEN to start the screen for setting up for Slide Show that sequentially changes images.

1 Select "Display Mode" (▲).
2 Select "Normal" or "Full" (▲)

• With "Full" selected, images are displayed using the full screen.

3 Select "Playback Order" (▲).
4 Select "Name Order" or "Random" (▲).
5 Select "Number Of Times Of Playback" (▲).
6 Select "Single Time" or "Loop" (▶).

• With "Loop" selected, Slide Show is repeated until RETURN is pressed.

7 Select "Playback Mode" (▲).
8 Select "Auto" or "Manual" (▶).

• With "Auto" selected, images are automatically changed at the specified intervals.
• With "Manual" selected, images are changed each time you press P + / P - .

9 If you have selected "Auto" in step 8, press to select "Interval(sec)", and then press to select the desired display duration for individual images.

• You can select from among 3 seconds, 5 seconds, 10 seconds, 20 seconds, 30 seconds, 60 seconds, and 90 seconds.
  10 To start the Slide Show screen, press the red button.
  To restore the thumbnail screen, press RETURN.
• To quit the Home Gallery function, press HOME MENU.

12Enjoying through External Equipment

Starting the Slide Show screen

After setting up for Slide Show, you can start Slide Show to sequentially change images.

1 To start the Slide Show screen, press the red button when the Slide Show Setup screen or a thumbnail screen is in display.

• With "Auto" selected for "Playback Mode", images are automatically changed at the specified intervals.
• With "Manual" selected for "Playback Mode", press P + / P - to change images.
  While images are automatically changed, you can stop and hold automatic image change for approximately 90 seconds by pressing

2 When quitting the Slide Show screen, press RETURN to restore the thumbnail screen or HOME MENU to quit the Home Gallery function.

NOTE

• With "Random" selected for "Playback Order" selected, you cannot press P-to manually change images.

Adjusting the picture quality

When a thumbnail screen is in display, press YELLOW. The same picture adjustment screen as the PC source is displayed. For the subsequent procedure, see page 32.

What is Teletext?

Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your Plasma Display System receives Teletext signals broadcast by TV networks, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among many services available.

Operating the Teletext basics

Turning on and off Teletext

1 Select a TV channel or external input source providing a Teletext programme.
2 Press to display the Teletext (full screen).
3 Press again to display the Teletext on the right screen and normal image on the left screen.

Each time you press, the screen switches as shown to the left.
If you select a programme with no Teletext signal, "Cannot display Teletext." appears.

Selecting and operating Teletext pages

Use the following remote control buttons to select and operate Teletext pages.

Colour (RED/GREEN/YELLOW/BLUE):

You can select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding colour (RED/GREEN/YELLOW/BLUE) on the remote control unit.

0-9:

Directly select any page from 100 to 899 by using 0 - 9 .

图/图：

Selects the next or previous page.

图：

Each time you press the teletext image switches as shown below.

E?

To display hidden information such as an answer to a quiz, press 3 .

• Press 37 again to hide the information.

图：

To stop updating Teletext pages, press

• Press again to release the hold mode.

E:

Displays an Index page for the CEEFAX/FLOF format. Displays a TOP Over View page for the TOP format.

NOTE

Before displaying the Teletext, return the screen to the single-screen mode.

Displaying subpages

You can display several subpages as they are transmitted.

Subpage screen

1 Press to display Teletext.

• If you open a page containing subpages, the subpages are automatically displayed in sequence.

2 To quit automatic subpage change, press

• You can then manually change subpages by pressing

NOTE

• Pressing causes the page to be changed and the subpage screen to disappear.
• Pressing stops automatic subpage change and performs its respective button function.

Displaying TOP Over View

When receiving TOP Teletext, you can read a TOP text overview.

TOP Over View screen

1 Press to display Teletext.
2 While receiving TOP Teletext, press to display TOP Over View.
3 Press / t*select the desired block or group pages, and then press ENTER.

NOTE

• When the TOP Over View screen is in display, no other buttons are available than + / - ,I - II ,and .

Displaying subtitle pages

You can display several subtitles as they are transmitted.

1 Press to display the subtitle.
- Subtitle is updated by the information sent by the broadcasting station.
2 Press again to access next available subtitle screen.

Troubleshooting

Problem Possible Solution
• No power. • The system cannot be switched on.	• Make sure that the Plasma Display and the Media Receiver are connected correctly. (See page 17.) • Is the power cord disconnected? (See page 20.) • Has the main power been turned on? (See page 21.) • Check if you pressed buttons 0 - 9 on the remote control unit. (See page 21.) • If the indicator on the system lights up red, press 0 - 9.
• Green and red rectangles appear on the screen alternately.	• Check if the system cable has been disconnected or almost disconnected. (See page 17.)
• The system cannot be operated.	• External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the system after first turning off the power of the Plasma Display and the Media Receiver, or unplugging the power cord and re-plugging it in after 1 or 2 minutes.
• Remote control unit does not operate.	• Are batteries inserted with polarity (+, -) aligned? (See page 19.) • Are batteries worn out? Replace with new batteries. (See page 19.) • Operate the remote control unit while pointing it toward the remote control sensor on the Plasma Display. (See page 19.) • Are you using it under strong or fluorescent lighting? • Is a fluorescent light illuminated to remote control sensor?
• No image and audio is presented.	• Check if the input source for video or PC has been unintentionally selected although you want to watch a TV channel. (See page 22.) • Check if you have selected a channel blocked with Child Lock. (See page 30.) • Enter a password to temporarily cancel Child Lock. (See page 42.)
• No picture.	• Is connection to other components correct? (See pages 44 to 48.) • Is a non-compatible PC signal being input? (See page 49.) • Is the Input Select setting correct? (See page 39.)
• Audio is output but no image is presented.	• Check if you have selected "Picture Off" for Energy Save. With this option selected, the screen is deactivated: only sound is output. To restore the screen display, press any button other than +/− - or ×. (See page 35.)
• Images are presented but no audio is output.	• Check if you have selected the minimum volume. (See page 23.) • Check if you have muted sound. (See page 23.) • Check if phones are still in connection with the PHONES output terminal. (See page 13.) • When using INPUT 4 or PC as the input source, check that the audio terminal is also in connection. (See page 47.)
• Sound is reversed between the right and left. • Sound is output from only a single speaker.	• Check if the speaker cable connections have been reversed between the right and left or if the speaker cable from either speaker has been disconnected. (See pages 12 and 18.) • Has the balance been correctly adjusted? (See page 34.)
• Picture is cut off.	• Is the image position correct? (See page 38.) • Has the correct screen size been selected? (See pages 40 and 41.)
• Strange colour, light colour, dark or colour misalignment.	• Adjust the picture tone. (See pages 32 to 33.) • Is the room too bright? The picture may look dark in a room that is too bright. • Check the colour system setting. (See pages 28 and 39.)
• Power is suddenly turned off.	• The system's internal temperature has increased. Remove any objects blocking vent or clean. (See page 15.) • Check the power control setting. (See page 35.) • Check the sleep timer setting. (See page 42.)

Code Message Check

SD04 Powering off. Internal temperature too high. Check if the ambient temperature of the Plasma Display is high. Check temperature around PDP.
SD05	Powering off. Internal protection circuits activated, Check the speaker cable connections between the Plasma Display Is there a short in speaker cable? and the speakers.
SD11 Powering off. Internal temperature too high. Check if the ambient temperature of the Media Receiver is high. Check the temperature around media receiver.

Signal names for 15-pin mini D-sub connector
(FCnt view)

Pin No. Signal name

①R

②G

③B

④Not connected

⑤Not connected

⑥GND (ground)

⑦GND (ground)

⑧GND (ground)

⑨+5V

⑩GND (ground)

⑪Not connected

⑫SDA

⑬HD

⑭VD

⑮SCL

NOTE

• A Macintosh adaptor may be required for use with some Macintosh computers.

Connecting pin assignments for SCART

Various audio and video devices may be connected via the SCART terminals.

SCART (INPUT 1)

1. Audio right output
2. Audio right input
3. Audio left output
4. Common earth for audio
5. Earth for blue
6. Audio left input

7. Blue input

8. Audio-video control

9. Earth for green
10. Not used
11. Green input
12. Not used
13. Earth for red

14. Not used

15. Red input

16. Red/Green/Blue control
17. Earth for video
18. Earth for Red/Green/Blue control
19. Video output
20. Video input
21. Plug shield

SCART (INPUT 2)

1. Audio right output
2. Audio right input
3. Audio left output
4. Common earth for audio
5. Earth
6. Audio left input

7. Not used

8. Audio-video control

9. Earth
10. AV link control
11. Not used
12. Not used
13. Earth

14. Not used

15. Chroma S-Video input

16. Not used
17. Earth for video
18. Earth
19. Video output
20. Video input/S-Video input
21. Plug shield

SCART (INPUT 3)

1. Audio right output
2. Audio right input
3. Audio left output
4. Common earth for audio
5. Earth
6. Audio left input

7. Blue input

8. Audio-video control

9. Earth
10. AV link control
11. Green input
12. Not used
    13 Earth

13. Not used

14. Red input/Chroma S-Video input

15. Red/Green/Blue control
16. Earth for video
17. Earth
18. Video output
19. Video input/S-Video input
20. Plug shield

Specifications

Item 50"Plasma Display, Model: PDP-50SPE 43" Plasma Display, Model: PDF-435PE
Number of Pixels	1280 × 768 pixels	1024 × 768 pixels
Audio Amplifier	13 W + 13 W (1 kHz, 10 %, 8 Ω)	13 W + 13 W (1 kHz, 10 %, 8 Ω)
Surround System SRS/FOCUS/TruBass SRS/FOCUS/TruBass
Power Requirement 220–240 V AC, 50/60 Hz, 352 W (0.4 W Standby) 220–240 V AC, 50/60 Hz, 295 W (0.4 W Standby)
Dimensions	1270 (W) × 737 (H) × 93 (D) mm	1120 (W) × 652 (H) × 93 (D) mm
Weight	32.8 kg (72.3 lbs.)	26.8 kg (59.1 lbs.)

Item			Media Receiver, Model: PDP-R05XE	Media Receiver, Model: PDP-R05E
Colour System	Analogue		PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
	Digital		PAL/SECAM	Not Applicable
TV Function (Analogue)	Receiving System		B/G, D/K, I, L/L'
	Tuner	VHF/UHF	E2-E69ch, F2-F10ch, I21-I69ch, IR A-IR Jch
		CATV	Hyper-band, S1-S41ch
	Auto Channel Preset		99 ch, Auto Preset, Auto Label, Auto Sort
	STEREO		NICAM/A2
TV Function (Digital)	Receiving System		DVB-T (2K/8K COFDM)	Not Applicable
	Tuner	VHF/UHF	VHF Band III (170 to 230 MHz) and UHF Band IV, V (470 to 862 MHz)
	Auto Channel Preset		999 ch, Auto Preset, Auto Label, Auto Sort
	STEREO		MPEG layer I/II, Dolby Digital
Terminals	Rear	INPUT 1	SCART (AV in, RGB in, TV out)
		INPUT 2	SCART (AV in/out, S-VIDEO in, AV link *) Component Video
		INPUT 3	SCART (AV in/out, S-VIDEO in, RGB in, AV link *, HDMI in)
		Antenna	75 Ω Din Type for VHF/UHF in (Analogue)
			75 Ω Din Type for VHF/UHF in (Digital)	Not Applicable
			75 Ω Din Type for VHF/UHF out (Digital)	Not Applicable
	Front	INPUT 4	S-VIDEO, AV in
		PC	Analogue RGB in, Audio in
		PC CARD	PCMCIA Type II
MONITOR OUTPUT Terminal		(Rear)	S-VIDEO out, AV out
SUB WOOFER OUTPUT Terminal		(Rear)	Variable
PHONES OUTPUT Terminal		(Front)	16-32 Ω recommended
DIGITAL OUT Terminal Digital audio output			(Optical) Not Applicable
COMMON INTERFACE (Rear)		CA Module	Not Appli cable
Power Requirement			220-240 V AC, 50/60 Hz, 41 W (1.2 W Standby: Aerial Power Off)	220-240 V AC, 50/60 Hz, 35 W (0.4 W Standby)
Dimensions			420 (W) × 90 (H) × 295 (D) mm
Weight			5.6 kg	4.9 kg

• Switchable
• Design and specifications are subject to change without notice.

Appendix

Trademarks

FOCUS, WOW, SRS and () symbol are trademarks of SRS Labs, Inc. FOCUS and SRS technologies are incorporated under license from SRS Labs, Inc.
- This product includes FontAvenue® fonts licensed by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.
- DDC is a registered trademark of Video Electronics Standards Association.
HMI, the HMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
The names of companies or institutions are trademarks or registered trademarks of the respective companies or institutions.

PDP-505XDE/435XDE only

• Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

IMPORTANT

Precautions relatives aux piles 19

Instructions d-installation

Précautions relatives aux piles

Code Message Verification

Media-Receiver (PDP-505XDE/435XDE)

Vorderseite

Printed on recycled paper.

Published by Pioneer Corporation.

Copyright © 2004 Pioneer Corporation.

All rights reserved.

PIONEER CORPORATION

4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90810-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: [phone]
