02-PDP42RXE-Eng (02-03) 9/30/05, 12:15 PM2English WARNINGThis equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_A_EnThis product complies with the Low Voltage Directive (73/23/EEC, amended by 93/68/EEC), EMC Directives (89/336/EEC, amended by 92/31/EEC and 93/68/EEC). WARNING The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3-4-2-1-4_A_EnBefore plugging in for the first time, read the following section carefully. WARNING This apparatus must be earthed.
WARNING This product equipped with a three-wire grounding
(earthed) plug - a plug that has a third (grounding) pin. This
plug only fits a grounding-type power outlet. If you are
unable to insert the plug into an outlet, contact a licensed
electrician to replace the outlet with a properly grounded
one. Do not defeat the safety purpose of the grounding
The following symbols are found on labels
attached to the product. They alert the opera-
tors and service personnel of this equipment to
any potentially dangerous conditions.
WARNING This symbol refers to a hazard or unsafe prac-
tice which can result in personal injury or
CAUTION This symbol refers to a hazard or unsafe prac-
tice which can result in severe personal injury
WARNING To prevent a fire hazard, do not place any naked flame
sources (such as a lighted candle) on the equipment.
VENTILATION CAUTION When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation. For the minimum space required, see page 14. WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. CAUTION The power switch does not completely separate the unit from the mains in off position. Therefore install the unit suitable places easy to disconnect the mains plug in case of the accident. The mains plug of unit should be unplugged from the wall socket when left unused for a long period of time. STANDBY/ON Button
STANDBY: When set to the STANDBY position, the main power flow is cut and the unit is no longerfully operational. A minute flow of powerfeeds the unit to maintain operationreadness. STANDBY Indicator
The indicator is lit red when the unit is in the
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate your model properly. After you have finished
reading the instructions, put them away in a safe place for future reference.
In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explana-
tory drawings. However the method of connecting and operating the unit is the same.
01 Important User Guidance Information
02 Safety Precautions
03 Supplied Accessories
Installing the Plasma Display 14
Preventing the Plasma Display from falling over 14
Preparing the remote control unit 15
Inserting batteries 15
Cautions regarding batteries 15

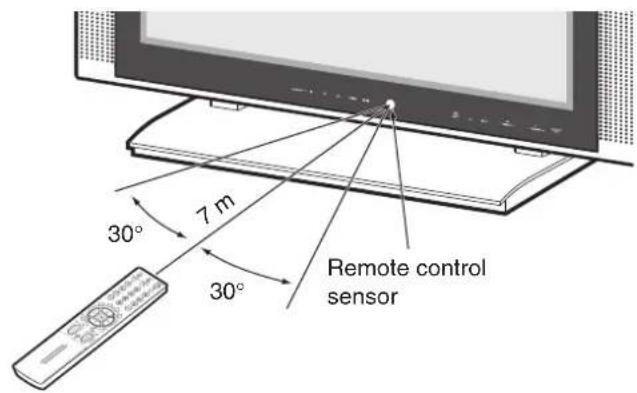

Allowed operation range of the remote
Cautions regarding the remote control unit 16

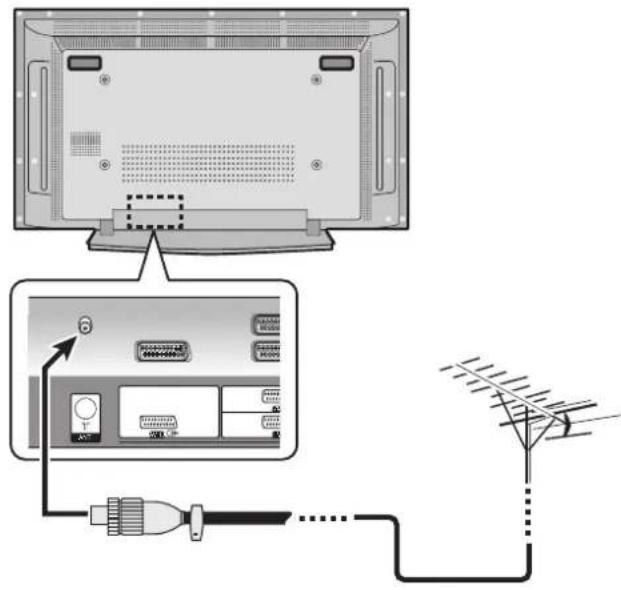

Connecting to an antenna 16

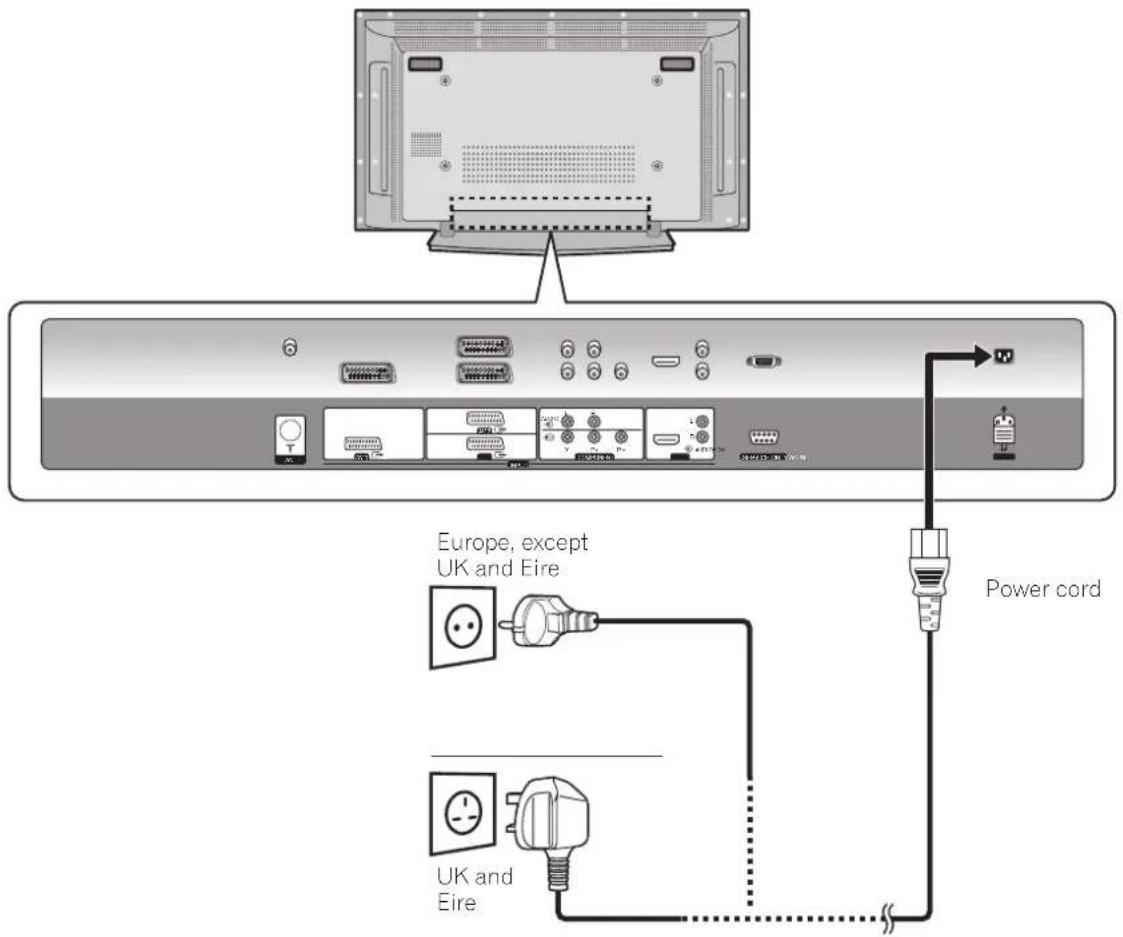

Connecting the power cord 17

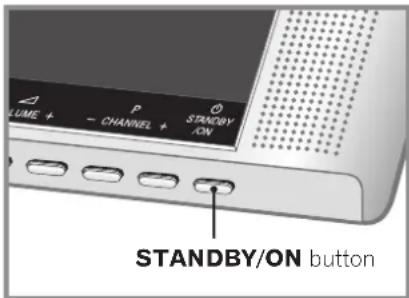

Turning the power on and off (Standby) 18
Watching TV channels 19
Selecting the analogue channels 19
Changing channels 19
Changing the volume and sound 20
Displaying Information 20
Using on the remote control unit 21
Setting up TV channels 25
Scanning Channels Automatically 25

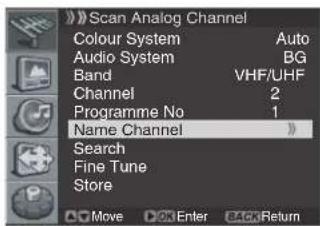

Scanning Analogue Channels Manually 25
Editing Channel List 26
Display the Channel List 26

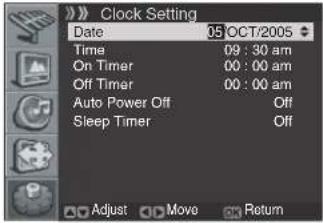

Setting the Current Date and Time 27
09 Adjustments and Settings

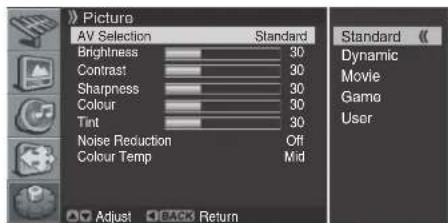

Picture adjustments 28
Selecting the Picture Mode 28

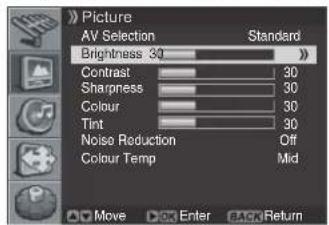

Customizing the Picture Settings 29

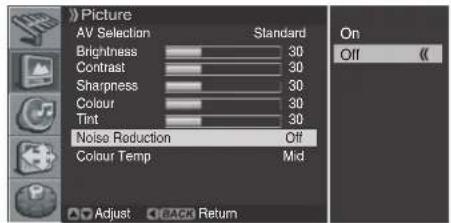

Using the Noise Reduction Feature 29
Setting the Colour Temperature 30

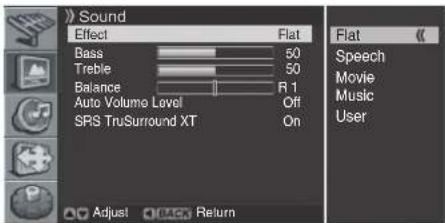

Selecting the Sound Effect 30
Customizing the Sound Settings 30
Adjusting the Volume Automatically 31
Setting the Surround Sound 31
Changing the Screen Size 31
Viewing the Input Source 32
Selecting an input signal type 32
Selecting an output source 32
Setting for the language of on-screen display 32
Setting for the TTX (Teletext) Language 33
Setting the Plasma Display Off Time 34
10 Enjoying through External Equipment
Connecting to the SCART terminal 35
Connecting to the External Input 36
Connecting to the Component Input 36
Connecting to the HDMI Input 37
11 Using the Teletext Functions
What is Teletext? 38
Operating the Teletext basics 38
Turning on and off Teletext 38
Selecting and operating Teletext pages 38
Connecting pin assignments for SCART 40

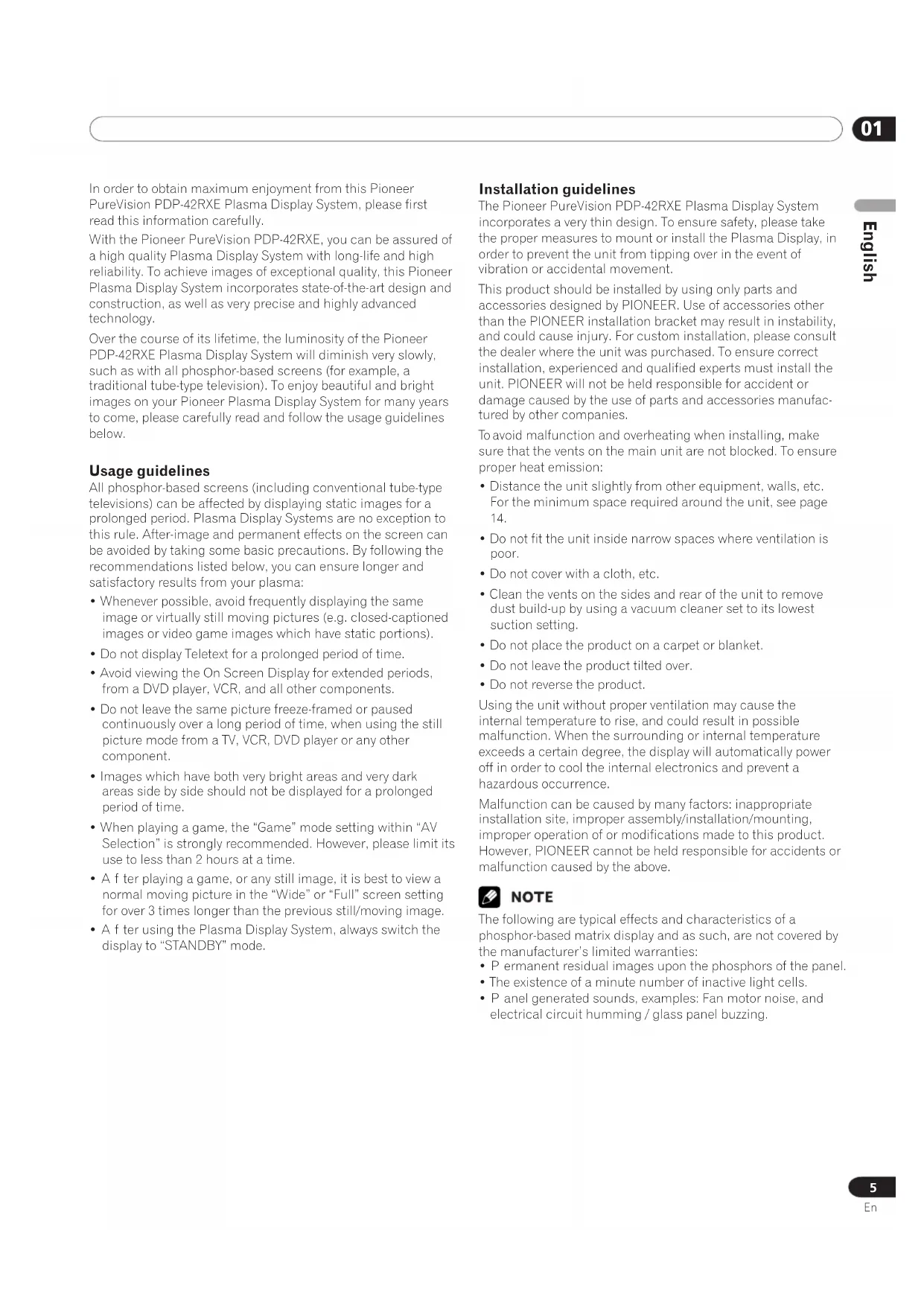

In order to obtain maximum enjoyment from this Pioneer
PureVision PDP-42RXE Plasma Display System, please first
read this information carefully.
With the Pioneer PureVision PDP-42RXE, you can be assured of
a high quality Plasma Display System with long-life and high
reliability. To achieve images of exceptional quality, this Pioneer
Plasma Display System incorporates state-of-the-art design and
construction, as well as very precise and highly advanced
Over the course of its lifetime, the luminosity of the Pioneer
PDP-42RXE Plasma Display System will diminish very slowly,
such as with all phosphor-based screens (for example, a
traditional tube-type television). To enjoy beautiful and bright
images on your Pioneer Plasma Display System for many years
to come, please carefully read and follow the usage guidelines
All phosphor-based screens (including conventional tube-type
televisions) can be affected by displaying static images for a
prolonged period. Plasma Display Systems are no exception to
this rule. After-image and permanent effects on the screen can
be avoided by taking some basic precautions. By following the
recommendations listed below, you can ensure longer and
satisfactory results from your plasma:
• Whenever possible, avoid frequently displaying the same
image or virtually still moving pictures (e.g. closed-captioned
images or video game images which have static portions).
• Do not display Teletext for a prolonged period of time.
• Avoid viewing the On Screen Display for extended periods,
from a DVD player, VCR, and all other components.
• Do not leave the same picture freeze-framed or paused
continuously over a long period of time, when using the still
picture mode from a TV, VCR, DVD player or any other
• Images which have both very bright areas and very dark
areas side by side should not be displayed for a prolonged
• When playing a game, the “Game” mode setting within “AV Selection” is strongly recommended. However, please limit its
use to less than 2 hours at a time.
•After playing a game, or any still image, it is best to view a
normal moving picture in the “Wide” or “Full” screen setting
for over 3 times longer than the previous still/moving image.
•After using the Plasma Display System, always switch the
The Pioneer PureVision PDP-42RXE Plasma Display System
incorporates a very thin design. To ensure safety, please take
the proper measures to mount or install the Plasma Display, in
order to prevent the unit from tipping over in the event of

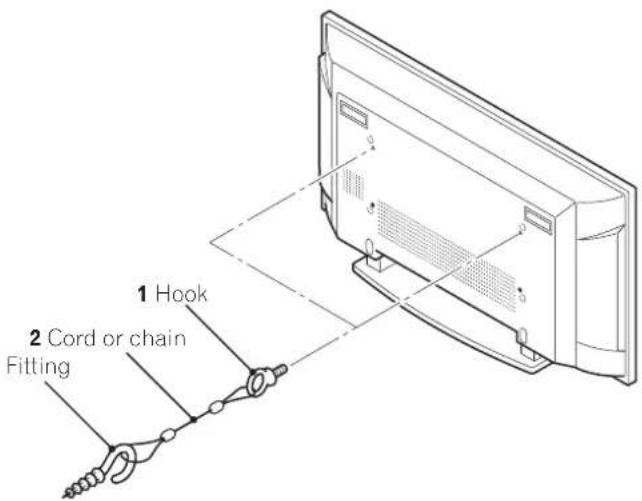

vibration or accidental movement.
This product should be installed by using only parts and
accessories designed by PIONEER. Use of accessories other
than the PIONEER installation bracket may result in instability,
and could cause injury. For custom installation, please consult
the dealer where the unit was purchased. To ensure correct
installation, experienced and qualified experts must install the
unit. PIONEER will not be held responsible for accident or
damage caused by the use of parts and accessories manufac-
tured by other companies.

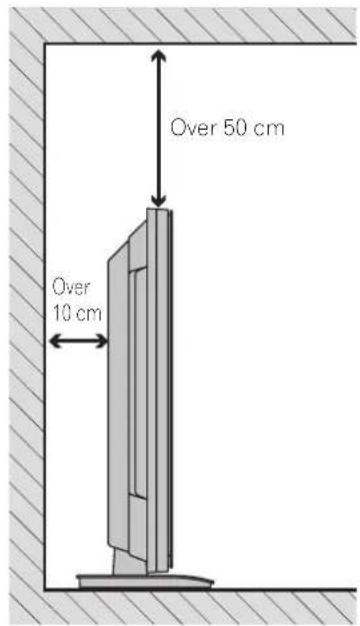

To avoid malfunction and overheating when installing, make
sure that the vents on the main unit are not blocked. To ensure
proper heat emission:
• Distance the unit slightly from other equipment, walls, etc.
For the minimum space required around the unit, see page
• Do not fit the unit inside narrow spaces where ventilation is
• Do not cover with a cloth, etc.
• Clean the vents on the sides and rear of the unit to remove
dust build-up by using a vacuum cleaner set to its lowest
• Do not place the product on a carpet or blanket.
• Do not leave the product tilted over.
• Do not reverse the product.
Using the unit without proper ventilation may cause the
internal temperature to rise, and could result in possible
malfunction. When the surrounding or internal temperature
exceeds a certain degree, the display will automatically power
off in order to cool the internal electronics and prevent a
hazardous occurrence.
Malfunction can be caused by many factors: inappropriate
installation site, improper assembly/installation/mounting,
improper operation of or modifications made to this product.
However, PIONEER cannot be held responsible for accidents or
malfunction caused by the above.
The following are typical effects and characteristics of a
phosphor-based matrix display and as such, are not covered by
the manufacturer’s limited warranties:
•Permanent residual images upon the phosphors of the panel.
• The existence of a minute number of inactive light cells.
•Panel generated sounds, examples: Fan motor noise, and
electrical circuit humming / glass panel buzzing.
01 Important User Guidance Information
PIONEER bears no responsibility for any damages arising from
incorrect use of the product by you or other people, malfunc-
tions when in use, other product related problems, and use of
the product except in cases where the company must be liable.
Information of pixel defect
Plasma Display systems display images consisting of hundreds
of thousands of minute pixels (light emitting cells), and there is
a possibility of inactive, flashing or continually illuminated
The Plasma Display releases infrared rays because of its
characteristics. Depending on how the Plasma Display is in
use, the remote controls of nearby equipment may be adversely
affected or wireless headphones using infrared rays are
interfered by noise. If this is the case, place that equipment at a
location where its remote control sensor is not affected.
While this product meets the required specifications, it emits a
small amount of noise. If you place such equipment as an AM
radio, personal computer, and VCR close to this product, that
equipment may be interfered. If this happens, place that
equipment far enough from this product.
Plasma Display driving sound
The screen of the Plasma Display is composed of extremely fine
pixels and these pixels emit light according to received video
signals. This principle may make you hear buzz sound electrical
circuit hamming from the Plasma Display.
Also note that the rotation speed of the cooling fan motor
increases when the ambient temperature of the product
becomes high. You may hear the sound of the fan motor at that
Do not attach such items as labels and tape to the
• This may result in the discoloration or scratch of the cabinet.
When not using the product for a long period of time
• If you do not use the product for a long period of time, the
functions of the product may be adversely affected. Switch on
and run the product occasionally.
• Condensation may take place on the surface or inside of the
product when the product is rapidly moved from a cold place
to a warm place or just after a heater is switched on in winter
morning, for example. When condensation takes place, do
not switch on the product and wait until condensation
disappears. Using the product with condensation may result
• When cleaning the screen of this product, gently wipe it with
a soft dry cloth; the supplied cleaning cloth or other similar
cloths (e.g., cotton and flannel). If you use a hard cloth or rub
the screen hard, the surface of the screen will be scratched.
• If you clean the surface of the screen with a wet cloth, water
droplets on the surface may enter into the product, resulting
Cleaning the cabinet
• When cleaning the cabinet of this product, gently wipe it with
a soft dry cloth; the supplied cleaning cloth or other similar
cloths (e.g., cotton and flannel). If you use a hard cloth or rub
the cabinet hard, the surface of the cabinet will be scratched.
• The cabinet of this product is mostly composed of plastic. Do
not use chemicals such as benzine or thinner to clean the
cabinet. Using these chemicals may result in quality deterio-
ration or coating removal.
• Do not expose the product to volatile gas or fluid such as
pesticide. Do not make the product contact with rubber or
vinyl products for a long period of time. The effect of plasti-
cizer in the plastic may result in quality deterioration or
• If you clean the surface of the cabinet with a wet cloth, water
droplets on the surface may enter into the product, resulting

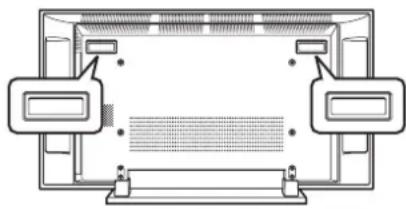

Handles at the rear of the Plasma Display
• Do not remove the handles from the rear of the Plasma
• When moving the Plasma Display, ask another person for
help and use the handles attached to the rear of the Plasma
Display. Do not move the Plasma Display by holding only a
single handle. Use the handles as shown.
• Do not use the handles to hang the product when installing
or carrying the product, for example. Do not use the handles
for the purpose of preventing the product from tilting over.
04-PDP42RXE-Eng (05-9) 9/30/05, 12:15 PM601Important User Guidance Information
Panel sticking and after-image lag
• Displaying the same images such as still images for a long
time may cause after-image lagging. This may occur in the
following two cases.
1. After-image lagging due to remaining electric
When image patterns with very high peak luminance are
displayed more than 1 minute, after-image lagging may occur
due to the remaining electric load. The after-images remaining
on the screen will disappear when moving images are dis-
played. The time for the after-images to disappear depends on
the luminance of the still images and the time they had been
2. After-image (lag image) due to burning
Avoid displaying the same image on the Plasma Display
continuously over a long period of time. If the same image is
displayed continuously for several hours, or for shorter periods
of time over several days, a permanent after-image may remain
on the screen due to burning of the fluorescent materials. Such
images may become less noticeable if moving images are later
displayed, but they will not disappear completely.
• The Auto Power Off function can be set to help prevent
damage from screen burning (see page 34).
If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for
used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.
Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of
charge to designated collection facilities or to a retailer (if you purchase a similar new one).
For countries not mentioned above, please contact your local authorities for the correct method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus
prevent potential negative effects on the environment and human health.
04-PDP42RXE-Eng (05-9) 9/30/05, 12:15 PM702 Safety Precautions
Electricity is used to perform many useful functions, but it can
also cause personal injuries and property damage if improperly
handled. This product has been engineered and manufactured
with the highest priority on safety. However, improper use can
result in electric shock and/or fire. In order to prevent potential
danger, please observe the following instructions when install-
ing, operating and cleaning the product. To ensure your safety
and prolong the service life of your product, please read the
following precautions carefully before using the product.
1. Read instructions—All operating instructions must be read
and understood before the product is operated.
2. Keep this manual in a safe place—These safety and
operating instructions must be kept in a safe place for
3. Observe warnings—All warnings on the product and in the
instructions must be observed closely.
4. Follow instructions—All operating instructions must be
5. Cleaning—Unplug the power cord from the AC outlet before
cleaning the product. To clean the product, use the supplied
cleaning cloth or other soft clothes (e.g., cotton, flannel). Do
not use liquid cleaners or aerosol cleaners.
6. Attachments—Do not use attachments not recommended
by the manufacturer. Use of inadequate attachments can
result in accidents.
7. Water and moisture—Do not use the product near water,
such as bathtub, washbasin, kitchen sink and laundry tub,
swimming pool and in a wet basement.
8. Stand—Do not place the product on an unstable cart,
stand, tripod or table. Placing the product on an unstable
base can cause the product to fall, resulting in serious
personal injuries as well as damage to the product. Use
only a cart, stand, tripod, bracket or table recommended by
the manufacturer or sold with the product. When mounting
the product on a wall, be sure to follow the manufacturer’s
instructions. Use only the mounting hardware recom-
mended by the manufacturer.
9. When relocating the product placed on a cart, it must be
moved with utmost care. Sudden stops, excessive force and
uneven floor surface can cause the product to fall from the
10. Ventilation—The vents and other openings in the cabinet
are designed for ventilation. Do not cover or block these
vents and openings since insufficient ventilation can cause
overheating and/or shorten the life of the product. Do not
place the product on a bed, sofa, rug or other similar
surface, since they can block ventilation openings. This
product is not designed for built-in installation; do not place
the product in an enclosed place such as a bookcase or
rack, unless proper ventilation is provided or the
manufacturer’s instructions are followed.
11. Power source—This product must operate on a power
source specified on the specification label. If you are not
sure of the type of power supply used in your home, consult
your dealer or local power company.
12. Power cord protection—The power cords must be routed
properly to prevent people from stepping on them or objects
from resting on them. Check the cords at the plugs and
13. The Plasma Display used in this product is made of glass.
Therefore, it can break when the product is dropped or
applied with impact. Be careful not to be injured by broken
glass pieces in case the plasma Display breaks.
14. Overloading—Do not overload AC outlets or extension
cords. Overloading can cause fire or electric shock.
15. Entering of objects and liquids—Never insert an object into
the product through vents or openings. High voltage flows
in the product, and inserting an object can cause electric
shock and/or short internal parts. For the same reason, do
not spill water or liquid on the product.
16. Servicing—Do not attempt to service the product yourself.
Removing covers can expose you to high voltage and other
dangerous conditions. Request a qualified service person to
17. Repair—If any of the following conditions occurs, unplug
the power cord from the AC outlet, and request a qualified
service person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when
objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as de-
scribed in the operating instructions.
Do not touch the controls other than those described in
the operating instructions. Improper adjustment of
controls not described in the instructions can cause
damage, which often requires extensive adjustment work
by a qualified technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any
noticeable abnormality in the product indicates that the
product needs servicing.
18. Replacement parts—In case the product needs replace-
ment parts, make sure that the service person uses replace-
ment parts specified by the manufacturer, or those with the
same characteristics and performance as the original parts.
Use of unauthorized parts can result in fire, electric shock
and/or other danger.
19. Safety checks—Upon completion of service or repair work,
request the service technician to perform safety checks to
ensure that the product is in proper operating condition.
20. Wall or ceiling mounting—When mounting the product on
a wall or ceiling, be sure to install the product according to
the method recommended by the manufacturer.
21. Heat sources—Keep the product away from heat sources
such as radiators, heaters, stoves and other heat-generat-
ing products (including amplifiers).
22. Never expose the screen of the Plasma Display to a strong
impact, for example, by hitting it. The screen may be
broken, resulting in fire or personal injury.
23. Do not expose the Plasma Display to direct sunlight for a
long period of time. The optical characteristics of the front
protection panel changes, resulting in discoloration or
24. The Plasma Display weighs about 40 kg (88.2 lbs.) for the
PDP-42RXE. Because it has small depth and is unstable,
unpack, carry, and install the product with one more person
at least and use the handles.
02 Safety Precautions
Two operating Instructions
• Always use the power cord supplied with the Plasma Display.
03 Supplied Accessories
AAA size battery × 2
(For Europe, except UK
Only the power cord that is appropriate in your country
or region is supplied.
04-PDP42RXE-Eng (05-9) 9/30/05, 12:15 PM904 Part Names

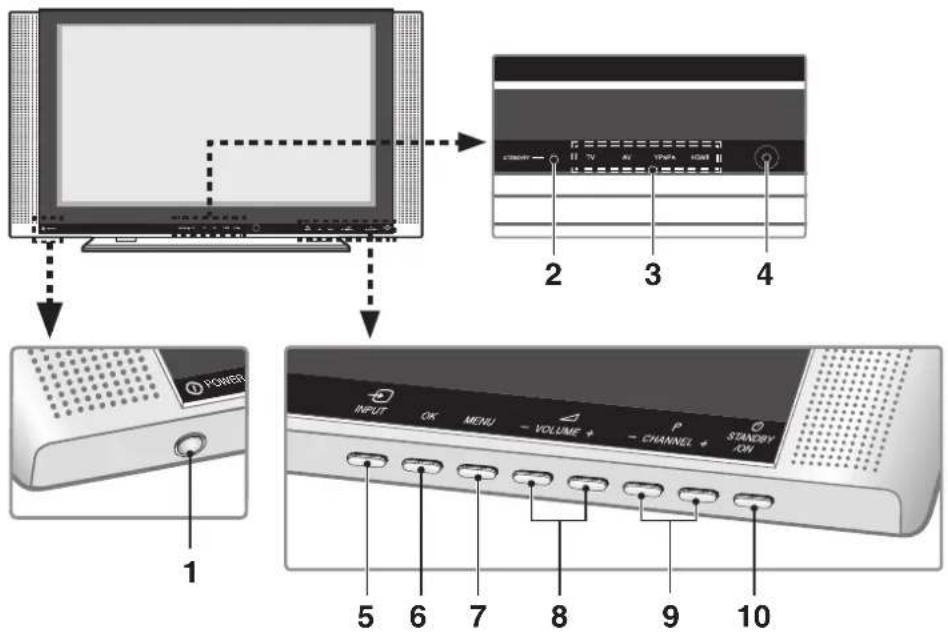

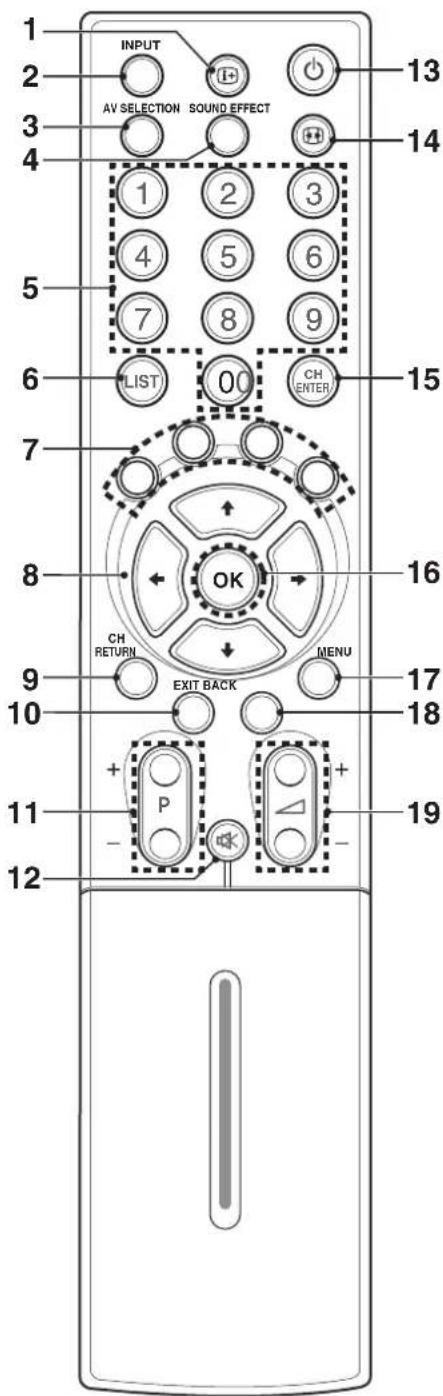

4 Remote control sensor

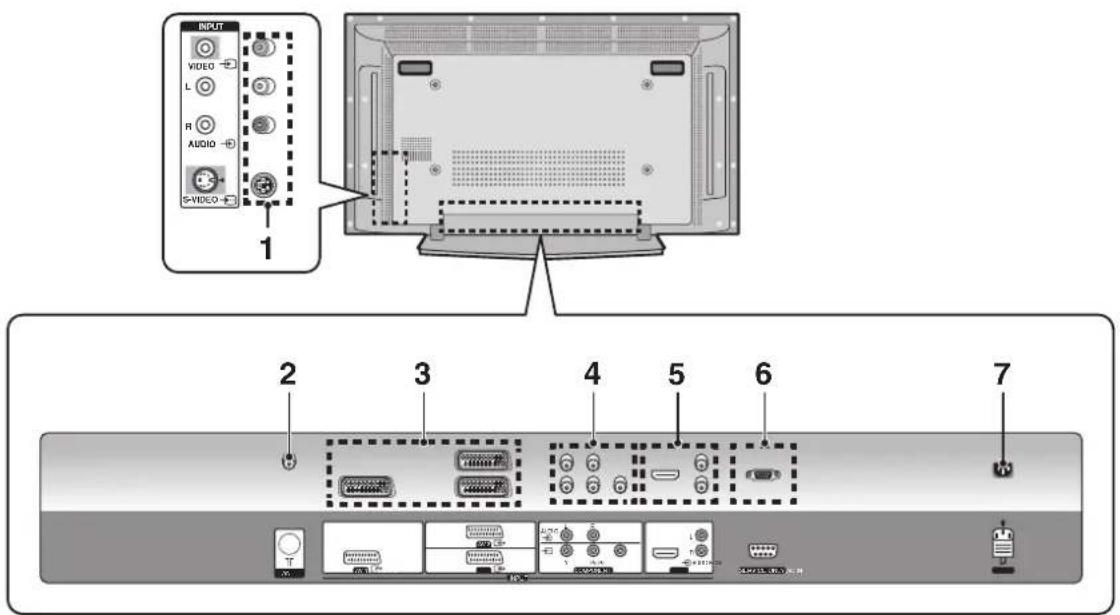

6 RS-232C terminal (service only)
The terminals face downward.

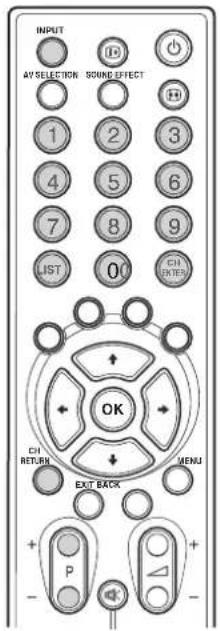

Press the c or d button to select the required
3AV SELECTION: Selects the picture mode
(Standard, Dynamic, Movie, Game or User).
4 SOUND EFFECT: Selects the sound effect
(Flat, Speech, Movie, Music or User).
5 0-9: TV/External input mode: Selects a channel.
TELETEXT mode: Selects a page.
6 LIST: Displays the channel list. Press the c or
d button to select the required channel.
7 Colour (RED/GREEN/YELLOW/BLUE): TELE-
TEXT mode: Selects a page.
Menu mode (in the Editing Channel List): edits
8 c/d/[/\: Controls the cursor in the on-
9 CH RETURN: Returns the previous channels.
10 EXIT: Exits from any display.
11 P +/P –: Changes the channel.
: Mutes the sound. To turn the sound back
: Turns on the power to the Plasma Display or
places it into the standby mode.

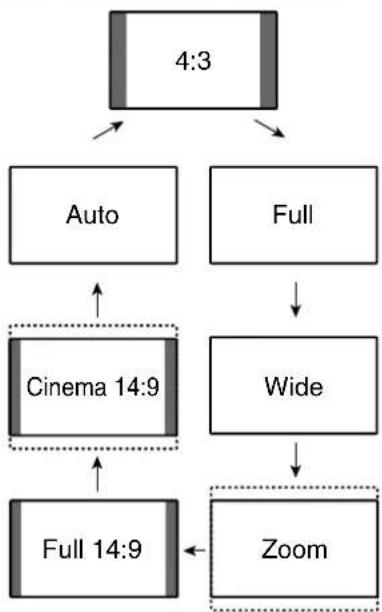

14 : Selects the screen size.
15 CH ENTER: Enters channels.
16 OK: Executes a command.
18 BACK: Returns to the previous menu screen.
+/ –: Sets the volume.
: Selects the SPLIT mode (Off, PIP, Twin1 or
: Selects an input source for the sub picture.
: Selects a position for the sub-picture.
: Interchanges the main picture and sub-

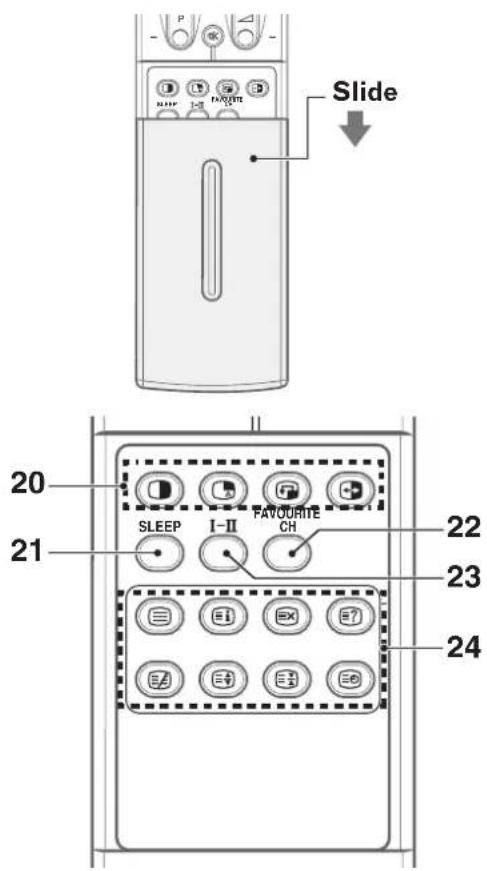

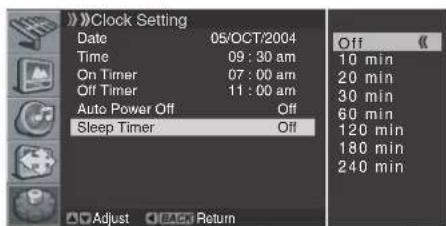

21 SLEEP: Sets the sleep timer.
22 FAVOURITE CH: Selects the favourite chan-
): Displays the normal image
while waiting for the new Teletext pages.
): Displays the Teletext with the normal
): Selects a Teletext size.
HOLD ( ): Stops updating Tetelext pages.
Press again to cancel the function.
• Avoid direct sunlight. Maintain adequate ventilation.
• Because the Plasma Display is heavy, be sure to have
someone help you when moving it. • If you place anything on the top of the Plasma Display it will notreceive enough ventilation and will not operate properly.• Allow enough space around the upper and back parts wheninstalling to ensure ventilation around the backside. Operating Environment
Operating environment temperature and humidity:
+0°C – +40°C; less than 80 % RH (cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in loca-
tions exposed to high humidity or direct sunlight (or storing
Preventing the Plasma Display from
Be sure to take special care to ensure that the Plasma
Display will not fall over.
Using a wall for stabilization
Attach the supplied falling prevention bolts (hooks) to the
Use storing cords or chains to stabilize the Plasma
Display appropriately and firmly to a wall, pillar, or other
•Perform this work in the same way for both the left and
• Use ropes, chains and fittings that are available on the
•A table or an area of the floor with adequate strength should
always be used to support the Plasma Display. Failure to do
so could result in personal injury and physical damage.
• When installing the Plasma Display, please take the neces-
sary safety measures to prevent it from falling or overturning
in case of emergencies, such as earthquakes, or of acci-
• If you do not take these precautions, the Plasma Display
could fall down and cause injury.
• The screws, hooks, chains and other fittings that you use to
secure the Plasma Display to prevent it from overturning will
vary according to the composition and thickness of the
surface to which it will be attached.
• Select the appropriate screws, hooks, chains and other
fittings after first inspecting the surface carefully to deter-
mine its thickness and composition and after consulting a
professional installer if necessary.
Preparing the remote control unit
Open the battery cover.
Insert the supplied two AAA (1.5 V) size batteries.
• The battery polarities must correspond with the (+) and
(–) indicators in the battery compartment.
Close the battery cover.
Cautions regarding batteries
• The remote control unit cannot operate the system if the
batteries in the unit are empty. When this happens, replace
the batteries with new ones.
• Do not use manganese batteries. When you replace the
batteries, use alkaline ones.
• Do not mix batteries of different types. Different types of
batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new
batteries can shorten the life of new batteries or cause
chemical leakage in old batteries.
• Do not leave dead batteries in the remote control unit;
chemical leakage will occur. If you find any chemical leakage,
wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter
life expectancy due to storage conditions.
• If you will not use the remote control unit for an extended
period of time, remove the batteries from it.
• WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLY WITH GOVERNMENTAL REGULATIONS OR ENVIRONMENTAL PUBLIC INSTRUCTION’S RULES THAT APPLY IN YOUR COUNTRY/AREA.
Allowed operation range of the remote control
Operate the remote control unit while pointing it toward the
remote control sensor located at the bottom centre of the front
panel of the Plasma Display. The distance from the remote
control sensor must be within 7 m and the angle relative to the
sensor must be within 30 degrees in the right or left direction. 30°Remote control sensor 7 m 30° 06-PDP42RXE-Eng (14-17) 9/30/05, 12:16 PM1505 Preparation
Cautions regarding the remote control unit
• Do not expose the remote control unit to shock, liquid, or
• Do not place the remote control unit under direct sunlight;
the unit may deform.
• The remote control unit may not work properly if the remote
sensor window of the Plasma Display is under direct sunlight
or strong lighting. In such case, change the angle of the
lighting or Plasma Display, or operate the remote control unit
closer to the remote sensor window.
• When any obstacle exists between the remote control unit
and the remote control sensor, the remote control unit may
• As the batteries become empty, the remote control unit can
function within a shorter distance from the remote control
sensor. Replace the batteries with new ones if necessary.
• The Plasma Display emits very weak infrared rays from its
screen. If you place such equipment operated through
infrared remote control as a VCR nearby, that equipment may
not receive commands from its remote control unit properly
or entirely. If this is the case, place that equipment at a
location far enough from the Plasma Display.
• Depending on the installation environment, infrared rays
from the Plasma Display may not allow this system to
properly receive commands from the remote control unit or
may shorten allowable distances between the remote control
unit and the remote control sensor. The strength of infrared
rays emitted from the screen differs, depending on images
displayed on the screen.
Connecting to an antenna
To enjoy a clearer picture, use an outdoor antenna. The follow-
ing is a brief explanation of the types of connections that are
used for a coaxial cable.
• Connect the 75-ohm coaxial cable (commercially available) to
the ANT (Antenna) input terminal.
Antenna cable (commercially available)
If your outdoor antenna uses a 75-ohm coaxial cable with a
standard DIN45325 plug (IEC169-2), plug it into the antenna
terminal at the rear of the Plasma Display.
06-PDP42RXE-Eng (14-17) 9/30/05, 12:16 PM1605Preparation
Connecting the power cord
Connect the power cord after all component connections are completed.
Plasma Display (rear view)
• Be sure to use the specified power supply voltage;
neglecting this can result in fire or electric shock.
•For the Plasma Display, a three-core power cord with a
ground terminal is used for efficiency protection.
Always connect the power cord to a three-pronged
outlet and make sure that the cord is properly grounded.
Eire • Disconnect the power cord from the power outlet when the PlasmaDisplay is not going to be used for a long period of time. 06-PDP42RXE-Eng (14-17) 9/30/05, 12:16 PM1706 Basic Operations
Turning the power on and off (Standby)

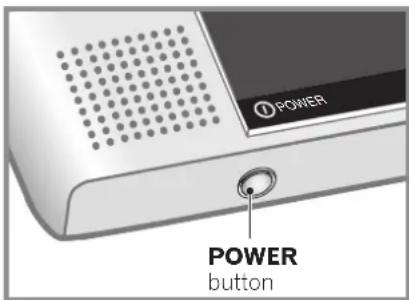

Press the POWER button on the bottom of the Plasma
• The STANDBY indicator lights up.
Press the or any button from 0 to 9 on the remote
control or the STANDBY/ ON button on the bottom of

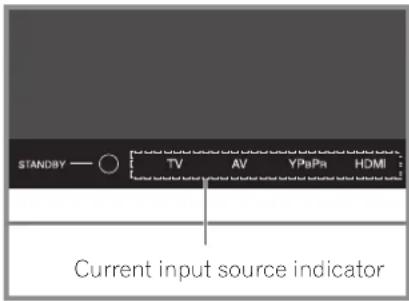

• The Plasma Display switches to on. The STANDBY
indicator lights off and the current input source
indicator lights up.
To switch the Plasma Display off, press the button on
the remote control or the STANDBY/ ON button on the
bottom of the Plasma Display for 1 second.
• The Plasma Display enters to standby mode and the
STANDBY indicator lights up instead of the current
input source indicator.
To switch the Plasma Display off completely, press the
POWER button on the bottom of the Plasma Display.
• The STANDBY indicator lights off.
• If you are not going to use the Plasma Display for a long period of
time, press the POWER button on the bottom of the Plasma Display
to switch the Plasma Display off completely and disconnect the
power cord of the Plasma Display from a wall outlet.
• If the Plasma Display is switched off completely, you cannot turn the
Plasma Display on by pressing the button on the remote control.
• If the Plasma Display is switched off completely, it cannot switch the
Plasma Display on automatically by the “On Timer“ setting.
06 Basic Operations POWER POWER
Watching TV channels Unless you set up TV channels that you can watch under thecurrent conditions, you cannot tune in those channels. For theprocedure, see “Setting up TV channels” on page 25. Selecting the analogue channels You can select the input mode analogue channels by pressingthe INPUT button.• When you switch the input mode, the last channel youpreviously selected will be received. Changing channels To increase the channel number, press the P + button on theremote control unit. To decrease the channel number, press theP – button.• CHANNEL +/– on the Plasma Display has the same function as P +/P – on the remote control unit. When viewing Teletext information: •Press P + to increase the page number.
•Press P – to decrease the page number.
Using 0 to 9 on the remote control unit Select channels directly by pressing buttons 0 to 9. EXAMPLE
•To select channel 5 (1-digit channel), press 5.
•To select channel 25 (2-digit channel), press 2 then 5. When viewing the Teletext information:View a page with 3-digit page number from 100 to 899 directly by pressing buttons 0 to 9. See page 38. •Pressing the CH ENTER button after entering the channel number,enables you select channels quickly. •To return to the previous channel, press the CH RETURN button.
Changing the volume and sound

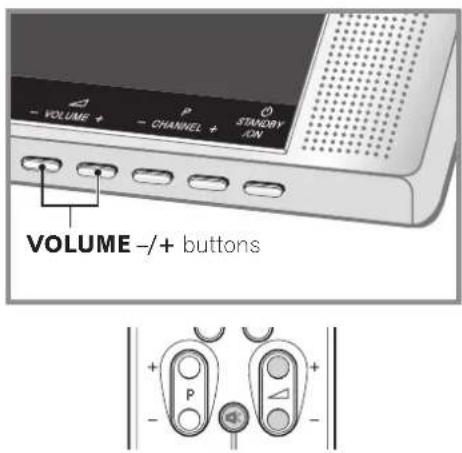

To increase the volume, press the + button on the remote
control unit. To decrease the volume, press the – button.
• The VOLUME +/– buttons on the Plasma Display operate in
the same way as the +/– buttons on the remote control
•To mute the sound output, press the button. “ ” appears
on the screen. To quit muting, press the button again.
+/– button also quits muting.
P Volume adjustment Volume 4 Muting
Displaying Information
You can display the channel information and the setting status

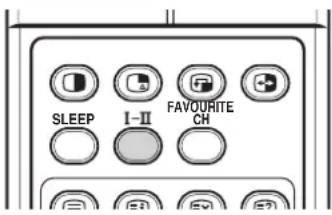

Using on the remote control unit FAVOURITE CH SLEEPEach time you press , MTS toggles as shown below. I mode II modeMONO modeNICAM Broadcasts A2
• In each of the sound multiplex mode selected using the button, the display changes depending on broadcasting signals being received.
• Once the MONO mode is selected, the Plasma Display System sound remains mono even if the system receives a stereo broadcast. You must switch the mode back to I or II mode if you want to hear stereo sound again. • Selecting a sound multiplex mode while the input source is AV1, AV2, AV3, S-VIDEO, VIDEO, COMPONENT or HDMI, does not change the type of sound. In this case, sound is determined by the video source. 07-PDP42RXE-Eng (18-23) 9/30/05, 12:16 PM2106 Basic Operations
Using the multiscreen functions
You can display a sub-picture within the main picture. In this
way you can watch a TV programme or monitor the video input
from any connected device while watching TV or another video
Use this function following the procedures below to select the
Twin (2-screen) or PIP (picture in picture) mode.
• In the multiscreen function, the sound of a main input is always
PIP (picture in picture)

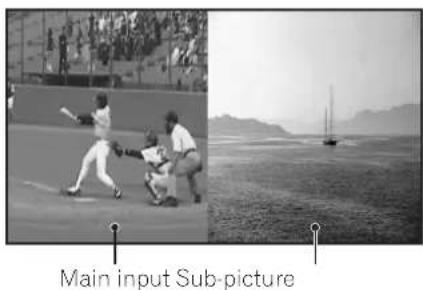

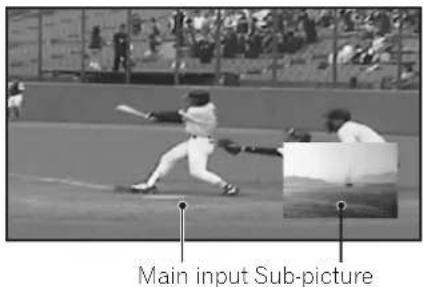

Main input Sub-picture

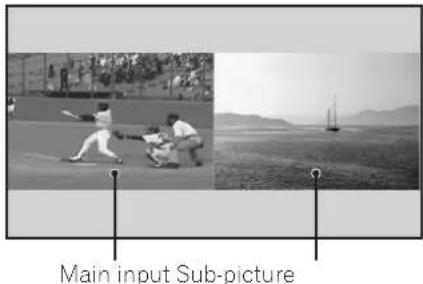

Main input Sub-picture
Main input Sub-picture
Press the c or d button to move to PIP/TWIN, then
Press the c or d button to select the required option as
Off - PIP - TWIN1 - TWIN2
PIP TWIN1TWIN2 PIP/TWINPIP/TWIN Mode PIPPIP/TWIN Input AV1PIP PositionAdjust Return • If you set to Off, the following steps are not available.

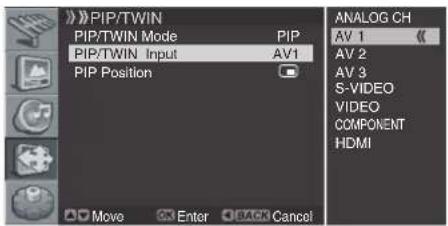

Press the c or d button to move to PIP/TWIN Input,
source as follows, then press [ or the BACK button.

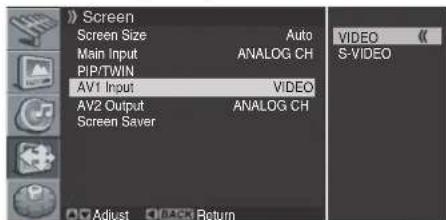

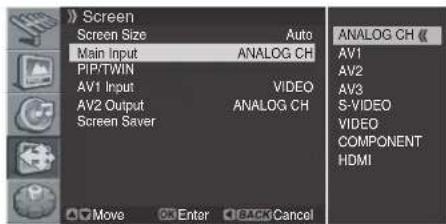

AV 3 S-VIDEOVIDEOCOMPONENT HDMI Move Enter Cancel •You can select the mode by simply pressing the button on
•You can select the source by simply pressing the button on

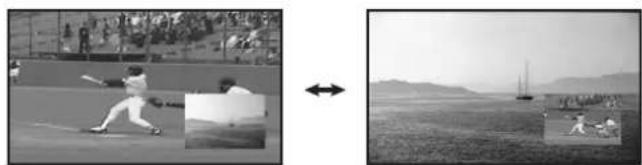

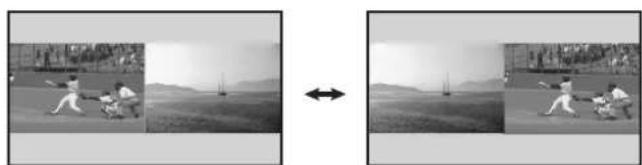

• In Twin or PIP mode, press the button to switch the position
of the 2-screen shown.

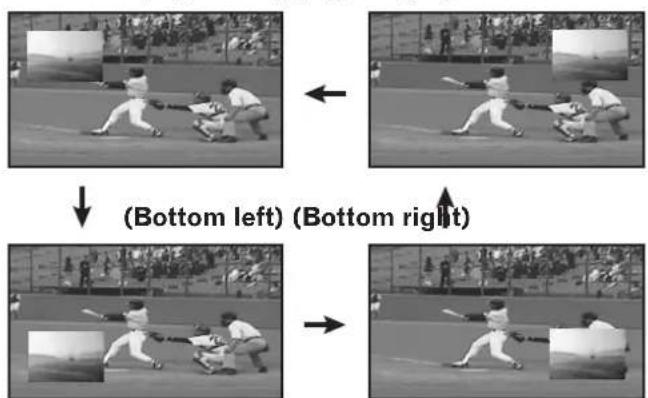

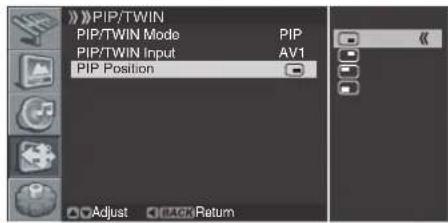

If you select “PIP” in step 5
You can select the position of picture in picture display.
Press the c or d button to move to PIP Position, then press

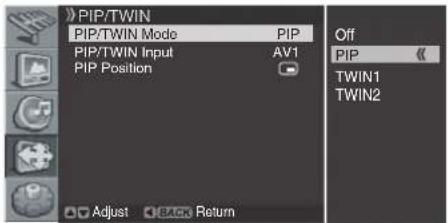

PIP/TWINPIP/TWIN Mode PIPPIP/TWIN Input AV1PIP PositionAdjust Return•You can select the positions by simply pressing the button onthe remote control. 8
Press the c or d button to select the required position
for the sub-picture, then press the [ or BACK button.
Press the EXIT button. •You can turn off the sub-picture by simply pressing the EXITbutton on the remote control.• Multiscreen function is available with the following combina-tions:ANALOG CH - AV1/2/3, S-VIDEO, VIDEO COMPONENT or HDMI (Upper left) (Upper right)
(Bottom left) (Bottom right)
07-PDP42RXE-Eng (18-23) 9/30/05, 12:16 PM2307 Menu Setup

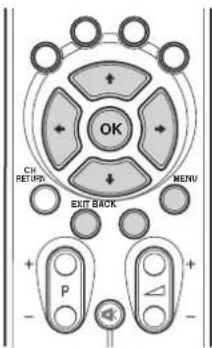

The following describes the typical procedure for setting up the
menus. For the actual procedures, see the appropriate pages
that describe individual functions.
Repeat step 2 until you access the desired submenu item.
• The number of menu layers differs depending on menu
•You can return to the upper menu levels by pressing the BACK
Edit Channel List 26

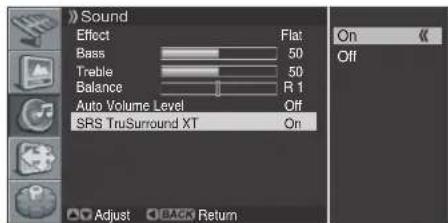

SRS TruSurround XT 31

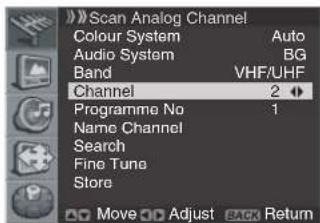

Setting up TV channels
This section describes how to search and set up TV channels
that you can watch under the current conditions. Unless you set
up TV channels using Scan Channels, you may not be able to
tune in any channels.
Scanning Channels Automatically
You can automatically scan channels for the frequency ranges
Press the c or d button to move to Tuner Setup, then
area, then press the [ or BACK button.
•You can select from 22 countries or areas; Austria,
Belgium, Denmark, Finland, France, Germany, Greece,
Ireland, Italy, Luxembourg, Netherlands, Norway,
Poland, Portugal, Russia, Spain, Sweden, Switzerland,
Turkey, UK, East Europe and West Europe.
Move to Start by pressing the c or d button and start the
search by pressing the \ or OK button. Scan ChannelsCancelAnalog ChannelNow Searching 30% Analog Channels 0 The scan starts. The scanned channels are automatically
stored in order. To stop scanning, press the BACK button.
When finished scanning, press the EXIT button. • When using the Cable Converter, you may need to manually addCable Converter output channels. Scanning Analogue Channels Manually
You can choose if you want to store the channels.
Press the MENU button.
Press the c or d button to move to Tuner Setup, then
Press the c or d button to move to Scan Analog
Select Colour System and press the \ or OK button.
Press the c or d button to select the desired colour
Press the c or d button to select the desired audio
Press the c or d button to select the desired band (VHF/
UHF or Cable), then press the [ or BACK button.
Move to Channel by pressing the c or d button and
select the channel number by pressing the [ or \
button. Or move to Search by pressing the c or d button
and search the channel by pressing [ or \ button. Colour System AutoAudio System BGBand VHF/UHFChannel 2Programme No 1Name ChannelSearchFine TuneStoreMove Adjust ReturnScan Analog Channel 11
Press the c or d button to move to Programme No and
select the programme by pressing [, \ or 0 to 9 buttons.
Press the c or d button to move to Store, then press the
•You can receive the selected channel.
If you want to edit the channel name, press the c or d
button to move to Name Channel, then press the \ or
OK button. Colour System AutoAudio System BGBand VHF/UHFChannel 2Programme No 1Name ChannelSearchFine TuneStoreScan Analog Channel Move Enter Return 14
Press the c or d button to select a letter (A~Z, a~z), a
<=>?@[\]^_`). Move to the previous or next letter by
pressing the [ or \ button.
When you have finished entering the channel name, press
– Select a channel to skip with the c or d buttons.
–Press the BLUE button, the selected channel will
change to the blue colour. Thereafter these channels
will be skipped when using the P+/P– buttons.
–To return to the normal status, select the skipped
channel and press the BLUE button again for 2 or 3
If you want to find channels quickly and easily when
watching TV, select the required channel by pressing the
c or d button, then press the FAVOURITE CH button.
The selected channel is stored with “
Press the FAVOURITE CH button repeatedly to jump
from one favorite channel to another.
Press the EXIT button.
•Press the P+/P– buttons to move to the next or previous page.
• The channel list displays the channels of those scanned by the
scanning channel functions.
If you want to cancel the Favourite mode, press the FAVOURITE CH
Display the Channel List
You can display a list of all channels.
Press the LIST button.
• The channel list is displayed.
To tune to a specific channel in the channel list, move the
cursor to the required channel by pressing the c or d
button, then press the OK button.
•Press the P+/P– buttons to move to the next or previous page.

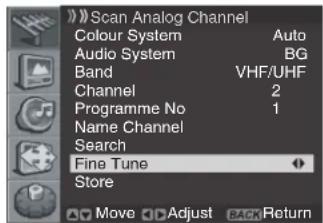

If you want to adjust the tuning, press the c or d button
to move to Fine Tune, then press the [ or \ button to
obtain good picture and sound quality. Colour System AutoAudio System BGBand VHF/UHFChannel 2Programme No 1Name ChannelSearchFine TuneStoreMove Adjust ReturnScan Analog Channel 18
Press the c or d button to move to Store, then press the
•“Scan Analog Channel” function is available only when the input
source is set to “ANALOG CH”. (See page 19.)
•You can also select the channel number by pressing the numeric
Editing Channel List
Press the MENU button.
Press the c or d button to move to Tuner Setup, then
press the \ or OK button.
Press the c or d button to move to Edit Channel List,
then press the \ or OK button. Tuner SetupScan ChannelsScan Analog Channel Edit Channel ListMove Enter Return The channel list is displayed.
Select the required channel by pressing the c or d
button, and press the colour (RED/GREEN/YELLOW/
BLUE) buttons to delete, copy, move or skip the
– Select a channel to delete with the c or d buttons.
–Press the RED button. If you press the RED button
again, the selected channel will be deleted.
– Select a channel to copy with the c or d buttons.
–Press the GREEN button.
– Select a channel to move with the c or d buttons.
–Press the YELLOW button to select the channel you
wish to move. Use the c or d buttons to move the
channel to the desired position, and press the YELLOW
button again to store.
09-PDP42RXE-Eng (25-27) 9/30/05, 12:16 PM2608Tuner Setup

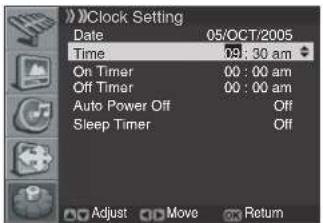

Setting the Current Date and Time
You can set the current date and time so that the current time is
displayed when pressing the
Press the c or d button to move to Clock Setting, then
Select Date and press the \ or OK button.
Press the [ or \ button to move to Day, Mon (month)
and Year, then set them by pressing the c or d button.
When you have finished, press the OK button.
Press the c or d button to move to Time, then press the
\ or OK button. Adjust Move Return Clock SettingDate 05/OCT/2005Time 09 : 30 amOn Timer 00 : 00 amOff Timer 00 : 00 amAuto Power Off OffSleep Timer Off 8
Press the [ or \ button to move to Hour/Min, set them
by pressing the c or d button, then press the OK button.
Press the EXIT button.
09-PDP42RXE-Eng (25-27) 9/30/05, 12:16 PM2709 Adjustments and Settings
Selecting the Picture Mode
You can select the picture mode that corresponds to your
viewing requirements best.
Press the MENU button.
Press the c or d button to move to Picture, then press
Select AV Selection and press the a or OK button again.
Press the c or d button to select the required picture
Standard For a highly defined image in a normally
Dynamic For a very sharp image with the maximum
Game Lowers image brightness for easier viewing.
User Allows the user to customize the settings as
desired. You can set the mode for each input
Press the EXIT button.
•You can select the modes by simply pressing the AV SELECTION
button on the remote control.
You can select a time period of 10 to 240 minutes after which
as follows, then press the b or BACK button.
Press the EXIT button.
•You can select the preset time by simply pressing the SLEEP button
on the remote control.
09 Adjustments and Settings
10-PDP42RXE-Eng (28-34) 9/30/05, 12:16 PM2809Adjustments and Settings
Customizing the Picture Settings
This Plasma Display has several setting options that allow you
to control the picture quality.
Press the MENU button.
Press the c or d button to move to Picture, then press
Press the c or d button to select the required option as
follows, then press the a or OK button.
Brightness - Contrast - Sharpness - Colour - Tint PictureAV Selection StandardBrightness 30Contrast 30Sharpness 30Colour 30Tint 30Noise Reduction OffColour Temp MidMove Enter ReturnBrightness 30 A horizontal bar is displayed. Press the b or a button
until you reach the optimal setting.
To select other options, press the c or d button.
Item | button \ button
Brightness For less brightness For more brightness
Contrast For less contrast For more contrast
Sharpness For less sharpness For more sharpness
Colour For less colour For more colour
Tint Skin tones become Skin tones become
Press the EXIT button.
• If you make any changes to the options, the picture mode is
automatically switched to User.
Using the Noise Reduction Feature
Press the MENU button.
Press the c or d button to move to Picture, then press
Press the c or d button to move to Noise Reduction,
then press the a or OK button.
Press the c or d button to select the required option as
Press the EXIT button.
• If you make any changes to the options, “AV Selection” is
automatically switched to User.
10-PDP42RXE-Eng (28-34) 9/30/05, 12:16 PM2909 Adjustments and Settings

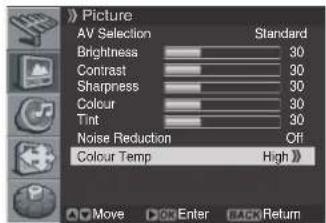

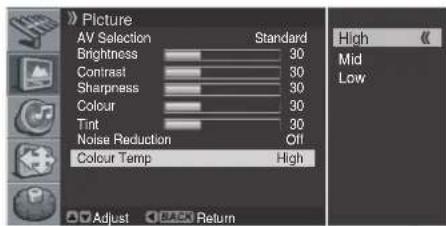

Setting the Colour Temperature
You can change tint of the screen to suit your requirements.
Press the MENU button.
Press the c or d button to move to Picture, then press
Press the c or d button to move to Colour Temp, then
press the a or OK button. PictureAV Selection StandardBrightness 30Contrast 30Sharpness 30Colour 30Tint 30Noise Reduction OffColour Temp HighMove Enter Return 4
Press the c or d button to select the required option as
High White with bluish tone
Low White with reddish tone
Press the EXIT button.
Selecting the Sound Effect
You can select the sound effect to be used.
Select Effect and press the a or OK button again.
Press the c or d button to select the required sound
effect as follows, then press the b or BACK button.
Flat - Speech - Movie - Music - User
On Adjust Return Item Description
Flat Flat and pure sound.
Speech Suitable for the programmes with speech,
Movie You can enjoy sound effects like in a
Music Suitable for the music programme.
User Allows the user to customize the setting
Press the EXIT button.
•You can select the modes by simply pressing the SOUND EFFECT
button on the remote control.
Customizing the Sound Settings
This Plasma Display has several setting options that allow you
to control the sound quality.
Press the b or a button until you reach the optimal
Bass For weaker bass For stronger bass
Tr eble For weaker treble For stronger treble
Balance Decreases audio from Decrease audio from
the right speaker the left speaker
Press the EXIT button.
• If you make any adjustment to the “Bass” or “Tr eble”, the “Effect” is automatically switched to “User”. Also, if you make any adjustmentto the “Balance”, the “Effect” is not switched. Adjusting the Volume Automatically

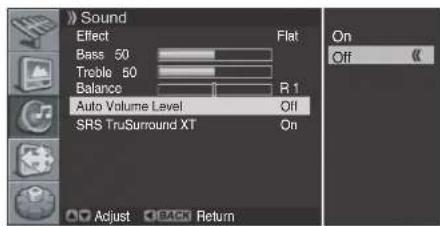

This feature allows you to automatically adjust the volume of
every channel by lowering the sound output when the
modulation signal is high or by raising the sound output when
the modulation signal is low.
Press the c or d button to select the required option (On
Press the EXIT button.
Setting the Surround Sound
You can enjoy the virtual surround sound effect.
Press the c or d button to move to SRS TruSurround
XT, then press the a or OK button.
Press the c or d button to select the required option (On
SRS TruSurround XT On
Press the EXIT button.
is a trademark of SRS Labs, Inc. TruSurround XT
technology is incorporated under license from SRS Labs, Inc.

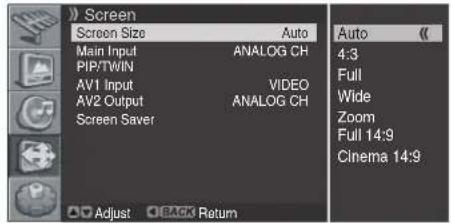

Changing the Screen Size
You can change the aspect ratio of the screen to correspond to
your viewing requirements.
Select Screen Size and press the a or OK button again.
Press the c or d button to select the required aspect
ratio as follows, then press the b or BACK button.
Auto - 4:3 - Full - Wide - Zoom - Full 14:9 - Cinema 14:9
Auto In this mode, the Plasma Display automati-
cally selects an appropriate screen size when
the received video signals contain WSS (wide
screen signaling) information.
4:3 For 4:3 "standard" pictures. A side mask
appears on each side.
Full For 16:9 squeeze pictures.
Wide In this mode the picture is progressively
stretched toward each side of the screen.
Zoom For 16:9 letterbox pictures. Bars may appear
on the top and bottom with some
Full 14:9 For 14:9 squeeze pictures. A thin side mask
appears on each side.
Cinema 14:9 For 14:9 letterbox pictures. A thin side mask
appears on each side, and you may also see
bars on the top and bottom with some
•You can select the modes by simply pressing the button on the
Viewing the Input Source
Once you have connected your audio and video systems, you
can view different sources by selecting the corresponding input.
Press the c or d button to move to Main Input, then
source as follows and press the OK button.
•You can select the sources by simply pressing the INPUT button on
Selecting an input signal type
After connecting the equipment to the AV1 terminal, specify the
type of video signals to be received from the connected
Press the c or d button to move to AV1 Input, then
Press the EXIT button.
Selecting an output source
After connecting the equipment to the AV2 terminal, specify the
source to be output to the connected equipment.
Press the c or d button to move to AV2 Output, then
press the a or OK button.
Press the c or d button to select the required source as
Setting for the language of on-screen
You can select a language to be used for on-screen display such
as menus from following languages: English, German, Italian,
Spanish, French, Dutch, Swedish, Russian and Turkish.
Press the c or d button to move to Menu Language,
then press the a or OK button.
Press the c or d button to select the desired language as
Setting for the TTX (Teletext) Language
For the language to be used in the Teletext mode, you can select
from the following languages: West Europe, East Europe,
Greece/Turkey, Russia and Arabia.
Press the c or d button to move to TTX Language, then
press the a or OK button.
Press the c or d button to select the desired language as
You can prevent temporary or permanent screen burn caused
Press the c or d button to move to Screen Saver, then
press the a or OK button.
Select Orbiter and press the a or OK button again. Screen SaverOrbiter OnOrbiter Range SmallFull White Off On
Press the c or d button to select the required option (On
or Off), then press the b or BACK button.
Press the c or d button to move to Orbiter Range, then
press the a or OK button.
Press the c or d button to select the required option as
Setting the Full White mode
When displaying a still picture for a long time, it is
recommended that you set “Full White” to “On” to reduce
temporary or permanent screen burn.
Follow steps 1 to 3 in “Screen Saver”.
Press the c or d button to move to Full White, then
press the a or OK button.
Press the c or d button to select “On”.
• If you cancel the Full White mode, press the EXIT button. It is also canceled when 20 minutes elapse. 10-PDP42RXE-Eng (28-34) 9/30/05, 12:16 PM3309 Adjustments and Settings
Power Control provides convenient functions for power saving.
Press the c or d button to move to Auto Power Off, then
press the a or OK button. Clock SettingDate 05/OCT/2005Time 09 : 30 amOn Timer 07 : 00amOff Timer 11 : 00amAuto Power Off OffSleep Timer Off On
Press the c or d button to select the required option (On
Press the EXIT button.
• If “Auto Power Off” is set to “On”, the Plasma Display automatically
switches to standby mode when there is no input of a signal for 15
Setting the Plasma Display On Time
You can set the on time so that the Plasma Display will switch
on automatically at the time you select.
Move to On Timer by pressing the c or d button, then
Press the OK button again.
Press the b or a button to move to the hour and minute,
set them by pressing the c or d button, then press the
OK button. Clock SettingDate 05/OCT/2005Time 09 : 30 amOn Timer 07 : 00amOff Timer OffAuto Power Off OffSleep Timer OffAdjust Move Return 7
Press the EXIT button.
On or Off, and pressing the OK button changes the time at step 4.
Setting the Plasma Display Off Time
You can set the off time so that the Plasma Display will switch
off automatically at the time you select.
Move to Off Timer by pressing the c or d button, then
Press the OK button again.
Press the b or a button to move to the hour and minute,
set them by pressing the c or d button, then press the
OK button. Clock SettingDate 05/OCT/2005Time 09 : 30 amOn Timer 07 : 00amOff Timer 11 : 00amAuto Power Off OffSleep Timer OffAdjust Move Return 7
Press the EXIT button.
• Once you set the Off Timer, pressing the a button switches the timer
On or Off, and pressing the OK button changes the time at step 4.
10-PDP42RXE-Eng (28-34) 9/30/05, 12:16 PM3410Enjoying through External Equipment
You can connect many types of external equipment to your Plasma Display, like a DVD player, VCR, game console, and camcorder.
•To protect all equipment, always turn off the Plasma Display before connecting to a DVD player, VCR, STB, or other external
•Refer to the relevant instruction manual (STB, VCR, DVD player, etc.) carefully before making connections.
Connecting to the SCART terminal AV 1 AV 2 AV 3
10 Enjoying through External Equipment
Connect the SCART cable to the AV (AV1, AV2 or AV3)
terminal on the Plasma Display and to the SCART
terminal on the required equipment.
Turn the Plasma Display on, then press the INPUT
button to select AV1, AV2 or AV3. •Refer to the operation manual of the required equipment for thesignal type.• When you connect the equipment to the AV1 terminal, set “AV1Input”. When you connect the equipment to the AV2 terminal, set “AV2 Output”. For details, refer to page 32. •AV3 terminal is for the monitor output. However, the signal is not output if you select “COMPONENT” or “HDMI”. SCART cable (commercially available)
11-PDP42RXE-Eng (35-37) 9/30/05, 12:16 PM3510 Enjoying through External Equipment
Connecting to the Component Input
COMPONENT L AUDIO Y R P B P R
Connect the video cable to the VIDEO-Y/PB/PR
(COMPONENT) input jacks on the Plasma Display and
to the video output jacks on the required equipment.
• Depending on the manufacturer, the Y/PB/PR jacks may be
identified as Y/PB/PR, Y/B-Y/R-Y, or Y/CB/CR.
•Refer to your DVD player instruction manual for the signal type.
Connect the audio cable to the AUDIO-L/R
(COMPONENT) input jacks on the Plasma Display and
to the audio output jacks on the required equipment.
Connecting to the External Input
INPUT AUDIO R L VIDEO S-VIDEO Audio Cable(commercially available)Video Cable(commercially available)S-Video Cable(commercially available) 1
Connect the video cable to the VIDEO input jack on the
Plasma Display and to the video output jack on the
•For equipment with an S-VIDEO jack, connect the S-Video cable
to the S-VIDEO input jack on the Plasma Display and the S-
Video output jack on the required equipment.
Connect the audio cable to the AUDIO-L/R input jack on
the Plasma Display and to the audio output jack on the
• If you connect the Plasma Display and the required equipment
11-PDP42RXE-Eng (35-37) 9/30/05, 12:16 PM3610Enjoying through External Equipment
Connecting to the HDMI Input
HDMI AUDIOHDMI L R The digital video and audio signals can be input to the HDMI
terminal. To use the HDMI terminal, activate the terminal and
specify the types of video and audio signals to be received from
the connected equipment. For the types of these signals, refer
to the operation manual supplied with the connected equip-
Display and to the DVD output jack on the required
When connecting with DVI jack, such as a DVD player,
connect the audio cable to the AUDIO INPUT-L/R jacks
on the Plasma Display and to the audio output jacks on
the required equipment.
Turn the Plasma Display on, then press the INPUT
button to select HDMI. • PC signals are not supported.• If no image appears, specify another digital video signal type.•For the digital video signal types to be specified, refer to the opera-tion manual supplied with the connected equipment.HDMI Cable(commercially available)Audio Cable(commercially available) DVD Player
Teletext broadcasts pages of information and entertainment to
the specially equipped television sets. Your Plasma Display
System receives Teletext signals broadcasted by TV networks,
and decodes them into graphical format for viewing. News,
weather and sports information, stock exchange prices and
programme previews are available among many services.
SLEEPFAVOURITE CH P CH RETURNEXIT BACK MENU SOUND EFFECTINPUTAV SELECTION 11 3322
11 Using the Teletext Functions
Operating the Teletext basics
Turning on and off Teletext
Press to display the Teletext (full screen).
Press again to display the normal screen.
Selecting and operating Teletext pages
Use the following remote control buttons to select and operate
Colour (RED/GREEN/YELLOW/BLUE):
You can select a group or block of pages displayed in the
coloured brackets at the bottom of the screen by pressing the
corresponding colour (RED/GREEN/YELLOW/BLUE) on the
remote control unit.
Directly select any page from 100 to 899 by using 0 to 9.
Displays the normal image while waiting for the new Teletext
To display hidden information such as an answer to a quiz,
again to hide the information.
Displays the Teletext with the normal image.
Selects a Teletext size.
again to release the hold mode.
• When the Teletext is in the display, no other buttons than +/ – , , and are available. 12-PDP42RXE-Eng (38) 9/30/05, 12:16 PM3812Appendix
• No picture or sound
• Normal picture but no sound
• No picture or black and white
• Sound and picture interference
• Make sure the Plasma Display is connected correctly. (See page 17.)
• Is the power cord disconnected? (See page 17.)
•Has the power been turned on? (See page 18.)
• Check if you have pressed
on the remote control unit. (See page 18.)
If the STANDBY indicator on the Plasma Display lights up red, press .
• Check if the power cord is connected correctly.
• Check if you have pressed the
on the remote control or the STANDBY/ON button on the bottom
of the Plasma Display.
• Select an input source responding to that particular source.
• Check the picture contrast and brightness settings.
• Check whether the button on the remote control has been pressed.
•Adjust the colour settings.
• Check if the correct broadcast system is selected.
•Try to identify the electrical appliance that affects the Plasma Display, then move it further away.
• Plug the power cord of the Plasma Display into a different wall outlet.
• Check the direction, location and connections of your aerial. Such interference often occurs due to
the use of an indoor aerial.
•Press the INPUT button to select the Plasma Display or an external device.
•Replace the batteries in the remote control.
• Install batteries ensuring that the <+> and <
> ends of the batteries are inserted correctly.
• Check the angle and distance of the remote control to the Plasma Display. Make sure there are no
obstacles between the remote control and the Plasma Display.
• Check if the correct function button has been pressed.
• Change the location of light sources or the direction of the Plasma Display to avoid glare.
• Is the Teletext function activated? (See page 38)
Connecting pin assignments for SCART Various audio and video devices may be connected via the SCART terminals.
4. Common earth for audio
16. Red/Green/Blue control
18. Earth for Red/Green/Blue
4. Common earth for audio
4. Common earth for audio
16. Red/Green/Blue control
18. Earth for Red/Green/Blue
Dimensions (with stand) 1235 (W) × 699 (H) × 252 (D) mm
Weight (with stand) 40 kg (88.2 lbs.)
Colour System PAL/SECAM TV Function Receiving System B/G, D/K, I, L/L’
Tuner VHF/UHF E2–E69ch, F2–F10ch, I21–I69ch, IR A–IR Jch
CATV Hyper-band, S1–S41ch
Terminals Rear ANTENNA 75 Ω DIN Type for VHF/UHF/CATV in
AV1 SCART (AV in, S-VIDEO in, TV out)
AV2 SCART (AV in/out, RGB in)*
AV3 SCART (AV in/out, RGB in)
* AV2 out: User selectable
COMPONENT COMPONENT VIDEO in, AUDIO in
HDMI HDMI in, AUDIO in
RS-232C Service only
Side VIDEO S-VIDEO in, VIDEO in, AUDIO in
OSD English/German/Italian/Spanish/French/Dutch/Swedish/Russian/Turkish
• Design and specifications are subject to change without notice.
13-PDP42RXE-Eng (39-42) 9/30/05, 12:16 PM4112 Appendix
• is a trademark of SRS Labs, Inc.
TruSurround XT technology is incorporated under license from SRS Labs, Inc.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• The names of the companies or institutions are trademarks or registered trademarks of the respective companies or institutions.
Published by Pioneer Corporation.
Copyright © 2005 Pioneer Corporation.
All rights reserved.
13-PDP42RXE-Eng (39-42) 9/30/05, 12:16 PM42Français
SRS TruSurround XT 31
CATV Hyper-band, S1–S41ch
© 2005 Pioneer Corporation.
3 Anschlüsse AV1/AV2/AV3 (SCART)
SRS TruSurround XT 30
PIONEER ELECTRONICS (USA) INC.
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.
Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: 55-9178-4270
Published by Pioneer Corporation.
Copyright © 2005 Pioneer Corporation.
All rights reserved.
<05I00001> Printed in Korea / Imprimé en Corée du sud <ARE1410-A>
