Product Type	Jukebox
Brand	Ricatech
Model	RR1000
Dimensions (approx.)	300 x 250 x 400 mm
Weight (approx.)	5 kg
Power supply	AC 220-240 V, 50 Hz
CD player	Yes, with programming, repeat, random play
Radio	AM/FM
Lighting	LED / Neon / Bulb (depending on version)
Auxiliary input	Yes (AUX IN) for external sources
Speaker output	Terminals for external speakers
CD functions	Play, pause, next, previous, fast forward, fast reverse, repeat, random, program
Sound control	Volume, bass, treble
Mute	Yes
Display	Digital track display
Laser safety	Class 1, do not open
Maintenance	Clean with a soft, dry cloth; avoid moisture
Customer service	[e-mail] / [phone]
Accessories	Power cable, user manual

Frequently Asked Questions - RR1000 Ricatech

How to turn on the Ricatech RR1000 jukebox?

Press the POWER switch on the device. Then select the desired mode (CD, radio) using the MODE SELECTOR.

How to play a CD?

Open the semicircular CD door, place a disc on the tray, close the door, then press PLAY/PAUSE. Make sure the RESET pointer is set to 'ON' after inserting the disc.

How to program tracks on the CD?

First press STOP, then PROGRAM. Use NEXT/PREVIOUS TRACK to select a track and press PROGRAM again to add it. Repeat for each track. Press STOP to cancel the program.

How to use the radio?

Turn the MODE SELECTOR to the radio position (AM/FM). Adjust the volume with the VOLUME knob and tune the station with the TUNING knob. To turn off, press POWER.

How to connect an external device like an MP3 player?

Plug your external source into the AUX IN jack on the back of the device. Set the ON/OFF switch next to the jack to 'ON'. Select the CD-AUX mode with the mode selector. Adjust the volume with the VOLUME knob or from your source.

What to do if the CD does not play?

Check that the disc is clean and inserted correctly on the tray. If the disc is damaged or dirty, gently clean it with a cloth. Make sure the RESET pointer is set to 'ON'.

How to adjust the volume, bass and treble?

Use the dedicated knobs: VOLUME for overall sound level, BASS for low frequencies, and TREBLE for high frequencies.

The lights do not work, what to do?

For the LED version, make sure the light mode selector is set to PLAY. For neon versions, note that neon lights do not work in radio mode (interference). Consult the manual for the appropriate light mode.

How to clean the jukebox?

Unplug the device before cleaning. Use a soft, dry cloth. Do not use solvents or abrasive products. Avoid letting moisture get inside.

Where to find the complete user manual?

The manual is available for free download in PDF format at notice-facile.com or on the manufacturer's website ricatech.com. You can also request a translation by email.

USER MANUAL RR1000 Ricatech

RR1000 multi media retro LED jukebox XXL

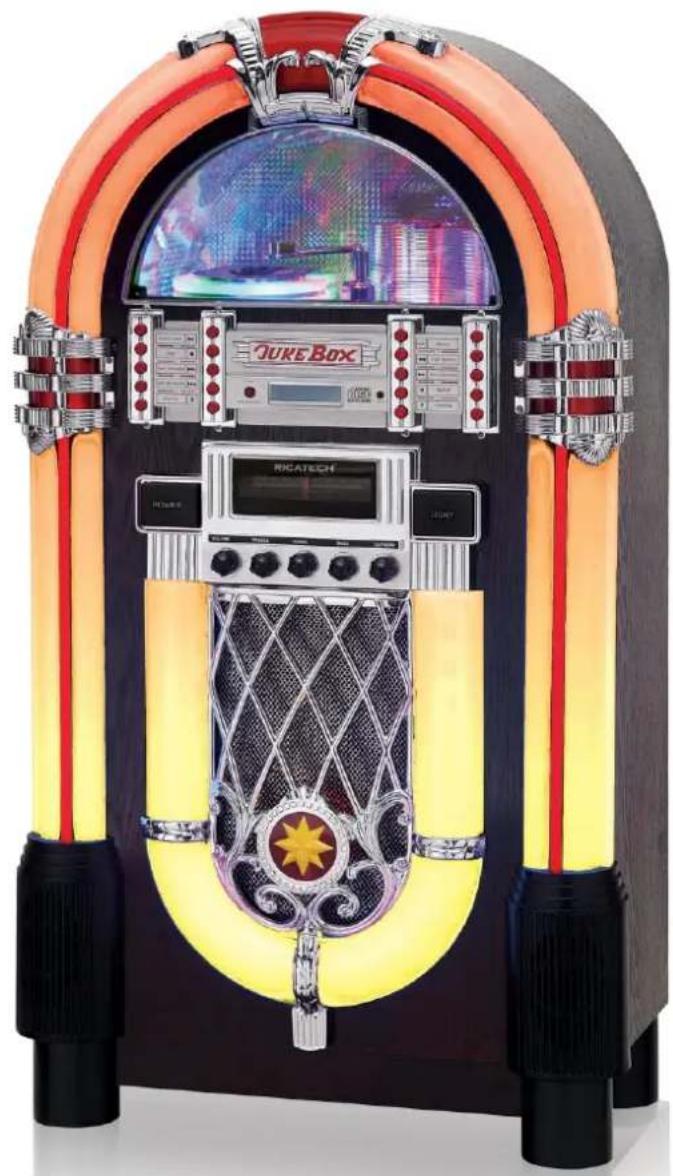

Exterior view of a juke box with ornate backrest and decorative buttons (no visible text or symbols)

USER MANUAL

GEBRUIKERSHANDLEIDING

MODE D'EMPLOI

BEDIENUNGSANLEITUNG

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AVIS RISQUE DE CHOC ELECTRIQUE NE PAS QUVRIR

The Lighting flash with an arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to cause an electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in this owner manual.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Should any trouble occur, disconnect the AC power cord and refer servicing to a qualified technician.

Do not place anything directly on the top of the unit. Damage to the unit can result.

In case of malfunction due to electrostatic discharge the apparatus has to be reset by disconnecting it from mains supply.

On Placement

• Do not use the unit in places which are extremely hot, cold, dusty, or humid.
• Place the unit on a flat and even surface.
  • Do not restrict the air flow of the unit by placing it in a place with poor air flow, by covering it with a cloth.
• Do not place naked flame sources, such as lighted candles on the apparatus.
• Do not place objects filled with liquids, such as vases, on the apparatus.

On AC Voltage

- Before use, check that the rated voltage of your unit matches your local voltage.

On Safety

• When connecting or disconnecting the AC cord, grip the plug and not the cord itself. Pulling the cord may damage it and create a hazard.
• When you are not going to use the unit for a long period of time, disconnect the AC power cord.

On Condensation

- When left in a heated room where it is warm and damp, water droplets or condensation may form inside the unit. When there is condensation inside the unit, the unit may not function normally. Let the unit stand for 1 to 2 hours before turning the power on, or gradually heat the room up and dry the unit before use.

ATTENTION SHOULD BE DRAWN TO THE ENVIRONMENTAL ASPECTS OF BATTERY DISPOSAL.

LASER SAFETY

THIS UNIT EMPLOYS A LASER.

ONLY A QUALIFIED SERVICE PERSONNEL SHOULD OPEN COVER IN ATTEMPT TO SERVICE THIS DEVICE DUE TO POSSIBLE EYE INJURY.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFECTED. AVOID EXPOSURE TO BEAM

USER MANUAL

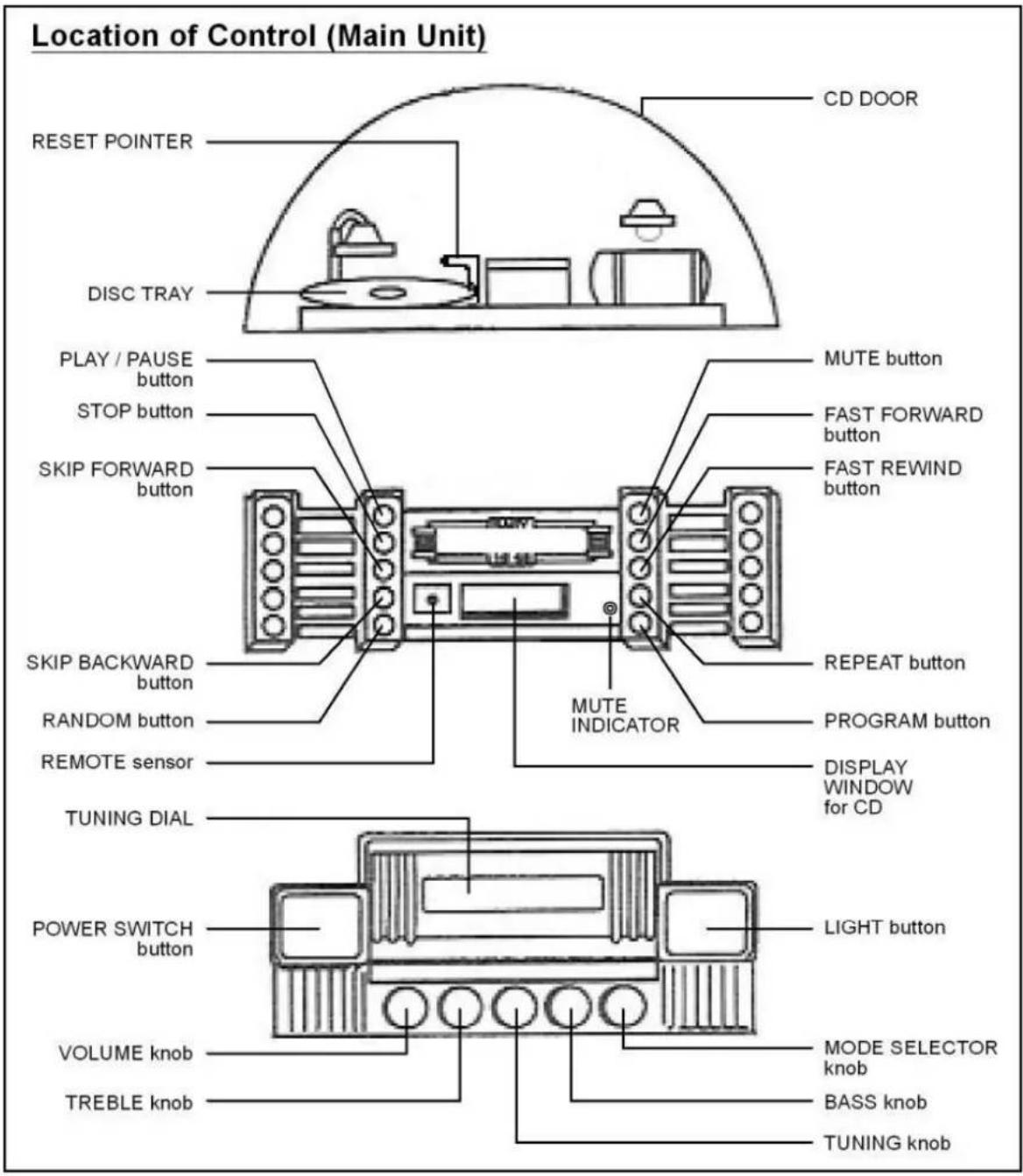

Location of Control (Main Unit) RESET POINTER DISC TRAY PLAY / PAUSE button STOP button SKIP FORWARD button SKIP BACKWARD button RANDOM button REMOTE sensor TUNING DIAL POWER SWITCH button VOLUME knob TREBLE knob CD DOOR MUTE button FAST FORWARD button FAST REWIND button REPEAT button PROGRAM button DISPLAY WINDOW for CD MUTE INDICATOR

REMOTE CONTROL FUNCTION (FOR CD PLAYER ONLY)
PLAY/PAUSE	II
STOP	■
SKIP FORWARD	▶▶
SKIP BACKWARD	◀◀
FAST FORWARD	▶▶
FAST REWIND	◀◀
RANDOM	RAN
REPEAT	REP
PROGRAM	PRG

TO PLAY A CD

1. Press the POWER switch and select MODE SELECTOR to CD.
2. Flip open the semi circle "CD DOOR".
3. Turn the "RESET" pointer to "OFF" position and insert a disc onto the disc tray. **(Make sure the "RESET" pointer in "ON" position after disc loaded.)
4. Press the PLAY/PAUSE button to play the CD, press once again to temporarily stop disc play.
5. Press STOP to stop playing the CD.
6. Adjust listening level and sound effect with Volume, Treble and Bass knob
7. Press SKIP FORWARD to skip ahead to next track. Press SKIP BACKWARD to skip back to previous track. The track number will be displayed in readout.
8. During disc play mode, press the FAST FORWARD or FAST REWIND to search a particular point quickly.

NOTE:

If the disc is seriously scratched, or too dirty, disc play may not start.

If an improperly centered disc is played, noise can be heard in the mechanism. The use of such discs should be avoided.

PROGRAMMED DISC PLAY

It is not possible to enter programs during disc play. Press the STOP button first, then enter a program.

1. Press the STOP button.
2. Press the PROGRAM button. Select a track number using SKIP FORWARD or SKIP BACKWARD button, press PROGRAM button again
3. Repeat step 2 until all the desired tracks are programmed in memory

NOTE:

To modify the program, press the STOP button and restart from step 2.

-To clear the program, press the STOP or power is switched off

REPEAT DISC PLAY

1. Press REPEAT button once to repeat disc play of one track.
2. Press REPEAT button twice to repeat all the track on the disc.
3. Select the desired track for disc play using SKIP FORWARD or SKIP BACKWARD button.
4. Press the PLAY/PAUSE button to play
5. Press STOP button to cancel repeat mode.

RANDOM DISC PLAY

1. Press the RANDOM button to play CD in random order.
2. To cancel RANDOM, press STOP button

MUTE DISC PLAY

1. Press MUTE button to muting the sound while playing disc. *The MUTE indicator on the CD control panel will be lighted up.
2. To resume press MUTE again and the MUTE indicator will goes off

RADIO OPERATION

1. Set the MODE selector to your desired band.
2. Adjust the sound with the VOLUME knob.
3. Tune to the desired radio station by using the TUNING knob.
4. To turn off the radio, press the POWER button.

LIGHT OPERATION

1. Press the LIGHT button to turn on all the light.
2. To Turn off the light, press the LIGHT button again.

NOTE:

1. (FOR "NEON LIGHTS" VERSION ONLY)

Please note that Neon lights will not work while in AM / MW radio mode. This is due to interference caused by neon lighting and is a usual occurrence.

2. LIGHT MODE (IF EQUIPPED "BULB LIGHTS" VERSION ONLY)

Switch the MODE selector at back cover to change light mode.

3. LIGHT MODE (IF EQUIPPED AT BACK COVER "LED LIGHTS" VERSION ONLY)

The colors of the lights change overtime, switch to HOLD position to remain static to your favourite color. Switch to PLAY position to resume

\*IMPORTANT NOTE: (LED LIGHTS VERSION ONLY)

The changing colors sequences of lights are controlled by IC, the lights maybe turned off when the light mode in HOLD position is normal.

EXTERNAL SPEAKER CONNECTION (IF EQUIPPED)

Connect each speaker wire to the speaker terminal at the back cover, switch the speaker switch to external.

AUXILIARY CONNECTION "AUX IN" (IF EQUIPPED)

1. Connect your own device (i.e. MP3 player or IPOD) to the "AUX IN connection" (located at the back of cabinet) with stereo plug and detachable rack (packed separately).
2. Adjust the ON / OFF switch next to the jack to the 'ON' position.
3. Rotate the mode selector to "CD-AUX".
4. Adjust the sound with the VOLUME knob or the volume control of the device.
5. When change to another mode, the device will continue to play with no sound until the ON / OFF switch is adjusted to 'OFF' position and switch off the device.

IMPORTANT NOTE:

1. Adjust the ON / OFF switch to the 'OFF' position when not in use.
2. The CD function will resume to normal only after the ON / OFF switch is adjusted to 'OFF' position.

Warranty:

Ricatech BV covers all products (Excl. accessories) with a 2 year warranty applying to all faults caused by a factory-error. External physical damage will not be covered by our warranty

Warranty:	All hardware errors occurring within 2 years after purchase unless caused by points mentioned below.
No Warranty :	Faults caused by:*Dismountal by any other service center then ours.*Water and moisture damage*Drop and bump damage*Usage with non approved Ricatech accessories.*Short-circuit or over-voltage*Physical damage, loss or damage to accessories

Out of warranty repairs

Please be so kind to contact us for out-of-warranty repairs. We will provide you with a quotation with the expected costs.Goods out of warranty cannot be returned to your reseller.

CUSTOMER SUPPORT

You can contact the Ricatech customer service when you have a question or a problem with your Ricatech product. You can contact us by telephone and email.

Email

For customer support by email, please sent a email to [e-mail] Please make sure that you mention the model number and serial number of the product, mention your name & address and describe your question or problem clearly.

Telephone

For customer support by telephone, please dial [phone]. One of our service staff will be ready to serve you.

For full procedure please visit the website of Ricatech at: www.ricatech.com

WAARSCHUWING: OM DE KANS OP EEN ELEKTRISCHE SCHOK TE VERKLEINEN VERWIJDER NIET DE HOES (OF ACHTERKANT). GEEN GEBRUIKERS BENODIGDE ONDERDELEN BEVINDEN ZICH HIERBINNEN. VOOR SERVICE NEEM CONTACT OP MET SERVICE PERSONEEL. WAARSCHUWING: OM BRAND OF SCHOK GEVAAR TE VOORKOMEN MAG U HET APPARAAT NIET BLOOD STELLEN AAN REGEN OF VOCHT.

Warning sign with triangular shape containing a sunburst symbol inside a triangle

MODE D'EMPLOI

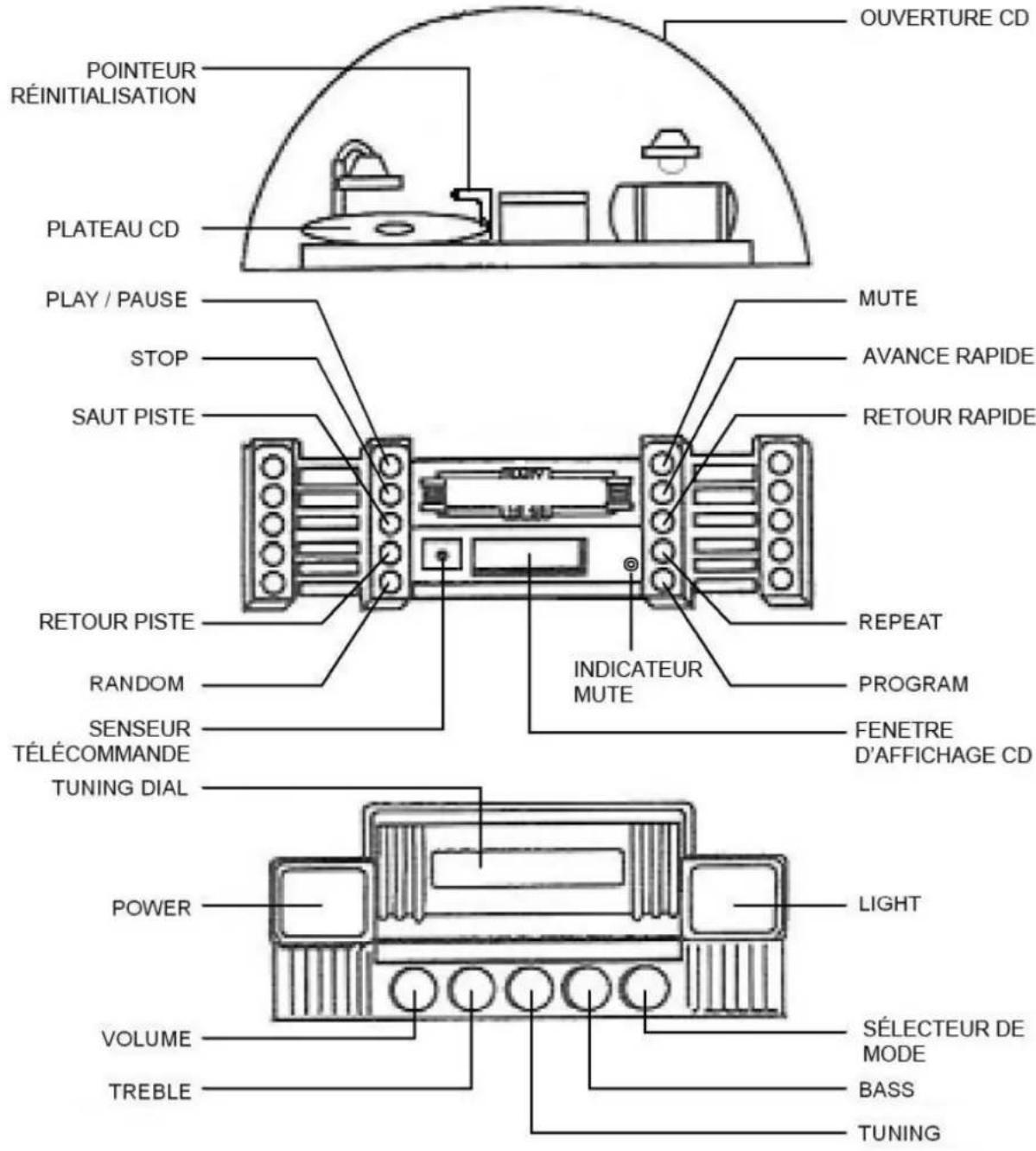

Contrôle de l'unité

OUVERTURE CD POINTEUR RÉINITIALISATION PLATEAU CD MUTE AVANCE RAPIDE RETOUR RAPIDE PLAY / PAUSE STOP SAUT PISTE REPEAT RETOUR PISTE INDICATEUR MUTE RANDOM PROGRAM SENSEUR TÉLÉCOMMANDE FENETRE D'AFFICHAGE CD TUNING DIAL POWER LIGHT VOLUME SÉLECTEUR DE MODE BASS TREBLE TUNING

FONCTIONS DE LA TELECOMMANDE (SEULEMENT POUR LE LECTEUR CD)
LECTURE/PAUSE	II<
STOP	■
PISTE SUIVANTE	▶▶
PISTE PRECEDENTE	I◀◀
AVANCE RAPIDE	▶▶
RETOUR RAPIDE	◀◀
LECTURE ALEATOIRE	RAN
REPETITION	REP
PROGRAMME	PRG

POUR LIRE UN CD

Ricatech BV covers all products (Excl. accessories) with a 2 year warranty applying to all faults caused by a factory-error. External physical damage will not be covered by our warranty

Warranty:	All hardware errors occurring within 2 years after purchase unless caused by points mentioned below.
No Warranty :	Faults caused by:*Dismountal by any other service center then ours.*Water and moisture damage*Drop and bump damage*Usage with non approved Ricatech accessories.*Short-circuit or over-voltage*Physical damage, loss or damage to accessories

Out of warranty repairs

Please be so kind to contact us for out-of-warranty repairs. We will provide you with a quotation with the expected costs.Goods out of warranty cannot be returned to your reseller.

SUPPORT CLIENTÈLE

Ricatech BV covers all products (Excl. accessories) with a 2 year warranty applying to all faults caused by a factory-error. External physical damage will not be covered by our warranty

Warranty:	All hardware errors occurring within 2 years after purchase unless caused by points mentioned below.
No Warranty :	Faults caused by:*Dismountal by any other service center then ours.*Water and moisture damage*Drop and bump damage*Usage with non approved Ricatech accessories.*Short-circuit or over-voltage*Physical damage, loss or damage to accessories

Out of warranty repairs

Please be so kind to contact us for out-of-warranty repairs. We will provide you with a quotation with the expected costs.Goods out of warranty cannot be returned to your reseller.

KUNDENDIENST
