USER MANUAL K3614X8 NEFF

Safety and warning information 17

Information concerning disposal 18

Scope of delivery 19

Installation location 19

Connecting the appliance 20

Getting to know your appliance 20

Switching the appliance on 21

Setting the temperature 21

Refrigerator compartment 22

Interior fittings 22

Switching off and disconnecting

Cleaning the appliance 24

Tips for saving energy 25

Operating noises 25

Eliminating minor faults yourself 26

Customer service 27fr Table des matières

electrical and electronic

enInstruction for Use

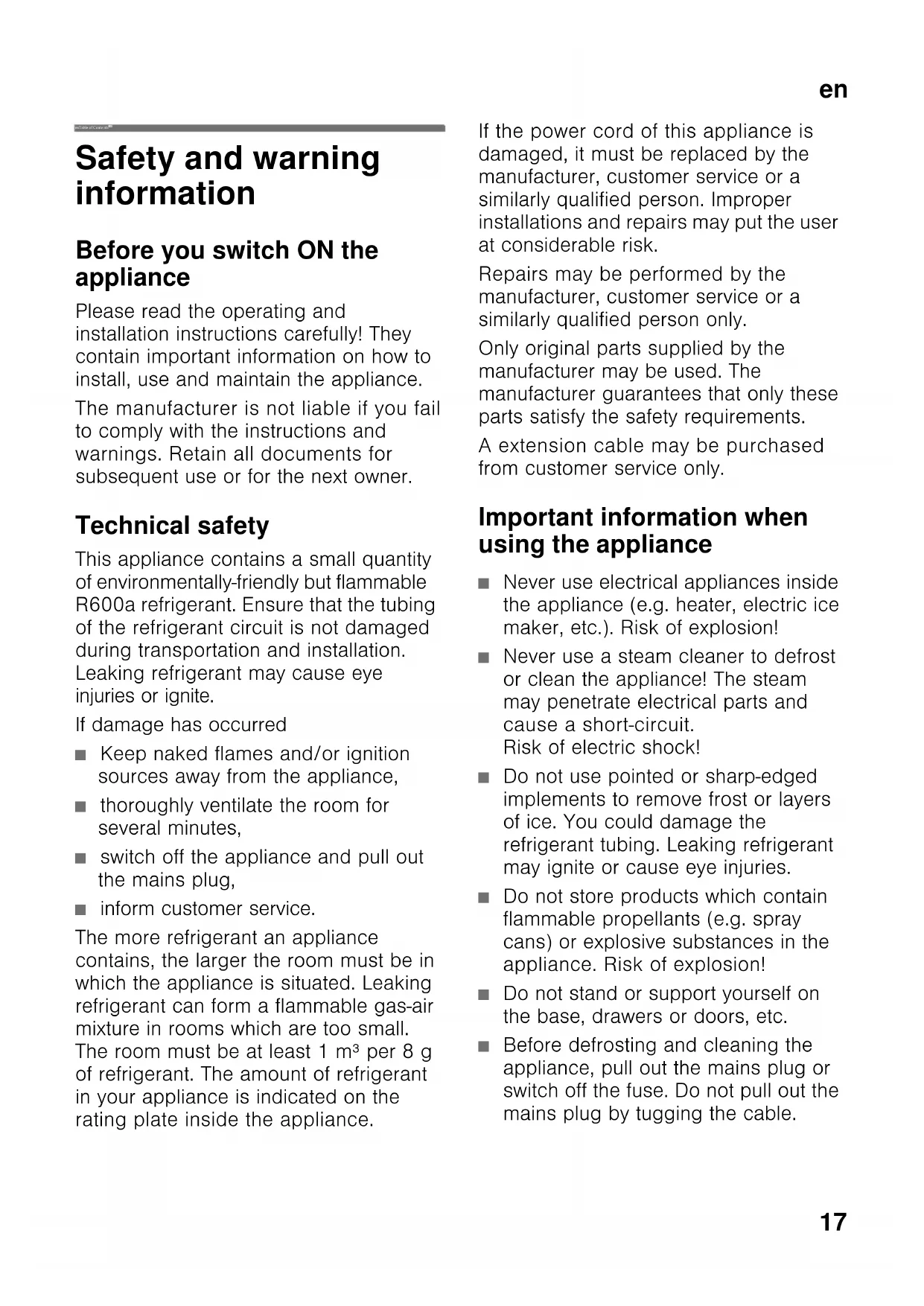

Before you switch ON the

Please read the operating and

installation instructions carefully! They

contain important information on how to

install, use and maintain the appliance.

The manufacturer is not liable if you fail

to comply with the instructions and

warnings. Retain all documents for

subsequent use or for the next owner.

This appliance contains a small quantity

of environmentally-friendly but flammable

R600a refrigerant. Ensure that the tubing

of the refrigerant circuit is not damaged

during transportation and installation.

Leaking refrigerant may cause eye

If damage has occurred

■ Keep naked flames and/or ignition

sources away from the appliance,

■ thoroughly ventilate the room for

■ switch off the appliance and pull out

■ inform customer service.

The more refrigerant an appliance

contains, the larger the room must be in

which the appliance is situated. Leaking

refrigerant can form a flammable gas-air

mixture in rooms which are too small.

The room must be at least 1 m³ per 8 g

of refrigerant. The amount of refrigerant

in your appliance is indicated on the

rating plate inside the appliance.

If the power cord of this appliance is

damaged, it must be replaced by the

manufacturer, customer service or a

similarly qualified person. Improper

installations and repairs may put the user

at considerable risk.

Repairs may be performed by the

manufacturer, customer service or a

similarly qualified person only.

Only original parts supplied by the

manufacturer may be used. The

manufacturer guarantees that only these

parts satisfy the safety requirements.

A extension cable may be purchased

from customer service only.

Important information when

the appliance (e.g. heater, electric ice

maker, etc.). Risk of explosion!

■ Never use a steam cleaner to defrost

or clean the appliance! The steam

may penetrate electrical parts and

cause a short-circuit.

Risk of electric shock!

■ Do not use pointed or sharp-edged

implements to remove frost or layers

of ice. You could damage the

refrigerant tubing. Leaking refrigerant

may ignite or cause eye injuries.

■ Do not store products which contain

flammable propellants (e.g. spray

cans) or explosive substances in the

appliance. Risk of explosion!

■ Do not stand or support yourself on

the base, drawers or doors, etc.

■ Before defrosting and cleaning the

appliance, pull out the mains plug or

switch off the fuse. Do not pull out the

mains plug by tugging the cable.en

18 ■ Bottles which contain a high percentage of alcohol must be sealed

and stored in an upright position.

■ Keep plastic parts and the door seal

free of oil and grease. Otherwise,

parts and door seal will become

■ Never cover or block the ventilation

openings for the appliance. ■ People (childern incl.) who have limited physical, sensory or mental

abilities or inadequate knowledge

must not use this appliance unless

they are supervised or given

meticulous instructions.

Children in the household ■ Keep children away from packaging and its parts.

Danger of suffocation from folding

cartons and plastic film! ■ Do not allow children to play with the appliance! ■ If the appliance features a lock: keep the key out of the reach of

The appliance is suitable for refrigerating

This appliance is intended for use in the

home and the home environment.

The appliance is suppressed according

to EU Directive 2004/108/EC.

The refrigeration circuit has been

This product complies with the relevant

safety regulations for electrical

appliances (EN 60335-2-24).

Information concerning

* Disposal of packaging

The packaging protects your appliance

from damage during transit. All utilised

materials are environmentally safe and

recyclable. Please help us by disposing

of the packaging in an environmentally

Please ask your dealer or inquire at your

local authority about current means of

* Disposal of your old

Old appliances are not worthless

rubbish! Valuable raw materials can be

reclaimed by recycling old appliances.

Redundant appliances

1. Pull out the mains plug.

2. Cut off the power cord and discard

with the mains plug.

3. Do not take out the trays and

receptacles: children are therefore

prevented from climbing in!

4. Do not allow children to play with the

appliance once it has spent its useful

life. Danger of suffocation!

This appliance is identified

according to the European

guideline 2002/96/EC on waste

electrical and electronic

equipment – WEEE. The directive

specifies the framework for an

Refrigerators contain refrigerant and

gases in the insulation. Refrigerant and

gases must be disposed of

professionally. Ensure that tubing of the

refrigerant circuit is not damaged prior to

After unpacking all parts, check for any

If you have any complaints, please

contact the dealer from whom you

purchased the appliance or our

The delivery consists of the following

■ Built-in appliance

■ Interior fittings (depending on model)

■ Bag containing installation materials

■ Operating instructions

■ Installation manual

■ Customer service booklet

■ Warranty enclosure

■ Information on the energy

consumption and noises

The appliance is designed for a specific

climate class. Depending on the climate

class, the appliance can be operated at

the following temperatures.

The climate class can be found on the

rating plate. Fig. -

The appliance is fully functional within

the room temperature limits of the

indicated climatic class. If an appliance

of climatic class SN is operated at colder

room temperatures, the appliance will

not be damaged up to a temperature

The air on the rear panel of the appliance

heats up. Conduction of the heated air

must not be obstructed. Otherwise, the

refrigeration unit must work harder. This

increases power consumption.

Therefore: Never cover or block the

ventilation openings!

Installation location

Install the appliance in a dry, well

ventilated room. The installation location

should neither be exposed to direct

sunlight nor near a heat source, e. g.

a cooker, radiator, etc. If installation next

to a heat source is unavoidable, use a

suitable insulating plate or observe the

following minimum distances to a heat

■ 3 cm to electric or gas cookers.

■ 30 cm to an oil or coal-fired cooker.

Climate class Permitted ambient

SN +10 °C to 32 °C N +16 °C to 32 °C ST +16 °C to 38 °C T +16 °C to 43 °Cen

After installing the appliance, wait at least

1 hour until the appliance is switched on.

During transportation the oil in the

compressor may have flowed into the

refrigeration system.

Before switching on the appliance for

the first time, clean the interior of the

appliance (see chapter “Cleaning

Electrical connection

The socket must be near the appliance

and also freely accessible following

installation of the appliance.

The appliance complies with the

protection class I. Connect the appliance

to 220-240 V/50 Hz alternating current

via a correctly installed socket with

protective conductor. The socket must

be fused with a 10 to 16 A fuse.

For appliances operated in non-

European countries, check whether the

stated voltage and current type match

the values of your mains supply match

the values of the mains supply. This

information can be found on the rating

Never connect the appliance to

electronic energy saver plugs.

Our appliances can be used with mains

and sine-controlled inverters. Mains-

controlled inverters are used for

photovoltaic systems which are

connected directly to the national grid.

Sine-controlled inverters must be used

for isolated applications (e.g. on ships or

in mountain lodges) which are not

connected directly to the national grid.

Getting to know your

Please fold out the illustrated last page.

These operating instructions refer to

The features of the models may vary.

The diagrams may differ.

6 Main On/Off switch

8 Vegetable container

9 Butter and cheese compartment *

11 Shelf for tubes and small tins

12 Shelf for large bottlesen

Switch on the appliance with the main

On/Off switch. Fig. 2/1

The temperature display, Fig. 2/3,

flashes until the appliance has reached

the set temperature.

The appliance starts to cool, the light is

switched on when the door is open.

When the appliance has been switched

on, it may take several hours until the set

temperature has been reached. Do not

put any food in the appliance

The refrigerator compartment

■ if the appliance door is opened

■ if large quantities of food are placed in

the refrigerator compartment,

■ if the ambient temperature is high.

Refrigerator compartment

The temperature can be set from

Keep pressing temperature setting

button 2 until the required refrigerator

compartment temperature is set.

The value last selected is saved. The set

temperature is indicated on temperature

We recommend a factory setting

of +4 °C in the refrigerator compartment.

Perishable food should not be stored

Information on the usable capacity can

be found inside your appliance on

the rating plate. Fig. -

1 Main On/Off switch

Serves to switch the whole

appliance on and off.

2 Temperature selection button

Press this button to set the

to the temperature display lights

correspond to refrigerator

compartment temperatures in °C.

The lit lamp indicates

the selected temperature.

Is used to switch on the super

cooling (see chapter entitled

The refrigerator compartment is the ideal

storage location for ready meals, cakes

and pastries, preserved food, condensed

milk, hard cheese, fruit and vegetables

sensitive to cold as well as tropical fruit.

Note when loading products

Wrap or cover food before placing in the

appliance. This will retain the aroma,

colour and freshness of the food. In

addition, flavours will not be transferred

between foods and the plastic parts will

not become discoloured.

Avoid contact between food and rear

panel. Otherwise the air circulation will

Food or packaging could freeze to the

Note the chill zones in the

refrigerator compartment

The air circulation in the refrigerator

compartment creates different chill

■ Coldest zone is between the arrow

stamped on the side and the glass

shelf situated below. Fig. 3

Store perishable food (e.g. fish,

sausage, meat) in the coldest zones.

■ Warmest zone is at the very top of

Store e.g. cheese and butter in the

warmest zone. When served, the

cheese will not have lost its flavour

and the butter will be easy to spread.

Super cooling sets the refrigerator

temperature to the coldest temperature

setting for approx. 6 hours. Then the

appliance automatically switches to the

temperature set prior to super cooling

Switch on super cooling mode, e.g.

■ before placing large quantities of food

in the refrigerator compartment.

■ for the fast cooling of drinks.

Switching on and off

Press “super” button 4.

The button is lit when super cooling is

You can reposition the shelves inside the

appliance and the door shelves as

■ Pull shelf forwards, lower and swing

out to the side. Fig. 4

■ Raise the door shelf and remove.

To facilitate the storage of tall items (e.g.

cans or bottles), the front part of the

Vario shelf can be taken out and pushed

under the rear part.

Drawer for sausage and cheese

The drawer can be removed for adding

and removing food. Lift the drawer and

pull out. The drawer holder can be

Fig. 8 A/B Bottles can be stored securely on the

bottle shelf. The holder can be adjusted.

Temperature and humidity regulator for

For long-term storage of vegetables,

salads and fruit, slide the regulator all the

way to the right – ventilation opening is

open – temperature drops.

For short-term storage slide the regulator

to the left. Ventilation opening is closed –

high air humidity – temperature rises.

The bottle holder prevents bottles from

falling over when the door is opened

The “OK” temperature monitor can be

used to determine temperatures below

+4 °C. Gradually reduce the temperature

if the sticker does not indicate “OK”.

When the appliance is switched on,

it may take 12 hours until the

temperature is reached.

Switching the appliance off

Press the main On/Off switch 1 (red

circle becomes visible).

Temperature display goes out. Fridge

and light are switched off.

Disconnecting the appliance

If you do not use the appliance for a

1. Switch off the appliance.

2. Pull out mains plug or switch off fuse.

3. Clean the appliance.

4. Leave the appliance door open.en

Refrigerator compartment

defrosts fully automatically

While the refrigerating unit is running,

beads of condensation or hoarfrost form

at the back of the refrigerator

compartment. This is quite normal. It is

not necessary to wipe off the

condensation or frost. The rear panel

defrosts automatically. The condensation

runs into the condensation channel,

Fig. +. and is conveyed to the

refrigerating unit where it evaporates.

Keep the condensation channel and

drainage hole clean, so that the

condensation can run out.

Cleaning the appliance

■ Do not use abrasive, chloride or acidic

cleaning agents or solvents.

■ Do not use scouring or abrasive

sponges. The metallic surfaces could

■ Never clean shelves and containers in

the dishwasher. The parts may

1. Before cleaning: Switch the appliance

2. Pull out the mains plug or switch off

3. Clean the appliance with a soft cloth,

lukewarm water and a little pH neutral

washing-up liquid. The rinsing water

must not run into the light.

4. Wipe the door seal with clear water

only and then wipe dry thoroughly.

5. Rinsing water must not run through

the drainage hole into the evaporation

6. After cleaning reconnect and switch

the appliance back on.

All variable parts of the appliance can be

taken out for cleaning.

Take out glass shelves

Lift the glass shelves, pull forwards,

lower and swivel out to the side.

Condensation channel

Regularly clean the condensation

channel and drainage hole with a cotton

bud or similar implement to ensure that

the condensation can drain.

Take out shelves in the door

Lift shelves upwards and take out.en

Tips for saving energy

■ Install the appliance in a dry, well

ventilated room! The appliance should

not be installed in direct sunlight or

near a heat source (e.g. radiator,

If required, use an insulating plate.

■ Allow warm food and drinks to cool

down before placing in the appliance.

■ Thaw frozen food in the refrigerator

compartment and use the low

temperature of the frozen food to cool

■ Open the appliance as briefly as

■ Occasionally clean the rear of the

appliance to prevent an increased

Motors are running (e.g. refrigerating

Bubbling, humming or gurgling noises

Refrigerant is flowing through the tubing.

Motor, switches or solenoid valves are

The appliance is not level

Please align the appliance with a spirit

level. Use the height-adjustable feet or

place packing underneath them.

The appliance is not free-standing

Please move the appliance away from

adjacent units or appliances.

Containers or storage areas wobble

Please check the removable parts and

re-insert them correctly if required.

Bottles or receptacles are touching

Move the bottles or receptacles slightly

away from each other.en

Eliminating minor faults yourself

Before you call customer service:

Please check whether you can eliminate the fault yourself based on the following

Customer service will charge you for advice – even if the appliance is still under

Fault Possible cause Remedial action

greatly from the set

In some cases it is adequate to

switch off the appliance for

If the temperature is too high wait a

few hours and check whether the

temperature has approached the set

If the temperature is too low check

the temperature again the next day.

The bulb is defective. Replace bulb. Fig. ,/B

1. Switch the appliance off.

2. Pull out mains plug or switch off

3. Remove bulb cover from the rear.

see defective bulb for wattage.)

Check whether it can be moved.

Clean the condensation channel

and the drainage hole. See chapter

Cleaning the appliance. Fig. +

The temperature in the

Temperature has been

Your local customer service can be

found in the telephone directory or in the

customer-service index. Please provide

customer service with the appliance

product number (E-Nr.) and production

These specifications can be found on

the rating plate. Fig. -

To prevent unnecessary call-outs, please

assist customer service by quoting the

product and production numbers. This

will save you additional costs.

Repair order and advice

Contact information for all countries can

be found on the enclosed customer

Fault Possible cause Remedial action

The refrigerating unit

is switching on more

Do not open the appliance

Do not open the appliance

Before placing food in the freezer,

refrigeration capacity.

■ Appliance has been

■ The mains plug has

Press main On/Off switch. Fig. 2/1

Check whether the power is on.

électroniques usagés (waste

electrical and electronic

equipment – WEEE). La directive

définit le cadre pour une reprise

Electronic Equipment – WEEE).

electrical and electronic
