Loading discs and memory devices

Warranty Information

Product Registration

5 Please ensure that you find these accessories included with the CDJ-700:(1) Power cord (1) RCA cable(1) Operating instructions(1) Warranty Card 1 Do not use this CD player at temperatures below 41°F/5°C or higher than 95°F/35°C.2 The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids such as vases should be placed on the apparatus.3 Place the unit in a clean and dry location.4 Do not place the unit in an unstable location.5 When disconnecting the power cord from the AC outlet, always grasp by the plug. Never pull the power cord. 6 To prevent electric shock, do not remove the cover or the bottom screws. 7 There are NO USER SERVICEABLE PARTS INSIDE. Please refer to a qualified technician.•8 Do not use chemical solvents to clean the unit.9 Keep the laser pickup clean by keeping the tray closed.10 Keep this manual in a safe place for future reference.Laser Diode PropertiesMaterial: Ga - Al - AsWavelength: 755 - 815 nm (25° C)Laser Output: Continuous Wave, max. 0.5 mWSelecting fine audio equipment such as the unit you have just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This Manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing. Sound can be deceiv-ing. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level, start your volume control at a low setting. Slowly increase the sound until you can hear it com-fortably and clearly, and without distortion. Once you have established a comfortable sound level, set the dial and leave it there. Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this Manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.30 dB - Quiet library, soft whispers40 dB - Living room, refrigerator, bedroom away from traffic50 dB - Light traffic, normal conversation, quiet office60 dB - Air conditioner at 20 feet, sewing machine70 dB - Vacuum cleaner, hair dryer, noisy restaurant80 dB - Average city traffic, garbage disposals, alarm clock at two feetThe following noises can be dangerous at extended exposure:90 dB - Subway, motorcycle, truck traffic, lawn mower100 dB - Garbage truck, chain saw, pneumatic drill120 dB - Rock band concert in front of speakers, thunderclap140 dB - Gunshot blast, jet plane 180 dB - Rocket launch pad Information courtesy of the Deafness Research Foundation.Thank you for purchasing our Gemini CDJ-700. We are confident that the Gemini platform of products will not only make your life easier through the use of the latest technological advancements in cross-platform connectivity and sound reproduction but will raise the bar for DJ and pro audio products. With the proper care & maintenance, your unit will likely provide years of reliable, uninterrupted service. All Gemini prod- ucts are backed by a 1-year limited warranty*. w e wa n t y o u l i s t e n i n g

f o r a l i f e t i m e

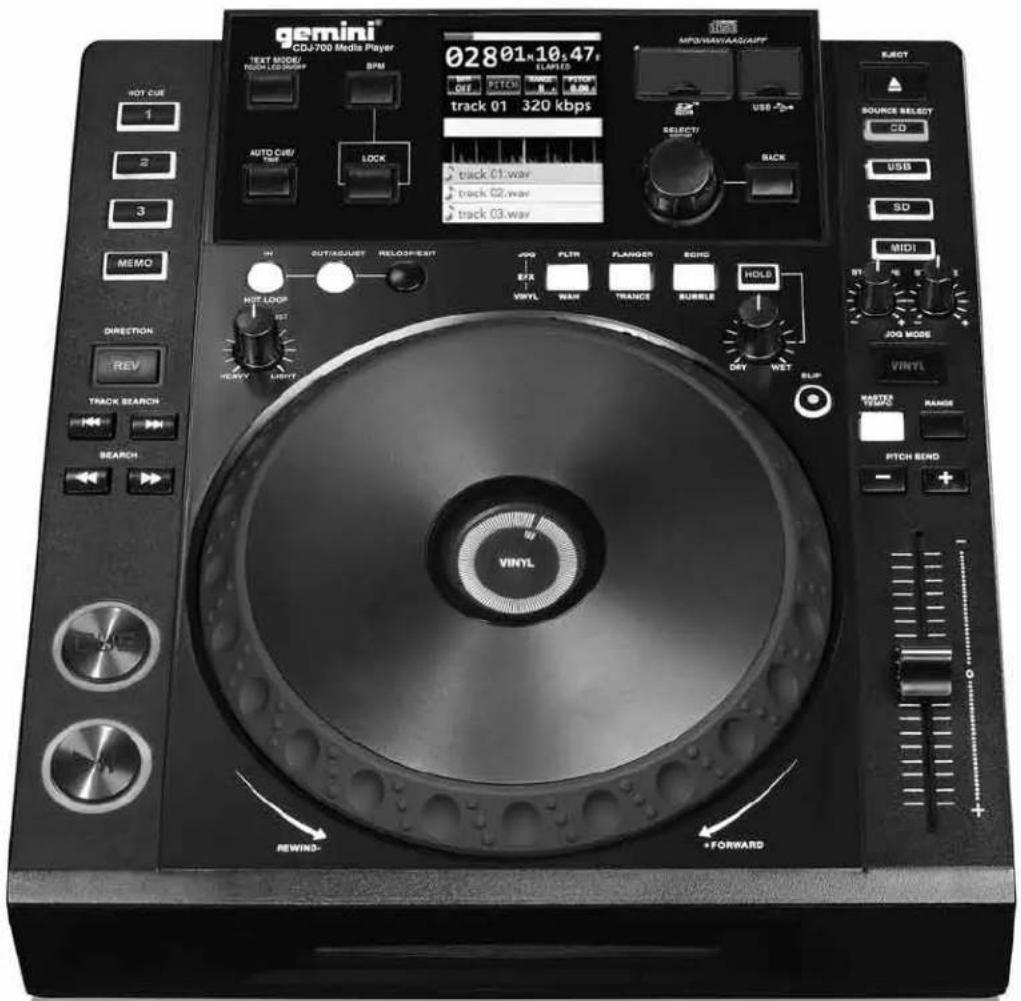

i n t r o d u c t i o n • In the USA- if you experience problems with this unit call Gemini customer service at 1 (732) 346-0061. Do not attempt to return this equipment to your dealer p r e p a r i n g f o r

To clean the CDJ-700, use only a dry soft cloth and/or com-

pressed air. If the unit is soiled with stubborn dirt, we suggest

using a 2:1 solution of distilled water and 30% isopropyl alcohol.

Avoid using harsh cleaning chemicals such as benzene, paint

thinner, bleach, or hydrochloric acid, which will damage the unit.

For optimum performance, the temperature of the operating

environment should be between +5º C to +35º C (+41º F - +95º

F). Failure to maintain proper operating temperature may result

in difficulty reading the display, thermal overload, or system-

wide instability. Avoid exposing the unit to direct sunlight.

When placing the unit in an installation, make sure that it is

placed on a stable surface, as far away from vibrations as possi-

ble. Even though the unit is impervious to vibration, the storage

devices (specifically hard drive based ones) that are designed

to be used in conjunction with it are typically not. Also be sure

not to place or use the player on heat generating sources, such

as amplifiers or near spotlights.

The CDJ-700 plays discs (CD compatible) as well as music files

on USB memory devices. All of the following file formats are

• WAV (16-bit PCM, sample rates of 8 kHz, 11.025 kHz, 12

kHz, 16 kHz, 22.50 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz)

• MP3 (16 bit, 44.1 kHz, MPEG-I, Layer III)

• AAC (16 bit, 44.1 kHz, stereo, AAC Core, AAC Plus, AAC Plus v2)

Supported file systems on Memory Stick Devices include:

• NTFS The CDJ-700 can also send MIDI data from the buttons and

dials to a computer to control the parameters and playback

controls of DJ software. The audio playback from the computer

can also be output from the CDJ-700.

Before using the CDJ-700 as an audio device, connect the

CDJ-700 with a USB cable and allow your PC/MAC to detect it.

Open your DJ software and select the CDJ-700’s output device

in the DJ software’s settings. For instructions on how to do this,

see your DJ software’s operating instructions.

The CDJ-700 is a plug and play device that requires no software

installation. The CDJ-700’s audio and MIDI drivers are compatible

• To use the CDJ-700 with a computer using Windows, con-

nect the CDJ-700 to your PC after starting up the com-

puter. The CDJ-700 will configure standard WDM drivers.

Select the CDJ-700 as your device to use it as your audio

device. ASIO drivers can also be configured for use with

the CDJ-700, such as ASIO4ALL.

• To use the CDJ-700 with a computer using a MAC op-

erating system, connect the CDJ-700 to your MAC after

starting up the computer. Use the system’s standard CORE Audio drivers and select the CDJ-700 as the device.

i n t r o d u c t i o n

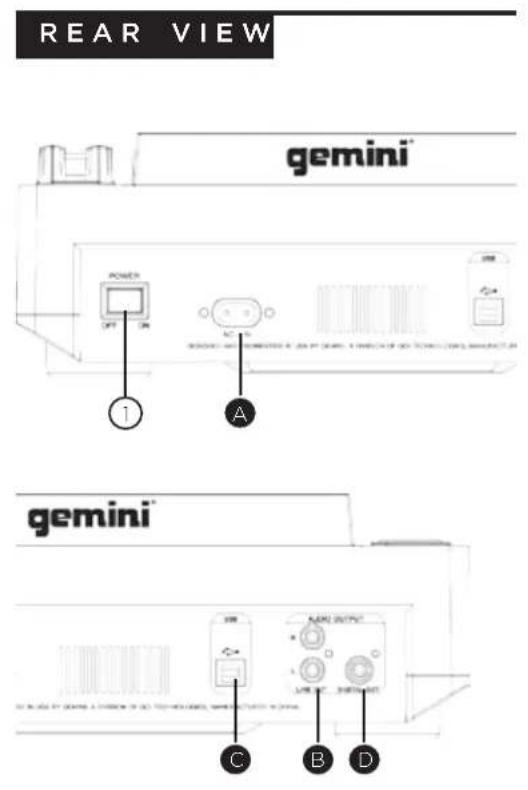

Plug in the power cord of the CDJ-700 into the AC IN

Plug one end of the included RCA cable into the LINE OUTPUT JACK (B) on the rear panel. Plug the other end

of the RCA connectors into any available line input jacks

on your mixer. If you are connecting the CDJ-700 through

a receiver, you can plug the RCA connectors into the CD AUX INPUT JACKS on your receiver. If there are no CD or

AUX INPUTS use any line level (not phono) inputs.

Plug iin the USB cable into the USB OUT (C) on the rear

panel. Plug the other end of the USB cable into any avail-

able USB port on your computer. This will enable you to

use the CDJ-700 in MIDI mode.

Plug a S/PDIF cable (not included) into the DIGITAL OUT

on the CDJ-700 (D) and into any DIGITAL IN port on any

device. This will send the digital audio to that input. Pos-

sible applications include using the DIGITAL OUT to

record or to feed to a DAW (Digital Audio Workstation)

c o n n e c t i o n s

c o n n e c t i n g t h e c d j - 700c d j - 7 0 0 m a n u a l • g e m i n i d j . c o m

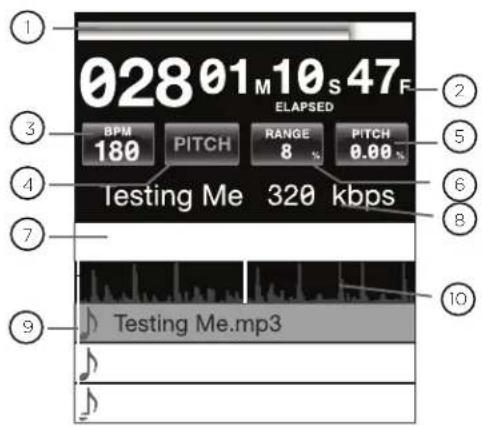

Time PRogReSS BAR Shows the current position in the track.

Time diSPLAY Shows the current time value of the track.

Displays current BPM value in auto and manual

When MASTER TEMPO is OFF, PITCH is dis-

played in this field. When MASTER TEMPO is

ON, TEMPO is displayed in this field.

LiBRARY BRowSeR Displays playable tracks and folders

Displays a visual representation the loaded

track’s audio. Pressing the waveform changes

the magnification. The values are: 3.2 seconds,

6.5 seconds, 12 seconds, and 24 seconds.

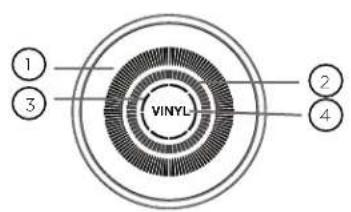

TRAcK diSPLAY Simulates a turntable playing at 33 1/3 RPM and

displays the current track position.

cUe PoinT/SLiP diSPLAY Displays the CUE point assigned to the track. In

SLIP mode, it displays the normal playback posi-

jogwheel is pressed.

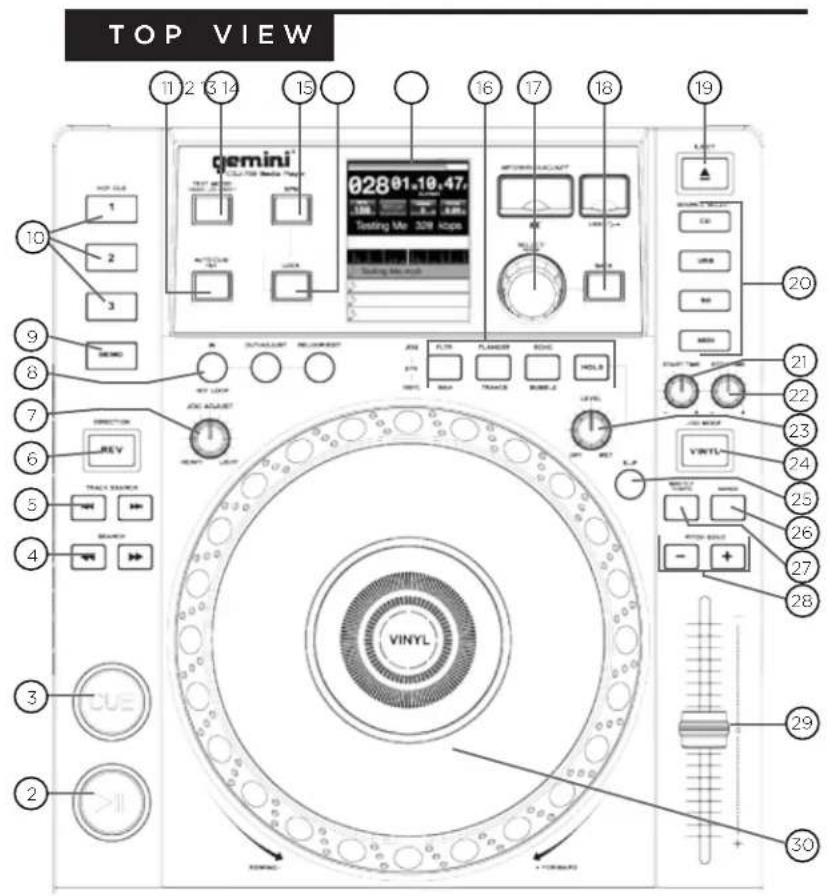

Once you have connected all your cables, you can turn the

CDJ-700’s POWER on by pressing the POWER (1) button,

pressing the button a second time will turn off the unit.

The SOURCE SELECT (20) allows you to choose the me-

dia from which you will play music:

cd Pressing the CD source button allows you to play

music from the CD drives.

USB Pressing the USB source button allows you to play

music from a USB device.

Sd Pressing the SD source button allows you to play

music from a SD/SDHC card.

midi Pressing the MIDI source button switches the unit

to MIDI mode with bi-directorial support. In this mode,

all controls (button pressings, pitch potentiometers

moving and wheel rotations) are registered on the unit

and transferred to PC via USB MIDI. This can be used in

conjunction with DJ software to contrhol the software’s

parameters. (For more information, see page 9).

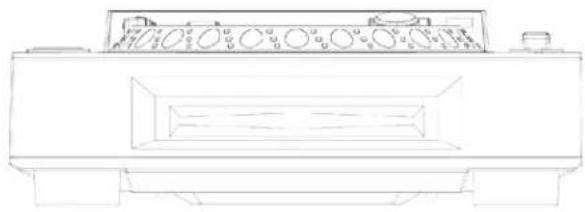

The SLOT-IN CD-ROM (pictured below) is where the CD

is held during loading, unloading and playback, and holds

both 12 cm and 8cm CD’s.

Pressing the EJECT (19) button will eject the disc from the

SLOT-IN CDROM. The disc will not eject in PLAY mode.

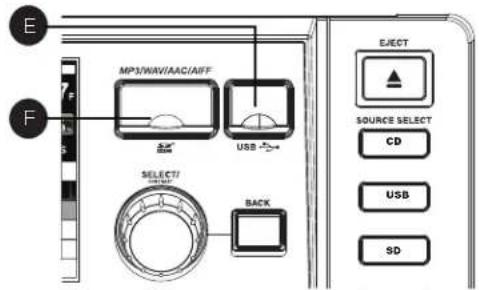

USB Insert the USB memory device into the USB input (E)

on the top of the CDJ-700. Upon loading the device, the

LCD Touch Display will show the folders and tracks on the

Sd Insert the SD card into the SD card slot (F) on the top

of the CDJ-700. Upon loading the device, the LCD Touch

Display will show the folders and tracks on the SD memory

To eject the USB and SD card, change the SOURCE SE-

LECT (20) to another selection and remove the USB mem-

ory device or SD card. To eject the SD card, press the SD

card in. When it pops up, pull the SD card out vertically.

*NOTE: Before powering off the CDJ-700, remove any USB

memory device or SD card to ensure that no corruption of

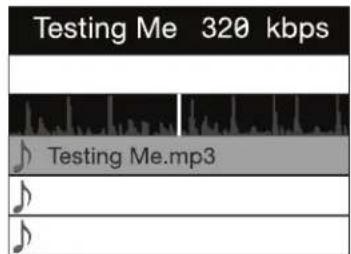

The browsing display shows the playable files and folders

on the CD, USB memory device, or SD card.

Rotating the rotary ENCODER(17) allows search-

ing through the browser. This can also be done

via touching the screen in the browsing display

To open a folder, highlight a folder and press in the EN-

CODER (17) to select. To load a track, highlight a track to

load and press the ENCODER(17) again.

To return to the previous folder, press the BACK

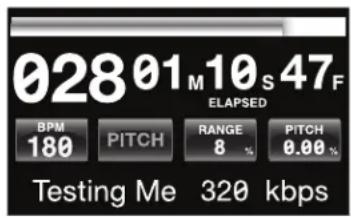

11 Once you have loaded a track, the TRACK TITLE on the LCD Touch Screen will display the loaded track.Pressing PLAY/PAUSE / ll (2) will begin playback of the selected track. Pressing PLAY/PAUSE / ll (2) again will pause playback and hold the track at the current position. • Pausing playback before the disc is ejected: -Before ejecting a disc, the unit must be PAUSED. The disc will not eject while the unit is playing.Pressing SEARCH / (4) will search through the track in the direction (forward/reverse). Pressing and holding SEARCH / (4) will fast-search through the track in the direction (forward/reverse).Pressing TRACK SEARCH l (5) will advance to the beginning position of the next track. Pressing TRACK SEARCH l (5) will return the current track to the beginning position. Pressing TRACK SEARCH l (5) twice consecutively returns to the beginning point of the previous track. • When searching through folders:-When files are organized in folders, only tracks within the same folder are searched.• Autocue function:-When autocue is enabled, the player will pause at the beginning of the track.Pressing REVERSE (6) will begin playback in the reverse direction.Pressing the PITCH BEND [+] [-] (28) will raise the pitch up to +100% or lower the pitch down to -100% from the existing pitch setting. Releasing the buttons will return the pitch to the original pitch setting.Moving the PITCH CONTROL FADER (29) will accelerate the pitch/tempo when moved towards [+] and deaccellerate the pitch/tempo when it is moved towards [-].The current PITCH/TEMPO value is displayed on the LCD Touch Display. Pressing the RANGE (26) button adjusts the range of the PITCH CONTROL FADER between +/- 4%, 8%, 16%, 24% ,50% and 100%MASTER TEMPO (27) allows tempo adjustment without changing the original pitch. The current mode, either PITCH or TEMPO, is displayed on the LCD Touch Display. • RANGE in MASTER TEMPO:-In MASTER TEMPO mode, the range is +/- 4%, 8%, 16%, 24% ,50% and 100%• Sound quality:-The sound is digitally processed in MASTER TEMPO mode, so a loss in sound quality may occur if drastic tempo adjustments are employed. p l ay b a c k c o n t r o l s

12 Press and hold the BPM (13) button to toggle between different BPM modes: BPM ID3 / AUTO BPM / MANUAL BPM. id3 when BPM mode is set to ID3, the BPM information from the ID3 will be displayed.AUTo BPm When BPM mode is set to AUTO BPM, the beats per meter is calculated automatically and corre-sponding info is displayed on LCD in BPM field. mAnUAL BPm When BPM mode is set to MANUAL, the BPM (13) button can be used to set the beats per minute of playback by a series of TAPS at the desired tempo.noTe If a BPM value is present in file info ID3 tag, the value is loaded into the unit and displayed.The BPM LOCK feature allows the user to set the desired value of the BPM by rotating the rotary knob and push-ing down to set BPM. After the mode is activated the pitch/master tempo value will be automatically adjusted to match desired BPM level. To enable the LOCK feature, set the desired BPM and press the LOCK (14) button.To turn OFF the LOCK feature, press the LOCK (14) but-ton again.NOTE: Valid BPM range for setting is restricted to the following: 80 – 196 BPM. SeTTing A cUe PoinT While the unit is in playback, press PLAY/PAUSE / ll (2) to pause the track. While the track is paused, press CUE (3) to set the cue point at the current position. The CUE indicator illumi-nates when the CUE point is set as well as the marking the CUE point on the Jogwheel display. AdjUSTing THe cUe PoinT After the cue point has been programmed, press PLAY/PAUSE / ll (2) to pause the track at the cue point. Press SEARCH / (4) or rotate the jogwheel to adjust the cue position. Press CUE (3) to set the cue point at the current position. ReTURning To THe cUe PoinT While the unit is playing and after the cue point has been programmed, pressing CUE (3) will cause the unit to enter the PAUSE mode (PLAY/PAUSE BUTTON blinks) at the programmed cue point (the CUE LED is lit). Holding down the CUE button changes the function to preview, and allows you to stutter start or play from the programmed CUE POINT. Releasing the CUE button will return the CD to the preset CUE point. AUTo cUe The AUTO CUE (11) function sets the cue at the point immediately before sound starts, skipping the beginning silent section of tracks. Press AUTO CUE (11) to enable auto cue. p l ay b a c k c o n t r o l s

SETTING HOT CUES During playback or in pause mode, press HOT CUE 1, 2 or 3 (10) at the point in the track where the HOT CUE is to be set.Once pressed, the programmed HOT CUE (1, 2, or 3) should now be illuiminated. To delete a hot cue, press MEMO (9) to enable de-leting and select the hot cue for deletion. PLAYING HOT CUES Before playing hot cues, make sure MEMO (9) is not enabled.During playback or in the pause mode, press HOT CUE 1, 2 or 3 (10) and playback starts instantaneously from the point recorded on that HOT CUE.Pictured LOOP IN / LOOP OUT/ADJUST / RELOOP/EXIT (8) SETTING A LOOP During playback, press LOOP IN (8) at the desired starting position for the loop (loop in point). Press LOOP OUT / ADJUST (8) at the desired ending position for the loop (loop out position). The loop out point is now set and loop playback starts from the loop in point. ADJUSTING A LOOP To adjust the loop once the loop is set, press the OUT/ADJUST (8) button. The LOOP IN (8) button will stop blinking. • The length of the loop can be adjusted by rotat-ing the jogwheel (30) clockwise to extend the loop. Rotate the jogwheel counterclockwise to shorten the loop. CANCELING A LOOP While the loop is engaged, press RELOOP/EXIT (8) to disengage the loop. Playback continues after the loop out point. RETURNING TO A LOOP After canceling a set loop, press RELOOP/EXIT (8) during playback to reengage the last set loop. Loop playback begins at the loop in point. c u e c o n t r o l s c o n t i n u e d l o o p c o n t r o l s

p l ay b a c k c o n t r o l sc d j - 7 0 0 m a n u a l • g e m i n i d j . c o m

14 The CDJ-700 has six built-in effects: FLTR, FLANGER, ECHO, WAH, TRANCE, and BUBBLE.FLTR The FLTR effect is a band-pass filter and will filter out either the high frequencies or the low frequencies depending on the position of the EFFECT PARAMETER BAR. In the center position, there is no effect on the sound. Adjusting the effect towards the left will gradu-ally remove high frequencies until there is just lowend (bass). Adjusting the effect towards the right will gradu-ally remove the low frequencies until only high frequen-cies (treble) remain.FLAngeR The FLANGER effect is a time-based audio effect that occurs when two identical signals are mixed together, but with one signal time-delayed by a small and gradually changing amount. Varying the time delay causes these to sweep up and down the frequency spectrum. By sliding the EFFECTS PARAMETER BAR to the left the flanger gets slower and when you slide the parameter bar to the right the flanger gets faster.ecHo The ECHO effect repeats the audio several times, softer each time. Adjusting the EFFECTS PARAMETER BAR towards the left will shorten the time between the repeats and decrease the volume of the repeats, while adjusting the EFFECTS PARAMETER BAR towards the right will lengthen the time between the repeats and increase the volume of the repeats.wAH The WAH effect is an autowah effect that uses a variable cutoff frequency lowpass filter that exhibits a resonant peak just at its lowpass rolloff frequency to emulating the human voice making a “waaaah” tone, or its tonal inverse, “aaaooow”. BUBBLe The BUBBLE effect is a preset effect that com- bines the WAH and ECHO effects.TRAnce The TRANCE effect uses amplitude modulation in order to cut the audio’s volume in and out. e f f e c t s s e c t i o n

e f f e c t s c o n t r o l s

enABLing An eFFecT During playback, the EFFECT (16) section allows you to enable/disable effects. When VINYL (24) mode is disabled, the FLTR / FLANGER / ECHO effect set are the effects that can be used. When VINYL (24) mode is enabled, the WAH / TRANCE / BUBBLE effect set are the effects that can be used. AdjUSTing THe eFFecTS The EFFECTS DRY/WET (23) control adjusts the mix of the non-affected signal and the affected signal. Turn clockwise to increase the amount of the affected signal. Turn counter-clockwise to in-crease the amount of the non-affected signal.The EFFECTS PARAMETER BAR located on the LCD shows the value of the effects parameter for the FLTR / FLANGER / ECHO effect set. The WAH / TRANCE / BUBBLE effect set does not have any adjustable parameters.To adjust the parameter of the FLTR / FLANGER / ECHO effect set, touch the EFFECTS PARAMETER BAR on the LCD touch display and adjust the param-eter position to the desired spot. The effect param-eter can also be adjusted by using the jogwheel (30). Rotating the jogwheel (30) clockwise will increase the value of the parameter, rotating the jogwheel counter-clockwise will decrease the parameter.NOTE: When the effect is selected the name of the effect should appear at this place of the screen for about 5 seconds. HoLd mode Pressing HOLD will enable/disable effect HOLD mode. This will apply effect with selected parameters to music. When an effect is enabled, but HOLD mode is dis-abled, you can change the effect’s parameters and listen to it by rotating the jogwheel (30) or moving the finger along effect bar on the LCD touch screen. When the jogwheel (30) stops rotating, the effect will disengage. To keep the effect engaged, apply HOLD mode.It is possible to change the effect parameters in HOLD mode as well which will preserve the parameter value and keep the effect enabled.c d j - 7 0 0 m a n u a l • g e m i n i d j . c o m

jogwHeeL AdjUST The JOG ADJUST (7) rotary allows adjustment to the feel of the jogwheel. For a stiffer and heavier feel, rotate the JOG ADJUST (7) rotary to the left. For a looser and lighter feel, rotate the JOG ADJUST (7) rotary to the right. VinYL mode Pressing the VINYL (24) button enables VINYL mode and illuminates the Vinyl indicator on the joghwheel display. Enabling VINYL mode allows scratch-like effects when the JOGWHEEL (30) is depressed and rotated. When VINYL mode is disabled, the JOGWHEEL (30) will be in SEARCH MODE and will allow searching through the track.

The VINYL button also activates WAH / TRANCE / BUBBLE effects set instead of FLTR / FLANGER / ECHO set. In this mode rotating the JOG WHEEL will produce scratch sound and change the parameters of the effects. START Time / SToP Time Adjusting the START TIME (21) jog mode ad-justment adjusts the speed at which playback returns to normal when the top of the jog-wheel is released and when the unit resumes playback from pause mode. The start time increases when turned clockwise and decreases when turned counterclockwise. The STOP TIME (22) jog mode adjustment adjusts the speed at which playback slows when the top of the jog-wheel is touched and when pause is enabled. The stop time increases when turned clockwise and decreases when turned counterclockwise. SLiP mode When SLIP (25) is enabled, normal playback con-tinues inaudibly underneath SCRATCH, LOOP, and REVERSE effects. When SCRATCH, LOOP, or REVERSE mode is exited, normal playback resumes from the in-audible playback spot as indicated on the JOGWHEEL (30) display. SLiP wiTH ScRATcH To use SLIP while scratching, enable VINYL mode by pressing the VINYL (24) button. Enable SLIP mode by pressing the SLIP (25) button.Using the jogwheel will now create scratch effects while normal track playback continues inaudibly undeneath. The position playing underneath is shown on the jog-wheel display.Once the jogwheel is released, track playback will con-tinue from the playback position playing underneath.NOTE: When using SLIP mode with scratch, SLIP reverse operations will not be performed. SLiP wiTH LooP To use SLIP with loop playback, enable SLIP mode by pressing the SLIP (25) button.Set a loop (page 12) using the IN/OUT controls and loop playback will begin. The SLIP (25) button will begin flashing indicating SLIP mode is active and the position playing underneath is shown on the jogwheel display.Upon exiting the loop, track playback will continue from the playback position playing underneath. SLiP wiTH ReVeRSe To use SLIP with reverse playback, enable SLIP mode by pressing the SLIP (25) button.Press REVERSE (6) to begin playback in the reverse di-rection. The SLIP (25) button will begin flashing indicat-ing SLIP mode is active and the position playing under-neath is shown on the jogwheel display.Press REVERSE (6) again to exit reverse playback. Upon exiting reverse playback, track playback will continue from the playback position playing underneath. j o g w h e e l c o n t r o l s

j o g w h e e l c o n t r o l sc d j - 7 0 0 m a n u a l • g e m i n i d j . c o m

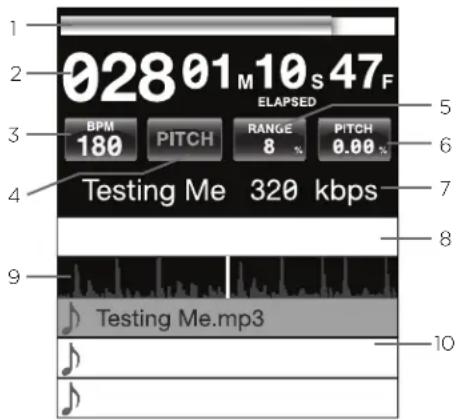

16 The CDJ-700’s LCD display also has touch functionality. The following features can used by touching the LCD TOUCH DISPLAY (15)TIME PROGRESS BAR Touching the TIME PROGRESS BAR will skip to the selected position of the track.TIME Toggles between time elapsed and time remain display modes.BPM Displays current BPM value in auto and manual BPM mode or displays the BPM information from the ID3 tag when BPM mode is set to ID3.TEMPO/PITCH Has the same functionality as MASTER TEMPO button (page 10). When MASTER TEMPO is OFF, PITCH is displayed in this field. When MASTER TEMPO is ON, TEMPO is displayed in this field .RANGE Has the same functionality as RANGE button (page 10).PITCH/MT VALUE Allows you to enable/disable PITCH/MT (page 10). Additionally it shows current PITCH/MT value.TRACK TITLE Allows you to select title/artist/album/genre text displaying. Touch on this area will switch be-tween display modes.EFFECTS PARAMETER BAR Allows you to set effect values by touching the desired position. TRACK WAVEFORM Displays a visual representation the loaded track’s audio. Pressing the waveform changes the magnification. The values are: 3.2 seconds, 6.5 seconds, 12 seconds, and 25 seconds.TRACK SELECT Allows you to select a track or enter a folder. Touching this area will enter a folder. AdjUSTing conTRAST Pressing and holding the ENCODER (17) and ro-tating the rotary will adjust the contrast of the 240x320 display. To increase the contrast ratio, rotate clockwise. To decrease the contrast ratio rotate the counter-clockwise. TRAcK TeXT diSPLAY mode Press the TEXT MODE / TOUCH ON/OFF (12) to alter the displayed information on the LCD TOUCH DISPLAY (15) between title/artist/album/genre info for files. PRESS and HOLD the TEXT MODE / TOUCH ON/OFF (12) to enable/disable touch screen functionality. Time eLAPSed/RemAin diSPLAY Press and hold the TIME/AUTOCUE (11) button to switch track time display modes between time elapsed and time remain. d i s p l a y c o n t r o l s

The CDJ-700 has MIDI mode, which allows the data from

the buttons and dials of the CDJ-700 to be encoded into

MIDI format. If the unit is connected via a USB cable to a

computer with MIDI-compatible DJ software, the DJ soft-

ware can be operated from the unit. The computer audio

can also be played from the CDJ-700’s outputs.

It may not be possible to use some buttons to operate the

DJ sofware. For a list of MIDI messages refer the the MIDI Device Messages Table.

noTe For instructions for your specific DJ software’s

settings refer to your DJ software’s operating manual.

In addition to MIDI, the CDJ-700 also uses HID protocol which

allows greater speeds.

If your software supports HID devices, disable MIDI devices in

your software, and search for HID devices. This should locate

the CDJ-700 and allow you to use it as a HID device.

conFigURing midi mode

Connect the USB cable from the unit’s rear USB port (D) to

the computer. Press the MIDI source selection on the CDJ-

700 (20). This will terminate playback of the CD/USB/SD

The CDJ-700 will then display an audio configuration

prompt for audio bit rate and sampling rate on the touch

screen with the following audio settings:

Press and hold the MIDI source select button to swtich

between audio settings. Press MIDI to toggle between audio

settings and press the ENCODER (14) to apply the setting.

Press BACK (15) to exit.

noTe Higher bit depth and sampling rates will create

greater latency and may impact performance.

After configuring the audio settings on the CDJ-700, start

• Select the CDJ-700 as your MIDI device*

• Select the CDJ-700 as your AUDIO device* *Refer to DJ software’s instructions m i d i c o n t r o l s

m i d i d e v i c e m e s s a g e s t a b l e

Track Search << Track reverse 9 0 127

Track Seach >> Track forward 10 0 127

Browse Left Up in tracklist 11 0 127

Browse Right Down in tracklist 12 0 127

Loop In Loop In 16 0 127

Track Skip >> Next track 35 0 127

Pitch Slider (14bit) Pitch Slider 44 0 127 *NOTE: 14-bit pitch slider allows for greater accuracy when transmitting pitch information but may not be compatible with all DJ Software.ControllerParameterSoftwareParameterBit Byte Value Cue Cue 1 1 1- on, 0 - off

Play/Pause Play/Pause 2 1 1- on, 0 - off

+ (pitch bend) Pitch + 3 1 1- on, 0 - off

- (pitch bend) Pitch - 4 1 1- on, 0 - off

HotCue 1 Cue 1 5 1 1- on, 0 - off HotCue 2 Cue 2 6 1 1- on, 0 - offHotCue 3 Cue 3 7 1 1- on, 0 - offMemo Memo 8 1 1- on, 0 - off Track Search << Track reverse 9 1 1- on, 0 - off

Track Seach >> Track forward 10 1 1- on, 0 - off

Browse Left Up in tracklist 11 1 1- on, 0 - off

Browse Right Down in tracklist 12 1 1- on, 0 - off

Master Tempo Master Tempo 13 1 1- on, 0 - off Vinyl Scratch 14 1 1- on, 0 - off Select Load Track 15 1 1- on, 0 - off

Loop In Loop In 16 2 1- on, 0 - off

Loop Out/Adjust Loop Out 17 2 1- on, 0 - off

Reloop/Exit Reloop 18 2 1- on, 0 - off

BPM BPM 19 2 1- on, 0 - off

Wheel Touch Wheel Touch 24 3 1- on, 0 - off

Time Elapsed/Remain 26 3 1- on, 0 - off

Autocue Autocue 27 3 1- on, 0 - off LOCK LOCK 28 3 1- on, 0 - off Range Range 29 3 1- on, 0 - off

Reverse Reverse 30 3 1- on, 0 - off

Slip Slip 31 3 1- on, 0 - off

Track Skip << Prev. track 34 4 1- on, 0 - off

Track Skip >> Next track 35 4 1- on, 0 - off

Hold Effect On/Off 36 4 1- on, 0 - off

Eject Deck Select 37 4 1- on, 0 - off

Effect4 (wah) Effect4 (select) 38 4 1- on, 0 - off

Effect5 (trance) Effect5 (select) 39 4 1- on, 0 - off

- If the unit does not read the SD memory card, check to see

if the memory card was inserted correctly and inserted com-

- If a ”Media err. Please Check Media Format and Try Again”

message appears, this signifies that your SD memory device is

formatted incorrectly.

-If the computer does not recognize the device, try powering

the unit off and rebooting the computer.

-If the DJ software does not list the device, ensure that you are

using the latest version by downloading any updates to your DJ

software. If the CDJ-700 mapping does not appear in your DJ

software’s list, go to geminidj.com for downloads and support.

t r o u b l e s h o ot i n g

- If a disc will not play, check to see if the disc was

loaded correctly (label side up). Also check the disc for

excessive dirt, scratches, etc.

- If a disc contains a non-compliant file format causing a

playback error, press and hold the EJECT (19) button for

4 seconds. The unit will eject the disc and reboot.

- If the disc turns but there is no sound, check the cable

connections, if they are ok, check your amplifier or

-If the CD skips, check the CD for dirt or scratches. Do

not assume that the CD layer is defective. Many CD’s

are recorded out of spec and will skip on most or all CD

players. Before sending the unit for repair, try playing a

CD that you are sure plays properly.

USB memoRY deVice eRRoRS Some USB devices may not operate properly with the

CDJ-700. Gemini accepts no resposibility for any pos-

sible data loss that may occur. To ensure that data is not

permanently lost, please make sure to backup any data

prior to connecting the USB device to the the unit.

- USB hubs cannot be used with the CDJ-700.

- If the unit does not read the USB memory device,

check to see if the memory device was inserted

- If a “Too many devices” message appears, it is because

a USB hub is in use. The CDJ-700 does not work with

USB hubs. Disconnect the USB hub and connect the

USB memory device directly into the CDJ-700.

-If a ”Media err. Please Check Media Format and Try

Again” message appears, this signifies that your USB

memory device is formatted incorrectly.

t r o u b l e s h o o t i n gc d j - 7 0 0 m a n u a l • g e m i n i d j . c o m

geneRAL Type CD/USB/SD media player w/ MIDI and HID USB output typeType B Disc TypeStandard Compact discs (12 cm & 8 cm)

Power consumption 10W Dimensions 13 1/8 x 12 x 4.5 inches

Weight 7.2 lbs. (3.3 kg)

Quantization1 Bit Linear/Channel, 3 Beam Laser

Oversampling Rate8 Times

Frequency Response20 Hz to 20 kHz

Total Harmonic DistortionLess Than 0.05%

Signal to Noise Ratio< 100dB Dynamic Range > 100dB Output Level1.0 +/- 0.2V R.M.S.

Output typeCoaxial digital (S/PDIF)

Output format44.1 kHz, 16-bit

Bit Depth24-bit, 16-bit

• AIFF (16 bits, 44.1 kHz, stereo)

Track Seach >> Track forward 10 0 127 Browse Left Up in tracklist 11 0 127 Browse Right Down in tracklist 12 0 127

Vinyl Scratch 14 0 127

Loop In Loop In 16 0 127

Jogwheel Jogwheel 32 0, 63 63, 128

Pitch Slider PitchSlider 33 0 127

Track Skip << Prev. track 34 0 127

Track Skip >> Next track 35 0 127 Hold Effect On/Odd 36 0 127 Eject Deck Select 37 0 127

+ (inflex. tonal) Pitch + 3 0 1- on, 0 - off

- (inflex. tonal) Pitch - 4 0 1- on, 0 - off HotCue 1 Cue 1 5 0 1- on, 0 - offHotCue 2 Cue 2 6 0 1- on, 0 - off HotCue 3 Cue 3 7 0 1- on, 0 - off Memo Memo 8 1 1- on, 0 - off Track Search << Track reverse 9 1 1- on, 0 - off

Track Seach >> Track forward 10 1 1- on, 0 - off

Browse Left Up in tracklist 11 1 1- on, 0 - off

Browse Right Down in tracklist 12 1 1- on, 0 - off

Master Tempo Master Tempo 13 1 1- on, 0 - off

Vinyl Scratch 14 1 1- on, 0 - off

Select Load Track 15 1 1- on, 0 - off Loop In Loop In 16 2 1- on, 0 - off Loop Out/Adjust Loop Out 17 2 1- on, 0 - off Reloop/Exit Reloop 18 2 1- on, 0 - offBPM BPM 19 2 1- on, 0 - off Effect1 (wah) Effect1 (select) 20 2 1- on, 0 - off

Effect2 (flanger) Effect2 (select) 21 2 1- on, 0 - off

Wheel Touch Wheel Touch 24 3 1- on, 0 - off

Time Elapsed/Remain 26 3 1- on, 0 - off

Autocue Autocue 27 3 1- on, 0 - off LOCK LOCK 28 3 1- on, 0 - off Range Range 29 3 1- on, 0 - off

Reverse Reverse 30 3 1- on, 0 - off Slip Slip 31 3 1- on, 0 - off Track Skip << Prev. track 34 4 1- on, 0 - off

Track Skip >> Next track 35 4 1- on, 0 - off

Hold Effect On/Odd 36 4 1- on, 0 - off

Eject Deck Select 37 4 1- on, 0 - off

Effect4 (wah) Effect4 (select) 38 4 1- on, 0 - off

Effect5 (trance) Effect5 (select) 39 4 1- on, 0 - off

Effect6 (bubble) Effect6 (select) 40 5 1- on, 0 - off

Jogwheel Jogwheel 64-71 8 Min=0, Max=225

Track Seach >> Track forward 10 0 127

Loop In Loop In 16 0 127

Curseur Pitch (14-bit) Curseur Pitch 44 0 127 Paramètre du CDJ-700 Paramètre logiciel Bit Byte Valeur

Cue Cue 1 1 1 - on, 0 = off

Play/Pause Lecture/Pause 2 1 1 - on, 0 = off

+ (Pitch Bend) Pitch + 3 1 1 - on, 0 = off

- (Pitch Bend) Pitch - 4 1 1 - on, 0 = off HotCue 1 Cue 1 5 1 1 - on, 0 = off HotCue 2 Cue 2 6 1 1 - on, 0 = off

HotCue 3 Cue 3 7 1 1 - on, 0 = off

Memo Memo 8 2 1 - on, 0 = off

Track Search << Track reverse 9 2 1 - on, 0 = off

Track Seach >> Track forward 10 2 1 - on, 0 = off

Browse Left Sup. dans liste 11 2 1 - on, 0 = off Browse Right Inf. dans liste 12 2 1 - on, 0 = off Master Tempo Master Tempo 13 2 1 - on, 0 = off Vinyl Scratch 14 2 1 - on, 0 = off Select Chargement piste 15 2 1 - on, 0 = off Loop In Loop In 16 2 1 - on, 0 = off Loop Out/Adjust Loop Out 17 2 1 - on, 0 = off Reloop/Exit Reloop 18 2 1 - on, 0 = offBPM BPM 19 2 1 - on, 0 = off Effe t1 (Wah) Effet 1 (sélection) 20 2 1 - on, 0 = off Effet 2 (Flanger)Effet 2 (sélection)21 2 1 - on, 0 = offEffet 3 (Echo)Effe t3 (sélection)22 2 1 - on, 0 = off Back Folder Out 23 2 1 - on, 0 = off

Wheel Touch Toucher molette 24 3 1 - on, 0 = off

Temps Écoulé/Restant 26 3 1 - on, 0 = off

Autocue Autocue 27 3 1 - on, 0 = off

LOCK LOCK 28 3 1 - on, 0 = off

Range Plage 29 3 1 - on, 0 = off

Reverse Inversé 30 3 1 - on, 0 = off Slip Slip 31 3 1 - on, 0 = off Saut piste << Piste précédente 34 4 1 - on, 0 = off

Saut piste >> Piste suivante 35 4 1 - on, 0 = off

Hold Effet On/Off 36 4 1 - on, 0 = off

kHz, 16 kHz, 22,50 kHz, 24 kHz, 32 kHz, 44,1 kHz, 48 kHz)

Loop in / Loop out/Adjust

Track Seach >> Track forward 10 0 127 Browse Left Up in tracklist 11 0 127 Browse Right Down in tracklist 12 0 127

Vinyl Scratch 14 0 127

Loop In Loop In 16 0 127

Jogwheel Jogwheel 32 0, 63 63, 128

Pitch Slider (14-bit) PitchSlider 44 0 127 Controller-ParameterSoftware-ParameterBit Byte Wert Cue Cue 1 1 1 - on, 0 - off

Play/Pause Ply/Pause 2 1 1 - on, 0 - off

+ (pitch bend) Pitch + 3 1 1 - on, 0 - off

- (pitch bend) Pitch - 4 1 1 - on, 0 - off HotCue 1 Cue 1 5 1 1 - on, 0 - off HotCue 2 Cue 2 6 1 1 - on, 0 - off

HotCue 3 Cue 3 7 1 1 - on, 0 - off

Memo Memo 8 1 1 - on, 0 - off

Track Search << Track reverse 9 1 1 - on, 0 - off

Track Seach >> Track forward 10 1 1 - on, 0 - off

Browse Left Up in tracklist 11 1 1 - on, 0 - off

Browse Right Down in tracklist 12 1 1 - on, 0 - off

Master Tempo Master Tempo 13 1 1 - on, 0 - off

Time Elapsed/Remain 26 3 1 - on, 0 - off

Autocue Autocue 27 3 1 - on, 0 - off

LOCK LOCK 28 3 1 - on, 0 - off

Range Range 29 3 1 - on, 0 - off

Reverse Reverse 30 3 1 - on, 0 - off Slip Slip 31 3 1 - on, 0 - off Track Skip << Prev. track 34 4 1 - on, 0 - off

Track Skip >> Next track 35 4 1 - on, 0 - off Hold Effect On/Odd 36 4 1 - on, 0 - off Eject Deck Select 37 4 1 - on, 0 - off

Effect5 (Trance) Effect5 (Wahl) 39 4 1 - on, 0 - off

Jogwheel Joghweel 64-71 8 Min = 0, Max = 225

Warranty and Repair:

All GCI products are designed and manufactured to the highest standards in the industry. With proper care and maintenance, your product will

provide years of reliable service.

LIMITED WARRANTY A. GCI warrants its products to be free from defects in materials and workmanship for One (1) year from the original purchase date. Exceptions:

Laser assemblies on CD Players, cartridges, and crossfaders are covered for 90 days.

B. This limited warranty does not cover damage or failure caused by abuse, misuse, abnormal use, faulty installation, improper maintenance or any

repairs other than those provided by an authorized GCI Service Center.

C. There are no obligations of liability on the part of GCI for consequential damages arising out of or in connection with the use or performance

of the product or other indirect damages with respect to loss of property, revenues, of prot, or costs of removal, installation, or reinstallation. All

implied warranties for GCI, including implied warranties for tness, are limited in duration to One (1) year from the original date of purchase, un-

less otherwise mandated by local statutes.

RETURN/REPAIR A. In the U.S.A., please call our helpful Customer Service Representatives at (732)738-9003, and they will be happy to give you a Return Authoriza-

tion Number (RA#) and the address of an authorized service center closest to you.

B. After receiving an RA#, include a copy of the original sales receipt, with defective product and a description of the defect. Send by insured freight

to: GCI Sound Products Corp, and use the address provided by your customer service representative. Your RA# must be written on the outside

of the package, or processing will be delayed indenitely!

C. Service covered under warranty will be paid for by GCI and returned to you. For non-warrantied products, GCI will repair your unit after pay-

ment is received. Repair charges do not include return freight. Freight charges will be added to the repair charges.

D. On warranty service, you pay for shipping to GCI, we pay for return shipping within the continental United States. Alaska, Hawaii, Puerto Rico,

Canada, Bahamas, and the Virgin Islands will be charged for freight.

E. Please allow 2-4 weeks for return of your product. Under normal circumstances your product will spend no more than 10 working days at Gemini.

We are not responsible for shipping times.

GCI Technologies Corp.

Worldwide Headquarters

IN THE UNITED KINGDOM In the ev

ent that you need service on your GCI product under warranty, simply write a letter describing the problem, along with your contact infor-

mation. Make sure to enclose a copy of your receipt for proof of warranty information. A return number is not required. You will be responsible

for shipping charges to Gemini UK, and Gemini UK

y to return the unit to you if it is considered under warranty.

GCI Technologies Ltd

Unit 44 Brambles Enterprise Centre

T: +49 (0) 89 319 019 80

F: +49 (0) 89 319 019 819Register your product online at www.geminidj.com to be eligible for great prize giveaways! If you do not have

Internet access, fill out the form included and mail it to the appropriate address listed previously.

------------------------------------------------------------------------------------------------------------------------------

Address (Number and Street)

Purchase Price (Excluding Tax)

Serial Number (back of unit)
