USER MANUAL LTF 11H132 O EU HOTPOINT ARISTON

Rumore in dB(A) re 1 pW

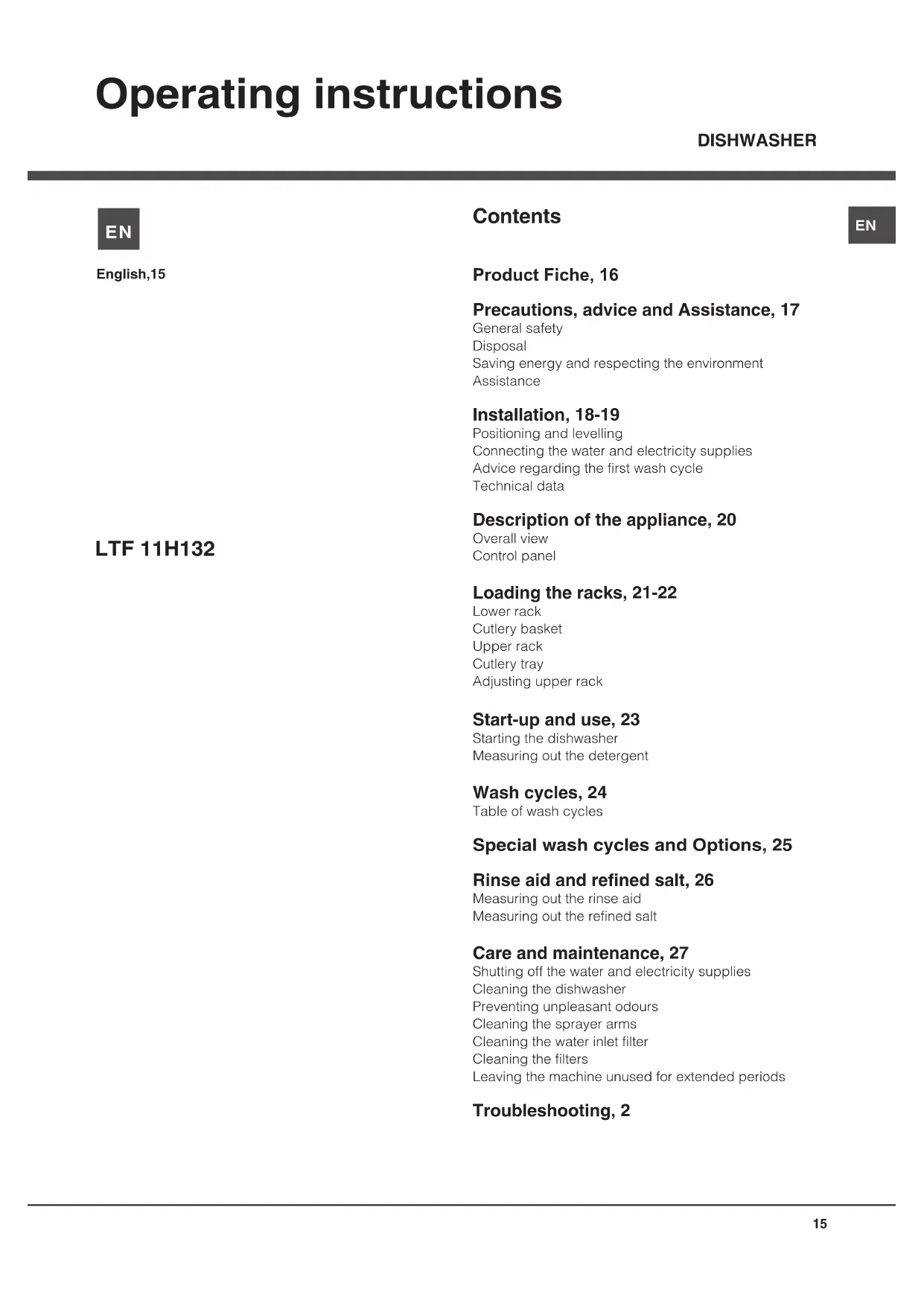

Operating instructions Contents Product Fiche, 16 Precautions, advice and Assistance, 17 General safety Disposal Saving energy and respecting the environment Assistance Installation, 18-19 Positioning and levelling Connecting the water and electricity supplies Advice regarding the first wash cycle Technical data Description of the appliance, 20 Overall view Control panel Loading the racks, 21-22 Lower rack Cutlery basket Upper rack Cutlery tray Adjusting upper rack Start-up and use, 23 Starting the dishwasher Measuring out the detergent Wash cycles, 24 Table of wash cycles Special wash cycles and Options, 25 Rinse aid and refined salt, 26 Measuring out the rinse aid Measuring out the refined salt Care and maintenance, 27 Shutting off the water and electricity supplies Cleaning the dishwasher Preventing unpleasant odours Cleaning the sprayer arms Cleaning the water inlet filter Cleaning the filters Leaving the machine unused for extended periods Troubleshooting, 2 English,15

Energy efciency class on a scale from A+++ (low consumption) to D (high consumption) A+++ Energy consumption per year in kWh (2)

Energy consumption of the standard cleaning cycle in kWh

Power consumption of the off-mode in W

Power consumption of the left-on mode in W

Water consumption per year in litres (3)

Drying efcacy class on a scale from G (low efcacy) to A (high efcacy)

Programme time for standard cleaning cycle in minutes 190’ The duration of the left-on mode in minutes

Built-in model Yes NOTES 1) The information on the label and che relates to the standard cleaning cycle, this programme is suitable to clean normally soiled tableware and it is the most efcient programme in terms of combined energy and water consumption. The standard cleaning cycle corresponds to the Eco cycle.

2) Based on 280 standard cleaning cycles using cold water ll and the consumption of the low power modes. Actual energy

consumption depends on how the appliance is used.

3) Based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used.

• Only available in selected models. Precautions and advice This appliance was designed and manufactured in compliance with international safety standards The following information has been provided for safety reasons and should therefore be read carefully. Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine. Please read these instructions carefully: they contain important information on installation, use and safety. This appliance is designed for domestic use or similar applications, for example: - staff kitchen areas in shops, offices and other work environments; - farmhouses; - use by guests in hotels, motels and other residential settings; - bed & breakfasts. General safety

• Theapplianceshouldnotbeoperatedbypeople (including children) with reduced physical, sensory or mental capacities, or by inexperienced people who are not familiar with the product, unless supervision or instructions on how to use it are provided by someone who assumes responsibility for their safety.

• Anadultmustsupervisechildrenatalltimesto prevent them from playing with the appliance.

• Theappliancewasdesignedfordomestic use inside the home and is not intended for commercial or industrial use.

• Theappliancemustbeusedbyadultsonlyto wash domestic crockery in accordance with the instructions in this manual.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms.

• Donottouchtheappliancewhenbarefoot.

• Whenunpluggingtheappliancealwayspullthe plug from the mains socket. Do not pull on the cable.

• Thewatersupplytapmustbeshutoffandthe plug should be removed from the electrical socket before cleaning or maintaining the appliance.

• Iftheappliancebreaksdown,donotunderany circumstances touch the internal parts in an attempt to perform the repair work yourself.

• Donotleanorsitontheopen door of the appliance: this may cause the appliance to overturn.

• Thedoorshouldnotbeleftopenasitmaycreate a dangerous obstacle.

• Keep detergentandrinseaid out of reach of children.

• Thepackagingmaterialshouldnotbeusedasa toy for children. Disposal

• Disposal of packaging material: observe local legislation so that the packaging may be reused.

• The European Directive 2012/19/EU relating toWasteElectrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban wastecycle. Exhausted appliances should be collected separately in order to optimise the re- using and recycling rate of the materials inside the machine, while preventing potential damage to the environment and public health. The crossed- out dustbin symbol is marked on all products to remind the owners of their obligations regarding separated waste collection. For further information relating to the correct disposal of household appliances, owners may contact the relevant public authority or the local appliance dealer. Saving energy and respecting the environment Saving water and energy

• Selectawashcyclethatissuitedtothetypeof crockery and to the soil level of the crockery using the Table of wash cycles: -fordisheswithanormalsoillevelusetheEco washcycle, which ensures low energy/water consumption levels. - If the load is smaller than usual activate the Half Load option* (see Start-up and use).

• Ifyourelectricitysupplycontractgivesdetailsof electricity-saving time bands, run wash cycles when electricity prices are lower. The Delayed Start button * (see Start-up and use) helps you organise the wash cycles accordingly. Phosphate-free and chlorine-free detergents containing enzymes

• Westronglyrecommendthatyouusedetergents that do not contain phosphates or chlorine, as these products are harmful to the environment.

• Enzymesprovideaparticularlyeffectiveactionat temperaturesaround50°C.Asaresultdetergents containingenzymescanbeusedinconjunction with low-temperature wash cycles in order to achievethesameresultsasanormal65°Cwash cycle.

• Toavoidwastingdetergent,usetheproductin appropriatequantitiesbasedonthemanufacturer’s recommendations, the hardness of the water, thesoil level and the quantity of crockery to bewashed.Eveniftheyarebiodegradable, detergents contain substances which may alter the balance of nature.EN

Installation and Assistance

• Only available in selected models. If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back. Positioning and levelling 1.Removetheappliancefromallpackagingandcheckthatit has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.2.Arrangethedishwashersothatitssidesorbackpanelareincontact with the adjacent cabinets or the wall. This appliance can also be recessed under a single worktop

(see the Assembly Instruction sheet.) 3. Position the dishwasher on a level sturdy floor. If the floor is uneven, the front feet of the appliance should be adjusted untilitreachesahorizontalposition.Iftheapplianceislevelledcorrectly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.

*. To adjust the height of the rear foot, turn the red hexagonal bushing on the lower central part at the front of the dishwasher using a hexagonal spanner with an opening of 8 mm. Turn the spanner in a clockwise direction to increase the height and in an anticlockwise direction to decrease it (see Building-in Instruction sheet attached to the documentation.) Connecting the water and electricity supplies Connection to the water and electricity supplies should only beperformedbyaqualifiedtechnician.The dishwasher should not stand on the water hoses or electricity supply cable.The appliance must be connected to the water supply network using new hoses.Do not use old piping.The water inlet and outlet hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation. Connecting the water inlet hose

• Toasuitablecoldwaterconnectionpoint:beforeattachingthe hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a ¾ gas threaded connection.• Toasuitablehotwaterconnectionpoint:yourdishwashermay be supplied with hot water from the mains supply (if you have a central heating system with radiators) provided that it doesnotexceedatemperatureof60°C.Screw the hose to the tap as described for connection to a cold water supply.If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance.) The water pressure must be within the values indicated in the Technical Data table (see adjacent information.) The hose should not be bent or compressed. Connecting the water outlet hose Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm. Theoutlethosemustbeataheightrangingfrom40to80cmfromthefloor/surfacewherethedishwasherrests(A).Before connecting the water outlet hose to the sink drain, remove the plastic plug (B). Anti-flooding protection To ensure floods do not occur, the dishwasher:- is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.Somemodelsarealsoequippedwiththesupplementarysafety device New Acqua Stop*, which guarantees anti-flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstances should the water inlet hose be cut, as it contains live electrical parts. Electrical connection Before inserting the plug into the electrical socket, make sure that:• Thesocketisearthedandcomplieswithcurrentregulations.• thesocketcanwithstandthemaximumloadoftheappliance,which is indicated on the data plate located on the inside of the door (see Description of the appliance);

• Thepowersupplyvoltagefallswithinthevaluesindicatedonthe data plate on the inside of the door.• Thesocketiscompatiblewiththeplugoftheappliance.Ifthis is not the case, ask an authorised technician to replace the plug ( see Assistance ); do not use extension cables or multiple sockets.Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.The cable should not be bent or compressed.If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order topreventallpotentialhazards (see Assistance.)EN

Anti-condensation strip* After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form. Advice regarding the first wash cycle After the installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack, if any.Immediately before the first washing, completely fill the salt dispenser with waterandaddonlythenapproximately1kgofsalt(seechapterentitledRinseaidandrefinedsalt).The water may overflow: this is normal and is not a cause for concern. Select the water hardness value (see chapter entitledRinseaidandrefinedsalt).-Afterthesalthasbeenpouredintothemachine,theLOW SALT indicatorlight*switches off.If the salt container is not filled, the water softener and the heating element may be damaged as a result.Technical dataDimensionswidth 59.5 cmheight 82 cmdepth 57 cmCapacity 14 standard place-settingsWater supply pressure0,05 ÷ 1MPa (0.5 ÷ 10 bar)7,25 – 145 psiPower supply voltage See appliance data plateTotal absorbed power See appliance data plateFuse See appliance data plateThis dishwasher conforms to the following European Community Directives: -2006/95/EC (Low Voltage) -2004/108/EC (Electromagnetic Compatibility) -2009/125/EC (Comm. Reg. 1016/2010) (Ecodesign)-97/17/EC (Labelling)-2012/19/EC (WEEE)The machine has a buzzer/set of tones (depending on the dishwasher model) to inform the user that a command has been implemented: power on, cycle end etc. The symbols/indicator lights/LEDs on the control panel/display may vary in colour and may have a flashing or fixed light (depending on the dishwasher model) The display provides useful information concerning the type of wash cycle, drying/wash-cycle phase, remaining time, temperature etc etc.

• Only available in selected models. Assistance Before contacting Assistance:

• Checkwhethertheproblemcanberesolvedusingthe Troubleshooting guide (see Troubleshooting).

• Restarttheprogrammetocheckwhethertheproblem has ceased to exist.

• Ifthe problem persists, contact the Authorised Technical Assistance Service. Never use the services of unauthorised technicians. Please have the following information to hand:

• Theserialnumber(S/N). This information can be found on the appliance data plate (see Description of the appliance) .EN

Overall view Description of the appliance ***Only in completely built-in models.

• Only available in selected models. The number and type of wash cycles and options may vary depending on the dishwasher model. Control panel Select wash cycle buttonActive Oxygen button and indicator lightExtra dry button and indicator lightSalt indicator lightRinse aid indicator lightMulti-functional tablets button and indicator lightWash cycle number and remaining time indicator lightDelayed start button Zone Wash buttonON-OFF/Reset button and indicator lightZone Wash indicator lightsDelayed start indicator light

3. Tip-up compartments

9. Detergent and rinse aid dispenser and Active

Loading the racks Tips Before loading the racks, remove all food residues from the crockeryandemptyliquidsfromglassesandcontainers.No preventive rinsing is needed under running water.Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwardsandtheconcave/convexpartsplacedobliquely,thus allowing the water to reach every surface and flow freely.Make sure that the lids, handles, trays and frying pans do not prevent the sprayer arms from rotating. Place any small items in the cutlery basket.Since plastic dishes and non-stick frying pans usually retain more water drops, their drying will be not so good as that of ceramic or stainless-steel dishes.Lightweight items such as plastic containers should be placed in the upper rack and arranged so that they cannot move.After loading the appliance, make sure that the sprayer arms can rotate freely. Lower rack The lower rack can hold pans, lids, dishes, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides.Very soiled dishes and pans should be placed in the lower rack because in this sector the water sprays are stronger and allow a higher washing performance.Several dishwasher models are fitted with tip-up sectors They can be used in a vertical position when arranging dishes orinahorizontalposition(lower)toloadpansandsaladbowlseasily. Cutlery basket The modular basket can slide to optimise the space inside the lowerrack.Itisequippedwithtopgrillesforimprovedcutleryarrangement. Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards or they mustbepositionedhorizontallyinthetip-upcompartmentsonthe upper rack Upper rack Load this rack with delicate and lightweight crockery such as glasses, cups, saucers and shallow salad bowls. Several dishwasher models are fitted with tip-up sectors Theycanbeusedinavertical position when arranging tea/dessert saucers or in a lower position to load bowls and food containers. *Only available in selected models with different numbers and positions.EN

Adjusting the height of the upper rack In order to make it easier to arrange the crockery, the upper rack may be moved to a higher or lower position.The height of the upper rack should be adjusted WHEN THE RACK IS EMPTY.NEVER raise or lower the rack on one side only. IftherackisequippedwithaLift-Up device* (see figure) , lift it up by holding its sides. To restore the lower position, press the levers (A) at the sides of the rack and follow the rack down. Unsuitable crockery

• Woodencrockeryandcutlery.• Delicatedecoratedglasses,artistichandicraftandantiquecrockery. Their decorations are not resistant.• Parts insynthetic material which do notwithstand hightemperatures.• Copperandtincrockery.• Crockerysoiledwithash,wax,lubricatinggreaseorink.Thecoloursofglassdecorationsandaluminium/silverpiecescanchange and fade during the washing process. Some types of glass(e.g.crystalobjects)canbecomeopaqueafteranumberof wash cycles too. Damage to glass and crockery Caused by:
• Typeofglassandglassproductionprocess.• Chemicalcompositionofdetergent.• Watertemperatureofrinsecycle. Tips:
• Onlyuseglassesandporcelain guaranteed by themanufacturer as dishwasher safe.• Useadelicatedetergentsuitableforcrockery.• Collectglassesandcutleryfromthedishwasherassoonasthe wash cycle is over.Theupperrackcanbeadjustedforheightbasedonrequirements:high position to place bulky crockery in the lower rack and low positiontomakethemostofthetip-upcompartments/sectorsby creating more space upwards. Tip-up compartments with adjustable position The side tip-up compartments can be positioned at three differentheightstooptimizethearrangementofcrockeryinsidethe rack.Wineglassescanbeplacedsafelyinthetip-upcompartmentsby inserting the stem of each glass into the corresponding slots. Cutlery tray* Some dishwasher models are fitted with a sliding tray which can be used to hold serving utensils or small cups. For optimum washing performance avoid positioning bulky crockery directly below the tray. The cutlery tray can be removed (see Figure). Before loading the tray, make sure the supports are properly coupled to the upper rack (see Figure).
• Only available in selected models.EN

• Only available in selected models. Measuring out the detergent A good wash result also depends on the correct amount of detergent being used. Exceeding the stated amount does not result in a more effective wash and increases environmental pollution. Based on how soiled the items are, the amount can be adjusted to individual cases using powder or liquid detergent.In the case of normally soiled items, use approximately either 35 gr (powder detergent) or 35 ml (liquid detergent). If tablets are used, one tablet will be enough.If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly. For good washing results also follow the instructions shown on the detergent box.For further questions please ask the detergent producers' Advice Offices.To open the detergent dispenser use the opening device “A”. Introduce the detergent into the dry dispenser “B” only. Place the amount of detergent for pre-washing directly inside the tub. WhenmeasuringoutthedetergentrefertotheTableofwashcyclestoaddtheproperquantity.CompartmentB comprises alevelshowingthemaximumquantityofliquidorpowderdetergent that can be added to each cycle. Removedetergentresiduesfromtheedgesofthedispenserand close the cover until it clicks.3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.The detergent dispenser automatically opens up at the right time according to the wash cycle.If all-in-one detergents are used, we recommend using the TABS option, because it adjusts the cycle so that the best washing and drying results are always achieved.Only use detergent which has been specifically designed for dishwashers.DO NOT USE washing-up liquid.Using excessive detergent may result in foam residue remaining in the machine after the cycle has ended. The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option.To achieve the best results from each washing and drying cycle, powder detergent, liquid rinse aid and salt should be used. Starting the dishwasher 1.Turnthewatertapon.2.Open the door and press ON-OFF button: the ON/OFFindicator lights, options and the display come on.3. Measure out the detergent. (see adjacent information).4. Load the racks (see Loading the racks) 5. Select the wash cycle in accordance with the type of crockery and its soil level (see table of wash cycles) by pressing the P button.6. Select the wash options (see Special wash cycles and options) 7. Start the wash cycle by shutting the door.8. The end of the wash cycle is indicated by beeps and by the flashing of the wash cycle number on the display. Open the door, switchofftheappliancebypressingtheON/OFFbutton,shutoff the water tap and unplug the appliance from the electricity socket.9.Waitforafewminutesbeforeremovingthecrockery,inorderto avoid burns. Unload the racks, beginning with the lower level. - The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. AUTO WASH CYCLES*:some models of dishwashers are equippedwithaspecialsensorwhichcanbeusedtoassessthe level of soiling and automatically setting the most efficient and economic wash cycle accordingly.The duration of the Auto wash cycles may vary due to theoperation of the sensor. If the crockery is only lightly soiled or if it has been rinsedwith water before being placed in the dishwasher, reduce theamount of detergent used accordingly. Modifying a wash cycle in progress If a mistake was made during the wash cycle selection process, it is possible to change the cycle, provided that it has only just begun: open the door taking care to avoid the escaping steam, bypressingandholdingtheON/OFFbutton,themachinewillswitchoff.SwitchthemachinebackonusingtheON/OFFbuttonand select the new wash cycle and any options desired; start the cycle by closing the door. Adding extra crockery Withoutswitchingoffthemachine,openthedoor,takingcareto avoid the escaping steam, and place the crockery inside the dishwasher. Shut the door and the cycle will begin from the point at which it was interrupted. Accidental interruptions If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or the electricity supply is restored.EN

Wash cycles Wash cycle Wash cycle which include drying Options Approximate duration of wash cycles Water consumption (l/cycle) Energy consumption (KWh/cycle)

Delayed start – Tabs – Extra Dry 03:10’ 9,0 0,83

2. Auto Intensive Yes

Delayed start – Tabs – Extra Dry – Zone wash 01:30’ - 02:30’ 14,5 – 16,0 1,15 - 1,30

Delayed start – Tabs – Extra Dry 02:00’ 18,0 1,25

Delayed start – Tabs – Extra Dry 01:40’ 11,0 1,05

Delayed start – Tabs 00:30’ 9,0 0,50

Delayed start – Tabs – Extra Dry 03:30’ 15,0 1,15

Delayed start 01:20’ 10,0 1,15

Extra drying To improve the dryness level of the crockery, press theEXTRADRYINGbuttonandtheindicatorlight/symbolwill light up. If it is pressed again, the option will be deselected. A higher temperature during the final rinsing and a longer drying phase improve the dryness level. The EXTRA DRYING option increases the duration of the wash cycle. Multi-functional tablets* (Tabs) This option optimises washing and drying results. Whenusingmulti-functional tablets, press the MULTI- FUNCTIONALTABLETSbutton;thecorrespondingindicator light/symbolwilllightup.Ifthebuttonispressedagain,the option will be deselected. The “Multi-functional tablets” option results in a longer wash cycle. The use of tablets is only recommended for models having this option and it is not recommended with wash cycles which do not specify the use of multi-functional tablets. Special wash cycles and Options Notes: Optimumperformancelevelswhenusingthe“Fast"and"Express30’”cyclescanbeachievedbyrespectingthespecifiednumberof place settings.To reduce consumption even further, only run the dishwasher when it is full.Note for Test Laboratories: forinformationoncomparativeENtesting conditions, please send an email to the following address: ASSISTENZA_EN_LVS@indesitcompany.com Wash options If an option is not compatible with the selected wash cycle (see table of wash cycles), the corresponding LED flashes rapidly 3 times and beeps will sound. Delayed start The start of the wash cycle may be delayed for a period of time between 1 and 12 hours. 1.PresstheDELAYEDSTARTbutton:thecorresponding symbol appears on the display; each time you press the button,thetime(1h,2h,etc.uptomax.12h)fromthestart of the selected wash cycle will be increased. 2.Selectthecycleandclosethedoor:thetimerwillbegin counting down;

3. Once this time has elapsed, the indicator light switches

off and the wash cycle begins. To adjust the delay time and select a smaller period of time, presstheDELAYEDSTARTbutton.Tocancelit,pressthe button repeatedly until the selected delayed start indicator light switches off. The wash cycle will start automatically as soon as the door is shut. ACTIVE OXIGEN Thisdevicereleasesozonemoleculesintothedishwasher,i.e. a natural substance that reduces unpleasant odours.ItshouldbeusedbetweentwodifferentwashcyclesandONLYafter soiled crockery has been loaded.TostarttheACTIVEOXYGENoptionpressandholdthebutton

Theoptionwillstayactiveeitherfor24hoursoruntilthe wash cycle is started. More items can be introduced at any time until full load.The typical faint odour that can be smelt inside the dishwasher - thesameasyousometimesgetwithstorms-isduetotheozoneproduced by lightning discharges. This is normal. The device producesjustasmallquantity,whichsoondecays.No replacement needed. Zone Wash This option makes it possible to carry out the wash cycle in the selected rack only. Select the wash cycle and thenpresstheZONEWASHbutton:theselectedracklights up and the wash cycle starts in the selected rack only. Press the button again to deselect the option. The option is available with the following wash cycles: Intensive and Normal. Select the option and the Intensive cycle to start the ULTRAINTENSIVEZONEwashing.Thiswashcycleisideal for very soiled mixed loads, e.g. pans and saucepans, dishes with heavy encrustation or difficult-to-clean crockery (grater, vegetable mill, dirty cutlery). The spraying pressure is stronger and the washing temperature higher, thus ensuring optimum handling of stubborn stains. Select the option and the Normal cycletostarttheSAVING ZONEwashing.Thisfunctionmakesitpossibletoreduce energy consumption. Cycle duration might change. Remember to load the crockery in the selected rack onlyEN

Rinse aid and refined salt Only use products which have been specifically designed for dishwashers. Do not use table/industrial salt or washing-up liquid. Follow the instructions given on the packaging.If using a multi-functional product it is not necessary to add any rinse aid. However, we recommend that you add salt, especially if you live in an area where the water is hard or very hard. (Follow the instructions given on the packaging). If you do not add salt or rinse aid, the LOW SALT* and LOW RINSE AID indicator lights will stay lit. Measuring out the rinse aid Rinseaidmakesiteasierforthecrockerytodry,aswaterrunsoffthe surfaces more readily and therefore does not leave streaks or marks. The rinse aid dispenser should be filled:

• WhentheLOWRINSEAIDindicatorlight* on the control panel is illuminated, a reserve supply of rinse aid is still available for1-2cycles;1.Openthedispenser“D” by pressing and pulling up the tabon the lid;2.Carefullyintroducetherinseaidasfarasthemaximumreference notch of the filling space - avoid spilling it. If this happens, clean the spill immediately with a dry cloth.3. Press the lid down until you hear a click to close it.NEVER pour the rinse aid directly into the appliance tub. Adjusting the amount of rinse aid If you are not completely satisfied with the drying results, you mayadjustthequantityofrinseaidused.SwitchonandoffthedishwasherusingtheON/OFFbutton.PresstheP button three times.PresstheON/OFFbutton,thesetlevelappearsonthedisplay (set to factory level).Adjust the rinse aid supply level with the P button.Press the ON/OFF button to save the adjustment setting.TherinseaidlevelcanbesettoZERO,insuchacasetherinseaid will not be supplied and the low rinse aid indicator light in case of running out.A maximum of 4 levels can be set according to the dishwasher model. •Iftherearestreaksonthecrockery,settoalownumber(1-2).•Incaseofdropsofwaterorlimescalemarks,settoahighnumber number (3-4). Setting the water hardness Everydishwasherisequippedwithawatersoftenerwhich,byusing refined salt designed especially for this type of appliance, supplies water without limescale which is then used to wash the crockery. This dishwasher offers a setting which helps to reduce pollution and optimises washing performance in accordance with the water hardness level in your area. This information can be obtained from your local water supplier. SwitchonandoffthedishwasherusingtheON/OFFbutton.Pressand hold the P button for a few seconds until you hear a beep. SwitchonthedishwasherwiththeON/OFFbutton,thesetlevelappears on the display (water softener set to medium level). Adjust the water hardness level with the P button, (1-2-3-4-5* see water hardness table) up to a max. of 5 levels.Press the ON/OFF button to save the adjustment setting.Evenifusingmulti-functionaltablets,thesaltdispensershouldstill be filled. (°dH=hardnessmeasuredinGermandegrees-°f=hardnessmeasuredinFrenchdegrees–mmol/l=millimolesperlitre) Measuring out the refined salt In order to obtain the best possible results from a wash cycle, make sure that the salt dispenser is never empty. Refinedsaltremoveslimescalefromthewater,thusavoidingthe formation of deposits on crockery. The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:• Whenthegreenfloat* cannot be seen by simply looking at the cap of the salt dispenser;• WhentheLOWRINSEAIDindicatorlightonthecontrolpanelis illuminated *;1.Removethelowerrackandunscrewthecap(anticlockwise).2.Thefirsttimeyoudothis:fillthewatertank right up to its edge.3. Position the funnel (see figure) and fill the salt dispenser up to the edge (approximately 1 kg). It is normal for alittle water to leak out.4.Removethefunnel*andwipeanysaltresidues away from the opening; rinse the cap under running water and then screw it on, the head facing downwards so as to let the water flow out of the four slots (star-shaped arrangement) in the lower part of the cap (cap with green float It is advisable to perform this procedure every time you add salt to the dispenser. Make sure the cap is screwed on tightly so that no detergent can get into the container during the wash cycle (this could damage the water softener beyond repair).Whennecessary,measureoutthesaltbeforeawashcycleso that any saline solution which has leaked out of the salt dispenser is removed.
• Only available in selected models. Water Hardness TableAverage salt dispenser capacity duration level °dH °fH mmol/l months1 0 - 6 0 - 10 0 - 1 7 months 2 6 - 11 11 - 20 1,1 - 2 5 months 3 12 - 17 21 - 30 2,1 - 3 3 months 4 17 - 34 31 - 60 3,1 - 6 2 months

• a setting of 5 may increase cycle duration. ** 1 wash cycle per day.

Care and maintenance Shutting off the water and electricity supplies

performing maintenance work. Cleaning the dishwasher

• The externalsurfaces

controlpanelcan be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products.• Any marks

removed using a cloth dampened with water and a little vinegar. Preventing unpleasant odours

order avoid moisture from forming and being trapped inside the machine.• Clean

detergent dispensers regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours. Cleaning the sprayer arms Food residue may become encrusted onto the sprayer arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.The two sprayer arms may both be removed.To remove the upper sprayer arm, turn the plastic locking ring in an anti-clockwise direction. The upper sprayer arm should be replaced so that the side with the greater number of holes is facing upwards.The lower sprayer arm can be removed by pressing on the side tabs and pulling it upwards. Cleaning the water inlet filter* If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.Clean the water inlet filter at the tap outlet regularly. - Turn off the water tap.- Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water.

into position. Cleaning the filters The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. They should be cleaned if you wish to achieve the best results in every wash.Clean the filters regularly.The dishwasher should not be used without filters or if the filter is loose.•Afterseveralwashes,checkthefilterassemblyandifnecessaryclean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise direction and

pull it out (fig.1). 2.RemovethecupfilterB by exerting a slight pressure on the side flaps (fig.2);

3. Slide out the stainless-steel plate filter A.

4. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection

(black detail) (fig.4). After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher. Leaving the machine unused for extended periods

• Disconnecttheappliancefromtheelectricitysupplyandshutoff the water tap.• Leavethedooroftheapplianceajar.• Whenyoureturn,runawashcyclewhenthedishwasherisempty.
• Only available in selected models.EN

Troubleshooting Whenevertheappliancefailstowork,checkforasolutionfromthefollowinglistbeforecallingforAssistance.

• Only available in selected models. Problem: Possible causes / Solutions: The dishwasher does not start or cannot be controlled.• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program. • The appliance has not been plugged in properly.• The dishwasher door has not been shut properly. The door won’t close. • The lock was released. Strongly push the door until a “clacking” noise is heard. No water drains out from the dishwasher.• The dishwasher cycle has not yet nished.• The water inlet hose is bent (see Installation).• The drain duct is blocked.• The lter is clogged up with food residues.The dishwasher makes excessive noise.• The dishes are rattling against each other or against the sprayer arms.• Excessive foam presence: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (see Start-up and use). The dishes and glasses are covered in a white lm or limescale deposits.• The level of the rened salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt).• The lid on the salt dispenser is not closed properly.• The rinse aid has been used up or the dosage is too low.The dishes and glasses are streaked or have a bluish tinge.• The rinse aid dosage is too high.The crockery has not been dried properly.• A wash cycle without a drying programme has been selected.• The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).• The rinse aid dispenser setting is not high enough. • The crockery is made from non-stick material or plastic.The dishes are not clean.• The racks are overloaded (see Loading the racks).• The crockery has not been arranged well.• The sprayer arms cannot move freely.• The wash cycle is too gentle (see Wash cycles).• Excessive foam presence: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (see Start-up and use). • The lid on the rinse aid compartment has not been shut correctly. • The lter is dirty or blocked (see Care and maintenance).• The rened salt level is low (see Rinse aid and salt).The dishwasher does not take any water in - Tap shut-off alarm(beeps are heard and H appears for some minutes on the display)(the ON/OFF indicator light ashes and number 6 appears on the display).• There is no water in the mains supply.• The water inlet hose is bent (see Installation).• Turn on the tap and the appliance will start after a few minutes.• The appliance lock has been activated because no action was taken when the beeps sounded. Switch off the machine using the ON/OFF button, turn on the tap and switch the machine back on after a few seconds by pressing the same button. Re-program the appliance and restart the wash cycle.FR
