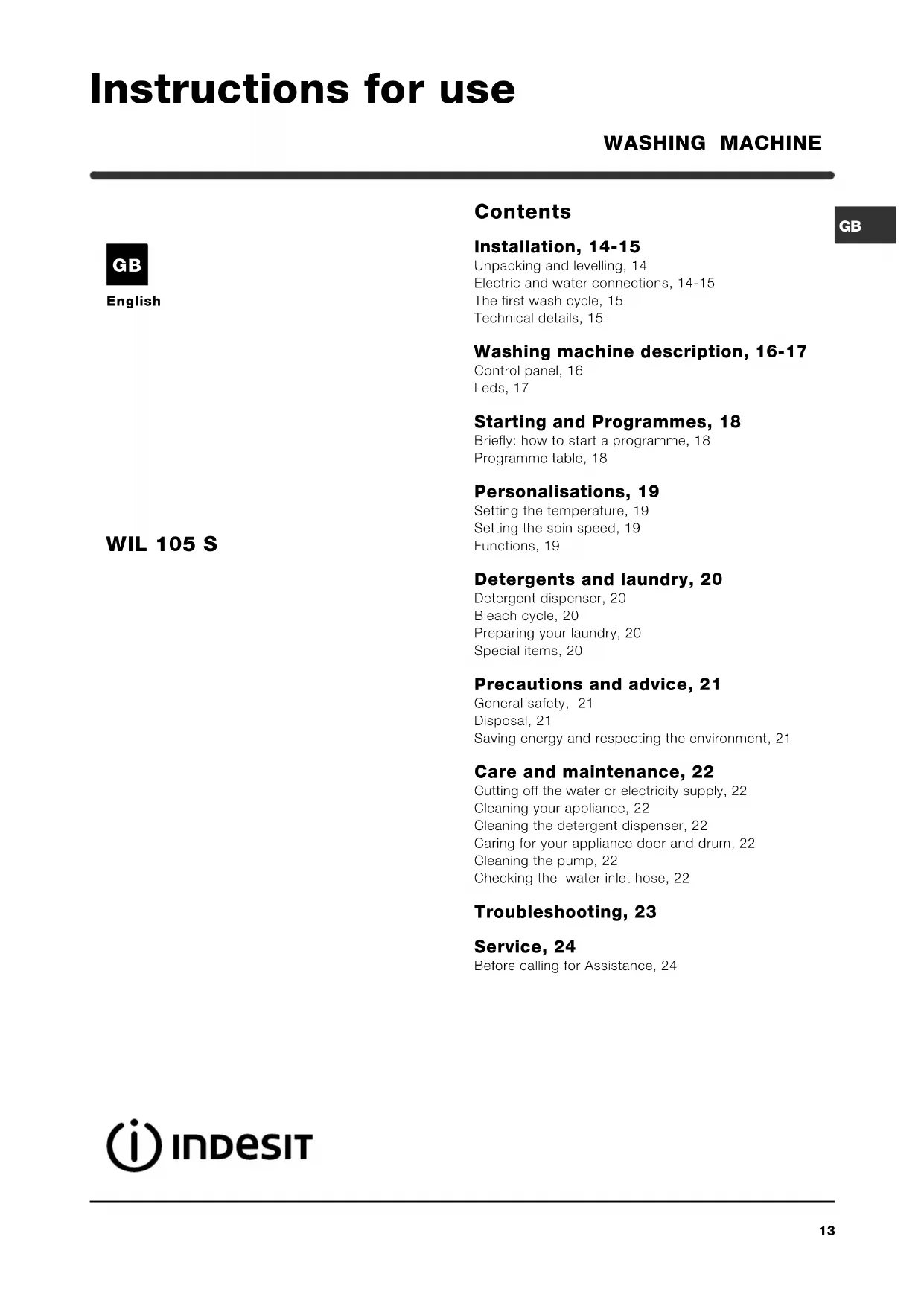

WASHING MACHINE WIL 105 S Instructions for use

 Keep this instruction manual in a safe place for

future reference. Should the appliance be sold,

transferred or moved, make sure the instruction

manual accompanies the washing machine to inform

the new owner as to its operation and features.

 Read these instructions carefully: they contain vital

information on installation, use and safety.

Unpacking and levelling Unpacking 1. Unpack the washing machine.

2. Check whether the washing machine has been

damaged during transport. If this is the case, do not

install it and contact your retailer.

protective screws and

the rubber washer with

the respective spacer,

situated on the rear of

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the

washing machine needs to be moved to another

 Packaging materials are not children's toys. Levelling 1. Install the washing machine on a flat sturdy floor,

without resting it up against walls, furniture cabinets

2. If the floor is not

perfectly level, compen-

sate for any unevenness

loosening the adjustable

front feet (see figure);

the angle of inclination,

measured according to

the worktop, must not

Levelling your appliance correctly will provide it with

stability and avoid any vibrations, noise and shifting

during operation. If it is placed on a fitted or loose

carpet, adjust the feet in such a way as to allow

enough room for ventilation beneath the washing

Electric and water connections Connecting the water inlet hose 1. Insert seal A into the

end of the inlet hose

and screw the latter

onto a cold water tap

with a 3/4 gas threaded

connection, allow the

water to run freely until

it is perfectly clear.

2. Connect the other end

of the water inlet hose to

the washing machine,

screwing it onto the

appliance's cold water

inlet, situated on the top

right-hand side on the

rear of the appliance

3. Make sure there are no kinks or bends in the

 The water pressure at the tap must be within the

values indicated in the Technical details table

 If the water inlet hose is not long enough, contact

a specialist store or an authorised serviceman.

GB ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description Connecting the drain hose Connect the drain hose,

without bending it, to a

draining duct or a wall

drain situated between

alternatively, place it

supplied to the tap (see

figure). The free end of

the hose should not be

 We advise against the use of hose extensions; in

case of absolute need, the extension must have the

same diameter as the original hose and must not

exceed 150 cm in length. Electric connection Before plugging the appliance into the mains

socket, make sure that:

 the socket is earthed and in compliance with the

 the socket is able to sustain the appliance's

maximum power load indicated in the Technical

details table (on the right);

 the supply voltage is included within the values i

ndicated on the Technical details table

 the socket is compatible with the washing

machine's plug. If this is not the case, replace

the socket or the plug.

 The washing machine should not be installed in an

outdoor environment, not even when the area is

sheltered, because it may be very dangerous to

leave it exposed to rain and thunderstorms.

 When the washing machine is installed, the mains

socket must be within easy reach.

 Do not use extensions or multiple sockets.

 The power supply cable must never be bent or

dangerously compressed.

 The power supply cable must only be replaced by

an authorised serviceman.

Warning! The company denies all liability if and when

these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before

you use it for the first time, run a wash cycle with

detergent and no laundry, setting the 90°C

programme without a pre-wash cycle.

Technical details ModelWIL 105 SDimensions59.5 cm wide85 cm high53.5 cm deepCapacityfrom 1 to 5 kgElectricconnectionsvoltage 220/230 Volts 50 Hzmaximum absorbed power 1850 WWaterconnectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 46 litresSpin speedup to 1000 rpmControlprogrammesaccording toIEC456 directiveprogramme 2; temperature 60°C;run with a load of 5 kg.This appliance is compliant with thefollowing European CommunityDirectives:- 73/23/CEE of 19/02/73 (LowVoltage) and subsequent amendments- 89/336/CEE of 03/05/89(Electromagnetic Compatibility) andsubsequent amendments- 2002/96/CE16

Detergent dispenser: to add detergent and fabric

softener (see page 20).

LEDS: to find out which wash cycle phase is under

If the Delay Timer function has been set, the time

left until the programme starts will be indicated (see

SPIN SPEED knob: to set the spin speed or exclude

the spin cycle completely (see page 19).

FUNCTION buttons: to select the functions

available. The button corresponding to the function

selected will remain on.

TEMPERATURE knob: to set the temperature or

the cold wash cycle (see page 19).

START/RESET button: to start the programmes or

cancel any incorrect settings.

ON-OFF/DOOR LOCK Led: to find out whether the

washing machine is on and if the appliance door can

be opened (see page 17).

ON/OFF button: to turn the washing machine on

PROGRAMME knob: to select the wash

programmes. The knob stays still during the cycle.17

GB ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

ON-OFF/DOOR LOCK led:

If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages,

wait for the LED to flash before you open the appliance door.

 The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED indicates

there is an abnormality. Call for Technical Assistance.

Cycle phase under way:

During the wash cycle, the LEDs gradually illuminate

on to indicate the cycle phase under way:

Note: during draining, the LED corresponding to the

Spin cycle phase will be turned on.

The FUNCTION BUTTONS also act like LEDS.

When a function is selected, the corresponding

button is illuminated.

If the function selected is incompatible with the

programme set, the button will flash and the

function will not be enabled.

If you set a function that is incompatible with

another function you selected previously, only the

last one selected will be enabled.

The LEDS provide important information.

This is what they can tell you:

If the Delay Timer function has been enabled (see

page. 19), once you have started the programme,

the LED corresponding to the delay set will begin to

As time passes, the remaining delay will be

displayed, and the corresponding LED will flash:

Once the set delay is complete, the flashing LED will

turn off and the programme set will start.18

GB Type of fabric anddegree of soilProgrammesTe m p e -ratureDetergentFabricsoftenerStain removaloption/bleachCyclelength(m inutes)Description of wash cycle pre-

wash StandardExtremely soiled whites(sheets, tablecloths, etc.) 1 90°C    135 Pre-wash, wash cycle, rinse cycles,intermediate and final spin cyclesExtremely soiled whites(sheets, tablecloths, etc.) 2 90°C  Delicate/Traditional 125 Wash cycle, rinse cycles,intermediate and final spin cyclesHeavily soiled whites and fastcolours 2 60°C  Delicate/Traditional 110 Wash cycle, rinse cycles,intermediate and final spin cyclesHeavily soiled whites anddelicate colours 2 40°C  Delicate/Traditional 105 Wash cycle, rinse cycles,intermediate and final spin cyclesSlightly soiled whites anddelicate colours (shirts,jumpers, etc.) 3 40°C  Delicate/Traditional 70 Wash cycle, rinse cycles,intermediate and final spin cyclesHeavily soiled fast colours(baby linen, etc.) 4 60°C   Delicate 75 Wash cycle, rinse cycles, anti-crease or delicate spin cycleHeavily soiled fast colours(baby linen, etc.) 4 40°C   Delicate 60 Wash cycle, rinse cycles, anti-crease or delicate spin cycleDelicate colours (all types ofslightly soiled garments) 5 40°C   Delicate 60 Wash cycle, rinse cycles, anti-crease or delicate spin cycle Wool

6 40°C   50 Wash cycle, rinse cycles, anti-crease and delicate spin cycleVery delicate fabrics(curtains, silk, viscose, etc.) 7 30°C   45 Wash cycle, rinse cycles, anti-crease or draining cycleTim e 4 youHeavily soiled whites and fastcolours 8 60°C   60 Wash cycle, rinse cycles,intermediate and final spin cyclesSlightly soiled whites anddelicate colours (shirts,jumpers, etc.) 9 40°C   50 Wash cycle, rinse cycles,intermediate and final spin cyclesDelicate colours (all types ofslightly soiled garments) 10

40 Wash cycle, rinse cycles,delicate spin cycleDelicate colours (all types ofslightly soiled garments) 11 30°C   30Wash cycle, rinse cycles anddelicate spin cycleSportSports shoes (MAX. 2 pairs) 12

°C  50Cold wash (without detergents),wash cycle, rinse cycles, anddelicate spin cycleFabrics for sportswear(Tracksuits, shorts, etc.) 13 30°C   60Wash cycle, rinse cycles,intermediate and final spin cyclesPARTIAL PROGRAMMESRinse Delicate/TraditionalRinse cycles and spin cycleSpin cycle Draining and spin cycleDrain Draining Starting and Programmes

Briefly: starting a programme

1. Switch the washing machine on by pressing button .

All the LEDS will light up for a few seconds and

the ON-OFF/DOOR LOCK Led will begin to flash.

2. Load your laundry into the washing machine and

shut the appliance door.

3. Set the PROGRAMME knob to the programme

4. Set the wash temperature (see page 19).

6. Add the detergent and any fabric softener

7. Start he programme by pressing the START/RESET

To cancel it, keep the START/RESET button pressed

for at least 2 seconds.

8. When the programme is finished, the ON-OFF/

DOOR LOCK Led will flash to indicate that the

appliance door can be opened. Take out your

laundry and leave the appliance door ajar to allow

the drum to dry thoroughly. Turn the washing

machine off by pressing button

-For programmes 8 and 9, we advise against exceeding a wash load of 3.5 kg.

-For programme 13 we advise against exceeding a wash load of 2 kg.

-For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.

Daily (programme 11 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts

30 minutes and allows you to save on both time and energy. By setting this programme (11 at 30°C), you can wash

different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.

We recommend the use of liquid detergent.19

GB ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 18).

The temperature can be lowered, or even set to a cold wash (

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the programme selected.

The maximum spin speeds for each programme are as follows:

Programmes Maximum spin speed

The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol

The washing machine will automatically prevent you from selecting a spin speed higher than the maximum

To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the

Function Effect Comments

Press the button repeatedly until the LED corresponding to the

desired delay is turned on.

The fifth time the button is pressed, the function will be disabled.

N.B.: Once you have pressed the Start/Reset button, the delay

can only be decreased if you wish to modify it.

Please remember to pour the bleach into extra compartment 4

This function is incompatible with the EASY IRON function.

When this function is set, programmes 4, 5, 6, 7 will end with the

laundry left to soak (Anti-crease) and the Rinse cycle phase

- to conclude the cycle, press the START/RESET button;

- to run the draining cycle alone, set the knob to the relative

symbol and press the START/RESET button.

This function is incompatible with the STAIN REMOVAL function.

Recommended when the appliance has a full load or with large

quantities of detergent.

GB Detergent dispenser Good washing results also depend on the correctdose of detergent: adding too much detergent won'tnecessarily make for a more efficient wash, and mayin fact cause build up on the interior of yourappliance and even pollute the environment.Open up the detergentdispenser and pour inthe detergent and fabricsoftener, as follows.compartment 1: Detergent for pre-wash(powder)Before pouring in the detergent, make sure thatextra compartment 4 has been removed.compartment 2: Detergent for the wash cycle(powder or liquid)Liquid detergent should only be poured inimmediately prior to the wash cycle start.compartment 3: Additives (fabric softeners, etc.)The fabric softener should not overflow from the grid.extra compartment 4: Bleach  Do not use hand wash detergent because it may form too much foam. Bleach cycle

 Traditional bleach should be used on sturdy white fabrics, and delicate bleach for colouredfabrics, synthetics and for wool.Place extracompartment 4,provided, intocompartment 1.When pouring in thebleach, be careful not toexceed the "max" levelindicated on the centralpivot (see figure).To run the bleach cycle alone, pour the bleach intoextra compartment 4, set the Rinse programme and enable the Stain removal option (see page 19).To bleach during a wash cycle, pour in the detergentand fabric softener, set the desired programme andenable the Stain removal option (see page 19).The use of extra compartment 4 excludes thepossibility of using the pre-wash cycle. Preparing your laundry  Divide your laundry according to:- the type of fabric/the symbol on the label.- the colours: separate coloured garments fromwhites. Empty all pockets and check for loose buttons. Do not exceed the weight limits stated below,which refer to the weight when dry:Sturdy fabrics: max 5 kgSynthetic fabrics: max 2.5 kgDelicate fabrics: max 2 kgWool: max 1 kgHow much does your laundry weigh?1 sheet 400-500 g1 pillow case 150-200 g1 tablecloth 400-500 g1 bathrobe 900-1,200 g1 towel 150-250 g Special items Curtains: fold curtains and place them in a pillowcase or mesh bag. Wash them separately withoutexceeding half the appliance load. Use programme 7which excludes the spin cycle automatically.Quilted coats and windbreakers: if they arepadded with goose or duck down, they can bemachine-washed. Turn the garments inside out andload a maximum of 2-3 kg, repeating the rinse cycleonce or twice and using the delicate spin cycle.Wool: for best results, use a specific detergent,taking care not to exceed a load of 1 kg. Detergents and laundry

GB Precautions and advice

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

 The washing machine was designed and built in

compliance with the applicable international safety

regulations. The following information is provided for

your safety and should consequently be read carefully.

 This appliance has been designed for non-

professional, household use and its functions must

 This washing machine should only be used by

adults and in accordance with the instructions

provided in this manual.

 Never touch the washing machine when barefoot

or with wet or damp hands or feet.

 Do not pull on the power supply cable to unplug

the appliance from the electricity socket. Pull the

 Do not open the detergent dispenser while the

appliance is in operation.

 Do not touch the drain water as it could reach

very high temperatures.

 Never force the washing machine door: this could

damage the safety lock mechanism designed to

prevent any accidental openings.

 In the event of a malfunction, do not under any

circumstances touch internal parts in order to

 Always keep children well away from the

appliance while in operation.

 The appliance door tends to get quite hot during

 Should it have to be moved, proceed with the

help of two or three people and handle it with the

utmost care. Never try to do this alone, because

the appliance is very heavy.

 Before loading your laundry into the washing

machine, make sure the drum is empty.

 Disposing of the packaging material:

observe local regulations, so the packaging can

 The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment, requires that

old household electrical appliances must not be

disposed of in the normal unsorted municipal waste

stream. Old appliances must be collected

separately in order to optimise the recovery and

recycling of the materials they contain and reduce

the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the

product reminds you of your obligation, that when

you dispose of the appliance it must be separately

Consumers should contact their local authority or

retailer for information concerning the correct

disposal of their old appliance.

Saving energy and respecting the

Environmentally-friendly technology

If you only see a little water through your appliance

door, this is because thanks to the latest Indesit

technology, your washing machine only needs less

than half the amount of water to get the best results:

an objective reached to respect the environment.

Saving on detergent, water,

 To avoid wasting resources, the washing machine

should be used with a full load. A full load instead of

two half loads allows you to save up to 50% on energy.

 The pre-wash cycle is only necessary on

extremely soiled garments. Avoiding it will save on

detergent, time, water and between 5 and 15%

 Treating stains with a stain remover or leaving them

to soak before washing will cut down the need to

wash them at high temperatures. A programme at

60°C instead of 90°C or one at 40°C instead of

60°C will save up to 50% on energy.

 Use the correct quantity of detergent depending

on the water hardness, how soiled the garments

are and the amount of laundry you have, to avoid

wastage and to protect the environment: despite

being biodegradable, detergents do contain

ingredients that alter the natural balance of the

environment. In addition, avoid using fabric

softener as much as possible.

 If you use your washing machine from late in the

afternoon until the early hours of the morning, you

will help reduce the electricity board's peak load.

The Delay Timer option (see page 19) helps to

organise your wash cycles accordingly.

 If your laundry has to be dried in a tumble dryer,

select a high spin speed. Having the least water

possible in your laundry will save you time and

energy in the drying process.22

GB Care and maintenance

Cutting off the water or electricity

 Turn off the water tap after every wash. This will

limit the wear of your appliance's water system

and also prevent leaks.

 Unplug your appliance when cleaning it and

during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can

be cleaned with a soft cloth soaked in lukewarm

soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser

Remove the dispenser

by pulling it out (see

Wash it under running

water; this operation

Caring for your appliance door and

 Always leave the appliance door ajar to prevent

unpleasant odours from forming.

The washing machine is fitted with a self-cleaning

pump that does not require any maintenance.

Sometimes, small items (such as coins or buttons)

may fall into the pre-chamber that protects the

pump, situated in the lower part of the same.

 Make sure the wash cycle has ended and unplug

To access the pre-chamber:

1. using a screwdriver,

remove the cover panel

on the lower front of the

washing machine (see

clockwise (see figure): a

little water may trickle

out. This is perfectly

3. clean the interior thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are

securely in place before you push it onto the

Checking the water inlet hose

Check the water inlet hose at least once a year. If

you see any cracks, replace it immediately: during

the wash cycles, water pressure is very strong and

a cracked hose could easily split open.

 Never use hoses that have already been used.23

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

Your washing machine could fail to work. Before calling for Assistance (see page 24), make sure the problem

can't easily be solved by consulting the following list.

The washing machine won't

The wash cycle won't start.

The washing machine fails to

continuously loads and unloads

The washing machine does not

The washing machine vibrates

too much during the spin cycle.

The washing machine leaks.

The ON-OFF/DOOR LOCK Led

flashes rapidly at the same

time as at least one other LED.

There is too much foam.

Possible causes/Solution:

 The appliance is not plugged into the socket, or not enough to

 There has been a power failure.

 The appliance door is not shut properly.

button has not been pressed.

 The START/RESET button has not been pressed.

 The water tap is not turned on.

 A delayed start has been set (using the Delay Timer, see page 19).

 The water inlet hose is not connected to the tap.

 The water tap is not turned on.

 There is a water shortage.

 The water pressure is insufficient.

 The START/RESET button has not been pressed.

 The drain hose is not fitted between 65 and 100 cm from the floor

 The free end of the hose is underwater (see page 15).

 The wall drainage system doesn't have a breather pipe.

If the problem persists even after these checks, turn off the water tap,

switch the appliance off and call for Assistance. If the dwelling is on one of

the upper floors of a building, there may be drain trap problems causing the

washing machine to load and unload water continuously. In order to avoid

such an inconvenience, special anti-drain trap valves are available in shops.

 The programme does not foresee the draining: some programmes

require enabling the draining manually (see page 18).

 The Easy iron option is enabled: to complete the programme, press

the START/RESET button (see page 19).

 The drain hose is bent (see page 15).

 The drain duct is clogged.

 The drum was not unblocked correctly during installation (see page 14).

 The washing machine is not level (see page 14).

 The washing machine is closed in between furniture cabinets and

the wall (see page 14).

 The water inlet hose is not screwed on correctly (see page 14).

 The detergent dispenser is obstructed (to clean it, see page 22).

 The drain hose is not secured properly (see page 15).

 Call for Assistance because this means there is an abnormality.

 The detergent is not suitable for machine washing (it should bear

the definition "for washing machines" or "hand and machine wash",

 You used too much detergent.24

GB Before calling for Assistance:

 Check whether you can solve the problem on your own (see page 23);

 Restart the programme to check whether the problem has been solved;

 If this is not the case, contact an authorised Technical Service Centre on the telephone number

provided on the guarantee certificate.

 Always request the assistance of authorised servicemen.

Notify the operator of:

 the type of problem;

 the appliance model (Mod.);

 the serial number (S/N).

This information can be found on the data plate situated on the rear of the washing machine.
