ECN30105W - Freezer ELECTROLUX - Free user manual and instructions

Brand	Electrolux
Model	ECN30105W
Product type	Chest freezer
Gross volume	304 litres
Net volume	300 litres
Height	87.6 cm
Width	105 cm
Depth	66.5 cm
Weight	62 kg
Energy consumption	0.956 kWh/24h
Freezing capacity	17 kg/24h
Time to warm	32 hours
Rated power	85 W
Supply voltage	230-240 V
Climate class	SN, N, ST, T
Refrigerant	R600a (isobutane)
Main functions	Super Freeze, audible and visual alarm, thermostatic regulation
Interior lighting	Bulb max. 15 W
Included accessories	Storage baskets, safety lock, ice scraper
Maintenance and cleaning	Manual defrosting, clean with a soft cloth and neutral detergent
Safety	Key lock, reopening valve, hermetic seal
Repairability	Repair exclusively by Electrolux authorized service

Frequently Asked Questions - ECN30105W ELECTROLUX

How to adjust the freezer temperature?

Turn the thermostat knob clockwise for a lower temperature, or counter-clockwise for a less cold temperature.

What is the Super Freeze function used for?

The Super Freeze function allows freezing a large quantity of fresh food (more than 3-4 kg). Activate it 24 hours earlier by pressing button D; the yellow indicator lights up. It stops automatically after 52 hours.

Why does the audible alarm go off?

The audible alarm goes off if the internal temperature is too high (lid open too long, introduction of fresh food, or malfunction). Press button D to stop it. The red indicator stays on until the temperature is sufficiently low.

How to defrost the freezer?

Unplug the appliance, remove the food, leave the lid open. Unplug the defrost water drain and collect the water. Use the provided scraper to remove the ice. Never use sharp objects. Wipe the interior before restarting.

How to clean the interior of the freezer?

Unplug the appliance, remove the baskets. Clean with a damp cloth and warm water with a mild fragrance-free detergent. Do not use abrasive or scented products.

What to do if the lid does not close properly?

Check that no food packages or frost accumulation prevent closure. Clean the seal if it is dirty or sticky. Make sure the freezer is level.

How to change the interior bulb?

Unplug the appliance. Remove the defective bulb and replace it with a new bulb of a maximum power of 15 W. Reconnect the appliance.

What is the freezing capacity in 24 hours?

The freezer can freeze up to 17 kg of fresh food in 24 hours.

What are the important safety precautions?

Do not consume ice cubes immediately after removal (risk of frostbite). Do not let children play inside. Do not store full bottles (risk of bursting). Do not place the appliance on the power cord.

What to do in case of power failure?

Do not open the lid. Food remains frozen for up to 32 hours (according to specifications). If the power failure lasts longer, quickly consume thawed food or refreeze it after cooking.

USER MANUAL ECN30105W ELECTROLUX

We were thinking of you when we made this product

Technical diagram of a refrigerator with numbered components for identification and assembly reference.

Two diagrams showing a container with internal compartments and an arrow indicating rotation or movement (no text or symbols)

Hand inserting a component into a grid notebook (no text or symbols visible)

Welcome to the world of Electrolux!

Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine. We promise that it will provide a superior User Experience delivering Ease-of-Mind. Good luck!

The following symbols are used in this user manual:

Important information concerning your personal safety and information on how to avoid damaging the appliance

General information and tips

Environmental information

Disposal

By ensuring this product is disposed of correctly, you will help prevent potential damaging consequences for the environment and human health.

The symbol on the product indicates that this product may not be treated as household waste, but must be taken instead to a suitable collection point for the recycling of electrical and electronic equipment. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the appliance.

Contents

Safety Information ....17

Product Description 17

Control panel 17

Installation....18

First use 18

Switch on-off 18

Switch on the freezer 18

Switch off the freezer 18

Daily use 18

Temperature adjustment ....18

Super Freeze function 19

Alarm 19

Storage baskets 19

Security lock 19

Opening and closing the lid 19

Care and Cleaning 20

Defrosting the freezer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Cleaning 20

When not in use 20

Changing the light bulb 20

Helpful hints and tips....20

Freezing food 20

Food storage 21

In the case of a power failure or breakdown .....21

What to do if....21

Service or repair 22

Technical Data 22

Safety Information

Before installing and using the appliance read this user's instruction book carefully. It contains safety precautions, hints, information and ideas. If the freezer is used in compliance with the instructions written, it will operate properly and provide you with greatest satisfaction.

These warnings are provided in the interest of safety. You must read them carefully before installing or using the appliance.

• Use the freezer only for storing frozen food, freezing fresh food and making ice cubes.
• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer, since they may cause frost burns.
• Do not allow children to play or hide inside the freezer, since they may become trapped inside and suffocate.
• Do not store glass containers with liquids in the freezer, since they may burst.
• Ensure that the freezer is not resting on the power supply cable.
• Before servicing or cleaning, always unplug the appliance or disconnect the power supply.
• Do not use other electrical appliances (such as ice cream makers) inside the appliance.
• Your appliance contains an environmentally friendly natural gas, isobuthane (R600a). Caution is required however, since isobuthane is flammable. Therefore it is essential to ensure that the refrigerant pipelines are not damaged.

It is most important that this instruction book should be retained with the appliance for future reference.

Product Description

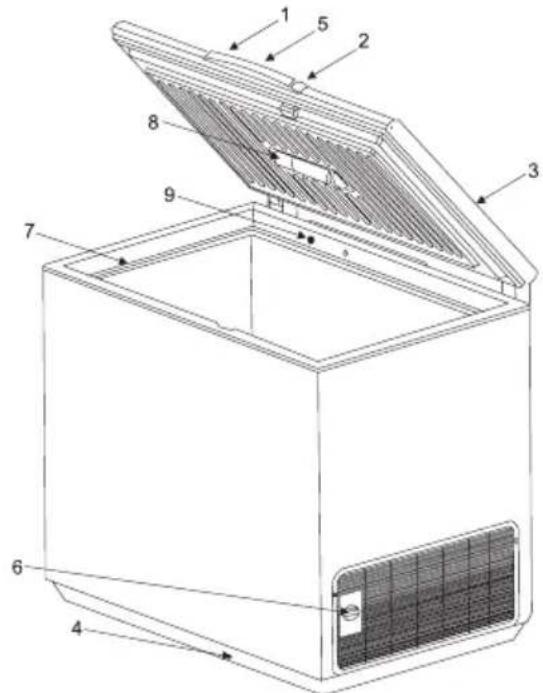

Technical diagram of a box with numbered components, likely an air conditioner unit or enclosure

1. Lid handle
2. Security lock
3. Seal
4. Defrost water drain
5. Control panel
6. Thermostat knob: temperature adjustment
7. Upper edge
8. Light
9. Valve: easy re-opening of lid

Control panel

A B C △ ○ ● D

A. Red light: Illuminates when the freezer temperature is not sufficiently low.
B. Green light: Illuminates when the appliance is on.
C. Yellow light: Illuminates when the Super Freeze function is activated.
D. Super Freeze button: Activates/deactivates the Super Freeze function for large quantities for fresh food and switches off the beeping alarm.

Installation

• Wait at least 2 hours before connecting the freezer to the power supply to ensure the refrigerant circuit is fully efficient.
• Install the freezer in a dry, well ventilated room. Avoid locations near a source of heat or in direct sunlight.
• The room temperature should correspond to the climatic classification for which the freezer was designed, see chapter "Technical data".
• Place the freezer horizontally on a firm surface, resting on all four feet.
• For optimum operation and in order to avoid damage when the lid is opened, leave a space of at least 5 cm from the rear wall and 5 cm at the sides.
• Before connecting the freezer to the power supply, ensure that the voltage corresponds to that indicated in chapter "Technical data" under "Voltage".

Danger!

• Ensure that the freezer is not resting on the power supply cable.
• Do not remove the power supply cable by pulling on its lead, particularly when the freezer is being pulled out of its niche.
• The power supply cable may only be replaced by a qualified service personnel.
• Ensure that the power plug is not squashed or damaged by the back of the freezer.
• There must be adequate ventilation around the appliance.
• Any electrical work required to install this appliance should be carried out by a qualified electrician.

First use

• Before first use, the freezer should be cleaned inside, see chapter "Care and cleaning".
• Plug in the appliance.
  • The green light will come on.
• The red light will also switch on and the alarm will beep, since the temperature inside the freezer is not yet sufficiently low for food storage.
• Press button (D) to switch the alarm off. The red light will normally switch off after several hours.
• Only place food inside the freezer once the red light has switched off.

Switch on-off

Switch on the freezer

• Turn the thermostat knob to a position between ⚙ and ⚙.
  • The green light comes on.

Circular diagram with a central cylindrical element and two surrounding symbols (no readable text or labels)

Switch off the freezer

• Turn the thermostat knob to the Off position
  • The green light goes off.

Daily use

Temperature adjustment

To adjust the temperature of the freezer, proceed as follows:

• Turn the thermostat knob clockwise towards ✦ for a colder storage temperature.
• Turn the thermostat knob counterclockwise towards for a less cold storage temperature.

Super Freeze function

If more than 3-4 kg of fresh food is to be frozen, the freezer needs to be pre-cooled.

• At least 24 hours before placing fresh food in the freezer, press button (D).
  • The yellow light comes on.
• Place the food in the freezer. After 52 hours this function will automatically switch off and the freezer will return to normal storage temperature. This function can be de-activated any time by pressing button (D) again.

Super Freeze function

If more than 3-4 kg of fresh food is to be frozen, the freezer needs to be pre-cooled.

• At least 24 hours before placing fresh food in the freezer, press button (D).
  • The yellow light comes on.
• Place the food in the freezer. After 52 hours this function will automatically switch off and the freezer will return to normal storage temperature. This function can be de-activated any time by pressing button (D) again.

Alarm

If the freezer temperature is not sufficiently low, the alarm will beep and the red light will come on.

- Press button (D) to switch the sound off. The red light remains on as long as the temperature in the freezer is higher than the thermostat setting.

The alarm can be due to:

• Insertion of a large amount of fresh food.
• Opening the lid too long.
• A defect in the system, see chapter "What to do if...".

Storage baskets

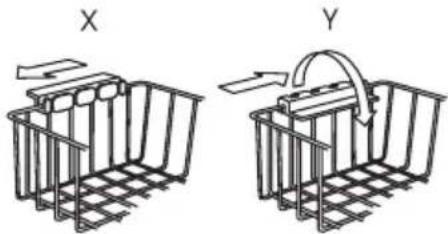

• Hang the baskets on the upper edge (X) or place the stackable baskets inside the freezer (Y).
• Turn and fix the handles for these two positions, as shown in the drawings.

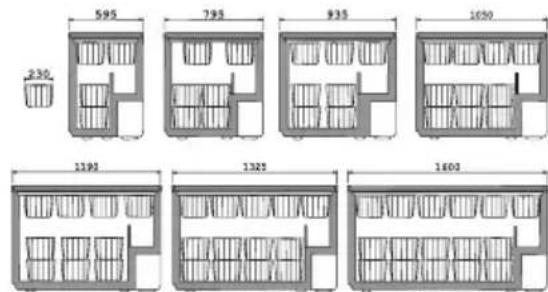

Two 3D wireframe diagrams showing a container with internal compartments and a curved arrow indicating rotation (no text or symbols)

Spare baskets can be obtained from your local Service Force Centre or from the Electrolux website (depending on country). The illustrations on this page show how many baskets can be placed in the various freezer models.

230 595 795 935 1050 1192 1325 1403

Security lock

- Push the key in the lock while turning. Spare keys can be obtained from your local Service Force Centre.

Important! Keep the keys out of reach of children. Before disposing of an old freezer remove the keys.

Opening and closing the lid

As the lid is fitted with a tightly closing seal, it will not re-open easily immediately after closing.

- Wait a few minutes before re-opening the lid. A valve will allow the lid to be re-opened easily. Never pull the handle violently.

Care and Cleaning

Defrosting the freezer

• Disconnect the appliance from the power supply.
• Remove all loose accessories and the vented floor, as shown on the illustration.
• Use a damp cloth to clean your freezer. Use hot water and a mild, non-aromatic detergent.
• Clean the loose accessories and the vented floor, before replacing them again.

Important! Never use strong detergents, scouring powder or aromatic detergents to clean your freezer.

Cleaning

The best time to clean your freezer is after defrosting.

• Disconnect the appliance from the power supply and remove all loose accessories.
• Use a damp cloth to clean your freezer. Use hot water and a mild, non-aromatic detergent.
• Clean the loose accessories, before replacing them again.

Important! Never use strong detergents, scouring powder or aromatic detergents to clean your freezer.

When not in use

• Disconnect the appliance from the power supply.
• Remove all food from the freezer.
• Clean the freezer as described above.
• Leave the lid slightly open.

Changing the light bulb

• Disconnect the appliance from the power supply.
• Unscrew the bulb, and replace it with a new bulb (max. 15W).
• Plug in the appliance.

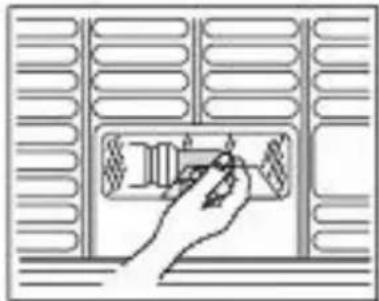

Hand inserting a component into a control panel (no text or symbols visible)

i

Helpful hints and tips

Freezing food

• Before freezing, fresh food must be packed in airtight and moisture-proof packaging to prevent it from drying out.
• Only use fresh food of the best quality.
  • Always leave hot food to cool to room temperature before placing in the freezer.
• Divide food into small portions before freezing; this ensures that freezing is more rapid, and that you only need to defrost the amount needed for immediate consumption.
• Mark the freezer packaging with the date of freezing.
• Place fresh food for freezing close to the cold sides of the freezer, making sure that it is not in contact with the frozen food already in the freezer.
• Frozen food can be stored anywhere inside the freezer, but should be kept at least 5 mm below the upper edge.
  If freezing is too slow, the quality of the food being frozen deteriorates. The amount of fresh food (expressed in kg)

that can be frozen in 24 hours is indicated in the chapter "Technical data" under "Freezing capacity".

Food storage

• For fresh frozen food, please refer to the storage period table underneath.
• For purchased frozen food, never exceed the expiry date.
• When you buy frozen food, make sure that it has been stored at the correct temperature. Do not buy products which have wet or damaged packaging. Place purchased products in your freezer as quickly as possible. We recommend using an insulated bag to bring such products home with you.

Important! Remember that fully or partially defrosted food must not be re-frozen. However, dishes which have been cooked using defrosted food may be frozen.

3 | 🎯 📊 🌐 | 6 | 📒 🏠 🍃 | 9 | 🎩 🎋 📞 | 12 | 🌿 🏠 🍼 |

In the case of a power failure or breakdown

- Do not open the lid.

Important! If the power has been off for longer that the value shown in the chapter "Technical data" under "Hold-over time", the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooling).

What to do if...

Try the solutions suggested here first to avoid the cost of an unnecessary service call.

Your freezer will not operate

• Is the power supply cord unplugged?
- Has a household fuse blown?
• Is there a power failure?
- Is the temperature control set to the Off position?

The alarm remains audible and/or the red light/symbol ( ) is on

• Is the lid not closed completely? See underneath.
• Is the temperature control set correctly for the surrounding conditions?
• Is the freezer too close to a source of heat?

The inside light does not work

• Is the power supply cord unplugged?
- Is the light bulb loose in the socket or burned out?

The motor seems to run too much

• Is the lid not closed completely? See underneath.
• Is the room temperature hotter than normal?
• Has a large amount of fresh food just been added to the freezer?

• Is the lid opened often?

- Is the temperature control set correctly for the surrounding conditions?

• Is the lid seal damaged or deformed?
- Is there enough air circulation space around the freezer?
- Is the Super Freeze function activated accidentally?

Temperature is too warm

• Has a large amount of food just been added to the freezer?
  • Is the lid opened often?
• Is the temperature control set correctly for the surrounding conditions?

The lid will not close completely

• Is there excessive frost or a package preventing the lid from closing?
• Are food packages blocking the lid?
  • Is the lid seal dirty or sticky?
• Does the freezer wobble or seem unstable?

The lid is difficult to open

• Is the lid seal dirty or sticky?
- Is the valve blocked?

If you still need help, please contact your local Sercive Force Centre.

Service or repair

In cases of breakdown or faults, your freezer must be serviced by an authorized Electrolux Service Centre.

Important! Under no circumstances should you attempt to repair the appliance yourself

Technical Data

Model BNI325		ECN30105W
Volume (gross) Liter 304
Volume (net) Liter 300
Height Cm 87,6
Width Cm 105
Depth Cm 66,5
Weight	Kg	62
Energy consumption/24h	kWh/24h	0,956
Freezing capacity	kg/24h	17
Hold-over time	Hours	32
Rated power	Watt	85
Voltage	Volts	230-240
Climatic class		SN-N-ST-T

Climatic classification	Ambient temperature limits
SN from +10°C to +32°C
N from +16°C to +32°C
ST from +18°C to +38°C
T from +18°C to +43°C

This appliance complies with the following EC Directives:

73/23/EEC of 19.02.1973 Low-Voltage Directive 89/336/EEC of 03.05.1989 (including Amendment Directive 92/31/EEC - EMC Directive)

Technical diagram of a box with numbered components, likely an air conditioner unit or enclosure

Two 3D wireframe diagrams showing a basket structure before and after rotation, labeled X and Y (no text or symbols on the figures themselves)

Hand inserting a component into a device panel, no text or symbols visible

3 | 🎯 📞 🌿 | 6 | 🎯 📞 🎽 | 9 | 🎯 🎯 🎽 | 12 | 🎯 📞 🎽 |

Ligar/desligar (on-off) 39

Ligar o congelador ....39

Technical diagram of a refrigerator with numbered components for identification and assembly reference.

1. Pega na tampa
2. Fecho de segurança
3. Selo
4. Dreno de água da descongelaçao
5. Painel de controlo
6. Botao do termóstato: ajuste de temperatura
7. Bordo superior
8. Luz
9. Válvula: tampa de abertura fácil

Painel de controlo

A B C △ ○ * D

Ligar/desligar (on-off)

Ligar o congelador

Two 3D wireframe diagrams showing a basket structure with arrows indicating rotation or movement (no text or symbols)

Hand inserting a component into a device panel (no text or symbols visible)
