| Product type | LED TV |
| Brand | Innosol |
| Model | Manhattan |
| Screen size | 42 inches (diagonal) |
| Resolution | 1920 x 1080 pixels (Full HD) |
| TV system | PAL BG/DK/I |
| Audio power | 2 x 8 W |
| Power supply | 100-240 V, 50/60 Hz |
| Power consumption | 150 W (standby < 1 W) |
| Weight | 23 kg |
| Connectivity | HDMI (2), VGA, SCART, USB, YPbPr, S-Video, CI, RF antenna, headphone |
| Multimedia functions | Photo, music, video, text playback from USB |
| 3D functions | Yes (HDMI 1.4 compatible, side-by-side, top/bottom, line-by-line formats) |
| Electronic Program Guide (EPG) | Yes |
| Wall mounting | VESA standard 200 x 100 mm |
| Supplied accessories | Remote control, batteries, stand, power cable |
| Care and cleaning | Soft dry cloth; do not use solvents |
| Safety | Do not open, keep away from water, do not block ventilation openings |
| Warranty period | 2 years |
| General information | Manufactured in compliance with European safety standards |
Frequently Asked Questions - Manhattan Innosol
User questions about Manhattan Innosol
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Light therapy in PDF format for free! Find your manual Manhattan - Innosol and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Manhattan by Innosol.
USER MANUAL Manhattan Innosol
Sender bearbeiten 2 ITV2 3 Channel 4 4 E4 5 Hire 4 6 Channel 4+1 7 ITV1 +1 8 Channel 5 9 BBC FOUR 10 Cloniestext_image
Sender bearbeiten 3 TV1 2 ITV2 3 Channel 4 4 E4 5 More 4 6 Channel 4+1 7 ITV1 +1 8 Channel 5 9 BBC FOUR 10 Chestiesnatural_image
Front view of a silver convertible sports car (9F) on display, no visible text or symbols on the vehicle itself.text_image
1 Playing Forms To justify your Instagram, click the Real and move to account. Panel and Property Panel is my ideal position of the page, read for users for the next at filling the feature or to get it out of the next. Headed listSide by Side 3D-Format
SAFETY INFORMATION ....3
Headphone Warning....4
Where to install....4
LCD Screen....4
3D safety information ....5
Unit and Accessories 6
Getting Started....6
Front view....6
Remote Control....7
Functions of remote control buttons....8
To Set the Multi-Satellite Mode button 9
Installing Batteries in the Remote Control 10
Using the Remote Control....10
Aerial connection....10
Connecting the TV Antenna 10

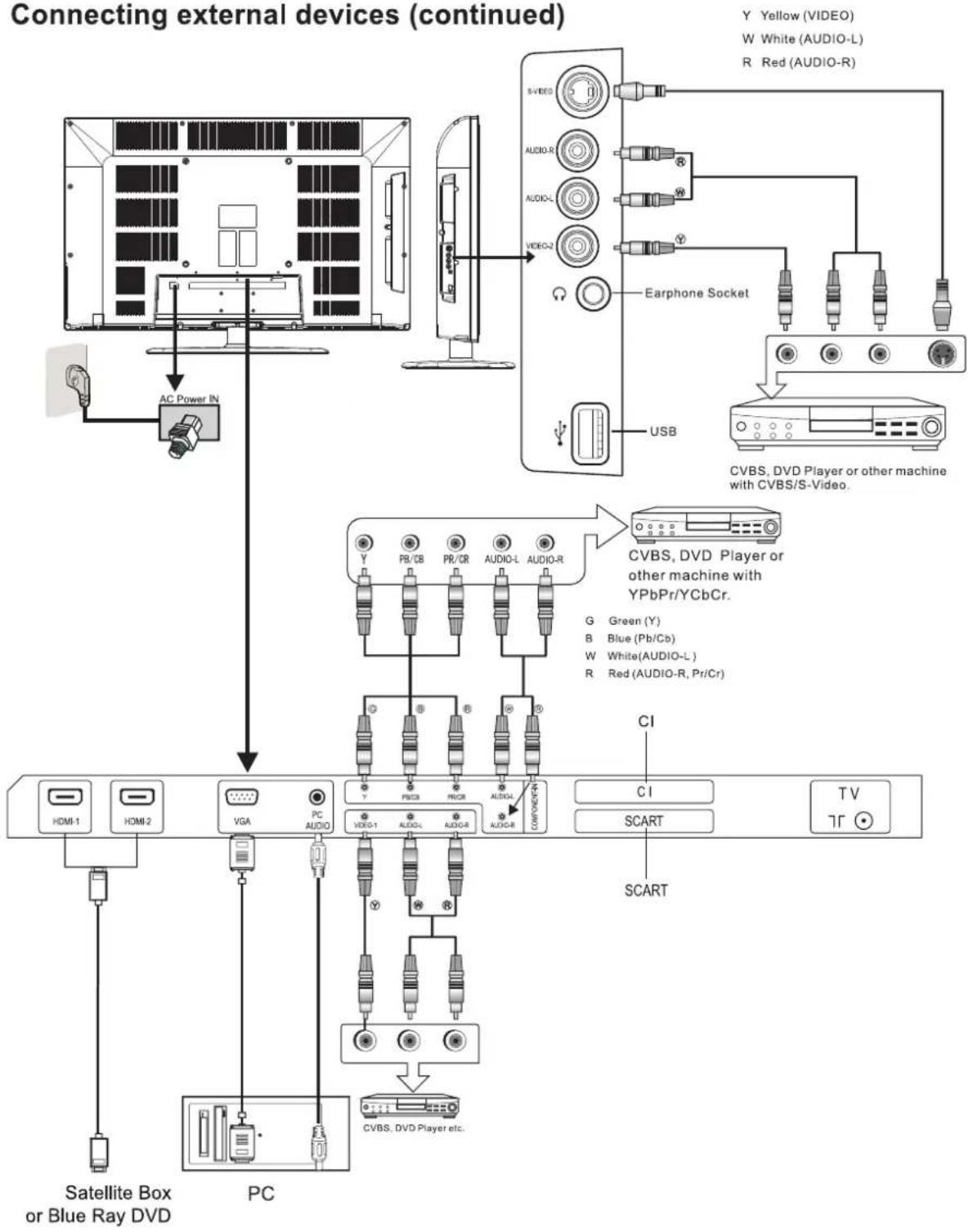

Connecting external devices ....10
HDMI Lead....10
SCART Lead....10
VGA Cable....10
CONNECTIONS 11
PC connection....12

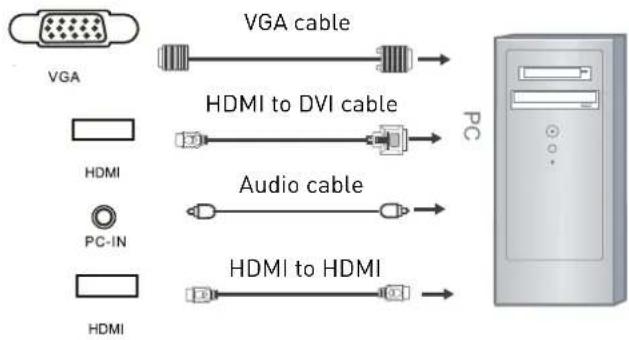

VGA, HDMI PC Connection....12
Connecting Video camera and Video recorder 12

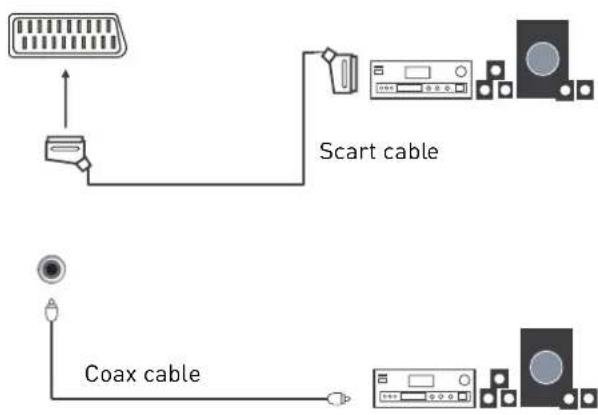

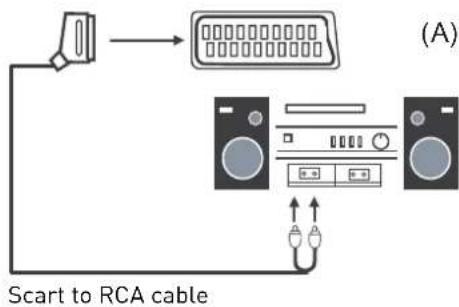

Connecting an audio system 13

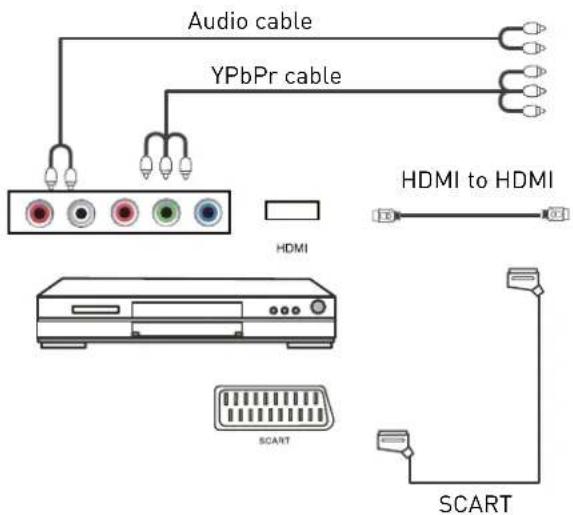

Connecting a DVD player 13
Common Interface Slot....14

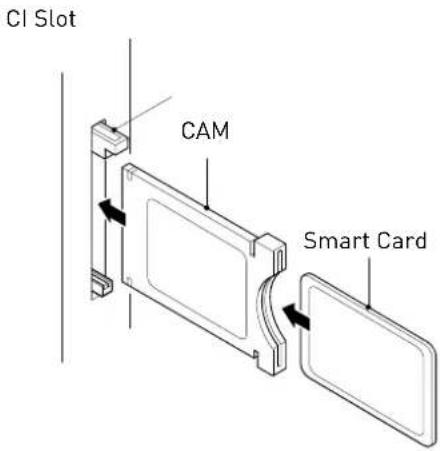

USING YOUR COMMON INTERFACE SLOT 14
Auto installation setup 14
Power On / Off the LCD TV....14

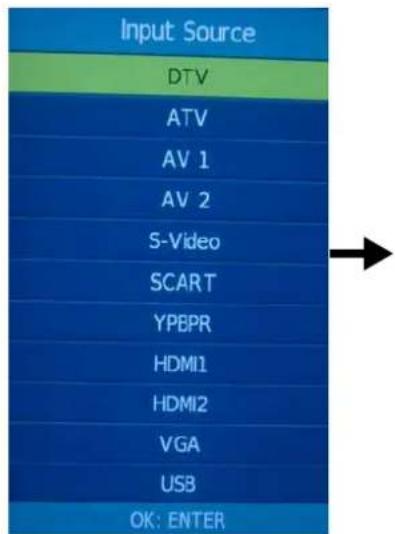

Source Menu 15
Menu Settings 15

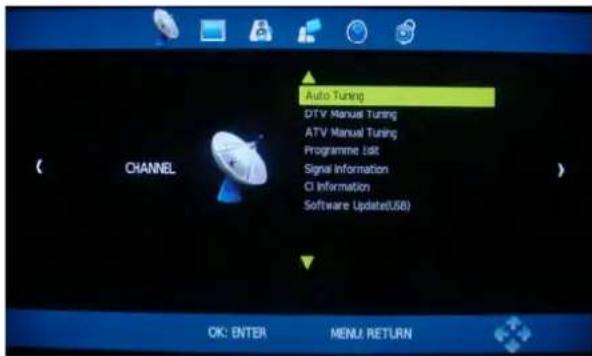

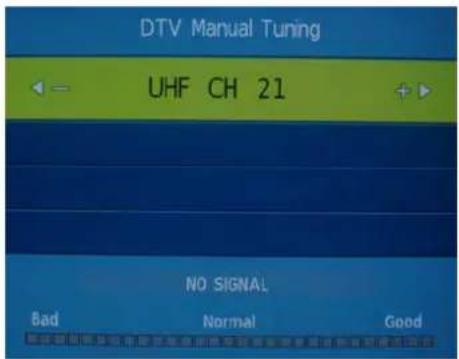

CHANNEL MENU 15

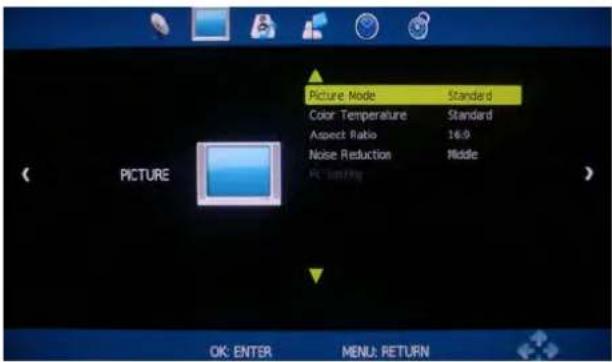

PICTURE MENU 15
SOUND MENU....15

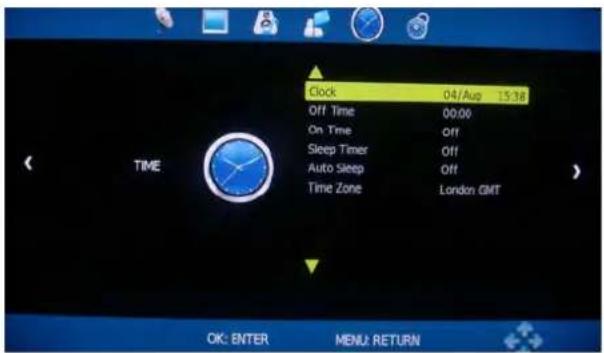

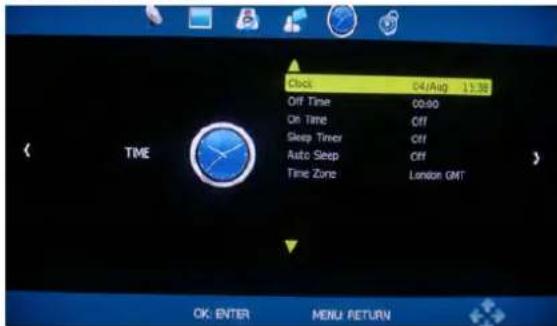

TIME MENU 16

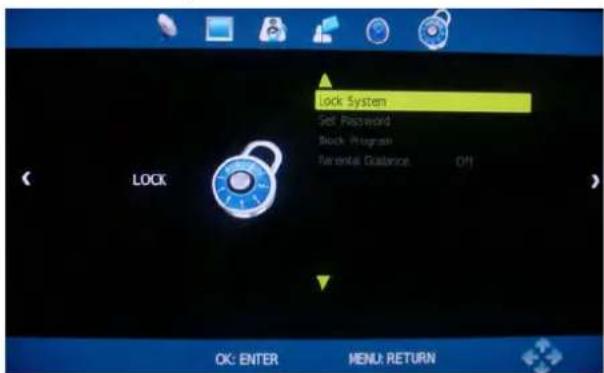

LOCK MENU....16
OPTIONS MENU....16

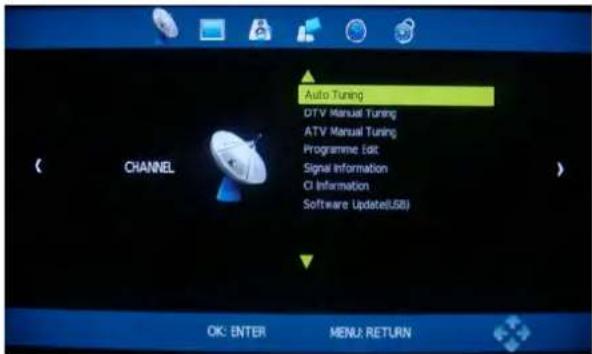

CHANNEL MENU 16

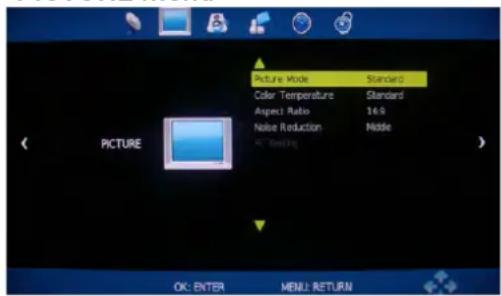

Picture Menu 17

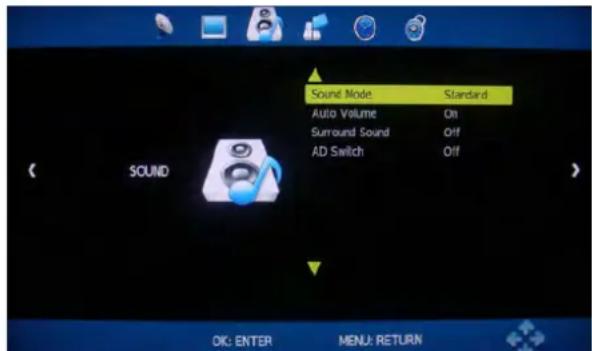

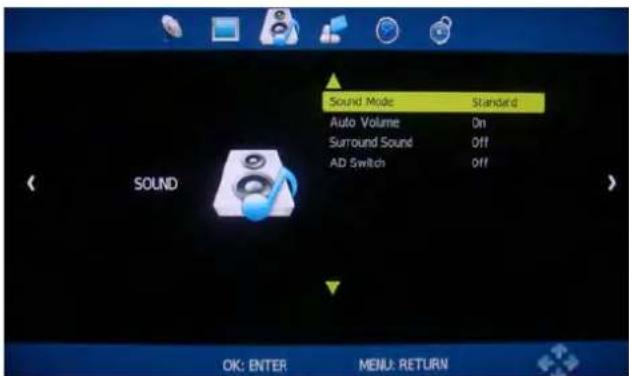

Sound Menu 17
Time Menu....18

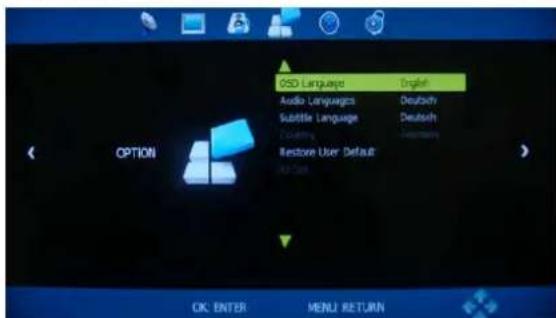

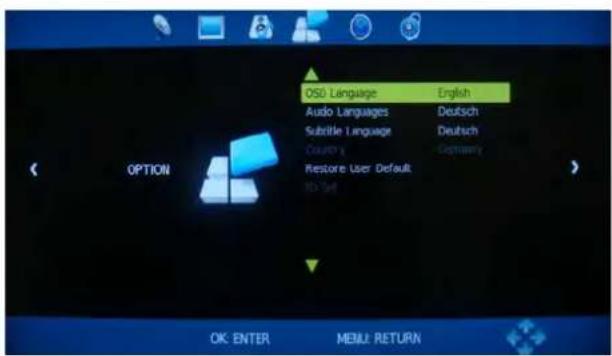

Option Menu....18
Lock Menu 18

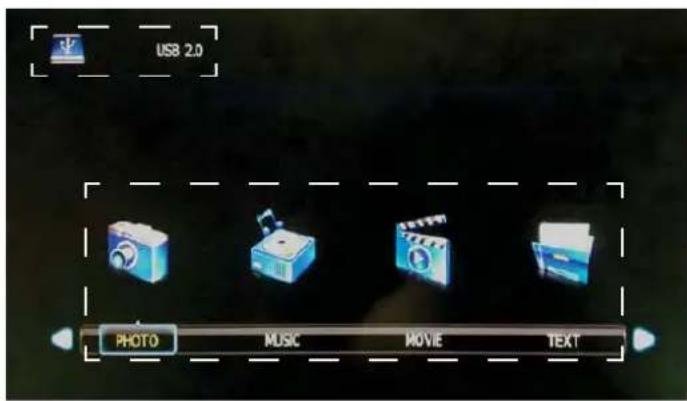

Multimedia Operation....19

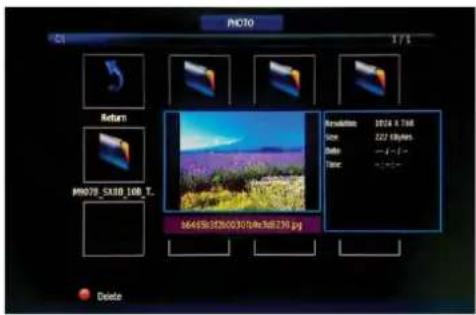

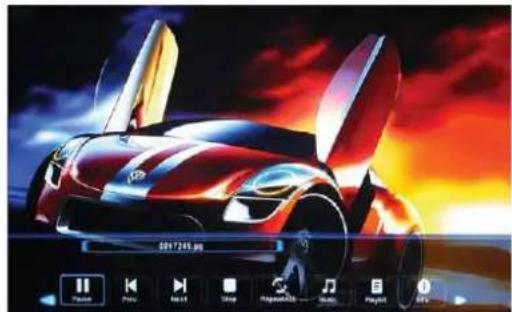

Photo 20

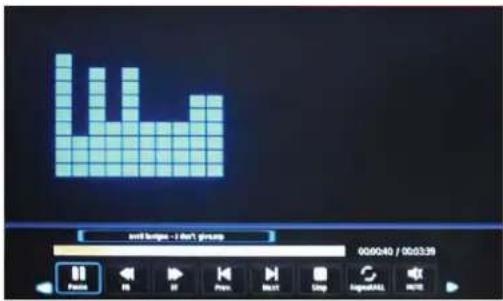

Music 20

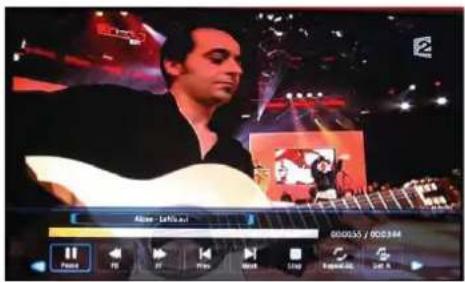

Movie 20

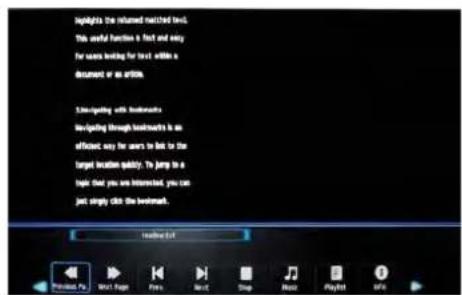

Text....20

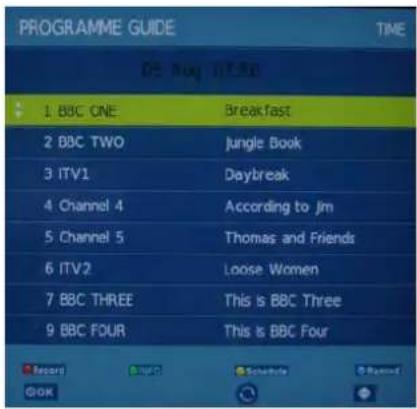

EPG 21
TROUBLE SHOOTING GUIDE....22
TECHNICAL SPECIFICATIONS ......22
TV Specifications 22
3D Specifications.... 23
Wall Mounting....24
Waste Electrical Recycling 24
Correct disposal of Product....24
Introduction
Thank you for purchasing this LCD TV which has been designed and manufactured to give you many years of trouble free service.
You may already be familiar with using a similar product but please take time to read these instructions which have been written to ensure you get the very best from your purchase.
HDMI
HDMI (High Definition Multimedia Interface) is the next generation of digital interface. Unlike conventional connections, it transmits uncompressed digital and audio signals using a single cable. This TV supports high-definition video input via the HDMI socket on the back of the TV.
Safety is important
To ensure your safety and the safety of others, please read the safety precautions BEFORE you operate this product.
Disclaimer
The illustrations of the LCD-TV, accessories and menus shown in this User's Manual may differ from the actual product.
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE.
Take note of the following safety information which appears on the back of the TV.
CAUTION: TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that there are important operating maintenance instructions in the literature accompanying this unit.
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
Keep these instructions
- Do not use this TV near water.
• Clean only with a slightly damp cloth. - Do not block any ventilation openings.
• Install in accordance with the supplied Quick Start Guide and this User Guide. - Protect the power chord from being walked on or pinched, particularly at plugs, and the point where it exits from the TV.
- Do not allow the power chord to overhang the edge of a table.
- Unplug this TV during lightening storms or when unused for long periods of time.
WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS TV TO RAIN OR MOISTURE. THE TV MUST NOT BE EXPOSED TO DRIPPING AND SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON THE TV.
NOTE: No naked flames such as candles should be placed on the TV.
NOTE: When displaying the same still picture for more than 2 hours without any interruption, the picture contours of the continuously displayed contents may remain visible on screen, i.e. a persistent image remains. The same applies, when displaying for more than 2 hours:
• the same background/wallpaper
• logos, video games, computer images, Teletext
- contents with a non-filling aspect ratio (e.g. 4:3 format)
These do not represent any malfunction and will not be covered by the manufacturer's warranty
dSsɛ□ZYs□||Äɛ□d'Zsú□ZYĚG□DŽYɛsĚGðAísŽY□ŽÍ□Áuì□DzādGÝH□EÃIGLJ□ðGÓZuAísŽYɛ□
This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers connected with such use.
- Although this appliance has been carefully manufactured and rigorously checked prior leaving the factory, as with all electrical appliances it is possible for problems to develop. If you notice smoke, an excessive build up of heat or any other unexpected phenomena, you should disconnect the plug from the mains power socket immediately.
- Ensure that the unit is sufficiently ventilated! Never place next to or underneath curtains!
- The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
- This set should only be connected to a mains power supply which matches that stated on the label on the rear of the TV - do not attempt to connect it to any other type of supply.
- The socket - outlet must be installed near the equipment and easily accessible.
- To prevent overload, don't share the same mains supply socket with too many other items of equipment.
- Apparatus with Class 1 construction shall be connected to a mains socket outlet with a protective earth connection.
- Keep away from rodents. Rodents enjoy biting into electric flexes.
- Always hold the plug when pulling out the plug from the mains supply socket. Do not pull on the flex, the flex can become overloaded and cause a short circuit.
- Set up the unit so that no one is able to trip over the flex.
- Do not place heavy items on the flex, which may damage it.
• Take note that not be reached and pulled by young children, avoiding injury. - Do not set up the unit near to heat sources. The casing and the flex could be damaged by the impact of heat.
- The screen is made of plastic and can break if damage is done to it. Be careful when collecting sharp edged plastic splinters to avoid injury.
- Avoid placing the unit on any surfaces that may be subject to vibrations or shocks.
- To protect the unit during a thunderstorm unplug the AC power cable and disconnect the aerial. Caution: Do not touch the aerial (RF) connector.
- When you leave your home for long periods of time, unplug the AC power cable for safety reasons.
- The unit becomes warm when in operation. Do not place any covers or blankets on the unit in order to prevent overheating. The ventilation holes are not to be blocked. Do not set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 5 cm (2") free space around the whole unit.
- Do not allow water or moisture to enter the TV. Do NOT use in wet or moist areas such as Bathrooms,
steamy kitchens or near swimming pools.
- Do not use this unit when moisture condensation may occur
- Any repairs must be carried out by qualified personnel only.
- Do not open this unit. A non-expert attempting to repair the unit could be dangerous and potentially cause a fire hazard.
- Liquids spilt into the unit can cause serious damage. Switch the set OFF and disconnect the mains power supply, then consult a qualified service person before attempting to use the unit again.
- Do NOT remove the safety covers. There are no use-able or serviceable parts inside. You may invalidate the warranty. Qualified personnel must only service this apparatus.
- Do NOT tap or shake the screen, you may damage the internal circuits. Take good care of the remote control, do not drop.
- Never place hot objects or open flame sources on or close to the TV.
• High temperatures can melt plastic and lead to fires. - To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For stubborn stains, you may use a damp cloth with dilute detergent.
Headphone Warning
Loud music can damage your hearing irreversibly, therefore do not set the volume to a high level when listening through headphones, particularly for lengthy listening periods.
Where to install
Locate the television away from direct sunlight and strong lights, soft indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen. Place the TV on a sturdy platform of which the surface should be flat and steady. This will prevent it from falling over.
Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen, and so that small objects cannot be inserted into the ventilation slots or openings in the cabinet.
LCD Screen
The LCD display panels are manufactured using an extremely high level of precision technology, however sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of malfunction.
3D Safety Information
- If you watch the 3D imaging too closely or for a long period of time, it may harm your eyesight.
- Watching the TV or playing video games that incorporate 3D imaging with the 3D glasses for a long period of time can cause drowsiness, headaches or fatigue to you and/or your eyes. If you have a headache, or otherwise feel fatigued or drowsy, stop watching the TV and take a rest.
- Pregnant woman, seniors, persons with heart problems or persons who experience frequent drowsiness should refrain from watching 3D TV.
- Some 3D imaging may cause you to duck or dodge the image displayed in the video. Therefore, it is best if you do not watch 3D TV near fragile objects or near any objects that can be knocked over easily.
- Please prevent children under the age of 5 from watching 3D TV. It may affect their vision development.
Warning for photosensitization seizure:
- Some viewers may experience a seizure or epilepsy when exposed to certain factors, including flashing lights or images in TV or video games. If you or anybody from your family has a history of epilepsy or seizure, please consult with your doctor before watching 3D TV. Also certain symptoms can occur in unspecified conditions without any previous history. If you experience any of the following symptoms, immediately stop watching the 3D imaging and consult a doctor: dizziness or light headedness, visual transition or altered vision, visual or facial instability, such as eye or muscle twitching, unconscious action, convulsion, loss of conscience, confusion or disorientation, loss of directional sense, cramps, or nausea. Parents should monitor their children, including teenagers, for these symptoms as they may be more sensitive to the effects of watching 3D TV.
Risk of photosensitization seizure can be reduced with the following actions.
• Take frequent breaks from watching 3D TV.
- For those who have vision that is different in each eye, they should watch the TV after taking vision correction measures.
- Watch the TV so that your eyes are on the same level as the 3D screen and refrain from sitting too closely to the TV.
- Do not watch the 3D imaging when tired or sick, and avoid watching the 3D imaging for a long period of time.
- Do not wear the 3D glasses for any other purpose than viewing 3D imaging on a 3D TV.
- Some viewers may feel disoriented after watching 3D TV. Therefore, after you watch 3D TV, take a moment to regain awareness of your situation before moving.
Unit and Accessories
Remote Control
4 x polarized glasses
Batteries for Remote Control
Retourenkarte
Power cable
Quick Start Guide
User Guide
Packaging materials are no toys. Please keep away from children. Plastic bags can cause suffocation when pulled over the head.
Getting Started

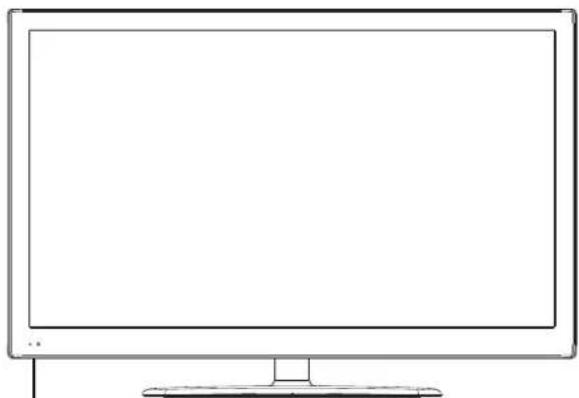

Front view
Source : Press to display the input source menu.
CH+/- : Press to skip through the channels.
Vol +/- : Press to adjust the volume.
Menu : Press to display the OSD menu, press again to exit the menu.
① : Power switch.

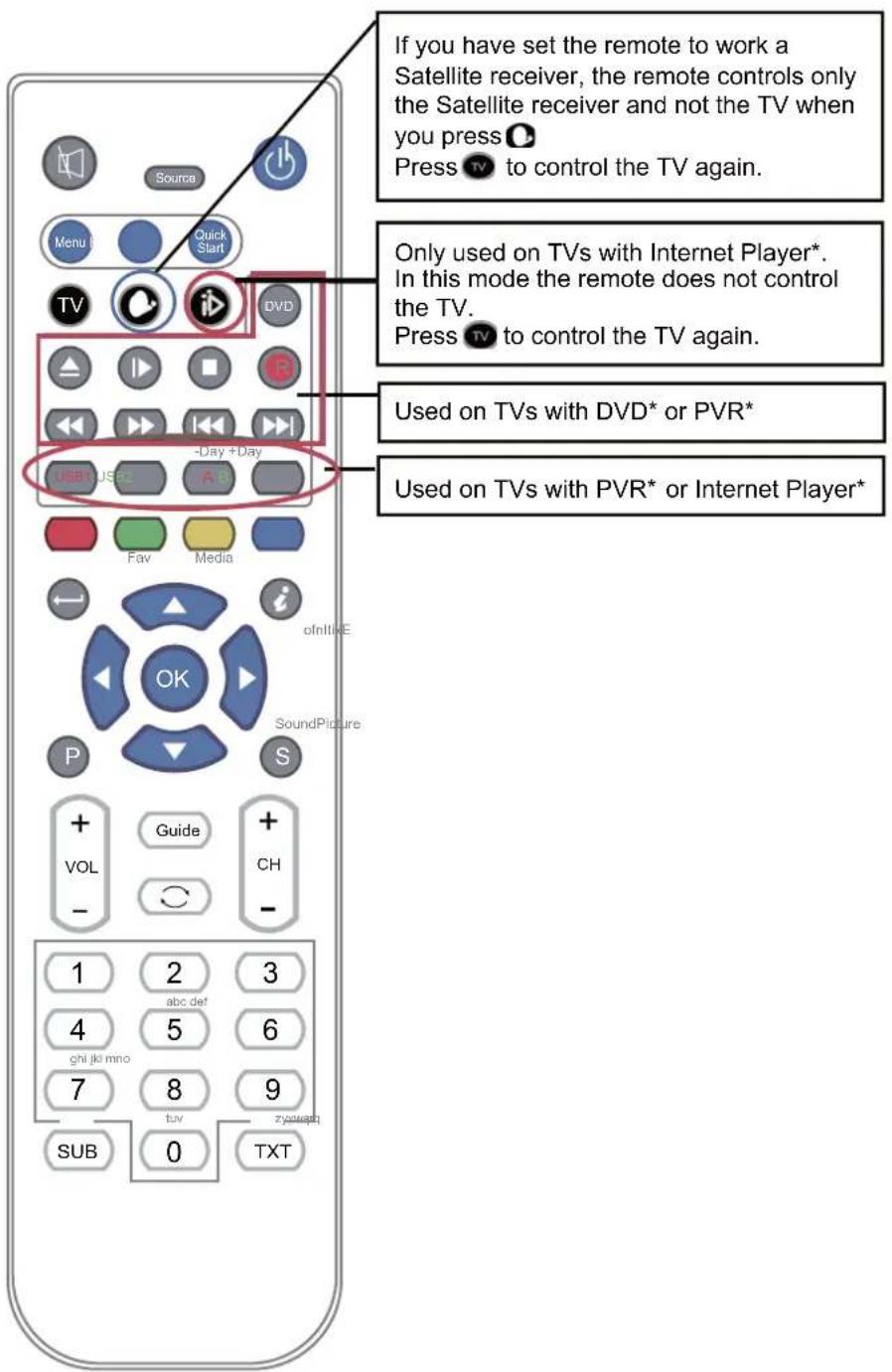

Remote Control
Remote control may differ in shape from actual remote

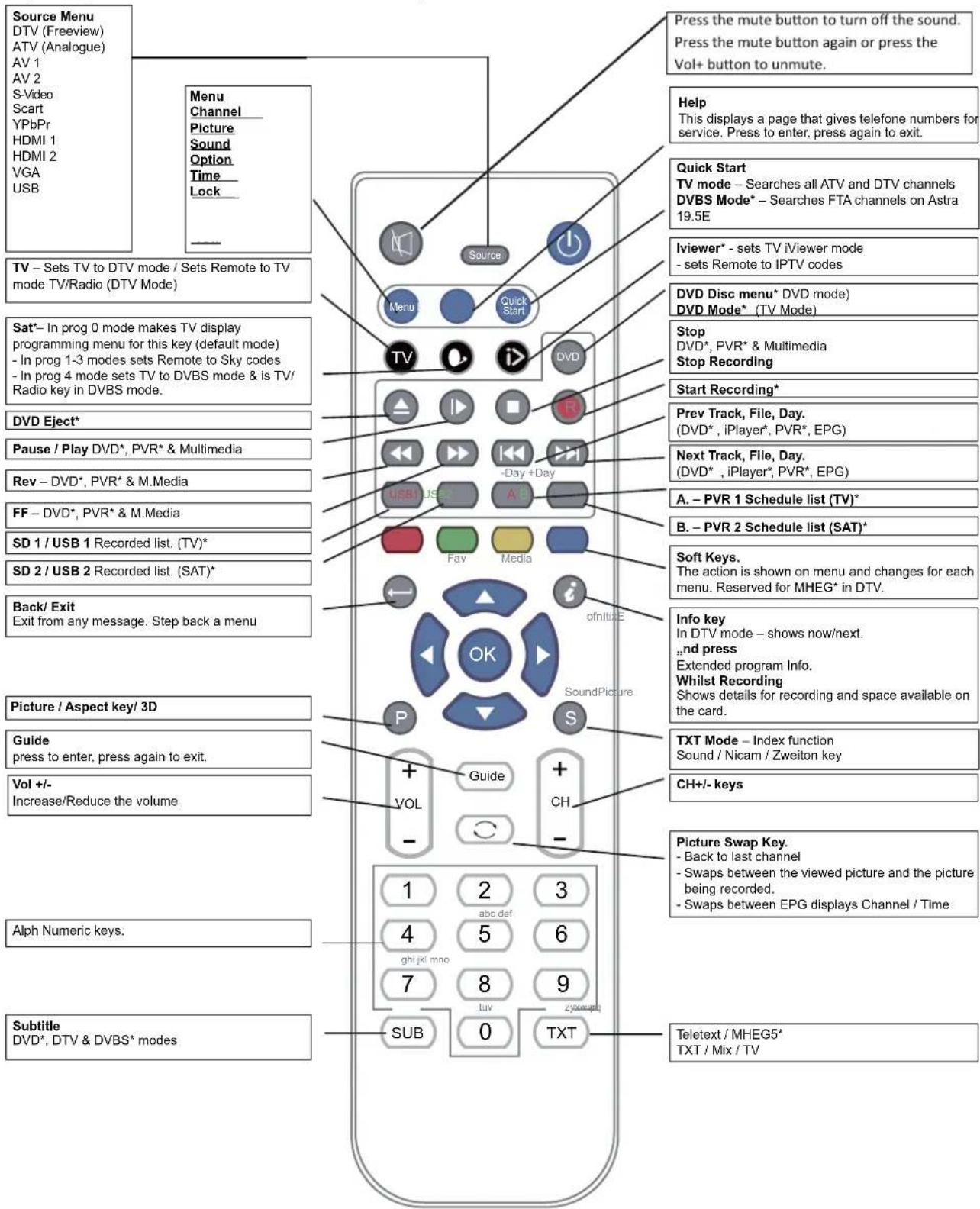

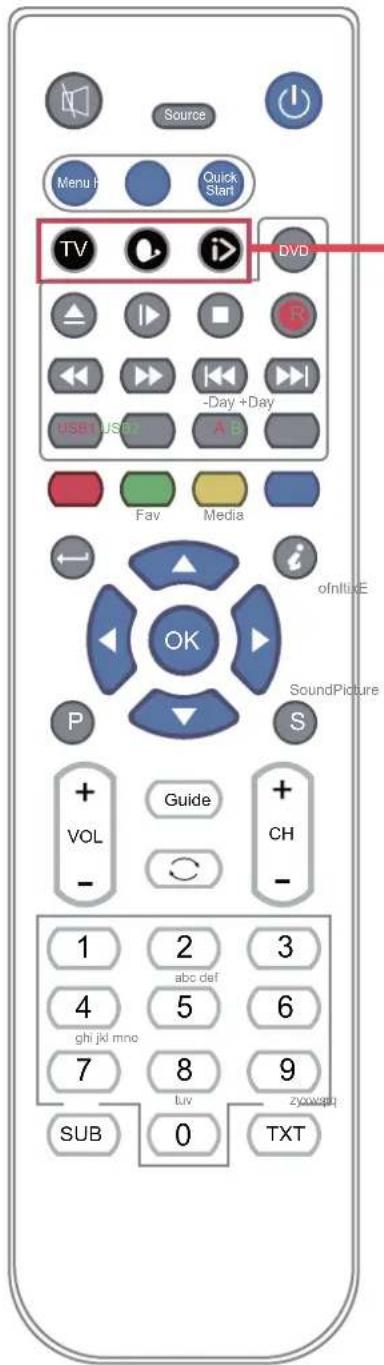

Functions of remote control buttons
Depending on the model of the Television some keys will have no function
Remote control (continued)
Functions of remote control buttons
Depending on the model of the Television some keys will have no function


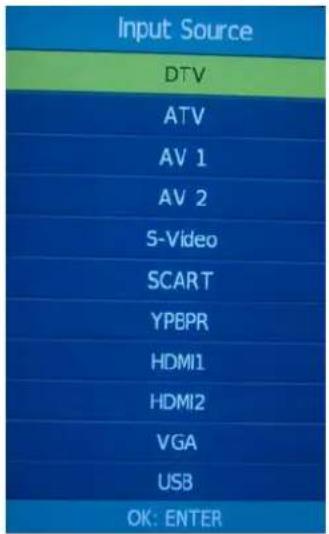

Source Menu DTV (Freeview) ATV (Analogue) AV 1 AV 2 S-Video Scart YPbPr HDMI 1 HDMI 2 VGA USB Menu Channel Picture Sound Option Time Lock TV – Sets TV to DTV mode / Sets Remote to TV mode TV/Radio (DTV Mode) Sat*– In prog 0 mode makes TV display programming menu for this key (default mode) - In prog 1-3 modes sets Remote to Sky codes - In prog 4 mode sets TV to DVBS mode & is TV/ Radio key in DVBS mode. DVD Eject* Pause / Play DVD*, PVR* & Multimedia Rev – DVD*, PVR* & M.Media FF – DVD*, PVR* & M.Media SD 1 / USB 1 Recorded list. (TV)* SD 2 / USB 2 Recorded list. (SAT)* Back/ Exit Exit from any message. Step back a menu Picture / Aspect key/ 3D Guide press to enter, press again to exit. Vol +/- Increase/Reduce the volume Alph Numeric keys. Subtitle DVD*, DTV & DVBS* modes Press the mute button to turn off the sound. Press the mute button again or press the Vol+ button to unmute. Help This displays a page that gives telephone numbers for service. Press to enter, press again to exit. Quick Start TV mode – Searches all ATV and DTV channels DVBS Mode* – Searches FTA channels on Astra 19.5E Iviewer* - sets TV iViewer mode - sets Remote to IPTV codes DVD Disc menu* DVD mode) DVD Mode* (TV Mode) Stop DVD*, PVR* & Multimedia Stop Recording Start Recording* Prev Track, File, Day. (DVD*, iPlayer*, PVR*, EPG) Next Track, File, Day. (DVD*, iPlayer*, PVR*, EPG) A. – PVR 1 Schedule list (TV)* B. – PVR 2 Schedule list (SAT)* Soft Keys. The action is shown on menu and changes for each menu. Reserved for MHEG* in DTV. Info key In DTV mode – shows now/next. „nd press Extended program Info. Whilst Recording Shows details for recording and space available on the card. TXT Mode – Index function Sound / Nicam / Zweiton key CH+/- keys Picture Swap Key. - Back to last channel - Swaps between the viewed picture and the picture being recorded. - Swaps between EPG displays Channel / Time Subb 0 TXT Teletext / MHEG5* TXT / Mix / TV* Depending on the model
Remote control (continued)
*Dependant on Model
This button puts the Remote in TV control mode
This button puts the Remote in a Multi Satellite control mode
* A number of modes are available. See below for details
This button puts the Remote into an Internet Player mode
* This is only used on some TVs and Digital Boxes
To Set the Multi-Satellite Mode button
The Sat button ⬆ is programmable in the remote and can be set as follows:
To set the button if you have no Satellite Receiver: Press ☐ and at the same time press 0.
If you have a Satellite Receiver with Recorder (Known as "Plus" type)
Press and at the same time press 1.
If you have a Satellite Receiver with High Definition (Known as "HD" type)
Press ① and at the same time press 2.
If you have a normal Digital Satellite Receiver (Known as "Digital" type)
Press ① and at the same time press 3.
If you want to use this button to switch on the DVBS* Player*
Press and at the same time press 4. *DVBS only fitted on certain models.
O + 0 NO SAT RECEIVER
+ 1 SAT +
Q + 2 \~ SAT HD
+ 3 SAT DIGITAL
+ 4 FTA DVBS
Installing Batteries in the Remote Control
-
Remove the battery compartment cover at the rear of the remote control by pushing the retaining clip forward and pulling up.
-
Install the supplied batteries, ensuring the polarity matches what is shown in the battery compartment.
-
Replace the battery compartment cover.
To use the remote control point it at the TV and press the required buttons. You must be within 6 meters and at an angle of less than 30 degrees from the center of the TV.
NOTE: Sunshine or other strong light sources may interfere with the signal from the remote control. In this situation turn the TV away from the light source.
WARNING! DO NOT LEAVE BATTERIES IN THE REMOTE CONTROL FOR EXTENDED PERIODS AS THEY CAN LEAK OR CORRODE CAUSING DAMAGE TO THE REMOTE CONTROL. CHECK THEM PERIODICALLY AND REPLACE THEM AS REQUIRED.
WARNING! DO NOT MIX BATTERY TYPES. WHEN INSERTING BATTERIES, REPLACE ALL BATTERIES AT THE SAME TIME. DO NOT MIX OLD AND NEW BATTERIES.
WARNING! EXHAUSTED BATTERIES MUST BE TREATED WITH CARE AND DISPOSED OF ACCORDING TO ANY SAFETY OR RECYCLING REGULATIONS IN FORCE IN YOUR LOCAL AREA, NEVER DISPOSE OF BATTERIES INTO GENERAL WASTE, OR FIRE.
WARNING! NEVER EXPOSE BATTERIES TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE.

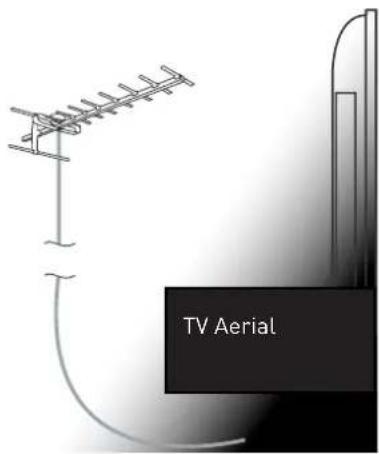

Aerial connection
WARNING! ENSURE THE TV AND ALL ANCILLARY EQUIPMENT IS UNPLUGGED FROM THE MAINS BEFORE MAKING ANY CONNECTIONS!
Connecting the TV Antenna
Connect the TV antenna to the aerial socket with a 75 ohm co-axial plug. For best results use a high gain TV aerial, preferably roof or loft mounted.
- To improve picture quality in a poor signal area, purchase and install a signal amplifier.
- If the antenna needs to be split for two TVs, use a 2-Way Signal Splitter (not supplied).
This instruction manual shows the simplest and most effective way of connecting your TV to ancillary equipment. Alternate methods are listed below.
HDMI Lead
You can connect this TV to a compatible device using a HDMI lead. This method will give the best picture.
Connect the cable from the HDMI equipment to the TV HDMI socket.
SCART Lead
You can connect this TV to a compatible device using a SCART lead. The connection uses component video signals, i.e. the red, green and blue (RGB) content of the video are sent on separate signals.
VGA Cable
You can use your TV as a monitor for your personal computer by using a VGA cable. Sound from your personal computer may also be played through the TV.
Connecting external devices (continued)
Connecting external devices (continued)
CONNECTIONS
| Name Function | Description |
| POWER | Connect to power supply |
| Connect to USB device for multimedial | |
| HDMI 1, 2 | Connect to the HDMI socket of your DVD or Satellite Box |
| SCART | Connect to the Scart input / output of external devices |
| PC-IN PC audio input | |
| VGA | Connect to the PC VGA output to display PC graphics |
| S-Video in | Connect to S-Video output devices |
| Headphone Connect Headphone | |
| YPbPr | Connect to the YPbPr output on external devices |
| Video 1,2 | Connect to the video output of external devices |
| L/R audio in 1,2 | Audio signal input for AV (Shared with YPbPr) |
| RF Connect to antenna or cable source | |
| CI CI slot (pay as you view card slot) | |
Caution:
Before connecting external devices:
- Makes sure to disconnect the appliances from the power supply in order to avoid any potential damage from occurring.
• Make sure to establish the required connection. - Make sure that the connectors are properly and correctly attached before connecting the appliances to the power supply.
PC connection
As PCs are sometimes still supplied with a 'conventional' CRT monitor, you may need to adjust the display settings of your PCs graphics card, otherwise the pictures may not appear correctly. Switch on your PC (still with your original monitor connected) now select the screen resolution, and select 60Hz refresh rate. Switch off your PC, then connect it to your TV while both appliances are still switched off.
VGA, HDMI PC Connection
Use a PC-VGA cable (not supplied) to connect the TV to your PC. You can also use an HDMI cable to connect to your PC (if your PC Graphic card supports HDMI). When the HDMI cable is used, the PC audio cable is no longer required. If you use the HDMI to DVI cable, you will need to use the PC audio cable. Connect all cables carefully and do not bend or break the connector pins.
When using the VGA cable
- Switch on the TV
- Switch on the PC
- Select PC/VGA as input source
When using the HDMI cable - Select HDMI as input source
(All illustrated cables are not supplied)
Connecting Video camera and Video recorder Video camera
- Connect the AV cable to the TV and to the video camera.
• Turn on both video camera and the TV. - Select AV/CVBS source
- You can now see the playback picture from the video camera. Note:
- To connect the video camera using other cables, refer to the video camera instruction manual.
Video recorder
- Connect the Scart cable to the TV and video recorder.
• Turn on both video recorder and the TV. - Select Scart source
- You can now see the playback picture from the video recorder.
Note:
- To connect the video recorder using other cables, refer to the video recorder instruction manual.
(All illustrated cables are not supplied)
Connecting an audio system
You can supply the TV sound to the stereo system (A) with the Scart socket. Use a special Scart cable SCART to RCA. (Please consult your hi-fi instructions for details). If you have a surround sound amplifier/decoder (B) Use the Scart cable or the special Scart cable Scart to RCA.
(All illustrated cables are not supplied)
Connecting a DVD player
Connect a DVD player using either a SCART cable, the HDMI cable or YPbPr cable (only if your external equipment supports HDMI).
When using the SCART cable
- Switch on the TV
- Switch on the DVD player
- Select SCART as input source
When using the HDMI cable
- Select HDMI as input source When using the YPbPr cable
- Select YPbPr as input source
• Note the color of the jack - Connect the audio jack
Common Interface Slot
USING YOUR COMMON INTERFACE SLOT Common Interface
The Common Interface (CI) slot is designed to accept the Conditional Access Module (CAM) and Smart Card in order to view the pay TV programmes and additional services. Contact your Pay Per View TV service provider to get more information about the modules and subscriptions.
NOTE: Conditional Access Module and Smart Cards are sold separately.
WARNING! SWITCH OFF YOUR TV BEFORE ANY MODULE IS INSERTED INTO THE COMMON INTERFACE SLOT, THEN ADD THE SMART CARD TO THE CAM.
- If the CAM is detected the TV will display the following message on the screen. "Common Interface Module inserted" wait for a few moments until the card is activated.
- Select the relevant digital Pay Per View channel.
- Detailed information on the Smart Card in use is displayed
- Press the Ok button to access the card menu. Refer to the Module Instruction Manual for setting details.
- When the module is removed, the following message will appear on the screen. "Common Interface module removed".
Auto installation setup
Power On / Off the LCD TV
To turn on the LCD TV
Press the power button on the LCD TV then the ⏻ button on the remote control, the blue standby indicator will go out.
To turn off the LCD TV
Press the power button on the LCD TV or the ⏻ button on the remote control, the standby indicator will light blue.
When you initially turn on the LCD TV you will see the first time installation menu as below:
Press the OK button three times to start the channel search. This tuning process will find all available ATV and DTV channels and store them.
By pressing the Quick Start button the First Time Installation menu can be recalled at any time.
EŽIŠDĞ☐☐☐☐
DVB-T TV is receivable in nearly all regions of Germany and many regions of Austria and Switzerland, nevertheless not everywhere! Also additional services such as DVB-T radio, -teletext, -EPG etc. won't get broadcasted in all regions. Please check whether DVB-T is receivable in your region. Depending on the location one can't or one can hardly receive a DVB-T signal with a regular indoor antenna. For more information:www.ueberallfernsehen.de
Source Menu
You can select the input source menu by pressing the Source button on the remote control or the SOURCE button on the LCD TV.
Menu Settings
- Turn the LCD TV on.
- Press the MENU button on the Remote Control.
- Use the ◀ and ▶ buttons to navigate through the menu.
- Press the EXIT button to exit the Menu.
CHANNEL MENU
Allows you to search channels and set up a variety of channel options. (Select DTV source for example)
Allows you to make adjustments to your picture settings. (Select DTV source for example)
Allows you to customize the sound options and effects. (Select DTV source for example)
Allows you to setup a variety of time options. (Select DTV source for example)
Allows you to set up a variety of lock options. (Select DTV source for example)
Allows you to set up a variety of options. (Select DTV source for example)
1. CHANNEL MENU
Auto Tuning
Press the OK button to enter the menu, and select the Country and Tuning mode for the TV, then press OK button to start the auto tuning.
Press the OK button to enter the DTV Manual Tuning menu, select a DTV channel, press the OK button to start searching.


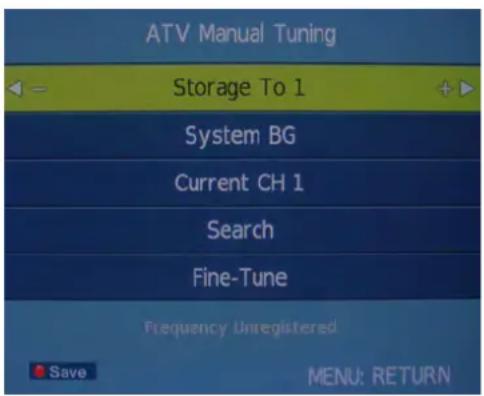

Press the OK button to enter the ATV Manual Tuning menu. Storage To : Select a position for storing the programme. System: Select a TV system for searching. Current CH : Select the channel you want to manually tune . Search : Press ◀/▶buttons to manually search.
FineTune : Press ◀ buttons to fine-tune.
Frequency: Displays the current frequency.
Note: Press the RED button to save your settings
Press the OK button to enter the Programme Edit menu as below.
Move: Select an ATV channel, and press the GREEN button, then you use ▲buttons to change the position of the programme, press GREEN again to confirm the change. Press menu to exit and your new changes will be saved.
Skip: Select a channel and press the BLUE button, this will label the channel. As long as the channel has a skip label it will be skipped when searching through the channels using the CH+/- buttons.
PC Setup (PC mode only): Press the OK button to enter the submenu to adjust the Horizontal / Vertical position or size and phase of the picture.
Signal Information
Displays the digital TV-signal information (DTV mode only).
CI Information
Please contact your "pay perview" provider who can supply a viewing card and cam unit with instructions for their use.
PICTURE menu
Note: Contrast, Brightness, Colour and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings.
Contrast: Controls the difference between the brightest and darkest regions of the picture.
Brightness: Controls the overall brightness of the picture.
Colour: Control the colour.
Sharpness: Increase this setting to see crisp edges in the picture; decrease it for soft edges.
Tint: Controls the tint (NTSC mode only).
Colour Temperature: Choose from Standard, Cool, User and Warm.
Red: Controls the red colour of the picture.
Green: Controls the green colour of the picture.
Blue: Controls the blue colour of the picture.
Aspect Ratio: Choose from Auto, 4:3, 16:9, Zoom1, Zoom2, and Panorama.
Noise Reduction: Choose interference noise modes from Off, Low, Middle, High and Default.
Sound Menu
Treble: Controls the relative intensity of higher pitched sounds
Bass: Controls the relative intensity of lower pitched sounds
Balance: Controls the volume between the left and right speaker.
Auto Volume: Controls the TVs volume automatically when ON is selected
Surround Sound: Turn on / off the surround sound function by selecting "off" or "surround".
Audio Descriptor: For the blind and visually impaired
EXTRAS Menu
Choose your TV clock settings using the time menu options.
OPTIONS Menu
Audio Language (can only be selected in DTV mode): Select the audio language.
Subtitle Language (can only be selected in DTV mode) Select the subtitle language.
Country: This is defaulted to Germany, but can be changed by using the Auto tune function.
Restore User Default: Press the OK key to restore the factory default settings.
3D SET:
After selecting 3D Set, press "OK" key to enter into the 3D set submenu.
★ Special Attention
-
This function works only in USB and HDMI modes, if the 3D content is recognized.
-
Only when the appropriate 3D mode is selected can you see the 3D effect.
★ 3. Wear 3D glasses before watching 3D videos.
Remote Control Shortcut Keys
Press "P" key on the remote control 3 times to turn 3D on/off.
Lock Menu
Note: you should enter the code to operate the menu (Default code is 0000)
Set Password: If the code has been changed you must enter the current password.
New: Enter new password
Confirm: Enter new password
Block Program: Use ▲▼ buttons to select the channel and press the GREEN button on the remote control to lock the channel.
Note: You must enter your password to view channels that have been blocked.
| 3D Set | |
| 3D | On |
| 3D Mode | AUTO |
| L/R Switch | LR |
| 2D to 3D | Off |
| 3D Scene | 5 |
| Menu:Exit | |
Multimedia Operation
Insert USB device and select the type of files you want to listen too or view from PHOTO, MUSIC, MOVIE and TEXT. Then Press OK to enter the menu and choose the folder or file you wish to activate.
Return - Return to previous folder or menu Press play/pause button to preview files
Note: Press RED button to delete any files
Photo viewing
Press Buttons to select the option on the navigation menu and press OK to activate.
Prev/Next: View the Previous or Next photo
Stop: Stop the photo viewing
Repeat: Select the repeat mode from REPEAT ALL, REPEAT 1 and OFF
Music: Play/Pause the music
Playlist: Display the playlist on screen
Info: Display the file information
Rotate: Turn the photo clockwise or counter clockwise
Zoom: Zoom IN/OUT of the photo.
Move View: Move the photo in Zoom in mode.
Music
Play the music
Press ▶ buttons to select the option on the menu and press ▶ button to activate.
FB/FF: Fast back and Fast forward
Prev/Next: Play the previous or next file
Stop: Stop the music
Repeat: Select from REPEAT ALL, REPEAT 1 and OFF
Mute: Mute the Audio
Playlist: Display the playlist on screen
Goto Time: Play the music or audio book from the time you set
Movie
Play the movie
Press ▶ buttons to select the option on the menu and press ▶ button to activate.
FB/FF: Fast back and Fast forward
Prev/Next: Play the previous or next file
Stop: Stop the movie playback
Set A-B: Select and play a chosen part of the movie file by setting A as start point and B as end. Press OK button to cancel.
Playlist: Display the playlist on screen
Slow forward: Play the movies at slow speed, press for normal playback speed.
Step forward: Step quickly through the movie using this option
Goto Time: Play the movie from the time you set
Zoom: Zoom IN/OUT of the movie screen.
Aspect Ratio: Select the size of the screen display
Move View: Move the photo in Zoom mode
Text
View textefi
Prev/Next: Turn to the previous or next file
Music: Play/Pause the music programme
Playlist: Display the playlist on screen
Info: Display the file information
Stop: Stop the text viewing
EPG
Display the programme guide by pressing the GUIDE button
Select a programme to view by navigating through the EPG with the ▲▼ buttons.
Remind: Press BLUE button to display the remind menu. Once the programme starts the TV will automatically switch to this programme.
Schedule: Press the YELLOW button to display the schedule list.
TROUBLE SHOOTING GUIDE
To assist in locating possible faults use the help guide below.
| SYMPTOM | SOLUTION |
| No Picture, no sound | Check that the TV is correctly plugged in. Check that the TV is connected to a suitable power source. Check the electrical supply is turned on. |
| No Picture | Ensure that the TV is powered on. Check that the cables are fitted securely. Ensure the aerial and/or external sources are connected. Press the SOURCE button to change the source. Turn the TV on or off. |
| No Sound | Press the MUTE button and check if Mute mode is set. Switch to another channel and see if the same problem occurs. Press V+ button to see if the problem can be solved. |
| No picture on some channels | Check that correct channel is selected. Adjust the antenna. |
| No colour on some channels (black &white) | Check if the same problem exists on other channels. Ensure the correct picture settings are selected. |
| Noisy, Snowy, Ghosting picture. | Check the antenna is connected correctly. Check that the antenna Is in good condition. Try moving the antenna. |
If none of the suggestions seem to work, try switching your TV off and then on again. If this does not work contact our technical helpline.
NOTE: The TV must only be repaired by a qualified registered service person. Never attempt to remove the back cover as the TV has dangerous voltages inside that may cause fatality or fire.
TECHNICAL SPECIFICATIONS
Specifications of the TV that you have just purchased may vary from the information in this table due to technical innovations.
TV Specifications
| TV System PAL/BG/DK/I | |
| Audio System BG/DK/I | |
| Screen size | 42" (Diagonal) |
| Resolution 1920 x 1080 Pixels [RGB] | |
| Aerial input 75 Ohm (unbalanced) | |
| Audio output power 2 x 8W | |
| Power requirements | 100-240V ~ 50/60Hz |
| Power consumption | 150W |
| Standby power consumption <1W | |
| Weight | 23.0Kg |
3D Specifications
Appendix: 3D formats supported by 3D video
| Mode | Resolution | Refresh | 3D video file that can be played | Function |
| Formats supported by HDMI input | 1280 × 1470P | 50Hz | Frame Parking (HDMI V1.4 with 3D) frame package | HDMI Frame Parking can only support the video formats of these 3 resolutions; HDMI device should support Version 1.4 |
| 1280 × 1470P | 60Hz | Frame Parking (HDMI V1.4 with 3D) frame package | ||
| 1920 × 2205P | 24Hz | Frame Parking (HDMI V1.4 with 3D) frame package | ||
| 1920 × 720P | 50/60Hz | Side by side/top bottom | ||
| 1920 × 1080i | 50/60Hz | Side by side/top bottom | ||
| 1920 × 1080P | 60Hz | Side by side/top bottom/line by line/frame alternative | ||
| 50Hz | Side by side/top bottom | |||
| 24Hz | Side by side/top bottom/line by line | |||
| Formats supported by USB input | 1920 × 1080P | 30Hz | Side by side/top bottom/line by line | Other 3D formats not recommended |
| 3D Set | |
| 3D | On |
| 3D Mode | AUTO |
| L/R Switch | LR |
| 2D to 3D | Off |
| 3D Scene | 5 |
| Menu:Exit | |
| Option | Function | Description |
| 3D | Switch on and off 3D function | Switch on or off 3D function |
| 3DMode | Select 3D format | Side by side: side by side image format, displaying two overlapped images side by side;Top bottom: top bottom image format, displaying two overlapped images from top bottom;Line by line: line by line format, displaying images line by line for both eyes;Frame alternative: frame alternative format, displaying images by frame alternative format for both eyes;Automatic: this function works when HDMI 1.4 format 3D signal is used. |
| L/R Switch | Arrange images for left and right eyes | Left-right: arrange images from left to right eye;right-left: arrange images from right to left |
| 2D to 3D | Switch from 2D to 3D | Enable/disable the function to switch from 2D to 3D |
| 3D Scene | Adjust the depth of field for images after switch from 2D to 3D | Adjustment range from grade 1-10 |
Remote controdatjonsifi
| Type Infrared | |
| Control distance 5m | |
| Control angle 30 degrees (Horizontal) | |
| Batteries 2 x 1.5V, Size AAA | |
| Dimensions 48 x 193 x 20 mm | |
| Weight 120g (without batteries) | |
Wall Mounting
- The stand base must be removed.
- Place the TV face down on a soft flat surface. Remove the four screws on the back of the TV and remove the stand.
- Use four machine screws to mount the TV on the bracket.
This unit is VESA-Compliant and designed to be wall mounted with a VESA-Compliant 100mm x 100 mm mounting kit. Mount this unit according to the instructions of the wall bracket (not supplied)
Waste Electrical Recycling
Correct disposal of Product
This sign indicates that this product may not be disposed of with your regular household waste. The recycling and separate collection of such products is your responsibility. Please drop off the above mentioned waste at a designated place for recycling waste electri-
cal and electronic equipment. If you do not know where to drop off your waste equipment for recycling, please contact your local city office or household waste collection service.
The crossed out wheeled dust bin symbol indicates that batteries and /or accumulators must be collected and disposed of separately from household waste.
If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemicals Hg Cd Pb symbols for lead(Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.
Pb
By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries thus help to prevent potential negative consequences for the environment and human health.
For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased this product.
This appliance complies with European Safety and Electrical directives. It fullfils the following EU regulations:
En55013:2001+A1:2003+A2:2006
EN55020: 2007
EN61000-3-2: 2006 EN61000-3-3:1995+A1:2001+A2:2005
EN55022:2006(CLASS-A)
EN55024:1998+A1:2001+A2:2003
Manufacturer:
D-66780 Rehlingen-Siersburg (Germany)
Fon: +49(0)6835 92350-0
Fax: +49(0)6835 92350-500
Table des matières
PRÉCAUTIONS D'EMPLOI ....3
Diagram showing audio connection with microphone, keyboard, and audio equipment labeled (A)text_image
Câble coaxial (B)text_image
Please ensure the aerial cable is pluggeg into the tv Puis appuyez sur The TV will tune all Channels This will take some timetext_image
Sound Mode Auto Volume Son Surround AD Switch Standard Absent Absent Absenttext_image
Block Program 1 BBC ONE 2 BBC TWO 3 ITV1 4 Channel 4 5 Channel 5 6 ITV2 7 BBC THREE 9 BBC FOUR 10 ITV3 11 Pick TV Load OK, OUTS HOLD BUTTONnatural_image
Front view of a blue sports car with sleek design and headlights, displayed against a studio backdrop (no visible text or symbols)text_image
and league: I don't group 00:00:00 / 00:03:29text_image
Screenshot of a live audio recording interface with track controls and playback controlstext_image
Highlights the returned movies that I. This useful function is just and easy for users looking for next, adding a document or as articles. Interregating with bookmarks designing through bookmarks is an offeetful way for users to help to the target location quickly. To jump to a hope that you are interested, you can just simply click the bookmark. leader of Printer Pi Wash Page Play Next Stop Next Right Infotext_image
Guide des programmes 1 ITV1 2 ITV2 3 Channel 4 4 E4 5 More 4 6 Channel 4+1 7 ITV1 +1 8 Channel 5 This Morning Emmerdale Channel 4 News 90210 Heaven Knows, Mr Allison T4: Friends This Morning The Wright Stuff Extra...text_image
300mm 300mmSlot Common Interface....14
UTILIZZARE LO SLOT COMMON INTERFACE 14
Telecomando

