USER MANUAL ECOT7F 1292 EU HOTPOINT ARISTON

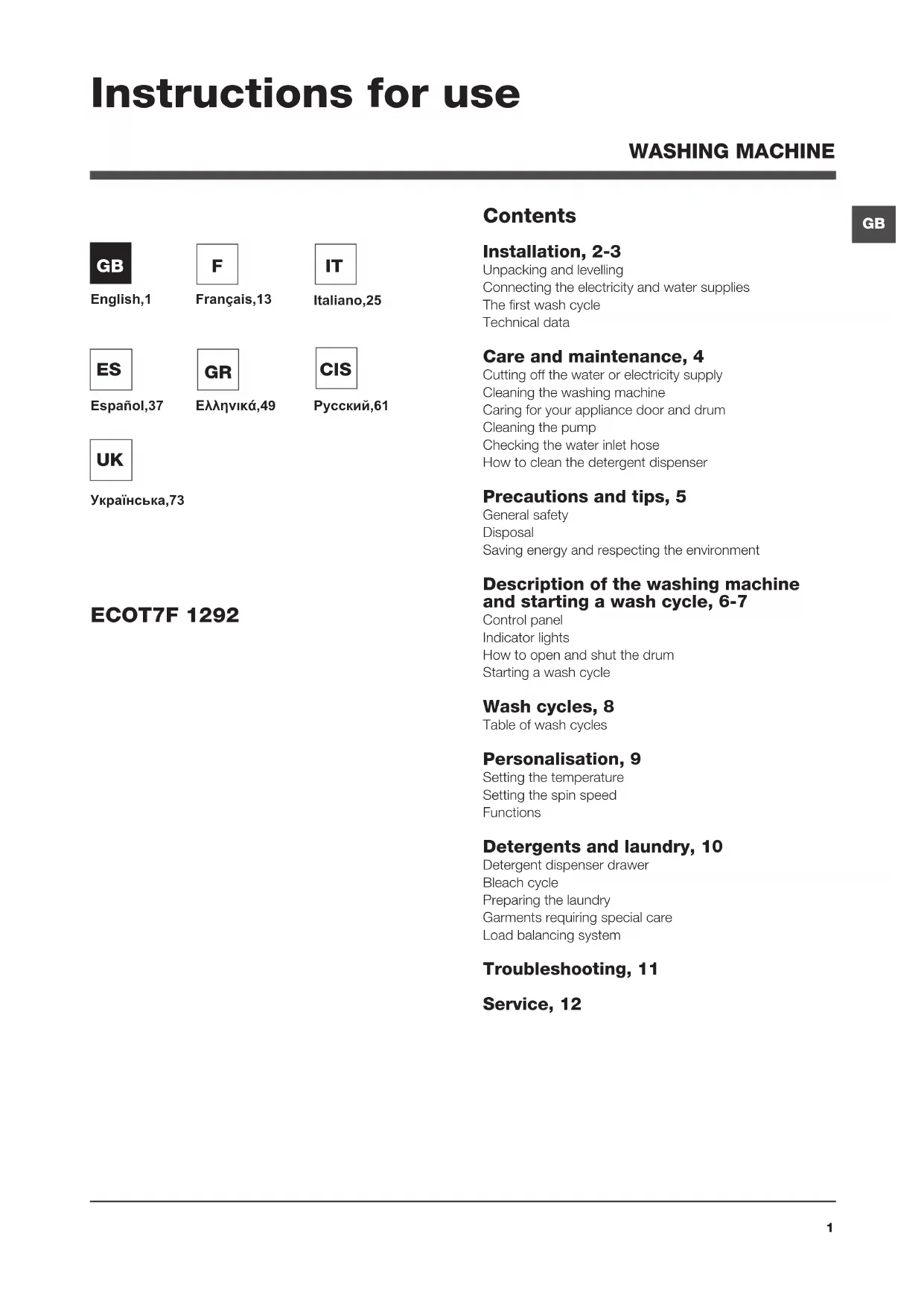

Contents Installation, 2-3 Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data Care and maintenance, 4 Cutting off the water or electricity supply Cleaning the washing machine Caring for your appliance door and drum Cleaning the pump Checking the water inlet hose How to clean the detergent dispenser Precautions and tips, 5 General safety Disposal Saving energy and respecting the environment Description of the washing machine and starting a wash cycle, 6-7 Control panel Indicator lights How to open and shut the drum Starting a wash cycle Wash cycles, 8 Table of wash cycles Personalisation, 9 Setting the temperature Setting the spin speed Functions Detergents and laundry, 10 Detergent dispenser drawer Bleach cycle Preparing the laundry Garments requiring special care Load balancing system Troubleshooting, 11 Service, 12 ECOT7F 1292 Instructions for use WASHING MACHINE English,1

Installation ! Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features. ! Read these instructions carefully: they contain vital information on installation, use and safety. Unpacking and levelling Unpacking

1. Unpack the washing machine.

2. Check whether the washing machine has

been damaged during transport. If this is the case, do not install it and contact your retailer.

protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using

the plastic plugs provi- ded.

5. Keep all the parts:

you will need them again if the washing machine needs to be moved to another lo- cation.

Warning: should the screws be re-used, make

sure you fasten the shorter ones at the top. ! Packaging materials are not children’s toys. Levelling

1. Install the washing machine on a flat sturdy

floor, without resting it up against walls, furniture cabinets or other.

2. If the floor is not per-

fectly level, compensa- te for any unevenness by tightening or loo- sening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°. Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine. Electric and water connections Connecting the water inlet hose

1. Connect the supply

pipe by screwing it to a cold water tab using a ¾ gas threaded con- nection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other

end of the water inlet hose to the washing machine, screwing it onto the ap- pliance’s cold water in- let, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are no kinks or bends in the

hose. ! The water pressure at the tap must be within the values indicated in the Technical details table (on the next page). ! If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman. ! Never use hoses that have already been used.GB

Technical details Model ECOT7F 1292 Dimensions 40 cm wide 85 cm high 60 cm deep Capacity from 1 to 7 kg Electric connections Please refer to the technical data plate fixed to the ma- chine. Water connections maximum pressure 1 MPa (10 bar) minimum pressure

0.05 MPa (0.5 bar) drum

capacity 42 litres Spin speed up to 1200 rpm Test wash cycles in accordan- ce with directives 1061/2010 and 1015/2010. Programme 2: Cotton standard 60°C; Programme 3: Cotton standard 40°C. This appliance is compliant with the following European Community Directives: - 2004/108/CE (Electroma- gnetic Compatibility) - 2006/95/CE (Low Voltage) - 2012/19/EU Connecting the drain hose Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor; alternatively, rest it on the side of a washba- sin or bathtub, faste- ning the duct sup- plied to the tap (see figure). The free end of the hose should not be underwater. ! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Electrical connections Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;

• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);

• the power supply voltage falls within the va- lues indicated in the Technical data table (see opposite);

• the socket is compatible with the plug of the washing machine. If this is not the case, repla- ce the socket or the plug. ! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions. ! When the washing machine has been installed, the electricity socket must be within easy reach. ! Do not use extension cords or multiple sockets. ! The cable should not be bent or compressed. ! The power supply cable must only be replaced by authorised technicians. Warning! The company shall not be held respon- sible in the event that these regulations are not respected. The first wash cycle Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle 2.

1. using a screwdriver,

remove the cover pa- nel on the lower front part of the washing machine (see figure);

2. unscrew the lid by

rotating it anti-clockwi- se (see figure): a little water may trickle out. This is perfectly nor- mal;

5. reposition the panel,

making sure the hooks are securely in place before you push it onto the appliance. Checking the water inlet hose Check the inlet hose at least once a year. If there are any cracks, it should be replaced immedia- tely: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. ! Never use second-hand hoses. Care and maintenance Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system in- side the washing machine and help to prevent leaks.

• Unplug the washing machine when cleaning it and during all maintenance work. Cleaning the washing machine The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Caring for the door and drum of your appliance

• Always leave the porthole door ajar in order to prevent unpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part. ! Make sure the wash cycle has finished and unplug the appliance. How to clean the detergent dispenser Fig. 1 Fig. 2 Cleaning: Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them. Reassembly: Do not forget to rein- sert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1). Disassembly: Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1). Fig. 3 Fig. 4GB

Precautions and tips ! This washing machine was designed and constructed in accordance with international safety regulations. The fol- lowing information is provided for safety reasons and must therefore be read carefully. General safety

• This appliance was designed for domestic use only.

• This appliance can be used by children aged from 8 years and above and persons with re- duced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not touch the machine when barefoot or with wet or damp hands or feet.

• Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.

• Do not touch the drained water as it may reach extremely high temperatures.

• Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.

• If the appliance breaks down, do not under any circum- stances access the internal mechanisms in an attempt to repair it yourself.

• Always keep children well away from the appliance while it is operating.

• If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make sure the drum is empty. Disposal

• Disposing of the packaging materials: observe local regu- lations so that the packaging may be re-used.

• The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Saving energy and respecting the envi- ronment Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.

• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.

• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.

• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.

• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board’s peak load. The “Delay Timer” option helps to organise your wash cycles accordingly.

• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.6

Wash Rinse Spin Drain End of wash cycle Description of the washing machine and starting a wash cycle TEMPERATURE button WASH CYCLE PROGRESS FUNCTION buttons with indicator lights ON/OFF button with indicator light SPIN SPEED button LID LOCKED indicator light START/PAUSE button with indicator light Control panel WASH CYCLE knob DISPLAY

button with indicator light ON/OFF button with indicator light: switches the machine on and off. If the indicator light is illuminated, this indicates that the machine is switched on. WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move. SPIN SPEED button: sets the spin speed or exclude the spin cycle completely (see “Personalisation”). TEMPERATURE button: sets the temperature or the cold wash cycle (see “Personalisation”). DISPLAY: indicates the time remaining for the selected wash cycle and, if a delayed start has been programmed, the time remaining until the start of the wash cycle. CONTROL PANEL LOCK button with indicator light: activates or deactivates the control panel lock. FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit.

indicator light s: used to monitor the progress of the wash cycle. The illuminated indicator light shows which phase is in progress. DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page). START/PAUSE button with indicator light: starts or tem- porarily interrupts the wash cycles. N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED indicator light is switched off, the door may be opened.To start the wash cycle from the point at which it was inter- rupted, press this button again. Standby mode This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again. Consumption in off-mode: 0,5 W Consumption in Left-on: 0,5 W Indicator lights The indicator lights provide important information. This is what they can tell you: Wash cycle phase indicator lights As the WASH CYCLE knob is rotated, the indicator lights illuminate, indicating the stages which will be performed by the machine in accordance with the selected wash cycle. Once the desired wash cycle has been selected and has be- gun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress. Function buttons and corresponding indicator lights When a function is selected, the corresponding indicator light will illuminate. If the selected function is not compatible with the pro- grammed wash cycle, the corresponding indicator light will flash, a sound signal will be emitted and the function will not be activated. If a function which is incompatible with another function selected previously, only the most recent selection will remain active.GB

Fig. 1 Fig. 2 Fig. 3 Fig. 4 A) Opening (Fig. 1): Lift the external lid and open it completely. B) Opening the drum (Soft opening): With one finger, push the button indicated in fig. 2 and the drum will open delicately. C) Loading the washing machine (Fig. 3). D) Shutting (Fig. 4): - close the drum fully by first shutting the front door followed by the rear one; - then ensure the hooks on the front door are perfectly housed within the seat of the rear door; - after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose; - finally shut the external lid. Starting a wash cycle

1. Turn the washing machine on by pressing the ON/OFF

button. All the indicator lights will turn on for a few secon- ds, then only the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light will flash.

2. Load the laundry, close the door and the lid.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see “Personalisation”).

5. Set the spin speed (see “Personalisation”).

6. Measure out the detergent and washing additives (see

“Detergents and laundry”).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE

button and the corresponding indicator light will remain lit in a fixed manner, in green. To cancel the set wash cycle, pause the machine by pres- sing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the indicator light will

switch on. The LID LOCKED indicator light will switch off, indicating that the door may be opened. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch the washing machine off by pressing the ON/OFF button. Temperature indicator light When a temperature value is selected, the corresponding indicator light will illuminate. Spin indicator light When a spin value is selected, the correspon- ding indicator light will illuminate. Control panel lock indicator light To activate the control panel lock, press and hold the button for approximately 2 seconds. When the indicator light is illuminated, the control panel is locked. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. To deactivate the control panel lock, press and hold the button for approximately 2 seconds. Lid locked indicator light If this indicator light is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damage, wait for the indicator light to switch off (it will take about three minutes) before you open the appliance door. N.B. If the DELAY TIMER function is activated, the door cannot be opened; pause the machine by pressing the START/PAUSE button if you wish to open it. ! If the START/PAUSE indicator light (orange) flashes rapidly at the same time as the function indicator light, this indicates a problem has occurred (see “Troubleshooting”). How to open and to close the drum8

Wash cycles Table of wash cycles Mix 15’(wash cycle 5) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle (5 at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1.5 kg. Goodnigt cycle (wash cycle 6). This is a silent cycle which can be run at night, when the electricity prices are lower. The wash cycle is designed for cottons and synthetics. At the end of the cycle the machine stops while there is still water in the drum; to spin and drain the laundry press the START/PAUSE button; alternatively the machine will perform the spin cycle and drain the water automatically after 8 hours. Cotton Standard 20° (wash cycle 10) ideal for heavily soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks. Eco cycles The Eco Cycles assure energy saving by eliminating the need of heating water and it’s an advantage both to your energy bill and the environment! These innovative Eco programmes (Cotton 11, Synthetics 12 and Fast Wash 13) are availa- ble for various fabrics and different quantity of garment; they have been designed to guarantee a high cleaning action even at low temperature and can be used for lightly to medium soiled loads. Eco Cycles give the best results thanks to an intensified wash action, water optimization and are carried out in the same average time of a standard cycle. For the best washing results with Eco Cycles we recommend the usage of a liquid detergent. Wash cyclesDescription of the wash cycleMax. temp. (°C Max. speed (rpm)DetergentsMax. load (Kg)Residual dam-pness %Energy consum-ption kWhTotal water ltCycle duration Pre- wash Wash Fabric softe- ner Ble- ach Essentials cycles Cotton + Prewash: extremely soiled whites.90° 1200 - 7 53 1,92 67 160’ Cotton Standard 60° (1): heavily soiled whites and resistant colours. 60° (Max. 90°)1200 - 7 53 1,14 52,5 195’ Cotton Standard 40° (2): lightly soiled whites and delicate colours.40° 1200 - 7 53 0,94 61 190’ Synthetics: heavily soiled resistant colours.60° 800 - 3 44 0,85 39 110’ Synthetics (3): lightly soiled resistant colours.40° 800 - 3 44 0,53 39 100’ Mix 15’: to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).30° 800 - - 1,5 71 0,08 29 15’ Special cycles Goodnight cycle: lightly soiled delicate colours.40° 800 - 4 - - - 280’ Shirts40° 600 - - 2 - - - 80’ Silk/Curtains: for garments in silk and viscose, lingerie.30° 0 - - 1 - - - 55’ Wool: for wool, cashmere, etc. 40° 800 - - 1 - - - 65’ Eco cycles Cotton Standard 20°: lightly soiled whites and delicate colours.20° 1200 - 7 - - - 180’11 CottonsCold Water1200 - - 7 53 0,10 51 85’12 SyntheticsCold Water800 - - 2,5 48 0,07 27 70’13 Fast WashCold Water800 - - 2,5 71 0,04 34 30’ Partials wash cycles

Pump out - 0 - - - - 7 - - - 2’

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle 2 with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value.2) Test wash cycle in compliance with directive 1061/2010: set wash cycle 3 with a temperature of 40°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.For all Test Institutes:2) Long wash cycle for cottons: set wash cycle 3 with a temperature of 40°C.3) Long wash cycle for synthetics: set wash cycle 4; with a temperature of 40°C. The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.GB

Setting the temperature By pressing the TEMPERATURE button to set the wash temperature (see Table of wash cycles). The temperature may be lowered, or even set to a cold wash ( ). The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle. ! Exception: if the

programme is selected, the temperature can be increased up to a value of 90°C. Setting the spin speed By pressing the SPIN SPEED button to set the spin speed for the selected wash cycle. The maximum spin speeds available for each wash cycle are as follows: Wash cycles Maximum spin speed Cottons 1200 rpm Synthetics 800 rpm Wool 800 rpm Silk drain only The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol . The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle. Functions The various wash functions available with this washing machine will help to achieve the desired results, every time. To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the selected wash cycle. Delay timer To set a delayed start for the selected wash cycle, press the button repeatedly until the desired delay time is displayed (this may be between 1 hour and 24 hours). To disable the function press the button until the text is displayed. N.B. Once you have pressed the START/PAUSE button, the delay time may only be decreased if you wish to modify it. ! This option is enabled with all programmes. Super Wash Because a greater quantity of water is used in the initial phase of the cycle, and because of the increased cycle duration, this function offers a high-performance wash. ! This function may not be used in conjunction with wash cycles 1, 5, 8, 9, 11, 12, 13, B, C. Extra rinse By selecting this function, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin. ! This function may not be used in conjunction with wash cycles 5, 13, B, C. Easy iron By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum. For the Silk wash cycle, the machine will end the cycle while the laundry is soaking, the EASY IRON and START/PAUSE indicator lights will flash (orange) and the RINSE phase will remain lit in a fixed manner. To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button. ! This function may not be used in conjunction with wash cycles 5, 6, 9, 11, 12, 13, A, B, C. Personalisation10

Detergents and laundry Detergent dispenser drawer Good washing results also depend on the correct dose of detergent: adding too much detergent won’t necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment. ! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C. ! Follow the instructions given on the detergent packaging. ! Do not use hand washing detergents because these create too much foam. Open up the detergent dispenser and pour in the detergent and fabric softe- ner, as follows. compartment 1: Detergent for pre-wash compartment 2: Detergent for the wash cycle (powder or liquid) It is recommended that you place liquid detergent directly into the compartment using the appropriate dosing cup. compartment 3: Additives (softener, etc.) When pouring the softener in compartment 3, avoid exce- eding the “max” level indicated. The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see “Care and maintenance”. compartment 4: Bleach Bleach cycle Bleaching may only be performed in conjunction with wash cycles 2, 3, 4, 6, 10, A. Pour the bleach into compartment 4; pour the detergent and softener into the corresponding compartments, then select one of the abovementioned wash cycles. This option is recommended only for very soiled cotton garments. Preparing the laundry

• Divide the laundry according to: - the type of fabric/the symbol on the label - the colours: separate coloured garments from whites.

• Empty all garment pockets and check the buttons.

• Do not exceed the listed values, which refer to the weight of the laundry when dry: see “Table of wash cycles”. How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g Garments requiring special care Shirts: use special wash cycle 7 to wash shirts in various fabrics and colours. It guarantees maximum care is taken of the garments and minimises the formation of creases. Silk: use special wash cycle 8 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes. Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 8. Wool: The wool wash cycle on this Hotpoint-Ariston machine has been tested and approved by The Woolmark Company for washing wool garments labelled as hand washable provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. Hotpoint-Ariston is the first washing machine brand to be approved by The Woolmark Company for Apparel Care- Platinum for its wa- shing performance and consumption of energy and water. Load balancing system Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.GB

Troubleshooting Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure that the problem cannot be not solved easily using the following list. Problem: The washing machine does not switch on. The wash cycle does not start. The washing machine does not take in water (the indicator light for the first wash cycle stage flashes rapidly). The washing machine continuously takes in and drains water. The washing machine does not drain or spin. The washing machine vibrates a lot during the spin cycle. The washing machine leaks. The START/PAUSE indicator light (orange) and the function indicator lights flash rapidly. There is too much foam. Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or is not making contact.

• There is no power in the house.

• The appliance Lid is not shut properly.

• The ON/OFF button has not been pressed.

• The START/PAUSE button has not been pressed.

• The water tap has not been opened.

• A delayed start has been set (see “Personalisation”).

• The water inlet hose is not connected to the tap.

• The water tap has not been opened.

• There is no water supply in the house.

• The pressure is too low.

• The START/PAUSE button has not been pressed.

• The drain hose is not fitted at a height between 65 and 100 cm from the floor (see “Installation”).

• The free end of the hose is under water (see “Installation”).

• The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

• The wash cycle does not include draining: some wash cycles require the drain phase to be started manually.

• The EASY IRON function has been activated: To complete the wash cycle, press the START/PAUSE button (“Personalisation”).

• The drain hose is bent (see “Installation”).

• The drainage duct is clogged.

• The drum was not unlocked correctly during installation (see “Installation”).

• The washing machine is not level (see “Installation”).

• The washing machine is trapped between cabinets and walls (see “Installation”).

• The water inlet hose is not screwed on properly (see “Installation”).

• The detergent dispenser drawer is blocked (for cleaning instructions, see “Care and maintenance”).

• The drain hose is not fixed properly (see “Installation”).

• Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists, contact the Technical Assistance Service.

• The detergent is not suitable for machine washing (it should display the text “for washing machines” or “hand and machine wash”, or the like).

• Too much detergent was used.12

Service Before calling for Assistance:

• Check whether you can solve the problem alone (see “Troubleshooting”);

• Restart the programme to check whether the problem has been solved;

• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate. ! Always request the assistance of authorised technicians. Have the following information to hand:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine.FR
