USER MANUAL ARTL 82 (EU) HOTPOINT ARISTON

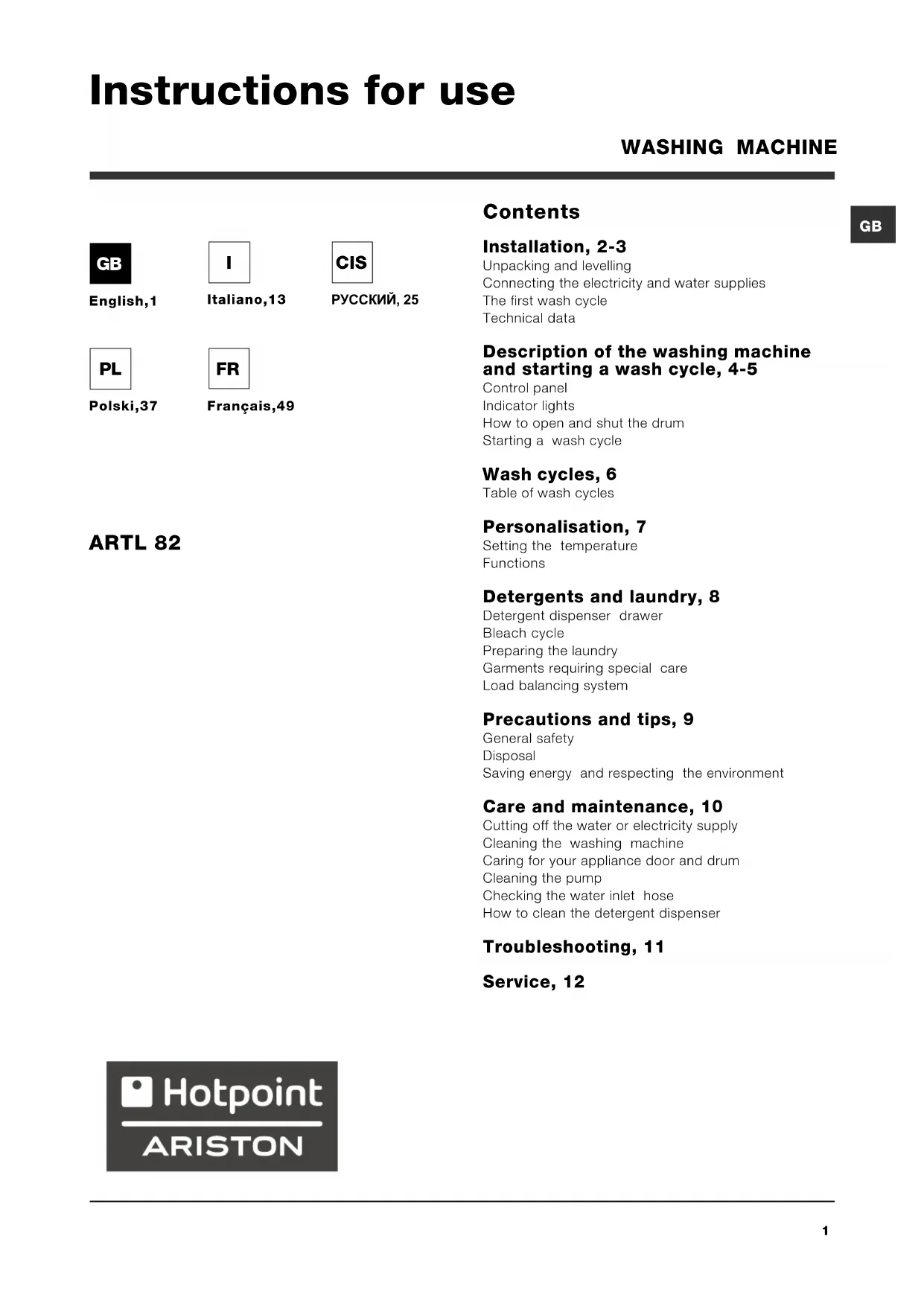

Contents Installation, 2-3 Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data Description of the washing machine and starting a wash cycle, 4-5 Control panel Indicator lights How to open and shut the drum Starting a wash cycle Wash cycles, 6 Table of wash cycles Personalisation, 7 Setting the temperature Functions Detergents and laundry, 8 Detergent dispenser drawer Bleach cycle Preparing the laundry Garments requiring special care Load balancing system Precautions and tips, 9 General safety Disposal Saving energy and respecting the environment Care and maintenance, 10 Cutting off the water or electricity supply Cleaning the washing machine Caring for your appliance door and drum Cleaning the pump Checking the water inlet hose How to clean the detergent dispenser Troubleshooting, 11 Service, 12 ARTL 82 Instructions for use WASHING MACHINE English,1

Installation Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features. Read these instructions carefully: they contain vital information on installation, use and safety. Unpacking and levelling Unpacking

washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if

the washing machine needs to be moved to another location.

Warning: should the screws be re-used, make sure

you fasten the shorter ones at the top. Packaging materials are not children's toys. Levelling Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

1. Install the washing

machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

2. If the floor is not

perfectly level, com- pensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°. Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine. Electric and water connections Connecting the water inlet hose

1. Insert seal A into the

end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

2. Connect the other

end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are no kinks or bends in the hose.

The water pressure at the tap must be within the values indicated in the Technical details table (on the next page). If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman. AGB

Technical data ModelARTL 82Dimensionswidth 40 cmheight 85 cmdepth 60 cmCapacityfrom 1 to 5 kgElectricalconnectionsplease refer to the technical dataplate fixed to the machineWater connectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 42 litresSpin speedup to 800 rotations per minuteEnergy ratedprogrammesaccording toregulationEN 60456programme 7; temperature 60°C;using a load of 5 kg.This appliance conforms to thefollowing EC Directives:- 89/336/EEC dated 03/05/89(Electromagnetic Compatibility) andsubsequent modifications- 2002/96/EC- 2006/95/EC (Low Voltage)Connecting the drain hose Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor; alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater. We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Electrical connections Before plugging the appliance into the electricity socket, make sure that: the socket is earthed and complies with all applicable laws; the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite); the power supply voltage falls within the values indicated in the Technical data table (see opposite); the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug. The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions. When the washing machine has been installed, the electricity socket must be within easy reach. Do not use extension cords or multiple sockets. The cable should not be bent or compressed. The power supply cable must only be replaced by authorised technicians. Warning! The company shall not be held responsible in the event that these regulations are not respected. The first wash cycle Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle 2.

Indicator lights The indicator lights provide important information. This is what they can tell you: Wash cycle phase indicator lights Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress. Function buttons and corresponding indicator lights When a function is selected, the corresponding indicator light will illuminate. If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and the function will not be activated. If a function which is incompatible with another function selected previously, only the most recent selection will remain active. Wash Rinse Spin Drain End of wash cycle ON/OFF button: switches the washing machine on and off. WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move. FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit. TEMPERATURE knob: sets the temperature or the cold wash cycle (see Personalisation).

indicator light s: used to monitor the progress of the wash cycle. The illuminated indicator light shows which phase is in progress. LID LOCKED indicator light: indicates whether the door may be opened or not (see next page). START/PAUSE button with indicator light: starts or temporarily interrupts the wash cycles. N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the LID LOCKED indicator light is switched off, the door may be opened. To start the wash cycle from the point at which it was interrupted, press this button again. Description of the washing machine and starting a wash cycle TEMPERATURE knob

Lid locked indicator light If this indicator light is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damage, wait for the indicator light to switch off (it will take about three minutes) before you open the appliance door. N.B. If the DELAY TIMER function is activated, the door cannot be opened; pause the machine by pressing the START/PAUSE button if you wish to open it. If the START/PAUSE indicator light (orange) flashes rapidly at the same time as the function indicator light, this indicates a problem has occurred (see Troubleshooting). How to open and to close the drum Fig. 1 Fig. 2 Fig. 3 Fig. 4 A) Opening (Fig. 1): Lift the external lid and open it completely. B) Then open the drum using both hands as shown in Fig.2: - press the button indicated by the arrow in fig. 2 lightly downwards, with one hand firmly resting on the doors to prevent them from suddenly opening and hurting your fingers; - therefore follow the appliance doors along as these unhook and open easily. C) Loading the washing machine (Fig. 3). D) Shutting (Fig. 4): - close the drum fully by first shutting the front door followed by the rear one; - then ensure the hooks on the front door are perfectly housed within the seat of the rear door; - after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose; - finally shut the external lid. Starting a wash cycle

1. Switch the washing machine on by pressing the

ON/OFF button. All indicator lights will switch on for a few seconds, then they will switch off and the START/ PAUSE indicator light will pulse.

2. Load the laundry, close the door and the lid.

3. Set the WASH CYCLE knob to the desired

4. Set the washing temperature (see

5. Measure out the detergent and washing additives

(see Detergents and laundry).

6. Select the desired functions.

7. Start the wash cycle by pressing the START/

PAUSE button and the corresponding indicator light will remain lit in a fixed manner, in green. To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

8. At the end of the wash cycle the

indicator light will switch on. The LID LOCKED indicator light will switch off, indicating that the door may be opened. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch the washing machine off by pressing the ON/ OFF button.6

Wash cycles The information contained in the table is intended as a guide only. For all Test Institutes:

1) Test wash cycle in compliance with regulation EN 60456: set wash cycle 7 with a temperature of 60°C.

2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40°C.

3) Short wash cycle for cottons: set wash cycle 3 with a temperature of 40°C.

Wash cycles Table of wash cycles Description of the wash cycle Max

Sanitizing cycle 90° (1): Heavily soiled whites and resistant colours. 60° 800 -

Baby cycle: Heavily soiled delicate colours. 40° 800 -

Silk/Curtains: For garments in silk and viscose, lingerie. 30° 0 -

Wool: For wool, cashmere, etc. 40° 600 -

Cotton: Heavily soiled whites and resistant colours. 60° 800 ll l

Cotton (2): Heavily soiled whites and delicate colours. 40° 800 ll l

Coloured Cottons (3): Lightly soiled whites and delicate colours. 40° 800 ll l

Synthetics delicates: Lightly soiled resistant colours. 40° 800 -

Mix 30': To refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand). 30° 800 -

Mix 15': To refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand). 30° 800 -

Spin - 800 - - - 516 Light spin - 800 - - - 2,5 12 Drain no spin - 0 - - - 52 Specials wash cycles Sanitizing cycle (wash cycle 7). A high-temperature hygienic wash cycle (over 60°C) which requires the use of bleach. Pour the bleach, the detergent and the additives into the relevant compartments (see paragraph entitled Detergent dispenser drawer). Goodnigt cycle (wash cycle 8). This is a silent cycle which can be run at night, when the electricity prices are lower. The wash cycle is designed for cottons and synthetics. At the end of the cycle the machine stops while there is still water in the drum; to spin and drain the laundry press the START/PAUSE button; alternatively the machine will perform the spin cycle and drain the water automatically after 8 hours. Baby cycle (wash cycle 9). This wash cycle can be used to remove the soiling typically caused by babies, while ensuring that all detergent is removed from nappies in order to prevent the delicate skin of babies from suffering allergies. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent. Mix 30 (wash cycle 5) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting this wash cycle (5 at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 3 kg. Mix 15(wash cycle 6) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle (6 at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1.5 kg.GB

Setting the temperature Turn the TEMPERATURE knob to set the wash temperature (see Table of wash cycles). The temperature may be lowered, or even set to a cold wash (

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle. Functions The various wash functions available with this washing machine will help to achieve the desired results, every time. To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the selected wash cycle. Super Wash Because a greater quantity of water is used in the initial phase of the cycle, and because of the increased cycle duration, this function offers a high-performance wash. This function may not be used in conjunction with wash cycles 5, 6, 7, 11, 12,

Easy iron By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum. For the 4, 8, 11 wash cycle, the machine will end the cycle while the laundry is soaking, the EASY IRON and START/PAUSE indicator lights will flash (orange) and the RINSE phase will remain lit in a fixed manner. To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button. This function may not be used in conjunction with wash cycles 5, 6, 7, 8, 9, 12, , , . Extra rinse By selecting this function, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin. This function may not be used in conjunction with wash cycles 5, 6,

Spin Cycle Exclusion The washing machine will not carry out the spin cycle, but rather a drum spin at medium speed to assist water draining. N.B. Recommended when washing garments which are difficult to iron. This function may not be used in conjunction with wash cycles 11, . Personalisation8

Detergents and laundry Detergent dispenser drawer Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment. Open up the detergent dispenser and pour in the detergent and fabric softener, as follows. compartment 1: Detergent for pre-wash compartment 2: Detergent for the wash cycle (powder or liquid) It is recommended that you place liquid detergent directly into the compartment using the appropriate dosing cup. compartment 3: Additives (softener, etc.) When pouring the softener in compartment 3, avoid exceeding the "max" level indicated. The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment

3. This is used for the inlet of denser fabric softeners

into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see Care and maintenance. compartment 4: Bleach Bleach cycle Bleaching may only be performed in conjunction with wash cycles 2, 3, 7,

Pour the bleach into compartment 4; pour the detergent and softener into the corresponding compartments, then select one of the abovementioned wash cycles. This option is recommended only for very soiled cotton garments. Preparing the laundry Divide the laundry according to: - the type of fabric/the symbol on the label - the colours: separate coloured garments from whites. Empty all garment pockets and check the buttons. Do not exceed the listed values, which refer to the weight of the laundry when dry: Durable fabrics: max. 5 kg Synthetic fabrics: max. 2,5 kg Delicate fabrics: max. 2 kg Wool: max. 1 kg How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1200 g 1 towel 150-250 g Garments requiring special care Shirts: use special wash cycle 10 to wash shirts in various fabrics and colours. It guarantees maximum care is taken of the garments and minimises the formation of creases. Silk: use special wash cycle 11 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes. Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 11. Wool: Hotpoint/Ariston is the only washing machine manufacturer to have been awarded the prestigious Woolmark Platinum Care endorsement (M.0508) by the Woolmark Company, which means that all woollen garments may be washed in the washing machine, even those which state hand wash only on the label. Wash cycle 12 therefore offers complete peace of mind when washing woollen garments in the washing machine (max. load 1 kg) and guarantees optimal performance. Load balancing system Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several at- tempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distri- bution process instead of spinning. To encourage im- proved load distribution and balance, we recommend small and large garments are mixed in the load.GB

Precautions and tips This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully. General safety This appliance was designed for domestic use only. The washing machine must only be used by adults, in accordance with the instructions provided in this manual. Do not touch the machine when barefoot or with wet or damp hands or feet. Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull. Do not touch the drained water as it may reach extremely high temperatures. Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening. If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself. Always keep children well away from the appliance while it is operating. If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy. Before loading laundry into the washing machine, make sure the drum is empty. Disposal Disposing of the packaging materials: observe local regulations so that the packaging may be re-used. The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Saving energy and respecting the environment Saving on detergent, water, energy and time To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy. The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy. Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy. Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible. If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load.10

Care and maintenance Cutting off the water or electricity supply Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks. Unplug your appliance when cleaning it and during all maintenance operations. Cleaning your appliance The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Caring for your appliance door and drum Always leave the appliance door ajar to prevent unpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same. Make sure the wash cycle has ended and unplug the appliance. How to clean the detergent dispenser Cleaning: Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them. Reassembly: Do not forget to reinsert the pair of siphons into the spe- cial housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1). Disassembly: Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1, 2). To recover any objects that have fallen into the pre- chamber:

1. remove the plinth at

the bottom on the front side of the washing machine by pulling from the side with your hands (see figure);

rotating it anticlock- wise (see figure): a little water may trickle out. This is perfectly normal;

3. clean the interior

5. reposition the panel,

making sure the hooks are securely in place before you push it onto the appliance. Checking the water inlet hose Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. Never use hoses that have already been used. Fig. 1 Fig. 2 Fig. 3 Fig. 4GB

Troubleshooting Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see Assistance), make sure that the problem cannot be not solved easily using the following list. Problem: The washing machine does not switch on. The wash cycle does not start. The washing machine does not take in water (the indicator light for the first wash cycle stage flashes rapidly). The washing machine continuously takes in and drains water. The washing machine does not drain or spin. The washing machine vibrates a lot during the spin cycle. The washing machine leaks. The START/PAUSE indicator light (orange) and the function indicator lights flash rapidly. There is too much foam. Possible causes / Solutions: The appliance is not plugged into the socket fully, or is not making contact. There is no power in the house. The appliance Lid is not shut properly. The ON/OFF button has not been pressed. The START/PAUSE button has not been pressed. The water tap has not been opened. The water inlet hose is not connected to the tap. The hose is bent. The water tap has not been opened. There is no water supply in the house. The pressure is too low. The START/PAUSE button has not been pressed. The drain hose is not fitted at a height between 65 and 100 cm from the floor (see Installation). The free end of the hose is under water (see Installation). The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience. The wash cycle does not include draining: some wash cycles require the drain phase to be started manually. The EASY IRON function has been activated: To complete the wash cycle, press the START/PAUSE button (Personalisation). The drain hose is bent (see Installation). The drainage duct is clogged. The drum was not unlocked correctly during installation (see Installation). The washing machine is not level (see Installation). The washing machine is trapped between cabinets and walls (see Installation). The water inlet hose is not screwed on properly (see Installation). The detergent dispenser drawer is blocked (for cleaning instructions, see Care and maintenance). The drain hose is not fixed properly (see Installation). Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists, contact the Technical Assistance Service. The detergent is not suitable for machine washing (it should display the text for washing machines or hand and machine wash, or the like). Too much detergent was used.12

Service Before calling for Assistance: Check whether you can solve the problem alone (see Troubleshooting); Restart the programme to check whether the problem has been solved; If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate. Always request the assistance of authorised technicians. Have the following information to hand: the type of problem; the appliance model (Mod.); the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine.13
