Cavallino T150 - Earphones Ferrari by Logic3 - Free user manual and instructions

Product type	In-ear headphone
Brand	Ferrari by Logic3
Model	Cavallino T150
Compatibility	iPod, iPhone, iPad, Blackberry, Windows and Android
Box contents	Cavallino T150 earphones, 5 pairs of ear tips, carrying pouch
Remote control type	1 button or 3 buttons (depending on variant)
Functions of the 3-button remote	Play/Pause, volume +/-, next/previous track, fast forward/rewind, hear artist/title, playlist menu
Cable length	Approximately 1.2 m
Weight	Approximately 15 g
Color	Black with Ferrari red accents
Material	Plastic, silicone
Ear tip type	Silicone, multiple sizes
Intended use	Music listening and phone calls
Cleaning	With a dry cloth only
Safety precautions	Avoid water, do not use near bath or pool, keep plastic bags away from children
Volume recommendation	Start at a low volume and increase gradually
Warranty	Standard manufacturer warranty
Product registration	Recommended on the Ferrari-by-Logic3.com website
Customer service	[e-mail], [phone]

Frequently Asked Questions - Cavallino T150 Ferrari by Logic3

How to choose the right size ear tips for my Cavallino T150 earphones?

Try the different sizes provided (usually S, M, L) for a comfortable fit and optimal isolation. A good fit improves bass and reduces external noise.

Are the Cavallino T150 earphones compatible with my iPhone?

Yes, the T150i model with a 3-button remote is compatible with iPhone, iPad and iPod. The T150 model with a 1-button remote works with most Blackberry, Windows and Android smartphones.

How to use the 3-button remote to skip to the next track?

Double-press the Play/Pause button quickly to skip to the next track.

Can I use the earphones in the rain or during intense sports?

No, these earphones are not waterproof. Avoid any exposure to water or excessive humidity to prevent damage.

How to clean my Cavallino T150 earphones?

Use a dry cloth to clean the earphones and ear tips. Do not use chemicals or water.

What to do if one earphone stops working?

First check the connection and volume. If the problem persists, contact customer service at [e-mail] or by phone at [phone].

How to hear the name of the artist or current song title?

Press and hold the Play/Pause button on the 3-button remote (iPod compatible). Release to hear the announcement.

Can the Cavallino T150 earphones be used for phone calls?

Yes, the integrated remote has a microphone and a call answer button.

What is the cable length of the earphones?

The cable is approximately 1.2 meters, standard for use with a portable player.

How to avoid damaging my hearing with these earphones?

Always lower the volume before inserting them, then increase gradually to a comfortable level. Listen at moderate volume and take regular breaks.

USER MANUAL Cavallino T150 Ferrari by Logic3

Thank you for purchasing the Ferrari by Logic3 Cavallino T150i/T150 Earphones. As with all Ferrari by Logic3 products it has been built to the highest manufacturing standards and tested throughout its development, to ensure you get the best possible product.

Please read through and familiarize yourself with this manual before you use the Ferrari by Logic3 Cavallino T150i/T150 Earphones.

PRODUCT REGISTRATION:

For your benefit, Logic3 recommends that You register Your Product online to record Your Product serial number and date of purchase, as this information will allow us to better serve Your needs. Please visit http://www.ferrari-bylogic3.com/register

COMPATIBILITY

*3 button remote works with:

Made for

iPod

Phone

iPad

The remote is supported only by iPod nano (4 th/ 5th/ 6th generation), iPod classic (120GB/160GB), iPod touch (2nd/3rd/4th generation) and iPod shuffle (3rd generation), iPhone, iPhone3 / 3GS, 4 / 4S, iPad / iPad 2 / new iPad
Audio is supported by all iPod models.
- Requires software version 1.0.3 for iPod nano (4th generation), 2.0.4 for iPod classic (120GB), and 2.2 or later for iPod touch (2nd generation)

• 1 button remote works with:

BlackBerry

Windows

phone

and

The remote is supported by most Blackberry, Windows and Android smart phones.

CONTENTS

Check the packaging for the items shown below.

Please retain the packing materials, as this will provide the safest way to transport this product.

If any part of the product appears to be damaged, do not attempt to use it. Please contact Ferrari by Logic3 immediately via e-mail: [e-mail] or via telephone: [phone]

Cavallino T150i/T150

X5 Eartips

Carry Case

WARNING: To avoid danger of suffocation, keep plastic bags out of the reach of children.

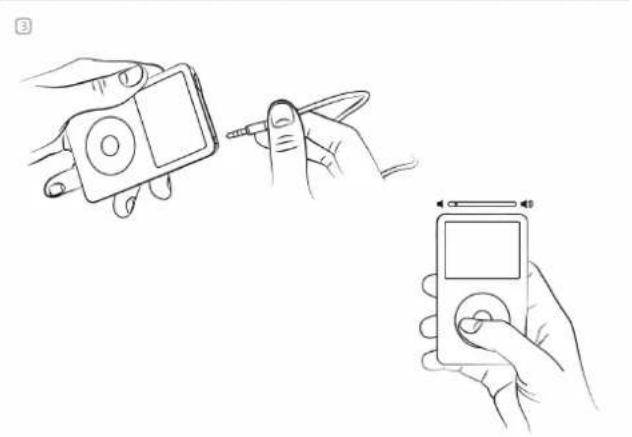

Setup of T150

Important Logic3 Performance and safety tips listen responsibly

To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your earphones. After placing earphones in your ears, gradually turn up the volume until you reach a comfortable listening level.

Get the most out of your equipment and enjoy great audio performance even at safe levels. Our earphones will allow you to hear more details at lower volume levels than ever before.

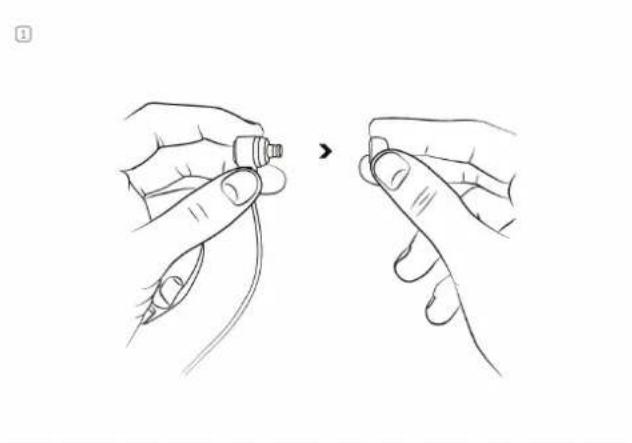

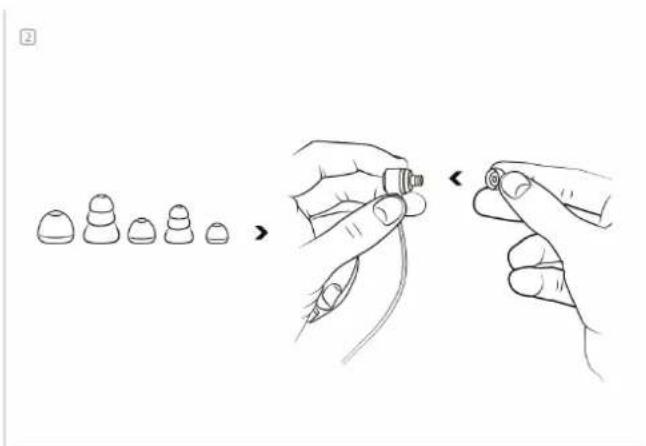

Ear tip selection

The tips on the ends of your Cavallino T150i/T150 make the difference between good sound and great sound. With the right fit, you'll get better isolation from unwanted outside noise, increased bass response, better tonal balance and the earphones will stay in your ears better. Of course, the right fit will also feel more comfortable. We supply several sizes and designs of ear tips. Getting the perfect fit with the correct tip is a matter of experimentation.

Listen

Turn down the volume on your music player before inserting Cavallino T150 earphones.

IMPORTANT: Left and Right Earphone: Having the correct earphone side in the correct ear does affect the listening experience.

Note the "L" and "R" markings on the side of each earphone. "L" is for the left ear, "R" is for the right ear.

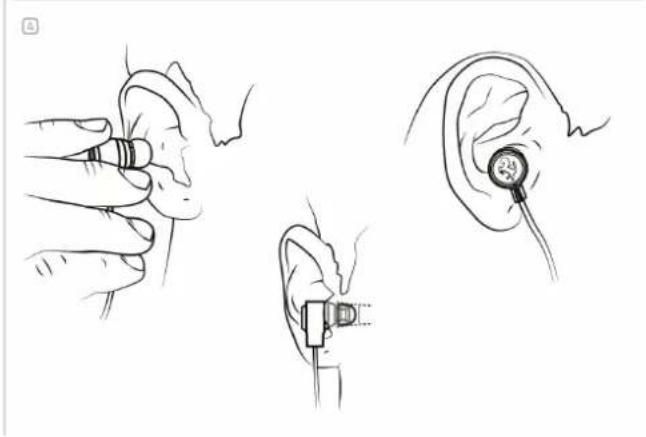

Proper insertion and removal of ear tips

1. You may wish to lightly moisten your ear tips for easier insertion.
2. Using your right hand, grasp the right earphone.
3. With your left hand, pull up and back on your right ear to straighten your ear canal.
4. Carefully insert your right earphone, rubber ear tip first, so that it seals completely and comfortably in your ear.

DO NOT insert the ear tip so deeply that your ear canal feels completely "plugged."

1. Repeat this procedure for your left ear.
2. When you've finished your listening session, remove your in-ear earphones slowly with a twisting motion to gradually break the seal.

REMOSES

Using the 1 Button remote

Command	Action
Play/Pause	Press the Play/Pause Button once

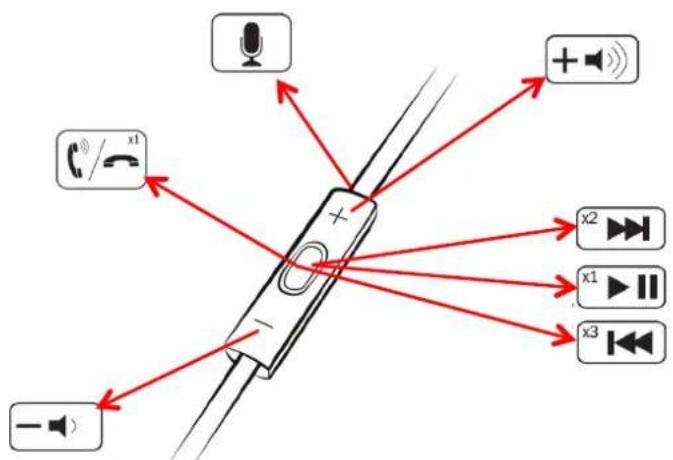

*3 Button Remote (Applicable to T150i)

Cavallino T150i has a built-in 3 button remote feature for use with music phones and newer iPod. The 3 button remote has a call answer button and microphone so you can easily switch between listening to music and talking on your phone. It also features music and video playback control for iPod, iPhone and iPad.

Command	Action
Play/Pause	Press the Play/Pause Button once
Volume Controls	Press the Volume Up (+) or Volume Down (-)
Next Track	Double Press the Play/Pause Button
Previous Track	Triple Press the Play/Pause Button within 10 seconds of the track starting. To restart the current track, Triple Press the Play/Pause Button after 10 seconds
Search Fast Forward	Double Press and Hold the Play/Pause Button
Search Rewind	Triple Press and Hold the Play/Pause Button
*Hear song Title/Artist	Press and Hold the Play/Pause Button
*Hear playlist menu	Press the Play/Pause Button until you hear a beep; release the button to hear the playlist menu. When you hear the then name of the playlist you want, press the Play/Pause button to select it. To move quickly through the playlist menu press + or - (when you are in the playlist menu)
*Exit Playlist menu	Press and Hold the Play/Pause Button

• Applicable to iPod 3G Shuffle

SAFETY INFORMATION

1. Read these instructions - for all components before using this product.
2. Keep these instructions - for future reference.
3. Heed all warnings - on the product and in the owner's guide.
4. Follow all instructions.
5. Do not use this apparatus near water or moisture - Do not use this product near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool or anywhere else that water is present.
6. Clean only with a dry cloth. Unplug this product from the wall outlet before cleaning.
7. Only use attachments/accessories specified by the manufacturer.
8. Make no modifications to the product or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and system performance, and will void the warranty.
9. Unplug this apparatus when unused for long periods of time.
10. Do not place any naked flame sources, such as lighted candles, on or near the apparatus.
11. Contains small parts that may be a choking hazard. Not suitable for children under age 3.
12. To prevent risk of fire or electric shock, avoid overloading wall outlets and using extension cords.
13. Do not let objects or liquids enter the product - as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
