USER MANUAL KBP4DE Gembird

Abstract logo design featuring a stylized arrow and 'GE' letters, no readable text or symbols beyond the graphic elements.

GEMBIRD®

Enter Home Shift Ctrl Alt Alt Ctrl

PHOENIX SERIES SLIMLINE WIRELESS TOUCHPAD KEYBOARD PHOENIX SLIMLINE WIRELESS TASTATUR MIT TOUCHPAD SLIMLINE DRAADLOOS TOETSENBORD MET MULTI-TOUCHPAD PHOENIX SÉRIE CLAVIER TOUCHPAD SANS FIL SLIMLINE НИЗКОПРОФИЛЬНАЯ БЕСПРОВОДНАЯ КЛАВИАТУРА С ТАЧПАДОМ НИЗЬКОПРОФІЛЬНА БЕЗДРОТОВА КЛАВІАТУРА З ТАЧПАДОМ СЕРІЇ PHOENIX

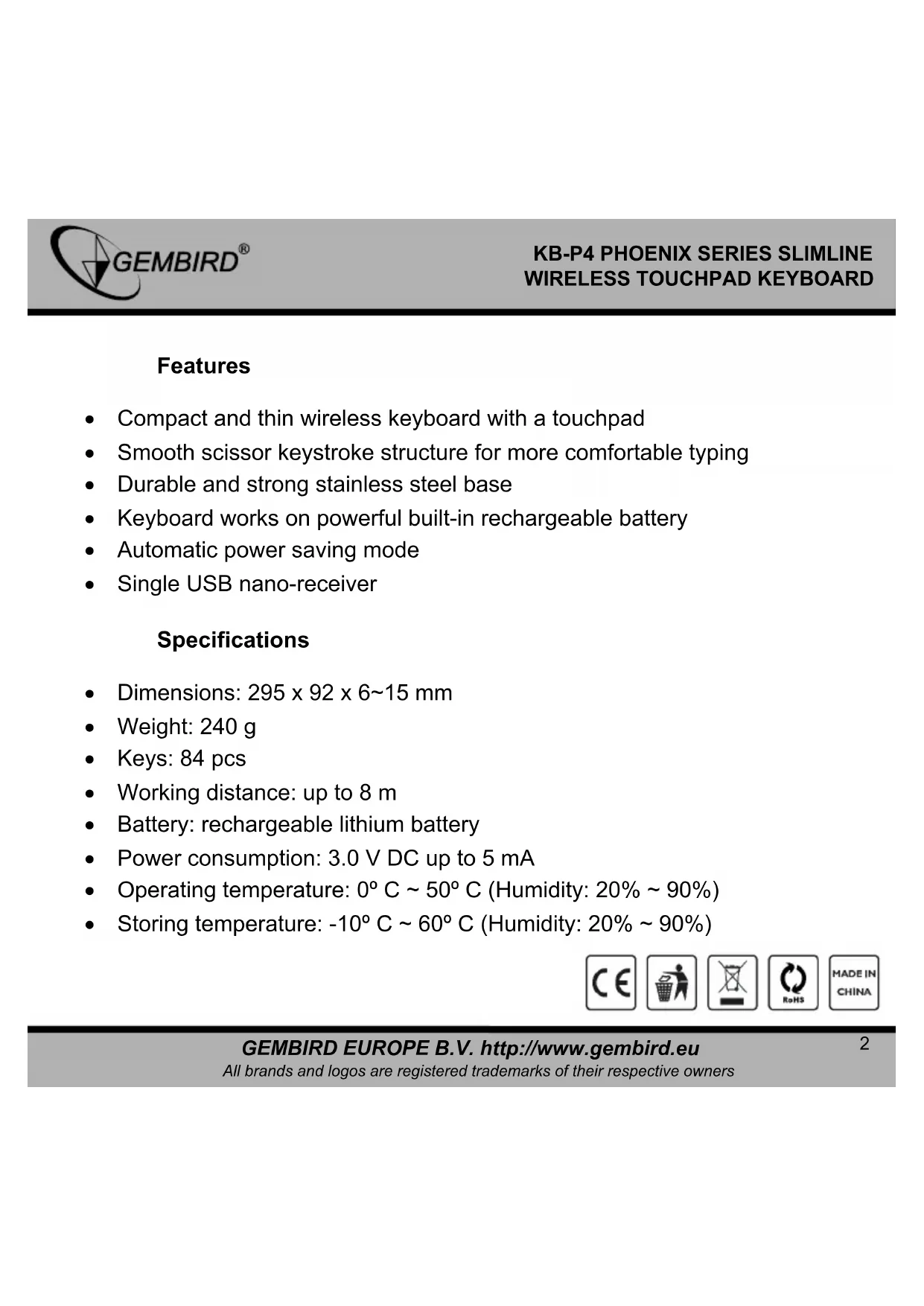

Features

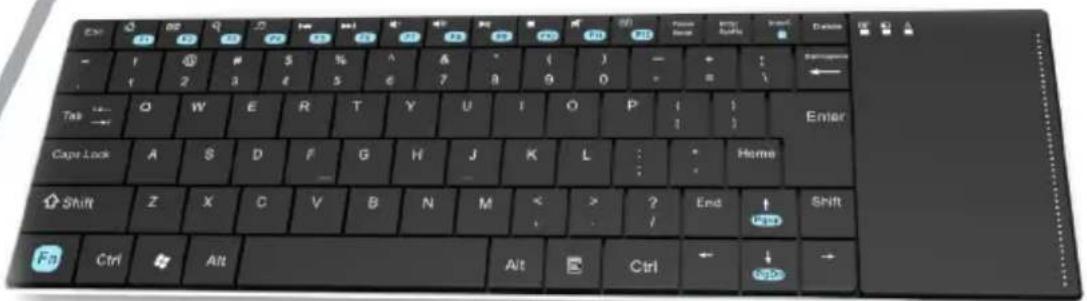

• Compact and thin wireless keyboard with a touchpad
• Smooth scissor keystroke structure for more comfortable typing
  • Durable and strong stainless steel base
• Keyboard works on powerful built-in rechargeable battery
  • Automatic power saving mode
• Single USB nano-receiver

Specifications

• Dimensions: 295 × 92 × 6 15 ~mm
• Weight: 240 ~g
• Keys: 84 pcs
  • Working distance: up to 8 m
• Battery: rechargeable lithium battery
  • Power consumption: 3.0 V DC up to 5 mA
• Operating temperature: 0^ C 50^ C (Humidity: 20 % 90 % )
• Storing temperature: -10^ C 60^ C (Humidity: 20 % 90 % )

CE RoHS MADE IN CHINA

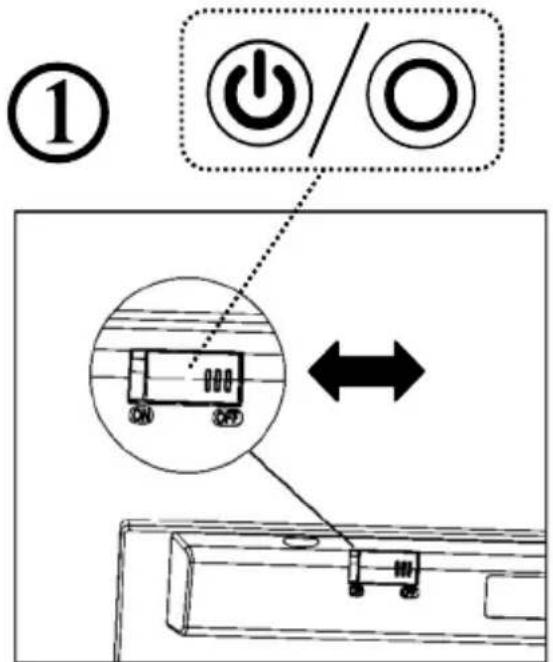

① ①

②

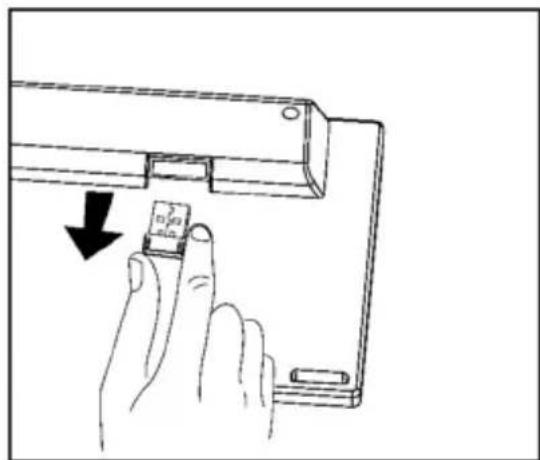

Hand inserting a small electronic component into a mechanical bracket (no text or symbols visible)

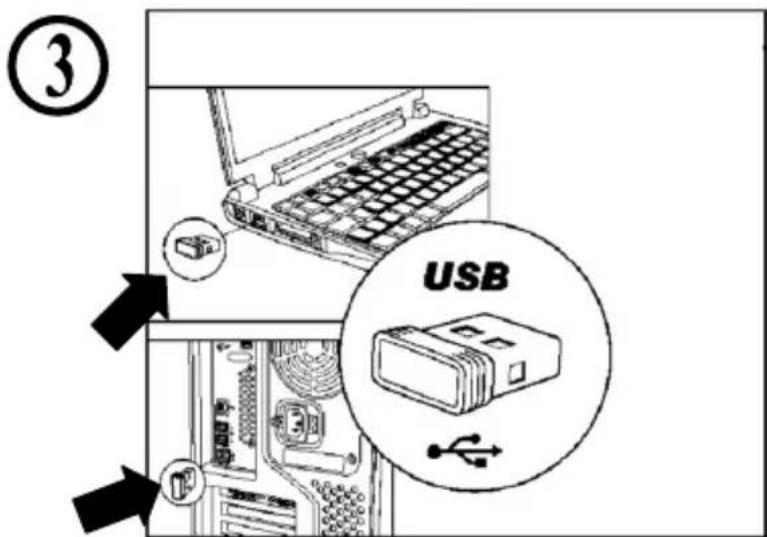

③ USB

④

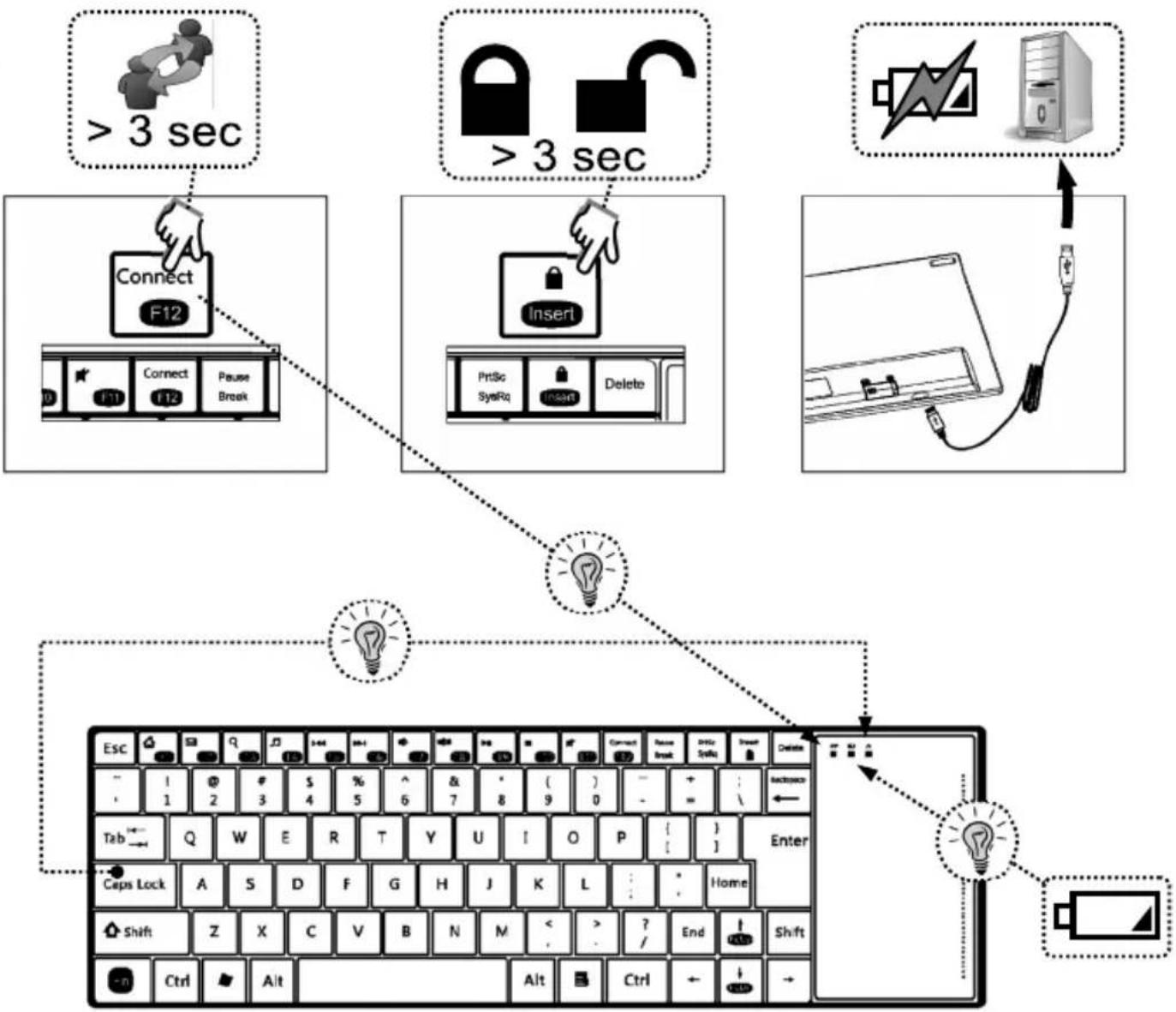

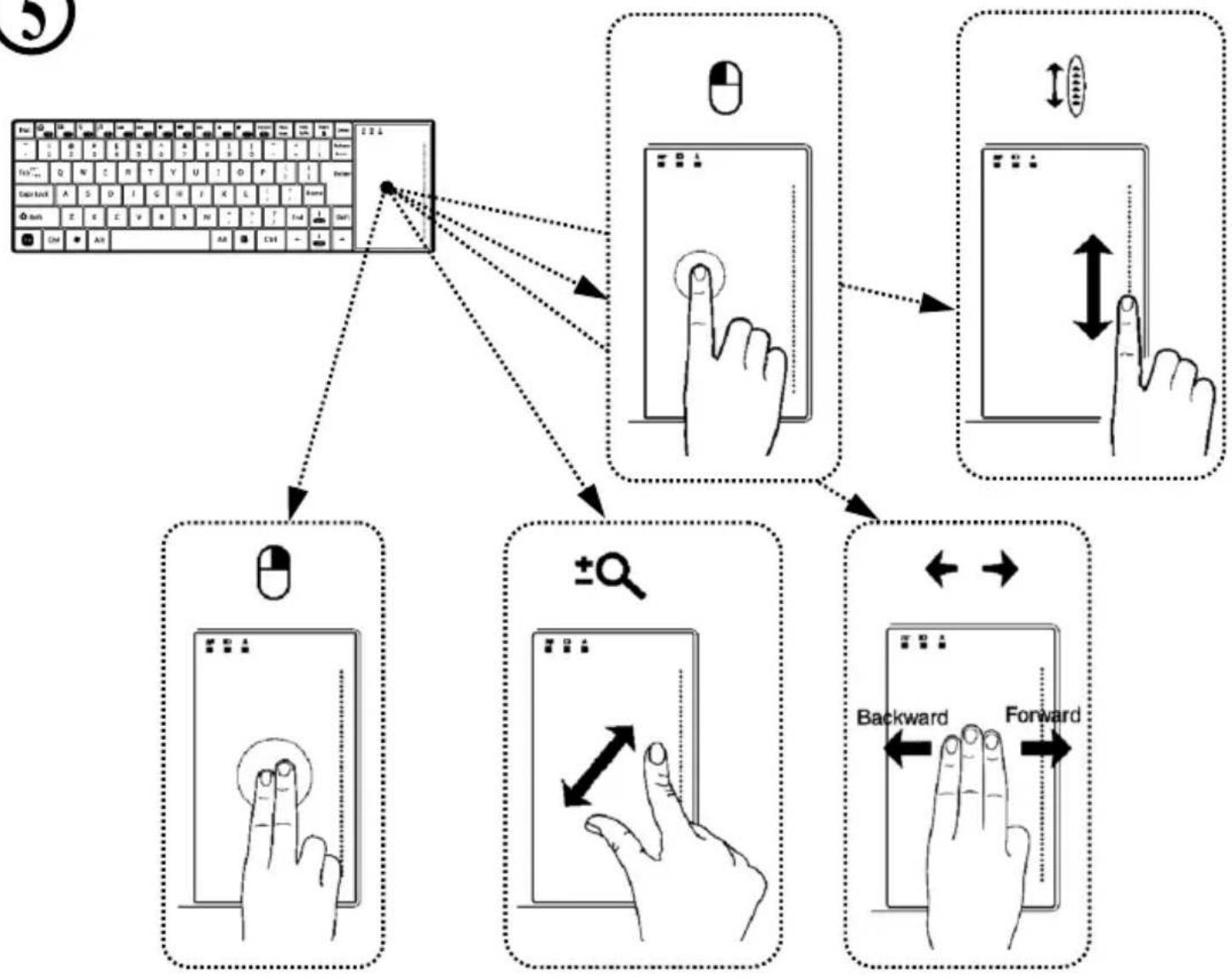

⑤

Black circular icon with an exclamation mark symbol (no text or numbers)

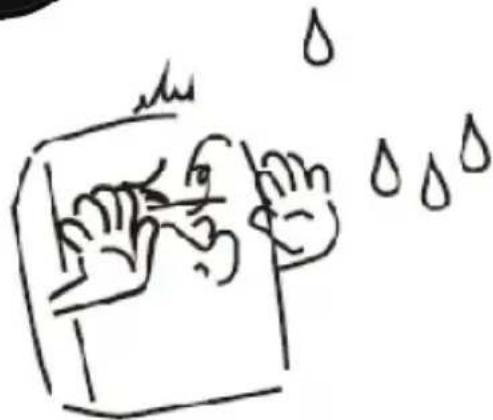

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

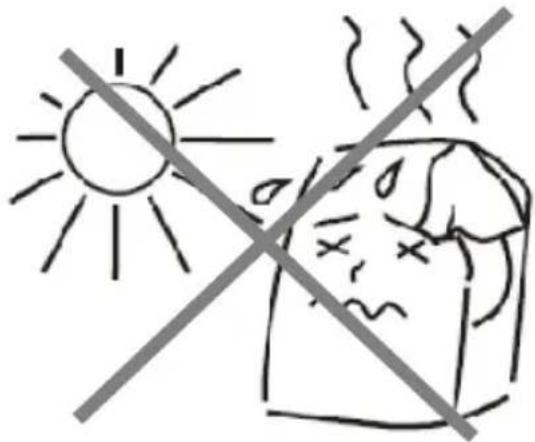

Safety warning sign showing sun and a person with fever, crossed by a diagonal line

Simple line drawing of a hand using a screwdriver to cut a screw and loose bolts (no text or symbols)

Simple line drawing of a device with a crosshair and abstract shapes, no text or symbols present.

Declaration of Conformity

We,

Gembird Europe BV

Wittevrouwen 56,

1358CD, Almere, The Netherlands

declare under our own responsibility that the product :

Model :

KB-P4-UA

Product description:

KB-P4-UA Phoenix series Slimline Wireless

touchpad keyboard, black

to which this declaration refers conforms with the relevant standards :

European directive(s):

R&TTE(1999/5/EC)

European standards:

R&TTE: Safety: EN 60950-1:2006+A11:2009+A1:2010+AC:2011+A12:2011

EMC: EN 301 489-1/-17

Radio: EN 300 328

Health: EN 50371

Gembird Europe BV

Wittevrouwen 56, 1358CD, Almere, The Netherlands

Tel: [phone]. Fax: [phone]

Authorized signature

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
