USER MANUAL M70509 DIRT DEVIL

Cylinder vacuum cleaner

An overview of your Fello & Friend Bag

D An overview of your Fello & Friend Bag Many thanks!

We hope you enjoy using the Fello & Friend Bag and we would like to thank you for your purchase!

Appliance parts/scope of delivery

Optional accessories:

- Turbo brush (Fig. 7/1)

- Parquet brush (Fig. 7/2)

- Mini turbo brush (Fig. 8/1)

- "Fello" pet hair turbo brush (Fig. 8/2)

Technical data We reserve the right to make technical and design-related alterations in the course of ongoing product improvements. © Royal Appliance International GmbH 1 Handle

2 Secondary air controller

9 Suction controller

12 Stow-away hook mount

13 Parking hook mount

14 Power cable with plug

15 Exhaust filter cover

16 Telescopic tube lock

20 "Carpet/hard floor" switch

21 Release device for dust chamber cover

22 Release device for suction hose

24 Dust filter bag holder with dust filter bag (another

dust filter bag included in scope of delivery)

Type of appliance : Cylinder vacuum cleaner

Model : Fello & Friend Bag (M7050-0, M7050-9)

Power cable with plug : approx. 5 m long

1 Safety instructions 22

1.1 Regarding the operating manual 22

1.2 Regarding the power supply 22

1.3 Regarding children 23

1.4 Regarding intended use 23

1.5 If the appliance is defective 24

2 Unpacking and assembly 25

2.3 Using other nozzles (accessories) 26

3.2 Switching off and retracting the power cable 29

3.3 Transporting and storage 29

4.1 Changing the dust filter bag 30

4.2 Overview of the filters 31

4.3 Cleaning / changing the motor protection filter 31

4.4 Cleaning / changing the exhaust filter 32

4.5 Cleaning the housing 32

5 Troubleshooting 33

6 Spare parts and disposal 34

6.1 Accessories and Spare Parts 34

7.1 Warranty conditions 35

7.2 Making a warranty claim 35 List of conte nts22

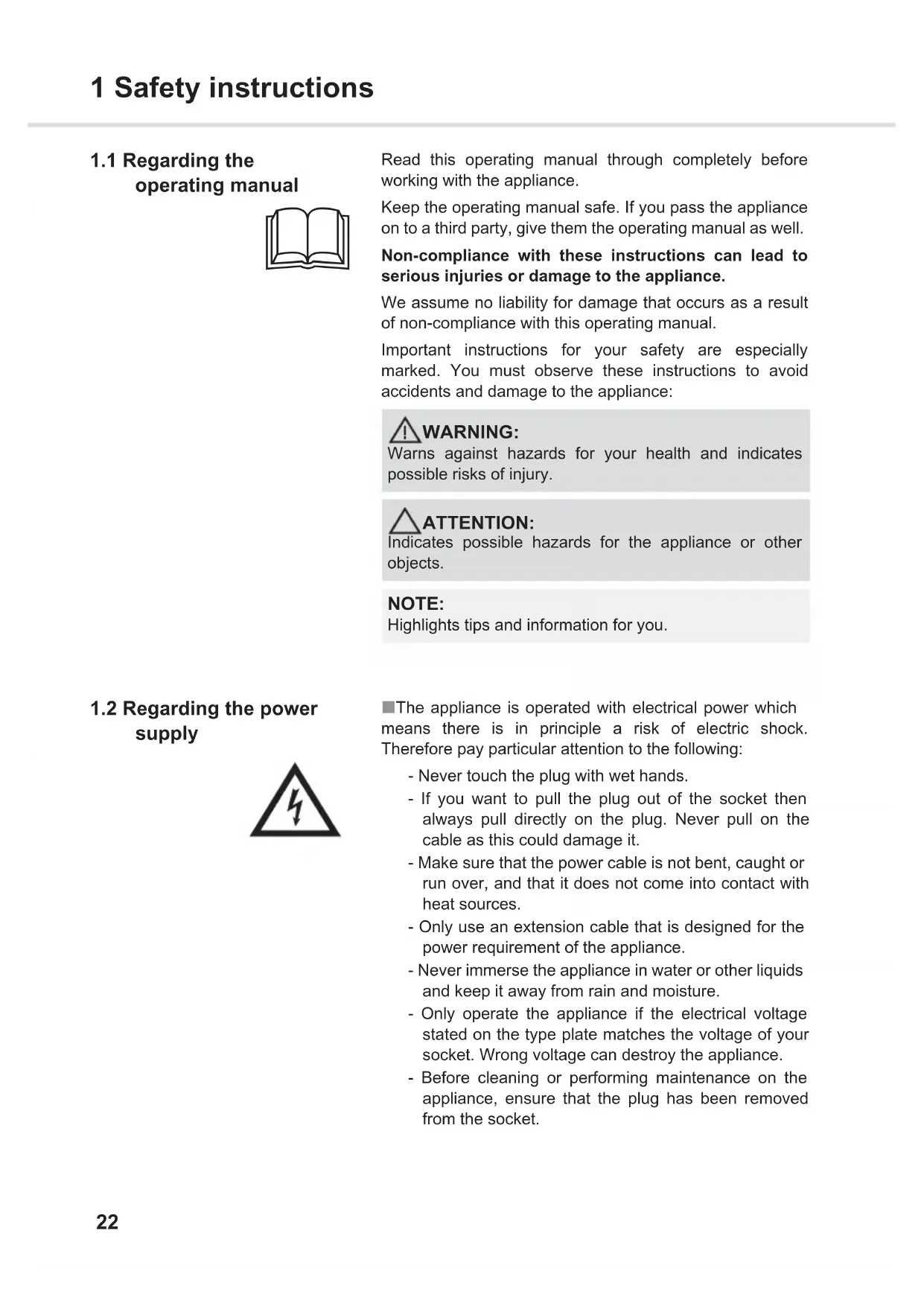

1 Safety instructions 1 Safety instructions 1.1 Regarding the

operating manual Read this operating manual through completely beforeworking with the appliance. Keep the operating manual safe. If you pass the applianceon to a third party, give them the operating manual as well. Non-compliance with these instructions can lead toserious injuries or damage to the appliance.We assume no liability for damage that occurs as a resultof non-compliance with this operating manual.Important instructions for your safety are especiallymarked. You must observe these instructions to avoidaccidents and damage to the appliance: 1.2 Regarding the power

supply  The appliance is operated with electrical power whichmeans there is in principle a risk of electric shock.Therefore pay particular attention to the following:- Never touch the plug with wet hands.- If you want to pull the plug out of the socket thenalways pull directly on the plug. Never pull on thecable as this could damage it.- Make sure that the power cable is not bent, caught orrun over, and that it does not come into contact withheat sources.- Only use an extension cable that is designed for thepower requirement of the appliance.- Never immerse the appliance in water or other liquidsand keep it away from rain and moisture.- Only operate the appliance if the electrical voltagestated on the type plate matches the voltage of yoursocket. Wrong voltage can destroy the appliance.- Before cleaning or performing maintenance on theappliance, ensure that the plug has been removedfrom the socket. WARNING: Warns against hazards for your health and indicatespossible risks of injury. ATTENTION: Indicates possible hazards for the appliance or otherobjects.

Highlights tips and information for you.

1 Safety instructions

1.3 Regarding children

 This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way

and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance

shall not be made by children without supervision.

Children must not be allowed to stand or sit on the

 For reasons of safety we strongly recommend that even

children aged from 8 years and above do not operate the

device as they definitely cannot understand all specific

dangers arising from it. Keep the appliance out of reach of

people of these groups.

 Packaging material must not be used to play with. There

is a danger of suffocation.

1.4 Regarding intended

The cylinder vacuum cleaner is intended for home use only.

It is not suitable for commercial use.

Only use the cylinder vacuum cleaner for cleaning normally

dirty floors, carpets and curtains. Any other use is

considered non-intended use and is prohibited.

The following is prohibited in particular:

- People, animals, plants, especially hair, fingers and

other parts of the body as well as pieces of clothing

worn on the body. They could be pulled in and cause

- pieces of clothing (e. g. shoelaces, scarves, etc.).

They could be pulled right in and cause injuries.

- water and other fluids, especially damp carpet

cleaning agents. Internal dampness can lead to a

- toner dust (for laser printers, copy machines, etc.).

There is a risk of fire and explosion.

- hot ash, burning cigarettes or matches. These can

- pointed objects such as glass fragments, nails, etc.

Otherwise, the appliance might be damaged.

- rubble, plaster, cement, fine drilling-dust, makeup,

etc. These might damage the appliance.

 Do not use near explosive or easily flammable

substances. There is a risk of fire or explosion.

 Do not use in the open-air. There is a risk of the

appliance being destroyed by rain and dirt.

 Do not push objects into the openings of the appliance.

It could overheat.24

1 Safety instructions

1.5 If the appliance is

 Never operate a defective appliance or an appliance

with a defective cable. If the mains cable of this appliance

is damaged it must be replaced by the manufacturers, their

authorised service representative or a similarly qualified

person to avoid danger to the user.

 Bring or send defective appliances to a specialist dealer

or to Royal Appliance Customer Services for repair.

Address ZPage 35, "Warranty".25

2 Unpacking and assembly

GB 2 Unpacking and assembly 2.1 Unpacking 1. Unpack the appliance and all accessory parts. 2. Check the contents are all there. Information regarding the scope of delivery ZPage 20, "An overview of your Fello & Friend Bag". 2.2 Assembly 1. Push the end of the suction hose (Fig. 2/1) into thereceiver opening (Fig. 2/2) on the cylinder vacuumcleaner until the lock clicks into place audibly andnoticeably. 2. Push the handle (Fig. 3/1) into the upper end of thetelescopic tube (Fig. 3/2).3. Push the floor nozzle (Fig. 3/3) onto the lower end of thetelescopic tube (Fig. 3/4).4. Adjust the length of the telescopic tube. To do this,press the telescopic tube lock (Fig. 4/1) down. Then pullthe telescopic tube by the handle (Fig. 3/1) to thedesired length. To lock it, release the telescopic tubelock when you let go. You will hear an audible click.5. Push the accessories mount (Fig. 5/1) onto the handle(Fig. 5/2). Then push the furniture brush (Fig. 5/3) andcrevice nozzle (Fig. 5/4) on to the holders for these.Your cylinder vacuum cleaner is now ready to use.ATTENTION:Always transport/send the appliance in its originalpackaging so that it does not become damaged. Keepthe packing material for this purpose. Dispose of anypacking material that is no longer required in accordancewith the provisions applicable in your country. NOTE: If you should notice damage due to transport, thencontact your dealer immediately.WARNING:Only assemble the appliance if the plug has been pulledout of the socket. The appliance could be switched on byaccident. NOTE: It may be necessary to push a bit harder. NOTE: If necessary, you can also attach the accessories mountto the telescopic tube. Fig. 2

2 Unpacking and assembly

2.3 Using other nozzles

(accessories) Together with the floor nozzle just assembled, you canexpand the range of functions of your cylinder vacuumcleaner with other nozzles. The crevice nozzle and the furniture brush are includedas accessories in the scope of delivery. They can besecured to the accessories mount (Fig. 5) when not in use.- Crevice nozzle (Fig. 6/1)Use this to vacuum dust from hard to reach places.- Furniture brush (Fig. 6/2) Use this to vacuum dust off objects that havesensitive surfaces (e. g. cupboards, tables). Optionally available (i.e. included in the scope ofdelivery depending on model and features) are also:- Turbo brush (Fig. 7/1)is used to vacuum non-sensitive carpets, runners,mats, and the like.- Parquet brush (Fig. 7/2)Its long bristles make it especially suitable forcleaning delicate surfaces (e.g. parquet and laminatefloors).- Mini turbo brush (Fig. 8/1)is used to vacuum non-sensitive upholstery, runners,mats, and the like.- "Fello" pet hair turbo brush (Fig. 8/2)is used to vacuum non-sensitive upholstery, runners,mats, and the like.ATTENTION:Our (mini) turbo brush can only be used to vacuum surfaces that are not sensitive. Do not clean any floors or objects with the (mini) turbo brush that you would notclean without a second thought with a conventionalbrush. Therefore, do not clean sensitive or polished floorsurfaces with the (mini) turbo brush. Nor should youclean furniture, sensitive carpets, upholstery, covers, orany material with a sensitive texture with the (mini) turbobrush. Otherwise material damage might occur. If indoubt, refrain from using the (mini) turbo brush. In everyinstance observe the instructions for care and cleaning ofthe respective manufacturer. Fig. 6

GB Proceed as follows to attach the nozzles:1. Switch off the vacuum cleaner and pull the plug from themains socket.2. Pull the attached nozzle off of the telescopic tube.3. Attach the desired nozzle to the bottom end of thetelescopic tube (Fig. 9/1) or if necessary directly to thehandle (Fig. 9/2). 4. If possible, store nozzles no longer in use on theaccessory bracket. Keep the other nozzles safe andinaccessible to children.3Operating 3.1 Vacuuming

. WARNING:Only attach the nozzles if the appliance if it is notconnected to the power supply. Otherwise, the appliancecould be switched on by accident. NOTE: If you want to use the "Fello" pet hair turbo brush, youmust first attach the supplied adapter (Fig. 10/*) to thetelescopic tube (Fig. 10/1). This is described in detail inthe instruction sheet for the "Fello" pet hair turbo brush.ATTENTION:Using the vacuum cleaner without a nozzle attachedincreases the danger of accidentally sucking in objects. Fig. 9

WARNING:Check the cylinder vacuum cleaner and the power cablebefore each use. A damaged appliance must never beused. There is a risk of injury.ATTENTION:Only use the cylinder vacuum cleaner if all the filters areintact, dry and inserted correctly. Make sure that none ofthe openings are blocked. Otherwise, the vacuumcleaner can become damaged. NOTE: Your cylinder vacuum cleaner has an overheatingprotection device. It turns off automatically if it overheats.If this happens, then turn off the cylinder vacuum cleanerand remove the plug. Remove the cause of overheating.Wait approx. 45 minutes. Once the cylinder vacuumcleaner has cooled down you can switch it on again.28

1. Push on the desired nozzle, ZChapter 2.2, "Assembly"

or ZChapter 2.3, "Using other nozzles (accessories)". 2. Remove the cable, by holding the plug, until the yellowmark is reached (Fig. 11/1).3. Switch on the cylinder vacuum cleaner using the on/offswitch (Fig. 12/3).4. Turn on the suction using the suction controller(Fig. 12/2).5. Adjust the carpet/hard floor switch (Fig. 13) dependingon the type of flooring:- Hard floor (Fig. 13/A)Laminate flooring, tiles, PVC flooring, etc.- Carpet (Fig. 13/B)Long and short pile carpets, runners, etc.6. To vacuum, pull the cylinder vacuum cleaner behindyou like a sledge. Observe the correspondingrecommendations of the flooring manufacturer. WARNING: If the red mark (Fig. 11/2) is visible, use the cable retractbutton (Fig. 12/3) to draw the cable in again up to theyellow mark. Otherwise the cable can break off. There isa risk of electric shock.

You can quickly reduce the suction power with thesecondary air controller (Fig. 14/1) if less suction poweris required or e. g. to release objects that have beensucked in. Fig. 11

3.2 Switching off and

retracting the power

cable 1. Switch off the cylinder vacuum cleaner using the on/offswitch (Fig. 15/1) and pull the plug out of the socket.2. Keep the plug in your hand.3. Press the cable retract button (Fig. 15/2) to pull in thepower cable. 3.3 Transporting and

 To transport the cylinder vacuum cleaner, you can carry it using the carry handle (Fig. 1/11).  When setting the appliance aside or during work breaks, you can hang the parking hook (Fig. 16/1) into theparking hook mount (Fig. 16/2).  For storage, you can hang the stow-away hook (Fig. 17/1) into the stow-away hook mount (Fig. 17/2) belowon the cylinder vacuum cleaner.  If you want to store the appliance for a longer period oftime, remove the dust filter bag and dispose of it correctly.Clean the filters as well.  Always store the appliance in a cool and dry place.WARNING:The power cable can whip around when being pulled in,it can also trip you or somebody else up or knock downobjects. Fig. 15

WARNING:If you leave your work area, switch off the appliance and observe the instructions under ZChapter 3.2, "Switching off and retracting the power cable".ATTENTION:Never position the appliance directly against heatsources (e. g. heating, oven). Avoid direct sunlight. Heatcan damage the appliance. Fig. 16

filter bag  Change the dust filter bag at the latest when the dustbag change indicator (Fig. 181/) shows "red" or when thesuction power drops. 1. Open the dust compartment cover by unlatching andthen lifting it (Fig. 18).2. Lift the dust compartment cover until it locks in thehighest position and stays open by itself.3. Pull the dust bag holder together with the dust filter bag(Fig. 19/1) up and out (Fig. 19).4. Remove any dust that may have collected in the dustcompartment.5. Take this opportunity to check the motor protection filter as well (ZChapter 4.3, "Cleaning / changing the motor protection filter").6. Pull the dust filter bag (Fig. 20/1) out of the dust bagholder (Fig. 20/2).7. Push the new dust filter bag (Fig. 21/1) into the dust bagholder (Fig. 21/2) as shown, so that it rests against thebottom mounting brackets (Fig. 21/3) of the dust bagholder.8. Then reinsert the dust bag holder (Fig. 22/1) into the dustchamber by pushing the guide of the dust bag holder(Fig. 22/2) straight into the retaining rails until theinterlock for the dust compartment cover (Fig. 22/3) isfolded back.9. Close the dust compartment cover. It clicks shutaudibly. ATTENTION: When leaving your working-area, switch off the appliance and mind the notices at ZChapter 3.2, "Switching off and retracting the power cable". In this way you avoid dustdestroying the appliance.

You can dispose of the dust filter bag with your regulardomestic trash if it contains no prohibited wastematerials.

The dust compartment cover can only be closed with adust filter bag in place. Fig. 18

4.2 Overview of the filters Your vacuum cleaner is equipped with the following 2 filters: Motor protection filter (Fig. 23/1) It prevents larger particles from destroying the motor incase the dust filter bag is defective.- Cleaning: at every filter bag change, but at least every3 months- Changing: Every time you open a new box of dustfilter bags, as these always contain a new motorprotection filter, but at least every 6 months(ZChapter 4.3, "Cleaning / changing the motorprotection filter") Hygienic exhaust filter (Fig. 23/2) Filters out very fine particles from the exhaust air stream.- Cleaning: at every filter bag change, but at least every6 months- Changing: only if it is very dirty or damaged(ZChapter 4.4, "Cleaning / changing the exhaustfilter") 4.3 Cleaning / changing

the motor protection

filter 1. Switch off the appliance and remove the dust filter bag as described under ZChapter 4.1, "Changing the dust filter bag", steps 1-4.2. Remove the filter holder with the motor protection filter(Fig. 24).3. Remove the motor protection filter (Fig. 25/1) from thefilter holder (Fig. 25/2) over a dustbin.4. Rinse filter holder and filter thoroughly by hand in clearrunning cold or hand-warm water. 5. If the motor protection filter is damaged or deformed, replace it with a new one (ZChapter 6.1, "Accessories and Spare Parts"). 6. Insert the cleaned or new motor protection filter into the filter holder. 7. Firmly push the freshly equipped filter holder, correctlypositioned, from above into into its receptacle (Fig. 26). 8. Insert a fresh dust filter bag and close the dustcompartment cover. The cover snaps shut. Fig. 23

ATTENTION:The motor protection filter is washable, but it may not becleaned in dishwashers or washing-machines. Do notuse chemical cleansers to clean the filter. Then leave themotor protection filter to dry (approx. 24 hours at roomtemperature). Only put it back into the appliance when itis completely dry. Fig. 24

4.4 Cleaning / changing

the exhaust filter 1. Switch the appliance off and observe the instructionsunder ZChapter 3.2, "Switching off and retracting thepower cable".2. Open the hygienic exhaust filter cover (Fig. 27/1). To dothis, press the release button (Fig. 27/2) down and pullthe hygienic exhaust filter cover back and out.3. Remove the hygienic exhaust filter (Fig. 28). 4. Tap the dirt out of the hygienic exhaust filter over adustbin for a rough cleaning.5. Should this be insufficient, remove the dirt from the filterwith a soft brush, e.g. the furniture brush supplied withthe appliance.6. If such dry cleaning is insufficient, thoroughly rinse thefilter by hand in running clear cold or hand-warm water. 7. If the filter is damaged or deformed, replace it (orderinginformation ZChapter 6.1, "Accessories and SpareParts").8. Put the new / cleaned and completely dry exhaust filterback into its receptacle (Fig. 29). 9. Then put the hygienic exhaust filter cover (Fig. 30/1)back into place. First hook this in on the bottom side andthen press it up and forwards until you hear and feel itclick shut. 4.5 Cleaning the housing

ATTENTION: The filter is washable, but it may not be cleaned indishwashers or washing-machines. Also, do not usedetergents or brushes with hard bristles to clean thefilters. Let the filter dry for approx 24 hours at roomtemperature after washing it. Only put it back in placewhen it is completely dry. Fig. 27

ATTENTION: Clean the outside of the housing using a slightly dampcloth only. Do not use cleansing or scouring agents oralcohol, as these might damage the appliance.33

GB 5 Troubleshooting Before sending the appliance to Royal

Appliance Customer Service, use the following table to check

if you can solve the problem yourself.

Never use a defective appliance! Always switch off the appliance and disconnect it from the mains

before starting troubleshooting ZChapter 3.2, "Switching off and retracting the power cable".

Problem Possible cause Solution

The power cord is not plugged

Insert the plug into a mains socket and switch

on the appliance, ZChapter 3.1, "Vacuuming".

The socket does not carry

Test the cylinder vacuum cleaner on another

socket that you are sure is carrying current.

Power cord is damaged. Have the cord replaced by the Royal Appliance

Customer Service, address ZPage 116,

"International Service".

The overheating protection

has tripped (possibly due to

blocked suction channels,

filters, or similar)

Switch the appliance off and pull the plug out of

the socket. Eliminate the cause of overheating

(e.g. blocked suction channels, filters, etc.).

Wait for about 45 minutes. After the appliance

has cooled off, you may switch it on again.

The bypass vent (Fig. 1/2) is

Close the bypass vent (Fig. 1/2).

The dust container is full. Change the dust filter bag ZChapter 4.1,

"Changing the dust filter bag".

Nozzle, telescopic tube or

suction hose are blocked.

Remove the obstacle. If necessary, use a long

wooden stick (e.g. a broomstick) to do this.

The power setting does not

Set the power to the setting suggested for the

flooring, ZChapter 3.1, "Vacuuming", step 5.

The "carpet/hard floor"

selector (Fig. 1/20) is in the

wrong position for the

particular type of floor.

Set the "carpet/hard floor" selector (Fig. 1/20)

to the correct position for the type of floor,

ZChapter 3.1, "Vacuuming", step 6.

The attached nozzle does not

Fit the correct nozzle, ZChapter 2.3, "Using

other nozzles (accessories)".

The filter is dirty. Change/clean the respective filter, ZChapter

4.3, "Cleaning / changing the motor protection

filter" or ZChapter 4.4, "Cleaning / changing

Sucked-in objects are

obstructing the air stream.

Remove the objects. If necessary, use a long

wooden stick (e.g. a broomstick) to do this.

If you cannot solve the problem following these instructions, contact our service hotline or the

Royal Customer Service ZPage 116, "International Service".34

6 Spare parts and disposal 6 Spare parts and disposal 6.1 Accessories and Spare Parts

 You can order accessories and spare parts from:

You can get these from the following companies: ZPage 116, "International Service"

 Further items are available from http://www.dirtdevil.de

Y93 dust filter bags with MicroPor

filtration Swirl  , MicroPor  and "Y93" are registered trade marks of a company of the Melitta group and used with theirpermission. 6.4 Disposal

Dispose of the appliance in compliance with the environmental protection laws of your

country. Electrical waste may not be disposed of together with domestic waste. Use

local old-appliance collection points instead. The filters used are made from

environment-friendly materials. You may dispose of them in your household waste.

Item number Description Contents

M223 "Fello" pet hair turbo brush 1 piece35

GB 7 Warranty 7.1 Warranty conditions

We offer a warranty of 24 months from the date of purchase for the appliances we sell.

Within this warranty period, we will remove all defects free of charge that are due to material or

manufacturing faults, either by repair work or replacing the appliance or accessories, at our

discretion (damage to accessory parts does not automatically lead to the entire appliance being

replaced). The warranty does not cover damage due to improper use (operating with the wrong

power type/voltage, connecting to unsuitable power sources, breakage, etc.), normal wear and

defects that only insignificantly affect the value or the ability of the appliance to be used.

The warranty is made null and void if any work is carried out by a site not authorized by us or if spare

parts other than Royal Appliance spare parts are used. Wear parts are not included in the warranty

and are therefore at the customer's expense!

The warranty only comes into force if the purchase date is confirmed by a stamp and signature of

the dealer on the warranty card or if a copy of the invoice is included with the appliance when it is

sent in. Warranty work does not extend the warranty time nor does it constitute a claim for a new

7.2 Making a warranty claim

Send the appliance with emptied dust filter bag and a short description of the fault in block capitals.

Write the comment "Regarding warranty" on the address label. Send it together with the warranty

card or a copy of the invoice to the following address:

ZPage 116, "International Service"36
