USER MANUAL BDC M 45 AA V IXHA HOTPOINT-ARISTON

• Check if the malfunction can be solved on your own (see Troubleshooting).

• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre Communicating:

• appliance model (Mod.)

• serial number (S/N) This information can be found on the data plate located on the bottom left side of the refrigerator compartment. Never call on unauthorized technicians and always refuse spare parts which are not originals. Assistance Avant de contacter le centre d’Assistance :

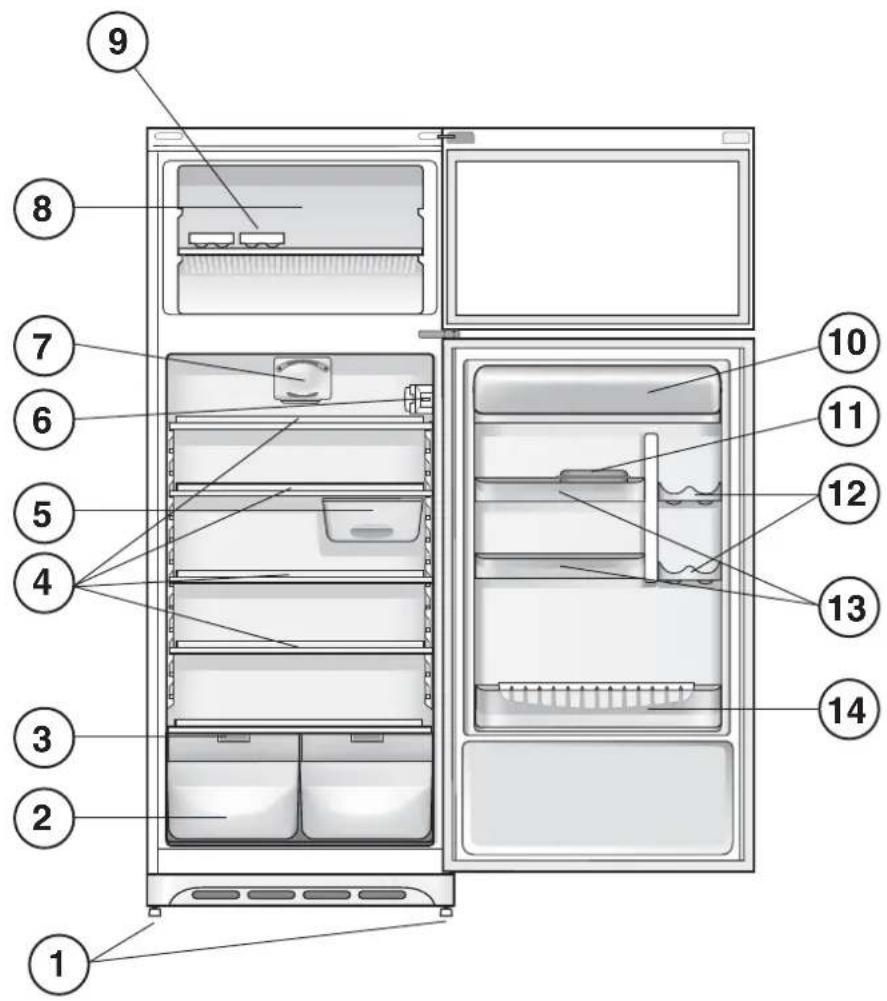

• Presente solo in alcuni modelli. Description of the appliance Overall view The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages. 1 Levelling FEET 2 FRUIT and VEGETABLE bin 3 MOISTIRE adjusted 4 SHELVES• 5 MULTI-USE bin* 6 TEMPERATURE CONTROL 7 PURE WIND System 8 FREEZER and STORAGE compartment 9 ICE tray* 10 Removable lidded shelf with EGG TRAY 11 BUTTER dish* 12 BEVERAGE CAN shelves• 13 Removable multipurpose SHELVES. 14 BOTTLE shelf

• Varies by number and/or position.

• Available only on certain models.

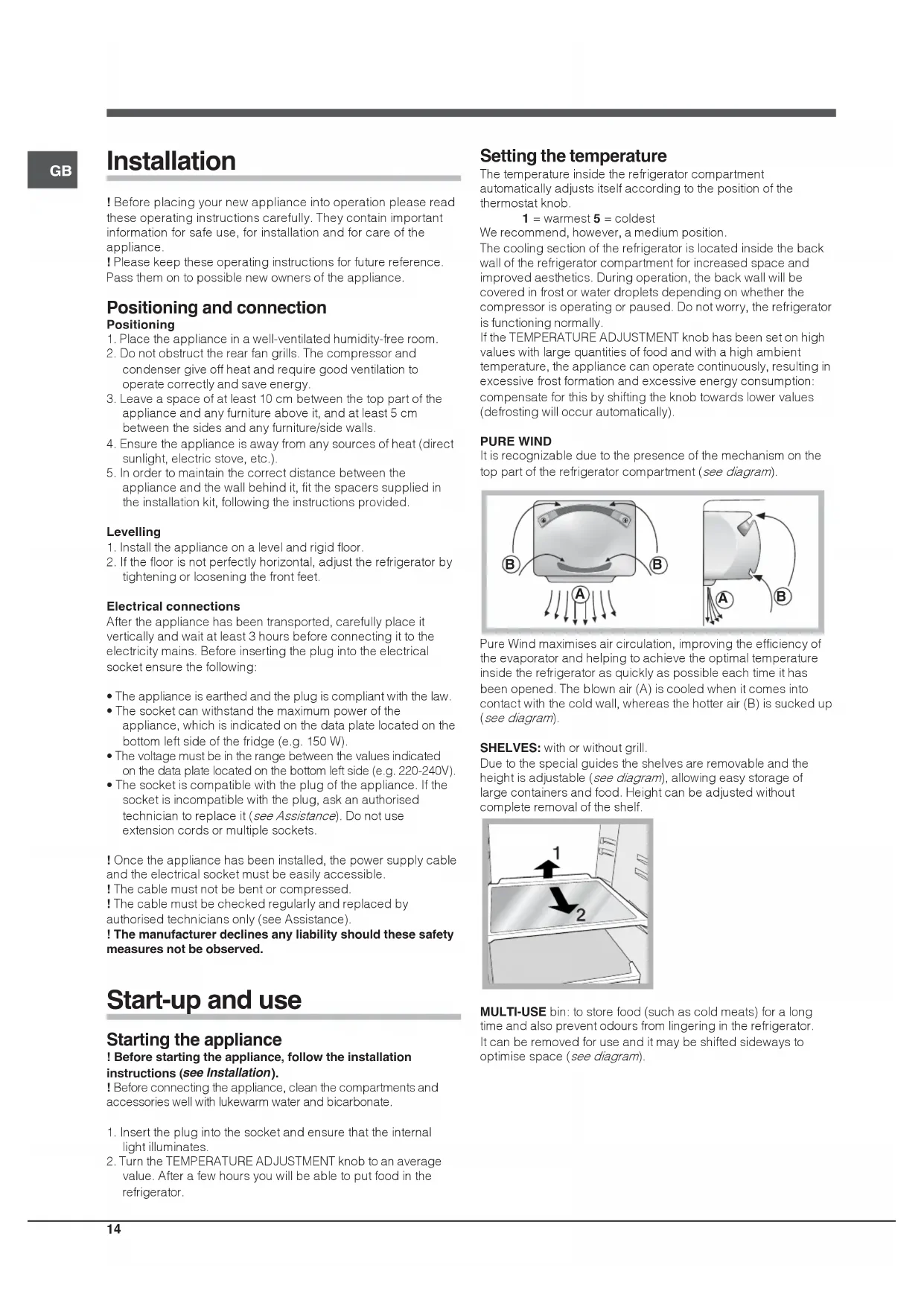

Installation ! Before placing your new appliance into operation please readthese operating instructions carefully. They contain importantinformation for safe use, for installation and for care of theappliance.! Please keep these operating instructions for future reference.Pass them on to possible new owners of the appliance. Positioning and connection Positioning1. Place the appliance in a well-ventilated humidity-free room.2. Do not obstruct the rear fan grills. The compressor andcondenser give off heat and require good ventilation tooperate correctly and save energy.3. Leave a space of at least 10 cm between the top part of theappliance and any furniture above it, and at least 5 cmbetween the sides and any furniture/side walls.4. Ensure the appliance is away from any sources of heat (directsunlight, electric stove, etc.).5. In order to maintain the correct distance between theappliance and the wall behind it, fit the spacers supplied inthe installation kit, following the instructions provided.Levelling1. Install the appliance on a level and rigid floor.2. If the floor is not perfectly horizontal, adjust the refrigerator bytightening or loosening the front feet.Electrical connectionsAfter the appliance has been transported, carefully place itvertically and wait at least 3 hours before connecting it to theelectricity mains. Before inserting the plug into the electricalsocket ensure the following:• The appliance is earthed and the plug is compliant with the law.• The socket can withstand the maximum power of theappliance, which is indicated on the data plate located on thebottom left side of the fridge (e.g. 150 W).• The voltage must be in the range between the values indicatedon the data plate located on the bottom left side (e.g. 220-240V).• The socket is compatible with the plug of the appliance. If thesocket is incompatible with the plug, ask an authorisedtechnician to replace it (see Assistance). Do not useextension cords or multiple sockets.! Once the appliance has been installed, the power supply cableand the electrical socket must be easily accessible.! The cable must not be bent or compressed.! The cable must be checked regularly and replaced byauthorised technicians only (see Assistance).! The manufacturer declines any liability should these safetymeasures not be observed. Start-up and use Starting the appliance ! Before starting the appliance, follow the installationinstructions (see Installation ! Before connecting the appliance, clean the compartments andaccessories well with lukewarm water and bicarbonate.1. Insert the plug into the socket and ensure that the internallight illuminates.2. Turn the TEMPERATURE ADJUSTMENT knob to an averagevalue. After a few hours you will be able to put food in therefrigerator. Setting the temperature The temperature inside the refrigerator compartmentautomatically adjusts itself according to the position of thethermostat knob.1 = warmest 5 = coldestWe recommend, however, a medium position.The cooling section of the refrigerator is located inside the backwall of the refrigerator compartment for increased space andimproved aesthetics. During operation, the back wall will becovered in frost or water droplets depending on whether thecompressor is operating or paused. Do not worry, the refrigeratoris functioning normally.If the TEMPERATURE ADJUSTMENT knob has been set on highvalues with large quantities of food and with a high ambienttemperature, the appliance can operate continuously, resulting inexcessive frost formation and excessive energy consumption:compensate for this by shifting the knob towards lower values(defrosting will occur automatically).PURE WINDIt is recognizable due to the presence of the mechanism on thetop part of the refrigerator compartment (see diagram).

Pure Wind maximises air circulation, improving the efficiency ofthe evaporator and helping to achieve the optimal temperatureinside the refrigerator as quickly as possible each time it hasbeen opened. The blown air (A) is cooled when it comes intocontact with the cold wall, whereas the hotter air (B) is sucked up(see diagram).SHELVES: with or without grill.Due to the special guides the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. Height can be adjusted withoutcomplete removal of the shelf.MULTI-USE bin: to store food (such as cold meats) for a longtime and also prevent odours from lingering in the refrigerator.It can be removed for use and it may be shifted sideways tooptimise space (see diagram).GB

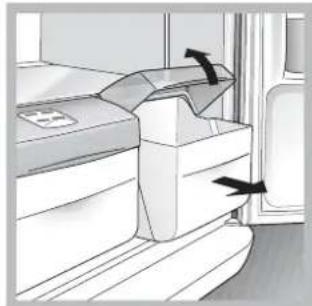

FRUIT and VEGETABLE bin The salad crispers fitted inside the fridge have been specially designed for the purpose of keeping fruit and vegetables fresh and crisp. Open the humidity regulator (position B) if you want to store food in a less humid environment, or close it (position A) to store food in a more humid environment. The easy-to-open lids (all you have to do is pull the crisper out) make it easy to put food in and take out. BEVERAGE CAN shelves. The can rack on the inner door allows you to store not only cans, but also yoghurt, butter and other containers, according to your requirements. Using the refrigerator to its full potential

• Use the TEMPERATURE ADJUSTMENT knob to adjust the temperature (see Description).

• Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).

• Remember that cooked foods do not last longer than raw foods.

• Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form. Using the freezer to its full potential

• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).

• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored above the grill in the freezer compartment and if possible be in direct contact with the walls (side and rear), where the temperature drops below -18°C and guarantees rapid freezing.

• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.

• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4) ! Do not open the door during freezing. ! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours. ! If the room temperature drops below 14°C for an extended period of time, the ideal temperature will not be reached in the freezer compartment and food preservation will be reduced. Maintenance and care Switching the appliance off During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply. It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact. Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.

• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.

• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance. Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.

• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open. Defrosting the appliance ! Follow the instructions below. Do not speed up the defrosting process by using any devices or tools other than the scraper provided, you may damage the refrigeration circuit. Defrosting the refrigerator compartment The refrigerator has an automatic defrosting function: water is ducted to the back of the appliance by a special discharge outlet (see diagram) where the heat produced by the compressor causes it to evaporate. It is necessary to clean the discharge hole regularly so that the water can flow out easily.16

Defrosting the freezer compartmentIf the frost layer is greater than 5 mm, it is necessary to defrostmanually:1. Set the TEMPERATURE ADJUSTMENT knob to the position 2. Wrap frozen foods in newspaper and place them in anotherfreezer or in a cool place.3. Leave the door open until the frost has melted completely.This can be made easier by placing containers with lukewarmwater in the freezer compartment.4. Clean and dry the freezer compartment carefully beforeswitching the appliance on again.5. Wait for approximately 2 hours, i.e. until the ideal storageconditions have been restored, before placing food in thefreezer compartment. Replacing the light bulb To replace the light bulb in the refrigerator compartment, pull outthe plug from the electrical socket. Follow the instructions below.Access the light bulb by removing the cover as indicated in thediagram. Replace it with a similar light bulb within the powerrange indicated on the cover (15W or 25W).

Precautions and tips ! The appliance was designed and manufactured in compliancewith international safety standards. The following warnings areprovided for safety reasons and must be read carefully.This appliance complies with the following Community Directives:- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) andsubsequent amendments;- 2002/96/CE.. General safety

• The appliance was designed for domestic use inside thehome and is not intended for commercial or industrial use.• The appliance must be used to store and freeze food productsby adults only and according to the instructions in this manual.• The appliance must not be installed outdoors, even incovered areas. It is extremely dangerous to leave the applianceexposed to rain and storms.• Do not touch the appliance with bare feet or with wet or moisthands and feet.• Do not touch the internal cooling elements: this could causeskin abrasions or frost/freezer burns.• When unplugging the appliance always pull the plug from themains socket, do not pull on the cable.• Before cleaning and maintenance, always switch off theappliance and disconnect it from the electrical supply. It is notsufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact.• In the case of a malfunction, under no circumstances shouldyou attempt to repair the appliance yourself. Repairs carriedout by inexperienced persons may cause injury or furthermalfunctioning of the appliance.• Do not use any sharp or pointed utensils or electricalequipment - other than the type recommended by themanufacturer - inside the frozen food storage compartments.• Do not put ice cubes taken directly from the freezer into yourmouth.• This appliance is not intended for use by persons (includingchildren) with reduced physical, sensory or lack of experienceand knowledge unless they have been given supervision orinstruction concerning use of the appliance by a personresponsible for their safety. Children should be supervised toensure that they do not play with the appliance.• Keep packaging material out of the reach of children! It canbecome a choking or suffocation hazard. Disposal
• Observe local environmental standards when disposingpackaging material for recycling purposes.• The European Directive 2002/96/EC on Waste Electrical andElectronic Equipment (WEEE), requires that old householdelectrical appliances must not be disposed of in the normalunsorted municipal waste stream. Old appliances must becollected separately in order to optimise the recovery andrecycling of the materials they contain and reduce the impacton human health and the environment. The crossed out“wheeled bin” symbol on the product reminds you of yourobligation, that when you dispose of the appliance it must beseparately collected. Consumers should contact their localauthority or retailer for information concerning the correctdisposal of their old appliance. Respecting and conserving the environment
• Install the appliance in a fresh and well-ventilated room.Ensure that it is protected from direct sunlight and do notplace it near heat sources.• Try to avoid keeping the door open for long periods oropening the door too frequently in order to conserve energy.• Do not fill the appliance with too much food: cold air mustcirculate freely for food to be preserved properly. If circulationis impeded, the compressor will work continuously.• Do not place hot food directly into the refrigerator. The internaltemperature will increase and force the compressor to workharder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products moredifficult and results in increased energy consumption.• Regularly check the door seals and wipe clean to ensure theyare free of debris and to prevent cold air from escaping (seeMaintenance).GB

Troubleshooting If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list. The internal light does not illuminate.

• The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house. The refrigerator and the freezer do not cool well.

• The doors do not close properly or the seals are damaged.

• The doors are opened too frequently.

• The TEMPERATURE ADJUSTMENT knob is not in the correct position.

• The refrigerator or the freezer have been over-filled.

• The atmospheric temperature of the area surrounding the appliance is lower than 14°C. The food inside the refrigerator is beginning to freeze.

• The TEMPERATURE ADJUSTMENT knob is not in the correct position.

• The food is in contact with the back inside wall of the refrigerator. The PURE WIND fan does not rotate

• The PURE WIND system is only activated automatically when it becomes necessary to restore perfect operational conditions inside the refrigerator compartment. The motor runs continuously.

• The door is not closed properly or is continuously opened.

• The outside ambient temperature is very high.

• The thickness of the frost exceeds 2-3 mm (see Maintenance). The appliance makes a lot of noise.

• The appliance has not been installed on a level surface (see Installation).

• The appliance has been installed between cabinets that vibrate and make noise.

• The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal. Some of the external parts of the refrigerator become hot.

• These raised temperatures are necessary in order to avoid the formation of condensation on certain parts of the product. The back wall of the refrigerator unit is covered in frost or droplets of water

• This shows the appliance is operating normally. There is water at the bottom of the refrigerator.

• The water discharge hole is blocked (see Maintenance).18
