USER MANUAL IFG 51 K.A GR INDESIT

(N) Marrone (L) Giallo-

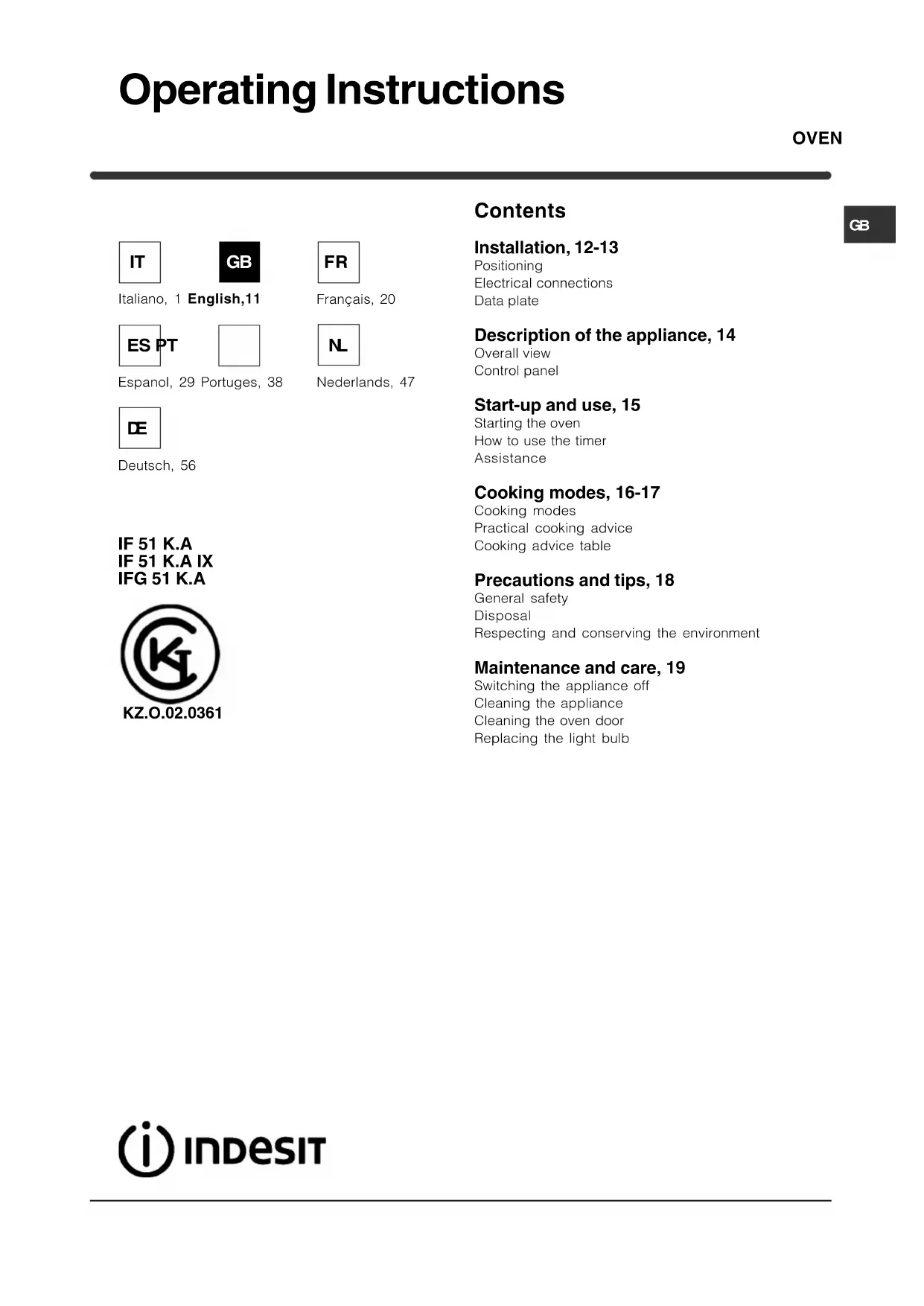

Installation, 12-13 PositioningElectrical connectionsData plate Description of the appliance, 14 Overall viewControl panel Start-up and use, 15 Starting the ovenHow to use the timerAssistance Cooking modes, 16-17 Cooking modesPractical cooking adviceCooking advice table Precautions and tips, 18 General safetyDisposalRespecting and conserving the environment Maintenance and care, 19 Switching the appliance offCleaning the applianceCleaning the oven doorReplacing the light bulb Operating Instructions

! Before placing your new appliance into operation

please read these operating instructions carefully.

They contain important information for safe use, for

installation and for care of the appliance.

! Please keep these operating instructions for future

reference. Pass them on to possible new owners of

! Keep packaging material out of the reach of

children. It can become a choking or suffocation

see Precautions and tips

! The appliance must be installed by a qualified

person in compliance with the instructions provided.

Incorrect installation may cause harm to persons,

animals or may damage property.

Fitting the appliance

Use the appropriate cabinet to ensure that the

appliance functions properly.

• The panels adjacent to the oven must be made of

heat-resistant material.

• Cabinets with a veneer exterior must be assembled

with glues which can withstand temperatures of up

• to install the oven under the counter (

and in a kitchen unit, the cabinet must have the

following dimensions:

! The appliance must not come into contact with

electrical parts once it has been installed.

The consumption indications on the data plate have

been calculated for this type of installation.

To ensure good ventilation, the back panel of the

cabinet must be removed. It is advisable to install the

oven so that it rests on two strips of wood, or on a

completely flat surface with an opening of at least 45 x

Centring and fastening

Secure the appliance to the cabinet by opening the

oven door and putting 4 screws into the 4 holes of the

! All parts which ensure the safe operation of the

appliance must not be removable without the aid of a

voltage: 220-230V ~ 50/60 Hz maximum power absorbed 2250W ENERGY LABEL Directive 2002/40/EC on the label of electric ovens. Standard EN 50304

Energy consumption for Natural convection heating mode: Convection Declared energy consumption for Forced convection Class heating mode: Multi-cooking

This appliance conforms to the following European Economic Community directives: 2006/95/EEC of 12/12/06 (Low Voltage) and subsequent amendments; -2004/108/EEC of 15/12/04 (Electromagnetic Compatibility) and subsequent amendments; 93/68/EEC of 22/07/93 and subsequent amendments. 2002/96/EC and subsequent amendments.

Electrical connections ! Ovens equipped with a three-pole power supplycable are designed to operate with alternatingcurrent at the voltage and frequency indicated onthe data plate located on the appliance ( see below

). Fitting the power supply cable1. Open the terminalboard by inserting ascrewdriver into theside tabs of the cover.Use the screwdriver asa lever by pushing itdown to open the cover (

). 2. Install the powersupply cable byloosening the cableclamp screw and thethree wire contactscrews L-N- . Connect the wires to thecorrespondingterminals: the Blue wireto the terminal marked(N), the Brown wire tothe terminal marked (L)and the Yellow/Greenwire to the terminal marked (

). 3. Secure the cable by fastening the clamp screw.4. Close the cover of the terminal board.Connecting the supply cable to the mainsInstall a standardised plug corresponding to theload indicated on the data plate ( see side

). The appliance must be directly connected to themains using an omnipolar circuit-breaker with aminimum contact opening of 3 mm installed betweenthe appliance and the mains, suitable for the loadindicated and complying with current electricalregulations (the earthing wire must not be interruptedby the circuit-breaker). The supply cable must notcome into contact with surfaces with temperatureshigher than 50°C.! The installer must ensure that the correct electricalconnection has been made and that it is compliantwith safety regulations.Before connecting to the power supply, make surethat:• The appliance is earthed and the plug iscompliant with the law.• The socket can withstand the maximum power ofthe appliance, which is indicated on the data plate (

). • The voltage must be in the range between thevalues indicated on the data plate ( see below

). • The socket is compatible with the plug of theappliance. If the socket is incompatible with theplug, ask an authorised technician to replace it. Donot use extension cords or multiple sockets.! Once the appliance has been installed, the powersupply cable and the electrical socket must beeasily accessible.! The cable must not be bent or compressed.! The cable must be checked regularly and replacedby authorised technicians only ( see Assistance

). ! The manufacturer declines any liability shouldthese safety measures not be observed.

* Only on certain models

GRILL DRIPPING PAN GUIDES for the

Description of the appliance

THERMOSTATTHERMOSTAT THERMOSTATTHERMOSTAT THERMOSTAT Knob

THERMOSTATTHERMOSTAT THERMOSTATTHERMOSTAT THERMOSTAT15

GB ! The first time you use your appliance, heat theempty oven with its door closed at its maximumtemperature for at least half an hour. Ensure that theroom is well ventilated before switching the oven offand opening the oven door. The appliance mayproduce a slightly unpleasant odour caused by theburning away of protective substances used duringthe manufacturing process. Starting the oven 1. Select the desired cooking mode by turning theSELECTOR knob.2. Select the desired temperature with theTHERMOSTAT knob. See the Cooking advice table forcooking modes and the suggested cookingtemperatures ( see Cooking Modes

). 3. When preheating is finished, the THERMOSTATindicator light will stay on: place the food in the oven.4. You may do the following during cooking:- change the cooking mode by turning the SELECTORknob.- change the temperature by turning theTHERMOSTAT knob.- stop cooking by turning the SELECTOR knob to the“0” position.! Never put objects directly on the oven bottom toavoid damaging the enamel coating.! Always place cookware on the rack(s) provided.Cooling ventilationIn order to cool down the external temperature of theoven, some models are fitted with a cooling fan thatblows out air between the control panel and the ovendoor.! Once the cooking has been completed, the coolingfan remains on until the oven has cooled downsufficiently.Oven lightIt goes on when selecting with the SELECTORknob. It stays on when a cooking mode is selected. How to use the timer

* 1. To set the buzzer, turn the TIMER knob clockwisealmost one complete revolution.2. Turn the knob anticlockwise to set the desired time:align the minutes shown on the knob with the indicatoron the control panel.3. The timer operates in minutes: when the selectedtime has elapsed, a buzzer will sound.! The timer does not turn the oven on or off. Assistance Communicating:• appliance model (Mod.)• serial number (S/N)This information is found on the data plate locatedon the appliance and/or on the packaging.* Only on certain models Start-up and use16

! A temperature value can be set for all cooking

modes between 60°C and Max, except for

• GRILL (recommended: set only to MAX power

• GRATIN (recommended: do not exceed 200°C).

TRADITIONAL OVEN mode

Both the top and bottom heating elements will come

on. With this traditional cooking mode, it is best to use

one cooking rack only; if more than one rack is used,

the heat will be distributed unevenly.

All the heating elements (top and bottom), as well as

the fan, will come on. Since the heat remains constant

throughout the oven, the air cooks and browns food

uniformly. A maximum of two racks may be used at

The top heating element comes on. This mode can be

used to brown food at the end of cooking.

The top heating element comes on. The extremely

high and direct temperature of the grill makes it

possible to brown the surface of meats and roasts

while locking in the juices to keep them tender. The

grill is also highly recommended for dishes that

require a high temperature on the surface: such as

beef steaks, veal, rib steak, filets, hamburgers etc...

Some grilling examples are included in the “Practical

Cooking Advice” paragraph. Always cook in this mode

with the oven door closed.

The top heating element, as well as the fan, will come

on. This combination of features increases the

effectiveness of the unidirectional thermal radiation of

the heating elements through forced circulation of the

air throughout the oven. This helps prevent food from

burning on the surface, allowing the heat to penetrate

right into the food. Always cook in this mode with the

Practical cooking advice

! Do not place racks in position 1 and 5 during fan-

assisted cooking. Excessive direct heat can burn

temperature sensitive foods.

! In the GRILL and GRATIN cooking modes, place the

dripping pan in position 1 to collect cooking residues

(fat and/or grease).

• Use position 2 and 4, placing the food that requires

• Place the dripping pan on the bottom and the rack

• Insert the rack in position 3 or 4. Place the food in

the centre of the rack.

• We recommend that you set the maximum power

level. The top heating element is regulated by a

thermostat and may not always be on.

• For best results when cooking pizza, use the

• Use a light aluminium pizza pan. Place it on the

For a crispy crust, do not use the dripping pan

(prevents crust from forming by extending cooking

• If the pizza has a lot of toppings, we recommend

adding the mozzarella cheese on top of the pizza

halfway through the cooking process.17

GB Cooking advice table

Biscuits (short pastry)

Roast chicken + potatoes

Cream puffs (on 2 racks)

Biscuits (on 2 racks)

Sponge cake (on 1 rack)

Sponge cake (on 2 racks)

Browning food to perfect cooking - 3/4 15 220 -

Soles and cuttlefish

GB Precautions and tips

! The appliance was designed and manufactured in

compliance with international safety standards. The

following warnings are provided for safety reasons

and must be read carefully.

• The appliance was designed for domestic use

inside the home and is not intended for

commercial or industrial use.

• The appliance must not be installed outdoors,

even in covered areas. It is extremely dangerous

to leave the appliance exposed to rain and

• When handling the appliance, always use the

handles provided on the sides of the oven.

• Do not touch the appliance with bare feet or with

wet or moist hands and feet.

• The appliance must be used by adults only for

the preparation of food, in accordance with the

instructions outlined in this booklet. Any other

use of the appliance (e.g. for heating the room)

constitutes improper use and is dangerous.

The manufacturer may not be held liable for

any damage resulting from improper, incorrect

and unreasonable use of the appliance.

• When the appliance is in use, the heating

elements and some parts of the oven door

become extremely hot. Make sure you don't

touch them and keep children well away.

• Ensure that the power supply cable of other

electrical appliances does not come into contact

with the hot parts of the oven.

• The openings used for ventilation and dispersion

of heat must never be covered.

• Always grip the oven door handle in the centre:

the ends may be hot.

• Always use oven gloves to place cookware in the

oven or when removing it.

• Do not use aluminium foil to line the bottom of the

• Do not place flammable materials in the oven: if

the appliance is switched on by mistake, it could

• Always make sure the knobs are in the “”/“ ” position when the appliance is not in use.

• When unplugging the appliance always pull the

plug from the mains socket, do not pull on the

• Never carry out any cleaning or maintenance work

without having unplugged the plug from the

• In the case of a malfunction, under no

circumstances should you attempt to repair the

appliance yourself. Repairs carried out by

inexperienced persons may cause injury or further

malfunctioning of the appliance. Contact a Service

• Do not rest heavy objects on the open oven door.

• The appliance should not be operated by people

(including children) with reduced physical, sensory

or mental capacities, by inexperienced individuals

or by anyone who is not familiar with the product.

These individuals should, at the very least, be

supervised by someone who assumes responsibility

for their safety or receive preliminary instructions

relating to the operation of the appliance.

• Do not let children play with the appliance.

• The appliance is not intended to be operated

by means of an external timer or separate

remote-control system.

• Observe local environmental standards when

disposing packaging material for recycling

purposes. Observe existing legislation when

disposing of the old appliance.

• The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE),

requires that old household electrical appliances

must not be disposed of in the normal unsorted

municipal waste stream. Old appliances must be

collected separately in order to optimise the

recovery and recycling of the materials they

contain and reduce the impact on human health

and the environment. The crossed out “wheeled

bin” symbol on the product reminds you of your

obligation, that when you dispose of the

appliance it must be separately collected.

Consumers should contact their local authority or

retailer for information concerning the correct

disposal of their old appliance.

Respecting and conserving the

• By using the appliance in the hours between late

afternoon and early morning, you can help reduce

the work load placed on electrical companies.

• Always keep the oven door closed when using the

GRILL and GRATIN mode to attain best results

and to save energy (approximately 10%).

• Regularly check the door seals and wipe clean to

ensure they are free of debris so that they stick

properly to the door and do not allow heat to

GB Switching the appliance off

Disconnect your appliance from the electricity

supply before carrying out any work on it.

Cleaning the appliance

• The stainless-steel or enamel-coated external

parts as well as the rubber seals may be cleaned

using a sponge that has been soaked in

lukewarm water and neutral soap. If these stains

are difficult to remove, use only specialised

products. After cleaning, rinse and dry

thoroughly. Do not use abrasive powders or

corrosive substances.

• Ideally, the inside of the oven should be cleaned

after each use, when it is still lukewarm. Use hot

water and detergent, rinse and dry with a soft

cloth. Do not use abrasive products.

• All accessories can be washed like everyday

crockery, and are even dishwasher safe.

! Never use steam cleaners or pressure cleaners on

Cleaning the oven door

Clean the glass part of the oven door using a

sponge and a non-abrasive cleaning product, then

dry thoroughly with a soft cloth. Do not use rough

abrasive material or sharp metal scrapers as these

could scratch the surface and cause the glass to

To clean more thoroughly, you can remove the

1. Open the oven door fully (

2. Lift up and turn the small levers located on the

3. Grip the door on the two

external sides and close it

approximately half way. Then

pull the door towards you

lifting it out of its seat (

Inspecting the seals

Check the door seals around the oven periodically. If

the seals are damaged, please contact your nearest

After-sales Service Centre (

recommend not using the oven until the seals have

Replacing the light bulb

To replace the oven light bulb:

1. Remove the glass cover of the lamp-holder.

2. Remove the light bulb and replace it with a similar

one: Wattage 25 W, cap E 14.

3. Replace the glass cover (

THERMOSTATTHERMOSTAT THERMOSTATTHERMOSTAT THERMOSTAT Bouton

THERMOSTATTHERMOSTAT THERMOSTATTHERMOSTAT THERMOSTAT24

cabeças dos parafusos

a obedecer as cores:

Azul (N) Castanho (L)

as regras locais, de maneira que as embalagens
