USER MANUAL 7194114 Legamaster

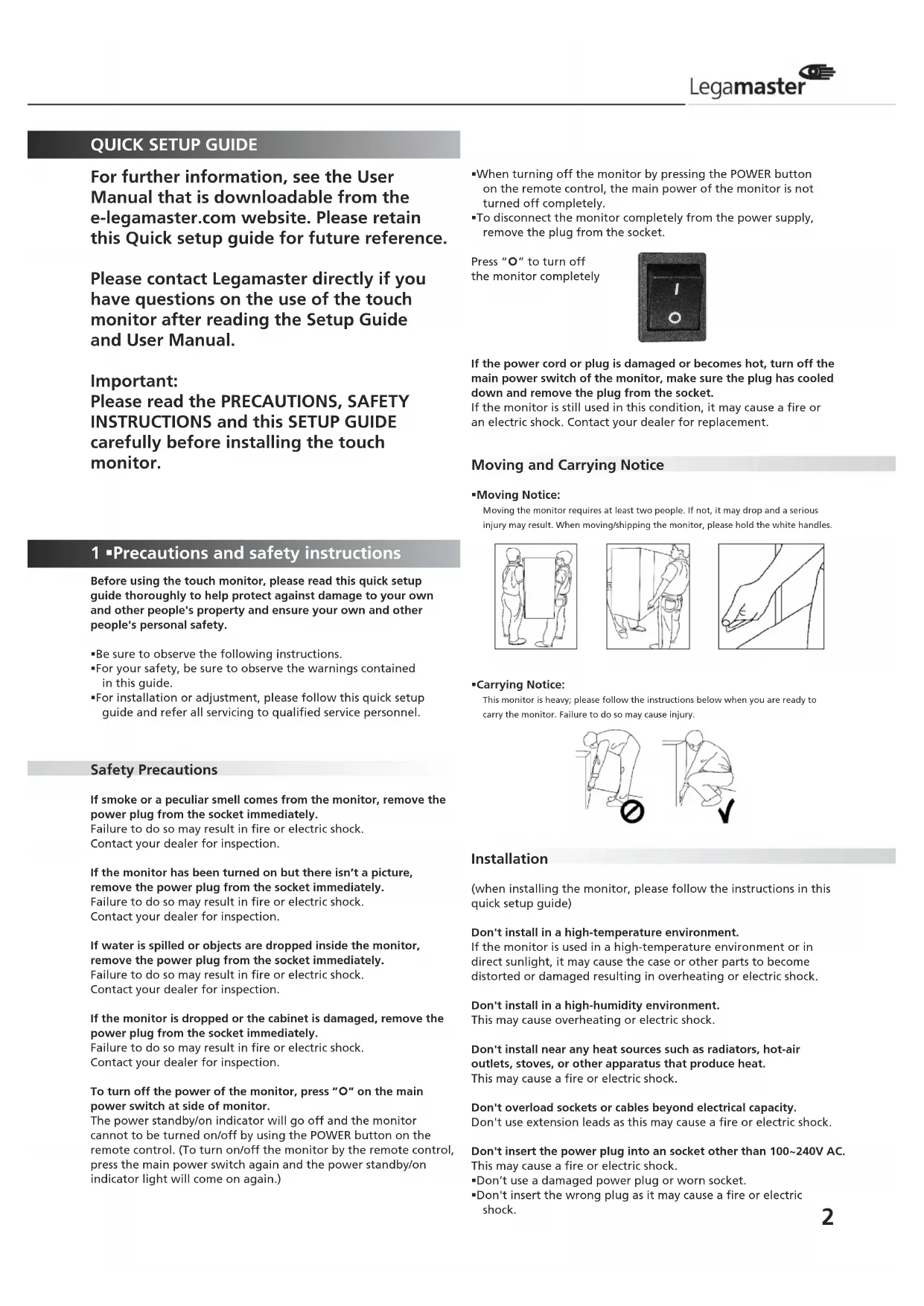

PROFESSIONAL e-Screen 55" ETD E N G L I S H D E U T S C H F R A N Ç A I S NEDERLANDS T U R K I S H2 For further information, see the User Manual that is downloadable from the e-legamaster.com website. Please retain this Quick setup guide for future reference. Please contact Legamaster directly if you have questions on the use of the touch monitor after reading the Setup Guide and User Manual. Important: Please read the PRECAUTIONS, SAFETY INSTRUCTIONS and this SETUP GUIDE carefully before installing the touch monitor. Before using the touch monitor, please read this quick setup guide thoroughly to help protect against damage to your own and other people's property and ensure your own and other people's personal safety. Be sure to observe the following instructions. For your safety, be sure to observe the warnings contained in this guide. For installation or adjustment, please follow this quick setup guide and refer all servicing to qualified service personnel. Safety Precautions If smoke or a peculiar smell comes from the monitor, remove the power plug from the socket immediately. Failure to do so may result in fire or electric shock. Contact your dealer for inspection. If the monitor has been turned on but there isn’t a picture, remove the power plug from the socket immediately. Failure to do so may result in fire or electric shock. Contact your dealer for inspection. If water is spilled or objects are dropped inside the monitor, remove the power plug from the socket immediately. Failure to do so may result in fire or electric shock. Contact your dealer for inspection. If the monitor is dropped or the cabinet is damaged, remove the power plug from the socket immediately. Failure to do so may result in fire or electric shock. Contact your dealer for inspection. To turn off the power of the monitor, press ”” on the main power switch at side of monitor. The power standby/on indicator will go off and the monitor cannot to be turned on/off by using the POWER button on the remote control. (To turn on/off the monitor by the remote control, press the main power switch again and the power standby/on indicator light will come on again.) When turning off the monitor by pressing the POWER button on the remote control, the main power of the monitor is not turned off completely. To disconnect the monitor completely from the power supply, remove the plug from the socket. Press “” to turn off the monitor completely If the power cord or plug is damaged or becomes hot, turn off the main power switch of the monitor, make sure the plug has cooled down and remove the plug from the socket. If the monitor is still used in this condition, it may cause a fire or an electric shock. Contact your dealer for replacement. Moving and Carrying Notice Moving Notice:

oving the monitor requires at least two people. If not, it may drop and a serious injury may result. When moving/shipping the monitor, please hold the white handles. Carrying Notice: This monitor is heavy; please follow the instructions below when you are ready to carry the monitor. Failure to do so may cause injury. Installation (when installing the monitor, please follow the instructions in this quick setup guide) Don't install in a high-temperature environment. If the monitor is used in a high-temperature environment or in direct sunlight, it may cause the case or other parts to become distorted or damaged resulting in overheating or electric shock. Don't install in a high-humidity environment. This may cause overheating or electric shock. Don't install near any heat sources such as radiators, hot-air outlets, stoves, or other apparatus that produce heat. This may cause a fire or electric shock. Don't overload sockets or cables beyond electrical capacity. Don't use extension leads as this may cause a fire or electric shock. Don't insert the power plug into an socket other than 100~240V AC. This may cause a fire or electric shock. Don’t use a damaged power plug or worn socket. Don't insert the wrong plug as it may cause a fire or electric shock.

1 Precautions and safety instructions3 Do not place monitors on unstable shelves or surfaces. They could collapse and cause damage. Only install the unit on vertical, stable and level surfaces. Don't place objects on the touch monitor. If the touch monitor is covered or the vents are blocked, the monitor could overheat and cause a fire. If metal or liquid gets into the monitor, it may cause a fire or an electric shock. Do not place heavy objects on the monitor as they may fall causing injury. Please keep a minimum distance of 10 cm between the monitor and the other objects for sufficient ventilation. Don't move the touch monitor when it is connected to the power cord and AV cables. When moving the monitor, make sure you remove the plug and cables from the socket or source. When unpacking or carrying the monitor, at least 2 people are needed. Make sure the monitor is carried upright. Transport the monitor upright. Avoid placing the monitor face up or face down. Handle the monitor gently. Do not drop. Wall mounting safety notes

1. Please make sure the bracket is fixed to a solid wall.

2. After assembling, please don't pull or shake violently.

3. Please don't install the bracket in direct sunslight or areas

of humidity / high temperature for fear that the quality is affected.

4. Install the bracket at a minimum distance of 10 cm from other

objects / walls on either side. Only attach to vertical walls. Unpacking The e-Screen is packed in a cardboard box and may be banded to 2 types of custom pallet depending on the number of units shipped. The e-Screen is packed using cushions to protect the monitor during shipping. Before unpacking your monitor, prepare a stable, level, and clean surface near a wall socket. Set the LCD Monitor box in an upright position and open from the top of the box before removing the top cushions. Step 1: Remove the white handle and cut the banding. Step 2: Remove the top cushion and take the accessories bag out. Packing list Item Q’ty 1 e-Screen 1 2 Carton 1 3 Bottom cushion 1 4 Top cushion 1 5 Packing bag 1 6 Accessories bag 1 7 Ergonomic stylus 1 set 8 Carton lock 6 Contents of the Accessories Bag - VGA Cable (D-sub) - Power cord black - OSD Remote control (2 batteries (AAA) included) - USB cable - IR-Extender - CD-Disk Ethernet VCOM driver 2 Package contents4 Power Input Power Cord The power cord, included, is used to connect the side controls of the LCD monitor and the wall socket. Connect the power cord into main power of the monitor, “–” is power on, “” is power off. Input: 100-240V~ 5A 50/60Hz Power Interface Main power – switch & AC socket. Please see the chapter “Power input” The side controller of the monitor The remote control (RCU) Please see the chapter "Operating the monitor" Signal Source Input Input Interface 55” Connector 1 DisplayPort 2 HDMI 1 3 HDMI 2 4 DVI-D D-Sub 24 pin 5 VGA D-Sub 15 pin 6 PC Audio In Mini Jack 7 IR Extender Mini Jack 8 Line Out Mini Jack 9 RS232C D-Sub 9 pin 10 LAN 11 Component RCA G/B/R 12 Audio in (Component) RCA W/R 13 S-Video Mini Din 4 pin 14 Video Type B-female 15 Audio In (S-Video/Video) RCA W/R 16 Touch USB RCA W/R 17 Power Switch ON/OFF 18 AC in IEC C14 19 RS485 RJ-45 3 Installation

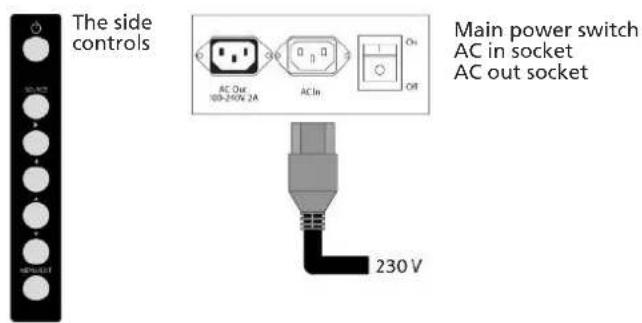

The side controls Main power switch AC in socket AC out socket5

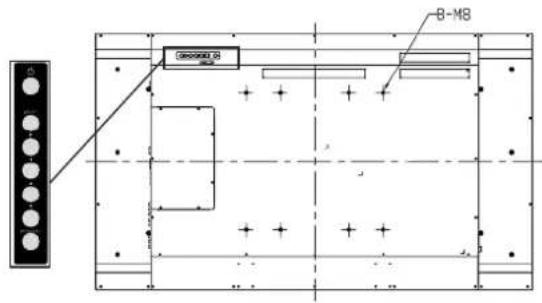

he side controller of the monitor OSD Key Pad function List Key Description Power Power on/Power off Source Source selection (toggle) Menu Right/Volume + Menu Left/Volume - Menu Up Menu Down Menu/Exit Menu/Exit selection LED ON: Power Status Condition Green Power on Orange Power off Power saving mode Select LED on via menu (Front LED: On) Flashing orange No signal Off AC off Power on Select LED on via menu (Front LED: Off) LED OFF: The LED turns completely off when in the "off" mode regardless of the monitor being on or off. The Remote Control (RCU) Instructions No Function Description 1 Turns the monitor on and off 2 INFO Provides source and resolution information 3 VGA Selects the PC RGB source DVI Selects the PC DVI source HDMI 1 Selects the HDMI source 1 4 COMP Selects the Component source AV (Video) Selects the Composite Video source HDMI 2 Selects the HDMI source 2 5 PIP position Selects the PIP position DisplayPort Select the DisplayPort source 6 PIP Turns the PIP feature on and off S-V Selects the S-Video source HD-SDI 2 Not available in this model 7 SWAP Swaps the main source & sub source picture 8 P-SOURCE Selects the secondary sub-source 9 MENU Opens the monitor’s on-screen menu system. If the menu system is already open, pressing this button will select the previous submenu , , , Navigates through submenus and settings 10 EXIT Closes the menu system 11 ENTER Selects highlighted menu choices 12 SCALING Toggles between different aspect ratios (Auto, Native, 4x3, 16x9, 16x10 and Letterbox) FREEZE Freezes the current source image MUTE Turns off the sound BRIGHT Adjusts the brightness CONTRAST Adjusts the contrast AUTO Synchronizes the monitor with the source SOURCE Allows selection of the different sources VOLUME- Decreases the sound volume VOLUME+ Increases the sound volume Hot Key: OSD Menu Lock/Unlock Control Lock: Press Enter, Enter, Exit, Exit, Enter and Exit on the controller in sequence to lock OSD Unlock: Press Enter, Enter, Exit, Exit, Enter and Exit on the controller in sequence to unlock OSD Display Mode Turning the monitor on

1. Correctly insert the power cord into the monitor and

into the power socket

2. Ensure the AC switch is set to “—“.

3. Press the power button on the remote or side control panel.

Turning the monitor off With the power on, press the power button on the remote or side control panel to place the monitor in a standby mode. To turn off power completely, turn the AC switch to “” or disconnect the AC power cord from the power outlet. NOTE: If there is no signal input for a period of time, the monitor will automatically revert to standby mode.

Power ON-Stand by IndicatorRemote ControlReceiver 4 Operating the monitor

Adjusting the Volume

1. Using the remote, press the VOLUME- or VOLUME+ to increase

or decrease the volume.

2. Press the MUTE button to temporarily turn off all sound.

To restore the sound, press the MUTE button again. Selecting the input source

“No signal” message will appear. Touch Operation No calibration is required for first-time use. However, the touch panel might be required for calibration over time depending on the usage. Please find calibration instructions below for the different operating systems: Installation:

1. Connect the signal cable to the monitor and then turn

2. Connect one side of the USB cable (type-B USB connector)

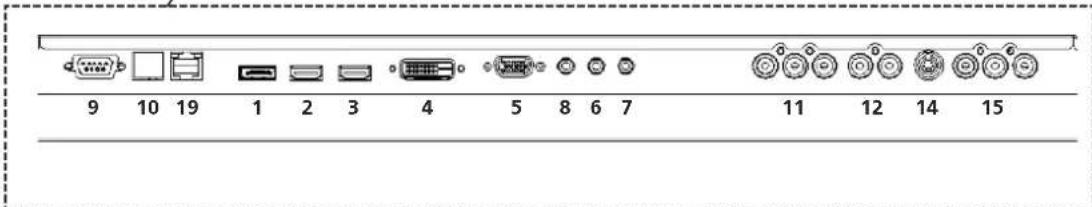

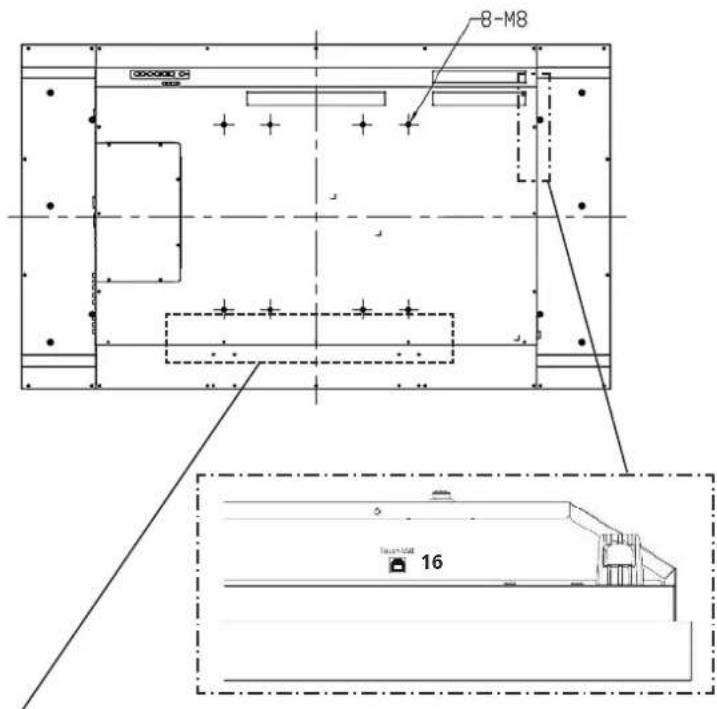

on the monitor side (see "Chapter 3, Signal Source Input" for exact location)

3. Connect the other side of the USB cable (type-A USB connector)

4. Turn the computer on

5. Once the USB cable is connected, please wait for 5 seconds

before the touch function is ready to go. It can be achieved by using a pen, finger or any other pointer. Touch function is plug & play: no driver is required. Please do not use landscape-type touch monitor in portrait mode, and vice versa Windows 7: 16 Point Calibration Procedure

1. Start USB configuration program on the computer

2. Press "Calibrate"

3. Wait for the beep. The cursor will move to the upper

left-hand corner of the screen automatically

4. Place your finger, gloved hand or any other pointer on the

cursor and hold it there for 2 seconds (a beep will be heard when the pointer is placed on the cursor)

5. The cursor will then move to the next calibration point.

Repeat action 4. After the beep, the cursor will move to the next calibration point

6. Repeat action 4 until you get to the last calibration point in

the lower right-hand corner

7. Complete the calibration by tapping anywhere between the
