USER MANUAL iRadio 300 Noxon

• Read through the operating manual carefully and keep it in a safe place.

• Observe all warnings and follow the instructions to avoid damage.

• Use this device indoors only.

• Placethedeviceonalevel,drysurfacetopreventreandelectricalshockhazards as well as possible damage to the player itself.

• Do not use the device close to water or other liquids.

• Keepthedeviceawayfromdirectsunlight,radiators,openamesandothersources of heat.

• Only use the accompanying power supply cable. If you are not going to use the device for an extended period, disconnect it from the power supply. To avoid short circuits, never pull on the cable itself. In addition, be sure to unplug the device from the AC outlet in the event of a thunderstorm.

• If the device has been exposed to extreme differences in temperature, allow it to adjust to the room temperature for one hour before plugging it in. Condensation may have formed inside the device, which impairs its functionality.

• Use a dry or slightly moistened, lint-free cloth to clean the NOXON. Do not use cleaningproductsastheymaydamagethenishoftheunit.

• To put it simply, just use the device sensibly. The warranty does not cover deliberate damage to the device, of course. Thank you. Environment

• The product contains batteries that are subject to European Directive 2006/66/EC and must not be disposed of in the normal household waste.

Scope of delivery Start by making sure that the contents of the package are complete. The NOXON packa- ge should contain at least the following items:

• Remote control with battery inserted

• Quick Start Guide (DE, EN, FR, IT, ES, NL) Quick Start Guide for pros This Quick Start Guide shows you how to get started using your NOXON device. You will nddetaileddescriptionsandspecialcongurationsintheadvancedmanual,whichyou can download from our website (www.noxonradio.com). Pretest Like any network device, your NOXON needs to be connected to your network before you can get started. What do you need?

• AfastInternetconnection(forexample,DSL,ideallywithaatrate).

• A router for Internet access; for wireless operation, what is called a WLAN (Wireless LAN) router

• A network cable, if you do not want a wireless Internet connection for your device

• For WLAN integration: your network key (WEP, WPA or WPA2) This key, just like any key, protects your network from unauthorised access and was ge- nerated when your network was set up. To allow NOXON access to a key-protected net- work, you will need to enter the network key into NOXON in a later step. If your network does not have a key, the NOXON can connect to the Internet without a network key. Note: If you are not sure whether you are using a key of this type in your network, just give it a try without entering anything! If this does not work, repeat the setup process from the beginning. However, you will need to know your network key at this point. Please ask the person who set up your network for assistance. The scope of delivery of the NOXON iRadio 360 includes an additional speaker. If you have an iRadio 300, you can add the optional second speaker, which is available in the NOXON Web- shop.1312 NOXON iRadio 300 / 360 Overview

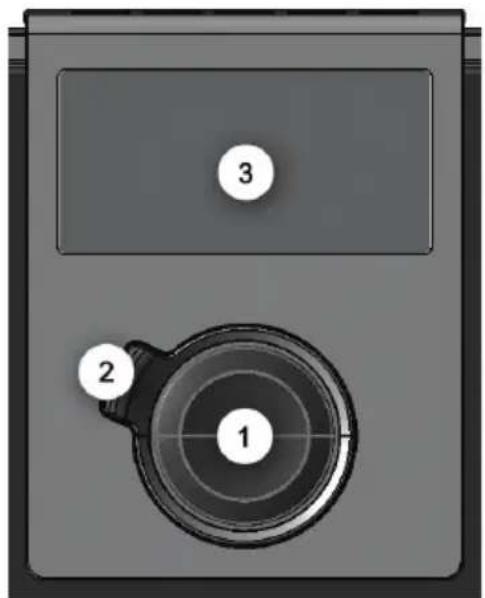

1. Navigation dial with push function for selection:

Scroll through the menu by turning the dial in the list view. Turning the dial during playback changes the volume. To select a menu item, press the dial once.

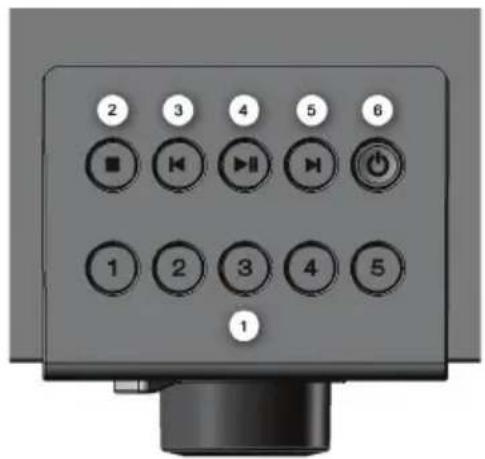

1. Station keys 1 to 5:Here,youcansaveuptove

of your favourite stations for quick access.

2. Stop: Stops playback.

3. Skip Back: Jumps to the previous track.

4. Play/Pause: Starts and pauses playback.

5. Skip Forward: Jumps to the next track.

6. Standby On/Off: Here, you can wake up the iRa-

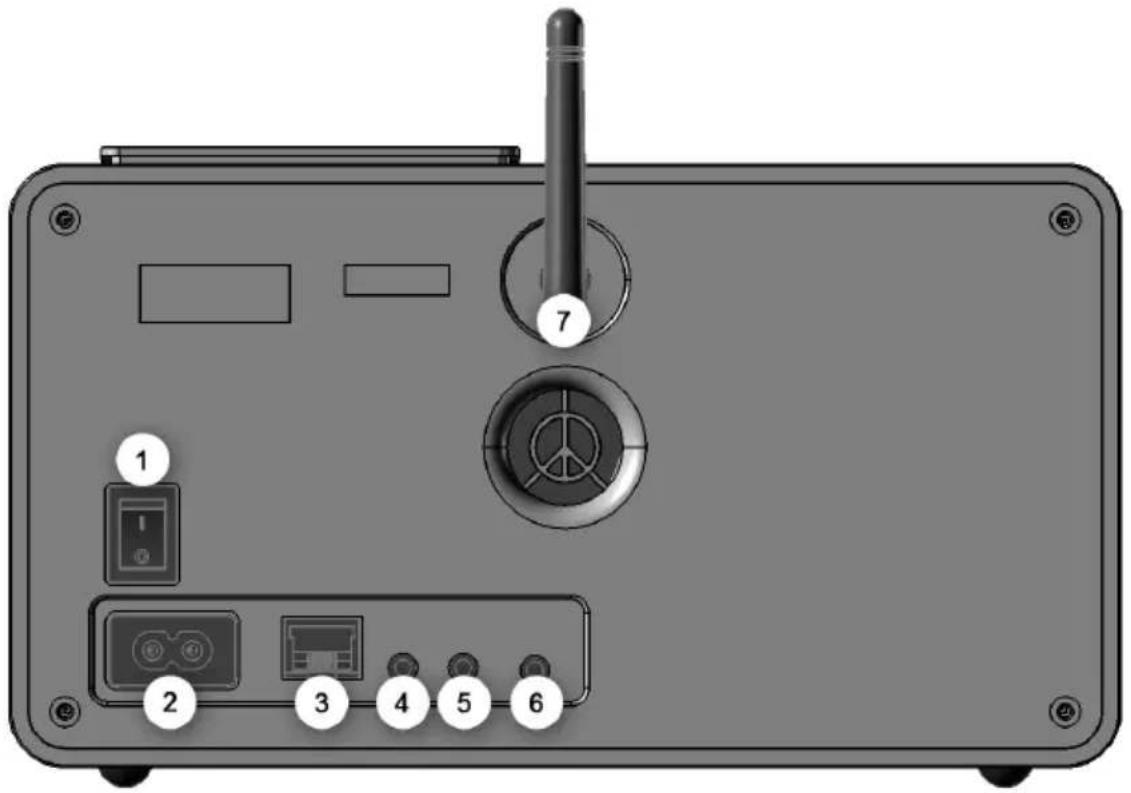

1. POWER switch: This should be self-explanatory ;).

2. POWER: Connect the provided power cable to this jack.

3. LAN: For wired network operation, use this RJ45 jack.

4. LINE OUT:Youcanconnectthis3.5mmstereojacktoanamplieroractivespea-

kers. When this jack is occupied, the internal speakers are muted.

5. HEADPHONE: Here, you can connect your headphones if you want to have the

sound of the iRadio 300 all to yourself. If the headphones are connected, the internal speakers are muted.

6. SPEAKER OUT*: You can connect a second speaker here. If a speaker is plugged

into the socket, the device switches to stereo mode automatically. For the NO- XON iRadio 360, the additional speaker is included in the scope of delivery; for the NOXON iRadio 300, the speakers are available for purchase as options in the NOXON Webshop (www.noxonradio.com).

7. WLAN antenna: For wireless reception, you have to connect the WLAN antenna

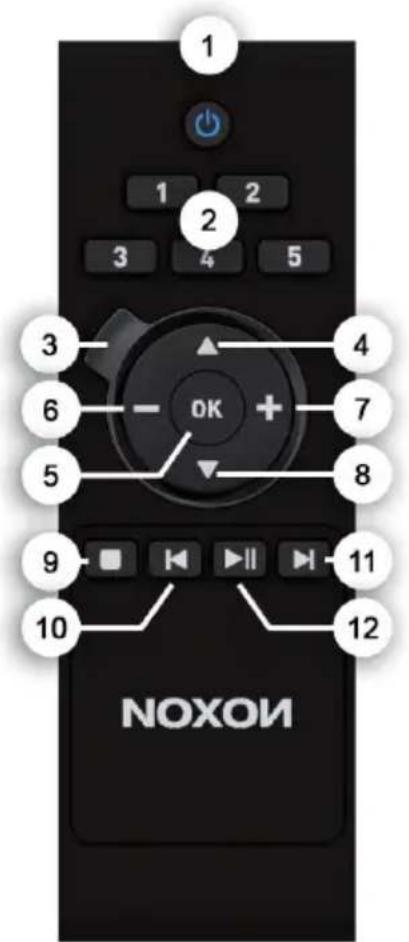

provided here. *Attention: Please note that a second speaker only should be connected to the SPEAKER OUT when the device is switched off to ensure a smooth function without any fault.1514 NOXON iRadio 300 / 360 The remote control The operating elements and functions provided here are almost identical to those on the iRadio. Note:Beforeusingthedeviceforthersttime,youhavetoremovetheretainingtabof the battery.

2. Station keys 1 to 5

Setup Once your iRadio has been activated initially, follow these steps to link it to your network forthersttime: You are greeted by the setup wizard, which asks politely if you want to start it up.English Nederlands Espanol Italiano Francais DeutschEnglish

Setup wizard Start now? YES NO Use the navigation dial to select a language for themenuandconrm–asinallothermenus– the selection by pressing the navigation dial. Then, enter the time format (12/24-hour). However,werecommendthatyousetthedateandtimeimmediately(Day,Month,Year, Time), as well as the WLAN region you are located in. Once you have done so, all that remains to be done is to connect to the network. Don‘t worry, even this should not be complicated – the network wizard will give you all the help you need. We‘ll explain the ins and outs of this in the detailed manual later on. For now, we offer just a brief overview (after all, you are still in the „Overview“ chapter), as we do not want to bore anybody. SSID Your WiFi network WiFi network of your neigh... [Rescan] [Wired] [Manual Config] The setup wizard gives you the ability to choose between the cable connection and the wireless WLAN port. If you prefer the cable version, select [Wired]. The setup wizard connects to your router auto- matically and that‘s it – you‘re in! However, if the iRadio is integrated via WLAN, please select your WLAN network on the display. After selecting the desired network, you then have to enter the password to connect to the WLAN. Key: BKSP

abcdefghijklmn opqrstuvwxyz ABC DEFGHIJKLMNOPQR Navigate through the selection in the usual way using the navigation dial, push function and Back button. Whenyouhavenishedenteringthekey,conrm withOK.Youlikewisereachthiseldviathena- vigation dial.1716 NOXON iRadio 300 / 360 There,you‘renishedalready!Justpressthenavigationdialagaintogotothemain menu – and use your NOXON iRadio to plunge into the wonderful world of Internet ra- dio. Note:Werecommendcheckingthedevice‘srmwarefromtimetotimetoensurethatyou have the latest version and to update it if necessary – only in this way can you access the latest functions of your device. We‘ll explain how to do so later on in this manual. Listen and enjoy Afteryouhavesetthedeviceupsuccessfully,the(almost)innitevarietyofInternetradio isatyourngertips. Main menu Internet Radio UPnP Sleep Timer Alarm System settings From the main menu, select „Internet Radio“ and conrmtheselection. Internet Radio Favorits Stations Podcasts myNOXON History In the submenu that follows, navigate to the stati- on of your choice according to your personal tas- te. To accommodate the large number of stations available from around the world, our data- base is conveniently sorted into countries, genres, popular stations etc. and is updated on an ongoing basis.English Nederlands Espanol Italiano Francais DeutschEnglish

Internet radio 09:23 SWR 3 German radio network featuring rock and pop music. To accommodate the large number of stations available from around the world, our database is conveniently sorted into countries, genres, popu- lar stations etc. and is updated on an ongoing ba- sis. Volume

To adjust the volume during playback, use the na- vigation dial or the and keys on the remote control. Have fun with your new NOXON iRadio! Here‘s how to reach NOXON: http://www.noxonradio.de/en/support Support-Hotline: 02157 - 8179141918 NOXON iRadio 300 / 360 Remarques importantes ! Sécurité
